Introduction:
Working in hazardous areas presents a unique set of challenges that require specialized equipment to ensure the safety of personnel and the surrounding environment. Positive Pressure Containers have emerged as an innovative solution to address these challenges effectively. This article explores how Positive Pressure Containers offer a safe and cost-effective means of operation in hazardous areas, reducing risks and enhancing efficiency.
Conclusion:
Positive Pressure Containers offer a comprehensive solution for safe and cost-effective operations in hazardous areas. By establishing a controlled atmosphere, Positive Pressure Containers mitigate the risks associated with explosive environments, protecting workers and equipment from potential harm. Additionally, these containers contribute to increased efficiency by minimizing downtime, reducing repair costs, and enhancing overall productivity. As industries continue to prioritize worker safety and operational excellence, the adoption of Positive Pressure Containers represents a valuable investment in ensuring safe and efficient operations in hazardous environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Intelligent pressurized containers from TLS , please download Offshore pressurised mud logging cabin brochure and MCC | Switchgear | VFD | VSD pressurised shelter for reference.
Working in hazardous areas presents a unique set of challenges that require specialized equipment to ensure the safety of personnel and the surrounding environment. Positive Pressure Containers have emerged as an innovative solution to address these challenges effectively. This article explores how Positive Pressure Containers offer a safe and cost-effective means of operation in hazardous areas, reducing risks and enhancing efficiency.
- Understanding Hazardous Areas:
- The Role of Positive Pressure Containers:
- Enhanced Safety Measures:
- Explosion Protection: Positive Pressure Containers are engineered with explosion-proof construction, employing features such as reinforced walls, explosion relief panels, and spark-resistant fittings. These safety measures ensure that any internal explosion is contained within the container, minimizing the risk of damage and injury.
- Gas Monitoring Systems: Advanced Positive Pressure Containers are equipped with sophisticated gas monitoring systems that continuously detect and monitor the presence of combustible gases or vapors within the container. If any hazardous gases are detected, the system triggers alarms and activates safety measures, allowing workers to take immediate action.
- Ventilation Systems: Positive Pressure Containers incorporate efficient ventilation systems to maintain a constant flow of fresh air, preventing the accumulation of hazardous substances and ensuring a safe working environment. These systems remove any potentially harmful gases or vapors from the container, maintaining a controlled and clean atmosphere.
- Cost-Effective Solutions:
- Reduced Downtime: Traditional methods for working in hazardous areas often require frequent shutdowns for equipment maintenance, inspections, or repairs. Positive Pressure Containers offer a cost-effective alternative by allowing maintenance and servicing tasks to be conducted within the container itself, eliminating the need for equipment removal and reducing downtime significantly.
- Increased Efficiency: Positive Pressure Containers provide a controlled environment, free from external contamination. This controlled atmosphere facilitates precise measurement, sampling, and analysis, enhancing operational efficiency. Additionally, Positive Pressure Containers minimize the risk of equipment damage or malfunction caused by exposure to hazardous substances, resulting in reduced repair costs and increased productivity.
- Flexibility and Mobility: Positive Pressure Containers come in various sizes and configurations, ranging from small enclosures to large-scale containerized units. This versatility enables businesses to select the appropriate size based on their specific requirements. Furthermore, Positive Pressure Containers can be easily transported to different locations, allowing companies to adapt to changing operational needs without significant investments in infrastructure.
Conclusion:
Positive Pressure Containers offer a comprehensive solution for safe and cost-effective operations in hazardous areas. By establishing a controlled atmosphere, Positive Pressure Containers mitigate the risks associated with explosive environments, protecting workers and equipment from potential harm. Additionally, these containers contribute to increased efficiency by minimizing downtime, reducing repair costs, and enhancing overall productivity. As industries continue to prioritize worker safety and operational excellence, the adoption of Positive Pressure Containers represents a valuable investment in ensuring safe and efficient operations in hazardous environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Intelligent pressurized containers from TLS , please download Offshore pressurised mud logging cabin brochure and MCC | Switchgear | VFD | VSD pressurised shelter for reference.
Written by Oliver
- Published on
Designing offshore accommodation modules is a complex and crucial task that demands meticulous attention to detail. The successful implementation of these modules relies on considering various factors, including structural stability, corrosion resistance, safety requirements, and occupant comfort. Let's delve into the key considerations and design principles involved in creating these remarkable living spaces at sea.
In conclusion, the design of offshore accommodation modules requires a comprehensive approach, encompassing structural stability, corrosion resistance, safety considerations, occupant comfort, and customization possibilities. By addressing these key aspects, designers can create exceptional living spaces that harmoniously blend safety, comfort, and functionality, ensuring a remarkable offshore living experience.
- Structural Design and Strength:
- Corrosion Resistance and Waterproofing:
- Safety Requirements:
- Comfort and Functionality:
- Customizability and Sustainability:
In conclusion, the design of offshore accommodation modules requires a comprehensive approach, encompassing structural stability, corrosion resistance, safety considerations, occupant comfort, and customization possibilities. By addressing these key aspects, designers can create exceptional living spaces that harmoniously blend safety, comfort, and functionality, ensuring a remarkable offshore living experience.
- Published on

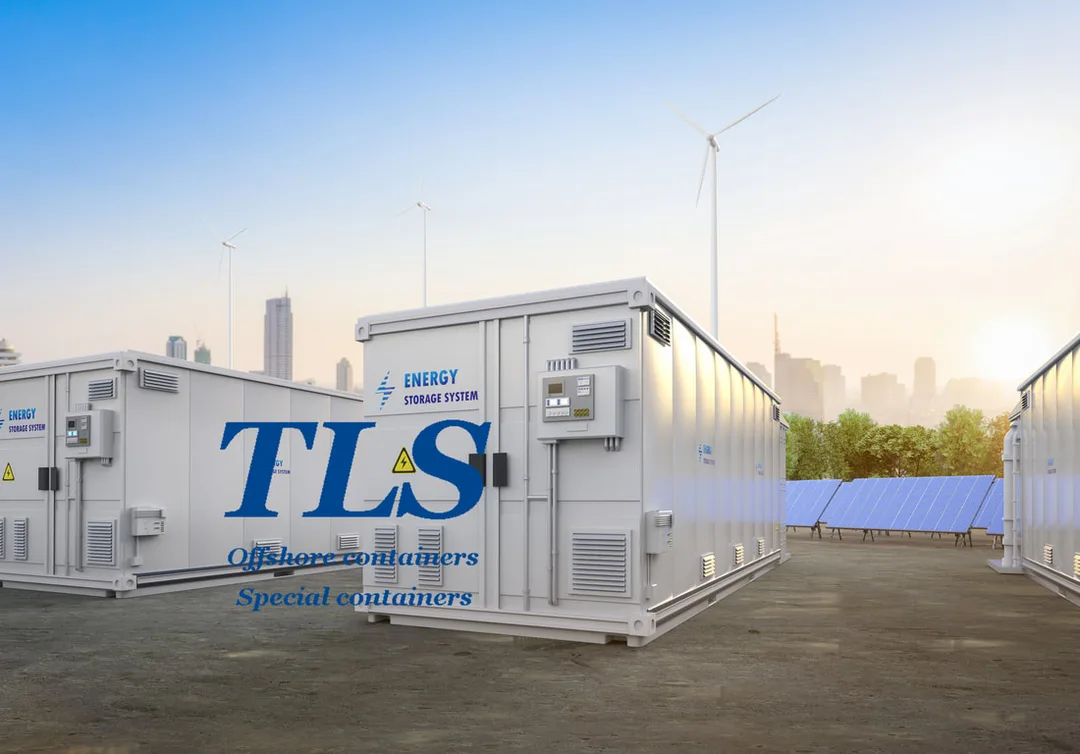

The Battery Energy Storage System (BESS) is a versatile technology, crucial for managing power generation and consumption in a variety of applications. Within these systems, one key element that ensures their efficient and safe operation is the Heating, Ventilation, and Air Conditioning (HVAC) system. It is tasked with maintaining an optimal environment for battery performance, mitigating the risks of overheating, and extending battery life. This article explores the HVAC design considerations for a BESS container, including its power and auxiliary consumption in both standby and operational states, as well as its operational strategy.
**HVAC System Design for BESS Container**
The HVAC system for a BESS container must be meticulously designed to achieve the desired temperature and air volume conditions. This involves the strategic placement of temperature sensors, the calculation of required cooling air volume, and the design of a system that can withstand environmental challenges like dust and sand.
Temperature sensors must be located on the top side of each hot and cold aisle within the BESS container. This positioning ensures accurate temperature readings that reflect the variations in the container, which are critical for controlling the HVAC system.
The HVAC system should also maintain an annual average inlet cooling air temperature of 20℃ or lower, with an allowable fluctuation range of 20±3℃. The daily average inlet cooling temperature, however, should remain at 20℃ or below, to ensure optimal battery performance. Achieving this requires an HVAC system with a robust cooling capacity and an intelligent control mechanism that can adjust the cooling effect as per the temperature variations.
The cooling air volume of a single rack should be equal to or greater than 1280m3/h. This ensures adequate airflow across the battery modules, which aids in heat dissipation and keeps the temperature within the desired range.
Furthermore, the HVAC system must be resistant to dust and sand. This is especially crucial for BESS containers situated in harsh environments, where dust and sand ingress can compromise the efficiency of the HVAC system and, in turn, the BESS's performance.
**Key Features of the HVAC System**
The HVAC system should have intelligent control mechanisms. These mechanisms should be capable of analyzing data from the temperature sensors, adjusting the cooling capacity based on the current temperature, and maintaining the recommended operating temperature of 20±3℃, with an average of 20℃.
In addition, the HVAC system should be capable of operating within a wide voltage range, such as 400Vac, at 50/60Hz. This allows the HVAC system to function effectively in diverse power conditions, ensuring uninterrupted operation of the BESS container.
**HVAC Power and Auxiliary Consumption**
To determine the HVAC power in kilowatts (kW) and auxiliary consumption in kilowatt-hours (kWh), several factors come into play, including the HVAC system design, the type and number of components used, the operating conditions, and the efficiency of the system.
The power of the HVAC system primarily depends on its cooling capacity, which is determined by the cooling load. The cooling load, in turn, depends on factors like the thermal properties of the BESS container, the heat generated by the batteries, and the external environmental conditions.
The auxiliary consumption pertains to the energy used by the HVAC system's components, such as the fans, pumps, and control systems. This consumption varies based on the system's operation, with higher consumption during periods of heavy use and lower consumption during standby.
Since the specific power and auxiliary consumption values depend on these various factors, it is difficult to provide exact figures without detailed information on the HVAC system and the BESS container. However, the goal is to design an HVAC system that optimizes energy usage to meet the cooling requirements without excessive power consumption.
Based on general HVAC system data, an air conditioner can use between 500 to 4,000 watts of electricity, depending on the type of unit. Most central air conditioners use between 3,000 and 4,000 W, and a window AC unit uses between 500 and 1,400 W.
It's essential to note that these systems generally have a lower "running" wattage than their stated wattage as they cycle on and off throughout the day. So, a 3,000-watt central air conditioner may actually use about 1,950 watts each hour, and a 1,000-watt window AC unit will use about 650 watts each hour.
For central AC systems, powering a typical air conditioner for one day uses about 55 kWh of electricity, while a window AC system uses about 15 kWh of electricity for one day.
The above values are for typical residential and commercial settings. The specific values for a BESS container HVAC system could differ based on factors like the thermal properties of the BESS container, the heat generated by the batteries, and the external environmental conditions.
**HVAC Operational Strategy**
The HVAC operational strategy in a BESS container focuses on maintaining optimal temperature conditions, ensuring efficient power usage, and minimizing wear and tear on the system components.
The operational strategy involves regular cycling of the HVAC system, where it turns on and off in response to the temperature readings from the sensors. The system typically cycles on and off 2-3 times each hour for about 15-20 minutes at a time. This approach optimizes energy usage and reduces the risk of overheating.
Another crucial aspect of the operational strategy is the use of intelligent control mechanisms. These mechanisms monitor the data from the temperature sensors and adjust the cooling capacity based on the current temperature. They also maintain the recommended operating temperature of 20±3℃, with an average of 20℃.
In addition to temperature control, the HVAC system also controls the volume of cooling air. The system ensures that the cooling air volume of a single rack is equal to or greater than 1280m3/h, which is essential for adequate heat dissipation.
Lastly, the HVAC system must be capable of operating within a wide voltage range, such as 400Vac, at 50/60Hz. This capability ensures that the HVAC system can function effectively in diverse power conditions, providing uninterrupted operation of the BESS container.
To conclude, the HVAC system is a critical component of a BESS container. Its design and operational strategy significantly impact the performance and longevity of the BESS. By maintaining optimal temperature conditions, ensuring efficient power usage, and being resistant to environmental challenges like dust and sand, the HVAC system helps to optimize the BESS's operation and extend its lifespan.
**HVAC System Design for BESS Container**
The HVAC system for a BESS container must be meticulously designed to achieve the desired temperature and air volume conditions. This involves the strategic placement of temperature sensors, the calculation of required cooling air volume, and the design of a system that can withstand environmental challenges like dust and sand.
Temperature sensors must be located on the top side of each hot and cold aisle within the BESS container. This positioning ensures accurate temperature readings that reflect the variations in the container, which are critical for controlling the HVAC system.
The HVAC system should also maintain an annual average inlet cooling air temperature of 20℃ or lower, with an allowable fluctuation range of 20±3℃. The daily average inlet cooling temperature, however, should remain at 20℃ or below, to ensure optimal battery performance. Achieving this requires an HVAC system with a robust cooling capacity and an intelligent control mechanism that can adjust the cooling effect as per the temperature variations.
The cooling air volume of a single rack should be equal to or greater than 1280m3/h. This ensures adequate airflow across the battery modules, which aids in heat dissipation and keeps the temperature within the desired range.
Furthermore, the HVAC system must be resistant to dust and sand. This is especially crucial for BESS containers situated in harsh environments, where dust and sand ingress can compromise the efficiency of the HVAC system and, in turn, the BESS's performance.
**Key Features of the HVAC System**
The HVAC system should have intelligent control mechanisms. These mechanisms should be capable of analyzing data from the temperature sensors, adjusting the cooling capacity based on the current temperature, and maintaining the recommended operating temperature of 20±3℃, with an average of 20℃.
In addition, the HVAC system should be capable of operating within a wide voltage range, such as 400Vac, at 50/60Hz. This allows the HVAC system to function effectively in diverse power conditions, ensuring uninterrupted operation of the BESS container.
**HVAC Power and Auxiliary Consumption**
To determine the HVAC power in kilowatts (kW) and auxiliary consumption in kilowatt-hours (kWh), several factors come into play, including the HVAC system design, the type and number of components used, the operating conditions, and the efficiency of the system.
The power of the HVAC system primarily depends on its cooling capacity, which is determined by the cooling load. The cooling load, in turn, depends on factors like the thermal properties of the BESS container, the heat generated by the batteries, and the external environmental conditions.
The auxiliary consumption pertains to the energy used by the HVAC system's components, such as the fans, pumps, and control systems. This consumption varies based on the system's operation, with higher consumption during periods of heavy use and lower consumption during standby.
Since the specific power and auxiliary consumption values depend on these various factors, it is difficult to provide exact figures without detailed information on the HVAC system and the BESS container. However, the goal is to design an HVAC system that optimizes energy usage to meet the cooling requirements without excessive power consumption.
Based on general HVAC system data, an air conditioner can use between 500 to 4,000 watts of electricity, depending on the type of unit. Most central air conditioners use between 3,000 and 4,000 W, and a window AC unit uses between 500 and 1,400 W.
It's essential to note that these systems generally have a lower "running" wattage than their stated wattage as they cycle on and off throughout the day. So, a 3,000-watt central air conditioner may actually use about 1,950 watts each hour, and a 1,000-watt window AC unit will use about 650 watts each hour.
For central AC systems, powering a typical air conditioner for one day uses about 55 kWh of electricity, while a window AC system uses about 15 kWh of electricity for one day.
The above values are for typical residential and commercial settings. The specific values for a BESS container HVAC system could differ based on factors like the thermal properties of the BESS container, the heat generated by the batteries, and the external environmental conditions.
**HVAC Operational Strategy**
The HVAC operational strategy in a BESS container focuses on maintaining optimal temperature conditions, ensuring efficient power usage, and minimizing wear and tear on the system components.
The operational strategy involves regular cycling of the HVAC system, where it turns on and off in response to the temperature readings from the sensors. The system typically cycles on and off 2-3 times each hour for about 15-20 minutes at a time. This approach optimizes energy usage and reduces the risk of overheating.
Another crucial aspect of the operational strategy is the use of intelligent control mechanisms. These mechanisms monitor the data from the temperature sensors and adjust the cooling capacity based on the current temperature. They also maintain the recommended operating temperature of 20±3℃, with an average of 20℃.
In addition to temperature control, the HVAC system also controls the volume of cooling air. The system ensures that the cooling air volume of a single rack is equal to or greater than 1280m3/h, which is essential for adequate heat dissipation.
Lastly, the HVAC system must be capable of operating within a wide voltage range, such as 400Vac, at 50/60Hz. This capability ensures that the HVAC system can function effectively in diverse power conditions, providing uninterrupted operation of the BESS container.
To conclude, the HVAC system is a critical component of a BESS container. Its design and operational strategy significantly impact the performance and longevity of the BESS. By maintaining optimal temperature conditions, ensuring efficient power usage, and being resistant to environmental challenges like dust and sand, the HVAC system helps to optimize the BESS's operation and extend its lifespan.
- Published on
An Uninterruptible Power Supply (UPS) is a crucial piece of equipment in any energy system, particularly in Battery Energy Storage Systems (BESS). Given their importance in providing reliable, continuous power, any disruption or failure in the BESS can have significant consequences. Hence, a UPS is critical in ensuring the system's smooth operation, minimising downtime, and protecting sensitive equipment from damage.
The function of a UPS is to provide instantaneous, emergency power to a load when the input power source fails. It achieves this through a secondary power source, usually battery power. The inclusion of a UPS in a BESS container ensures that critical components and communication equipment continue to function, even in the event of a power disruption.
In a BESS container, a 3kVA UPS would typically be provided to cater to the auxiliary requirements of critical and communication equipment. This capacity should be sufficient to power the equipment in the event of a primary power source failure. It should also have enough capacity to provide power for up to an hour, ensuring that there is ample time to restore the primary power source or implement alternative power solutions.
The UPS distribution board (UPS DB) is designed to distribute the backup power from the UPS to the various critical components within the BESS container. These components typically include:
1. **Rack Control Circuit**: This is a crucial part of the BESS, controlling the operation of the battery racks. It monitors the performance of the batteries and manages their charging and discharging. A disruption to the rack control circuit could lead to a failure in managing the battery operation, potentially leading to battery damage or inefficient operation.
2. **MBMU (Master Battery Management Unit)**: The MBMU monitors the battery state, calculates secondary data, implements safety protection, and balances cells. As such, it is vital to ensuring the longevity and safety of the battery system. The MBMU needs to be operational at all times to ensure it can monitor and react to any changes in the battery state.
3. **ETH (Ethernet)**: The Ethernet is a key communication component in the BESS. It allows for communication between the different components of the BESS and external systems, facilitating remote monitoring and control of the BESS. Keeping the Ethernet powered is crucial to maintaining communication and control over the BESS.
4. **PCS Control Circuit**: Power Conversion Systems (PCS) are responsible for converting power between alternating current (AC) and direct current (DC), a critical process in a BESS. The control circuit ensures the PCS operates correctly, so it's essential to keep it powered.
5. **Lighting**: Lighting in the BESS container ensures that technicians can safely and effectively perform maintenance or troubleshooting tasks. In a power outage, maintaining lighting is crucial to ensure safety and allow for any necessary manual intervention.
In summary, a UPS system in a BESS container is a crucial component in ensuring the reliability and robustness of the BESS. By providing a backup power source, it ensures the continuous operation of critical and communication equipment, reducing the risk of system failure, and protecting sensitive equipment from power disruptions. A 3kVA UPS, capable of providing power for up to an hour, should be sufficient to meet the auxiliary requirements of the critical equipment in a BESS container.
The function of a UPS is to provide instantaneous, emergency power to a load when the input power source fails. It achieves this through a secondary power source, usually battery power. The inclusion of a UPS in a BESS container ensures that critical components and communication equipment continue to function, even in the event of a power disruption.
In a BESS container, a 3kVA UPS would typically be provided to cater to the auxiliary requirements of critical and communication equipment. This capacity should be sufficient to power the equipment in the event of a primary power source failure. It should also have enough capacity to provide power for up to an hour, ensuring that there is ample time to restore the primary power source or implement alternative power solutions.
The UPS distribution board (UPS DB) is designed to distribute the backup power from the UPS to the various critical components within the BESS container. These components typically include:
1. **Rack Control Circuit**: This is a crucial part of the BESS, controlling the operation of the battery racks. It monitors the performance of the batteries and manages their charging and discharging. A disruption to the rack control circuit could lead to a failure in managing the battery operation, potentially leading to battery damage or inefficient operation.
2. **MBMU (Master Battery Management Unit)**: The MBMU monitors the battery state, calculates secondary data, implements safety protection, and balances cells. As such, it is vital to ensuring the longevity and safety of the battery system. The MBMU needs to be operational at all times to ensure it can monitor and react to any changes in the battery state.
3. **ETH (Ethernet)**: The Ethernet is a key communication component in the BESS. It allows for communication between the different components of the BESS and external systems, facilitating remote monitoring and control of the BESS. Keeping the Ethernet powered is crucial to maintaining communication and control over the BESS.
4. **PCS Control Circuit**: Power Conversion Systems (PCS) are responsible for converting power between alternating current (AC) and direct current (DC), a critical process in a BESS. The control circuit ensures the PCS operates correctly, so it's essential to keep it powered.
5. **Lighting**: Lighting in the BESS container ensures that technicians can safely and effectively perform maintenance or troubleshooting tasks. In a power outage, maintaining lighting is crucial to ensure safety and allow for any necessary manual intervention.
In summary, a UPS system in a BESS container is a crucial component in ensuring the reliability and robustness of the BESS. By providing a backup power source, it ensures the continuous operation of critical and communication equipment, reducing the risk of system failure, and protecting sensitive equipment from power disruptions. A 3kVA UPS, capable of providing power for up to an hour, should be sufficient to meet the auxiliary requirements of the critical equipment in a BESS container.
- Published on
When it comes to energy storage, selecting the appropriate cooling method is crucial for efficient and reliable operation. Two commonly used options are air-cooled and liquid-cooled systems. In this blog post, we will explore the factors to consider when choosing between them.
Choosing between air-cooled and liquid-cooled energy storage requires a comprehensive evaluation of cooling requirements, cost considerations, environmental adaptability, noise preferences, and scalability needs. By carefully weighing these factors, you can make an informed decision that aligns with your application's specific demands, budget constraints, environmental conditions, and system scale. Ultimately, the right choice will ensure optimal cooling efficiency, system performance, and long-term reliability for your energy storage solution
- Cooling Requirements:
- Cost and Complexity:
- Environmental Adaptability:
- Noise and Maintenance:
- Scalability:
Choosing between air-cooled and liquid-cooled energy storage requires a comprehensive evaluation of cooling requirements, cost considerations, environmental adaptability, noise preferences, and scalability needs. By carefully weighing these factors, you can make an informed decision that aligns with your application's specific demands, budget constraints, environmental conditions, and system scale. Ultimately, the right choice will ensure optimal cooling efficiency, system performance, and long-term reliability for your energy storage solution
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
- Published on
Positive pressure containers are essential safety equipment used in industries operating in explosive environments. Before these containers are shipped, several crucial preparations and tests are conducted to ensure their quality and functionality. This article provides insights into the pre-shipment preparations for positive pressure containers, giving you a better understanding of the measures taken to ensure a safe and reliable product.
- Visual Inspection and Quality Checks:
- Functional Testing of Critical Systems:
- Customization to Meet Specific Needs:
- Documentation and Compliance:
- Final Checks and Packaging:
- Published on
As we navigate the transition to renewable energy, one technology stands as a critical component in this journey: the Battery Energy Storage System (BESS). These systems are not just about storing energy; they represent the backbone of a sustainable energy future, capable of smoothing out the intermittent nature of renewables, providing backup power, and optimizing energy usage. Let's delve into the essential components of a BESS and explore their functions in detail.
## Battery Cells
The heart of any BESS is the battery cells. These are the actual units where energy is stored and later retrieved. The type of battery used can vary depending on the specific requirements of the BESS. Lithium-ion batteries are most commonly used due to their high energy density, long cycle life, and declining cost. However, other types like lead-acid, nickel-cadmium, and emerging solid-state batteries can also be used.
Each type of battery has its strengths and weaknesses. For instance, lead-acid batteries are inexpensive but suffer from a shorter lifespan and lower energy density compared to lithium-ion batteries. Solid-state batteries promise higher energy density and safety but are still in the early stages of commercial development. The choice of battery type should therefore align with the application's needs concerning cost, lifespan, safety, and performance.
## Battery Management System (BMS)
Overseeing the operation of these battery cells is the Battery Management System (BMS). The BMS is a crucial component of the BESS, tasked with maximizing battery performance, prolonging life, and ensuring safe operation. It continuously monitors vital parameters like the state of charge (SOC), state of health (SOH), temperature, and voltage of individual cells or battery packs.
In addition to monitoring, the BMS also controls the charging and discharging processes. It ensures that the batteries are not overcharged or discharged beyond their safe limits, which could lead to reduced battery life or even safety hazards. Furthermore, the BMS performs cell balancing, a process that maintains the charge levels across different cells to ensure optimal performance and extend the battery's overall lifespan.
## Power Conversion System (PCS)
Once the energy is stored in the battery cells, it needs to be converted into a usable form. This is where the Power Conversion System (PCS) comes in. The PCS includes devices like inverters and transformers that convert the direct current (DC) electricity stored in the batteries into alternating current (AC) electricity that can be used by most household appliances and fed into the power grid.
The PCS also works in reverse, converting AC power from the grid or a renewable energy source into DC power that can be stored in the batteries. In essence, the PCS serves as the bridge between the BESS and the external power system, ensuring that power can flow in either direction as needed.
## Energy Management System (EMS)
Sitting above the BMS and PCS in the control hierarchy is the Energy Management System (EMS). The EMS is the brains of the operation, making decisions about when and how much energy should be stored or discharged based on factors like grid conditions, electricity prices, and energy demand.
For example, the EMS might decide to charge the batteries when electricity prices are low, such as during periods of low demand or high renewable generation. Conversely, it might discharge the batteries when prices are high, reducing the cost of electricity for the user or even generating revenue by selling power back to the grid. By making these decisions, the EMS can optimize the financial performance of the BESS and contribute to grid stability.
## Thermal Management System
Batteries can generate a significant amount of heat during charging and discharging, especially during high-power operations. If not properly managed, this heat can lead to reduced battery life or even safety risks like thermal runaway, a
chain reaction that can lead to a fire or explosion.
To prevent these issues, a Thermal Management System (TMS) is incorporated into the BESS. The TMS keeps the batteries within their optimal temperature range, which is typically around 20-25 degrees Celsius for lithium-ion batteries. It may use air or liquid cooling methods, depending on the size and power density of the BESS.
The TMS works in concert with the BMS, which monitors the battery temperatures and signals the TMS to kick in if the temperatures approach their upper limits. By maintaining optimal temperatures, the TMS ensures the safety and longevity of the batteries.
## Structural Components and Auxiliary Systems
The structural components of a BESS include the physical housing for the batteries and other systems. This could be anything from a small cabinet for a residential BESS to a large shipping container or dedicated building for a utility-scale BESS.
Inside this housing, the batteries are typically arranged in racks or modules that can be easily installed, replaced, or serviced. The design of the racks can significantly affect the performance and safety of the BESS, as it influences factors like heat dissipation and accessibility in case of maintenance or emergencies.
Auxiliary systems in a BESS include safety and support systems such as fire suppression systems, ventilation systems, and security systems. These systems are crucial for protecting the BESS and its surroundings, especially given the high energy densities and potential safety risks involved in storing large amounts of energy in a confined space.
## Interconnection Equipment
The final key component of a BESS is the interconnection equipment, which includes switches, circuit breakers, and other devices that connect the BESS to the grid or other electrical systems. This equipment ensures that the power can flow safely and reliably between the BESS and the external power system.
The interconnection equipment also serves as a safety mechanism, isolating the BESS from the grid in case of faults or maintenance activities. Moreover, it enables the BESS to contribute to grid stability by providing ancillary services like frequency regulation and voltage support.
## Conclusion
In sum, a Battery Energy Storage System is a complex assembly of interrelated components, each playing its crucial role in storing and managing energy. As the demand for energy storage continues to grow in our renewable energy-driven future, understanding these components and their functions is vital for anyone interested in the field of energy storage.
## Battery Cells
The heart of any BESS is the battery cells. These are the actual units where energy is stored and later retrieved. The type of battery used can vary depending on the specific requirements of the BESS. Lithium-ion batteries are most commonly used due to their high energy density, long cycle life, and declining cost. However, other types like lead-acid, nickel-cadmium, and emerging solid-state batteries can also be used.
Each type of battery has its strengths and weaknesses. For instance, lead-acid batteries are inexpensive but suffer from a shorter lifespan and lower energy density compared to lithium-ion batteries. Solid-state batteries promise higher energy density and safety but are still in the early stages of commercial development. The choice of battery type should therefore align with the application's needs concerning cost, lifespan, safety, and performance.
## Battery Management System (BMS)
Overseeing the operation of these battery cells is the Battery Management System (BMS). The BMS is a crucial component of the BESS, tasked with maximizing battery performance, prolonging life, and ensuring safe operation. It continuously monitors vital parameters like the state of charge (SOC), state of health (SOH), temperature, and voltage of individual cells or battery packs.
In addition to monitoring, the BMS also controls the charging and discharging processes. It ensures that the batteries are not overcharged or discharged beyond their safe limits, which could lead to reduced battery life or even safety hazards. Furthermore, the BMS performs cell balancing, a process that maintains the charge levels across different cells to ensure optimal performance and extend the battery's overall lifespan.
## Power Conversion System (PCS)
Once the energy is stored in the battery cells, it needs to be converted into a usable form. This is where the Power Conversion System (PCS) comes in. The PCS includes devices like inverters and transformers that convert the direct current (DC) electricity stored in the batteries into alternating current (AC) electricity that can be used by most household appliances and fed into the power grid.
The PCS also works in reverse, converting AC power from the grid or a renewable energy source into DC power that can be stored in the batteries. In essence, the PCS serves as the bridge between the BESS and the external power system, ensuring that power can flow in either direction as needed.
## Energy Management System (EMS)
Sitting above the BMS and PCS in the control hierarchy is the Energy Management System (EMS). The EMS is the brains of the operation, making decisions about when and how much energy should be stored or discharged based on factors like grid conditions, electricity prices, and energy demand.
For example, the EMS might decide to charge the batteries when electricity prices are low, such as during periods of low demand or high renewable generation. Conversely, it might discharge the batteries when prices are high, reducing the cost of electricity for the user or even generating revenue by selling power back to the grid. By making these decisions, the EMS can optimize the financial performance of the BESS and contribute to grid stability.
## Thermal Management System
Batteries can generate a significant amount of heat during charging and discharging, especially during high-power operations. If not properly managed, this heat can lead to reduced battery life or even safety risks like thermal runaway, a
chain reaction that can lead to a fire or explosion.
To prevent these issues, a Thermal Management System (TMS) is incorporated into the BESS. The TMS keeps the batteries within their optimal temperature range, which is typically around 20-25 degrees Celsius for lithium-ion batteries. It may use air or liquid cooling methods, depending on the size and power density of the BESS.
The TMS works in concert with the BMS, which monitors the battery temperatures and signals the TMS to kick in if the temperatures approach their upper limits. By maintaining optimal temperatures, the TMS ensures the safety and longevity of the batteries.
## Structural Components and Auxiliary Systems
The structural components of a BESS include the physical housing for the batteries and other systems. This could be anything from a small cabinet for a residential BESS to a large shipping container or dedicated building for a utility-scale BESS.
Inside this housing, the batteries are typically arranged in racks or modules that can be easily installed, replaced, or serviced. The design of the racks can significantly affect the performance and safety of the BESS, as it influences factors like heat dissipation and accessibility in case of maintenance or emergencies.
Auxiliary systems in a BESS include safety and support systems such as fire suppression systems, ventilation systems, and security systems. These systems are crucial for protecting the BESS and its surroundings, especially given the high energy densities and potential safety risks involved in storing large amounts of energy in a confined space.
## Interconnection Equipment
The final key component of a BESS is the interconnection equipment, which includes switches, circuit breakers, and other devices that connect the BESS to the grid or other electrical systems. This equipment ensures that the power can flow safely and reliably between the BESS and the external power system.
The interconnection equipment also serves as a safety mechanism, isolating the BESS from the grid in case of faults or maintenance activities. Moreover, it enables the BESS to contribute to grid stability by providing ancillary services like frequency regulation and voltage support.
## Conclusion
In sum, a Battery Energy Storage System is a complex assembly of interrelated components, each playing its crucial role in storing and managing energy. As the demand for energy storage continues to grow in our renewable energy-driven future, understanding these components and their functions is vital for anyone interested in the field of energy storage.
- Published on

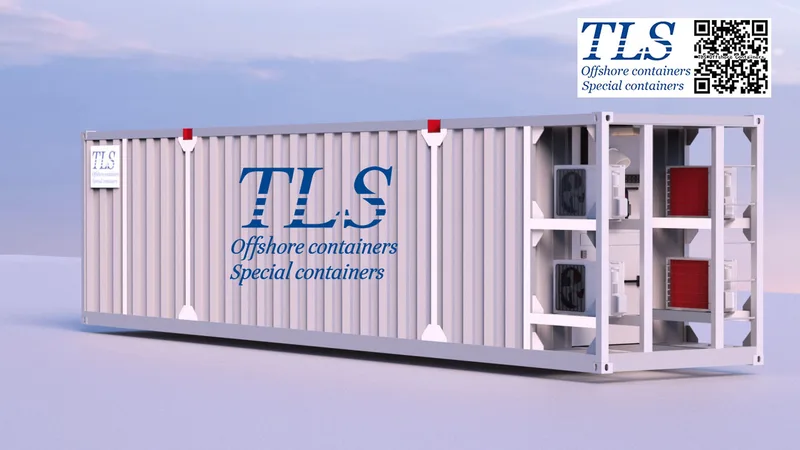

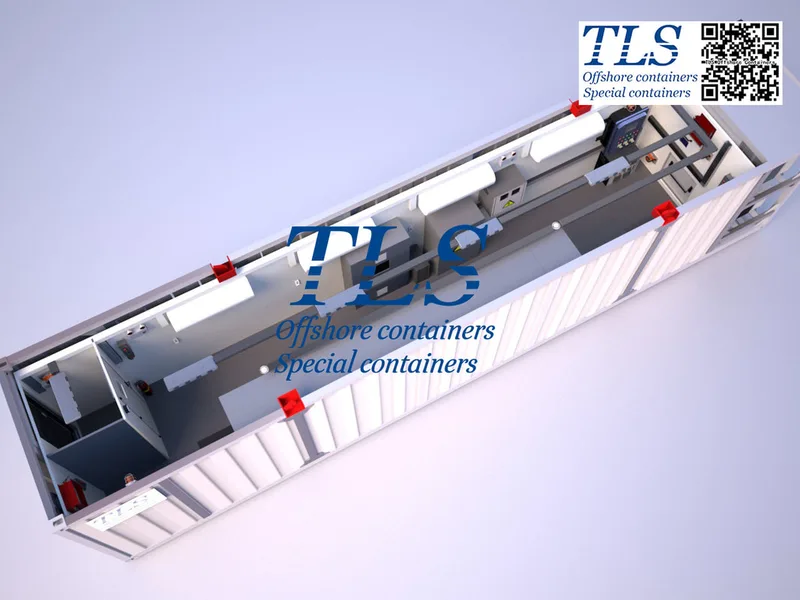

Motor Control Centers (MCCs) are essential facilities that control and monitor electric motors and associated equipment. They serve as centralized control systems, incorporating motor starters, protection devices, control circuits, and instrumentation. To protect MCC equipment from harsh environmental conditions and external interferences, MCC shelters are deployed.These enclosed and fortified rooms or enclosures provide an ideal working environment, safeguarding the MCC systems and ensuring their uninterrupted operation.
MCC shelters play a vital role in ensuring the safety, reliability, and efficiency of motor control centers. By providing physical protection, temperature control, safety measures, and sound isolation, these shelters create an optimal operational environment for MCC systems.With their ability to shield against environmental hazards and external disturbances, MCC shelters offer a secure, dependable, and efficient control center for electric motors. They serve as essential components in protecting and supporting the smooth operation of motor control systems, enabling optimal performance and prolonged equipment lifespan.
TLS switchgear, MCC (motor control centre), MCP (motor circuit protection), VFD (variable frequency driver),VSD (variable speed driver) pressurised shelters are built from the containerized module to protect electronic controls and switch-gear safe from harsh climate, and the gas hazardous atmosphere,especially when the equipment is non explosion proof. The shelter solution will have the equipment (switchgear, MCC, MCP, etc)enclosed in a weatherresistant container with the entrance door for walk-in operation. Modular and flexible design make the shelter available to diverse requirements about the equipment, and the site installation. Standard or customized ISO standard or DNV2.7-1 standard container, sea worthy packing, easily transported by road and sea, to provide better support to overseas customers.
- Environmental Protection:
- Temperature Control:
- Safety Measures:
- Sound Isolation:
MCC shelters play a vital role in ensuring the safety, reliability, and efficiency of motor control centers. By providing physical protection, temperature control, safety measures, and sound isolation, these shelters create an optimal operational environment for MCC systems.With their ability to shield against environmental hazards and external disturbances, MCC shelters offer a secure, dependable, and efficient control center for electric motors. They serve as essential components in protecting and supporting the smooth operation of motor control systems, enabling optimal performance and prolonged equipment lifespan.
TLS switchgear, MCC (motor control centre), MCP (motor circuit protection), VFD (variable frequency driver),VSD (variable speed driver) pressurised shelters are built from the containerized module to protect electronic controls and switch-gear safe from harsh climate, and the gas hazardous atmosphere,especially when the equipment is non explosion proof. The shelter solution will have the equipment (switchgear, MCC, MCP, etc)enclosed in a weatherresistant container with the entrance door for walk-in operation. Modular and flexible design make the shelter available to diverse requirements about the equipment, and the site installation. Standard or customized ISO standard or DNV2.7-1 standard container, sea worthy packing, easily transported by road and sea, to provide better support to overseas customers.
- Published on
Introduction:
In the offshore industry, efficiency and safety are paramount. Companies operating in this demanding environment require specialized equipment that can withstand harsh conditions while maximizing productivity. One such innovation that has revolutionized offshore operations is the offshore workshop container with a lifting beam. This versatile solution not only provides secure storage but also facilitates the handling of large and heavy tooling. In this article, we delve into the benefits and applications of this game-changing container.
Enhanced Storage Capacity:
Offshore workshop containers are designed to accommodate a wide range of tools, equipment, and spare parts required for various offshore operations. These containers come in standardized sizes and can be customized to meet specific storage requirements. With their robust construction and weatherproof features, they provide a secure and protected environment for sensitive tools and equipment.
Seamless Mobility:
The incorporation of a lifting beam in offshore workshop containers adds a new level of mobility and convenience. This feature allows the container to be easily lifted and transported using cranes or other lifting equipment. The lifting beam is designed to withstand heavy loads, ensuring the safe transportation of the container and its contents to different offshore locations as needed. This mobility saves valuable time and effort, enabling rapid deployment and repositioning of tools and equipment.
Handling Large and Heavy Tooling:
One of the primary advantages of the offshore workshop container with a lifting beam is its ability to handle large and heavy tooling with ease. The lifting beam is engineered to provide sufficient load-bearing capacity, allowing for the safe lifting and movement of heavy machinery, equipment, and other bulky items. This feature eliminates the need for additional lifting equipment, reducing operational costs and complexity.
Improved Safety:
Safety is of utmost importance in offshore operations. The integration of a lifting beam in the workshop container enhances safety by reducing the risks associated with manual handling and transportation of heavy tooling. The lifting beam ensures a secure connection between the container and the lifting equipment, minimizing the chances of accidents, drops, or damage during lifting and movement. This feature also protects personnel by reducing their exposure to hazardous lifting operations.
Increased Efficiency:
The offshore workshop container with a lifting beam streamlines offshore operations, leading to increased efficiency. The ease of lifting and transportation allows for swift deployment and repositioning of tools and equipment, minimizing downtime. The container's organized storage system ensures quick and easy access to required items, reducing the time spent searching for tools. The overall efficiency gains translate into cost savings and improved project timelines.
Conclusion:
The offshore workshop container with a lifting beam has revolutionized offshore operations by providing a secure and efficient solution for storing large, heavy tooling. Its enhanced storage capacity, seamless mobility, and ability to handle heavy loads make it an indispensable asset in the offshore industry. Furthermore, the integration of a lifting beam improves safety by reducing manual handling risks. As offshore operations continue to evolve, the offshore workshop container with a lifting beam remains an invaluable tool that maximizes productivity, minimizes costs, and enhances safety in this challenging environment.
Any more information, please download the TLS offshore container / basket brochure for reference.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
#Offshore workshop container #Lifting beam #Large tooling storage #Heavy equipment handling #Offshore operations #Secure storage #Robust construction #Weatherproof features #Customizable containers #Mobility
In the offshore industry, efficiency and safety are paramount. Companies operating in this demanding environment require specialized equipment that can withstand harsh conditions while maximizing productivity. One such innovation that has revolutionized offshore operations is the offshore workshop container with a lifting beam. This versatile solution not only provides secure storage but also facilitates the handling of large and heavy tooling. In this article, we delve into the benefits and applications of this game-changing container.
Enhanced Storage Capacity:
Offshore workshop containers are designed to accommodate a wide range of tools, equipment, and spare parts required for various offshore operations. These containers come in standardized sizes and can be customized to meet specific storage requirements. With their robust construction and weatherproof features, they provide a secure and protected environment for sensitive tools and equipment.
Seamless Mobility:
The incorporation of a lifting beam in offshore workshop containers adds a new level of mobility and convenience. This feature allows the container to be easily lifted and transported using cranes or other lifting equipment. The lifting beam is designed to withstand heavy loads, ensuring the safe transportation of the container and its contents to different offshore locations as needed. This mobility saves valuable time and effort, enabling rapid deployment and repositioning of tools and equipment.
Handling Large and Heavy Tooling:
One of the primary advantages of the offshore workshop container with a lifting beam is its ability to handle large and heavy tooling with ease. The lifting beam is engineered to provide sufficient load-bearing capacity, allowing for the safe lifting and movement of heavy machinery, equipment, and other bulky items. This feature eliminates the need for additional lifting equipment, reducing operational costs and complexity.
Improved Safety:
Safety is of utmost importance in offshore operations. The integration of a lifting beam in the workshop container enhances safety by reducing the risks associated with manual handling and transportation of heavy tooling. The lifting beam ensures a secure connection between the container and the lifting equipment, minimizing the chances of accidents, drops, or damage during lifting and movement. This feature also protects personnel by reducing their exposure to hazardous lifting operations.
Increased Efficiency:
The offshore workshop container with a lifting beam streamlines offshore operations, leading to increased efficiency. The ease of lifting and transportation allows for swift deployment and repositioning of tools and equipment, minimizing downtime. The container's organized storage system ensures quick and easy access to required items, reducing the time spent searching for tools. The overall efficiency gains translate into cost savings and improved project timelines.
Conclusion:
The offshore workshop container with a lifting beam has revolutionized offshore operations by providing a secure and efficient solution for storing large, heavy tooling. Its enhanced storage capacity, seamless mobility, and ability to handle heavy loads make it an indispensable asset in the offshore industry. Furthermore, the integration of a lifting beam improves safety by reducing manual handling risks. As offshore operations continue to evolve, the offshore workshop container with a lifting beam remains an invaluable tool that maximizes productivity, minimizes costs, and enhances safety in this challenging environment.
Any more information, please download the TLS offshore container / basket brochure for reference.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
#Offshore workshop container #Lifting beam #Large tooling storage #Heavy equipment handling #Offshore operations #Secure storage #Robust construction #Weatherproof features #Customizable containers #Mobility
Written by Oliver
- Published on
Introduction:
As the global market continues to expand and interconnect, the transportation of perishable goods over long distances has become increasingly vital. To ensure the freshness and quality of these products, choosing the right refrigerated shipping container is of paramount importance. This comprehensive guide will delve into the intricate details of selecting the ideal container for your specific needs, providing you with valuable insights and guidance.
Section 1: Essential Considerations for Choosing a Refrigerated Shipping Container
1. Product Type and Temperature Requirements:
2. Temperature Range:
3. Product Dimensions and Weight:
4. Transit Time:
5. Shipping Regulations and Requirements:
Section 2: Exploring Different Types of Refrigerated Transport Containers
1. Refrigerated Containers:
2. Insulated Containers:
3. Refrigerated Trailers:
4. Cryogenic Containers:
Section 3: Additional Features to Consider
1. Cooling Unit Types:
2. Insulation Thickness:
3. Flooring and Ventilation Options:
4. Security Features:
Conclusion:
Selecting the perfect refrigerated shipping container for your perishable goods involves a comprehensive assessment of factors like product type, temperature requirements, dimensions, transit time, shipping regulations, container types, additional features, and supplier reliability. By meticulously considering these elements, you can ensure the safe and efficient transport of your perishable products, preserving their quality and freshness until they reach their final destination. Remember to conduct thorough research, seek recommendations, and engage with trusted suppliers to make an informed decision that aligns with your specific needs.
Any more information, please download TLS offshore reefer containers brochure for your reference
TLS is an international supplier that can customize onshore | offshore special containerised solutions,Any requirements, please contact us directly:
E-mail: sales@tls-containers.com
Hotline: +65-65637288; +65-31386967
#Refrigerated shipping container #Perishable goods #Temperature control #Product requirement #Transit time #Shipping regulations #Container type #Temperature range #Insulation thickness #Cooling unit type
As the global market continues to expand and interconnect, the transportation of perishable goods over long distances has become increasingly vital. To ensure the freshness and quality of these products, choosing the right refrigerated shipping container is of paramount importance. This comprehensive guide will delve into the intricate details of selecting the ideal container for your specific needs, providing you with valuable insights and guidance.
Section 1: Essential Considerations for Choosing a Refrigerated Shipping Container
1. Product Type and Temperature Requirements:
- Understand the unique temperature needs of different perishable products, such as seafood, meat, fruits, and vegetables.
- Consider the specific temperature range required to maintain product freshness and compliance with regulations.
2. Temperature Range:
- Evaluate the precise temperature range necessary for your product, accounting for regulatory standards and quality preservation.
- Familiarize yourself with industry-specific temperature guidelines to ensure optimal conditions throughout the journey.
3. Product Dimensions and Weight:
- Take into account the size and weight of your perishable goods to determine the appropriate container size.
- Consider space utilization and load capacity to optimize efficiency and minimize costs.
4. Transit Time:
- Longer transit times necessitate containers with enhanced temperature control capabilities.
- Assess the container's ability to maintain a consistent temperature throughout the entire journey to prevent spoilage.
5. Shipping Regulations and Requirements:
- Research and comply with international shipping regulations and customs requirements of the destination countries.
- Ensure the selected shipping container adheres to necessary certifications and standards.
Section 2: Exploring Different Types of Refrigerated Transport Containers
1. Refrigerated Containers:
- Discover the versatility of containers equipped with built-in refrigeration units suitable for a wide temperature range.
- Assess the various sizes and loading options available for transportation by trucks, ships, or trains.
2. Insulated Containers:
- Understand the benefits of containers reliant on insulation for short-term temperature maintenance.
- Consider their suitability for products requiring a temperature range of -5°C to 5°C (23°F to 41°F).
3. Refrigerated Trailers:
- Explore the convenience of refrigerated trailers attached to trucks for road transport.
- Evaluate their effectiveness in maintaining the desired temperature range during the journey.
4. Cryogenic Containers:
- Delve into the realm of specialized containers capable of achieving extremely low temperatures using liquid nitrogen or carbon dioxide.
- Recognize their significance for transporting medical samples, laboratory specimens, and specific food items.
Section 3: Additional Features to Consider
1. Cooling Unit Types:
- Compare mechanical, absorption, and vapor compression devices to identify the most suitable option for your products.
2. Insulation Thickness:
- Assess the insulation thickness of containers to ensure optimal temperature control while considering the additional weight it may add.
3. Flooring and Ventilation Options:
- Consider the impact of different floor types and ventilation systems on airflow and temperature distribution within the container.
4. Security Features:
- Evaluate the necessity of advanced security measures, such as locking mechanisms and tracking devices, to safeguard valuable or sensitive goods during transportation.
Conclusion:
Selecting the perfect refrigerated shipping container for your perishable goods involves a comprehensive assessment of factors like product type, temperature requirements, dimensions, transit time, shipping regulations, container types, additional features, and supplier reliability. By meticulously considering these elements, you can ensure the safe and efficient transport of your perishable products, preserving their quality and freshness until they reach their final destination. Remember to conduct thorough research, seek recommendations, and engage with trusted suppliers to make an informed decision that aligns with your specific needs.
Any more information, please download TLS offshore reefer containers brochure for your reference
TLS is an international supplier that can customize onshore | offshore special containerised solutions,Any requirements, please contact us directly:
E-mail: sales@tls-containers.com
Hotline: +65-65637288; +65-31386967
#Refrigerated shipping container #Perishable goods #Temperature control #Product requirement #Transit time #Shipping regulations #Container type #Temperature range #Insulation thickness #Cooling unit type
