 Direct answer



An offshore functional container is more than a standard box with equipment added later. Its dimensions, internal arrangement, structural provisions and service interfaces need to reflect the equipment it will house and the way the unit will be transported, installed and used. TLS designs and manufactures the container enclosure, coordinating agreed equipment positions and interface provisions with the customer’s requirements. The customer or its appointed vendors supply and integrate the process equipment and systems.



 Start with the equipment’s role in the project



Offshore containers can serve very different purposes: a laboratory, workshop, control room, generator space or equipment room. The label alone does not determine the design. What matters is the equipment to be installed, the space people need to work around it, and how the container connects with the wider project.

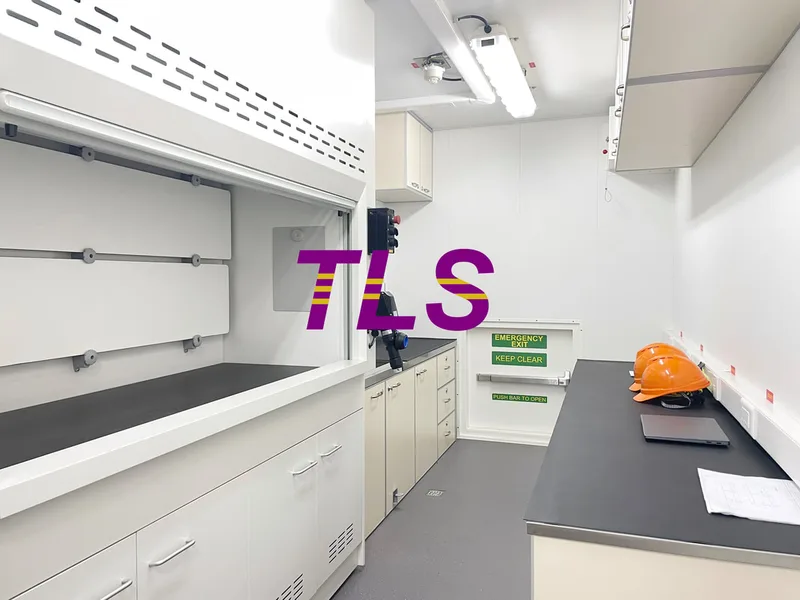

For example, a laboratory container may need prepared locations for benches and customer-supplied instruments. A workshop may need clear working and access areas around machinery. An equipment room may require planned cable entries and mounting provisions. Each use leads to a different enclosure arrangement, even when the external container format is similar.



TLS’s offshore functional-container range includes laboratory, workshop, crane-support, generator, ROV/control and equipment containers. The company describes project-specific layouts, equipment loads, operating environments and certification needs as design inputs. ([TLS Offshore Workshop, Laboratory and Equipment Containers]



 Make the container fit the equipment and its interfaces



The equipment list affects more than the floor plan. Weight and centre of gravity, footprint, access for maintenance, cable routes, openings and connection points can all influence the container design. Identifying these requirements early helps coordinate the enclosure with the equipment supplier’s installation needs.



This coordination can include equipment locations, mounting arrangements, cable or pipe entries, space for customer-specified systems, and access for operation or servicing. The exact provisions depend on the project drawings and agreed supply boundary. A reserved opening or interface should not be mistaken for the equipment or system itself being included.



TLS supplies the container enclosure and the provisions defined for that container scope. Process equipment, laboratory instruments, workshop tools, generator packages, control systems and other customer equipment are supplied by the customer or its appointed vendors unless a different scope is expressly agreed. Clear interface drawings help each party understand what is prepared in the enclosure and what must be installed by others.



 Design for offshore handling and the final location



An offshore functional container needs to suit its transport and installation route as well as its permanent duty. Lifting and handling requirements, equipment loads, environmental exposure and the final site arrangement all need to be considered together. Internal equipment positions can affect structural loading and handling, so late changes to the equipment arrangement may require the container design to be reviewed.



The applicable offshore-container and project requirements should be established for the specific unit. TLS lists DNV 2.7-1, NORSOK, ATEX/IECEx and SOLAS/IMO among requirements that may apply to its functional containers, depending on the project. The relevant standards and certification scope must be confirmed for the intended installation; a list of possible standards is not a claim that every container carries every certification. ([TLS functional-container information]



 Why early coordination reduces site complications



When equipment positions, access, openings and connection points are coordinated before fabrication, the container is more likely to arrive ready for the customer’s installation work. It can reduce avoidable changes such as relocating an entry, adjusting a mounting point or resolving a clash between equipment and an access route after delivery.



This does not remove the need for the customer’s equipment vendors to complete their own installation and system checks. It gives the project a defined physical interface between the enclosure and the systems that will be installed inside it. The container drawings, equipment data and responsibility matrix should describe that interface clearly.



 A container engineered around its project role



The value of an offshore functional container lies in how well the enclosure supports its intended role. A project-specific layout, suitable structural provisions and well-coordinated interfaces give customer equipment a defined place within a transportable offshore structure. TLS focuses on engineering and manufacturing that enclosure to the agreed project requirements, while the customer and its vendors provide the equipment and systems that make it operational.



FAQ

What is an offshore functional container?

It is an offshore container designed for a defined use such as laboratory work, workshop activities, control, power generation or equipment housing.



Does TLS supply the equipment installed inside the container?

TLS supplies the container enclosure and agreed provisions. The customer or its appointed vendors supply the process equipment and systems unless the contract defines another scope.



Can the enclosure be designed around customer equipment?

Yes. Equipment dimensions, weights, locations, access needs and connection requirements can inform the container design and interface provisions.



Which standards apply?

Requirements such as DNV 2.7-1, NORSOK, ATEX/IECEx or SOLAS/IMO may be specified depending on the project and intended installation. Applicability and certification scope are confirmed for each unit.



Why define interface points before fabrication?

Early coordination helps align equipment positions, access, openings and connections with the enclosure, reducing the chance of avoidable modifications after delivery.

Summary

A negative pressure container maintains a lower internal pressure than the surrounding environment so that air flows inward when a door opens, or a small leakage path is present. Its purpose is containment: reducing the uncontrolled escape of hazardous vapours, gases, dust or other airborne contaminants generated inside the module.


Negative pressure is not a complete safety solution by itself. The exhausted air must be captured, filtered, treated or discharged to a verified safe location according to the hazard. The module also requires suitable air inlets, ventilation rates, pressure monitoring, alarms, electrical equipment, process extraction, emergency logic and host-facility interfaces. Selection should begin with the substance and release scenario, not with a target pressure copied from another project.


What Is a Negative Pressure Container?

A negative pressure container is a controlled workspace in which mechanical exhaust removes more air than is supplied. The resulting pressure differential causes replacement air to enter through designated inlets and access points, establishing airflow from the surrounding area into the contained space.


This arrangement is useful when the primary risk originates inside the module and must be prevented from spreading to adjacent work areas. Typical applications include:

  • chemical or sample-handling laboratories;
  • mud laboratories and analytical cabins;
  • dust sampling or material handling modules;
  • industrial processes that release vapour, odour or airborne particles; and
  • other project-specific containment workspaces.

The term “negative pressure” describes airflow direction. It does not, by itself, confirm biological containment level, hazardous-area suitability, filtration performance or safe exhaust discharge.


How Does a Negative Pressure System Work?

A complete system controls the path of air from entry to discharge:

  1. Replacement air enters through defined inlets or a controlled supply system;
  2. airflow moves from cleaner areas toward the work or release zone;
  3. local extraction captures contaminants close to their source where practicable;
  4. the general exhaust maintains the required room pressure and ventilation rate;
  5. filters, scrubbers or other treatment devices are selected for the specific contaminant;
  6. the discharge point is positioned and assessed to prevent exposure or re-entry; and

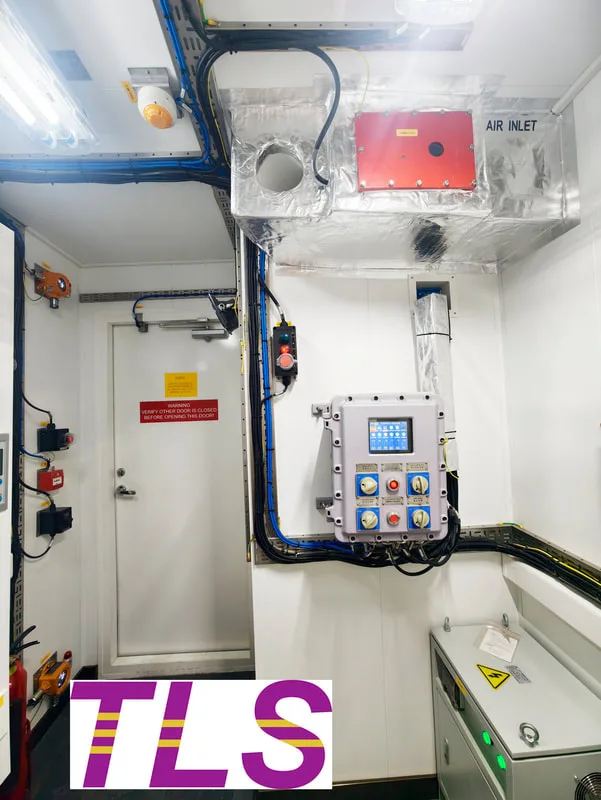

  7. pressure, airflow and gas conditions are monitored, with alarms and emergency actions if control is lost.

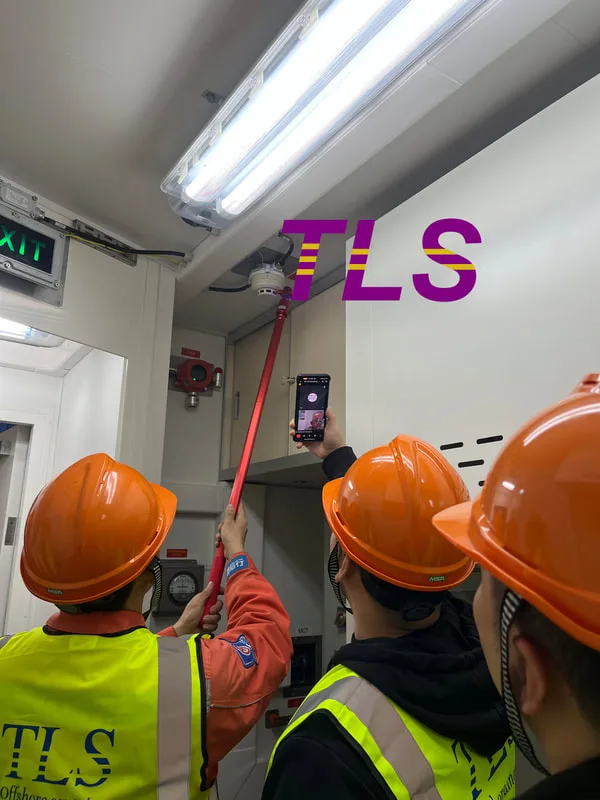

Room pressure is only one performance indicator. A pressure reading can remain negative even if a fume hood is not capturing properly, a filter is saturated or the exhaust is discharged to an unsafe location. Commissioning and periodic testing must therefore verify airflow direction, capture performance, alarm functions and the complete exhaust path.


When Should a Project Choose Negative Pressure?

Negative pressure is generally appropriate when the surrounding environment can safely provide replacement air and the significant airborne hazard is produced inside the module. The purpose is to keep that internal hazard from escaping into nearby occupied areas.


It may not be appropriate as a standalone strategy when the external atmosphere itself can contain flammable or toxic gas. In that situation, inward airflow can draw the external hazard into the module. A project with both external and internal hazards needs a more detailed concept, which may use zoning within the module, airlocks, source capture, treated supply air, specialized equipment or another engineered arrangement.


The correct pressure strategy must be determined through the project risk assessment. Positive pressure excludes an external hazard; negative pressure contains an internal hazard. Neither principle should be selected merely because a similar module used it.


What Must Happen to the Exhausted Air?

Air removed from a negative pressure container cannot automatically be released to the surrounding environment. The required treatment depends on the substance, concentration, release rate and applicable environmental and occupational requirements.


The design may require:

  • particulate filtration selected for the particle size and loading;
  • activated carbon or another adsorbent for compatible vapours;
  • wet or dry scrubbing for specified chemicals;
  • dedicated ducting for a fume hood or process enclosure;

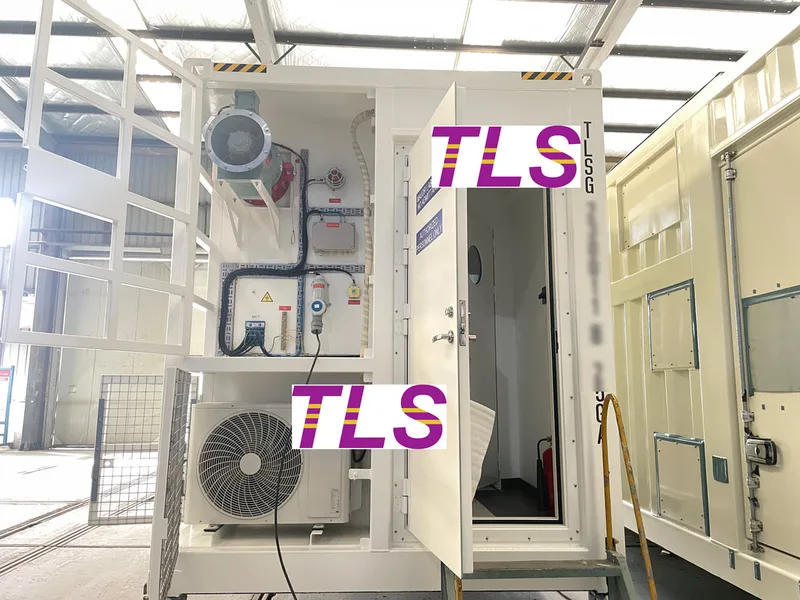

  • explosion-protected fans and duct components where a flammable atmosphere can occur;
  • safe discharge height and location based on dispersion and air-intake positions;
  • differential-pressure monitoring across filters;
  • safe filter change-out, isolation and disposal procedures; and
  • sampling points or emissions monitoring where required.


HEPA filtration is designed for particles; it is not a universal treatment for gases or vapours. Likewise, activated carbon is contaminant-specific and has a finite capacity. The treatment train must be selected by qualified process, industrial hygiene and environmental specialists using actual substance data.


What Safety Systems May Be Required?

TLS negative pressure configurations can be developed around the process and project requirements. Depending on the agreed design, a module may include:

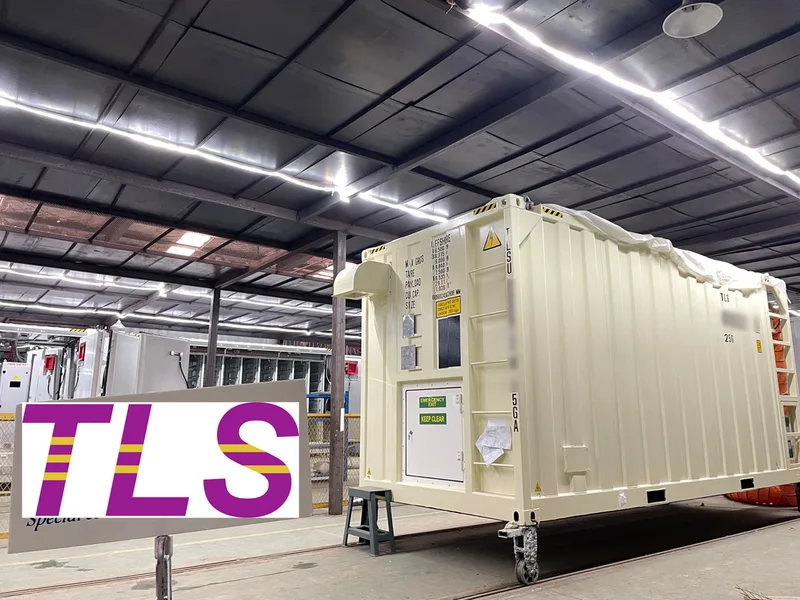

  • a weather-resistant offshore or onshore container structure;
  • DNV 2.7-1/EN 12079 certification or CSC plating where specified;

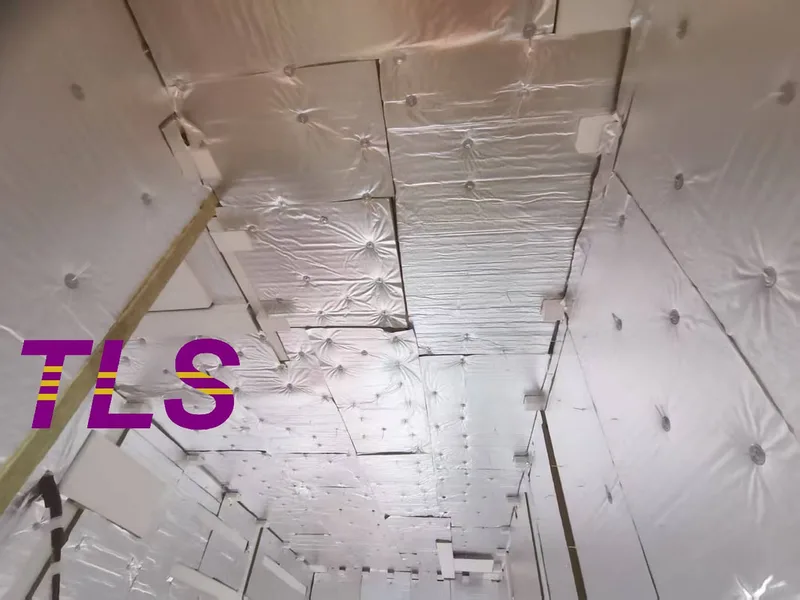

  • A-0 or A-60 fire-rated boundaries;
  • duty and emergency exhaust fans;
  • controlled make-up air and pressure monitoring;
  • gas, fire and smoke detection;

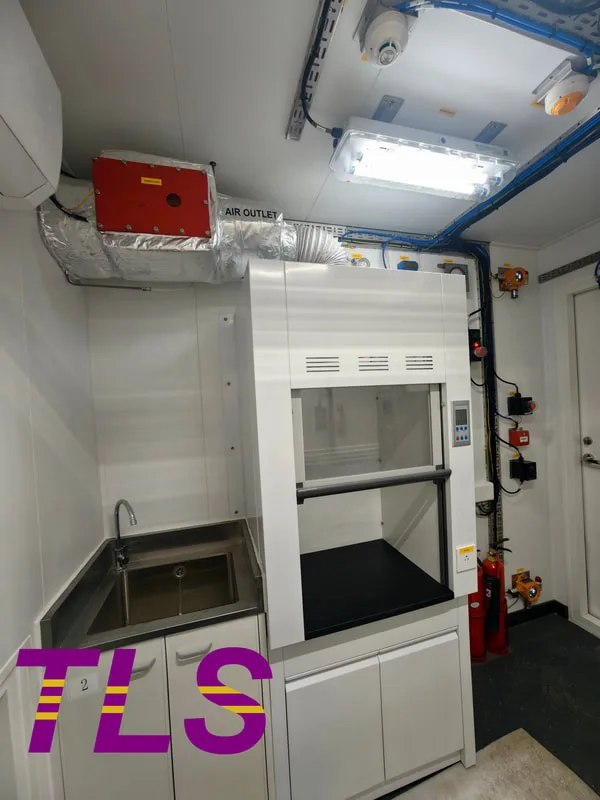

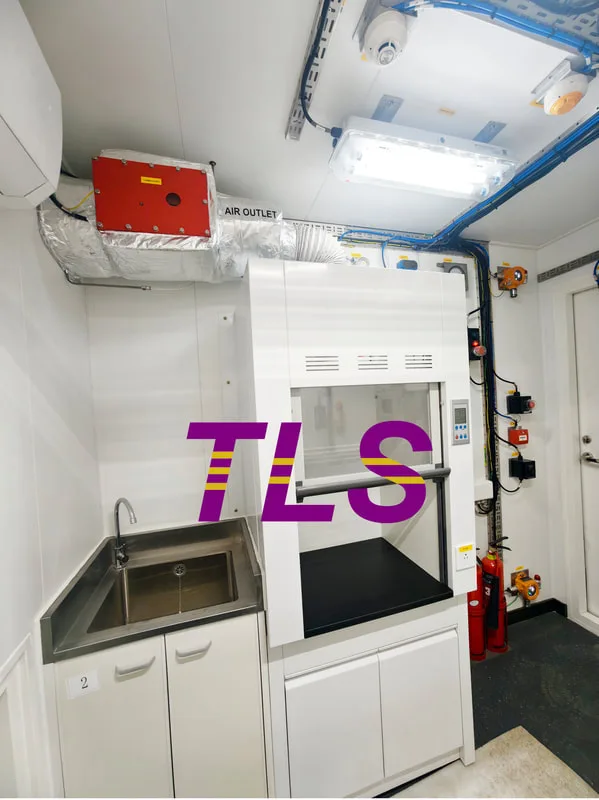

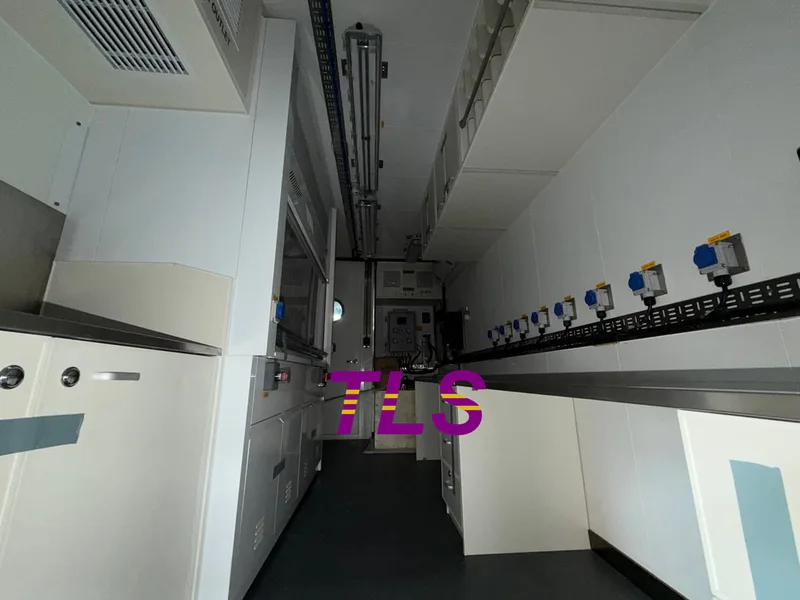

  • local extraction or an explosion-proof fume hood;

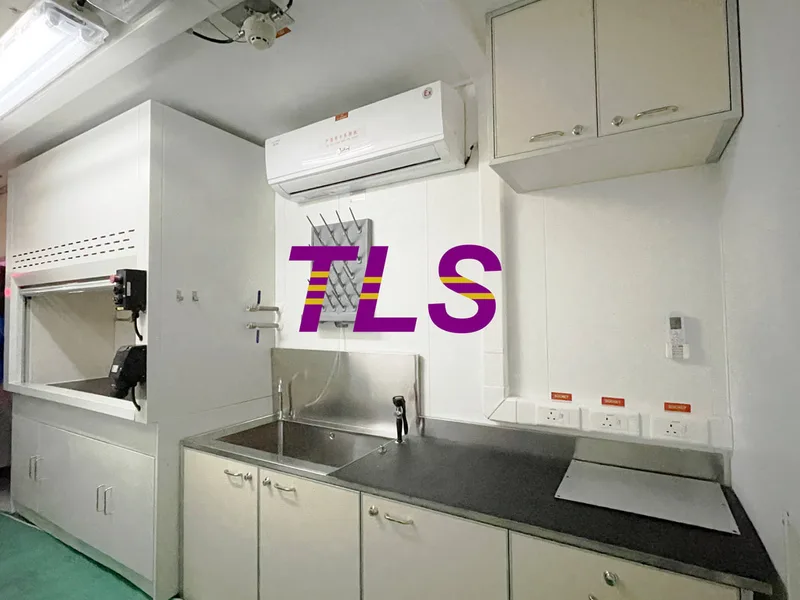

  • acid- and alkali-resistant, anti-static work surfaces;

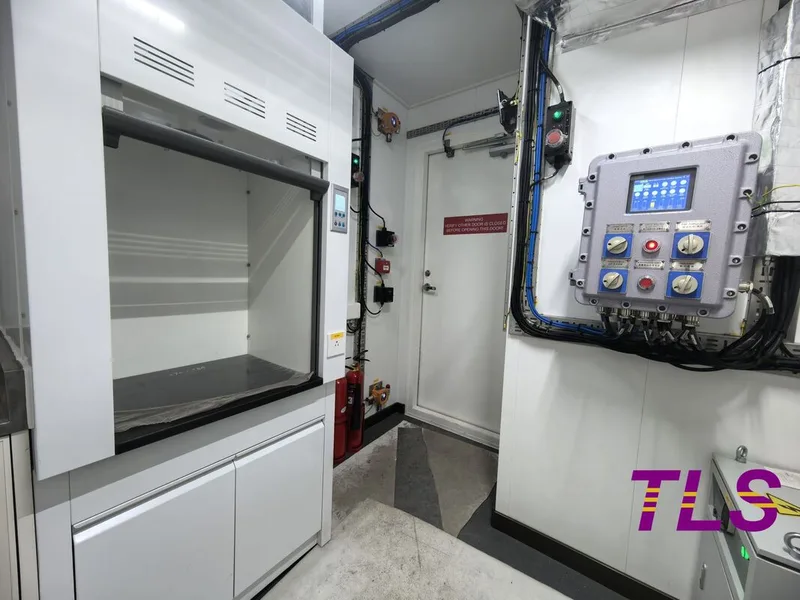

  • Ex-rated lights, switches, sockets, cabling and fans where required;
  • HVAC, water, drainage, compressed air, data and communication interfaces;
  • emergency lighting, emergency stop, eye wash or safety shower; and
  • alarms, shutdowns and connections to the host control system.

These are possible project features, not an automatic package. A negative pressure set point, fan arrangement or shutdown sequence used on one TLS project should not be applied to another without verifying the hazard and airflow calculations.


How Should Normal and Emergency Modes Be Defined?

Some TLS negative pressure laboratory projects use separate normal and emergency exhaust modes. A smaller fan can maintain routine containment, while a larger Ex-rated fan starts following specified gas detection. The control system can then alarm or isolate power if the gas condition does not recover.


This is a useful reference architecture, but the published pressure figures and alarm delays from a previous configuration are not universal design values. The project must define:

  • the substances to be detected and their sensor locations;
  • normal and credible maximum release rates;
  • required air changes and source-capture velocity;
  • normal, low-pressure and emergency alarm thresholds;
  • fan duty, redundancy and power availability;
  • safe state following fan failure, high gas, fire or power loss;
  • which electrical loads remain energized during an emergency;
  • conditions for automatic or manual restart; and
  • how exhaust treatment performs at both normal and emergency flow.

Emergency exhaust can increase containment but can also overload filters, disturb fume-hood balance or create excessive door forces. All modes must be calculated, tested during FAT and verified after installation.


What Do DNV 2.7-1, A-60 and Hazardous-Area Standards Cover?

Different requirements control different parts of the module.

DNV 2.7-1 and EN 12079

DNV-ST-E271, commonly called DNV 2.7-1, addresses offshore container structure, manufacturing, testing, marking, inspection and lifting sets. EN 12079 is also commonly specified. These standards do not determine the correct containment pressure, filter efficiency or exhaust treatment.


A-60 fire protection

A-60 relates to the integrity and insulation performance of a specified fire boundary assembly. Doors, dampers, ducts, penetrations and joints must maintain the required boundary. Fire rating does not establish biological containment or gas-removal performance.


IECEx, ATEX and IEC 60079

If a flammable atmosphere can exist inside the module or exhaust system, the area classification and equipment protection requirements must be defined. The IEC 60079 framework addresses equipment and installations in explosive atmospheres. IECEx or ATEX conformity may be requested depending on the jurisdiction and project, but the exact zone, gas or dust group, temperature class, protection concept and certificate scope must be stated.


How Is a Negative Pressure Laboratory Different from a Biosafety Laboratory?

Negative room pressure is one containment feature used in some biological facilities, but it does not create a biosafety laboratory by itself. Biosafety classification also depends on facility design, work practices, primary containment equipment, decontamination, waste handling, personnel procedures, filtration and validation.


Buyers should not describe a container as a particular biosafety level unless the complete facility and operating program have been designed and assessed against the applicable national or international requirements. A project handling infectious material requires specialist biosafety input beyond a standard industrial laboratory specification.


What Should Buyers Define Before Requesting a Quotation?

A useful enquiry should include:

  1. Process and substances: names, safety data, physical form, toxicity, flammability, particle size and occupational or environmental limits.
  2. Release scenarios: routine emission, maximum credible release, duration, temperature and location within the module.
  3. Containment objective: personnel protection, environmental protection, cross-contamination control or a combination.
  4. External environment: whether hazardous gas, dust or contamination can be present outside the module.
  5. Installation: offshore platform, vessel, drilling site, mine, plant or another host facility, with the exact location.
  6. Required approvals: DNV 2.7-1/EN 12079, CSC, A-0/A-60, IECEx, ATEX, class, client or regulatory requirements.
  7. Ventilation criteria: pressure range, air changes, source-capture requirements, diversity, fan redundancy and noise limits.
  8. Exhaust treatment: filters, scrubbers, monitoring, safe change-out, waste route and discharge location.
  9. Detection and control: gases, detector locations, alarm levels, fan sequencing, power isolation, host alarms and recovery logic.
  10. Electrical classification: internal and external zone, gas or dust group, temperature class, voltage, frequency, load and earthing.

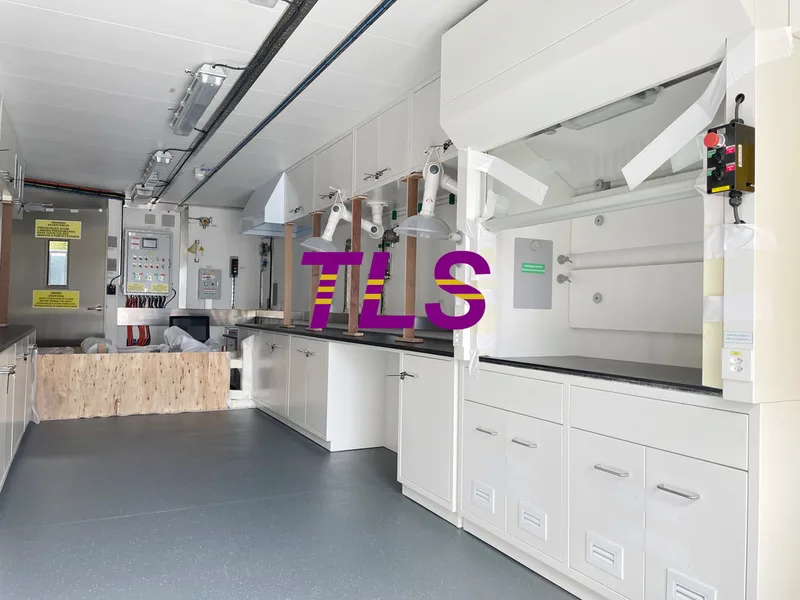

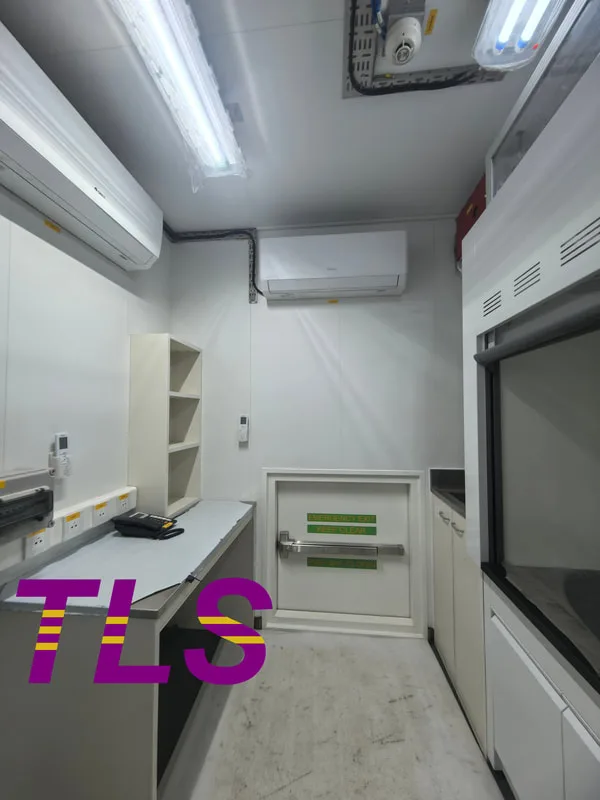

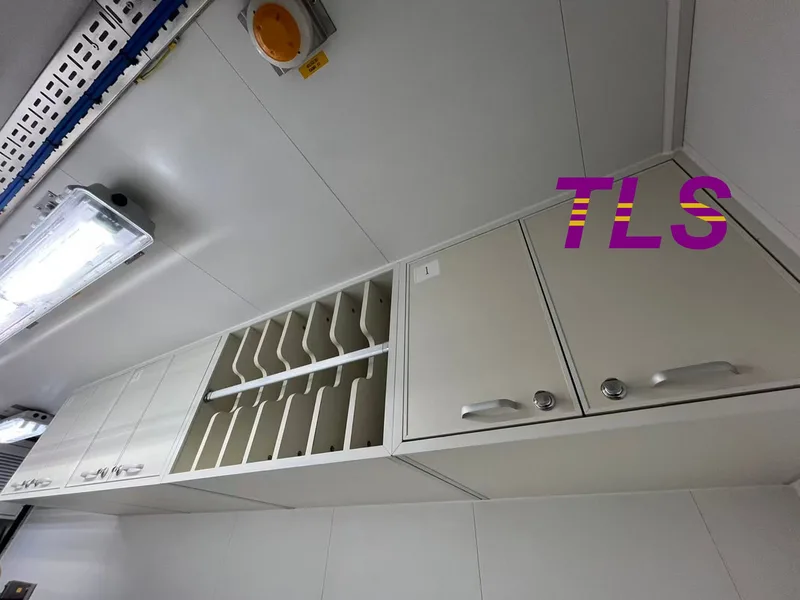

  11. Laboratory layout: fume hoods, benches, cabinets, sinks, eye wash, safety shower, sample routes and clean/dirty workflow.
  12. Utilities: clean make-up air, power, water, drainage, compressed air, network and communications.
  13. Transport and installation: module size, weight, lifting, deck loading, tie-down, stacking and maintenance access.
  14. Testing and validation: airflow visualization, pressure tests, hood testing, alarm simulation, filter integrity, FAT, commissioning and periodic recertification.


Frequently Asked Questions

Does negative pressure remove hazardous gases?

No. It controls airflow direction and helps contain airborne hazards. The exhaust system must still capture and safely treat or discharge the contaminant.


Is a stronger negative pressure always safer?

No. Excessive pressure can make doors difficult to operate, disrupt local extraction, increase leakage through unintended paths and overload the exhaust system. The set point must be justified by the containment and ventilation design.


Can a negative pressure container be installed in Zone 1 or Zone 2?

Only with a project-specific design. Because negative pressure draws outside air inward, the external hazardous atmosphere and internal ignition sources must be carefully assessed. Suitable Ex equipment and a different airflow or zoning concept may be required.


Does a HEPA filter remove chemical vapours?

Generally, no. HEPA filters capture particles. Chemical gases and vapours require treatment selected for their properties, such as compatible adsorption or scrubbing systems.


Is every TLS negative pressure container DNV 2.7-1 and A-60 certified?

No. TLS can provide offshore and fire-rated configurations, but the exact certification, fire boundary and equipment scope must be specified and confirmed for the purchased module.


What is the most important first question?

Identify what must be contained, how much can be released and where the exhaust can be safely treated or discharged. Those answers determine the airflow, equipment, monitoring and approval strategy.


Request a Project-Specific Negative Pressure Container Review

TLS Offshore Containers supplies customized laboratory, mud lab and industrial containment modules for offshore and onshore applications. Send TLS the substances and process description, release scenarios, external area classification, containment objective, required certification, exhaust-treatment requirements, utilities and target delivery schedule.


Contact TLS Offshore Containers to request a preliminary technical review or quotation.

Further reading:

• TLS: when negatively pressurized containers are required

• Please download the Laboratory container brochure for reference.


Summary

Negative pressure lab containers protect offshore personnel and marine ecosystems by ensuring that internal atmospheric pressure remains lower than the surrounding external environment. This pressure differential creates a continuous inward airflow (vacuum effect) that prevents hazardous chemicals, toxic vapors, or biological pathogens from escaping into offshore platform living quarters or the marine atmosphere.


To maintain certified containment in harsh maritime environments, these units rely on continuous differential pressure monitoring, specialized air filtration, and strict lifecycle inspections compliant with international maritime safety standards (such as DNV 2.7-1 / EN 12079).


Technical Mechanism of Negative Pressure Containment

A negative pressure laboratory operates on a controlled differential pressure gradient to ensure hazardous substances remain trapped within the physical enclosure:

  • Inward Airflow Dynamics: Exhaust fans actively pull air out of the enclosure through specialized filtration systems at a rate higher than fresh air intake. This creates a lower ambient pressure zone (Internal Pressure < External Pressure) inside the container.
  • Containment Defense: If an enclosure seal, door, or gasket is momentarily compromised, external air rushes inward into the lab, rather than allowing volatile fumes or airborne contaminants to escape outward.
  • Contaminant Removal: Exhaust air is processed through multi-stage filtration—typically including HEPA or activated carbon filters—to neutralize chemical gases or particulate hazards before discharging into the atmosphere.


Core Safety and Operational Functions of Offshore Lab Containers

Deploying engineered negative pressure containers on remote offshore platforms satisfies five critical operational objectives:

  • Prevention of Cross-Contamination: Prevents volatile compounds, drilling fluid fumes, and testing chemicals from migrating into platform living quarters or non-hazardous work zones.
  • Occupational Health Protection: Eliminates worker exposure to invisible airborne hazards in isolated environments where emergency medical evacuations are difficult and costly.
  • Environmental Safeguarding: Acts as an impenetrable barrier preventing toxic discharge, chemical leaks, or biological hazards from reaching the marine ecosystem.
  • Protection of High-Value Instrumentation: Shields sensitive laboratory equipment from external salt spray, extreme humidity, high winds, and structural vibrations inherent to deep-sea platforms.
  • Downtime Mitigation: Proactive inspection of container integrity, sensors, and door seals prevents micro-failures that could lead to unscheduled platform shutdowns.


Critical Inspection Protocols for Offshore Negative Pressure Containers

To ensure full operational safety and regulatory compliance, negative pressure containers undergo regular verification across four main engineering categories:

  • Airtightness and Seal Verification: Physical testing of structural welds, door gaskets, cable transits, and hatch seals to confirm zero unmonitored leakage paths.
  • Pressure Sensor Calibration: Recalibration of digital differential pressure transmitters, magnehelic gauges, and visual/audible pressure-loss alarm systems.
  • HVAC and Filtration System Audits: Verification of fan static pressure, air change rates, and filter saturation levels (HEPA/carbon media resistance).
  • Structural Integrity Inspections: Checking outer steel enclosures, pad-eyes, and corner castings for saltwater corrosion, metal fatigue, or structural damage from heavy lifting.


Frequently Asked Questions (FAQ)


1.What is a negative pressure lab container?

A negative pressure lab container is a portable, heavy-duty enclosure designed for hazardous testing at sea. It maintains a lower internal air pressure than the outside environment, ensuring that air flows inward so toxic gases, vapors, or pathogens cannot leak out.


2.What happens if the negative pressure system fails in an offshore lab?

If pressure differentials drop below safe limits, automated visual and audible alarms trigger immediately. Emergency shut-off dampers isolate the ventilation system, sealing the unit to prevent hazardous air from migrating across the platform while crew members initiate emergency containment protocols.


3.Why are regular pressure sensor calibrations necessary on offshore containers?

Offshore environments subject equipment to salt spray, humidity, and constant vibrations, which can cause sensor drift. Regular calibration ensures differential pressure readings remain accurate and alarms activate instantly if pressure levels fluctuate.


4.What standards govern offshore container safety and design?

Offshore lab containers are designed and certified to strict international maritime and structural standards, including DNV 2.7-1 / EN 12079 for offshore lifting and structural safety, alongside relevant ATEX / IECEx guidelines for explosive gas environments.


TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.

Wherever you are in the world, TLS can help you. Please contact us.



Please download the Laboratory container brochure for reference.
