Offshore Accommodation Modules and Living Quarters

TLS designs and manufactures offshore accommodation modules for safe, comfortable and efficient living and working environments. Our solutions can include sleeping cabins, offices, meeting rooms, mess rooms, galley facilities, sanitary units and workshop spaces.

Designed for offshore and onshore projects, every module can be configured to meet the required layout, capacity, equipment and certification requirements.


Safe, Durable and Comfortable

TLS accommodation modules are engineered for demanding marine environments. Depending on the project specification, units can be designed in accordance with applicable DNV 2.7-1, EN 12079, ABS, SOLAS and fire-protection requirements.

Available features include A60 fire-rated insulation, HVAC systems, fire and gas detection, alarm systems, emergency lighting and durable internal finishes.


Flexible Living and Working Spaces

Modules can be configured as accommodation cabins, offices, meeting rooms, galley and mess facilities, sanitary units or workshops. Interior options include lockers, en-suite shower rooms, air-conditioning, integrated storage and fit-for-purpose fixtures.

The result is a practical, comfortable and productive environment for offshore personnel.


Efficient Transport and Installation

Our modules are designed for efficient transport, installation and integration. Options can include twist-lock connections, deck-mounting pads, linking kits and pre-installed electrical, HVAC, fire and gas systems.

TLS provides support from customised engineering and manufacturing through testing, certification, delivery and commissioning.

Technical specifications

Features
  • Certified to DNV2.7-1 / EN 12079
  • ABS approved manufacturing guildline
  • 2 sets of bunk beds or single beds
  • Lockers including hanging and shelving space
  • En-suite shower room
  • Shower with integral hot water system
  • Desk & workspace, including pin board and chair

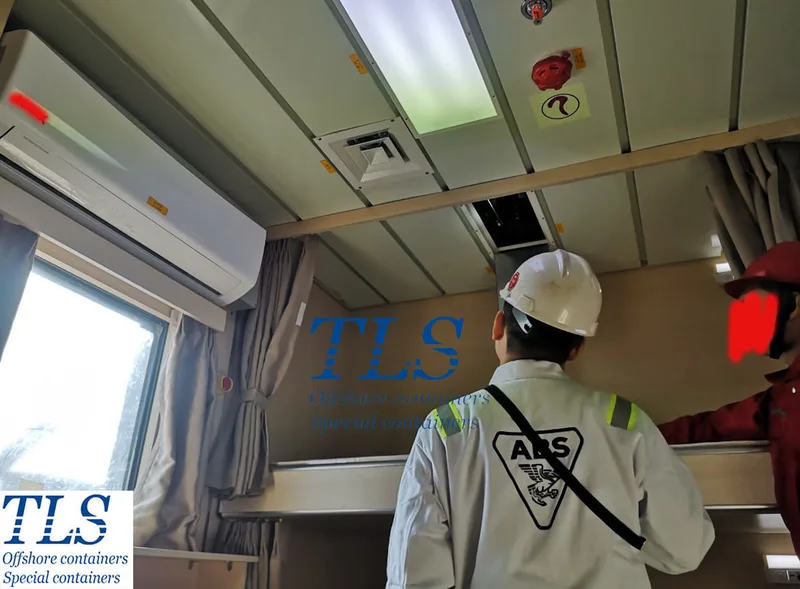

  • Air-conditioning unit with individual thermostatic control
  • PLC based fire and gas detection system
  • Category II lighting, low brightness
  • High quality fixtures and fittings
  • Attractive relaxing decor and soft furnishings
  • Quick and easy hook-up to onboard services
  • Unit specification as per ABS guideline for offshore accommodation module
  • Designed for 1-8 pax or customised dimension
Services

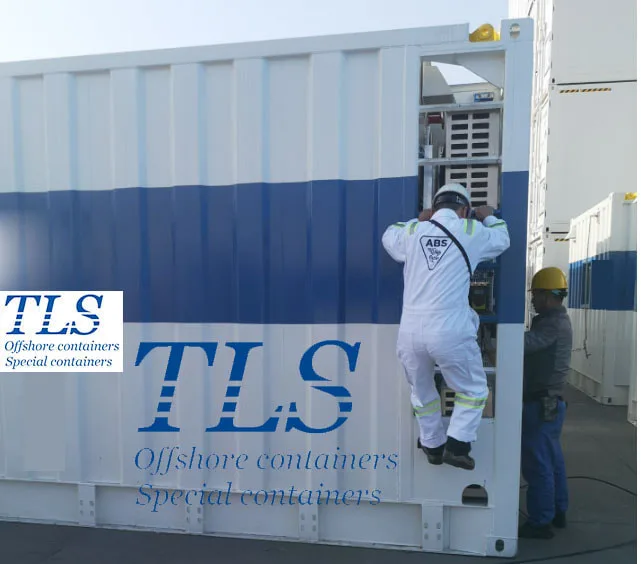

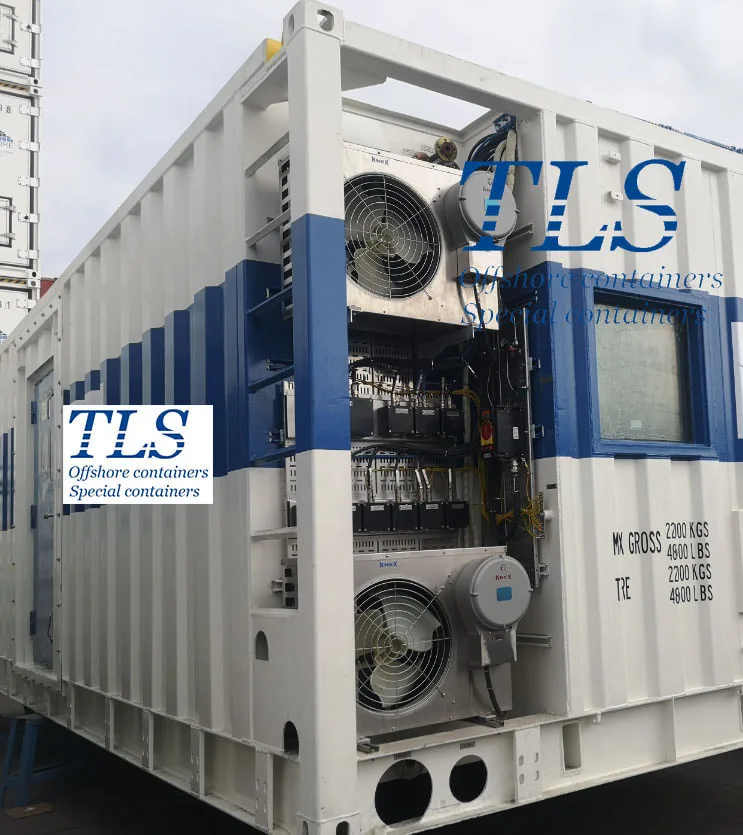

  • Each Module has an Accessible Service Area Which Contains the Hot Water Heater, Transformer & General Electrical Equipment Which Can be Easily Serviced.
  • External Paint Specification
  • Each Module is Shot Blasted to SA 2.5 and DNV approved, 3 Coat Paint System Applied, Giving a Total of 250 Microns Paint Thickness. Modules Shall be Painted “RAL 9003 Signal White” As Standard, However Client Can Change Color & Add Company Markings Where Required.
Lifting
  • All modules, as well as being DNV certified, also have certified lifting eyes included in the design structure and each module is supplied with a certified sling. The units are designed for lifting on and off fixed platforms and other types of floating installations.
  • Installation & Linking
  • Each Module Comes complete with Twist Locks & Pads For Deck Mounting

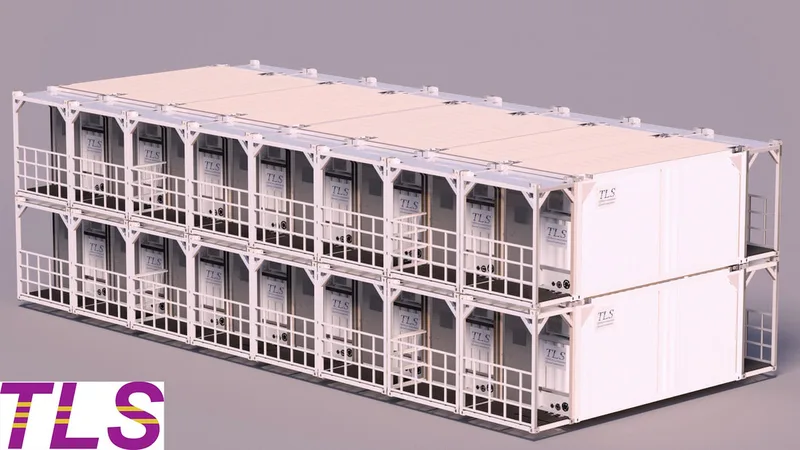

  • Linking Kits for Structural, Mechanical & Architectural Linking of Modules.
Furnitures

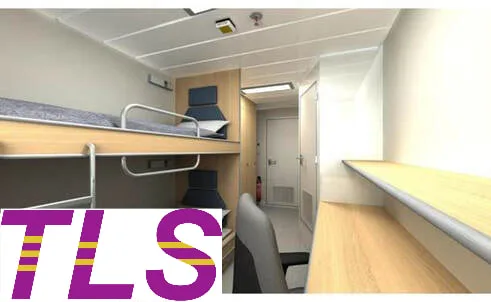

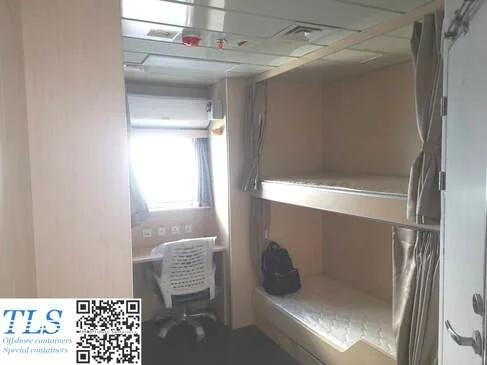

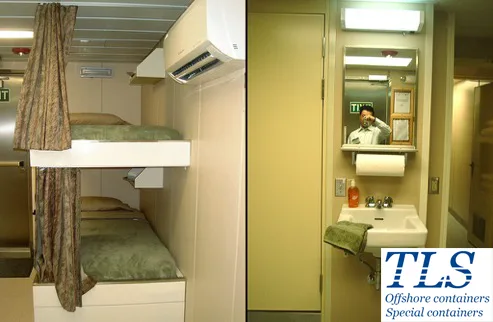

  • 2 x Double Bunks, Each Bunk comes with FR Mattress & Blackout Curtains, Integral Recessed book Shelf and Flexible LED Light With Switch at Source
  • 1 x Desk With Upper Shelf and Integral Flexible LED Light, Double Socket, Data Outlet & HVAC Thermostatic Control and 32” LED TV on Sliding & Pivoting Support Arm
  • 1 x Operator Chair on Lockable Gravity Castors
  • 3 x Full Height Lockers With Hanging Rail, Shelves & 4 x Coat Hooks Fastened to Outside End Face
  • 1 x Wall Mounted AC Unit With Thermostatic Control
  • 1 x Ceiling Air Supply Grille With Thermostatically Controlled Duct Heater & Attenuator Within Supply Duct Run
  • 1 x Double Socket For Cleaning Equipment
  • 1 x Ceiling Recessed PAGA Speaker
  • 1 x Ceiling Mounted Smoke Detector
  • 1 x Ceiling Sprinkler Outlet
  • 1 x Wall Mounted Fire Extinguisher
  • 1 x A60 Window Integrated Into Escape Hatch

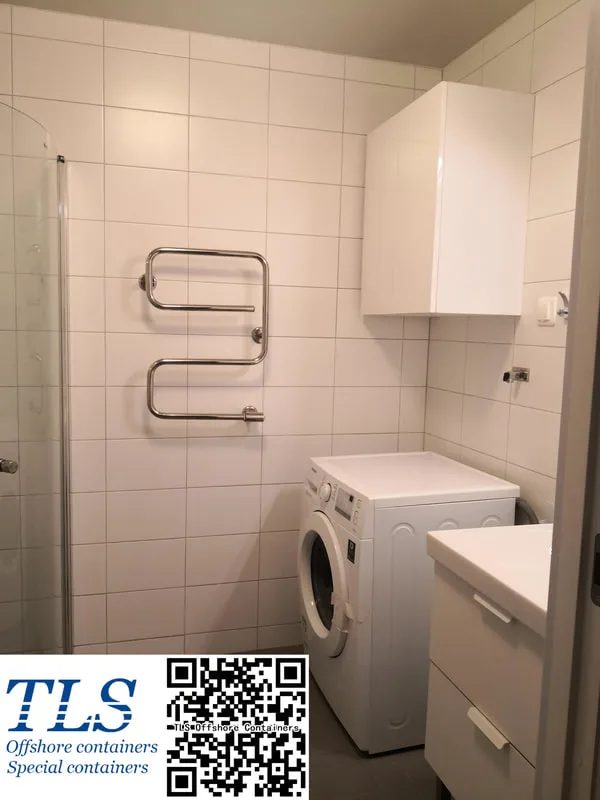

  • 1 x Wet Unit With Shower, Toilet, WHB, Mirrored Storage Cabinet & Accessories
