Offshore Reefer container, ISO reefer container
Offshore DNV2.7-1 | ISO reefer & refrigerated container

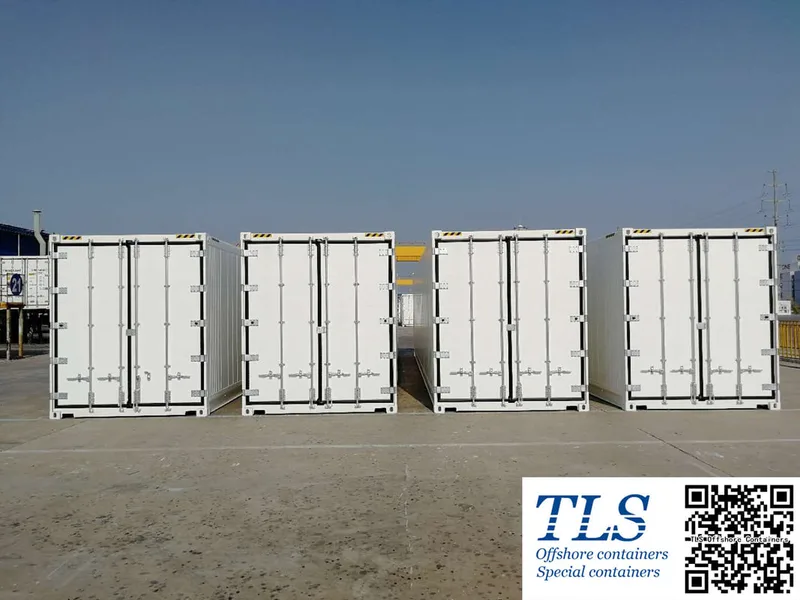

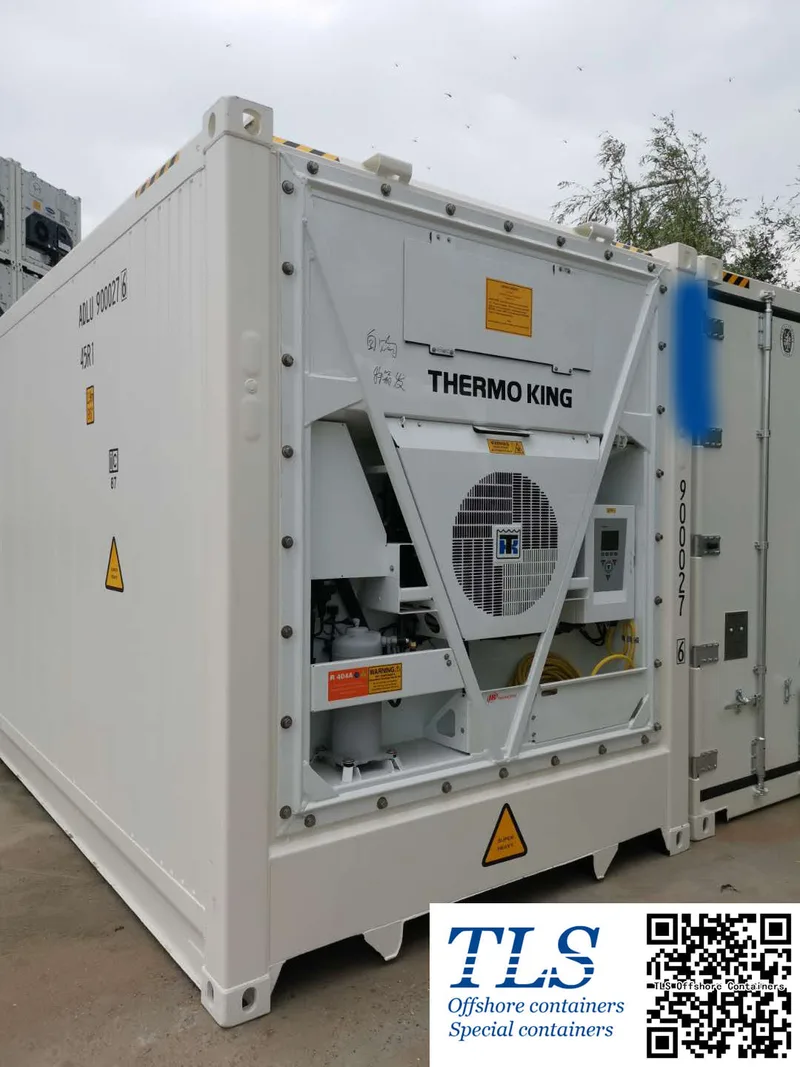

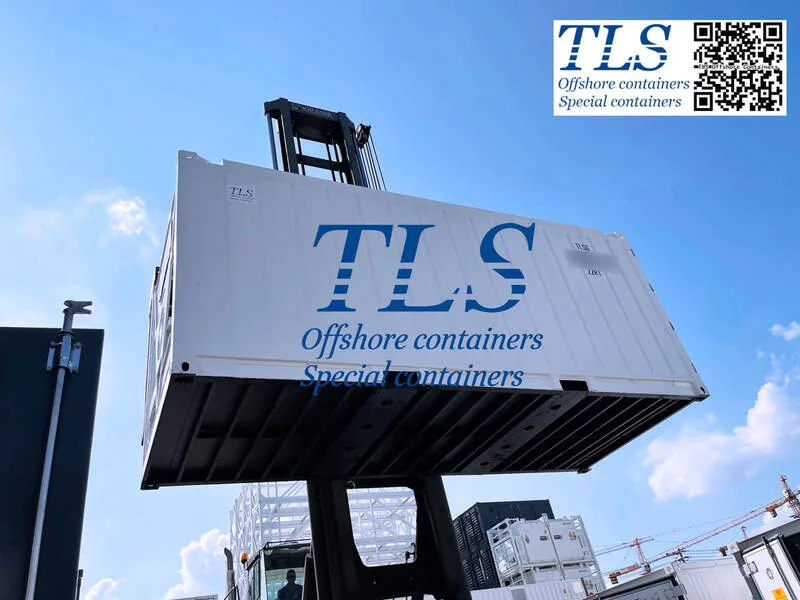

Reefer containers or refrigerated containers are used to transport goods that require temperature-controlled conditions in transit. Common goods shipped in these containers include fruit, vegetables, dairy products, and meat. Each container is fitted with a refrigeration unit connected to the electrical power supply on board the ship. These reefer containers are equipped with DAIKIN, CARRIER, or THERMO KING refrigeration units to maintain the internal temperature between -20C° and +2°C. Different sizes of reefer containers are available, including 10ft, 20ft, 40ft, and customised sizes. Warm or cold air is circulated throughout the cargo before going back to the refrigeration unit, helping to keep food fresh during long-distance transportation. Additionally, adjustable ventilation holes in the refrigeration unit expel warm toxic air produced by living products from the container. Offshore reefer containers are designed and manufactured in accordance with DNV2.7-1/EN 12079. All units are stackable and fitted with integrated forklift pockets for ease of loading/unloading. Door curtains are provided as standard, and optional shelving is available to meet customers’ needs.
Technical specifications
- Temperature range: -20C° and +2°C
- Fresh air exchange: adjustable from 0-285 m³/hr
- Dehumidification Range: 65% - 85% (in chilled mode)
- Bottom-air delivery
- Dual temperature settings for chiller/ambient or freezer unit
- Electronic control panel
- Flashing strobe beacon in operation when unit powered
- Data logger
- Hygienic, easy-to-clean stainless steel interior with shelving
- Digital electronic controller
- See-through lockable control panel
- Double wing door with heavy duty hinges
- DNV 2.7-1 wire rope sling assemblies
- 230/110V single phase or 380-480V, 2 phase + E, 50/60Hz supplies
Certification
Please download offshore reefer container brochure for reference.
- DNV2.7-1 / EN12079 / CSC certified design
- DAIKIN, Carrier or Thermo King
- 10ft offshore reefer container
- 20ft offshore reefer container
- 40ft offshore reefer container
Please download offshore reefer container brochure for reference.
