Negative Pressure Containers: Designing Safe Containment for Airborne Hazards

Summary

A negative pressure container maintains a lower internal pressure than the surrounding environment so that air flows inward when a door opens, or a small leakage path is present. Its purpose is containment: reducing the uncontrolled escape of hazardous vapours, gases, dust or other airborne contaminants generated inside the module.

Negative pressure is not a complete safety solution by itself. The exhausted air must be captured, filtered, treated or discharged to a verified safe location according to the hazard. The module also requires suitable air inlets, ventilation rates, pressure monitoring, alarms, electrical equipment, process extraction, emergency logic and host-facility interfaces. Selection should begin with the substance and release scenario, not with a target pressure copied from another project.

What Is a Negative Pressure Container?

A negative pressure container is a controlled workspace in which mechanical exhaust removes more air than is supplied. The resulting pressure differential causes replacement air to enter through designated inlets and access points, establishing airflow from the surrounding area into the contained space.

This arrangement is useful when the primary risk originates inside the module and must be prevented from spreading to adjacent work areas. Typical applications include:

chemical or sample-handling laboratories;
mud laboratories and analytical cabins;
dust sampling or material handling modules;
industrial processes that release vapour, odour or airborne particles; and
other project-specific containment workspaces.

The term “negative pressure” describes airflow direction. It does not, by itself, confirm biological containment level, hazardous-area suitability, filtration performance or safe exhaust discharge.

How Does a Negative Pressure System Work?

A complete system controls the path of air from entry to discharge:

Replacement air enters through defined inlets or a controlled supply system;
airflow moves from cleaner areas toward the work or release zone;

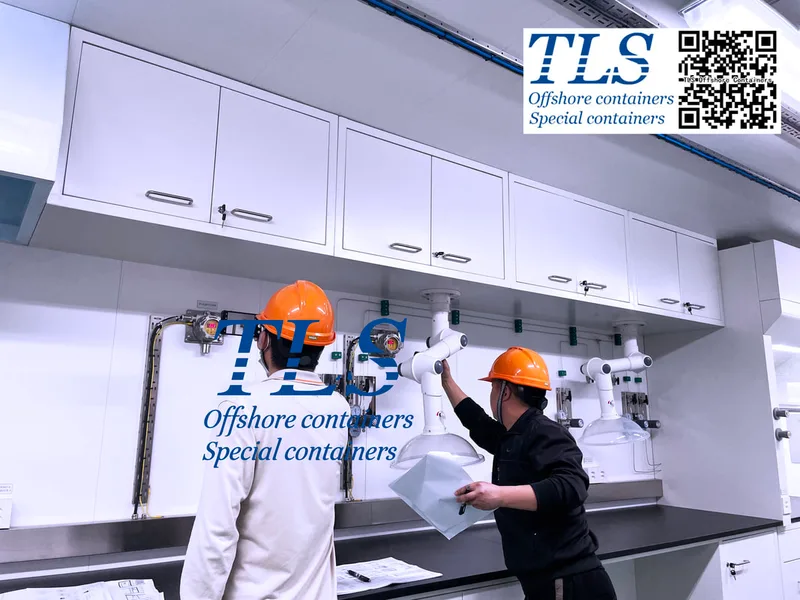

local extraction captures contaminants close to their source where practicable;
the general exhaust maintains the required room pressure and ventilation rate;
filters, scrubbers or other treatment devices are selected for the specific contaminant;
the discharge point is positioned and assessed to prevent exposure or re-entry; and
pressure, airflow and gas conditions are monitored, with alarms and emergency actions if control is lost.

Room pressure is only one performance indicator. A pressure reading can remain negative even if a fume hood is not capturing properly, a filter is saturated or the exhaust is discharged to an unsafe location. Commissioning and periodic testing must therefore verify airflow direction, capture performance, alarm functions and the complete exhaust path.

When Should a Project Choose Negative Pressure?

Negative pressure is generally appropriate when the surrounding environment can safely provide replacement air and the significant airborne hazard is produced inside the module. The purpose is to keep that internal hazard from escaping into nearby occupied areas.

It may not be appropriate as a standalone strategy when the external atmosphere itself can contain flammable or toxic gas. In that situation, inward airflow can draw the external hazard into the module. A project with both external and internal hazards needs a more detailed concept, which may use zoning within the module, airlocks, source capture, treated supply air, specialized equipment or another engineered arrangement.

The correct pressure strategy must be determined through the project risk assessment. Positive pressure excludes an external hazard; negative pressure contains an internal hazard. Neither principle should be selected merely because a similar module used it.

What Must Happen to the Exhausted Air?

Air removed from a negative pressure container cannot automatically be released to the surrounding environment. The required treatment depends on the substance, concentration, release rate and applicable environmental and occupational requirements.

The design may require:

particulate filtration selected for the particle size and loading;
activated carbon or another adsorbent for compatible vapours;
wet or dry scrubbing for specified chemicals;
dedicated ducting for a fume hood or process enclosure;
explosion-protected fans and duct components where a flammable atmosphere can occur;
safe discharge height and location based on dispersion and air-intake positions;
differential-pressure monitoring across filters;
safe filter change-out, isolation and disposal procedures; and
sampling points or emissions monitoring where required.

HEPA filtration is designed for particles; it is not a universal treatment for gases or vapours. Likewise, activated carbon is contaminant-specific and has a finite capacity. The treatment train must be selected by qualified process, industrial hygiene and environmental specialists using actual substance data.

What Safety Systems May Be Required?

TLS negative pressure configurations can be developed around the process and project requirements. Depending on the agreed design, a module may include:

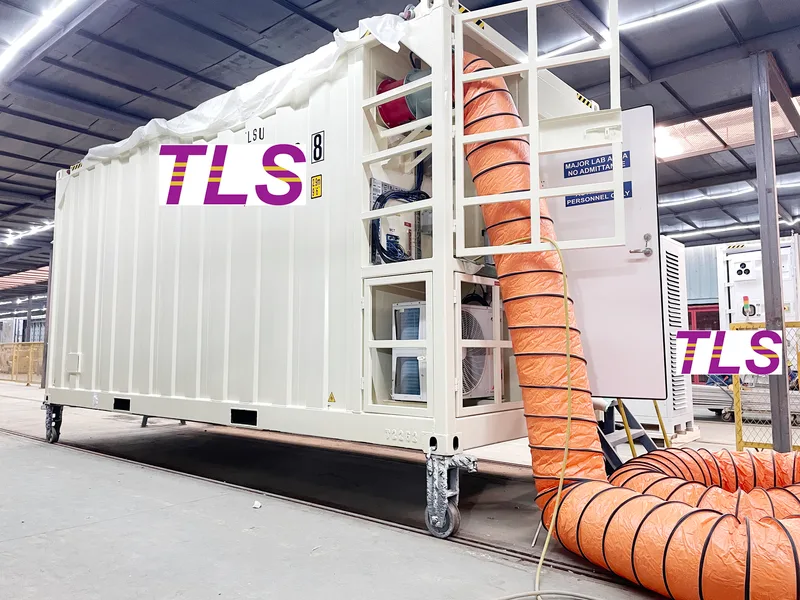

a weather-resistant offshore or onshore container structure;
DNV 2.7-1/EN 12079 certification or CSC plating where specified;
A-0 or A-60 fire-rated boundaries;

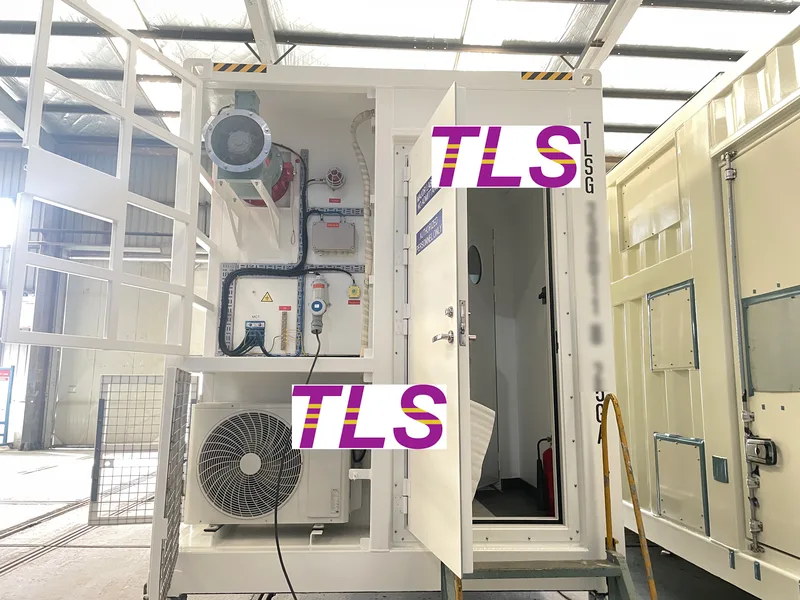

duty and emergency exhaust fans;
controlled make-up air and pressure monitoring;
gas, fire and smoke detection;

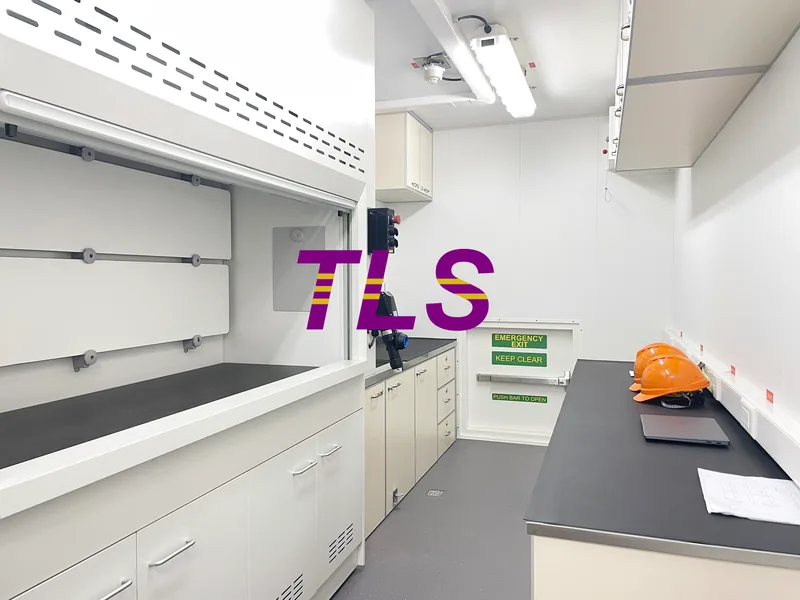

local extraction or an explosion-proof fume hood;
acid- and alkali-resistant, anti-static work surfaces;
Ex-rated lights, switches, sockets, cabling and fans where required;
HVAC, water, drainage, compressed air, data and communication interfaces;
emergency lighting, emergency stop, eye wash or safety shower; and
alarms, shutdowns and connections to the host control system.

These are possible project features, not an automatic package. A negative pressure set point, fan arrangement or shutdown sequence used on one TLS project should not be applied to another without verifying the hazard and airflow calculations.

How Should Normal and Emergency Modes Be Defined?

Some TLS negative pressure laboratory projects use separate normal and emergency exhaust modes. A smaller fan can maintain routine containment, while a larger Ex-rated fan starts following specified gas detection. The control system can then alarm or isolate power if the gas condition does not recover.

This is a useful reference architecture, but the published pressure figures and alarm delays from a previous configuration are not universal design values. The project must define:

the substances to be detected and their sensor locations;
normal and credible maximum release rates;
required air changes and source-capture velocity;
normal, low-pressure and emergency alarm thresholds;
fan duty, redundancy and power availability;
safe state following fan failure, high gas, fire or power loss;
which electrical loads remain energized during an emergency;
conditions for automatic or manual restart; and
how exhaust treatment performs at both normal and emergency flow.

Emergency exhaust can increase containment but can also overload filters, disturb fume-hood balance or create excessive door forces. All modes must be calculated, tested during FAT and verified after installation.

What Do DNV 2.7-1, A-60 and Hazardous-Area Standards Cover?

Different requirements control different parts of the module.

DNV 2.7-1 and EN 12079

DNV-ST-E271, commonly called DNV 2.7-1, addresses offshore container structure, manufacturing, testing, marking, inspection and lifting sets. EN 12079 is also commonly specified. These standards do not determine the correct containment pressure, filter efficiency or exhaust treatment.

A-60 fire protection

A-60 relates to the integrity and insulation performance of a specified fire boundary assembly. Doors, dampers, ducts, penetrations and joints must maintain the required boundary. Fire rating does not establish biological containment or gas-removal performance.

IECEx, ATEX and IEC 60079

If a flammable atmosphere can exist inside the module or exhaust system, the area classification and equipment protection requirements must be defined. The IEC 60079 framework addresses equipment and installations in explosive atmospheres. IECEx or ATEX conformity may be requested depending on the jurisdiction and project, but the exact zone, gas or dust group, temperature class, protection concept and certificate scope must be stated.

How Is a Negative Pressure Laboratory Different from a Biosafety Laboratory?

Negative room pressure is one containment feature used in some biological facilities, but it does not create a biosafety laboratory by itself. Biosafety classification also depends on facility design, work practices, primary containment equipment, decontamination, waste handling, personnel procedures, filtration and validation.

Buyers should not describe a container as a particular biosafety level unless the complete facility and operating program have been designed and assessed against the applicable national or international requirements. A project handling infectious material requires specialist biosafety input beyond a standard industrial laboratory specification.

What Should Buyers Define Before Requesting a Quotation?

A useful enquiry should include:

Process and substances: names, safety data, physical form, toxicity, flammability, particle size and occupational or environmental limits.
Release scenarios: routine emission, maximum credible release, duration, temperature and location within the module.
Containment objective: personnel protection, environmental protection, cross-contamination control or a combination.
External environment: whether hazardous gas, dust or contamination can be present outside the module.
Installation: offshore platform, vessel, drilling site, mine, plant or another host facility, with the exact location.
Required approvals: DNV 2.7-1/EN 12079, CSC, A-0/A-60, IECEx, ATEX, class, client or regulatory requirements.
Ventilation criteria: pressure range, air changes, source-capture requirements, diversity, fan redundancy and noise limits.
Exhaust treatment: filters, scrubbers, monitoring, safe change-out, waste route and discharge location.
Detection and control: gases, detector locations, alarm levels, fan sequencing, power isolation, host alarms and recovery logic.
Electrical classification: internal and external zone, gas or dust group, temperature class, voltage, frequency, load and earthing.
Laboratory layout: fume hoods, benches, cabinets, sinks, eye wash, safety shower, sample routes and clean/dirty workflow.
Utilities: clean make-up air, power, water, drainage, compressed air, network and communications.
Transport and installation: module size, weight, lifting, deck loading, tie-down, stacking and maintenance access.
Testing and validation: airflow visualization, pressure tests, hood testing, alarm simulation, filter integrity, FAT, commissioning and periodic recertification.

Frequently Asked Questions

Does negative pressure remove hazardous gases?

No. It controls airflow direction and helps contain airborne hazards. The exhaust system must still capture and safely treat or discharge the contaminant.

Is a stronger negative pressure always safer?

No. Excessive pressure can make doors difficult to operate, disrupt local extraction, increase leakage through unintended paths and overload the exhaust system. The set point must be justified by the containment and ventilation design.

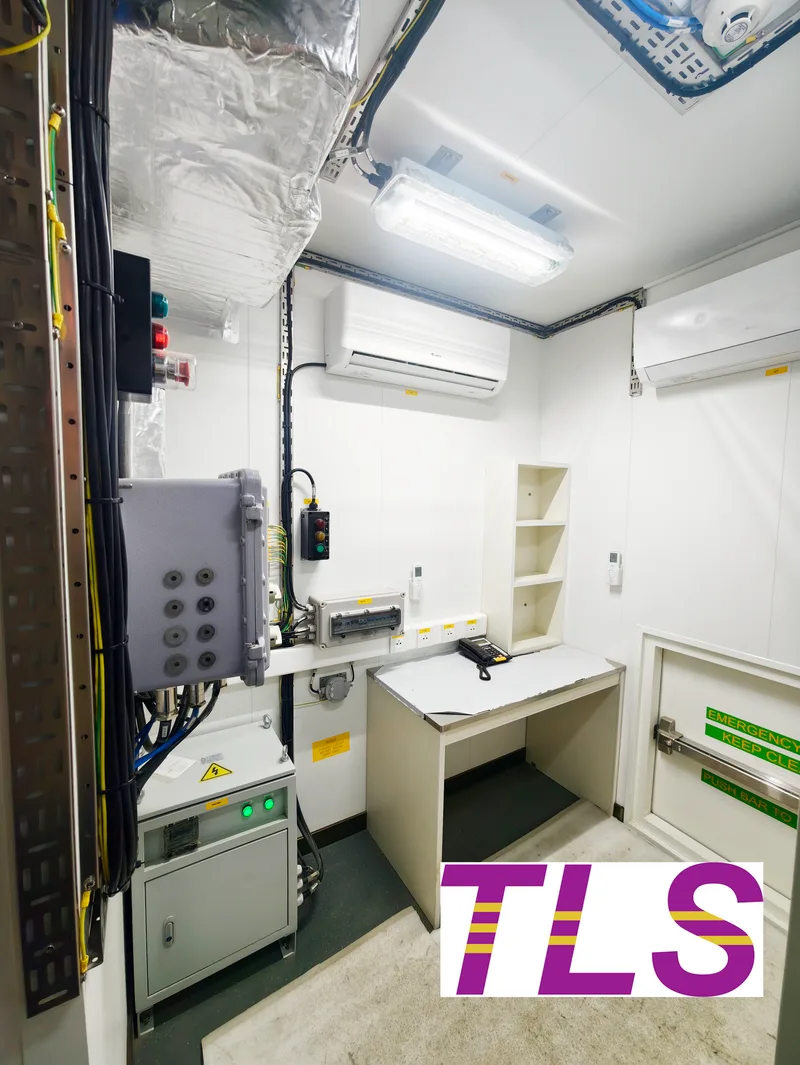

Can a negative pressure container be installed in Zone 1 or Zone 2?

Only with a project-specific design. Because negative pressure draws outside air inward, the external hazardous atmosphere and internal ignition sources must be carefully assessed. Suitable Ex equipment and a different airflow or zoning concept may be required.

Does a HEPA filter remove chemical vapours?

Generally, no. HEPA filters capture particles. Chemical gases and vapours require treatment selected for their properties, such as compatible adsorption or scrubbing systems.

Is every TLS negative pressure container DNV 2.7-1 and A-60 certified?

No. TLS can provide offshore and fire-rated configurations, but the exact certification, fire boundary and equipment scope must be specified and confirmed for the purchased module.

What is the most important first question?

Identify what must be contained, how much can be released and where the exhaust can be safely treated or discharged. Those answers determine the airflow, equipment, monitoring and approval strategy.
