In modern offshore engineering and energy projects, special containers are no longer simple transportation units. They have become mobile fortresses carrying highly sensitive and high-value equipment worth millions of dollars.
Extreme offshore lifting conditions, violent wave-induced motion, and low-temperature brittleness in arctic environments all impose extreme demands on structural integrity.

At TLS Offshore Containers, advanced Finite Element Analysis (FEA) and virtual drop test simulations are integrated early in the design phase. By transforming physical structures into digital models, we can accurately predict stress concentration zones, optimize material usage, and eliminate structural fatigue risks before production begins.

This article explains how TLS applies FEA simulation technology to ensure absolute structural safety and full compliance with DNV 2.7-1 standards in harsh offshore environments.

Key Questions This Article Addresses:

• What is Finite Element Analysis (FEA) and how is it applied in special container design?
• How does FEA predict and mitigate structural risks during offshore lifting operations?
• How does TLS ensure safety for hazardous area containers through virtual drop test simulation?
• What cost and compliance advantages does FEA bring to customers?

1. What Is Finite Element Analysis (FEA) and Its Role in Container Design?
Finite Element Analysis (FEA) is a numerical simulation method used to approximate the behavior of real-world physical systems under various loads and conditions.
At TLS R&D centers, engineers convert complex 3D CAD models of customized containers into thousands of small elements. These elements are then analyzed under real-world offshore conditions, including:

• Gravity loads
• Wind loads
• Lifting forces
• Temperature effects

The system calculates:

• Stress distribution (Stress)
• Deformation behavior (Displacement)

Core Value :FEA transforms design from experience-driven decisions into data-driven engineering validation.
Before a single steel plate is cut, we already understand how the structure will perform in offshore environments.

2. Offshore Lifting: Structural Response Under Dynamic Impact
One of the most critical risks in offshore operations is offshore lifting (Offshore Lifting), where wave motion causes vessel instability and introduces dynamic amplification effects.

Key Engineering Focus Areas:

2.1 Padeyes and Corner Lifting Points
Padeyes and lifting lugs are the most critical load-bearing components.

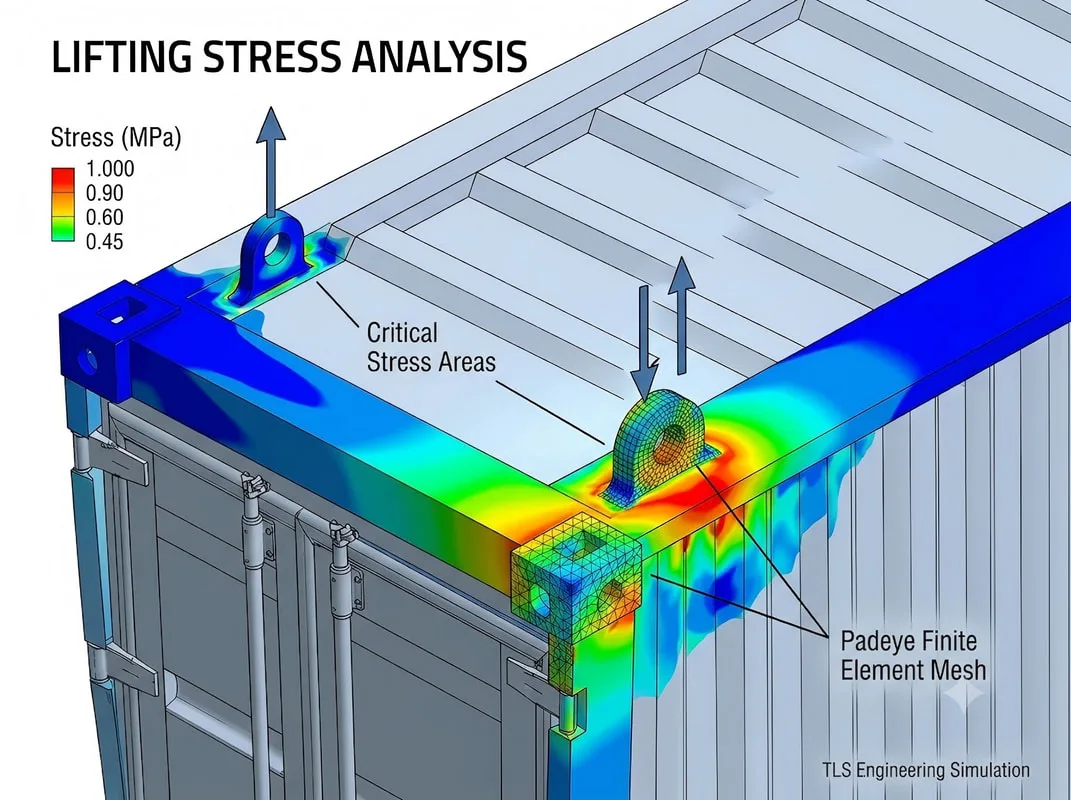

Through FEA simulation, TLS evaluates multi-angle lifting conditions to ensure:

• Von Mises stress remains well below material yield strength
• Welded joints maintain structural integrity under extreme loads

2.2 Frame Torsional Resistance Design
During offshore motion, containers experience twisting and shear forces.
FEA helps optimize:

• Corner post geometry
• Upper frame reinforcement structure

This ensures maximum torsional rigidity with minimum structural weight.

3. Virtual Drop Test: Final Safety Barrier for Explosion-Proof and Energy Containers
For TLS Energy Storage Systems (ESS) and Zone 1 / Zone 2 hazardous area containers, internal equipment such as battery systems and control units are highly sensitive to impact.

3.1 Nonlinear Dynamic Drop Simulation
FEA is used to simulate extreme drop scenarios based on DNV requirements, including:

• Corner drop impact
• Edge drop impact
• Flat surface impact

3.2 Transient Dynamic Analysis
The simulation captures energy transfer within milliseconds after impact.
The goal is to ensure:

• External steel structure absorbs most impact energy through controlled plastic deformation
• Internal equipment compartments remain nearly deformation-free
• Explosion-proof sealing integrity is maintained
• Battery thermal runaway risk is eliminated

4. Business Value: How FEA Improves ROI for Customers
For procurement and project stakeholders, FEA is not just engineering validation—it is a direct driver of cost efficiency and risk reduction.

4.1 Reduced Project Delivery Time
Traditional approach:

• Multiple physical prototypes
• Repeated testing and redesign cycles
• Long engineering lead time

TLS FEA-driven approach:

• Parallel digital engineering workflow
• No need for repeated physical iteration
• Over 30% reduction in design and delivery time

4.2 Optimized Structural Weight and Logistics Cost
Traditional approach:

• Over-designed structures for safety margin
• Excess steel usage increases weight
• Higher transportation and lifting costs

TLS solution:

• Topology optimization
• Precise material distribution based on stress analysis
• Significant reduction in structural weight and logistics expenses

4.3 First-Time Certification Success
Traditional approach:

• Trial-and-error certification submissions
• Risk of non-compliance and project delays

TLS solution:

• Fully digital pre-validation based on DNV 2.7-1 and EN 12079 standards
• Accurate boundary condition modeling
• High probability of first-time approval by classification societies

Conclusion

By integrating Finite Element Analysis (FEA) throughout the entire product development lifecycle, TLS effectively eliminates uncertainty before manufacturing begins.
Key Takeaways:

• Technical Core: FEA enables precise prediction of structural stress, stiffness, and fatigue performance through digital modeling.
• Critical Applications: Offshore lifting load analysis and impact resistance validation for explosion-proof and energy storage containers.
• Customer Value: Shorter delivery cycles, optimized structural weight for reduced logistics cost, and improved compliance success rates with international standards such as DNV 2.7-1.

Through advanced engineering simulation and modular design capabilities, TLS delivers safer, lighter, and more reliable customized special container solutions for extreme offshore and industrial environments.

Keywords :#Finite Element Analysis container design, #Offshore lifting structural analysis, #DNV 2.7-1 compliance containers, #Special offshore containers engineering, #Explosion-proof container design simulation, #Energy storage container FEA analysis, #Virtual drop test simulation container, #Structural optimization offshore containers, #TLS offshore container engineering solutions, #Hazardous area container structural safety

In high-safety applications like functional containers, energy storage units, and pressurized explosion-proof enclosures, structural strength is more than just a number on a blueprint—it’s the key factor that determines whether the equipment can operate safely under extreme conditions. TLS treats Finite Element Analysis (FEA) as a standard step in structural verification, making safety measurable, verifiable, and traceable.

1. Why Structural Strength Matters

Whether facing the wind loads of a category 12 typhoon on an offshore platform or enduring the shocks of lifting during transportation, containers must withstand stress and deformation from multiple directions. If the structure is not strong enough, it may lead to cracked welds at best—or functional failure and serious safety incidents at worst.

2. FEA: Turning Structural Strength from Experience into Data

Traditional structural design often relies heavily on engineer experience, but FEA allows us to create a digital, virtual model to predict risks in advance. At TLS, FEA simulations are performed during the design stage, covering scenarios such as:

• Lifting conditions: four-corner lifts, two-point lifts, or base lifts
• Wave impacts: lateral and longitudinal rigidity tests (for offshore use)
• Wind pressure: especially in high-wind or typhoon-prone areas
• Transport and stacking loads: structural stability when stacked in multiple layers

With stress maps and deformation analysis, TLS engineers can pinpoint weak areas in the structure and optimize the design before production begins.

3. Data-Driven Improvements

FEA results are not only used to verify designs—they also drive improvements, such as:

• Adding reinforcement plates at critical points
• Optimizing weld layouts to reduce stress concentration
• Increasing rigidity without adding excessive weight

4. From Simulation to Real-World Testing

Simulation is only the first step. TLS validates FEA results with real-world tests such as lifting and load trials, ensuring that “simulated performance = actual performance.”

5. Data for Safety and Future Use

FEA reports and validation records are delivered to clients as part of the technical documentation. This not only proves product safety but also provides a reliable reference for future upgrades or modifications.
By combining digital simulation with real-world verification, TLS ensures every container is engineered for safety—backed by data, tested in reality.

TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
 ​

Keywords: #Structural Strength Testing for Offshore Containers,#Finite Element Analysis for Container Safety,#FEA Simulation in Modular Container Design,#Load Testing Standards for Offshore Modules,#Corner Lifting Certification for Containers,#Two-Point Lifting Safety Assessment,#Stress Distribution Analysis in Steel Containers,#Safety Verification for DNV Certified Containers,#Offshore Container Design and Structural Testing,#Ensuring Structural Integrity in Harsh Environments


FEA helps improve the design and accuracy of TLS offshore containers by simulating hazardous or destructive load conditions and failure modes, allowing engineers to understand the physical response of the system.

Here are some of the advantages that FEA brings

• Improved accuracy as any physical stresses that may affect the design is analyzed.
• Improved designs as developers can observe how stresses within one element will affect the material in another connected element.
• Early testing during the development process. Virtual prototyping allows designers to model a variety of designs and materials in a matter of hours, rather than the days or weeks required to produce hard prototypes.
• Increased productivity and revenue as FEA software allows developers to produce higher quality products in a shorter design cycle while using fewer materials.
• Enhanced insight into key design parameters due to the ability to model the interior and exterior of a design. This enables designers to determine how critical factors affect the entire structure, as well as the cause and location of possible failures.
• Optimized use of models, as one common model, can be used to test multiple failure modes or physical events
• Fast calculation times and relatively low investment costs.
• Access to existing experimental results, which can be extracted from the parametric analysis of the validated model and applied to the new model


In summary, Finite Element Analysis (FEA) plays a crucial role in improving the design and accuracy of TLS temporary refuge (TR) shelter and blast resistant unit by simulating hazardous load conditions and failure modes.

​The FEA can help all these professionals in the development of parts and products. It will help them to make decisions at all stages of product development and answer questions such as:
​

• Will it break?
• Does it deform too much?
• Will it stay together?
• Will it flex?
• Can it be lighter?
• Can it be stronger or more durable?

By using FEA from the start of the development process, you save time and money because FEA allows you to find the right solutions at the product design stage.

In today's industries, FEA is now one of the key activities in developing efficient products. Nobody questions the usefulness and power of such a tool.

In the design of shelters, explosion-proof containers, if they are designed exactly in accordance with the content of the standard, the design of the shell often does not meet the requirements of the type test. Experienced design engineers, on the other hand, design based on practical experience, and although the designed explosion-proof housing can meet the type test requirements, the weight of the housing is generally heavy and the material and transport costs are high. The use of finite element analysis for design, can effectively shorten the design cycle, while reducing material costs, perfect to meet the application standards, so that new products can be quickly marketed.

TLS will take full advantage of the FEA to design and manufacture shelters and blast resistant containers to suit each customer's individual requirements
​
