In modern offshore engineering and energy projects, special containers are no longer simple transportation units. They have become mobile fortresses carrying highly sensitive and high-value equipment worth millions of dollars.
Extreme offshore lifting conditions, violent wave-induced motion, and low-temperature brittleness in arctic environments all impose extreme demands on structural integrity.

At TLS Offshore Containers, advanced Finite Element Analysis (FEA) and virtual drop test simulations are integrated early in the design phase. By transforming physical structures into digital models, we can accurately predict stress concentration zones, optimize material usage, and eliminate structural fatigue risks before production begins.

This article explains how TLS applies FEA simulation technology to ensure absolute structural safety and full compliance with DNV 2.7-1 standards in harsh offshore environments.

Key Questions This Article Addresses:

• What is Finite Element Analysis (FEA) and how is it applied in special container design?
• How does FEA predict and mitigate structural risks during offshore lifting operations?
• How does TLS ensure safety for hazardous area containers through virtual drop test simulation?
• What cost and compliance advantages does FEA bring to customers?

1. What Is Finite Element Analysis (FEA) and Its Role in Container Design?
Finite Element Analysis (FEA) is a numerical simulation method used to approximate the behavior of real-world physical systems under various loads and conditions.
At TLS R&D centers, engineers convert complex 3D CAD models of customized containers into thousands of small elements. These elements are then analyzed under real-world offshore conditions, including:

• Gravity loads
• Wind loads
• Lifting forces
• Temperature effects

The system calculates:

• Stress distribution (Stress)
• Deformation behavior (Displacement)

Core Value :FEA transforms design from experience-driven decisions into data-driven engineering validation.
Before a single steel plate is cut, we already understand how the structure will perform in offshore environments.

2. Offshore Lifting: Structural Response Under Dynamic Impact
One of the most critical risks in offshore operations is offshore lifting (Offshore Lifting), where wave motion causes vessel instability and introduces dynamic amplification effects.

Key Engineering Focus Areas:

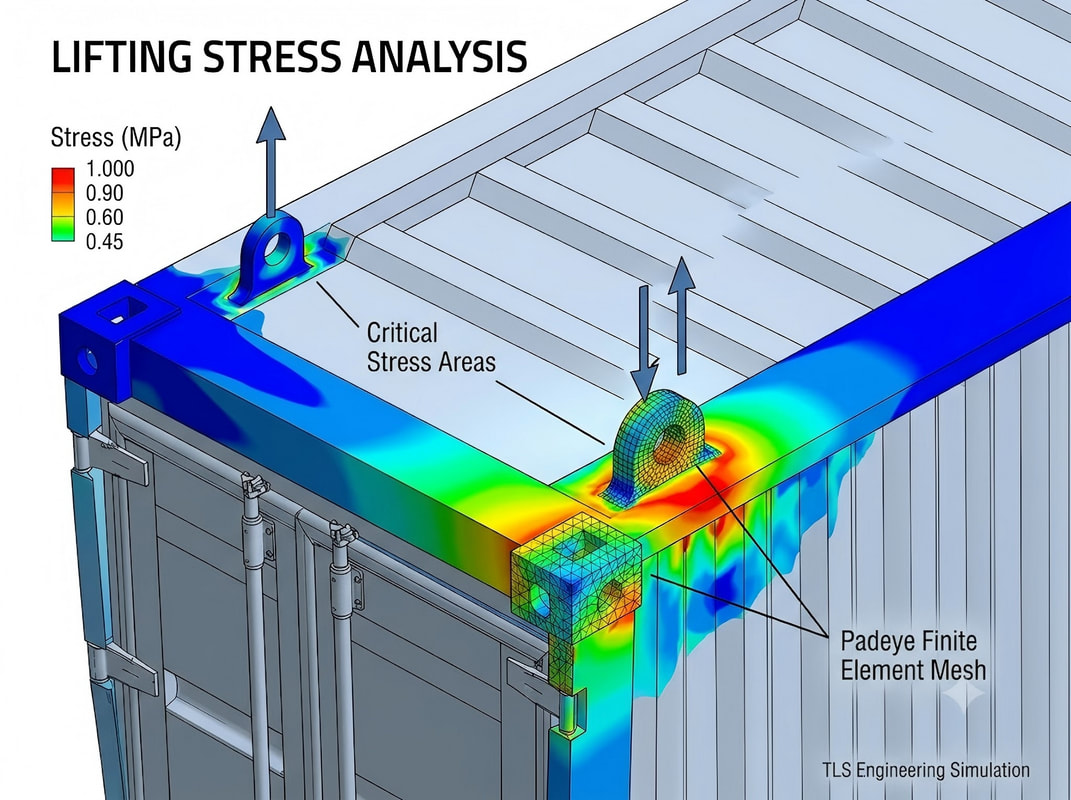

2.1 Padeyes and Corner Lifting Points
Padeyes and lifting lugs are the most critical load-bearing components.
Through FEA simulation, TLS evaluates multi-angle lifting conditions to ensure:

• Von Mises stress remains well below material yield strength
• Welded joints maintain structural integrity under extreme loads

2.2 Frame Torsional Resistance Design
During offshore motion, containers experience twisting and shear forces.
FEA helps optimize:

• Corner post geometry
• Upper frame reinforcement structure

This ensures maximum torsional rigidity with minimum structural weight.

3. Virtual Drop Test: Final Safety Barrier for Explosion-Proof and Energy Containers
For TLS Energy Storage Systems (ESS) and Zone 1 / Zone 2 hazardous area containers, internal equipment such as battery systems and control units are highly sensitive to impact.

3.1 Nonlinear Dynamic Drop Simulation
FEA is used to simulate extreme drop scenarios based on DNV requirements, including:

• Corner drop impact
• Edge drop impact
• Flat surface impact

3.2 Transient Dynamic Analysis
The simulation captures energy transfer within milliseconds after impact.
The goal is to ensure:

• External steel structure absorbs most impact energy through controlled plastic deformation
• Internal equipment compartments remain nearly deformation-free
• Explosion-proof sealing integrity is maintained
• Battery thermal runaway risk is eliminated

4. Business Value: How FEA Improves ROI for Customers
For procurement and project stakeholders, FEA is not just engineering validation—it is a direct driver of cost efficiency and risk reduction.

4.1 Reduced Project Delivery Time
Traditional approach:

• Multiple physical prototypes
• Repeated testing and redesign cycles
• Long engineering lead time

TLS FEA-driven approach:

• Parallel digital engineering workflow
• No need for repeated physical iteration
• Over 30% reduction in design and delivery time

4.2 Optimized Structural Weight and Logistics Cost
Traditional approach:

• Over-designed structures for safety margin
• Excess steel usage increases weight
• Higher transportation and lifting costs

TLS solution:

• Topology optimization
• Precise material distribution based on stress analysis
• Significant reduction in structural weight and logistics expenses

4.3 First-Time Certification Success
Traditional approach:

• Trial-and-error certification submissions
• Risk of non-compliance and project delays

TLS solution:

• Fully digital pre-validation based on DNV 2.7-1 and EN 12079 standards
• Accurate boundary condition modeling
• High probability of first-time approval by classification societies

Conclusion

By integrating Finite Element Analysis (FEA) throughout the entire product development lifecycle, TLS effectively eliminates uncertainty before manufacturing begins.
Key Takeaways:

• Technical Core: FEA enables precise prediction of structural stress, stiffness, and fatigue performance through digital modeling.
• Critical Applications: Offshore lifting load analysis and impact resistance validation for explosion-proof and energy storage containers.
• Customer Value: Shorter delivery cycles, optimized structural weight for reduced logistics cost, and improved compliance success rates with international standards such as DNV 2.7-1.

Through advanced engineering simulation and modular design capabilities, TLS delivers safer, lighter, and more reliable customized special container solutions for extreme offshore and industrial environments.
