Introduction: The Non-Negotiable Standard for Offshore Safety
In the high-stakes world of offshore operations—be it supporting oil and gas platforms, subsea construction, or burgeoning renewable energy projects—the reliability of every piece of equipment is paramount. Unlike standard ISO containers, offshore containers must be engineered to withstand constant dynamic loading, severe weather, and the unpredictable forces of the marine environment.
At TLS, we view container certification not merely as a regulatory necessity, but as a core commitment to safety and asset protection. The most defining measure of this commitment is the Vertical Impact Test. This specialized drop test, mandated by stringent standards like DNV 2.7-1 and ISO 10855, is designed to simulate the absolute worst-case scenario: a sudden, off-balance impact that challenges the container's structural integrity to its absolute limits.
Our corporate principle is firm and non-negotiable: TLS will not proceed to the next production step until the marine container has passed the vertical impact test. This comprehensive article details the precise procedures and critical acceptance criteria that ensure our containers meet this ultimate test of resilience.
Phase I: The Rigorous Setup – Mimicking Maximum Stress
The validity of the Vertical Impact Test hinges on its ability to accurately replicate the forces a container must withstand at its Maximum Gross Mass (R). Every step of the setup is meticulously controlled to ensure maximum stress application.
A. Load Equivalence: Testing at Full Payload

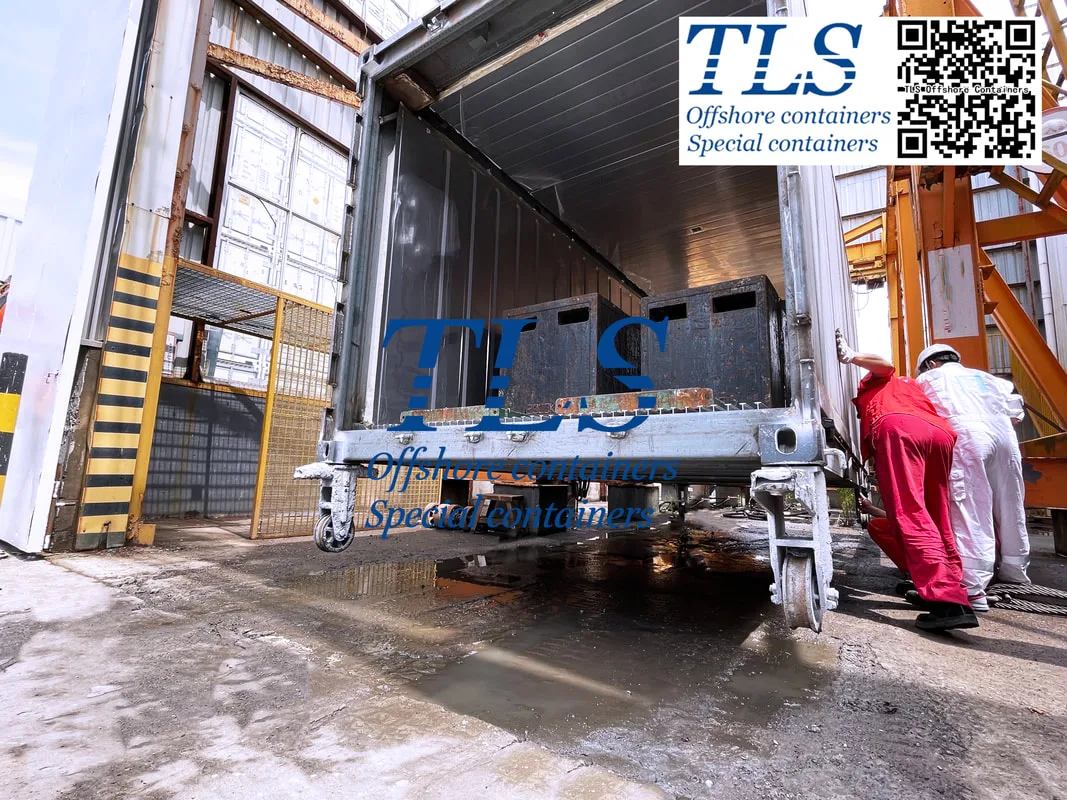

The test commences with precise loading. The container must be loaded with a uniformly distributed load equivalent to its maximum net payload (Rated Mass minus Tare Weight). This ensures the test is conducted under the most structurally demanding conditions.
The load must also be fully bolted inside the container. This crucial requirement ensures that the full inertia of the payload is rigidly coupled to the structural frame. Upon impact, the payload's massive inertia is translated into a complex, instantaneous downward force that the structural members must absorb and dissipate.
B. The Unyielding Impact Surface
The test demands an uncompromising foundation to ensure the container, not the ground, absorbs the impact energy. The surface must be a flat concrete floor or other rigid structure. To maximize the force and instantaneous deceleration, the ground must be unyielding.
A slight, logistical allowance permits covering the surface with wooden planks, but their thickness shall not exceed 50 mm. This minimal allowance prevents the planks from acting as a cushion, ensuring the shock transfer remains severe.
Phase II: Geometric Precision and Dynamic Force Application
The strategic design of the Vertical Impact Test is to introduce highly damaging eccentric loading—concentrating the force onto a single, critical structural intersection.
A. The Crucial 5° Tilt Angle
The container must be lifted and tilted such that the angle between the side and end beams connected to the lowest corner and the ground is not less than 5°.
This 5° angle is strategically vital. It shifts the entire kinetic energy of the system onto one single corner fitting and the surrounding structure. This simulates uneven touchdown—a common scenario during vessel pitching or imprecise crane operation—and introduces destructive torsional and shearing moments into the frame.
B. Corner Selection and Velocity Control
Two constraints ensure the test targets the container's most vulnerable point at a high speed:
Phase III: Acceptance Criteria – Validating Resilience
The post-test inspection determines whether the container demonstrated failure or resilience, a distinction that relies on precise structural assessment.
A. The Pass/Fail Standard: Permanent Deformation
The container shall not show significant permanent deformation or damage after the test.
"Significant" damage is defined as any distortion to the main load-bearing structure (corner posts, rails, corner fittings) that would compromise the container's ability to be handled, stacked, or safely lifted again. The container must remain fully fit-for-purpose immediately following the drop.
B. The Allowance for Controlled Yielding
The standard allows for a small degree of controlled yielding, recognizing that energy must be absorbed: Small repairable open welds and deformations are allowed.
This acceptance proves that the design successfully dissipated the immense kinetic energy through minor, localized plastic deformation, preventing catastrophic failure of the main frame. However, any failure requiring major structural repair or affecting load-bearing capacity signals a design flaw and results in a test failure.
Conclusion: The TLS Commitment to Certified Safety
The Offshore Container Vertical Impact Test is the definitive, physically demanding validation of a container's structural integrity. Every parameter—from the full payload loading and the required 5° tilt to the rigorous inspection for significant permanent deformation—is calculated to ensure maximum structural validation.
For TLS, this test is the uncompromised final certification. By standing by our commitment that our containers will not proceed to the next production phase until they pass this vital test, we guarantee that every unit we deliver is certified not just on paper, but through demonstrated resilience against the most demanding forces of the offshore environment. Choose TLS, and invest in a product proven to protect your assets and personnel at sea.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #Offshore Container Vertical Impact Test, #DNV 2.7-1 Certification, #EN12079, #Marine Container Drop Test, #Structural Integrity, #Impact Velocity, #5° Tilt Test, #Offshore Cargo Safety Standards, #Worst Stiffness Corner Impact, #Permanent Deformation Acceptance Criteria
In the high-stakes world of offshore operations—be it supporting oil and gas platforms, subsea construction, or burgeoning renewable energy projects—the reliability of every piece of equipment is paramount. Unlike standard ISO containers, offshore containers must be engineered to withstand constant dynamic loading, severe weather, and the unpredictable forces of the marine environment.
At TLS, we view container certification not merely as a regulatory necessity, but as a core commitment to safety and asset protection. The most defining measure of this commitment is the Vertical Impact Test. This specialized drop test, mandated by stringent standards like DNV 2.7-1 and ISO 10855, is designed to simulate the absolute worst-case scenario: a sudden, off-balance impact that challenges the container's structural integrity to its absolute limits.
Our corporate principle is firm and non-negotiable: TLS will not proceed to the next production step until the marine container has passed the vertical impact test. This comprehensive article details the precise procedures and critical acceptance criteria that ensure our containers meet this ultimate test of resilience.
Phase I: The Rigorous Setup – Mimicking Maximum Stress
The validity of the Vertical Impact Test hinges on its ability to accurately replicate the forces a container must withstand at its Maximum Gross Mass (R). Every step of the setup is meticulously controlled to ensure maximum stress application.
A. Load Equivalence: Testing at Full Payload
The test commences with precise loading. The container must be loaded with a uniformly distributed load equivalent to its maximum net payload (Rated Mass minus Tare Weight). This ensures the test is conducted under the most structurally demanding conditions.
The load must also be fully bolted inside the container. This crucial requirement ensures that the full inertia of the payload is rigidly coupled to the structural frame. Upon impact, the payload's massive inertia is translated into a complex, instantaneous downward force that the structural members must absorb and dissipate.
B. The Unyielding Impact Surface
The test demands an uncompromising foundation to ensure the container, not the ground, absorbs the impact energy. The surface must be a flat concrete floor or other rigid structure. To maximize the force and instantaneous deceleration, the ground must be unyielding.
A slight, logistical allowance permits covering the surface with wooden planks, but their thickness shall not exceed 50 mm. This minimal allowance prevents the planks from acting as a cushion, ensuring the shock transfer remains severe.
Phase II: Geometric Precision and Dynamic Force Application
The strategic design of the Vertical Impact Test is to introduce highly damaging eccentric loading—concentrating the force onto a single, critical structural intersection.
A. The Crucial 5° Tilt Angle
The container must be lifted and tilted such that the angle between the side and end beams connected to the lowest corner and the ground is not less than 5°.
This 5° angle is strategically vital. It shifts the entire kinetic energy of the system onto one single corner fitting and the surrounding structure. This simulates uneven touchdown—a common scenario during vessel pitching or imprecise crane operation—and introduces destructive torsional and shearing moments into the frame.
B. Corner Selection and Velocity Control
Two constraints ensure the test targets the container's most vulnerable point at a high speed:
- Targeting Weakness: The test mandates that the corner with the worst stiffness should be selected as the lowest-impacted corner. This requires the manufacturer (TLS) to have intimate knowledge of its structural engineering analysis (FEA), guaranteeing that the product's weakest link is physically verified under extreme stress.
- Impact Velocity: The initial impact velocity of the offshore container touching the ground shall not be less than 5°. This threshold, derived from historical accident data, ensures the container dissipates a minimum level of kinetic energy, simulating the speeds involved in high-stress handling incidents. The lowest corner point must be more than 50 mm from the ground to ensure this velocity is achieved.
Phase III: Acceptance Criteria – Validating Resilience
The post-test inspection determines whether the container demonstrated failure or resilience, a distinction that relies on precise structural assessment.
A. The Pass/Fail Standard: Permanent Deformation
The container shall not show significant permanent deformation or damage after the test.
"Significant" damage is defined as any distortion to the main load-bearing structure (corner posts, rails, corner fittings) that would compromise the container's ability to be handled, stacked, or safely lifted again. The container must remain fully fit-for-purpose immediately following the drop.
B. The Allowance for Controlled Yielding
The standard allows for a small degree of controlled yielding, recognizing that energy must be absorbed: Small repairable open welds and deformations are allowed.
This acceptance proves that the design successfully dissipated the immense kinetic energy through minor, localized plastic deformation, preventing catastrophic failure of the main frame. However, any failure requiring major structural repair or affecting load-bearing capacity signals a design flaw and results in a test failure.
Conclusion: The TLS Commitment to Certified Safety
The Offshore Container Vertical Impact Test is the definitive, physically demanding validation of a container's structural integrity. Every parameter—from the full payload loading and the required 5° tilt to the rigorous inspection for significant permanent deformation—is calculated to ensure maximum structural validation.
For TLS, this test is the uncompromised final certification. By standing by our commitment that our containers will not proceed to the next production phase until they pass this vital test, we guarantee that every unit we deliver is certified not just on paper, but through demonstrated resilience against the most demanding forces of the offshore environment. Choose TLS, and invest in a product proven to protect your assets and personnel at sea.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #Offshore Container Vertical Impact Test, #DNV 2.7-1 Certification, #EN12079, #Marine Container Drop Test, #Structural Integrity, #Impact Velocity, #5° Tilt Test, #Offshore Cargo Safety Standards, #Worst Stiffness Corner Impact, #Permanent Deformation Acceptance Criteria
Written by Oliver
- Published on
Before a TLS special container is delivered, it undergoes a comprehensive series of tests to guarantee its structural integrity, safety, and functionality. These meticulous inspections ensure that potential issues are identified and resolved early, minimizing risks during operation. Below is an in-depth overview of these essential tests:
1. Welding Test
Purpose:The welding test is critical for ensuring the structural stability of the container. It verifies the quality and strength of all welded joints, detecting defects such as cracks, porosity, or weak connections that might compromise the container’s reliability.
Testing Methods
2. Lifting Test

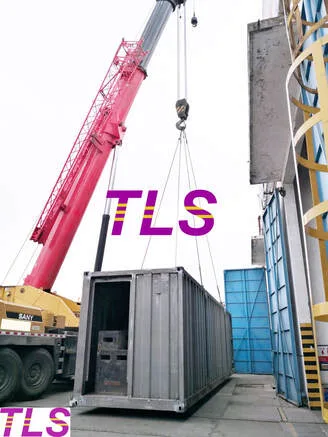

Purpose:The lifting test ensures the container can handle the designed load and additional stresses during lifting and transportation. It evaluates the strength and stability of lifting points and the overall structure.
Testing Methods
3. Watertightness Test
Purpose:The watertightness test is essential to confirm the container’s resistance to water intrusion. This ensures the container can protect its cargo from environmental factors such as rain, snow, or humidity.
Testing Methods
4. Paint Test
Purpose:The paint test ensures the durability and visual quality of the container’s surface coating. It evaluates the paint’s adhesion, resistance to corrosion, and overall appearance under various environmental conditions.
Testing Methods
Recommended test sequence
Conclusion:
Each of these tests plays a vital role in ensuring the quality and reliability of TLS special containers. By addressing potential issues at the appropriate stages of production, manufacturers achieve:
Through these rigorous testing processes, TLS ensures that its special containers meet the highest standards of performance and reliability, providing customers with products they can trust for their most demanding applications.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More details,please check below link:
https://www.tls-containers.com/tls-blog/category/container-test
Keywords:#TLS special container#welding test,#lifting test,#watertightness test,#paint test,#structural integrity,#safety testing,#functionality inspection,#visual inspection,#non-destructive testing (NDT),#strength test,#load test,#dynamic testing,#seal check,#vacuum test,#adhesion test,#corrosion resistance
1. Welding Test
Purpose:The welding test is critical for ensuring the structural stability of the container. It verifies the quality and strength of all welded joints, detecting defects such as cracks, porosity, or weak connections that might compromise the container’s reliability.
Testing Methods
- Visual Inspection: Examine weld seams for surface defects like unevenness, undercuts, or spatter.
- Non-Destructive Testing (NDT): Use advanced techniques such as ultrasonic, X-ray, or magnetic particle testing to identify internal defects.
- Strength Test: Apply pressure or load to assess the welds' load-bearing capacity.
- Conduct immediately after completing the welding process.
- Address any defects identified before assembly to avoid further complications or costly rework.
2. Lifting Test
Purpose:The lifting test ensures the container can handle the designed load and additional stresses during lifting and transportation. It evaluates the strength and stability of lifting points and the overall structure.
Testing Methods
- Load Test: Simulate lifting scenarios by applying loads exceeding the rated capacity.
- Lifting Point Check: Verify the strength and integrity of lifting ears and points to meet international standards.
- Dynamic Testing: Assess the container's response to conditions like sudden movements or uneven loads, ensuring stability.
- Perform this test after completing structural welding and assembly but before applying surface treatments.
3. Watertightness Test
Purpose:The watertightness test is essential to confirm the container’s resistance to water intrusion. This ensures the container can protect its cargo from environmental factors such as rain, snow, or humidity.
Testing Methods
- Rain Test: Use high-pressure water jets or simulate heavy rainfall to check for leaks.
- Seal Check: Focus on critical areas like door seals, welded seams, and joints to ensure they meet water resistance standards.
- Conduct after installing door seals and completing welding but prior to surface treatments. This stage allows easier identification and repair of any leakage points.
4. Paint Test
Purpose:The paint test ensures the durability and visual quality of the container’s surface coating. It evaluates the paint’s adhesion, resistance to corrosion, and overall appearance under various environmental conditions.
Testing Methods
- Visual Inspection: Check for uniformity in the coating, ensuring it is free of bubbles, cracks, or peeling.
- Adhesion Test: Utilize cross-cut or pull-off methods to verify the paint’s bond to the container surface.
- Film Thickness Measurement: Measure the film thickness of the paint on the surface of the container using an electronic coating thickness gauge or a magnetic coating thickness gauge to determine the quality of the paint.
- Perform this test after completing the painting process to validate the container’s visual and protective qualities.
Recommended test sequence
- Welding test → watertightness test (preliminary) → lifting test → surface treatment and painting → watertightness test (final)
- After passing all final tests, product acceptance and preparation for delivery.
Conclusion:
Each of these tests plays a vital role in ensuring the quality and reliability of TLS special containers. By addressing potential issues at the appropriate stages of production, manufacturers achieve:
- Enhanced Safety: Mitigate risks of structural failures, safeguarding personnel and cargo.
- Increased Durability: Ensure the container can withstand challenging environments and prolonged use.
- Operational Efficiency: Minimize downtime and repair costs by resolving issues before delivery.
- Compliance with Standards: Guarantee adherence to international quality and safety regulations.
Through these rigorous testing processes, TLS ensures that its special containers meet the highest standards of performance and reliability, providing customers with products they can trust for their most demanding applications.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
More details,please check below link:
https://www.tls-containers.com/tls-blog/category/container-test
Keywords:#TLS special container#welding test,#lifting test,#watertightness test,#paint test,#structural integrity,#safety testing,#functionality inspection,#visual inspection,#non-destructive testing (NDT),#strength test,#load test,#dynamic testing,#seal check,#vacuum test,#adhesion test,#corrosion resistance
Written by Snowy
- Published on
Introduction
Container lifting is a crucial aspect of logistics and shipping operations worldwide. Efficient and safe container lifting ensures the seamless movement of goods from one location to another. Whether you're a seasoned professional or a newcomer to the industry, understanding the various techniques, equipment, and safety measures associated with container lifting is essential. In this comprehensive guide, we will delve into the world of container lifting, exploring its importance, methods, equipment, and safety considerations.
Why Container Lifting Matters
Container lifting is the process of raising and moving standardized cargo containers, which come in various sizes and configurations, such as 20-foot and 40-foot containers. Proper container lifting is vital for several reasons:
Container Lifting Techniques
Several container lifting techniques are employed depending on the situation and equipment available. Here are some common methods:
Container Lifting Equipment
To carry out container lifting effectively, the right equipment is essential. Key container lifting equipment includes:
Safety Considerations
Container lifting can be hazardous without proper safety measures. Here are some crucial safety considerations:
Conclusion
Container lifting is a fundamental aspect of the global logistics industry, ensuring the smooth flow of goods across the world. To maximize efficiency and safety in container lifting operations, it is crucial to understand the various techniques, equipment, and safety measures involved. By following best practices and adhering to safety guidelines, businesses can optimize their container handling processes and contribute to the success of the global supply chain.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
#Container lifting #Container handling #Container lifting techniques #Container lifting equipment #Container lifting methods #Container lifting safety #Container lifting best practices #Cargo container lifting #Container crane #Container spreader
Container lifting is a crucial aspect of logistics and shipping operations worldwide. Efficient and safe container lifting ensures the seamless movement of goods from one location to another. Whether you're a seasoned professional or a newcomer to the industry, understanding the various techniques, equipment, and safety measures associated with container lifting is essential. In this comprehensive guide, we will delve into the world of container lifting, exploring its importance, methods, equipment, and safety considerations.
Why Container Lifting Matters
Container lifting is the process of raising and moving standardized cargo containers, which come in various sizes and configurations, such as 20-foot and 40-foot containers. Proper container lifting is vital for several reasons:
- Efficiency: Efficient container lifting processes reduce loading and unloading times, enabling shipping companies to optimize their schedules and meet tight deadlines.
- Safety: Mishandling containers can lead to accidents, injuries, and property damage. By following proper lifting procedures, the risk of accidents is significantly reduced.
- Cost Savings: Efficient container handling reduces operational costs associated with labor, equipment maintenance, and potential damage to goods.
Container Lifting Techniques
Several container lifting techniques are employed depending on the situation and equipment available. Here are some common methods:
- Forklifts: Forklifts equipped with container spreader attachments are commonly used for lifting and moving containers within a terminal or storage facility. They are versatile and well-suited for handling containers in confined spaces.
- Reach Stackers: Reach stackers are specialized container-handling vehicles designed for stacking and transporting containers efficiently. They are often used in container yards.
- Cranes: Mobile cranes or gantry cranes are utilized for lifting containers on and off ships or railcars. These heavy-duty machines are essential for container terminal operations.
- Straddle Carriers: Straddle carriers are large machines that can pick up containers and transport them short distances. They are commonly used in ports and rail terminals.
- Manual Handling: For smaller containers or in situations where machinery cannot be used, manual labor may be employed. However, this should be done with caution and adherence to safety protocols.
Container Lifting Equipment
To carry out container lifting effectively, the right equipment is essential. Key container lifting equipment includes:
- Container Spreaders: These devices attach to lifting equipment and securely grip the container corners, ensuring a stable lift.
- Twistlocks: Twistlocks are locking devices that connect containers when they are stacked on top of each other, ensuring they remain stable during transport.
- Lifting Slings: Slings are used with cranes and other lifting equipment to provide additional support and stability during container lifting.
Safety Considerations
Container lifting can be hazardous without proper safety measures. Here are some crucial safety considerations:
- Training: Ensure that operators are well-trained and certified in container lifting equipment operation.
- Load Limits: Never exceed the rated lifting capacity of the equipment or the container itself.
- Inspect Equipment: Regularly inspect all lifting equipment for wear and tear, and promptly address any maintenance or repair needs.
- Securing Containers: Always use appropriate locking mechanisms, such as twistlocks, to secure containers during lifting and transportation.
- Weather Conditions: Be aware of adverse weather conditions, as wind and rain can affect lifting operations. Consider suspending work during severe weather.
Conclusion
Container lifting is a fundamental aspect of the global logistics industry, ensuring the smooth flow of goods across the world. To maximize efficiency and safety in container lifting operations, it is crucial to understand the various techniques, equipment, and safety measures involved. By following best practices and adhering to safety guidelines, businesses can optimize their container handling processes and contribute to the success of the global supply chain.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
#Container lifting #Container handling #Container lifting techniques #Container lifting equipment #Container lifting methods #Container lifting safety #Container lifting best practices #Cargo container lifting #Container crane #Container spreader
Written by Oliver
- Published on

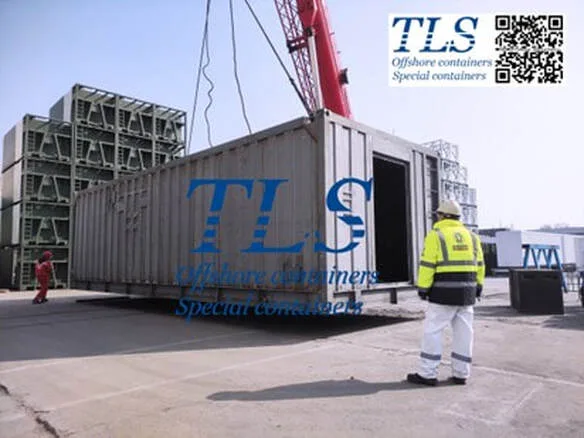

1. During the test, a uniformly distributed load equivalent to the difference between the rated mass and the tare weight of the container should be placed in the container and fully bolted.
2. The ground on which the offshore container falls should be a flat concrete floor or other hard surface. The ground may be covered with planks, which shall not exceed 50 mm in thickness.
3. Lift the marine container tilted so that the angle between the side beam and the end beam connected to the lowest angle on the bottom of the container and the ground is not less than 5°. On the bottom surface of the container, the height difference between the lowest corner point and the highest corner point should not be greater than 400 mm.
4. During testing, the corner with the worst stiffness should be selected as the lowest impacted corner.
5. The lowest corner point of the offshore container should be more than 50 mm away from the ground. The initial impact velocity of the offshore container touching the ground shall not be less than 1m/s.
6. After testing, the offshore container shall not show significant permanent deformation or damage. Small repairable open welds and deformations are allowed.
TLS will not proceed to the next production step until the marine container has passed the vertical impact test
2. The ground on which the offshore container falls should be a flat concrete floor or other hard surface. The ground may be covered with planks, which shall not exceed 50 mm in thickness.
3. Lift the marine container tilted so that the angle between the side beam and the end beam connected to the lowest angle on the bottom of the container and the ground is not less than 5°. On the bottom surface of the container, the height difference between the lowest corner point and the highest corner point should not be greater than 400 mm.
4. During testing, the corner with the worst stiffness should be selected as the lowest impacted corner.
5. The lowest corner point of the offshore container should be more than 50 mm away from the ground. The initial impact velocity of the offshore container touching the ground shall not be less than 1m/s.
6. After testing, the offshore container shall not show significant permanent deformation or damage. Small repairable open welds and deformations are allowed.
TLS will not proceed to the next production step until the marine container has passed the vertical impact test
- Published on
