Do You Need an A60 Fire Rated Container for Your Offshore Project?
A60 fire rating is not required for every offshore container.
Whether a container needs A60 fire protection depends on its application, installation environment, safety requirements, and project specifications.
In general:
- Offshore accommodation modules, control rooms, and safety-critical spaces often require A60 fire protection.
- General offshore workshops, storage containers, and equipment modules may not require A60 unless specified by the client or by regulatory requirements.
It is important to understand that offshore certification and fire rating are two different requirements.
For example:
- DNV 2.7-1 certification mainly focuses on offshore container structural integrity, lifting safety, and transportation requirements.
- A60 rating focuses on fire resistance performance and fire separation.
A container can be DNV 2.7-1 certified without being A60 rated, depending on the application.
What Standards Define A60 Fire Protection?
A60 fire protection requirements are mainly related to marine fire safety regulations and project specifications.
SOLAS Requirements
The International Convention for the Safety of Life at Sea (SOLAS) provides international requirements for fire safety on ships.
SOLAS addresses areas such as:
- Fire-resistant divisions
- Protection of accommodation spaces
- Escape routes
- Fire prevention arrangements
For offshore modules installed on vessels or marine facilities, SOLAS requirements may apply depending on the project type.
IMO FTP Code
The International Maritime Organization Fire Test Procedures (FTP) Code defines test methods for marine fire protection systems.
For A60-rated modules, the evaluation normally considers the performance of the complete fire-resistant structure, including:
- Walls
- Ceilings
- Decks
- Doors
- Windows
- Penetrations
The purpose is to ensure the module can maintain fire separation and limit heat transfer during a defined fire exposure period.

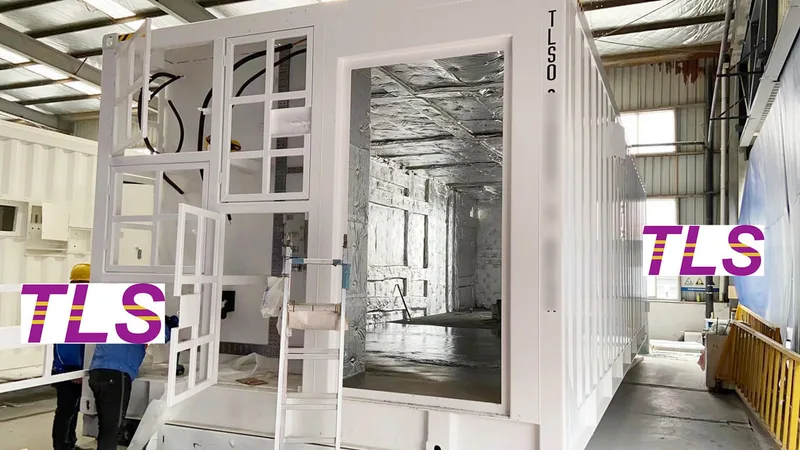

What Makes a Container A60 Fire Rated?
An A60-rated container is not defined by a single component. The entire construction system must achieve the required fire resistance performance.
Key elements include:

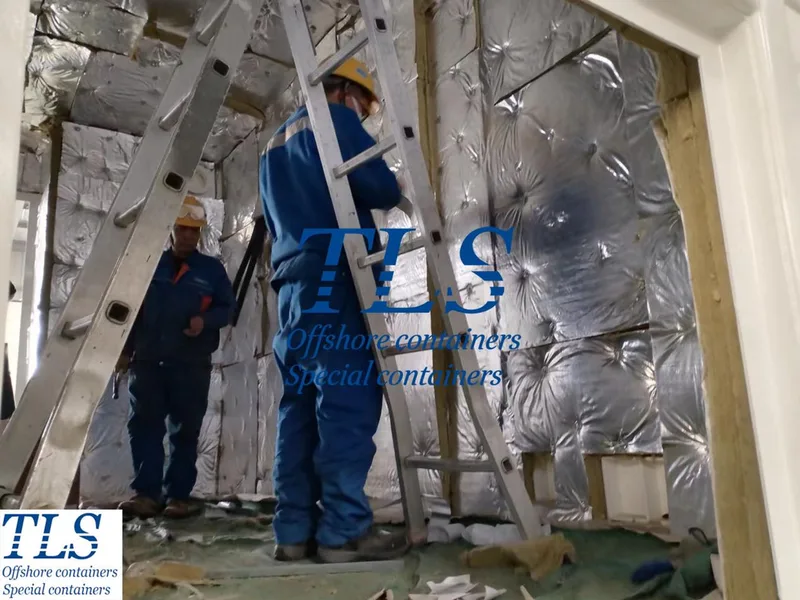

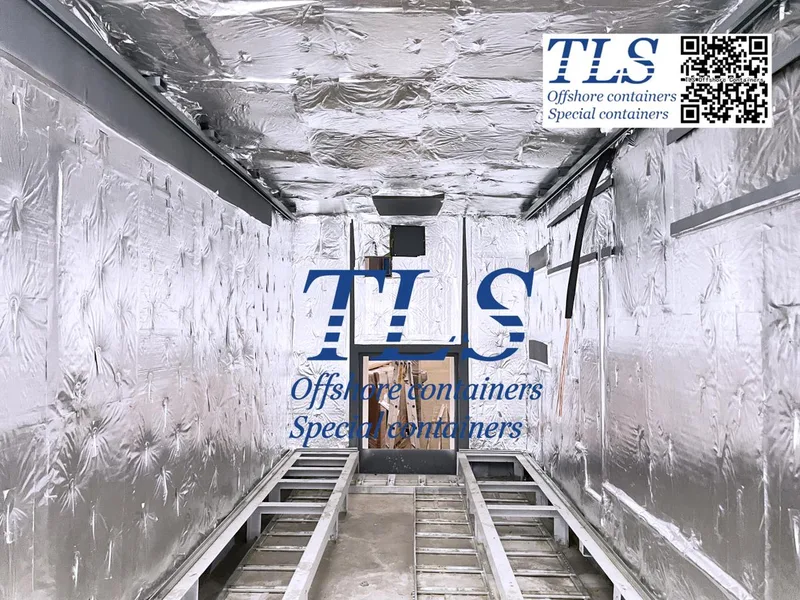

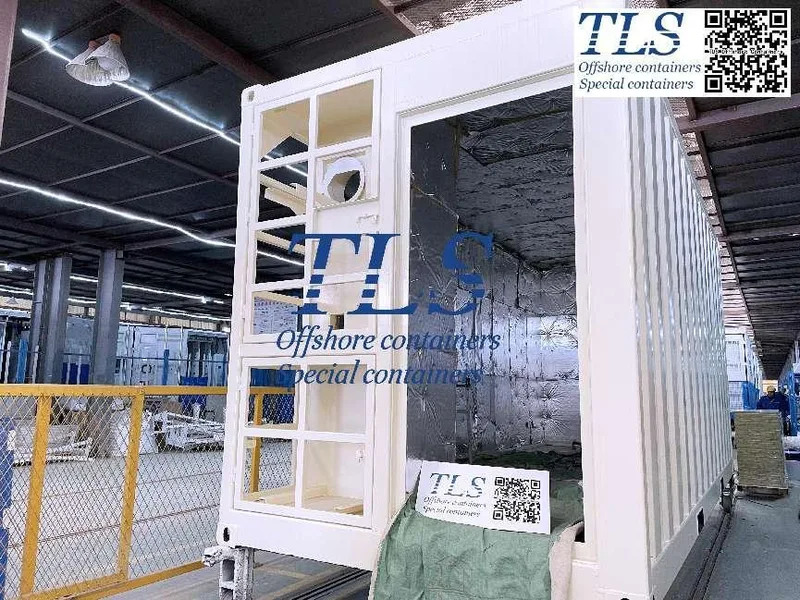

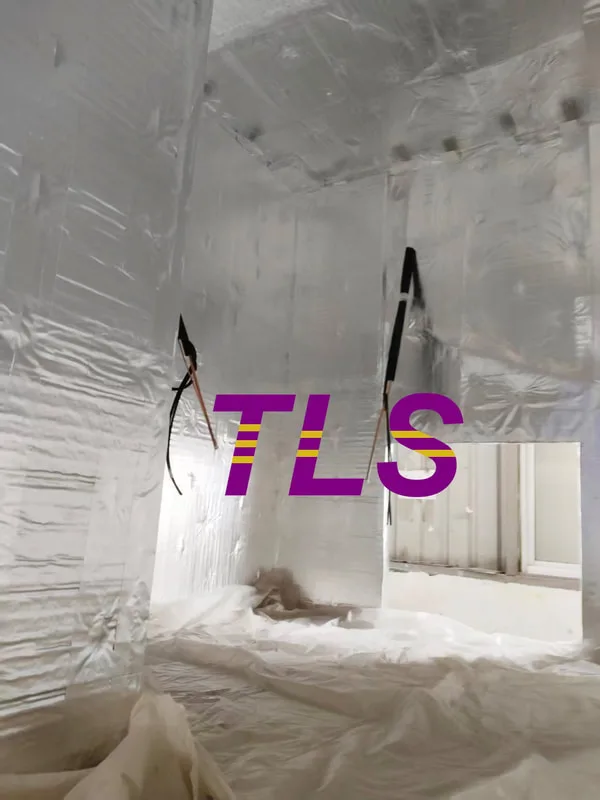

1. Fire Resistant Wall, Ceiling and Floor Construction
The main structure typically includes:
- Fire-resistant insulation materials
- Approved internal panels
- Steel framework
- Tested construction methods
The insulation system must limit temperature increase on the non-fire side during fire exposure.
2. A60 Fire-Rated Doors
Doors are critical components because openings can reduce fire protection performance.
An A60 door system normally requires:
- Fire resistance approval
- Proper sealing system
- Correct installation method
Installing an A60 door alone does not make the entire container A60-rated.
3. Fire-Rated Windows
Windows require special consideration, especially for control rooms or observation areas.
Standard safety glass does not automatically provide A60 fire protection.
Depending on project requirements, the module may require:
- Marine fire-rated windows
- Certified fire-resistant glazing systems
- Specific size limitations

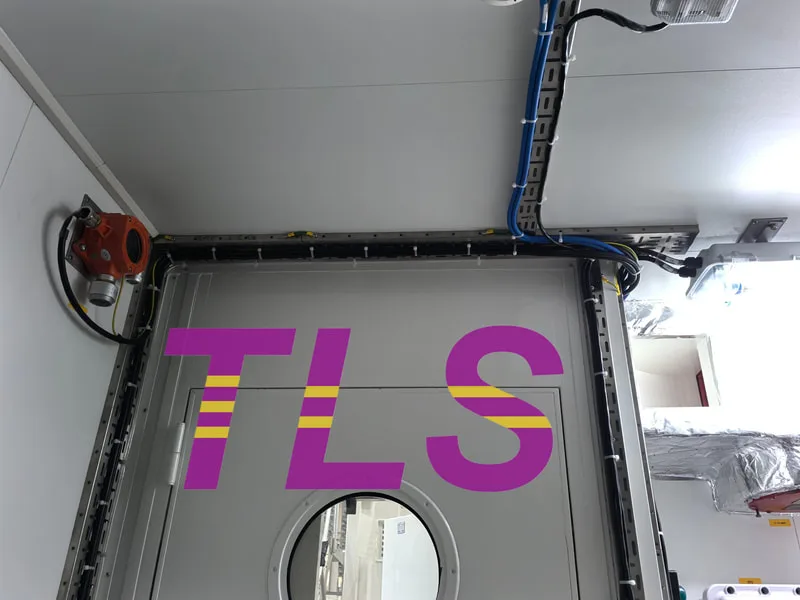

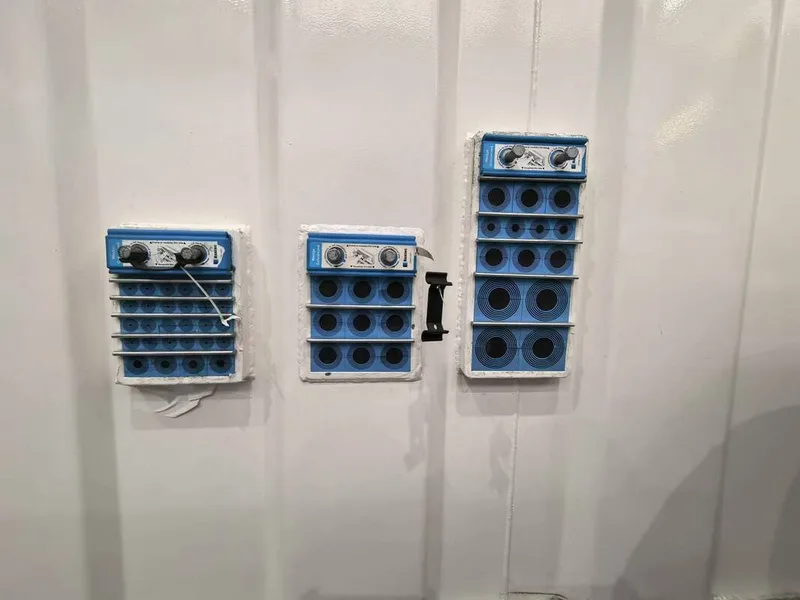

4. Protected Cable and HVAC Penetrations
Fire performance can be compromised through openings for:
- Electrical cables
- HVAC ducts
- Pipes
- Cable transit systems
Proper fire-rated sealing solutions are required to maintain compartment integrity.
When is an A60 fire-rated container required?
1. Offshore Accommodation Modules
Accommodation spaces are one of the most common applications requiring A60 fire protection.
Examples include:
- Living quarters
- Sleeping cabins
- Mess rooms
- Temporary offshore accommodation units
The main purpose is to protect personnel and maintain safe evacuation conditions during a fire event.
2. Offshore Control Rooms
Control rooms may require A60 protection when they contain critical operational equipment or are located near potential fire hazards.
Examples include:
- Process control rooms
- Electrical control rooms
- Emergency response rooms
The objective is to protect both personnel and critical systems.
3. Modules Installed Near Hazardous Areas
Containers located close to areas with increased fire risk may require enhanced fire protection.
Examples:
- Oil and gas processing areas
- Drilling areas
- Fuel handling areas
The final requirement depends on the project fire risk assessment and client specifications.
When A60 May Not Be Necessary?
Not every offshore application requires A60 construction.
For example:
Offshore Workshop Containers
Used for:
- Equipment maintenance
- Repair work
- Tools and machinery storage
The main requirements may focus on:
- Structural strength
- Offshore lifting capability
- Corrosion protection
- Functional layout
Offshore Storage Containers
Used for:
- Spare parts
- General materials
- Equipment storage
These applications typically require offshore certification and durability rather than fire-rated accommodation standards.
A60 Certified Module vs A60 Compliant Construction: What Is the Difference?
This distinction is important during project specification.
A60 Certified Module
Means:
- The complete module has been evaluated according to relevant fire testing requirements.
- Fire performance documentation is available.
- The construction system has been verified.
A60 Compliant Construction
Means:
- The design follows A60-related requirements.
- Certain materials or components may meet fire performance expectations.
- However, the complete module may not have formal certification.
Before quotation or manufacturing, customers should clarify whether they require:
- A fully certified A60 module;
- An A60-rated construction design;
- Individual A60 components only.
How Should Customers Specify A60 Requirements?
To avoid incorrect specifications, customers should confirm the following information:
1. Application
What will the container be used for?
- Accommodation
- Control room
- Laboratory
- Workshop
- Storage
2. Installation Location
Where will it be installed?
- Offshore platform
- Offshore vessel
- Wind farm facility
- Onshore hazardous area
3. Required Approval Level
Does the project require:
- A60 fire-rated construction?
- Full A60 certification?
- Classification society approval?
- Client-specific fire protection standard?
4. Applicable Regulations
Confirm whether requirements are based on:
- SOLAS
- IMO FTP Code
- Classification society rules
- Operator engineering specifications
Common Misunderstandings About A60 Containers
“All offshore containers require A60 certification.”---Incorrect.
Offshore certification and A60 fire protection address different risks.
Offshore certification focuses mainly on structural safety and lifting requirements, while A60 focuses on fire resistance.
“An A60 door means the whole container is A60.”---Incorrect.
The complete module, including walls, ceiling, floor, windows, and penetrations, must meet the required fire protection standard.
“A60 only depends on insulation thickness.”---Incorrect.
A60 performance depends on the complete construction system, approved components, and installation quality.
Conclusion
A60 fire protection should be specified based on the function and risk level of the module, not simply because the container is used offshore.
Before selecting an A60 container, project teams should confirm:
1. Module application;
2. Installation environment;
3. Applicable regulations;
4. Required certification level.
FAQ
1. Do all offshore containers need A60 certification?
No. Many offshore containers only require offshore structural certification such as DNV 2.7-1, while A60 is required for specific fire-protected applications.
2. Is DNV 2.7-1 the same as A60?
No. DNV 2.7-1 covers offshore container structural and lifting requirements. A60 covers fire resistance performance.
3. Does an offshore accommodation container usually require A60?
Yes, offshore accommodation modules commonly require higher fire protection levels because they are designed for personnel occupancy.
4. Can a standard container be upgraded to A60?
A conversion may be possible, but achieving recognized A60 performance requires proper engineering design, approved materials, and verification of the complete structure.
5. Does an A60 container require A60 doors and windows?
Yes. All openings and penetrations must be considered because they can affect overall fire resistance performance.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.

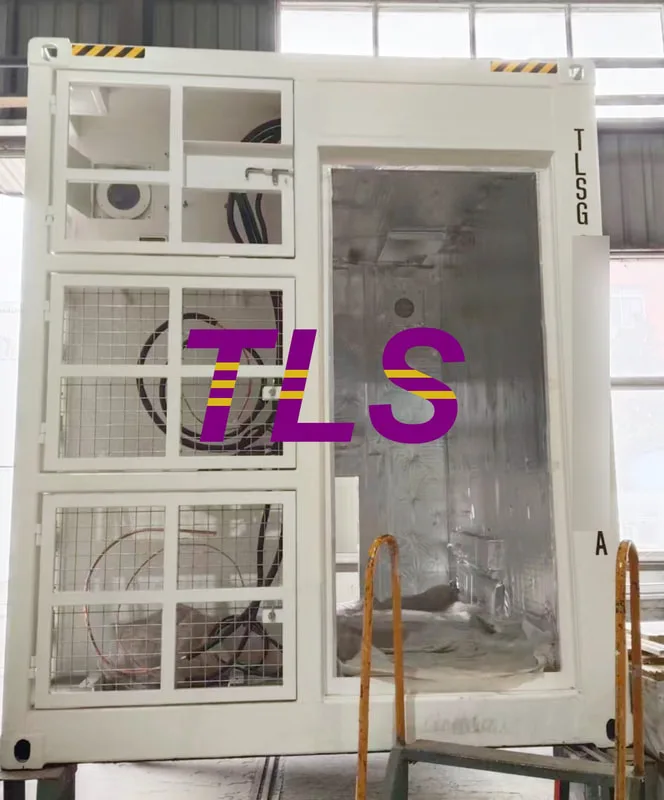

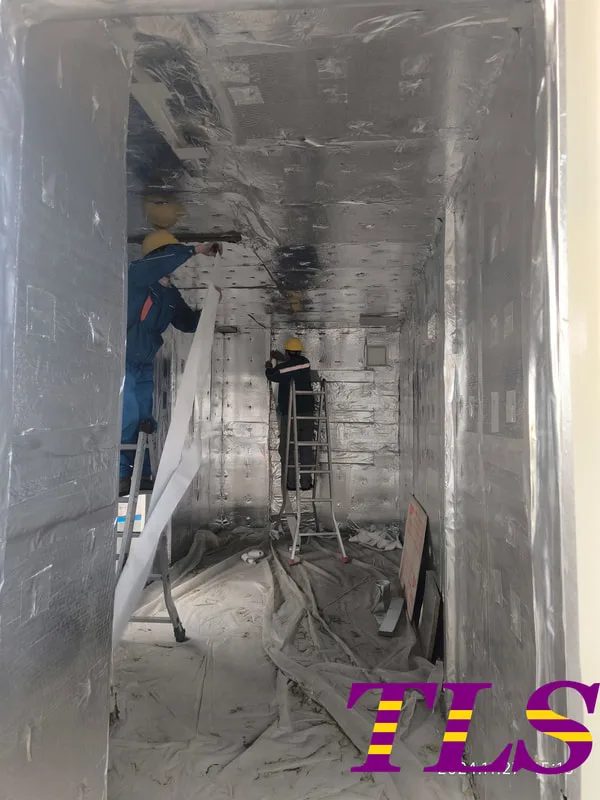

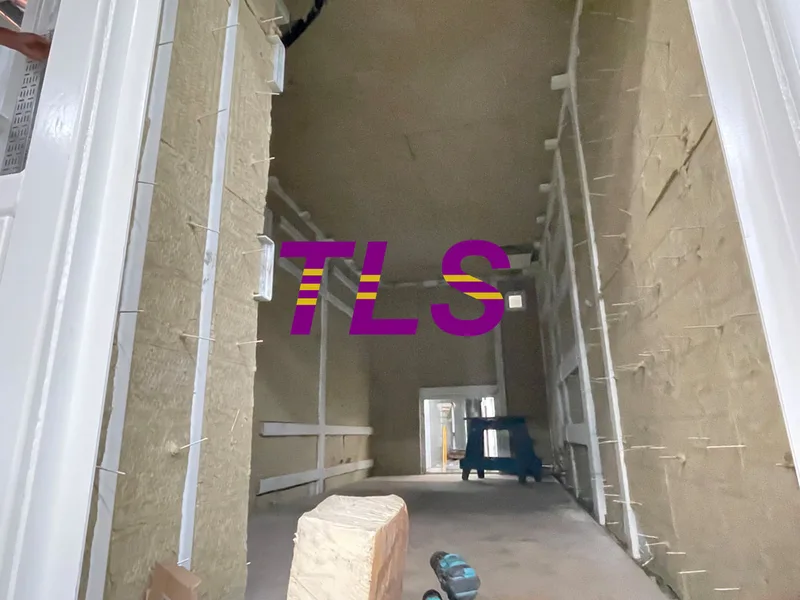

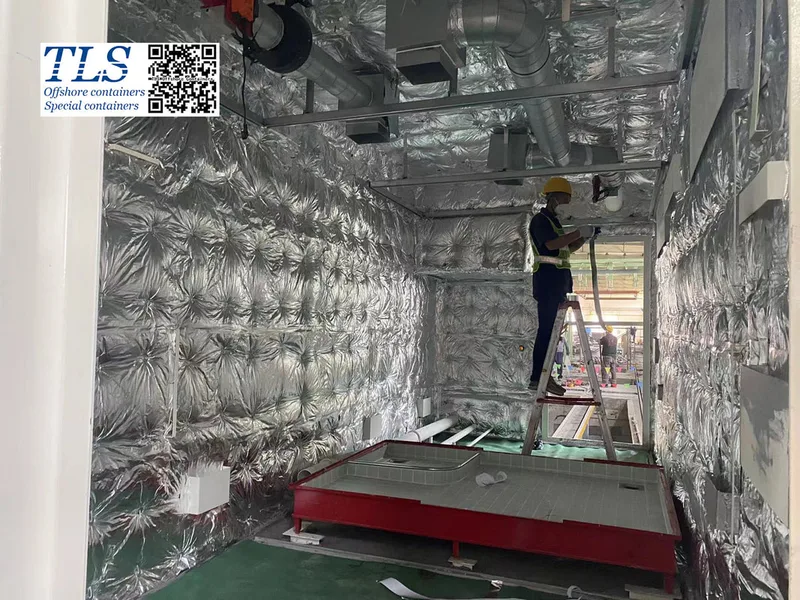

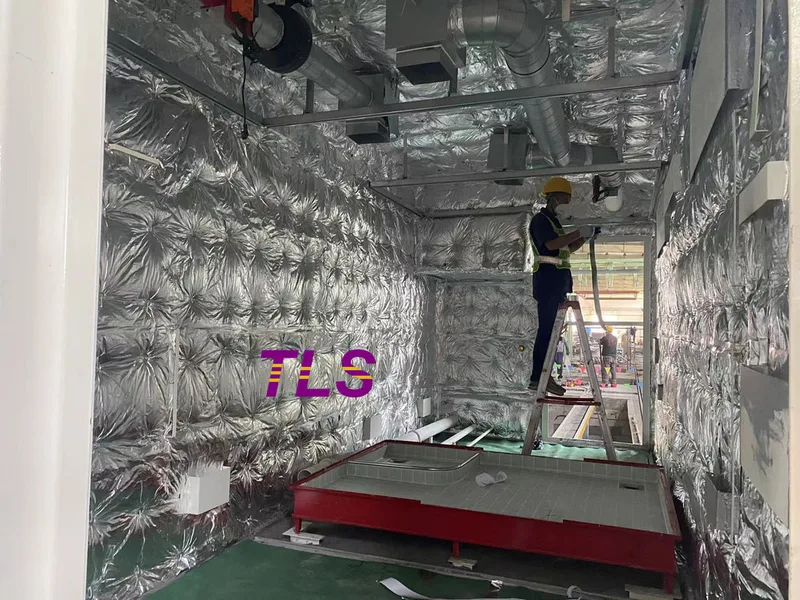

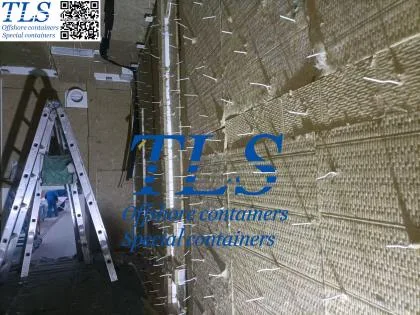

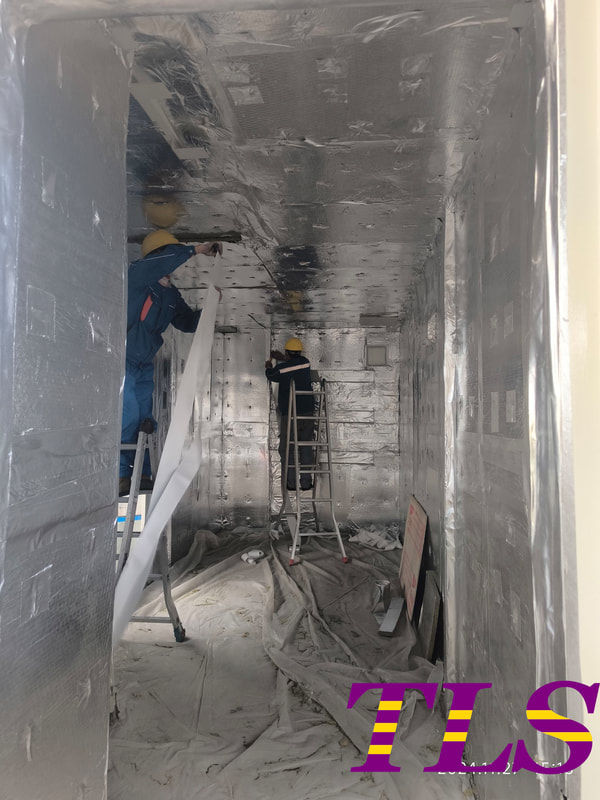

The Superiority of Rock Wool in Industrial Insulation
When selecting insulation materials for modular containers, rock wool—derived from basalt and volcanic slag—remains the gold standard. Unlike synthetic foams that may release toxic fumes during combustion, rock wool is inherently non-combustible and offers five distinct advantages for industrial applications.
First, its high-temperature stability allows it to maintain structural integrity even when housing high-output machinery or generators. Second, its superior thermal resistance significantly lowers energy consumption for HVAC systems by minimizing heat transfer through the steel skin. Third, its unique fibrous structure provides exceptional sound attenuation, which is critical for transforming containers into habitable workspaces or control rooms. Finally, rock wool is a sustainable, chemically neutral material that ensures long-term safety for both the environment and the operators.
Engineering the Thermal and Fire Barrier
Designing an effective insulation system is a balancing act between thermal performance, spatial constraints, and cost-efficiency. To achieve optimal results, engineers must evaluate the specific density and thickness of the rock wool. Higher density translates to better fire resistance and structural rigidity, which is vital for containers subjected to the mechanical stresses of maritime transport.
A comprehensive design must address the "total envelope," meaning the roof, floor, and all four walls must be treated as a single thermal unit. Depending on the cargo's sensitivity, designers may opt for a single-layer system or a double-layer configuration to eliminate thermal bridging. This layering is often reinforced with fireproof boards and specialized coatings that create a secondary line of defense against heat penetration.
Meeting the A60 Fire Protection Standard for Offshore Use
For containers deployed in offshore or high-risk industrial environments, meeting the A60 fire protection standard is a non-negotiable requirement. This classification ensures that the internal temperature of the container remains within safe limits for at least 60 minutes during a high-intensity fire.
Achieving an A60 rating involves more than just thick insulation; it requires a holistic fire protection system. This includes the integration of smoke and heat detectors for early warning, fire water sources or gas suppression systems for active firefighting, and fire-rated door seals. This integrated approach ensures that even if an external fire occurs, the container acts as a fortified vault, preserving both the assets inside and the structural integrity of the unit.
Prioritizing Human Safety and Operational Environment
A truly safe container design accounts for the well-being of the people working within it. Effective fire protection must be paired with high-performance ventilation systems to prevent the accumulation of hazardous gases or excess heat. Furthermore, adequate lighting and clear emergency exit paths are essential components of a safe workspace. By combining passive insulation with active safety measures, operators can work confidently in potentially hazardous zones, knowing the environment is engineered for their protection.
Summary of Modern Container Safety Design
Constructing a high-performance insulated container is a multifaceted engineering project. Success depends on selecting the right materials, such as high-density rock wool, and adhering to international fire safety standards like A60. By focusing on cargo characteristics, environmental risks, and budgetary goals, organizations can develop a tailored solution that mitigates risk, reduces energy costs, and ensures the total security of their supply chain.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #Rockwool Insulation, #Fireproofing, #A60 Fire Rating, #Thermal Envelope, #Offshore Container, #Non-combustible, #DNV 2.7-1 Certified, #Passive Fire Protection, #Coatings, #Hazardous Cargo Containment
Written by Oliver

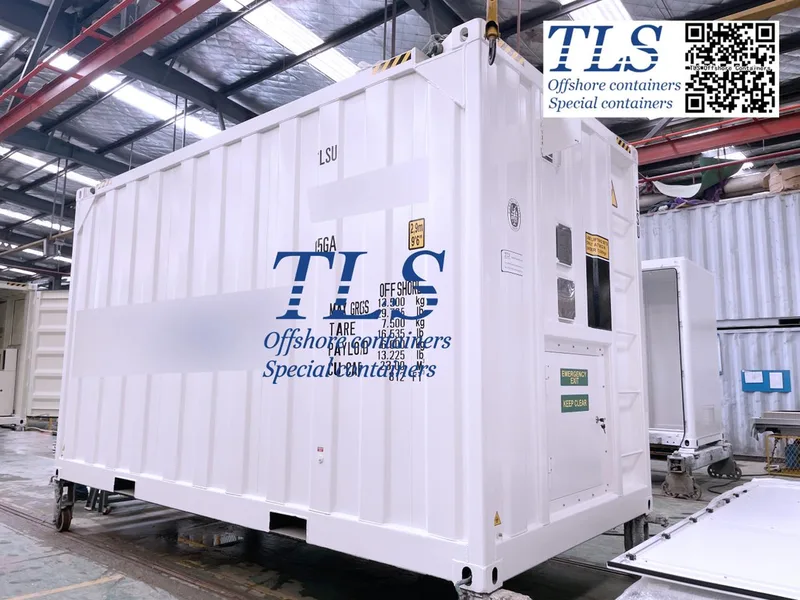

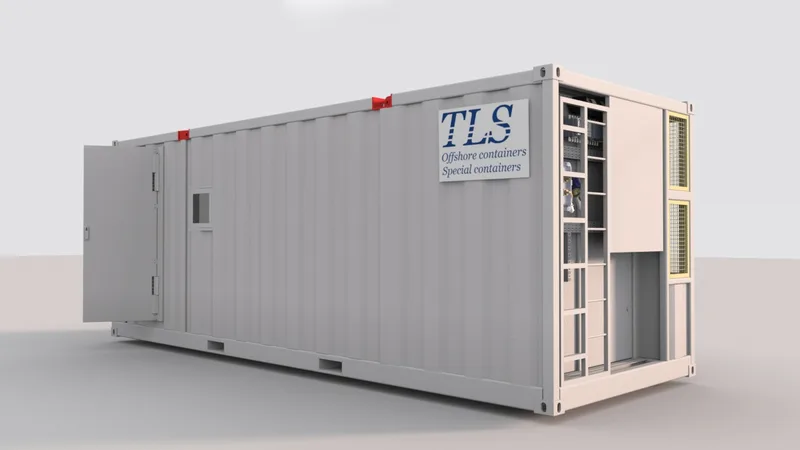

Enter the TLS A60 Offshore Pressurized Container. As the industry standard for hazardous area operations, these units are revolutionizing how teams manage equipment housing and personnel safety in Zone 1 and Zone 2 environments.
What is an A60 Pressurized Container?
An A60 pressurized container is a specialized offshore module designed to provide a safe, breathable environment within hazardous areas. The "A60" rating signifies that the unit can withstand a standard fire for 60 minutes, preventing the internal temperature from rising beyond safety limits.
By maintaining positive internal pressure, these containers prevent the ingress of flammable gases, making them the gold standard for offshore laboratories, control rooms, and equipment housing.
5 Key Features of TLS A60 Offshore Modules
1. Superior Fire and Blast Resistance
Safety is the foundation of the TLS design. Each unit is built to meet DNV 2.7-1 and EN 12079 standards. The A60-rated insulation provides a critical one-hour window for emergency response, protecting both high-value assets and human life.

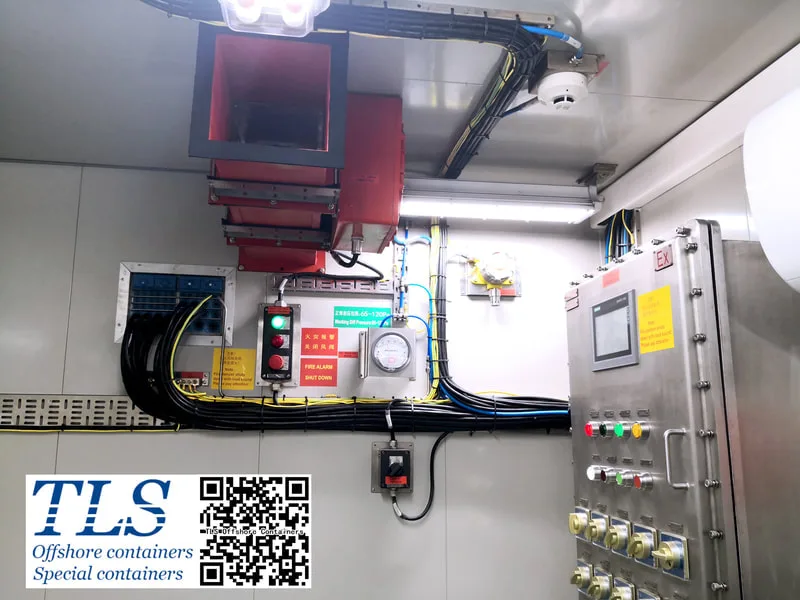

2. Advanced Pressurization & Gas Detection (CPFG)
TLS integrates state-of-the-art Combined Pressurization, Fire & Gas (CPFG) systems. If the system detects a loss in pressure or the presence of external toxic gases, it automatically triggers an emergency shutdown (ESD) of all internal non-certified electrical equipment.
3. Marine-Grade Corrosion Protection
- The offshore environment is relentless. TLS containers utilize:
- High-grade structural steel.
- Marine-grade C5-M paint systems.
- Stainless steel hardware to prevent rust and structural degradation.
4. Fully Customizable Internal Layouts
Every offshore project has a unique footprint. Whether you need an offshore laboratory, a Remote Operated Vehicle (ROV) control center, or a hazardous chemical storage vault, TLS offers modular configurations tailored to your specific spatial and technical needs.
5. Global Compliance and Certification
Navigating international regulations is complex. TLS A60 units are fully certified to meet ATEX, IECEx, and SOLAS requirements, ensuring your project remains compliant regardless of its global location.
Essential Applications in the Offshore Sector
The versatility of the TLS A60 container allows it to serve multiple roles on rigs, FPSOs, and offshore platforms:
- MWD/LWD Cabins: Protecting sensitive "Measurement While Drilling" electronics from heat and vibration.
- Offshore Laboratories: Providing a stable, pressurized environment for fluid analysis and chemical testing.
- Emergency Shelters: Acting as a "Safe Haven" or first-aid station during critical platform incidents.

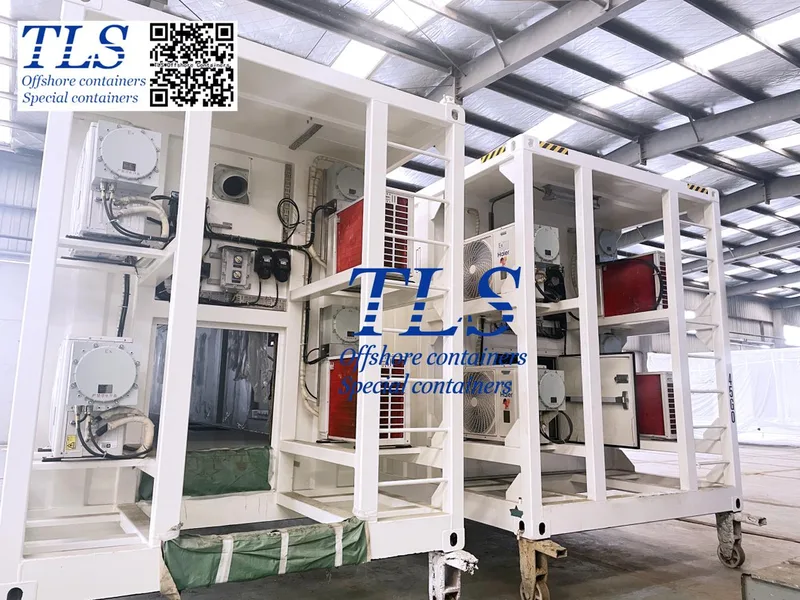

- Workshops & Control Rooms: Housing Motor Control Centers (MCC) and critical server infrastructure in Zone 1 areas.
The TLS Advantage: Reliability When It Matters Most
Choosing the right offshore container is a balance of engineering excellence and regulatory peace of mind. The TLS A60 Offshore Pressurized Container doesn't just meet industry benchmarks—it sets them. By combining robust construction with intelligent safety automation, TLS helps operators minimize downtime and maximize personnel safety.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #A60 Offshore Pressurized Container, #DNV 2.7-1 Certified Module,#Zone1 Hazardous Area Cabin, #Offshore Pressurized Workshop, #ROV Control Cabin A60, #MWD LWD Cabins for Drilling, #ATEX Certified Offshore Container, #CPFG System Offshore, #Explosion Proof Container Cabin
Written by Oliver
1. Design Standards and Safety
The A60 offshore container strictly complies with international offshore safety standards:
- A60 fire rating: Provides at least 60 minutes of fire resistance, meeting stringent offshore fire protection requirements.

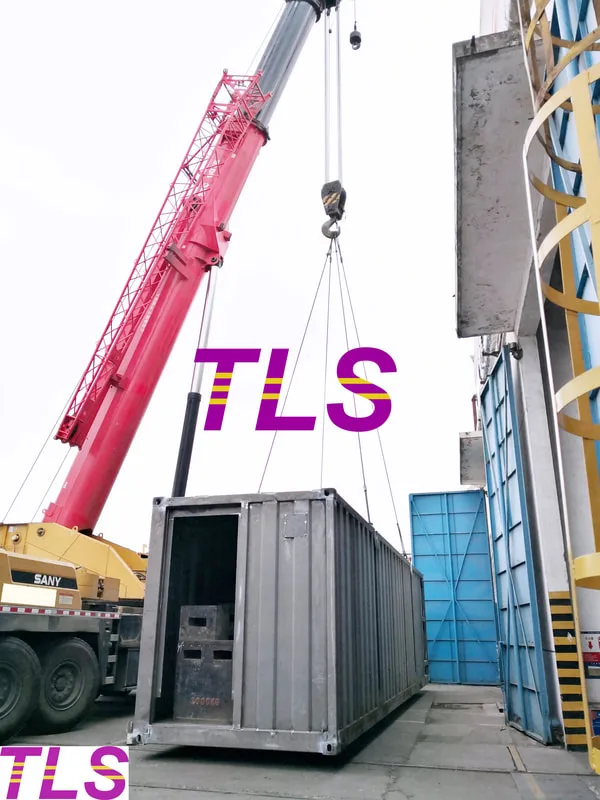

- DNV 2.7-1 / ISO 10855 compliance: Ensures structural reliability during lifting, transportation, and harsh offshore conditions.
- Marine durability: Corrosion-resistant materials and coatings withstand high humidity and saltwater environments for long-term use.

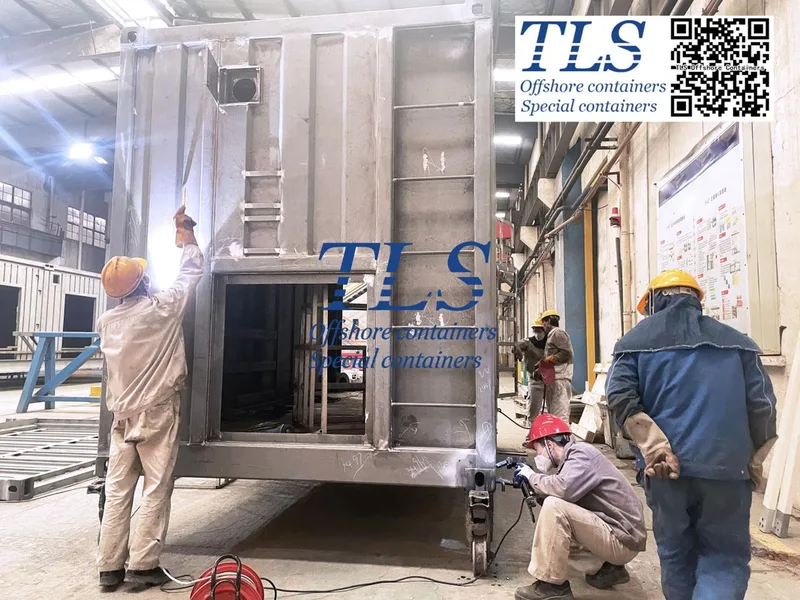

2. Structural Features and Design Advantages
The A60 offshore container’s structure is optimized for offshore conditions:
- Modular design: Customizable sizes, layouts, and functional zones to suit different operational needs.
- Reinforced structure: High-strength steel and advanced welding increase impact resistance and load-bearing capacity.
- Sealing and protection: Doors, windows, and vents are sealed to prevent seawater, dust, and rain intrusion.
- Flexible interfaces: Pre-installed electrical and hydraulic connections allow seamless integration with existing platform systems.
3. Functional Advantages
Beyond providing a safe space, the A60 container enhances offshore operational efficiency:
- Centralized equipment management: Organize tools, machinery, and materials to streamline workflows.
- Efficient workspace: Thoughtful internal layout supports multi-person collaboration.
- Environmental control: Insulation and ventilation maintain a comfortable internal temperature, ensuring stable equipment operation.
4. Application Scenarios
The A60 offshore container is suitable for a wide range of offshore platforms and operations:
- Oil and gas platforms: Safe workspace for mechanical maintenance, electrical equipment management, or tool operations.
- Offshore wind farms: Can be used as maintenance workshops or electromechanical equipment rooms.
Conclusion
With high safety standards, modular design, and versatile functionality, the A60 offshore workshop container is built for high-risk offshore operations. Choosing an A60 container provides a reliable, safe, and efficient workspace offshore, while minimizing operational risks and costs.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #A60 offshore container,#Offshore workshop,#Fire-resistant container,#DNV 2.7-1 certified,#ISO 10855 compliant,#Modular workspace,#Offshore maintenance,#Equipment management,#Marine corrosion resistance,#High-risk offshore operations
Written by Snowy
The key to resolving this challenge lies in a systematic approach to material selection and structural design.
1. The Dual Role of Rock Wool Insulation
Effective insulation is the cornerstone of a comfortable environment. However, in fire-sensitive applications, the insulation material must pull double duty.
Rock wool, a mineral fiber material, is the industry standard for this task. It offers two indispensable benefits:
- Exceptional Thermal Insulation: It effectively limits heat transfer, helping to maintain stable interior temperatures and reduce the need for complex, energy-intensive mechanical cooling systems.
- High Fire Resistance: Rock wool is inherently non-combustible. Its use significantly slows down the spread of fire and lowers the overall fire load within the confined space, acting as a crucial passive fire protection measure.
2. Strategic Design for Safety and Comfort
Achieving the perfect balance requires more than just the right material; it demands thoughtful structural layout and planning:
Ensuring Fire Safety Through Layout
Passive fire protection is vital where evacuation is difficult. The design must integrate several fire mitigation strategies:
- Fire Partitions: Creating effective fire zones within the space using multi-layer wall structures and rock wool insulation.
- Controlled Routing: Properly separating and routing vital infrastructure, such as cables and pipes, to prevent them from becoming fire conduits.
- Early Detection: Integrating the material structure with active safeguards, such as smoke sensors and other early detection systems.
Optimizing Airflow for Comfort
To prevent localized overheating (hotspots) and ensure uniform temperatures, a well-designed airflow strategy is essential:
- Planned Pathways: Integrating inlet and outlet openings and guiding channels ensures continuous air movement.
- Heat Distribution: This strategic airflow management works in conjunction with the high-performance insulation to provide basic thermal comfort.
3. Long-Term Reliability: Maintenance and Verification
A balanced design must also consider the long-term operational needs of the structure.
- Maintenance-Friendly Features: Incorporating removable panels and service doors is crucial. This facilitates periodic inspection, repair, and component replacement, ensuring that the insulation and fire safety measures remain effective over time.
- Verification Through Simulation: Modern design practices include using visualization tools and simulations (e.g., temperature distribution models or fire path simulations). These provide intuitive insights into the design's performance and help engineers verify that the risk mitigation strategies are sound.
Conclusion
For engineers and designers working on confined spaces, the decision to use materials like rock wool, combined with a systematic design strategy, is non-negotiable. It allows them to create environments that are not only comfortable and functional but also meet the highest safety standards, ensuring peace of mind where escape routes are limited.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #Rock Wool Fire Rated Insulation, #Passive Fire Protection in Modular Construction, #Fire Safety for Confined Spaces, #Thermal Insulation and Fire Resistance, #Offshore Container Fire Safety, #Non-Combustible Insulation for Cabins, #Modular Cabin Thermal Comfort Solutions, #Mineral Wool Sandwich Panels
