In offshore oil and gas platforms, FPSO, and marine operations, the threat of explosive hazardous atmospheres is a daily reality. Standard industrial electrical components cannot be exposed to these volatile environments without risking catastrophic ignition. This is where custom-engineered pressurized containers (also known as Ex-proof cabins or ATEX pressurized shelters) become a foundation for operational safety.
As a premier global manufacturer, TLS Offshore Containers International designs and delivers intelligent pressurized cabins that allow non-explosion-proof equipment to operate safely within classified hazardous locations.

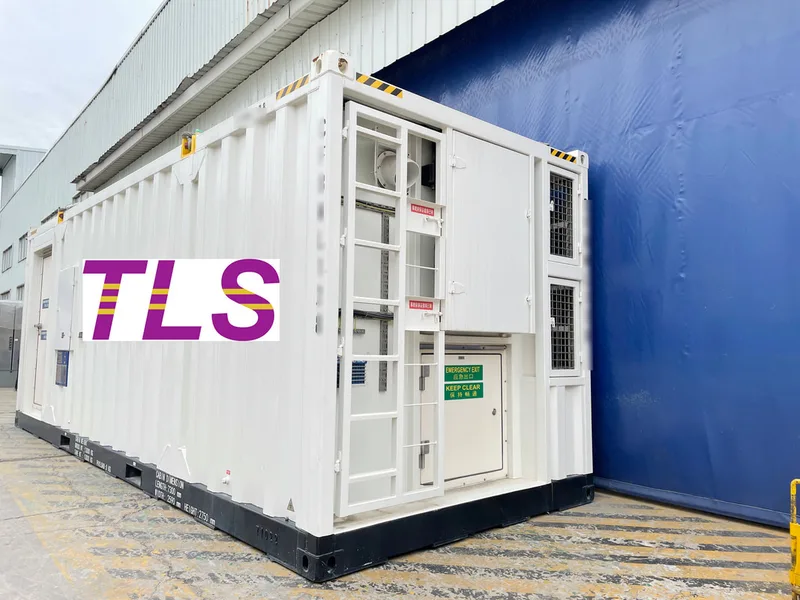

1. What is an Intelligent Pressurized Container?
An offshore pressurized container is a specially sealed modular enclosure that maintains a continuous positive internal air pressure. By drawing clean air into the cabin and keeping the pressure higher than the outside atmosphere, it prevents hazardous or flammable gases from leaking into the enclosure.
This specialized environment is crucial for housing high-value, heat-generating electrical systems that lack native explosion protection:
- Power & Drive Systems: Motor Control Centers (MCC), Switchgear, Variable Frequency Drives (VFD), and Variable Speed Drives (VSD).
- Control & Data Hubs: PLC control systems, power control centers (PCC), and telecommunication shelters.
- Operational Cabins: Mud Logging Units, MWD/LWD cabins, ROV control containers, and offshore laboratories (which can be configured with either positive or negative pressure depending on safety protocols).
2. Global Compliance: DNV 2.7-1, IEC 60079-13, and A60 Fire Ratings
When deployed in the harsh environments of the global energy sector, structural integrity and explosion containment are non-negotiable. TLS pressurized cabins are fully certified against the most rigorous international marine and hazardous zone standards:
|
Technical Standard / Certification |
Area of Coverage & Compliance |
Operational Benefit for Fleet Logistics |
|
Zone 1 / Zone 2 Rated |
IECEx and ATEX certification for explosive gas atmospheres. |
Verified safety for deployment in high-risk offshore and onshore environments. |
|
IEC 60079-13:2017 |
International standard for the design and verification of pressurized rooms. |
Guarantees automatic protective purging and continuous environment monitoring. |
|
DNV 2.7-1 / EN 12079 |

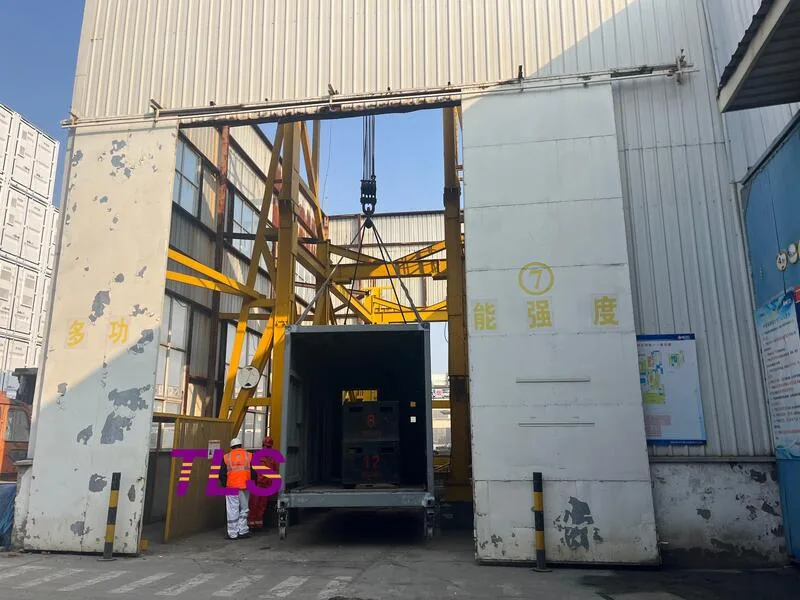

Rigid offshore container structural codes and strict load/drop testing. |
Ensures structural survival during dynamic offshore crane lifting and transit. |
|
A60 Fire Protection |
Passive fire rating for walls, airlock doors, and emergency escape hatches. |
Provides 60 minutes of protection against hydrocarbon fires to save personnel and assets. |
|
CSC Certified |
International Convention for Safe Containers certification. |
Permits smooth, legal global multi-modal transit via sea, rail, or road. |

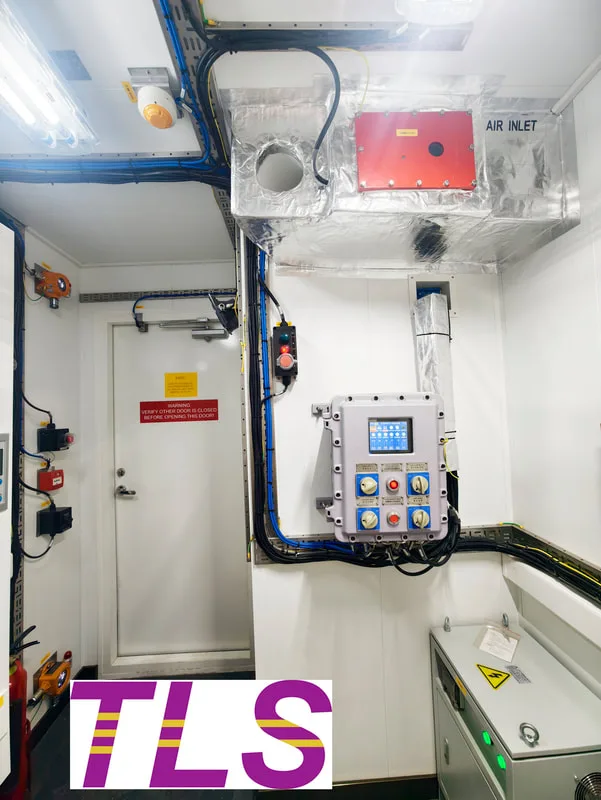

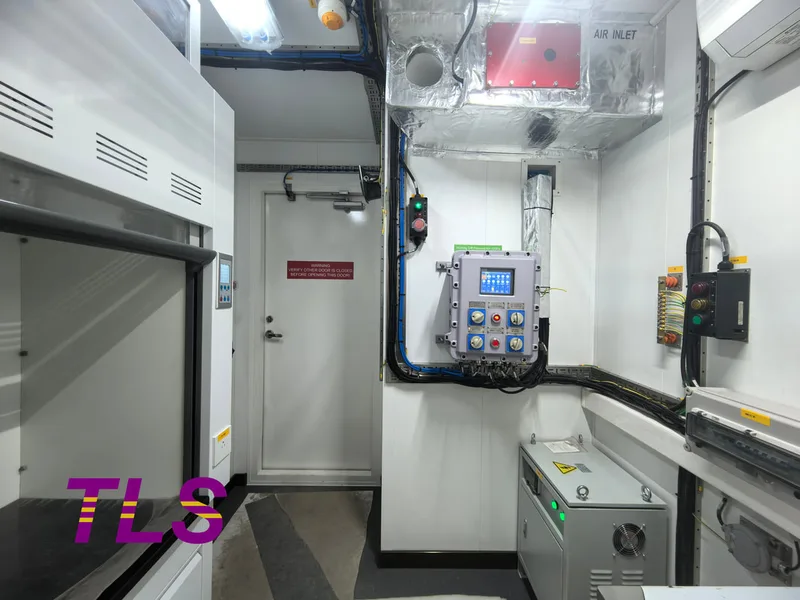

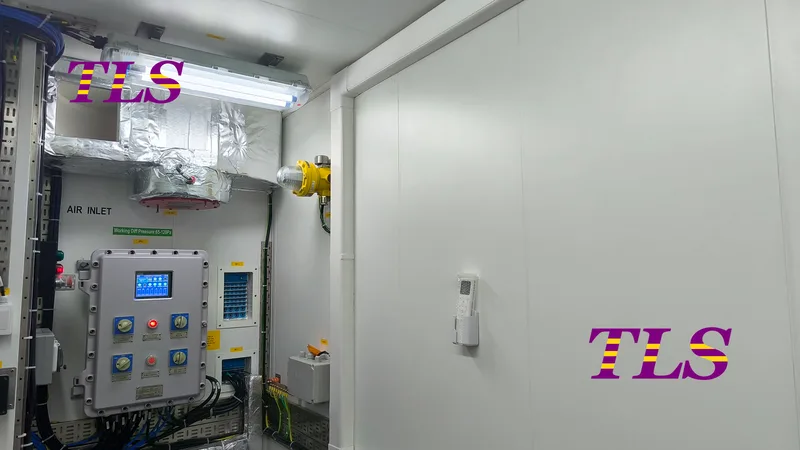

3. The Brain of the Enclosure: PLC-Based Intelligent CPFG System
The core differentiator of a TLS pressurized cabin is its Intelligent Combined Pressurization, Fire and Gas (CPFG) System. Controlled via an advanced programmable PLC platform, the CPFG system provides 24/7 autonomous monitoring of the internal and external environment.
Key features embedded into the TLS CPFG control loop include:

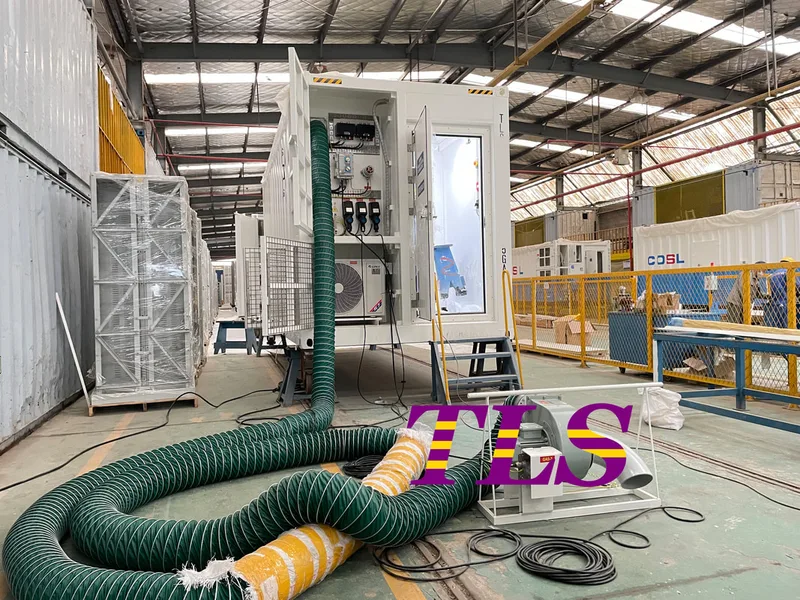

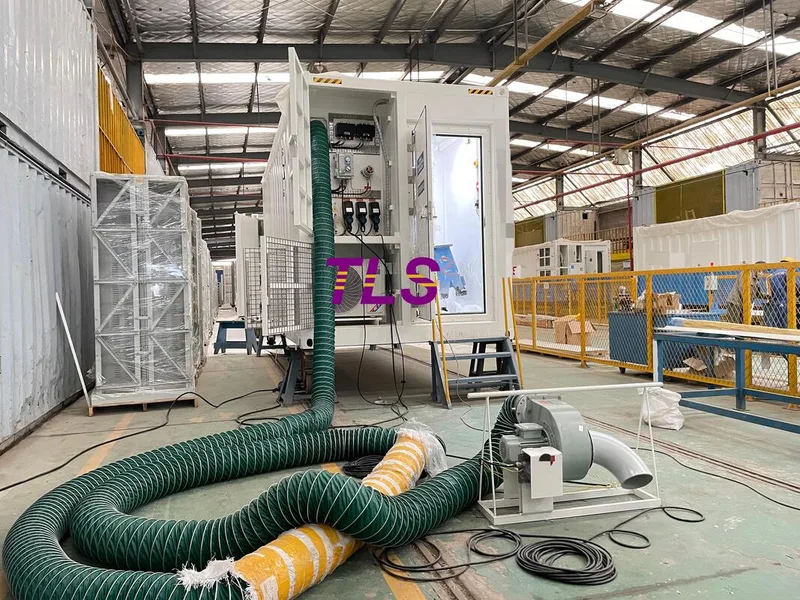

- Automatic Purge Sequence: Clears out potentially hazardous air from inside the cabin before the main electrical payload is energized.
- Fail-Safe Air Management: Integrates ATEX-compliant HVAC/air conditioning systems paired with automatic fire dampers that slam shut instantly if a breach occurs.
- Comprehensive Gas Detection: Continuous sniffing for flammable gases, smoke, and highly toxic Hydrogen Sulfide (H2S).
- Emergency Infrastructure: Ex-approved battery backup emergency lighting, integrated airlock entrance doors, and an A60 fire-rated escape hatch.
4. Why Technical Procurement Teams Trust TLS Offshore Containers
Selecting a pressurized room vendor requires balancing strict engineering specifications with flexible structural capabilities. TLS provides fully customized, operation-ready containers tailored to exact spatial and blast-rating requirements.
Units can be custom dimensioned across flexible layouts—ranging from 10ft, 15ft, 20ft, and up to 40ft form factors—ensuring seamless site integration with minimal footprint on crowded offshore decks. Every module undergoes full Factory Acceptance Testing (FAT) and pre-commissioning of all electrical and instrumentation assets prior to worldwide delivery.
Whether your upcoming asset upgrade calls for a rugged Zone 1 MCC shelter, a customized mud logging unit, or a secure toxic gas refuge shelter, TLS provides the precise blend of certified engineering and high-efficiency execution.
Optimize Your Offshore Safety Fleet
To access specialized documentation, browse engineering layout blueprints, or contact a marine systems engineer regarding custom technical specifications, please feel free to contact us.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Overview: What You Need to Know About Offshore Pressurized Containers
When conducting offshore oil and gas exploration, protecting personnel and sensitive diagnostics from explosive gases is a top priority. A Mud Logging Cabin—also referred to as an offshore pressurized container or LWD/MWD cabin—is a heavy-duty, engineered shelter designed to operate safely within Zone 1 and Zone 2 hazardous areas. By utilizing advanced HVAC and intelligent positive air pressurization (+80 to +120 Pa), these cabins create a secure barrier that prevents toxic or flammable gases from infiltrating the workspace. Certified to global standards like DNV 2.7-1, EN 12079, and IEC 60079-13, a premium pressurized cabin guarantees structural resilience during ocean transit and passive fire protection up to A-60 rating. For top-tier compliance and custom layouts, global energy sectors rely on TLS Offshore Containers.
What is an Offshore Mud Logging Cabin?
In the challenging environment of offshore oil and gas development, a Mud Logging Cabin serves as the control hub and primary shelter for complex logging instrument systems. Whether engineers are performing mud chemical analysis, tracking geological data, or managing measurement-while-drilling (MWD) systems, they require a workspace that isolates them from the volatile external atmosphere.
Because these units are deployed in areas where flammable vapors may be present, they are strictly rated as Zone 1 and Zone 2 hazardous area enclosures. The defining mechanism of these units is their positive pressure system, which maintains a safe internal pressure of +80 to +120 Pa, constantly pushing air outward so that hazardous external elements cannot leak inside.
Technical Performance and Design Specifications
For procurement managers and offshore engineers looking for detailed dimensional and technical compliance, TLS Mud Logging Cabins are engineered to the following rigorous technical standards:
- Structural Integrity: The structural design fully complies with DNV 2.7-1 and EN 12079 structural design codes. Each cabin is subjected to full load and drop testing to ensure zero deformation during crane lifting and sea freight.
- Premium Fire Protection: Built to satisfy the applicable requirements of SOLAS 2009, the cabin features A-60 passive fire protection. The walls, roof, and endwalls are composed of T3.0mm SPA-H weathering steel, integrated with t60 A60 Rockwool and T30mm rock wool sandwich panels. The floor consists of a T30mm A60 deck topped with a T2.0mm checkered steel plate and T1.6mm PVC vinyl.
- Electrical and Power Systems: Certified under IEC 60079-13, the main power supply supports versatile international offshore voltages including 380V, 440V, 480V, 600V, and 690V AC (3PH+PE) at both 50Hz and 60Hz.

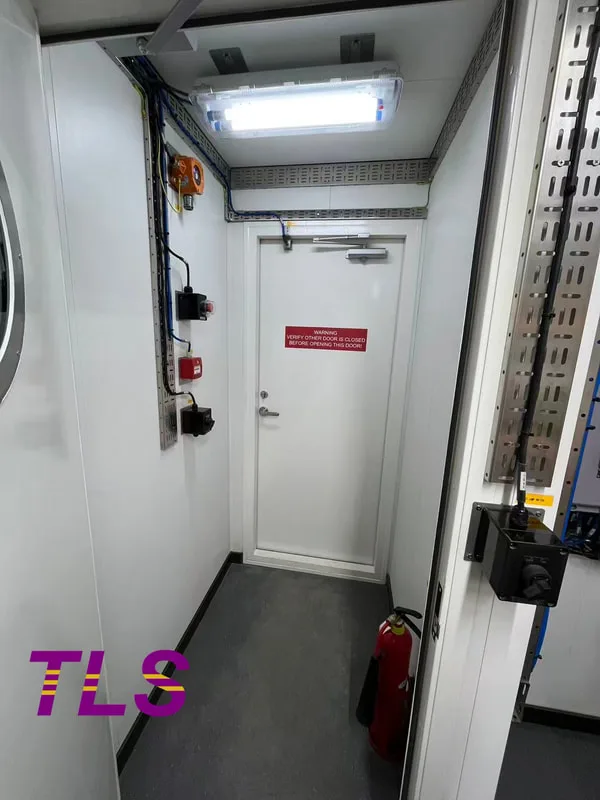

- Access and Safety Outfitting: Access is secured via an airlock entrance system featuring an A60 rated fire door (or specialized roller shutter) along with an A60 emergency escape hatch. Optional fixtures include dedicated oxygen and nitrogen gas inputs, and explosion-proof transformers with 110V output configurations.
Core Features: Why TLS Pressurized Containers Lead the Market
1. Intelligent Fire & Gas Control (CPFG System)
The safety of a TLS Mud Logging Unit relies on its Intelligent Combined Pressurisation Fire & Gas Panel (CPFG). This programmable, PLC-based system serves as the cabin's brain, continuously regulating the internal climate. It integrates ATEX-compliant or Ex-proof air conditioning alongside Ex-approved pressurization fans. If high-sensitivity fire, smoke, flammable gas, or toxic (H2S) detectors sense a breach, the fail-safe automatic fire dampers close, and the system executes an automated emergency shutdown (ESD) to protect the team inside.
2. Uncompromising Global Compliance
Operating globally means meeting different maritime regulations. TLS cabins eliminate regulatory friction by carrying trusted third-party certifications from world-renowned classification societies such as DNV, Bureau Veritas (BV), and Lloyd’s Register (LR). Complying with ATEX and IECEx ensures that every switch, light, and wire is safe for explosive atmospheres.
3. Ultimate Durability and Customized Layouts
Using high-grade SPA-H anti-corrosive steel ensures that the cabin remains unyielding against saltwater corrosion and extreme wave impacts. Beyond standard dimensions, TLS provides deep customization. Cabins can be scaled from 10ft, 15ft, 20ft, to 40ft layouts, and pre-fitted with specialized lab workbenches, data communication networks, and localized climate controls to match your exact project scope.
Versatile Applications in Offshore Energy
While engineered perfectly as a Mud Logging Unit, these robust pressurized shelters are highly versatile and frequently utilized across the offshore industry as:
- MWD / LWD Cabins: Protecting sensitive downhole data recording electronics.

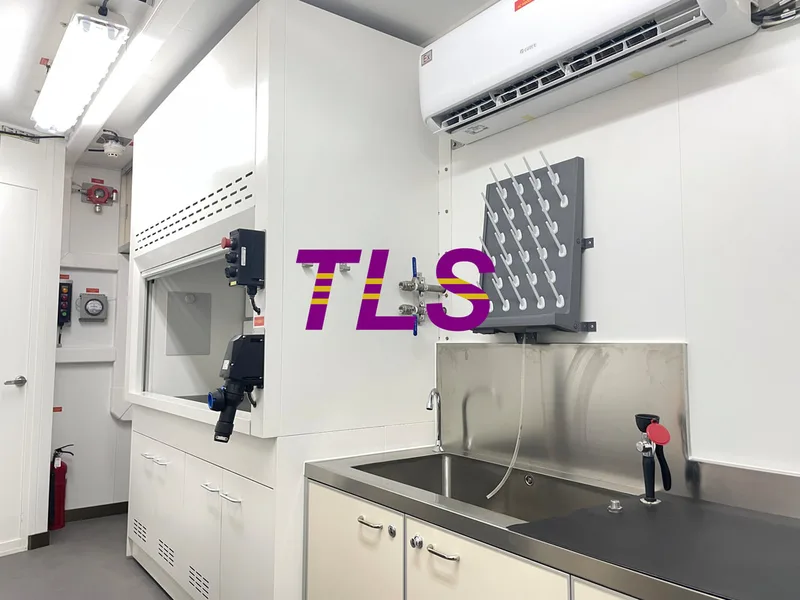

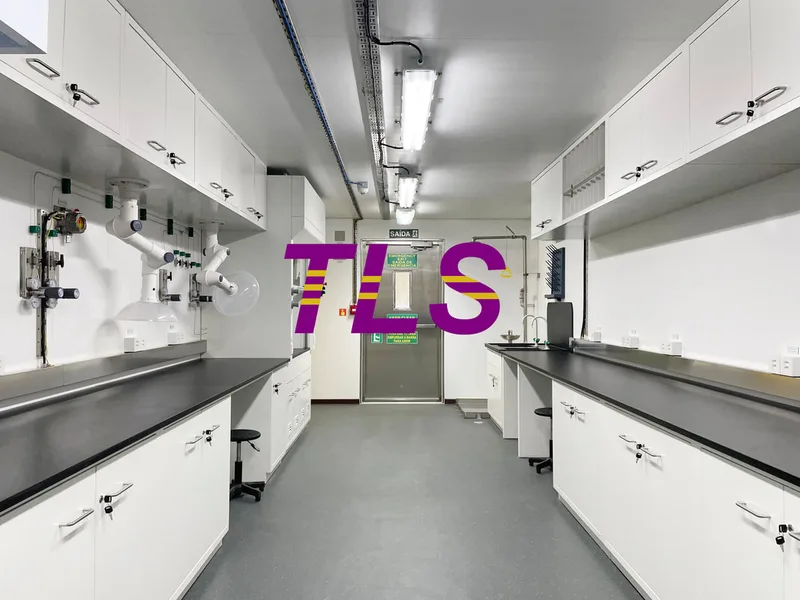

- Offshore Laboratories: Providing a safe, clean, and controlled environment for chemical analysis.
- Motor Control Centre (MCC) & Switchgear Shelters: Safeguarding VFD, VSD, and high-voltage power distribution systems in hazardous zones.
- ROV Control Rooms & Safe Havens: Serving as blast-resistant, sound-insulated control spaces or temporary refuge shelters for crew members.
Frequently Asked Questions
Q1: What is the primary purpose of positive pressure in an offshore cabin?
Positive pressure (+80 to +120 Pa) ensures that the atmospheric pressure inside the cabin is higher than the outside environment. If a door is opened or a tiny seal breach occurs, air flows outward, preventing dangerous flammable gases or toxic vapors (H2S) common in Zone 1 or Zone 2 areas from entering the cabin.
Q2: What is the difference between A-60 and A-0 fire ratings for offshore containers?
An A-60 rating means the cabin's insulation can prevent the temperature on the unexposed side from rising more than 139°C above the original temperature for a full 60 minutes during a standard fire test. An A-0 rating means the structure stops flames and smoke but does not offer the same thermal insulation time. TLS cabins utilize premium rock wool insulation to achieve the maximum A-60 safety standard.
Q3: What logisitcal options and warranties are available for TLS cabins?
TLS offers global transport coordination across Ocean, Railway, and Road networks, with standard structural lead times averaging 70 days. To guarantee long-term asset value, TLS provides a 1-year structural warranty, a 3-year painting warranty, and a 5-year decal warranty.
Partner with TLS for Your Next Offshore Venture
Do not compromise on safety or regulatory compliance. TLS Offshore Containers delivers the structural toughness and intelligent asset protection your offshore exploration projects demand.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
- Why does a pressurization system only address half of the explosion risk equation?
- What are the primary internal operational hazards that pressurization cannot mitigate?
- How do leading operators combine Ex protection and positive pressure to achieve compliance?
- What are the critical engineering takeaways from historic containment failures?
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
- Maintains a continuous positive pressure barrier against the surrounding Zone 1 or Zone 2 environment.
- Utilizes automatic purging sequences to clear the atmosphere before electrical systems are energized.
- Integrates differential pressure monitoring and automatic gas detection interlocks to shut down power if pressure drops.

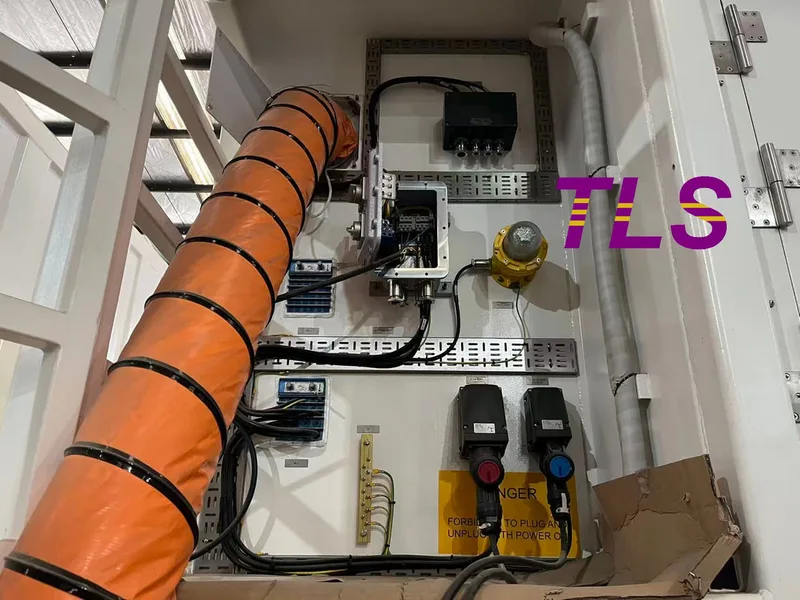

Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
- Treats the interior space as a potentially hazardous zone due to active sample testing.
- Mandates the installation of certified explosion-proof (Ex d, Ex e, or Ex i) lighting, switches, and junction boxes.
- Utilizes specialized explosion-proof HVAC systems and ventilation fans to safely exhaust internal vapors while preventing ignition.
Conclusion
- Directional Defense: Pressurization protects a laboratory container from external hazardous atmospheres, while explosion-proof electrical equipment protects the container from internal sample-generated hazards.
- Risk Multiplication: Relying on positive pressure alone creates a dangerous containment trap for internal chemical spills or gas leaks, turning a localized sample leak into an immediate explosion risk.
- Industry Best Practice: High-risk applications—including Offshore Laboratories, Mud Logging Units, Well Testing Labs, and Chemical Analysis Containers—must employ a dual-protection design to guarantee both personnel safety and regulatory compliance.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
Written by Oliver
In most cases, the problem is not manufacturing quality. The real causes are usually differences in hazardous area classification, certification requirements, and project-specific compliance standards.
Before ordering a pressurized module for an offshore project, engineering teams should verify four key factors: hazardous area classification, certification requirements, component compliance, and safety interlock logic.
Passing FAT Does Not Always Mean Full Project Compliance
Many project teams treat FAT as a major milestone before shipment. For offshore pressurized modules, however, FAT mainly verifies that the equipment functions according to the approved design.
Overseas acceptance often goes further and checks whether the module complies with local regulations, project specifications, and certification requirements. As a result, a module with a fully functional pressurization system may still require modification if its certification scope or installation conditions do not match the project requirements.
The Difference Between Zone 1 and Zone 2 Is Often Underestimated
One common issue is a mismatch between the module's design basis and its final installation location.
For example, a module may be designed for Zone 2, but the actual offshore installation area is classified as Zone 1. Although both are hazardous areas, the applicable safety requirements, interlock philosophy, and certification expectations may differ.
For this reason, confirming the hazardous area classification at the beginning of the project is usually far more efficient than redesigning the module later.
Certification Is More Than a Certificate for the Module
Another frequently overlooked issue is the completeness of the certification chain.
During overseas inspections, third-party organizations often review not only the module certification itself, but also the certification status of key components such as:
- HVAC systems
- Gas detectors
- Pressure switches
- Explosion-proof lighting
- Cable glands and junction boxes
Early Compliance Planning Is Usually More Cost-Effective
For pressurized analyzer shelters, laboratory containers, and electrical modules, compliance is ultimately a system engineering issue.
Hazardous area classification, certification requirements, pressurization logic, and component selection must all be aligned. The earlier these requirements are confirmed, the lower the risk of late design changes and site rework.
In TLS offshore projects, we typically support customers during the early engineering stage by reviewing hazardous area classification, certification requirements, and key interlock logic before manufacturing begins.
Conclusion
For offshore wind, oil & gas, and hazardous-area industrial projects, the challenge of a pressurized module is often not manufacturing itself, but international compliance.
Before launching a project, engineering teams should confirm:
- The final hazardous area classification (Zone 1 or Zone 2)
- The required certification system (IECEx, ATEX, or both)
- The completeness of the component certification chain
- The required safety interlock philosophy
Addressing these issues early can significantly reduce overseas acceptance risks and help ensure a smoother project delivery.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords：#Pressurized Module， #Offshore Pressurized Module， #Zone 1 Pressurized Room，#Zone 2 Pressurized Room， #IECEx Pressurized Module，#Hazardous Area Module， #Offshore Analyzer Shelter， #Pressurized Laboratory Container， #Explosion Proof Container
Written by Snowy
TLS Offshore Containers manufactures A60 DNV 2.7-1 certified pressurized cabins designed for hazardous offshore environments (Zone 1/Zone 2). Since 1998, the company has delivered flexible, high-spec modular solutions globally, featuring passive fire protection, integrated gas detection, and customizable layouts like laboratories and ROV cabins.
Key Offshore Safety Questions Answered in This Guide
- What certification standards must offshore pressurized containers meet?
- How do hazardous area ratings (Zone 1 vs. Zone 2) affect cabin specifications?
- What are the standard and custom sizing options available for offshore modules?
- What critical safety and life-support systems are integrated into a certified technical cabin?
Navigating Offshore Hazard Controls: DNV 2.7-1 & A60 Technical Standards
The Benchmark for Harsh Environments
Operating in the global oil, gas, and renewable energy sectors demands engineering that resists both catastrophic fire events and structural fatigue. Industry performance metrics indicate that standardized certified modules dramatically mitigate risk compared to uncertified alternatives. TLS has engineered these solutions since 1998, ensuring compliance with rigid global baselines.
- Structural Integrity: Certified in accordance with DNV 2.7-1 and EN 12079 structural design codes to guarantee safe dynamic lifting and deployment on offshore platforms.
- Thermal Boundaries: Feature A60 Passive Fire Protection, maintaining legal thermal boundaries against hydrocarbon fires for a minimum of 60 minutes.
- Regulatory Compliance: Designed to align with IEC60079-13 and SOLAS 2009 standards, with third-party approvals from leading maritime authorities like Lloyd’s, DNV, and ABS.
Zone Ratings and Pressurization Economics
Deploying non-rated equipment into explosive atmospheres is one of the most common operational failures in offshore logistics. True structural safety relies on active pressurization to exclude flammable gases from entering the workspace.
- Hazardous Area Ratings: Modules are built explicitly for Zone 1, Zone 2, or Safe Area deployment.
- Integrated Control: A specialized Combined Pressurization Fire & Gas (CPFG) Panel actively manages internal pressure and safety isolation.
- Electrical Safety: All interior elements—including lights, switches, and emergency stops—carry explicit Ex approval (e.g., Zone 2, Ex eb, Gas Group IIC, Temperature Class T3) to neutralize ignition risks.
Operational Constraints: Dimensions and Applications
A frequent oversight in offshore procurement is failing to balance standard transport dimensions with customized internal weight distribution. Modules must be adaptable to space limitations on vessels while maintaining highly specific layouts.
- Flexible Footprints: Available in multiple standard lengths, including 10ft, 15ft, 20ft, 30ft, and 40ft, alongside tailored construction dimensions.
- Diverse Applications: Configurable for highly specialized technical roles, including ROV Cabins, Mud Logging, MWD/LWD, Laboratories, Control Rooms, and Accommodation modules.
- Advanced Lab Infrastructure: Fully customized units can integrate high-risk equipment such as Ex-proof fume hoods, flammable storage cabinets, emergency showers, eye washers, and dedicated extraction arms.
Conclusion
Core Certification Matrix
- Structural Codes: Fully compliant with DNV 2.7-1 and EN 12079.
- Fire Safety: Standardized A60 passive thermal barrier.
- Atmospheric Classification: Rated for Zone 1 and Zone 2 hazardous areas via CPFG pressurization.
- Quality Management: Manufactured under strict ISO 9001 regulations.
Essential Safety Components
- Environmental Control: Automated fail-safe fire dampers and split-system air conditioning.
- Life Safety Systems: Air-lock doors, integrated smoke and gas detectors, emergency lighting, and dedicated escape hatches.
- Infrastructure Protection: Multi-Cable Transit (MCT) frames to seal electrical entries without compromising pressure or fire integrity.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #DNV 2.7-1 pressurized containers, #A60 offshore cabins, #Hazardous area pressurized modules, #Zone 1 offshore container solutions, #DNV 2.7-1 certified technical cabins, #A60 fire rated offshore workshops, #Zone 2 pressurized laboratory cabins, #Oil and gas offshore modular solutions, #Combined Pressurization Fire & Gas (CPFG) containers
