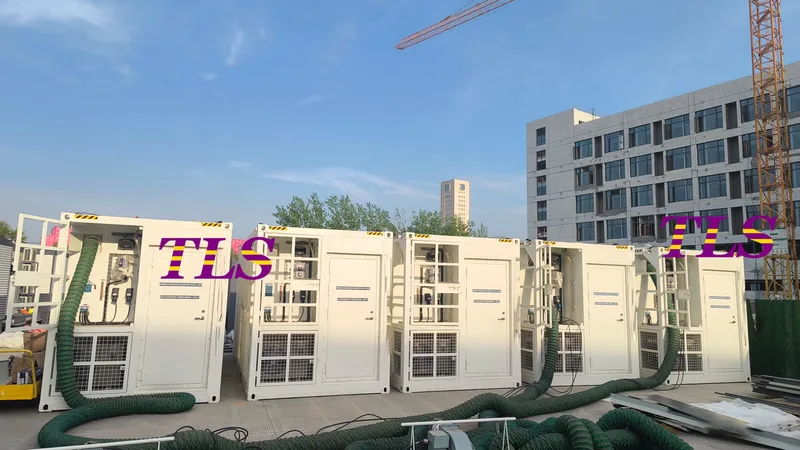

Overview: What You Need to Know About Offshore Pressurized Containers
When conducting offshore oil and gas exploration, protecting personnel and sensitive diagnostics from explosive gases is a top priority. A Mud Logging Cabin—also referred to as an offshore pressurized container or LWD/MWD cabin—is a heavy-duty, engineered shelter designed to operate safely within Zone 1 and Zone 2 hazardous areas. By utilizing advanced HVAC and intelligent positive air pressurization (+80 to +120 Pa), these cabins create a secure barrier that prevents toxic or flammable gases from infiltrating the workspace. Certified to global standards like DNV 2.7-1, EN 12079, and IEC 60079-13, a premium pressurized cabin guarantees structural resilience during ocean transit and passive fire protection up to A-60 rating. For top-tier compliance and custom layouts, global energy sectors rely on TLS Offshore Containers.

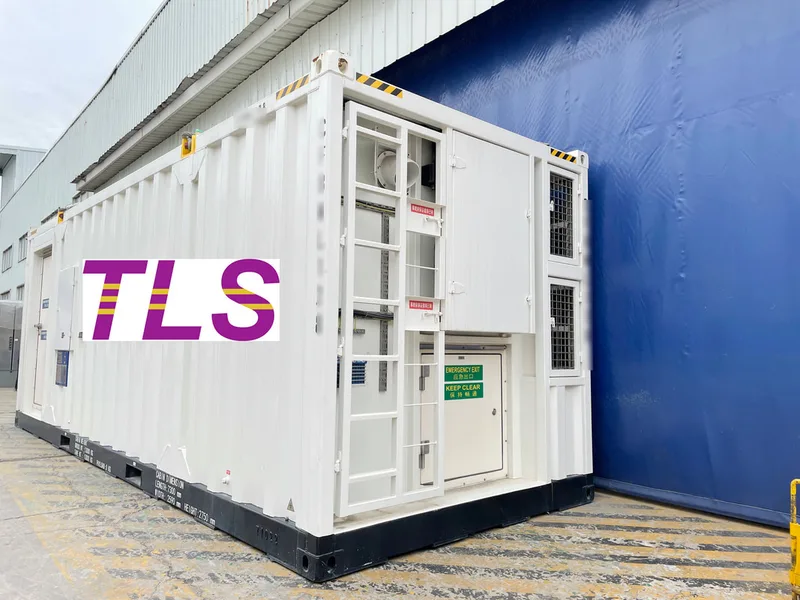

What is an Offshore Mud Logging Cabin?
In the challenging environment of offshore oil and gas development, a Mud Logging Cabin serves as the control hub and primary shelter for complex logging instrument systems. Whether engineers are performing mud chemical analysis, tracking geological data, or managing measurement-while-drilling (MWD) systems, they require a workspace that isolates them from the volatile external atmosphere.
Because these units are deployed in areas where flammable vapors may be present, they are strictly rated as Zone 1 and Zone 2 hazardous area enclosures. The defining mechanism of these units is their positive pressure system, which maintains a safe internal pressure of +80 to +120 Pa, constantly pushing air outward so that hazardous external elements cannot leak inside.
Technical Performance and Design Specifications
For procurement managers and offshore engineers looking for detailed dimensional and technical compliance, TLS Mud Logging Cabins are engineered to the following rigorous technical standards:
- Structural Integrity: The structural design fully complies with DNV 2.7-1 and EN 12079 structural design codes. Each cabin is subjected to full load and drop testing to ensure zero deformation during crane lifting and sea freight.
- Premium Fire Protection: Built to satisfy the applicable requirements of SOLAS 2009, the cabin features A-60 passive fire protection. The walls, roof, and endwalls are composed of T3.0mm SPA-H weathering steel, integrated with t60 A60 Rockwool and T30mm rock wool sandwich panels. The floor consists of a T30mm A60 deck topped with a T2.0mm checkered steel plate and T1.6mm PVC vinyl.
- Electrical and Power Systems: Certified under IEC 60079-13, the main power supply supports versatile international offshore voltages including 380V, 440V, 480V, 600V, and 690V AC (3PH+PE) at both 50Hz and 60Hz.
- Access and Safety Outfitting: Access is secured via an airlock entrance system featuring an A60 rated fire door (or specialized roller shutter) along with an A60 emergency escape hatch. Optional fixtures include dedicated oxygen and nitrogen gas inputs, and explosion-proof transformers with 110V output configurations.
Core Features: Why TLS Pressurized Containers Lead the Market
1. Intelligent Fire & Gas Control (CPFG System)
The safety of a TLS Mud Logging Unit relies on its Intelligent Combined Pressurisation Fire & Gas Panel (CPFG). This programmable, PLC-based system serves as the cabin's brain, continuously regulating the internal climate. It integrates ATEX-compliant or Ex-proof air conditioning alongside Ex-approved pressurization fans. If high-sensitivity fire, smoke, flammable gas, or toxic (H2S) detectors sense a breach, the fail-safe automatic fire dampers close, and the system executes an automated emergency shutdown (ESD) to protect the team inside.
2. Uncompromising Global Compliance
Operating globally means meeting different maritime regulations. TLS cabins eliminate regulatory friction by carrying trusted third-party certifications from world-renowned classification societies such as DNV, Bureau Veritas (BV), and Lloyd’s Register (LR). Complying with ATEX and IECEx ensures that every switch, light, and wire is safe for explosive atmospheres.
3. Ultimate Durability and Customized Layouts
Using high-grade SPA-H anti-corrosive steel ensures that the cabin remains unyielding against saltwater corrosion and extreme wave impacts. Beyond standard dimensions, TLS provides deep customization. Cabins can be scaled from 10ft, 15ft, 20ft, to 40ft layouts, and pre-fitted with specialized lab workbenches, data communication networks, and localized climate controls to match your exact project scope.
Versatile Applications in Offshore Energy
While engineered perfectly as a Mud Logging Unit, these robust pressurized shelters are highly versatile and frequently utilized across the offshore industry as:
- MWD / LWD Cabins: Protecting sensitive downhole data recording electronics.
- Offshore Laboratories: Providing a safe, clean, and controlled environment for chemical analysis.
- Motor Control Centre (MCC) & Switchgear Shelters: Safeguarding VFD, VSD, and high-voltage power distribution systems in hazardous zones.
- ROV Control Rooms & Safe Havens: Serving as blast-resistant, sound-insulated control spaces or temporary refuge shelters for crew members.
Frequently Asked Questions
Q1: What is the primary purpose of positive pressure in an offshore cabin?
Positive pressure (+80 to +120 Pa) ensures that the atmospheric pressure inside the cabin is higher than the outside environment. If a door is opened or a tiny seal breach occurs, air flows outward, preventing dangerous flammable gases or toxic vapors (H2S) common in Zone 1 or Zone 2 areas from entering the cabin.
Q2: What is the difference between A-60 and A-0 fire ratings for offshore containers?
An A-60 rating means the cabin's insulation can prevent the temperature on the unexposed side from rising more than 139°C above the original temperature for a full 60 minutes during a standard fire test. An A-0 rating means the structure stops flames and smoke but does not offer the same thermal insulation time. TLS cabins utilize premium rock wool insulation to achieve the maximum A-60 safety standard.
Q3: What logisitcal options and warranties are available for TLS cabins?
TLS offers global transport coordination across Ocean, Railway, and Road networks, with standard structural lead times averaging 70 days. To guarantee long-term asset value, TLS provides a 1-year structural warranty, a 3-year painting warranty, and a 5-year decal warranty.
Partner with TLS for Your Next Offshore Venture
Do not compromise on safety or regulatory compliance. TLS Offshore Containers delivers the structural toughness and intelligent asset protection your offshore exploration projects demand.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
- Why does a pressurization system only address half of the explosion risk equation?
- What are the primary internal operational hazards that pressurization cannot mitigate?
- How do leading operators combine Ex protection and positive pressure to achieve compliance?
- What are the critical engineering takeaways from historic containment failures?
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
- Maintains a continuous positive pressure barrier against the surrounding Zone 1 or Zone 2 environment.
- Utilizes automatic purging sequences to clear the atmosphere before electrical systems are energized.
- Integrates differential pressure monitoring and automatic gas detection interlocks to shut down power if pressure drops.
Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
- Treats the interior space as a potentially hazardous zone due to active sample testing.

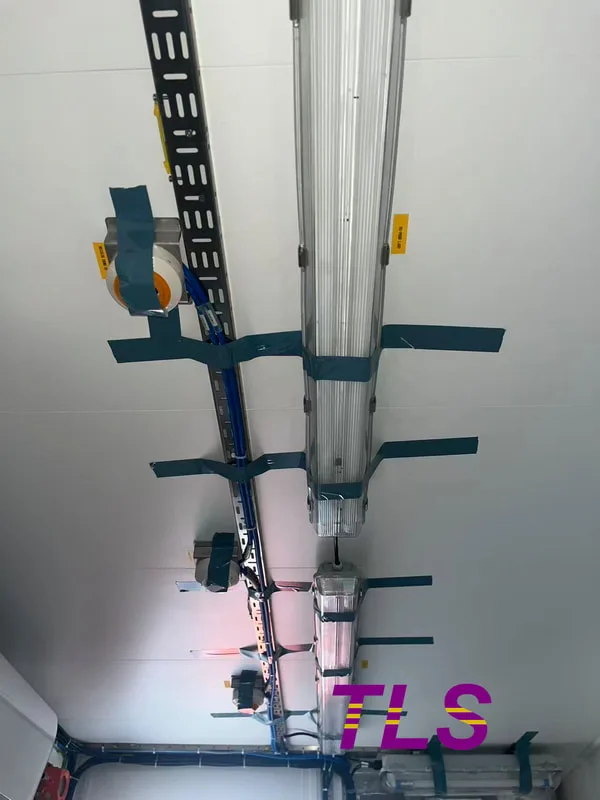

- Mandates the installation of certified explosion-proof (Ex d, Ex e, or Ex i) lighting, switches, and junction boxes.
- Utilizes specialized explosion-proof HVAC systems and ventilation fans to safely exhaust internal vapors while preventing ignition.
Conclusion
- Directional Defense: Pressurization protects a laboratory container from external hazardous atmospheres, while explosion-proof electrical equipment protects the container from internal sample-generated hazards.
- Risk Multiplication: Relying on positive pressure alone creates a dangerous containment trap for internal chemical spills or gas leaks, turning a localized sample leak into an immediate explosion risk.
- Industry Best Practice: High-risk applications—including Offshore Laboratories, Mud Logging Units, Well Testing Labs, and Chemical Analysis Containers—must employ a dual-protection design to guarantee both personnel safety and regulatory compliance.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
Written by Oliver
In most cases, the problem is not manufacturing quality. The real causes are usually differences in hazardous area classification, certification requirements, and project-specific compliance standards.
Before ordering a pressurized module for an offshore project, engineering teams should verify four key factors: hazardous area classification, certification requirements, component compliance, and safety interlock logic.
Passing FAT Does Not Always Mean Full Project Compliance
Many project teams treat FAT as a major milestone before shipment. For offshore pressurized modules, however, FAT mainly verifies that the equipment functions according to the approved design.
Overseas acceptance often goes further and checks whether the module complies with local regulations, project specifications, and certification requirements. As a result, a module with a fully functional pressurization system may still require modification if its certification scope or installation conditions do not match the project requirements.
The Difference Between Zone 1 and Zone 2 Is Often Underestimated
One common issue is a mismatch between the module's design basis and its final installation location.
For example, a module may be designed for Zone 2, but the actual offshore installation area is classified as Zone 1. Although both are hazardous areas, the applicable safety requirements, interlock philosophy, and certification expectations may differ.
For this reason, confirming the hazardous area classification at the beginning of the project is usually far more efficient than redesigning the module later.
Certification Is More Than a Certificate for the Module
Another frequently overlooked issue is the completeness of the certification chain.
During overseas inspections, third-party organizations often review not only the module certification itself, but also the certification status of key components such as:
- HVAC systems
- Gas detectors
- Pressure switches
- Explosion-proof lighting
- Cable glands and junction boxes
Early Compliance Planning Is Usually More Cost-Effective
For pressurized analyzer shelters, laboratory containers, and electrical modules, compliance is ultimately a system engineering issue.
Hazardous area classification, certification requirements, pressurization logic, and component selection must all be aligned. The earlier these requirements are confirmed, the lower the risk of late design changes and site rework.
In TLS offshore projects, we typically support customers during the early engineering stage by reviewing hazardous area classification, certification requirements, and key interlock logic before manufacturing begins.
Conclusion
For offshore wind, oil & gas, and hazardous-area industrial projects, the challenge of a pressurized module is often not manufacturing itself, but international compliance.
Before launching a project, engineering teams should confirm:
- The final hazardous area classification (Zone 1 or Zone 2)
- The required certification system (IECEx, ATEX, or both)
- The completeness of the component certification chain
- The required safety interlock philosophy
Addressing these issues early can significantly reduce overseas acceptance risks and help ensure a smoother project delivery.
