Short Answer
A mud logging cabin is a specialized offshore container designed to provide a controlled workspace for monitoring drilling data, analyzing geological information, and supporting real-time decision-making during drilling operations.
Unlike standard offshore containers, mud logging cabins are equipped with dedicated workstations, data acquisition systems, communication equipment, HVAC systems, and other technical facilities required for continuous drilling monitoring.
For offshore applications, mud logging cabins are commonly designed to meet requirements such as DNV 2.7-1 and EN 12079 for offshore lifting and transportation, with additional hazardous area solutions available when required.

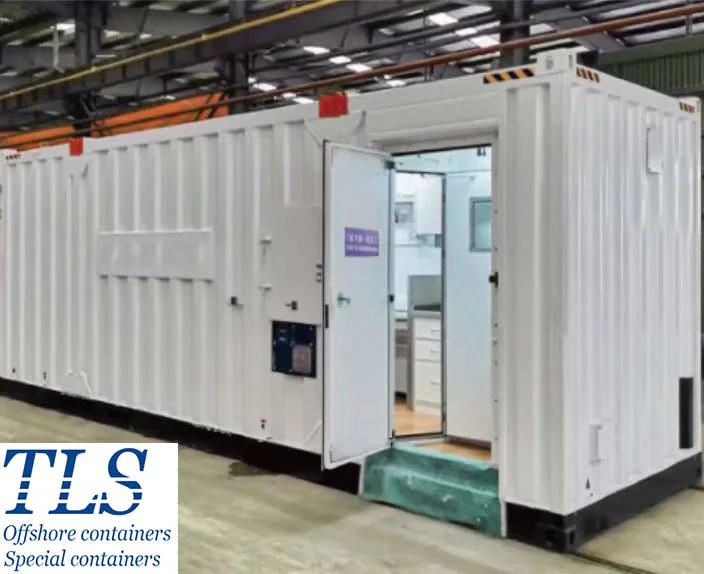

What Is a Mud Logging Cabin?
A mud logging cabin is a functional offshore module used by mud logging teams during oil and gas drilling operations.
The cabin provides a protected working environment where engineers and technicians collect, monitor, and interpret important drilling information, including:
- Drilling parameters
- Gas detection data
- Formation evaluation information
- Mud properties
- Geological samples
- Well condition indicators
The information collected inside the cabin helps drilling teams understand underground formations, monitor well conditions, and make timely operational decisions.
Mud logging cabins are commonly installed on:
- Offshore drilling rigs
- Jack-up rigs
- Semi-submersible rigs
- Drillships
- Offshore production facilities
What Does a Mud Logging Cabin Do?
The primary function of a mud logging cabin is to support real-time drilling monitoring and geological analysis.A typical mud logging cabin enables operators to:
Monitor Drilling Performance
The cabin provides space for monitoring:
- Rate of penetration (ROP)
- Drilling parameters
- Mud circulation information
- Operational trends
Detect Formation and Well Conditions
Mud logging systems help identify:
- Formation changes
- Hydrocarbon indications
- Gas levels
- Abnormal drilling conditions
Support Communication and Decision-Making
The cabin provides an operational workspace where drilling data can be analyzed and shared with:
- Drilling engineers
- Geologists
- Offshore supervisors
- Operation teams
Mud Logging Cabin vs MWD/LWD Cabin: What Is the Difference?
Mud logging cabins and MWD/LWD cabins are often used together in drilling operations, but they serve different purposes.
Mud Logging Cabin
Focuses on:
- Surface drilling data monitoring
- Geological analysis
- Gas detection
- Mud and cutting analysis
MWD/LWD Cabin
Focuses on:
- l Downhole measurement data
- l Directional drilling information
- l Formation evaluation while drilling
- l Real-time wellbore information
In simple terms:
Mud logging focuses on surface-based drilling monitoring and geological interpretation, while MWD/LWD focuses on downhole measurement and drilling control data.

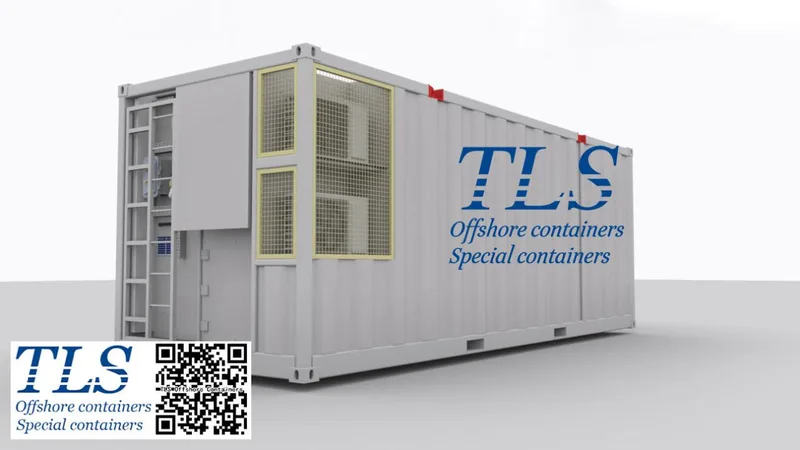

Key Design Features of an Offshore Mud Logging Cabin
Because offshore environments involve harsh operating conditions, mud logging cabins require specialized engineering.
Offshore Structural Design
A properly designed offshore mud logging cabin typically includes:
- Reinforced steel structure
- Offshore lifting points
- Load-bearing frame design
- Marine-grade corrosion protection
For offshore lifting operations, the cabin can be designed according to requirements such as DNV 2.7-1 and EN 12079.
Controlled Internal Environment
Mud logging equipment requires a stable working environment.
Typical features include:
- Thermal insulation
- HVAC systems
- Temperature control
- Noise reduction
- Suitable lighting conditions
These features help maintain reliable operation of electronic equipment and provide a comfortable workspace for personnel.

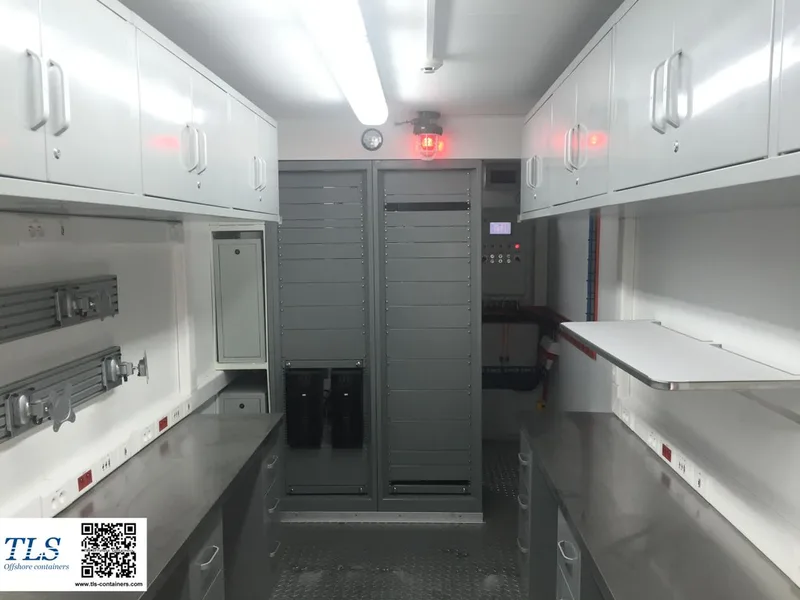

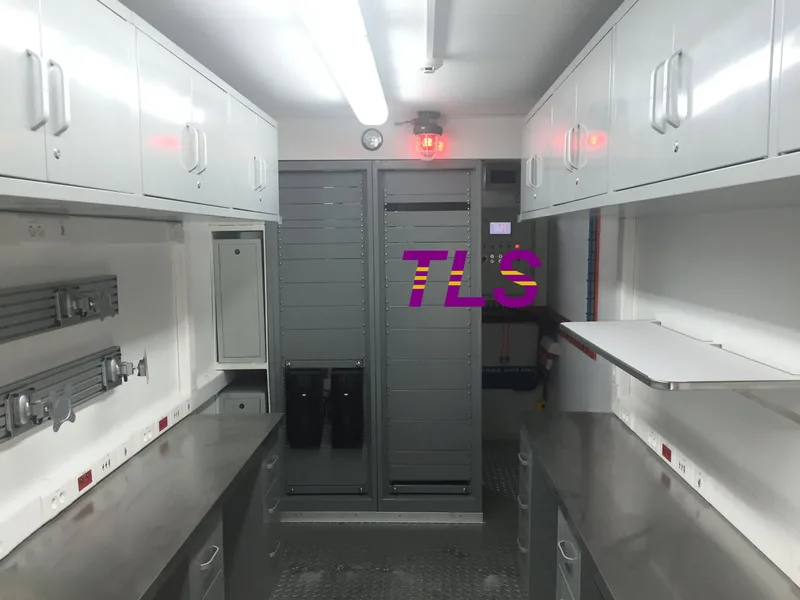

Equipment Integration
A mud logging cabin can be customized with:
- Operator workstations
- Data acquisition systems
- Communication systems
- Instrument panels
- Server racks
- Storage cabinets
- Power distribution systems
- Emergency safety equipment
The internal layout is normally customized according to the customer's equipment list and workflow requirements

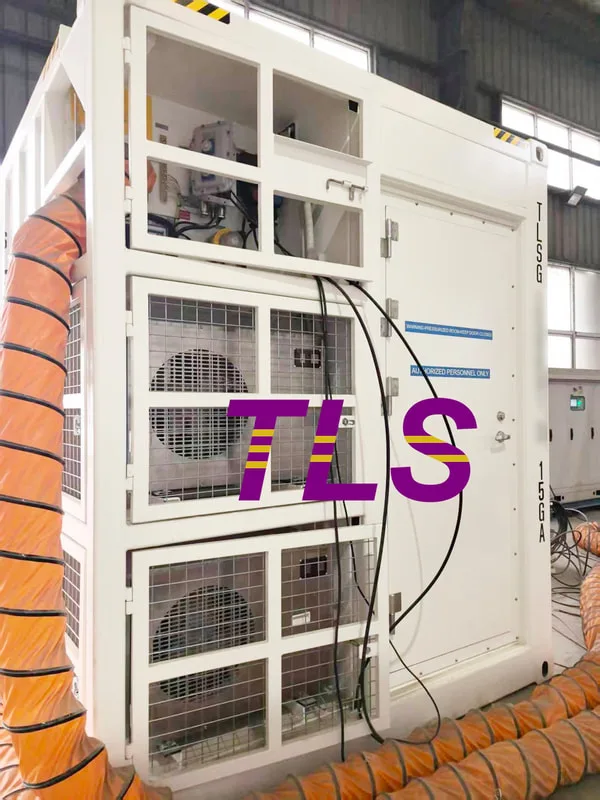

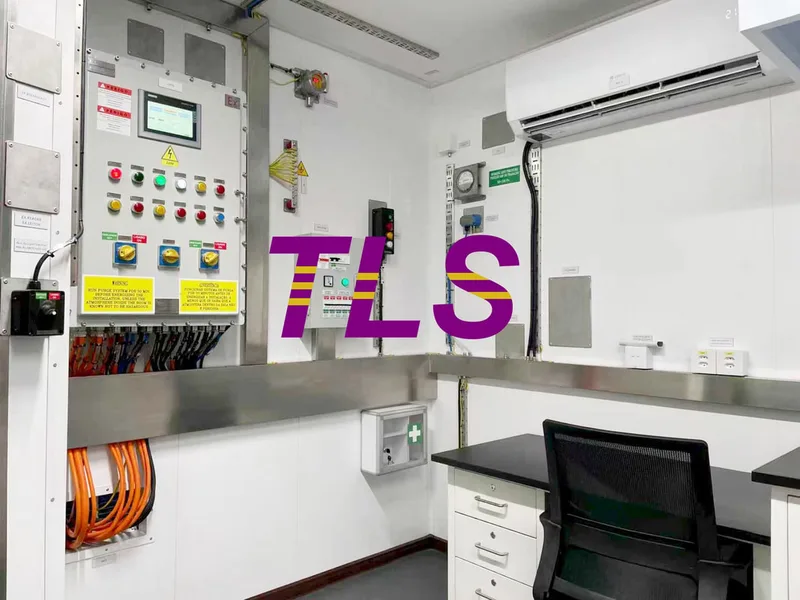

Hazardous Area Solutions for Mud Logging Cabins
Some offshore drilling locations involve hazardous areas where explosive gases may be present.
For these applications, mud logging cabins may require additional safety systems, including:
- Positive pressurization systems
- Gas detection systems
- Fire and smoke detection
- Emergency shutdown functions
- Hazardous area electrical equipment
When hazardous area operation is required, the cabin design should consider applicable standards and project specifications, such as IEC 60079-related requirements.
DNV 2.7-1 and EN 12079 Certification Requirements
Certification is an important consideration when selecting an offshore mud logging cabin.
DNV 2.7-1 / EN 12079
These standards focus on offshore transportable units and cover areas such as:
- Structural integrity
- Offshore lifting safety
- Load testing
- Inspection requirements
- Manufacturing quality control
Compliance helps ensure that the cabin can be safely transported and lifted in offshore environments.
It is important to note that offshore certification and hazardous area certification address different requirements:
- DNV 2.7-1 → offshore structural and lifting safety
- IEC hazardous area standards → safe operation in potentially explosive atmospheres
A project may require one or both depending on the application.
Why Use a Modular Mud Logging Cabin?
Compared with site-built offshore facilities, containerized mud logging cabins provide several advantages:

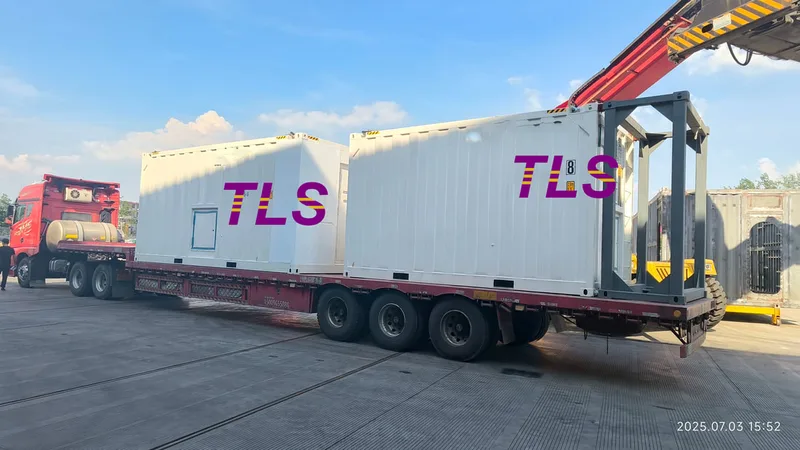

- Faster Deployment
Factory-built modules can reduce offshore installation work and shorten project schedules.
- Easier Transportation
Containerized designs allow easier movement between offshore locations.
- Flexible Customization
Layouts, equipment integration, and technical systems can be adapted according to project requirements.

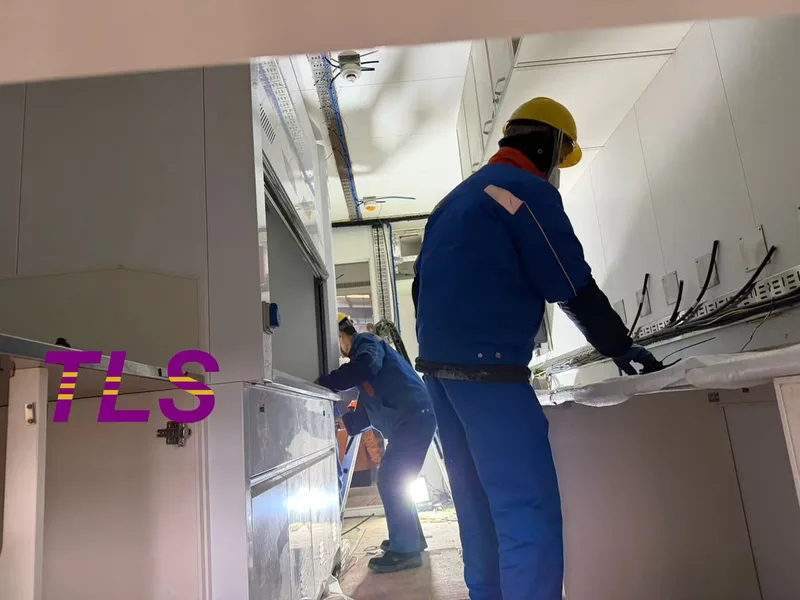

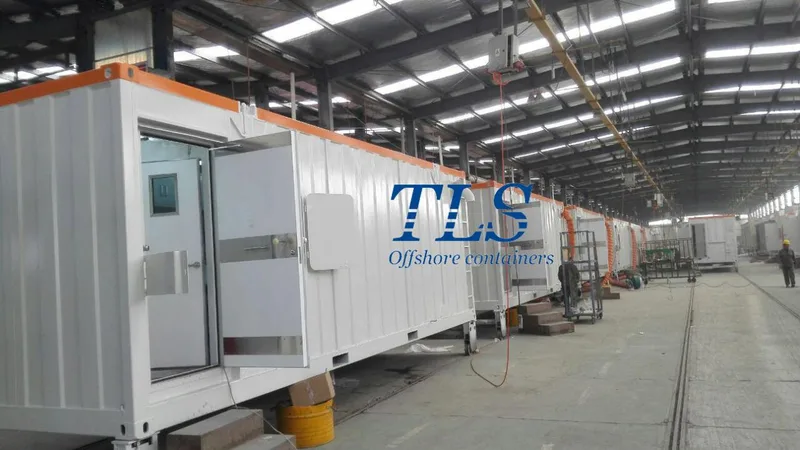

- Consistent Manufacturing Quality
Factory-controlled production allows better quality control compared with fully site-built solutions.
TLS Offshore Mud Logging Cabin Solutions
TLS Offshore Containers International designs and manufactures customized offshore functional containers for global energy projects.
TLS mud logging cabins can be customized according to project requirements, including:
- DNV 2.7-1 offshore certification
- EN 12079 requirements
- Hazardous area applications
- Customized internal layouts
- Equipment integration
- Offshore lifting requirement
Each cabin is engineered according to the operational needs of the drilling project, providing a dedicated workspace for reliable data monitoring and offshore operations.
How to Select the Right Mud Logging Cabin?
Before selecting a mud logging cabin, project teams should confirm:
1. Installation Environment
- Offshore rig type
- Marine conditions
- Hazardous area classification
2. Certification Requirements
- DNV 2.7-1
- EN 12079
- Hazardous area requirements
- Client-specific standards
3. Equipment Requirements
- Number of operators
- Required instruments
- Communication systems
- Electrical requirements
4. Operational Requirements
- Working hours
- Maintenance requirements
- Future relocation needs
Frequently Asked Questions
What is the main purpose of a mud logging cabin?
A mud logging cabin provides a dedicated workspace for monitoring drilling parameters, analyzing geological information, and supporting real-time drilling decisions.
Are mud logging cabins required to be DNV 2.7-1 certified?
Not every project requires DNV 2.7-1 certification, but offshore lifting applications commonly require compliance with offshore container standards.
What is the difference between a mud logging cabin and a normal container?
A mud logging cabin is a functional offshore module designed for drilling monitoring activities, including equipment integration, HVAC, electrical systems, and specialized workspace requirements.
Can a mud logging cabin be used in hazardous areas?
Yes. When required, mud logging cabins can be designed with pressurization, gas detection, and hazardous area protection systems.
Can TLS customize mud logging cabins?
Yes. Mud logging cabins can be customized based on layout requirements, equipment configuration, certification needs, and offshore operating conditions.
Conclusion
A mud logging cabin is a specialized offshore workspace that supports real-time drilling monitoring, geological analysis, and operational decision-making.
When selecting a mud logging cabin, the key factors are:
- Application requirements;
- Offshore certification needs;
- Hazardous area classification;
- Equipment integration;
- Installation environment.
A correctly designed mud logging cabin provides a safe and reliable working environment while supporting efficient offshore drilling operations.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
In this type of environment, the primary requirement is not complex equipment configuration, but a more fundamental goal: maintaining a safe air environment inside the cabin at all times.
For this reason, positive pressure systems are considered a standard safety requirement for Mud Logging units, not an optional feature.
1. How a Positive Pressure System Works
A positive pressure system continuously supplies clean air into the cabin, maintaining internal pressure higher than the surrounding environment.
As a result:
- External hazardous air cannot enter the cabin
- Internal air naturally flows outward through gaps or openings
2. Why Positive Pressure Is Essential for Mud Logging Units
Mud Logging environments often involve:
- Potential exposure to H₂S and toxic gases
- Unstable concentrations of flammable gas
- Long-duration operations with continuous personnel occupancy
- Uncontrolled outdoor conditions
- Doors must still be opened during operation
- Minor leakage cannot be completely avoided
- Hazardous gas may enter suddenly from outside
3. A Reliable Positive Pressure System Is More Than Just Ventilation
The key to a positive pressure system is not maximum airflow, but stable pressure control.
A qualified system typically includes:
- Stable positive pressure maintenance
- Real-time pressure monitoring and alarm systems
- Integration with gas detection systems
4. TLS Design Focus: Stability Over Complexity
At TLS, positive pressure Mud Logging units are designed with long-term operational stability in mind.
Key design considerations include:
- Optimized airflow paths to avoid uneven pressure distribution
- Stable pressure control with reduced fluctuation
- Integrated ventilation and electrical system coordination
- Support for continuous operation in harsh field conditions
5. The Real Value of Positive Pressure Systems
In practical field applications, positive pressure systems help:
- Protect personnel safety
- Reduce the risk of hazardous gas intrusion
- Improve operational reliability
- Minimize downtime caused by environmental risks
Conclusion
In Mud Logging applications, positive pressure is not an added feature—it is a fundamental safety requirement.
Through integrated system design, TLS ensures that positive pressure protection remains stable and effective under real drilling conditions. For Mud Logging units, safety starts with stable positive pressure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords: #positive pressure mud logging unit, #mud logging cabin, #H2S protection system, #offshore mud logging container, #positive pressure enclosure, #hazardous area cabin, #oilfield logging unit, #explosion proof mud logging cabin, #drilling site safety container, #industrial positive pressure system
Written by Snowy
Operating in hazardous zones involves daily exposure to combustible gas leaks, high-temperature dust, and volatile chemicals. To maintain operational integrity, TLS modular mud logging cabins have set a new industry benchmark by integrating three critical safety pillars: positive pressure, precision ventilation, and automated fire suppression.
1. The Power of Positive Pressure: Creating a "Safe Zone."
The most critical line of defense in a hazardous area is the principle of Positive Pressure. By maintaining internal air pressure slightly higher than the surrounding atmosphere, the cabin creates an invisible physical barrier that ensures air flows out of the unit, rather than in.
- Hazardous Gas Isolation
- Contaminant and Moisture Control
- Operational Continuity
2. Precision Ventilation: Stability for Man and Machine
In a mud logging environment, ventilation is a technical requirement for equipment reliability and human performance rather than a simple comfort feature. TLS cabins utilize sophisticated air ducting and high-performance fans to manage a complex internal micro-environment.
- Thermal Management for Electronics
- Dust Mitigation and Air Quality
- Enhancing Operator Focus
3. Integrated Safety Systems: Proactive Fire Protection
True safety requires more than a reactive approach. TLS modular units feature proactive, automated fire protection systems that are hardwired into the cabin’s core infrastructure.
Depending on the specific site requirements, these cabins are equipped with Aerosol, Clean Gas, or Inert Gas suppression systems. Unlike water-based systems, these agents extinguish flames rapidly without damaging the high-value electronics inside.
Furthermore, these systems are linked to automatic power and ventilation "cut-off" triggers. In the event of a detected emergency, the system can instantly isolate the cabin, cutting off the oxygen supply and power to prevent a fire from escalating.
The Bottom Line: Protecting Data, Equipment, and Lives
Investing in a TLS modular mud logging cabin is a strategic move for operational security. By merging the physics of positive pressure with optimized ventilation and intelligent safety interlocks, these units provide a comprehensive solution for modern energy projects.
Through advanced engineering and modular design, TLS ensures that mud logging operations remain productive, compliant, and—above all—safe. Protecting your personnel and your data integrity isn't just a regulatory requirement; it is the foundation of a successful drilling campaign.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Mud logging cabin, #Positive pressure unit, #Hazardous area module, #Offshore drilling safety, #Explosion-proof cabin, #Pressurized modular building, #Gas detection system, #Oilfield technical services, #Zone 1 certified, #Intelligent ventilation system
Written by Oliver
Operating in hazardous environments—where combustible gas leaks, high-temperature dust, and chemical exposure are daily realities—demands more than just a sturdy box. TLS modular mud logging cabins set the industry standard by integrating three critical safety pillars: positive pressure, precision ventilation, and automated fire suppression.
1. The Power of Positive Pressure: Creating a "Safe Zone."
The most critical line of defense in a hazardous area is the principle of Positive Pressure. By maintaining internal air pressure slightly higher than the surrounding atmosphere, the cabin creates an invisible shield.
- Hazardous Gas Isolation: Positive pressure ensures that flammable or toxic gases, such as Methane or $H_2S$, cannot enter the cabin through door seals or cable glands.
- Contaminant Control: Beyond gas, this system keeps out fine dust and moisture, which are the primary culprits behind electrical failures and sensor drift.
- Operational Continuity: By maintaining a "Safe Zone" classification, operators can continue monitoring critical data even if the external environment becomes volatile, minimizing expensive downtime.
2. Efficient Ventilation: Stability for Man and Machine
In a mud logging cabin, ventilation is about much more than comfort. It is a technical requirement for equipment reliability. TLS cabins utilize sophisticated air ducts and high-performance fans to manage the internal micro-environment.
- Thermal Management: Mud logging involves high-performance servers and gas chromatographs that generate significant internal heat. Proper airflow prevents equipment overheating and ensures the accuracy of sensitive logging data.
- Dust Mitigation: Continuous air circulation reduces the accumulation of abrasive particles, protecting delicate sampling instruments and monitoring devices from premature wear.
- Operator Focus: A well-ventilated, temperature-controlled environment reduces operator fatigue and enhances focus, which is vital for detecting subtle changes in formation gas or drilling parameters.
3. Integrated Safety Systems: Beyond the Fire Extinguisher
True safety requires a proactive, automated response. TLS modular units are equipped with sophisticated fire protection systems that integrate directly with the cabin’s core infrastructure.
Depending on the specific site requirements, these cabins feature Aerosol, Clean Gas, or Inert Gas suppression systems. These agents are designed to extinguish flames rapidly without damaging the high-value electronics inside. Furthermore, these systems are linked to automatic power and ventilation "cut-off" triggers. In the event of an emergency, the system can instantly isolate the cabin to prevent a fire from escalating.
4. The Bottom Line: Protecting Data, Equipment, and Lives
Investing in a TLS modular mud logging cabin is an investment in operational security. By combining positive pressure with optimized ventilation and intelligent safety interlocks, these units provide:
- Unmatched Personnel Safety: A breathable, secure environment in high-risk zones.
- Instrument Reliability: Long-term protection for critical electrical and instrumentation assets.
- Data Integrity: Stable internal conditions lead to more accurate and reliable mud logging outputs.
In modern oilfield operations, safety and efficiency are inseparable. Through advanced engineering and modular design, TLS ensures that your mud logging operations remain productive, compliant, and—above all—safe.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Mud Logging Cabin, #Positive Pressure Ventilation, #Hazardous Area Enclosure, #Offshore Drilling Shelter, #ATEX Certified Cabin, #Explosion Proof Unit, #Pressurized Mud Lab, #Oilfield Safety Systems, #Modular Logging Unit, #Gas Detection Shelter
Written by Oliver
1. Positive Pressure: Isolating Hazardous Gases
- Principle: Cabin air pressure is maintained higher than the outside environment, preventing harmful or flammable gases from entering.
- Benefis: Protects personnel from toxic or explosive gases;Keeps the interior clean, reducing dust and moisture impact on equipment;Enables long-term safe operation, minimizing downtime and maintenance;
Even in the presence of natural gas or other hazardous leaks, positive pressure ensures a safe working zone inside the cabin.
2. Efficient Ventilation: Maintaining Airflow and Comfort
- Function: Air ducts and fans circulate air and provide localized exhaust, regulating temperature.
- Advantages:Keeps air fresh and prevents equipment overheating;Reduces dust accumulation, protecting instruments, sampling equipment, and monitoring devices;Enhances operator comfort and focus;
Good ventilation ensures stable conditions even in hot or dusty environments, improving mud logging data accuracy and equipment reliability.
3. Safety Systems: Fire Protection and Alarm
- Configuration: Options include aerosol, clean gas, or inert gas fire suppression systems, alongside manual extinguishers and emergency escape facilities.
- Benefits: Suppresses initial flames and prevents fire spread;Integrates with power and ventilation cut-off to avoid escalation;Protects personnel and critical equipment;
Safety systems are not just emergency measures—they are essential for long-term operational security.
4. Integrated Value
By combining positive pressure, optimized ventilation, and safety systems, TLS mud logging cabins provide:
- Highly safe working environments
- Stable and controllable internal air conditions
- Long-term protection for critical electrical and instrumentation equipment
This integrated approach minimizes environmental impact on operations and data collection while significantly improving mud logging efficiency and reliability.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords：#Positive Pressure Cabin,#Mud Logging Safety,#Offshore Work Cabin,#Modular Logging Unit,#Industrial Ventilation System,#Fire Protection System,#Hazardous Gas Isolation,#Operator Safety Solutions,#Equipment Protection Cabin,#Offshore Mud Logging
