Short Answer
A mud logging cabin is a specialized offshore container designed to provide a controlled workspace for monitoring drilling data, analyzing geological information, and supporting real-time decision-making during drilling operations.
Unlike standard offshore containers, mud logging cabins are equipped with dedicated workstations, data acquisition systems, communication equipment, HVAC systems, and other technical facilities required for continuous drilling monitoring.
For offshore applications, mud logging cabins are commonly designed to meet requirements such as DNV 2.7-1 and EN 12079 for offshore lifting and transportation, with additional hazardous area solutions available when required.
What Is a Mud Logging Cabin?
A mud logging cabin is a functional offshore module used by mud logging teams during oil and gas drilling operations.
The cabin provides a protected working environment where engineers and technicians collect, monitor, and interpret important drilling information, including:
- Drilling parameters
- Gas detection data
- Formation evaluation information
- Mud properties
- Geological samples
- Well condition indicators
The information collected inside the cabin helps drilling teams understand underground formations, monitor well conditions, and make timely operational decisions.
Mud logging cabins are commonly installed on:
- Offshore drilling rigs
- Jack-up rigs
- Semi-submersible rigs
- Drillships
- Offshore production facilities
What Does a Mud Logging Cabin Do?
The primary function of a mud logging cabin is to support real-time drilling monitoring and geological analysis.A typical mud logging cabin enables operators to:
Monitor Drilling Performance
The cabin provides space for monitoring:
- Rate of penetration (ROP)
- Drilling parameters
- Mud circulation information
- Operational trends
Detect Formation and Well Conditions
Mud logging systems help identify:
- Formation changes
- Hydrocarbon indications
- Gas levels
- Abnormal drilling conditions
Support Communication and Decision-Making
The cabin provides an operational workspace where drilling data can be analyzed and shared with:
- Drilling engineers
- Geologists
- Offshore supervisors
- Operation teams
Mud Logging Cabin vs MWD/LWD Cabin: What Is the Difference?
Mud logging cabins and MWD/LWD cabins are often used together in drilling operations, but they serve different purposes.
Mud Logging Cabin
Focuses on:
- Surface drilling data monitoring
- Geological analysis
- Gas detection
- Mud and cutting analysis
MWD/LWD Cabin
Focuses on:
- l Downhole measurement data
- l Directional drilling information
- l Formation evaluation while drilling
- l Real-time wellbore information
In simple terms:
Mud logging focuses on surface-based drilling monitoring and geological interpretation, while MWD/LWD focuses on downhole measurement and drilling control data.

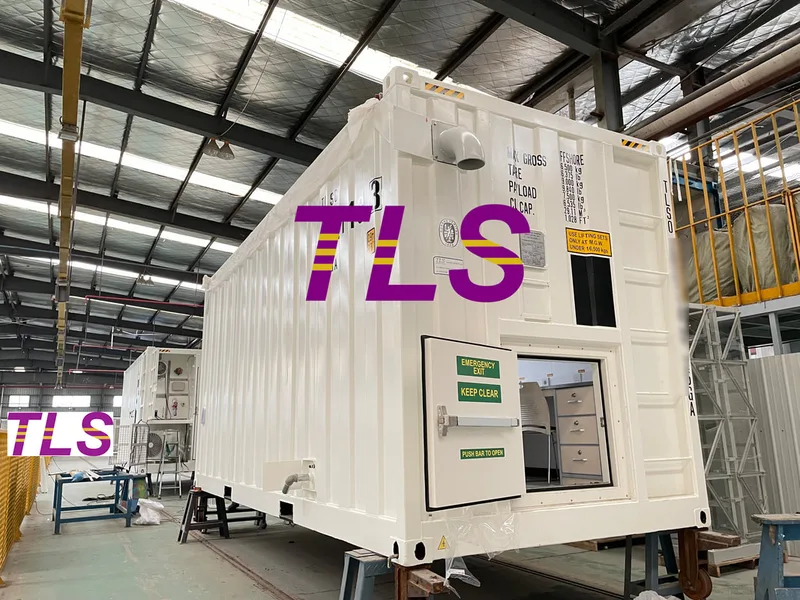

Key Design Features of an Offshore Mud Logging Cabin
Because offshore environments involve harsh operating conditions, mud logging cabins require specialized engineering.
Offshore Structural Design
A properly designed offshore mud logging cabin typically includes:
- Reinforced steel structure
- Offshore lifting points
- Load-bearing frame design
- Marine-grade corrosion protection
For offshore lifting operations, the cabin can be designed according to requirements such as DNV 2.7-1 and EN 12079.
Controlled Internal Environment
Mud logging equipment requires a stable working environment.
Typical features include:
- Thermal insulation
- HVAC systems
- Temperature control
- Noise reduction
- Suitable lighting conditions
These features help maintain reliable operation of electronic equipment and provide a comfortable workspace for personnel.

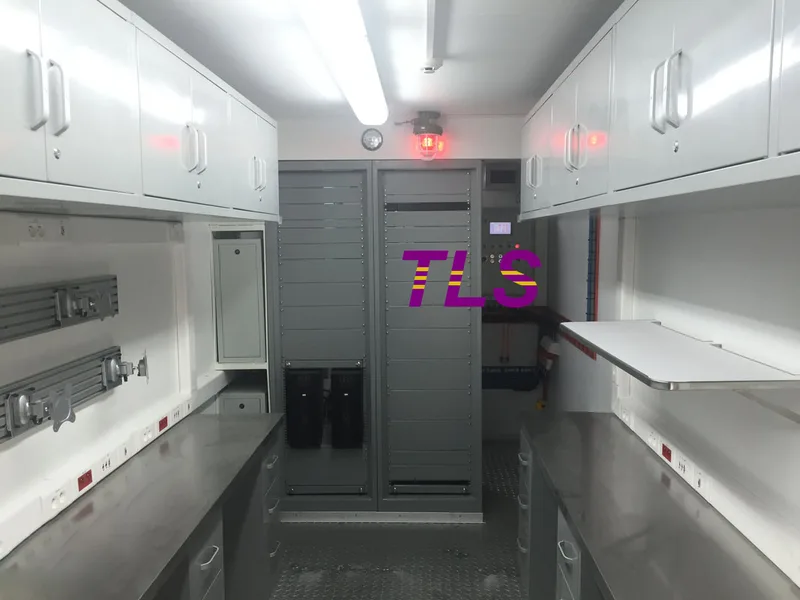

Equipment Integration
A mud logging cabin can be customized with:
- Operator workstations
- Data acquisition systems
- Communication systems
- Instrument panels
- Server racks
- Storage cabinets
- Power distribution systems
- Emergency safety equipment
The internal layout is normally customized according to the customer's equipment list and workflow requirements
Hazardous Area Solutions for Mud Logging Cabins
Some offshore drilling locations involve hazardous areas where explosive gases may be present.
For these applications, mud logging cabins may require additional safety systems, including:
- Positive pressurization systems
- Gas detection systems
- Fire and smoke detection
- Emergency shutdown functions
- Hazardous area electrical equipment
When hazardous area operation is required, the cabin design should consider applicable standards and project specifications, such as IEC 60079-related requirements.
DNV 2.7-1 and EN 12079 Certification Requirements
Certification is an important consideration when selecting an offshore mud logging cabin.
DNV 2.7-1 / EN 12079
These standards focus on offshore transportable units and cover areas such as:
- Structural integrity
- Offshore lifting safety
- Load testing
- Inspection requirements
- Manufacturing quality control
Compliance helps ensure that the cabin can be safely transported and lifted in offshore environments.
It is important to note that offshore certification and hazardous area certification address different requirements:
- DNV 2.7-1 → offshore structural and lifting safety
- IEC hazardous area standards → safe operation in potentially explosive atmospheres
A project may require one or both depending on the application.
Why Use a Modular Mud Logging Cabin?
Compared with site-built offshore facilities, containerized mud logging cabins provide several advantages:
- Faster Deployment
Factory-built modules can reduce offshore installation work and shorten project schedules.
- Easier Transportation
Containerized designs allow easier movement between offshore locations.
- Flexible Customization
Layouts, equipment integration, and technical systems can be adapted according to project requirements.
- Consistent Manufacturing Quality
Factory-controlled production allows better quality control compared with fully site-built solutions.
TLS Offshore Mud Logging Cabin Solutions
TLS Offshore Containers International designs and manufactures customized offshore functional containers for global energy projects.
TLS mud logging cabins can be customized according to project requirements, including:
- DNV 2.7-1 offshore certification
- EN 12079 requirements
- Hazardous area applications
- Customized internal layouts
- Equipment integration
- Offshore lifting requirement
Each cabin is engineered according to the operational needs of the drilling project, providing a dedicated workspace for reliable data monitoring and offshore operations.
How to Select the Right Mud Logging Cabin?
Before selecting a mud logging cabin, project teams should confirm:
1. Installation Environment
- Offshore rig type
- Marine conditions
- Hazardous area classification
2. Certification Requirements
- DNV 2.7-1
- EN 12079
- Hazardous area requirements
- Client-specific standards
3. Equipment Requirements
- Number of operators
- Required instruments
- Communication systems
- Electrical requirements
4. Operational Requirements
- Working hours
- Maintenance requirements
- Future relocation needs
Frequently Asked Questions
What is the main purpose of a mud logging cabin?
A mud logging cabin provides a dedicated workspace for monitoring drilling parameters, analyzing geological information, and supporting real-time drilling decisions.
Are mud logging cabins required to be DNV 2.7-1 certified?
Not every project requires DNV 2.7-1 certification, but offshore lifting applications commonly require compliance with offshore container standards.
What is the difference between a mud logging cabin and a normal container?
A mud logging cabin is a functional offshore module designed for drilling monitoring activities, including equipment integration, HVAC, electrical systems, and specialized workspace requirements.
Can a mud logging cabin be used in hazardous areas?
Yes. When required, mud logging cabins can be designed with pressurization, gas detection, and hazardous area protection systems.
Can TLS customize mud logging cabins?
Yes. Mud logging cabins can be customized based on layout requirements, equipment configuration, certification needs, and offshore operating conditions.
Conclusion
A mud logging cabin is a specialized offshore workspace that supports real-time drilling monitoring, geological analysis, and operational decision-making.
When selecting a mud logging cabin, the key factors are:
- Application requirements;
- Offshore certification needs;
- Hazardous area classification;
- Equipment integration;
- Installation environment.
A correctly designed mud logging cabin provides a safe and reliable working environment while supporting efficient offshore drilling operations.
