Direct Answer
A suitable offshore container for long-term marine operations must combine structural strength, corrosion resistance, environmental protection, and maintainability. Unlike standard containers designed mainly for transportation, offshore containers are engineered to withstand repeated lifting, harsh marine conditions, and continuous outdoor exposure throughout their service life.
The long-term reliability of an offshore container depends not on a single feature, but on the complete engineering approach, including structural design, fatigue resistance, coating system, material selection, inspection accessibility, and compliance with applicable offshore requirements.
Why Are Offshore Containers More Challenging to Design Than Standard Containers?
Offshore containers face three major challenges that standard containers typically do not: continuous corrosion exposure, dynamic lifting loads, and long-term marine weather conditions.
In offshore applications, containers may operate in environments with:
- Salt spray and seawater exposure
- High humidity
- Strong winds and heavy rain
- UV radiation
- Temperature fluctuations
- Repeated transportation and lifting cycles
These conditions can gradually affect structural integrity, protective coatings, sealing performance, and the reliability of equipment installed inside.
Therefore, offshore container design must consider the entire operating lifecycle, not only initial transportation.
1. Structural Design Determines Long-Term Reliability
The structural design of an offshore container must withstand both static loads and dynamic loads generated during offshore lifting operations.
Unlike standard shipping containers, offshore containers may be lifted repeatedly between:
- Offshore platforms
- Supply vessels
- Ports
- Marine construction sites

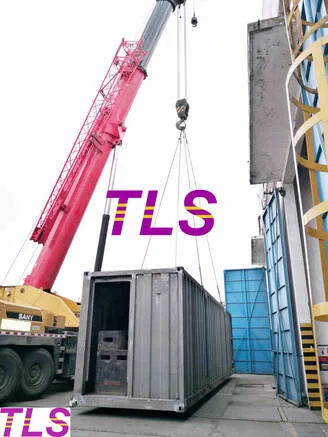

During lifting, the container may experience additional forces caused by:
- Vessel movement
- Wave conditions
- Wind loads
- Uneven loading conditions
A reliable offshore container design should consider:
- Structural frame strength
- Lifting point design
- Load distribution
- Equipment weight and center of gravity
- Structural fatigue resistance
Poor structural design can result in:
- Weld fatigue
- Frame deformation
- Reduced service life
- Increased maintenance requirements
For long-term offshore operation, structural reliability is the foundation of safe performance.
2. Corrosion Protection Is Critical for Marine Service Life
Corrosion protection is one of the most important factors affecting offshore container durability because marine environments continuously accelerate steel corrosion.
Saltwater and airborne chlorides can attack steel surfaces and gradually reduce structural strength if protection systems are inadequate.
A suitable offshore container should consider:
- Proper steel surface preparation
- Anti-corrosion primer
- Intermediate coating layers
- Protective topcoat
- Coating system selection based on environmental conditions
The objective of corrosion protection is not only to prevent visible rust, but also to reduce lifecycle maintenance and extend operational reliability.
3. Why Does the Coating System Matter?
The coating system acts as a protective barrier that prevents marine exposure from directly damaging the steel structure.
A durable coating system depends on more than the paint type. It also requires:
- Correct surface preparation
- Proper application process
- Sufficient coating thickness
- Quality control during manufacturing
- Compatibility with the operating environment
For offshore applications, coating performance should be evaluated based on expected exposure conditions, including:
- Offshore salt spray
- Coastal environments
- Long-term outdoor operation
A high-quality coating system helps maintain structural protection throughout the container’s service life.
4. Environmental Protection Affects Equipment Reliability
An offshore container must protect not only the structure itself but also the equipment installed inside.
Many offshore containers are used for:
- Electrical rooms
- Control rooms
- Workshops
- Laboratories
- Communication equipment shelters
- Equipment modules
For these applications, environmental protection is essential.
Important considerations include:
- Water ingress prevention
- Door and window sealing
- Moisture control
- Condensation prevention
- Thermal management
If sensitive electrical or electronic equipment is installed inside, additional systems such as HVAC and humidity control may be required to maintain a stable internal environment.
5. Maintenance Design Extends Offshore Container Service Life
A reliable offshore container should be designed for inspection and maintenance, not only for initial operation.
Long-term offshore use requires regular checks of:
- Structural condition
- Coating condition
- Sealing performance
- Installed equipment
A maintenance-friendly design should provide:
- Adequate service space
- Easy access to critical components
- Practical inspection points
- Replaceable system components
Poor maintenance accessibility can increase downtime and operating costs, even when the initial container design is robust.
6. What Role Do Offshore Standards Such as DNV 2.7-1 Play?
Offshore standards such as DNV 2.7-1 provide requirements for structural integrity, lifting safety, and manufacturing quality in offshore container applications.
These standards typically address:
- Design loads
- Structural strength
- Lifting arrangements
- Manufacturing requirements
- Inspection procedures
However, certification alone does not determine the complete service life of an offshore container.
Long-term performance also depends on:
- Engineering design quality
- Material selection
- Corrosion protection system
- Manufacturing workmanship
- Maintenance strategy
A certified container still requires proper engineering and maintenance to achieve reliable long-term operation.
How Can You Select an Offshore Container for Long-Term Marine Use?
The correct offshore container should be selected based on operating conditions and lifecycle requirements, not only purchase price or certification.
Before selecting a container, consider:
Operating Environment
- Offshore or coastal installation location
- Corrosion exposure level
- Weather conditions
- Expected operating duration
Structural Requirements
- Frequency of lifting operations
- Internal equipment weight
- Load distribution
- Transportation conditions
Protection Requirements
- Required coating system
- Environmental sealing
- HVAC requirements
- Internal equipment protection
Maintenance Requirements
- Inspection frequency
- Access requirements
- Replacement and repair needs
A container designed for the actual application will generally provide better long-term reliability and lower lifecycle costs.
Frequently Asked Questions
How long can an offshore container last?
The service life of an offshore container depends on design quality, corrosion protection, operating environment, and maintenance practices. There is no fixed service life because marine conditions and usage patterns vary significantly between projects.
Does DNV 2.7-1 guarantee a long service life?
No. DNV 2.7-1 focuses on offshore container safety requirements, especially structural integrity and lifting performance. Long service life also depends on corrosion protection, manufacturing quality, environmental conditions, and maintenance.
What is the biggest factor affecting offshore container durability?
For long-term marine operation, corrosion protection and structural reliability are two of the most critical factors. A strong structure without effective corrosion protection, or a good coating system without proper structural design, cannot ensure long-term performance.
Can a standard container be used for offshore applications?
Generally, a standard shipping container should not replace an offshore container when repeated offshore lifting, marine exposure, or offshore standards are required. The correct choice depends on project requirements and operating conditions.
Conclusion
A reliable offshore container for long-term marine operations is not simply a stronger version of a standard container. It is an engineered solution designed to withstand corrosion, dynamic loading, harsh weather, and long-term operational demands.
The most important factors are structural reliability, corrosion protection, environmental resistance, maintenance accessibility, and compliance with applicable offshore requirements.
For offshore oil and gas, offshore wind, and marine engineering projects, selecting the right offshore container should focus on total lifecycle performance rather than only initial cost.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
In most offshore applications, the answer is no. Although standard shipping containers and offshore containers may look similar, they are designed for different purposes and operate under very different conditions.
A standard shipping container is primarily designed to transport cargo. An offshore container is engineered to transport, protect, and support equipment in demanding offshore environments where repeated lifting, harsh weather, and long-term operation are expected.
Choosing the right container should be based on the project's operating environment, lifting requirements, equipment type, service life, and applicable industry standards—not simply on appearance or initial cost.

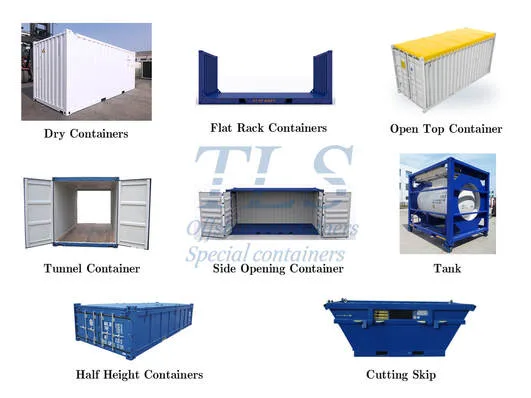

Why Are Standard Shipping Containers and Offshore Containers Often Confused?
They share similar dimensions and steel construction, but they are built to perform different jobs.
A standard shipping container is intended to move cargo from one location to another. Once the cargo is unloaded, its job is complete.
An offshore container, however, often becomes part of the project itself. It may serve as a control room, laboratory, workshop, equipment shelter, electrical room, or accommodation unit while remaining in service for many years.
Because of these different roles, the engineering priorities are also different.
What Are the Main Differences Between a Standard Shipping Container and an Offshore Container?
1. They Are Designed for Different Purposes
A shipping container is designed for cargo transportation, while an offshore container is designed to support equipment throughout its operational life.
Offshore containers must provide more than transportation. They also need to protect equipment, allow safe operation, support maintenance activities, and perform reliably in demanding environments.
2. They Face Different Lifting Conditions
Repeated offshore lifting is one of the biggest differences between the two container types.
During offshore operations, containers are frequently lifted between supply vessels, offshore platforms, ports, and installation sites.
These lifting operations involve dynamic forces created by vessel movement, waves, and weather conditions. As a result, offshore containers are engineered with lifting, structural integrity, and operational safety in mind.
If a project requires repeated offshore lifting, this should be considered during container selection.
3. Their Structural Requirements Are Different
Offshore containers are engineered to support both the container structure and the equipment installed inside.

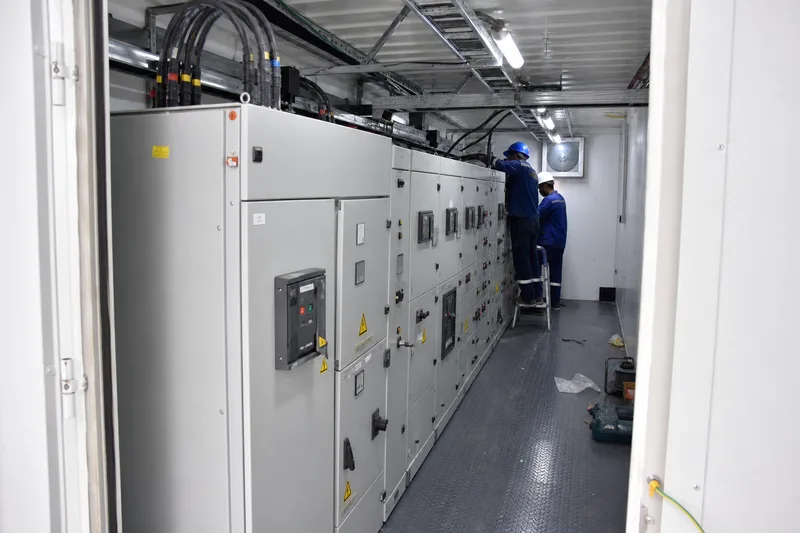

Many offshore containers house electrical systems, control panels, laboratory equipment, communication systems, or mechanical equipment.
The structure must therefore consider:
- Equipment weight
- Weight distribution
- Long-term structural reliability
- Transportation loads
- Operational stability
The objective is not only to transport equipment safely but also to maintain structural performance throughout the project's service life.
4. They Operate in Different Environments
Offshore environments place much greater demands on a container than most land-based applications.
Typical offshore conditions include:
- Salt spray
- High humidity
- Strong winds
- Heavy rain
- Continuous outdoor exposure
- Corrosive marine atmosphere
These environmental conditions influence material selection, corrosion protection, sealing performance, and overall container durability.
5. Different Projects May Require Different Standards
Many offshore projects require containers to comply with industry-specific standards, while standard shipping containers are generally intended for cargo transportation standards.
Depending on project requirements, offshore containers may be designed in accordance with standards such as:
- DNV 2.7-1
- EN 12079
However, the required standard always depends on the project specification and intended application rather than the container itself.
When Can a Standard Shipping Container Be a Suitable Choice?
A standard shipping container may be suitable for projects with relatively stable operating conditions and no offshore lifting requirements.
Typical examples include:
- General storage
- Temporary site offices
- Equipment shelters in non-harsh environments
- Utility buildings without offshore requirements
When structural loading, environmental conditions, and project specifications are less demanding, a standard container may provide a practical and cost-effective solution.
When Is an Offshore Container the Better Choice?
An offshore container is generally more appropriate when equipment must operate safely in demanding environments or under challenging handling conditions.
Typical applications include:
- Offshore oil and gas facilities
- FPSO projects
- Offshore wind farms
- Marine construction projects
- Coastal industrial facilities
- Equipment requiring repeated transportation and lifting
In these situations, structural reliability, environmental protection, and operational safety often become more important than minimizing initial purchase costs.
What Should Be Evaluated Before Selecting a Container?
Container selection should be based on project requirements rather than container appearance.
Before making a decision, consider the following questions:
- Where will the container be installed?
- Will it operate offshore or in a marine environment?
- Will it be lifted frequently?
- What equipment will be installed inside?
- Will personnel work inside the container?
- Are offshore standards required by the project?
- How long is the expected service life?
- Will the container need to be relocated in the future?
The answers to these questions provide a much better basis for selection than comparing specifications alone.
Does Every Offshore Project Require an Offshore Container?
Not necessarily.
The appropriate solution depends on the project's technical requirements, operating environment, risk assessment, and applicable specifications.
Some land-based industrial projects may successfully use custom functional containers without requiring offshore certification, while offshore projects often require containers specifically engineered for marine operations.
The goal is to select a container that meets the actual project requirements rather than choosing the highest specification by default.
How Can You Decide Which Container Is Right for Your Project?
A simple assessment can help determine whether an offshore container is necessary.
Ask the following questions:
- Is the project located offshore or in a coastal environment?
- Will the container be lifted repeatedly?
- Will it contain critical equipment?
- Does the project specify offshore standards?
- Is long-term reliability a priority?
If the answer to most of these questions is yes, an offshore container is likely to be the more appropriate solution.
Conclusion
A standard shipping container and an offshore container are not interchangeable simply because they look similar.
A shipping container is primarily designed for transporting cargo, while an offshore container is engineered to support equipment, withstand demanding operating conditions, and provide long-term structural reliability.
The best choice is not the container with the highest specification—it is the one that matches the project's operating environment, handling requirements, safety expectations, and lifecycle objectives.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
This often makes it difficult to evaluate whether a quotation is reasonable. In reality, from TLS’s engineering experience in designing and manufacturing industrial modular containers, the price difference is rarely driven by the steel structure itself. Instead, it comes from differences in project requirements, system integration complexity, and safety and certification levels.
This article addresses three key questions:
- Why do similar-looking industrial modular containers have very different prices?
- What are the main factors that determine the cost of a industrial modular container?
- Where do these price differences actually come from in real engineering applications?
Why do similar-looking containers have different prices?
From the outside, industrial modular container solutions often look almost identical. Most are built on standard ISO steel frames, typically in 20ft or 40ft dimensions. However, in TLS project practice, the real cost driver is not the external structure, but the operational environment and system requirements behind it.
A container installed in a normal industrial area may only require basic ventilation, standard electrical installation, and corrosion protection. However, when the same type of container is deployed in offshore platforms, oil & gas sites, or hazardous industrial zones, the design logic changes completely.

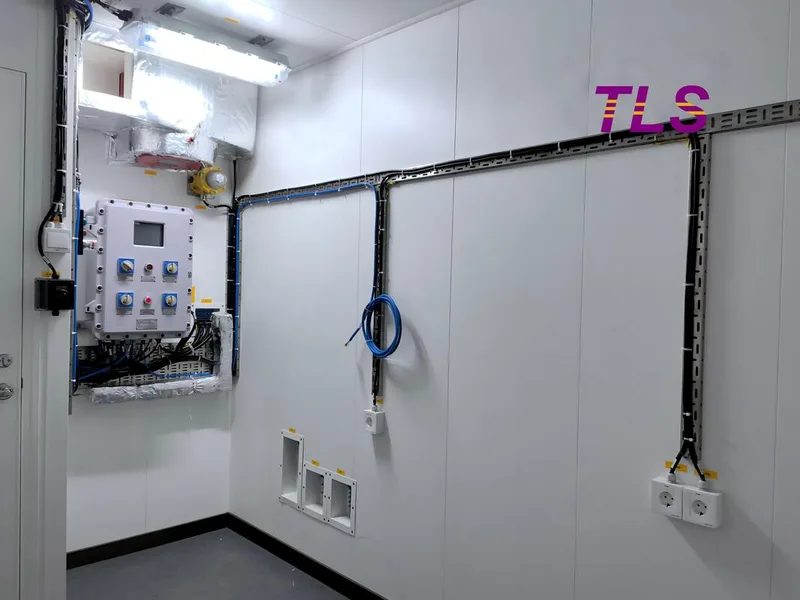

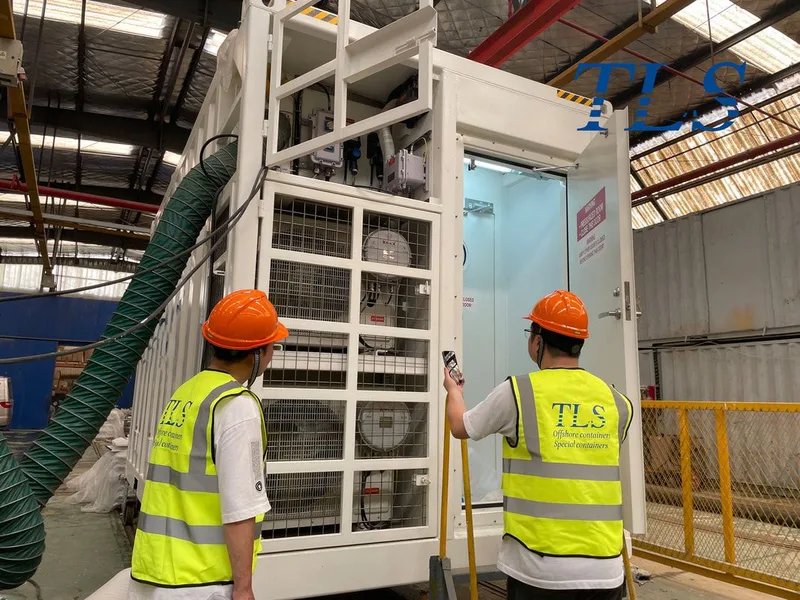

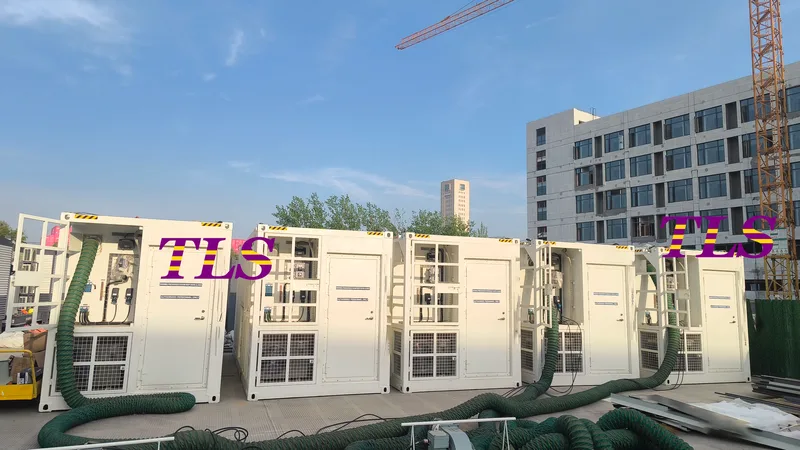

For example, in TLS projects such as pressurized laboratory containers or analytical modules, the system may require continuous positive pressure control, gas detection interlocking, emergency shutdown logic, and explosion-proof electrical integration. These requirements significantly increase both engineering complexity and testing workload, even if the external structure remains unchanged.
What really determines the price of a functional container?
The cost of a functional container is driven by the accumulation of system complexity rather than a single factor.

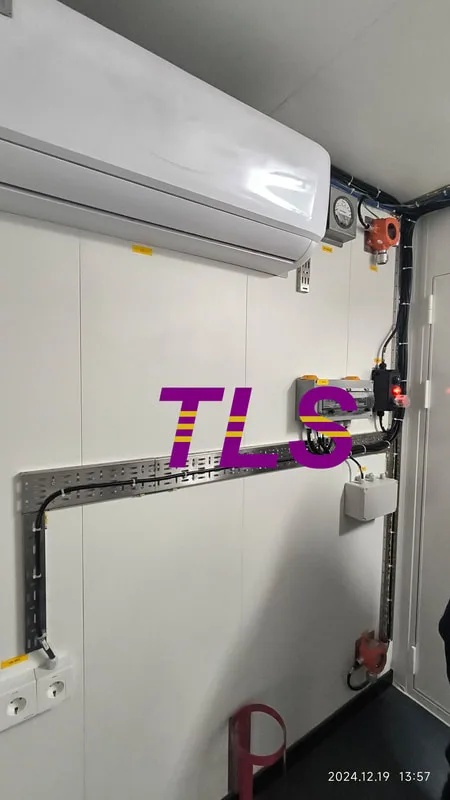

The first key factor is safety level and certification requirements. In standard industrial environments, conventional electrical systems may be sufficient. However, in hazardous areas such as Zone 1 or Zone 2, systems must comply with IECEx or ATEX standards. This introduces explosion-proof electrical components, gas detection systems, and safety interlock logic, which are often the largest contributors to cost differences.

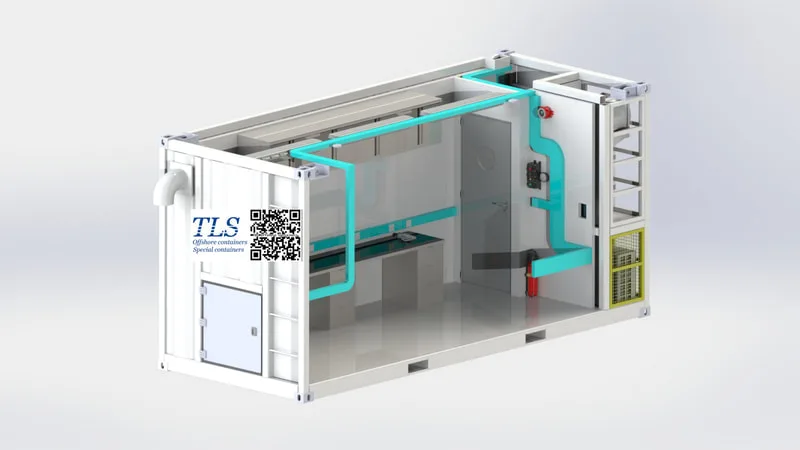

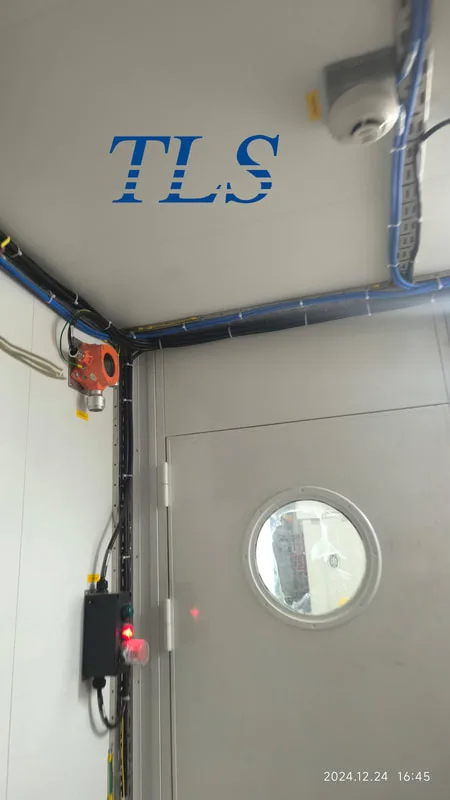

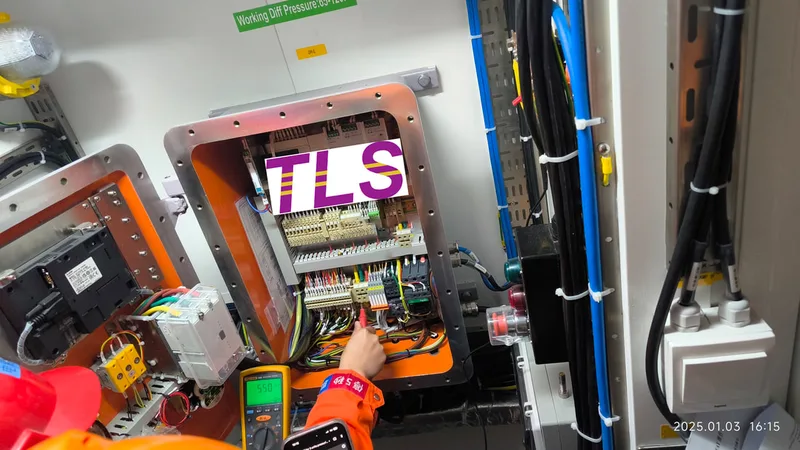

The second factor is system integration depth. Taking TLS laboratory containers as an example, a basic configuration may only include a ventilation hood and standard lighting. In contrast, containers designed for hazardous gas environments require positive pressure systems, explosion-proof fans, explosion-proof control panels, and integrated pressure safety control systems. Although the external appearance may remain the same, the internal system architecture can be completely different in complexity and cost.
The third factor is environmental adaptability. For offshore wind or marine applications, modular functional containers must be designed for salt spray corrosion resistance, structural fatigue, long-term vibration, and extreme temperature variations. This leads to upgrades in steel structure design, coating systems, and insulation performance, all of which significantly affect manufacturing cost, even though they are not visible externally.
In TLS engineering practice, it is common to see two containers of identical size, where one is a basic equipment shelter while the other is a fully integrated safety-controlled analytical module. The price difference between them is not due to a single component, but to the entire safety and system architecture level.
A more advanced solution may have higher upfront cost, but it can significantly reduce installation workload, commissioning time, and long-term maintenance risks. In multiple offshore and energy projects delivered by TLS, the real project cost driver is often not procurement price, but delays, site modifications, and operational downtime.
Therefore, when evaluating different suppliers, it is more meaningful to assess whether the system is complete, whether it meets required safety standards, whether it matches real site conditions, and whether it supports long-term stable operation.
Conclusion
The price difference between functional containers is mainly driven by engineering depth, system configuration, and certification requirements rather than simple material or dimensional differences.
At TLS, each functional container is not treated as a standard product, but as an engineered system designed according to specific project environments, safety levels, and operational requirements. This is why containers that look similar externally may serve completely different functions and risk levels in real applications.
In procurement decisions, instead of focusing only on price, it is more important to first understand the actual problem the container is designed to solve. Once the requirement is clearly defined, the price difference becomes much easier to interpret and justify.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #industrial modular container solutions, #containerized system pricing factors, #customized container solutions, #pressurized container system, #explosion-proof container Zone 1 Zone 2, #offshore modular container, #engineered container system, #system integration container design.
