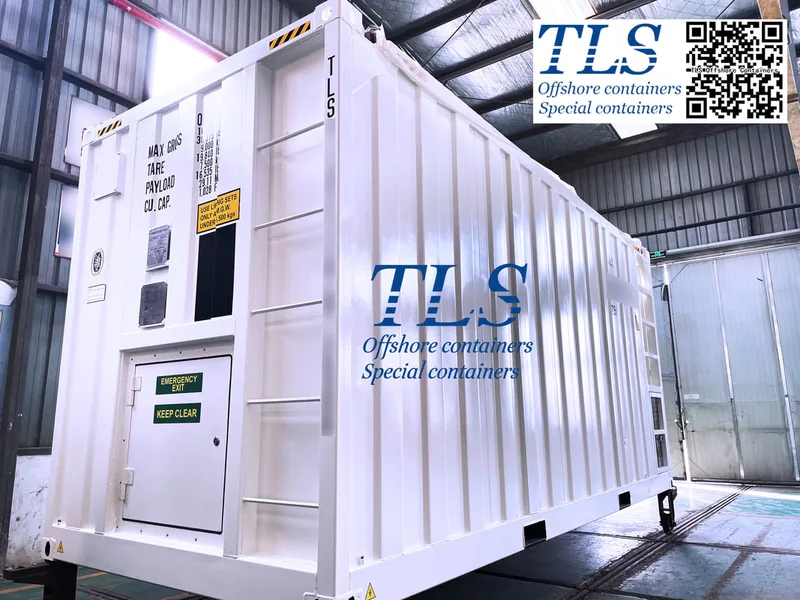

An offshore workshop container is a heavy-duty, purpose-built modular enclosure engineered for maintenance and repair operations on offshore oil rigs, wind farm installations, and marine vessels. Unlike standard shipping containers or land-based workshops, an offshore unit is specifically certified and equipped to endure dynamic crane lifting, aggressive salt-spray corrosion, hazardous atmosphere exposures, and intense structural stress.
1. Core Engineering and Structural Requirements
To operate safely in harsh marine environments, an offshore workshop container relies on four primary engineering pillars:
Dynamic Lifting and Structural Integrity
- DNV 2.7-1 / EN 12079 Certification: Offshore containers must withstand dynamic impact loads caused by ocean swells during vessel-to-rig crane transfers. Frames feature reinforced corner posts, integrated padeyes, and certified four-leg wire rope slings.
- Heavy Floor Loading Capacity: Internal floors are reinforced with heavy-duty steel chequered plates or anti-slip composite decking rated for heavy machinery (such as lathes, hydraulic presses, and pump spares).
C5-M Marine Anti-Corrosion Systems
- Surface Preparation: Structural steel undergoes ISO 8501-1 Sa 2.5 abrasive blast cleaning prior to coating application.
- Multi-Layer Paint Specification: Utilizes ISO 12944 C5-M paint systems—typically consisting of a zinc-rich epoxy primer, an intermediate epoxy tie-coat, and a UV-resistant polyurethane topcoat (total dry film thickness ≥ 280μm). External hardware, door hinges, and fasteners are fabricated from 316L stainless steel.

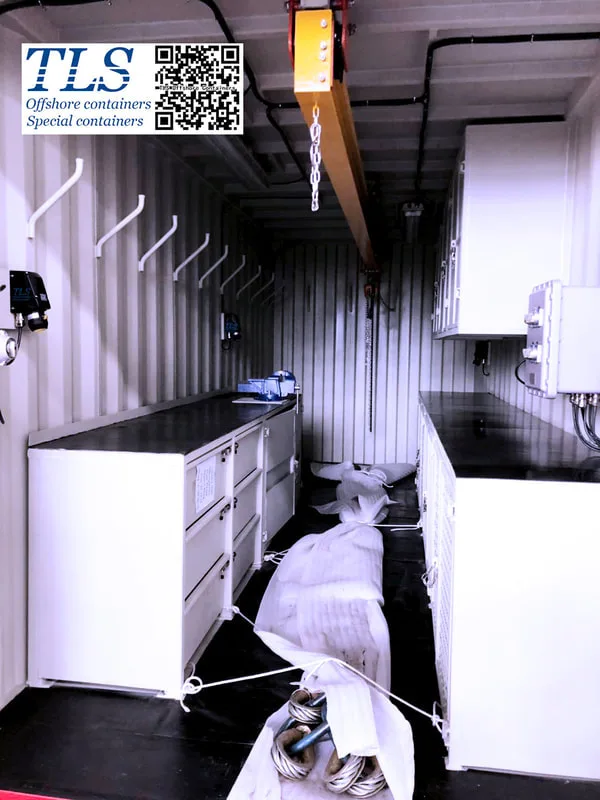

Internal Ergonomics and Equipment Restraints

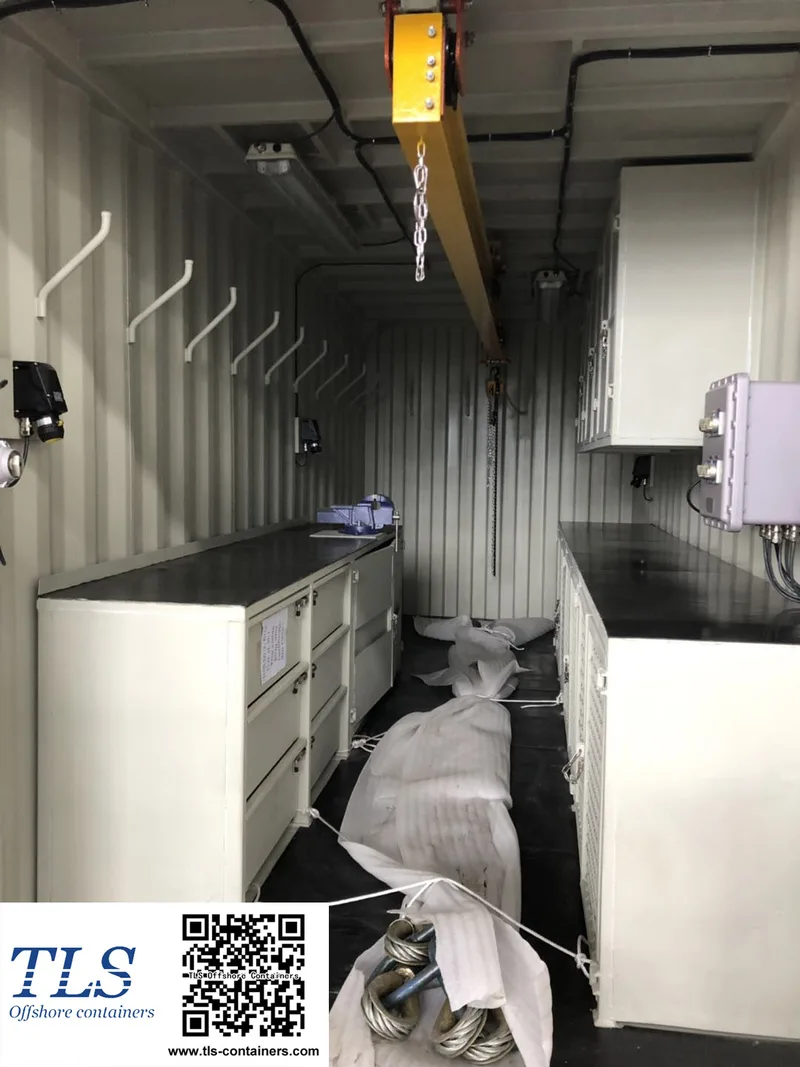

- Vibration and Load Restraints: Workbenches, tool racks, and heavy machinery are welded directly to the structural framework or secured with heavy-duty tie-down points to prevent equipment movement during high-sea transit.
- Spatial Efficiency: Incorporates wall-mounted tool boards, lockable drawer units, overhead gantry cranes, and cable routing channels to maximize floor space for technicians.
Electrical and Utility System Integration
- Ex-Proof Equipment Options: When deployed in Zone 1 or Zone 2 hazardous areas, electrical systems utilize ATEX/IECEx-certified explosion-proof junction boxes, lighting, and HVAC units.
- Power Distribution: Includes multi-voltage transformers (e.g., converting 440V/480V down to 220V/110V), pneumatic air lines, emergency stop circuits, and external shore-power connections.
2. Standard Container vs. Offshore Workshop Container
Structural Standard
- Standard Land Workshop: ISO 1496 (designed for static stacking and land logistics).
- Offshore Workshop: DNV 2.7-1 / EN 12079 (certified for dynamic marine crane lifting at sea).
Corrosion Protection
- Standard Land Workshop: Standard alkyd or acrylic industrial paint coatings.
- Offshore Workshop: C5-M Multi-layer Marine Epoxy/Polyurethane System over Sa 2.5 blast cleaning.
Lifting Mechanism
- Standard Land Workshop: Corner castings for forklifts or top spreaders.
- Offshore Workshop: Certified Padeyes with DNV-certified Four-Leg Wire Rope Sling Assemblies.
Hazardous Area Options
- Standard Land Workshop: Unrated (suitable for Safe Areas only).
- Offshore Workshop: ATEX / IECEx Zone 1 & Zone 2 Options available.
Fire Protection
- Standard Land Workshop: Non-rated or basic thermal insulation.
- Offshore Workshop: SOLAS A60 Fire-Rated Walls & Doors (optional).
3. Key Industrial Applications
- Offshore Oil and Gas Rigs: Serves as a dedicated mechanical, electrical, or hydraulic repair hub on drilling rigs, FPSO, and fixed platforms.
- Offshore Wind Farm Maintenance: Accommodates wind turbine technicians, specialty tooling, and electrical diagnostics during offshore installation and maintenance.
- Marine Subsea and ROV Operations: Houses subsea tool maintenance gear, hydraulic power units, and Remote Operated Vehicle (ROV) spare parts.
4. Frequently Asked Questions (FAQ)
What is the primary difference between ISO containers and DNV 2.7-1 offshore containers?
Answer: ISO containers are designed solely for static stacking and standardized freight transport. DNV 2.7-1 containers are certified for dynamic offshore crane lifting at sea, featuring higher structural yield strength, specialized padeyes, and rigorous non-destructive testing (NDT) during manufacture.
How is corrosion managed on offshore workshop containers?
Answer: Corrosion is mitigated through hot-dip galvanization or multi-layer C5-M marine coating systems applied over Sa 2.5 sandblasted steel. Stainless steel 316L hardware is used for external fasteners, door hinges, and junction boxes.
What information is required to design an offshore workshop container?
Answer: Essential design inputs include: total footprint dimensions (e.g., 10ft, 20ft), total payload/equipment weight, operating ambient temperatures, electrical voltage requirements, hazardous area classification (Safe Area vs. Zone 1/2), and certification requirements (DNV 2.7-1, ABS, Lloyd's Register).
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Overview
Temporary workspaces in offshore energy, mining, and petrochemical plants demand more than basic flexibility. They require rugged structural engineering and active life-safety technologies to survive the world's harshest industrial zones.
This comprehensive guide analyzes how TLS Modular Office Containers serve as fully integrated operational hubs, protecting personnel while maintaining seamless productivity.
Core Questions Addressed in This Guide:
1. Modular Architecture: Engineering Structural Resilience and Rapid Deployment
Industrial operations frequently fail when deploying standard modified shipping containers or low-grade temporary buildings. Field data shows that non-engineered structures suffer from rapid structural degradation, severe moisture ingress, and HVAC failures within the first 12 to 18 months of deployment in aggressive environments.
TLS modular office containers eliminate these systemic failure points through purpose-built industrial engineering:
2. Hazardous Area Protection: Positive Pressure Explosion-Proof Systems
In high-risk sectors like oil and gas, petrochemical processing, and offshore drilling, structural protection alone is insufficient. Passive shelters risk a catastrophic point of failure: the buildup of invisible, heavier-than-air toxic or flammable gases inside the workspace, creating an immediate explosion hazard.
TLS mitigates this risk by turning the workspace into an active safety barrier using advanced positive pressure technology:
3. Optimizing Human Performance: Climate Control and Acoustic Isolation
A hidden drain on project efficiency is worker fatigue. Past industrial studies indicate that prolonged exposure to high ambient noise levels (>85 dB) and poor indoor air quality reduces workforce decision-making accuracy and increases operational incident rates.
TLS solves the human element of remote project efficiency through interior environmental management:
Summary: Key Takeaways for Industrial Asset Selection
When selecting modular office solutions for high-consequence environments, procurement and safety teams should evaluate solutions against three performance-proven benchmarks:
1. Structural Durability and Lifespan
2. Verified Active Safety Systems
3. Lifecycle Mobility and Fast Integration
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #TLS modular office containers, #Explosion proof modular offices, #Positive pressure explosion proof system, #ATEX certified work container, #IECEx Zone 1 hazardous area workstation, #Offshore blast proof container, #C5 grade anti corrosion office container, #Pressurized shelter for hazardous areas, #Temporary command centers oil and gas, #Industrial mobile control room layout
Temporary workspaces in offshore energy, mining, and petrochemical plants demand more than basic flexibility. They require rugged structural engineering and active life-safety technologies to survive the world's harshest industrial zones.
This comprehensive guide analyzes how TLS Modular Office Containers serve as fully integrated operational hubs, protecting personnel while maintaining seamless productivity.
Core Questions Addressed in This Guide:
- Environmental Resilience: How do modular office containers withstand corrosive, dusty, and extreme-temperature environments?
- Hazardous Zone Safety: How can personnel safety be actively protected in explosive oil, gas, and chemical zones?
- Workspace Efficiency: How can comfortable, energy-efficient working conditions be maintained inside highly sealed steel structures?
- Strategic Selection: What are the three critical benchmarks companies must evaluate when choosing a modular office solution?
1. Modular Architecture: Engineering Structural Resilience and Rapid Deployment
Industrial operations frequently fail when deploying standard modified shipping containers or low-grade temporary buildings. Field data shows that non-engineered structures suffer from rapid structural degradation, severe moisture ingress, and HVAC failures within the first 12 to 18 months of deployment in aggressive environments.
TLS modular office containers eliminate these systemic failure points through purpose-built industrial engineering:
- C5-Grade Marine Corrosion Protection: High-strength welded steel frames are coated with a specialized C5-grade anti-corrosion system. This delivers verified resistance against salt-laden offshore air, chemical exposure, and desert sandstorms, outlasting standard paint systems by up to 300% in high-salinity zones.
- Thermal Barrier Engineering: High-performance insulated rock wool panels eliminate structural thermal bridging. This engineering standard stabilizes indoor temperatures across extreme external fluctuations ranging from -40°C to +55°C, reducing HVAC power consumption by an estimated 35% compared to uninsulated alternatives.
- Pre-Integrated Plug-and-Play Mobility: Standardized 20ft and 40ft units feature factory-installed electrical systems, lighting, HVAC, piping, and communication networks. This pre-engineered integration cuts on-site installation time by up to 70%, enabling rapid reconfiguration into command centers, meeting rooms, or technical control hubs.
2. Hazardous Area Protection: Positive Pressure Explosion-Proof Systems
In high-risk sectors like oil and gas, petrochemical processing, and offshore drilling, structural protection alone is insufficient. Passive shelters risk a catastrophic point of failure: the buildup of invisible, heavier-than-air toxic or flammable gases inside the workspace, creating an immediate explosion hazard.
TLS mitigates this risk by turning the workspace into an active safety barrier using advanced positive pressure technology:

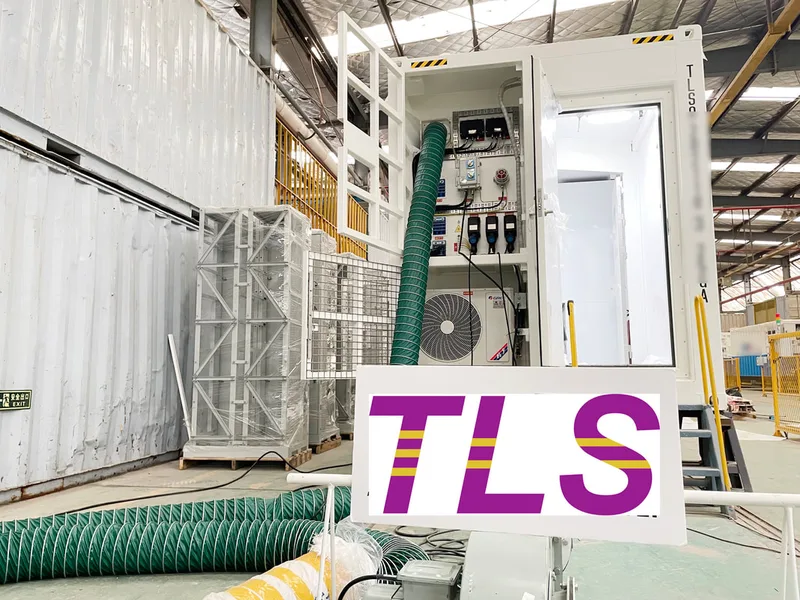

- Positive Pressure Air Barrier: Dedicated explosion-proof ventilation equipment continuously maintains internal air pressure slightly higher than the external atmosphere. This pressure differential creates an invisible physical block, completely preventing flammable gases, explosive vapors, and toxic contaminants from penetrating the room.
- Zone 1 and Zone 2 Compliance: TLS structures are fully certified under IECEx and ATEX international standards, validating their safe operation inside highly volatile petrochemical and FPSO environments.

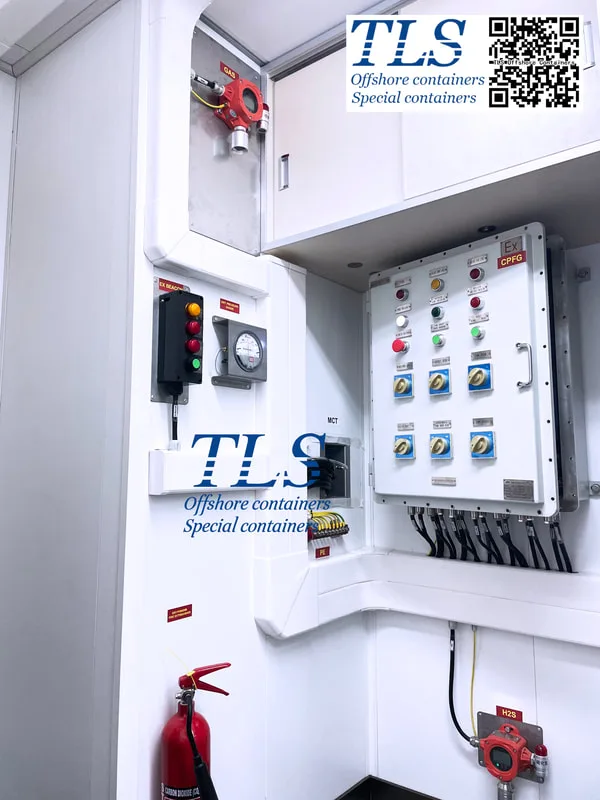

- Intelligent Safety Interlocks: The perimeter is ringed with automated gas detection sensors. If external gas leaks or internal pressure drops are detected, the system bypasses manual human intervention to instantly trigger audible/visual alarms, initiate ventilation adjustments, and engage emergency shutdown interlocks.
