An offshore workshop container is a heavy-duty, purpose-built modular enclosure engineered for maintenance and repair operations on offshore oil rigs, wind farm installations, and marine vessels. Unlike standard shipping containers or land-based workshops, an offshore unit is specifically certified and equipped to endure dynamic crane lifting, aggressive salt-spray corrosion, hazardous atmosphere exposures, and intense structural stress.


1. Core Engineering and Structural Requirements

To operate safely in harsh marine environments, an offshore workshop container relies on four primary engineering pillars:

Dynamic Lifting and Structural Integrity

  • DNV 2.7-1 / EN 12079 Certification: Offshore containers must withstand dynamic impact loads caused by ocean swells during vessel-to-rig crane transfers. Frames feature reinforced corner posts, integrated padeyes, and certified four-leg wire rope slings.
  • Heavy Floor Loading Capacity: Internal floors are reinforced with heavy-duty steel chequered plates or anti-slip composite decking rated for heavy machinery (such as lathes, hydraulic presses, and pump spares).

C5-M Marine Anti-Corrosion Systems

  • Surface Preparation: Structural steel undergoes ISO 8501-1 Sa 2.5 abrasive blast cleaning prior to coating application.
  • Multi-Layer Paint Specification: Utilizes ISO 12944 C5-M paint systems—typically consisting of a zinc-rich epoxy primer, an intermediate epoxy tie-coat, and a UV-resistant polyurethane topcoat (total dry film thickness ≥ 280μm). External hardware, door hinges, and fasteners are fabricated from 316L stainless steel.

Internal Ergonomics and Equipment Restraints

  • Vibration and Load Restraints: Workbenches, tool racks, and heavy machinery are welded directly to the structural framework or secured with heavy-duty tie-down points to prevent equipment movement during high-sea transit.
  • Spatial Efficiency: Incorporates wall-mounted tool boards, lockable drawer units, overhead gantry cranes, and cable routing channels to maximize floor space for technicians.

Electrical and Utility System Integration

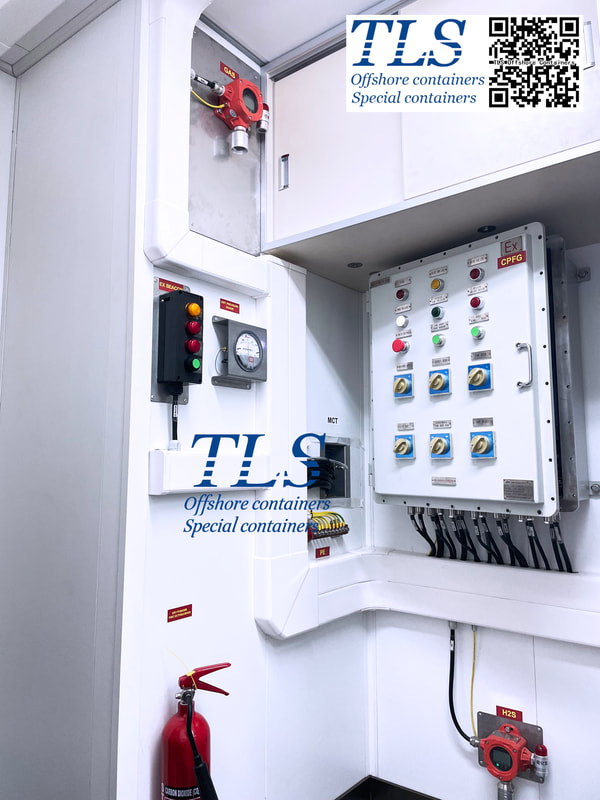

  • Ex-Proof Equipment Options: When deployed in Zone 1 or Zone 2 hazardous areas, electrical systems utilize ATEX/IECEx-certified explosion-proof junction boxes, lighting, and HVAC units.
  • Power Distribution: Includes multi-voltage transformers (e.g., converting 440V/480V down to 220V/110V), pneumatic air lines, emergency stop circuits, and external shore-power connections.


2. Standard Container vs. Offshore Workshop Container

Structural Standard

  • Standard Land Workshop: ISO 1496 (designed for static stacking and land logistics).
  • Offshore Workshop: DNV 2.7-1 / EN 12079 (certified for dynamic marine crane lifting at sea).

Corrosion Protection

  • Standard Land Workshop: Standard alkyd or acrylic industrial paint coatings.
  • Offshore Workshop: C5-M Multi-layer Marine Epoxy/Polyurethane System over Sa 2.5 blast cleaning.

Lifting Mechanism

  • Standard Land Workshop: Corner castings for forklifts or top spreaders.
  • Offshore Workshop: Certified Padeyes with DNV-certified Four-Leg Wire Rope Sling Assemblies.

Hazardous Area Options

  • Standard Land Workshop: Unrated (suitable for Safe Areas only).
  • Offshore Workshop: ATEX / IECEx Zone 1 & Zone 2 Options available.

Fire Protection

  • Standard Land Workshop: Non-rated or basic thermal insulation.
  • Offshore Workshop: SOLAS A60 Fire-Rated Walls & Doors (optional).


3. Key Industrial Applications

  • Offshore Oil and Gas Rigs: Serves as a dedicated mechanical, electrical, or hydraulic repair hub on drilling rigs, FPSO, and fixed platforms.
  • Offshore Wind Farm Maintenance: Accommodates wind turbine technicians, specialty tooling, and electrical diagnostics during offshore installation and maintenance.
  • Marine Subsea and ROV Operations: Houses subsea tool maintenance gear, hydraulic power units, and Remote Operated Vehicle (ROV) spare parts.


4. Frequently Asked Questions (FAQ)


What is the primary difference between ISO containers and DNV 2.7-1 offshore containers?

Answer: ISO containers are designed solely for static stacking and standardized freight transport. DNV 2.7-1 containers are certified for dynamic offshore crane lifting at sea, featuring higher structural yield strength, specialized padeyes, and rigorous non-destructive testing (NDT) during manufacture.


How is corrosion managed on offshore workshop containers?

Answer: Corrosion is mitigated through hot-dip galvanization or multi-layer C5-M marine coating systems applied over Sa 2.5 sandblasted steel. Stainless steel 316L hardware is used for external fasteners, door hinges, and junction boxes.


What information is required to design an offshore workshop container?

Answer: Essential design inputs include: total footprint dimensions (e.g., 10ft, 20ft), total payload/equipment weight, operating ambient temperatures, electrical voltage requirements, hazardous area classification (Safe Area vs. Zone 1/2), and certification requirements (DNV 2.7-1, ABS, Lloyd's Register).
