Guaranteed Structural Integrity: Unpacking the Criticality of the Offshore Container Vertical Impact Test

​Introduction: The Non-Negotiable Standard for Offshore Safety
In the high-stakes world of offshore operations—be it supporting oil and gas platforms, subsea construction, or burgeoning renewable energy projects—the reliability of every piece of equipment is paramount. Unlike standard ISO containers, offshore containers must be engineered to withstand constant dynamic loading, severe weather, and the unpredictable forces of the marine environment.

At TLS, we view container certification not merely as a regulatory necessity, but as a core commitment to safety and asset protection. The most defining measure of this commitment is the Vertical Impact Test. This specialized drop test, mandated by stringent standards like DNV 2.7-1 and ISO 10855, is designed to simulate the absolute worst-case scenario: a sudden, off-balance impact that challenges the container's structural integrity to its absolute limits.

Our corporate principle is firm and non-negotiable: TLS will not proceed to the next production step until the marine container has passed the vertical impact test. This comprehensive article details the precise procedures and critical acceptance criteria that ensure our containers meet this ultimate test of resilience.

Phase I: The Rigorous Setup – Mimicking Maximum Stress

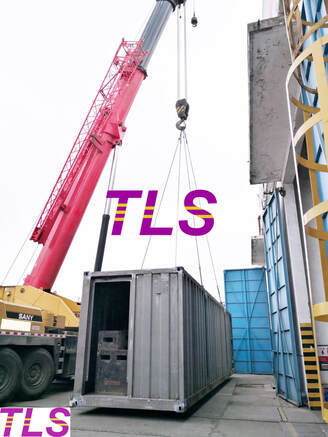

The validity of the Vertical Impact Test hinges on its ability to accurately replicate the forces a container must withstand at its Maximum Gross Mass (R). Every step of the setup is meticulously controlled to ensure maximum stress application.

A. Load Equivalence: Testing at Full Payload
The test commences with precise loading. The container must be loaded with a uniformly distributed load equivalent to its maximum net payload (Rated Mass minus Tare Weight). This ensures the test is conducted under the most structurally demanding conditions.

The load must also be fully bolted inside the container. This crucial requirement ensures that the full inertia of the payload is rigidly coupled to the structural frame. Upon impact, the payload's massive inertia is translated into a complex, instantaneous downward force that the structural members must absorb and dissipate.

B. The Unyielding Impact Surface
The test demands an uncompromising foundation to ensure the container, not the ground, absorbs the impact energy. The surface must be a flat concrete floor or other rigid structure. To maximize the force and instantaneous deceleration, the ground must be unyielding.

A slight, logistical allowance permits covering the surface with wooden planks, but their thickness shall not exceed 50 mm. This minimal allowance prevents the planks from acting as a cushion, ensuring the shock transfer remains severe.

Phase II: Geometric Precision and Dynamic Force Application
The strategic design of the Vertical Impact Test is to introduce highly damaging eccentric loading—concentrating the force onto a single, critical structural intersection.

A. The Crucial 5° Tilt Angle
The container must be lifted and tilted such that the angle between the side and end beams connected to the lowest corner and the ground is not less than 5°.

This 5° angle is strategically vital. It shifts the entire kinetic energy of the system onto one single corner fitting and the surrounding structure. This simulates uneven touchdown—a common scenario during vessel pitching or imprecise crane operation—and introduces destructive torsional and shearing moments into the frame.

B. Corner Selection and Velocity Control
Two constraints ensure the test targets the container's most vulnerable point at a high speed:

1. Targeting Weakness: The test mandates that the corner with the worst stiffness should be selected as the lowest-impacted corner. This requires the manufacturer (TLS) to have intimate knowledge of its structural engineering analysis (FEA), guaranteeing that the product's weakest link is physically verified under extreme stress.
2. Impact Velocity: The initial impact velocity of the offshore container touching the ground shall not be less than 5°. This threshold, derived from historical accident data, ensures the container dissipates a minimum level of kinetic energy, simulating the speeds involved in high-stress handling incidents. The lowest corner point must be more than 50 mm from the ground to ensure this velocity is achieved.


Phase III: Acceptance Criteria – Validating Resilience
The post-test inspection determines whether the container demonstrated failure or resilience, a distinction that relies on precise structural assessment.

A. The Pass/Fail Standard: Permanent Deformation
The container shall not show significant permanent deformation or damage after the test.

"Significant" damage is defined as any distortion to the main load-bearing structure (corner posts, rails, corner fittings) that would compromise the container's ability to be handled, stacked, or safely lifted again. The container must remain fully fit-for-purpose immediately following the drop.

B. The Allowance for Controlled Yielding
The standard allows for a small degree of controlled yielding, recognizing that energy must be absorbed: Small repairable open welds and deformations are allowed.

This acceptance proves that the design successfully dissipated the immense kinetic energy through minor, localized plastic deformation, preventing catastrophic failure of the main frame. However, any failure requiring major structural repair or affecting load-bearing capacity signals a design flaw and results in a test failure.

Conclusion: The TLS Commitment to Certified Safety
The Offshore Container Vertical Impact Test is the definitive, physically demanding validation of a container's structural integrity. Every parameter—from the full payload loading and the required 5° tilt to the rigorous inspection for significant permanent deformation—is calculated to ensure maximum structural validation.

For TLS, this test is the uncompromised final certification. By standing by our commitment that our containers will not proceed to the next production phase until they pass this vital test, we guarantee that every unit we deliver is certified not just on paper, but through demonstrated resilience against the most demanding forces of the offshore environment. Choose TLS, and invest in a product proven to protect your assets and personnel at sea.
