In the engineering and logistics of large-scale energy storage systems (ESS), the method of hoisting is a critical factor in maintaining structural integrity. While standard shipping containers are often lifted by their top corner castings, high-density energy storage units—which can weigh upwards of 40 tons—require a more specialized approach. This analysis compares top-corner lifting versus bottom-beam lifting and examines the stress distribution at reinforced nodes.
Comparative Analysis: Top vs. Bottom

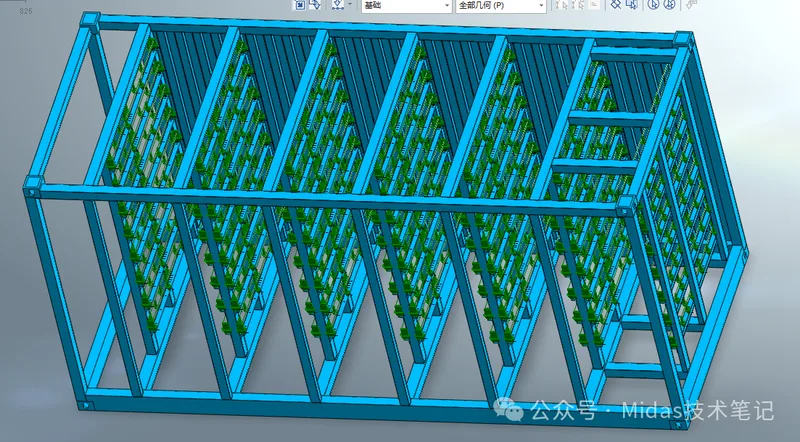

LiftingThe primary concern during a heavy lift is deflection—the degree to which the structural beams bend under load. When an ESS container is fully loaded with battery racks (often stacked 8 layers high), the internal forces are immense.
The Reason: Lifting from the bottom transforms the main structural members from tension-heavy components into more stable, supported structures. It minimizes the "sagging" effect caused by the heavy internal battery load concentrated on the floor.
Node Reinforcement and Stress Distribution
To facilitate bottom-lifting, the container must be equipped with reinforced "pulling points." The design analyzed uses a round steel pipe ($83 \times 8\text{mm}$) that passes through the outer main beams and internal secondary beams.
Finite Element Analysis (FEA) highlights critical stress points during this operation:
The Reason: The concentration of stress at the outer beam is due to the "cantilever effect" of the lifting pin. The reinforcement plates (8mm steel) are essential here to prevent the rectangular tube from buckling or tearing under the localized pressure of the pulling steel.
Conclusion
Based on the structural data and FEA simulations, lifting energy storage containers from the bottom main beams is the safer and more stable engineering choice.
Key Takeaways:
Comparative Analysis: Top vs. Bottom
LiftingThe primary concern during a heavy lift is deflection—the degree to which the structural beams bend under load. When an ESS container is fully loaded with battery racks (often stacked 8 layers high), the internal forces are immense.
- Method A (Top Corner Lifting): Lifting from the four top corners causes the container to act like a suspended bridge. The simulation shows a maximum deflection of 12.4mm at the mid-span of the main beams. This significant bending can lead to permanent deformation of the frame or damage to the sensitive battery cells inside.

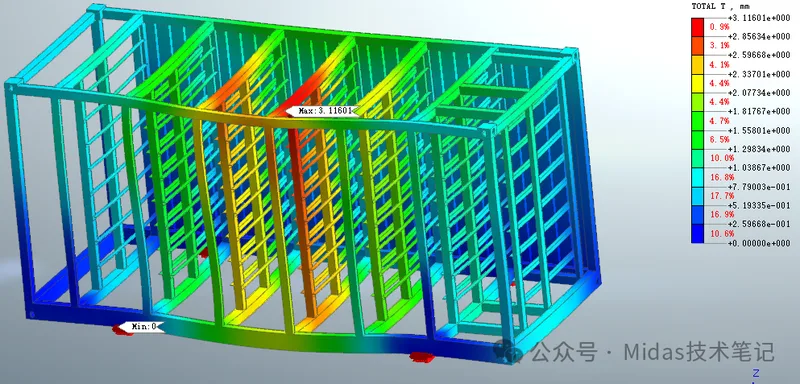

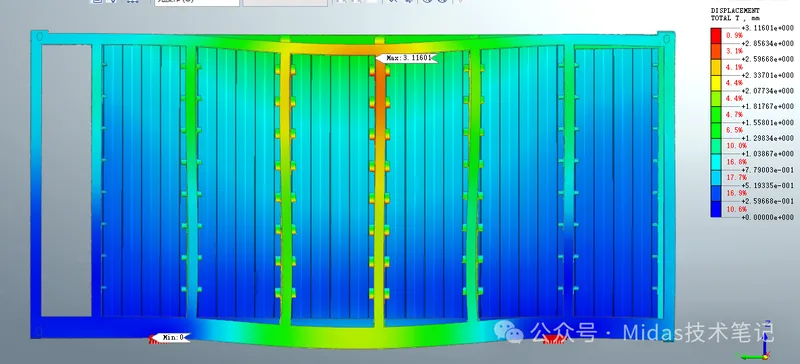

- Method B (Bottom Beam Lifting): By supporting the container at the bottom main beams (specifically at the 1/5 positions), the load path is shortened and more evenly distributed. The maximum deflection drops to just 3.11mm. This represents a 75% reduction in structural strain compared to top-lifting.
The Reason: Lifting from the bottom transforms the main structural members from tension-heavy components into more stable, supported structures. It minimizes the "sagging" effect caused by the heavy internal battery load concentrated on the floor.
Node Reinforcement and Stress Distribution
To facilitate bottom-lifting, the container must be equipped with reinforced "pulling points." The design analyzed uses a round steel pipe ($83 \times 8\text{mm}$) that passes through the outer main beams and internal secondary beams.
Finite Element Analysis (FEA) highlights critical stress points during this operation:
- Peak Squeezing Stress: The highest stress occurs at the contact point between the pin shaft and the first reinforced square tube, reaching 352 MPa.
- Material Fatigue: The external upper section of the reinforced beam experiences 262 MPa, while internal secondary beams see much lower stress levels (approx. 26–35 MPa).
The Reason: The concentration of stress at the outer beam is due to the "cantilever effect" of the lifting pin. The reinforcement plates (8mm steel) are essential here to prevent the rectangular tube from buckling or tearing under the localized pressure of the pulling steel.
Conclusion
Based on the structural data and FEA simulations, lifting energy storage containers from the bottom main beams is the safer and more stable engineering choice.
Key Takeaways:
- Stability: Bottom-lifting significantly reduces deflection (from 12.4mm to 3.11mm), protecting internal electronics and battery racks.
- Reinforcement is Mandatory: Because contact stress can reach 352 MPa, the outer main beams must be reinforced with steel plating to distribute the load effectively.
- Design Standard: For high-density ESS units weighing near 40 tons, the "top corner" standard is insufficient; bottom-beam integration should be the primary design requirement.
