Summary

A battery container is the DC energy-storage part of a project. A complete battery energy storage system, or BESS, includes that container plus the power conversion, medium-voltage connection, plant controls, safety interfaces, auxiliary services, civil works, and system-level engineering needed to deliver usable AC power at the agreed point of connection. The distinction matters because two offers with the same MWh rating can have very different scope, risk, and price.

The Short Answer

A battery container stores DC energy. A complete BESS converts, controls, protects, and connects that energy so the plant can perform its required duty.

The container may include cells, modules or packs, racks, battery management systems, thermal management, internal cabling, detection, and enclosure-level fire protection. It does not automatically include the power conversion system (PCS), transformer, medium-voltage switchgear, energy management system (EMS), site controller, auxiliary power supply, civil works, installation, or grid-compliance studies.

This is not just a naming issue. It is a scope boundary. Buyers should define it before comparing prices or approving a technical offer.

What a Battery Container Usually Includes

The exact configuration varies by manufacturer and project. A containerized battery package commonly includes:

• Battery cells assembled into modules or packs and then into racks
• A battery management system (BMS) that monitors cell and rack conditions and applies protective limits
• Internal DC collection, protection, disconnecting devices, and cabling
• Liquid-cooling or air-cooling equipment, depending on the design
• Internal temperature, smoke, gas, or other safety detection appropriate to the design
• An enclosure-level fire protection arrangement, where specified
• Lighting, service receptacles, and selected internal auxiliary loads
• Local human-machine interface and communications gateways
• Structural enclosure, doors, access provisions, and environmental sealing

These items make the container a functional DC battery subsystem. They do not, by themselves, make it a grid-connected power plant.

For context, a standard TLS liquid-cooled battery container baseline such as model ESS-ES5016C-LP71173207 may be discussed at approximately 5.016 MWh and 2.5 MW. Those ratings are useful for early configuration work, but they do not define the full project scope. Final ratings, interfaces, certification basis, auxiliary loads, fire configuration, and site conditions require project-specific engineering confirmation.

What Turns a Battery Container into a Complete BESS

A complete BESS joins several engineered subsystems at a defined point of delivery.

Power Conversion

The PCS converts DC power from the batteries to AC power for the grid or facility and converts AC back to DC during charging. Its voltage window, overload capability, reactive-power function, harmonic performance, and grid-forming or grid-following controls must match the application.

Medium Voltage Equipment

Many utility-scale projects require a step-up transformer, medium-voltage switchgear, protection relays, metering, and cabling. These items may be supplied as a separate skid, an electrical house, or distributed site equipment. Their absence from a battery-container offer can leave a major gap between the quoted package and the actual connection point.

Plant Controls

The EMS or plant power controller translates dispatch commands into operating setpoints. It coordinates the battery, PCS, meter, transformer limits, and grid requirements. The control scope should identify who supplies scheduling, state-of-charge management, active and reactive power control, alarm handling, remote access, cybersecurity controls, and interface testing.

Auxiliary Power

Cooling, controls, fire systems, lighting, heaters, pumps, and communication equipment all consume power. A complete design defines the auxiliary voltage, normal and backup sources, startup sequence, black-start assumptions, transformer sizing, and whether auxiliary consumption is included in performance guarantees.

Safety and Compliance

Product certification, fire testing, installation codes, emergency response planning, and local authority approval apply at different boundaries. UL Solutions explains that UL 9540 addresses energy storage systems and equipment, while UL 9540A is a test method for evaluating thermal-runaway fire propagation. A component test or battery certificate does not automatically establish compliance for every possible system configuration or site layout.

Balance of Plant

The balance of plant may include foundations, drainage, roads, fencing, lighting, grounding, lightning protection, trenches, cable routing, fire-water interfaces, communications, security, and site signage. These items determine whether equipment can be installed, accessed, operated, and maintained safely.

Why Equal MWh Ratings Do Not Mean Equal Offers

An MWh figure describes stored energy at a stated condition and boundary. It does not show what the supplier will deliver at the grid connection point.

When comparing offers, check at least five boundaries:

1. Energy boundary. Is capacity stated at cell terminals, the container DC bus, the PCS AC terminals, or the project point of interconnection?
2. Power boundary. Does the MW rating apply continuously, for a limited duration, or only within a stated state-of-charge and temperature range?
3. Efficiency boundary. Does round-trip efficiency include the PCS, transformer, HVAC, pumps, standby consumption, and site auxiliaries?
4. Scope boundary. Are PCS, transformer, switchgear, EMS, cabling, installation, commissioning, and civil works included?
5. Compliance boundary. Which exact product configuration was certified or tested, and which site approvals remain the owner’s or EPC contractor’s responsibility?

The US Department of Energy’s battery supply-chain assessment distinguishes cells, modules, packs, and integrated systems, and notes that a system can include the BMS, EMS, PCS, transformers, and inverters. That hierarchy is a useful starting point, but the contract must still define the actual project boundary.

A Practical Scope Definition for Procurement

The technical specification should identify a physical and functional battery limit. A clear scope statement answers the following questions:

• Where are the DC, AC, auxiliary-power, communication, grounding, fire-water, and drainage interfaces?
• Who supplies each cable, connector, termination, gland plate, and protocol gateway?
• Who performs system studies, settings coordination, grid-code verification, and authority submissions?
• Who owns the master alarm list, cause-and-effect matrix, and emergency shutdown philosophy?
• Which party integrates the BMS, PCS, EMS, SCADA, revenue meter, and network operator signals?
• Which performance values are guaranteed, at what measurement point, and under what test conditions?
• Who supplies spare parts, special tools, training, commissioning support, and long-term service?

A responsibility matrix can support the contract, but it cannot replace precise interface drawings and written acceptance criteria.

Key Inputs the Buyer Should Provide

The supplier needs more than a target MWh value. At minimum, the buyer should provide:

• Required usable energy and continuous power at the contractual measurement point
• Duty cycle, expected cycles per day, state-of-charge window, and design life objective
• Grid voltage, frequency, fault level, grounding method, and applicable grid code
• Site ambient temperature, humidity, altitude, solar load, wind, snow, seismic, flood, dust, and corrosivity conditions
• Applicable codes, adopted editions, certification requirements, and authority having jurisdiction
• Site single-line diagram and preferred DC- or AC-coupled architecture
• Fire-safety philosophy, emergency response expectations, and available fire-service interfaces
• Communications protocols, SCADA points, remote-access rules, and cybersecurity requirements
• Available auxiliary supply and backup-power requirements
• Delivery constraints, lifting limits, foundation concept, access routes, and commissioning schedule

If these inputs are incomplete, the offer should list assumptions and exclusions rather than hide them inside a model number.

Frequently Asked Questions

Is a battery container a complete BESS?

Usually not. It is normally the battery and its immediate enclosure-level systems. A complete BESS also needs power conversion, grid connection, plant controls, site integration, and balance-of-plant scope.

Does a container’s MW rating mean it includes a PCS?

No. The figure may describe the battery’s permitted charge or discharge rate. Confirm whether the PCS is physically included, separately supplied, or only used as the basis for sizing.

Is UL 9540A a product certification?

UL describes UL 9540A as a test method for evaluating thermal-runaway fire propagation. UL 9540 is the system-and-equipment safety standard. The test report, tested configuration, listing status, and adopted installation code should be reviewed separately.

Can the EMS come from a different supplier?

Yes, but the control hierarchy, protocols, ownership of operating limits, cybersecurity requirements, and factory and site acceptance tests must be defined early.

Where should performance be measured?

At the contractually defined point. Common boundaries include the container DC bus, PCS AC terminals, transformer output, or project point of interconnection. Guarantees are not comparable until the measurement boundary and included auxiliaries are the same.

Define the Boundary Before Requesting a Firm Offer

TLS can review a proposed single-line diagram and scope split to identify battery-container interfaces, integration responsibilities, and information still needed for engineering. A firm technical offer should follow confirmation of the project duty, site conditions, compliance basis, and delivery boundary.

Further Reading

· US Department of Energy — Battery Energy Storage supply-chain assessment

· UL Solutions — Energy Storage System Testing and Certification

· UL Solutions — Installation Codes and Requirements for Energy Storage Systems FAQs

· NFPA — NFPA 855 Standard for the Installation of Stationary Energy Storage Systems

Summary

Plan the foundation, equipment spacing, and access routes as one coordinated site system. The layout must support structural loads, drainage, cable and pipe interfaces, fire separation, emergency response, maintenance, component replacement, and future decommissioning.

There is no universal foundation detail or separation distance for every BESS. Final requirements depend on the equipment configuration, geotechnical data, adopted codes, fire-test evidence, hazards, and approval by the relevant authorities.

The Short Answer

Start with the operating and emergency envelopes, then design the civil works around them.

The equipment footprint alone is not enough. A workable BESS plot also needs door-swing zones, technician access, ventilation and exhaust clearances, fire-service approach, cable and pipe corridors, drainage, lifting space, and safe routes for replacement equipment. The foundation must carry the actual equipment and environmental loads while keeping the container level and its interfaces aligned.

Site planning should therefore begin before the supplier freezes the general arrangement. Waiting until after equipment selection often produces avoidable clashes between foundations, doors, trenches, PCS skids, transformers, fences, and emergency access.

Foundation Design Starts with Verified Loads

A BESS container may look like a standard freight container, but its support conditions can be different. Internal batteries and auxiliaries create concentrated loads. Doors, service bays, pipework, cable entries, and cooling equipment can also impose location-specific requirements.

The structural and geotechnical engineers should receive a supplier-issued load package that identifies:

• Maximum operating and transport mass, with the applicable configuration stated
• Center of gravity and support reactions at each bearing point
• Permitted support locations and allowable differential level or settlement
• Anchor locations, design actions, and base-frame details
• Seismic restraint requirements and equipment anchorage loads
• Wind actions, including attached equipment and open-door conditions where relevant
• Lifting arrangement and temporary loads during installation or replacement
• Cable, drainage, fire-water, coolant, and auxiliary penetrations

Do not use a preliminary brochure weight to finalize concrete or piling. Equipment configuration can change the reactions even when the external dimensions remain the same.

Choose the Foundation Concept for the Site

Common concepts include a reinforced-concrete slab, strip foundations, discrete pedestals, grade beams, or piled supports. Selection depends on bearing capacity, settlement, frost depth, groundwater, flood level, seismic conditions, local construction practice, and the routing of buried services.

The foundation design should address:

• Strength and stability under dead, wind, seismic, flood, snow, ice, and other applicable loads
• Total and differential settlement limits compatible with the enclosure and internal equipment
• Sliding, overturning, uplift, anchorage, and accidental actions required by the project
• Drainage slopes without twisting the equipment support plane
• Corrosion protection at anchors, embedded steel, and dissimilar-metal interfaces
• Access for installation, grouting, inspection, tightening, and later removal
• Separation between structural reinforcement and the grounding design where coordination is required

In the United States, ASCE/SEI 7-22 addresses loads and load combinations for hazards that include wind, seismic, flood, snow, rain, ice, and fire. Other jurisdictions use different structural standards. The project engineer must apply the locally adopted code and site-specific hazard data.

Drainage and Elevation Are Part of Equipment Protection

Standing water around a BESS restricts access and can expose foundations, cable trenches, and low-level penetrations to avoidable risk. Finished grades should direct water away from the equipment and should not trap runoff between adjacent foundations.

The layout should coordinate:

• Finished floor or base elevation relative to design flood levels
• Surface drainage and erosion control
• Trench drains, sumps, and discharge routes where used
• Cable-entry elevation and sealing
• Fire-water runoff strategy where required by the authority or environmental plan
• Snow storage, wind-driven rain, splash, and roof drainage
• Vehicle wheel loads near trenches and foundation edges

Drainage assumptions should appear on the civil drawings rather than remain as a site-installation decision.

Spacing Must Follow the Approved System Configuration

There is no single spacing number that is valid for every battery chemistry, enclosure, fire-protection arrangement, and jurisdiction.

Applicable fire and building codes may set default separation distances or allow alternatives supported by fire and explosion testing. The installed equipment, orientation, state of charge, internal layout, optional fire systems, adjacent exposures, and separation used in the test evidence must be compared with the proposed site arrangement.

UL Solutions notes that fire and explosion test data can inform enclosure design and separation decisions. The 2024 International Fire Code also distinguishes walk-in ESS units from cabinets, which matters because personnel access and hazard controls differ.

The authority having jurisdiction, fire service, owner, insurer, and design team should review the layout against the adopted editions of the applicable codes. A separation shown in a supplier drawing should not be treated as approval for a different site or configuration.

Access Has Four Different Purposes

One access aisle rarely satisfies every operational need. Review access by function.

Routine Operation

Operators need safe routes to local panels, emergency stops, disconnects, indicators, and inspection points. Door swings and removable panels must not block the only walkway.

Maintenance

Technicians need working space for filters, pumps, fans, valves, electrical compartments, battery racks, and diagnostic equipment. The layout should account for tools, temporary barriers, arc-flash boundaries where applicable, and safe handling of heavy parts.

Emergency Response

Emergency responders may need appliance access, hose deployment, observation positions, isolation controls, and a route that does not pass through the most credible hazard area. Access assumptions should be agreed with the authority and fire service, then reflected in the emergency response plan.

Replacement and Decommissioning

A site that can be commissioned may still be impossible to repair economically. Check whether a crane, forklift, or replacement vehicle can reach the equipment after fences, transformers, overhead lines, landscaping, and neighboring containers are installed. Preserve the swept path, outrigger area, lifting radius, and overhead clearance required by the agreed replacement method.

Where workplace exit routes apply, they must remain usable and unobstructed. OSHA’s exit-route requirements provide a useful US reference, but they do not replace the project’s fire, electrical, and local building-code review.

Coordinate Every Interface on One General Arrangement

The general arrangement should show more than equipment rectangles. It should include:

• Foundation edges, bearing points, anchors, and equipment orientation
• All doors, escape doors, panels, ladders, louvers, vents, and exhaust outlets
• PCS, transformer, switchgear, auxiliary transformer, and control equipment
• AC, DC, communication, grounding, drainage, coolant, and fire-water routes
• Cable trenches, pull pits, bend radii, and entry directions
• Fences, gates, roads, turning areas, bollards, and impact protection
• Fire-service access, hydrants or water interfaces where applicable, and emergency isolation points
• Working clearances, lifting zones, temporary laydown areas, and replacement paths
• Surface levels, slopes, drainage flow, flood elevations, and retaining structures
• Future expansion space and construction access for later phases

Run a multidisciplinary clash review before issuing civil drawings for construction. Small positional changes can affect door access, cable lengths, fire spacing, transformer clearances, and crane reach at the same time.

Key Inputs the Buyer Should Provide

Before the supplier confirms site requirements, the buyer or EPC contractor should provide:

• Topographic survey, plot limits, and proposed equipment coordinates
• Geotechnical report, groundwater level, frost conditions, and soil aggressiveness
• Applicable structural, fire, electrical, environmental, and occupational-safety codes with adopted editions
• Wind, seismic, snow, ice, flood, ambient temperature, altitude, and other site design data
• Site drainage philosophy and required finished elevations
• Fire strategy, emergency response concept, water availability, and authority comments
• Road geometry, transport envelope, crane limits, and construction sequencing
• Electrical single-line diagram and preliminary cable schedule
• Preferred cable entry, trench, grounding, communication, drainage, and utility interfaces
• Maintenance philosophy, replacement method, spare-equipment route, and expansion plan

The supplier should respond with equipment reactions, interface drawings, clearance requirements, and explicit assumptions. Final civil and layout approval remains a project engineering activity.

Frequently Asked Questions

Can every BESS container sit on four corner foundations?

No. Some designs permit corner supports; others require continuous or intermediate support. Use the supplier’s approved support reactions and deflection limits for the exact configuration.

What is the required distance between BESS containers?

The answer depends on the adopted code, system configuration, test evidence, adjacent exposures, and authority approval. Do not copy a distance from another project without confirming that the conditions match.

Should cable trenches be placed directly under the container?

Only if the equipment entries, structural design, drainage, sealing, installation sequence, and maintenance access support that arrangement. A trench can conflict with bearing zones or create a water path if coordination is poor.

How much maintenance space is enough?

Enough for the largest planned task, including door and panel movement, tools, barriers, component handling, and electrical safety boundaries. The supplier should identify task-specific access envelopes.

When should the fire service review the layout?

During concept design, before foundations and access roads are fixed. Early review reduces the risk of later changes to spacing, gates, water interfaces, signage, or emergency controls.

Confirm the Site Interfaces Before Civil Design Freeze

TLS can provide project-specific equipment interface data after the configuration and site conditions are defined. Send the proposed plot plan, geotechnical basis, design hazards, applicable codes, fire strategy, and access constraints for an engineering review. Foundation loads, final spacing, lifting arrangements, and access requirements remain subject to project confirmation.

Further Reading

· NFPA — NFPA 855 Standard for the Installation of Stationary Energy Storage Systems

· International Code Council — 2024 International Fire Code ESS definitions

· UL Solutions — Understanding UL 9540A NFPA 855 and Large-Scale Fire Testing

· ASCE — ASCE SEI 7-22 Minimum Design Loads and Associated Criteria

· OSHA — Design and Construction Requirements for Exit Routes

Summary

A corrosion-resistant containerized equipment package needs more than a high-performance paint. The design should start with the actual exposure, then coordinate material selection, coating systems, drainage, ventilation, joints, fasteners, electrical interfaces, fabrication, inspection, repair, and maintenance. Coastal distance alone does not define the environment, and no generic coating label can guarantee a fixed service life without project-specific conditions and quality control.

The Short Answer

Design corrosion protection as a system.

First, characterize salt deposition, humidity, temperature, time of wetness, industrial pollutants, immersion or splash exposure, condensation, washdown, and maintenance access. Then select compatible materials and protective systems for each micro-environment. Finally, control fabrication and application quality, record the inspection results, and define how damage will be repaired through the asset life.

Offshore and coastal packages fail early when specifications focus on the external wall coating but overlook cut edges, welds, crevices, roof details, door hardware, fasteners, cable entries, HVAC coils, internal condensation, and damage during transport or installation.

Define the Environment Before Selecting a Coating

The project should distinguish the general atmosphere from the local conditions at each component.

ISO 9223 classifies atmospheric corrosivity using first-year corrosion rates and considers factors including temperature and humidity, sulfur dioxide, and airborne salinity. ISO 12944-2 explains that the local environment and the micro-environment at the material surface influence corrosion stress and coating selection.

That means “coastal” is not a complete design input. The supplier should know:

• Distance from the shoreline and expected chloride deposition
• Offshore, nearshore, port, rooftop, onshore, or sheltered location
• Relative humidity, temperature range, condensation frequency, and time of wetness
• Prevailing wind, salt spray, wave splash, washdown, and rain exposure
• Industrial emissions, dust, chemicals, or cleaning agents
• Direct seawater exposure, intermittent wetting, burial, or standing water
• Ultraviolet exposure and color or gloss-retention requirements
• Planned inspection, cleaning, touch-up, and full-maintenance intervals

Different zones on the same package may need different treatments. A sun-heated roof, a shaded base rail, an HVAC coil, a bolted joint, and an internal cold surface do not experience the same moisture cycle.

Use Materials That Work Together

Material selection should consider both inherent corrosion resistance and compatibility with adjoining materials.

Galvanic corrosion can occur when dissimilar metals are electrically connected in the presence of an electrolyte. Salt water and persistent condensation make that risk more severe. The design may need compatible fasteners, insulating washers or sleeves, sealed interfaces, suitable coatings, and a geometry that prevents water retention. The solution depends on the metal pair, area ratio, electrical continuity, exposure, and required structural performance.

Stainless steel is not automatically immune to coastal attack. Grade, surface condition, chloride exposure, crevice geometry, contamination during fabrication, and cleaning practice all matter. Aluminum, galvanized steel, carbon steel, and coated fasteners also require project-specific compatibility checks.

Cathodic protection is a separate engineering method used for appropriate immersed or buried structures. DNV-RP-B401 addresses conceptual and detailed cathodic-protection design using aluminum- or zinc-based galvanic anodes. It should not be added to a container package by rule of thumb or treated as a substitute for sound detailing and coatings.

Design Out Water Traps and Crevices

Good geometry reduces the amount of work the protective system must do.

The enclosure and support frame should shed water and remain inspectable. Key details include:

• Sloped roofs, drip edges, and drainage paths that do not discharge onto doors or electrical entries
• Open or sealed structural details that avoid inaccessible moisture traps
• Continuous welds or properly sealed joints where intermittent welds would create crevices
• Rounded edges and prepared welds that allow the specified coating film to build uniformly
• Drain holes positioned where they remain open after installation
• Base details that avoid persistent contact with wet concrete or trapped debris
• Door sills, hinges, latches, and gasket channels that can drain and be cleaned
• Cable glands, conduit entries, and penetrations oriented and sealed against water entry
• Separation of condensate drains from structural cavities and electrical areas
• Access to inspect and repair hidden faces, anchor zones, and interfaces

Avoid details that depend on sealant alone where movement, ultraviolet exposure, or maintenance can break the seal. Sealants should be compatible with the substrate, coating, gasket, temperature range, and cleaning chemicals.

Specify the Coating as a Complete System

A useful coating specification identifies the substrate, surface preparation, primer, intermediate and finish coats, nominal dry-film thickness for each coat, stripe-coat locations, application limits, curing requirements, repair procedure, color, inspection method, and acceptance criteria.

The ISO 12944 series provides a framework for protective paint systems on steel structures, including Part 9 for offshore and related structures. A reference to an environmental category alone is incomplete. The project must also define the durability objective, exposure zones, substrate, preparation standard, coating system, inspection plan, and maintenance assumptions.

Edges, welds, cutouts, bolt heads, drainage features, and difficult geometries often receive less film build than flat panels. A specified stripe coat and measurable inspection hold points can address these weak locations. Fabrication sequence also matters: welding, grinding, drilling, and hot work after coating can destroy the intended system unless the repair process is controlled.

No coating specification should be presented as a guaranteed service life without stating the environment, design, application quality, damage allowance, inspection regime, and maintenance responsibility. Durability classifications are planning tools, not maintenance-free warranties.

Protect Internal Spaces and Functional Components

External paint does not protect the equipment inside.

Internal corrosion can result from condensation, chloride carried through ventilation, wet clothing or tools, leakage, washdown, or temperature cycling around cooled surfaces. The design should review:

• Ventilation air intake location and filtration
• Positive pressure or controlled ventilation where appropriate
• Condensation risk at walls, pipes, ducts, cable plates, and thermal bridges
• Insulation continuity and vapor control
• HVAC coil, fan, fastener, and casing materials
• Drain-pan material, slope, trap, and blockage monitoring
• Internal coating of frames, floors, cavities, and inaccessible surfaces
• Ingress protection of electrical enclosures and connectors
• Conformal coating or environmental protection for electronic assemblies where justified
• Space heaters, humidity control, and shutdown conditions

Each measure must be checked against fire safety, ventilation, thermal management, hazardous-gas management, maintainability, and energy use. Corrosion control cannot override another safety function.

Validate Components for the Intended Exposure

Laboratory tests can compare materials or verify a specified resistance, but a test duration does not translate directly into years of field life.

IEC 60068-2-52 specifies cyclic salt-mist testing for components or equipment intended to withstand salt-laden atmospheres. The project specification should state the relevant method, specimen configuration, preconditioning, acceptance criteria, and post-test functional checks.

Results should be interpreted together with field exposure, design details, and maintenance conditions.

Component review should cover doors and hardware, louvers, fasteners, HVAC coils, cable glands, connectors, lighting, sensors, control panels, nameplates, external junction boxes, lifting points, and exposed pipework. A container coating certificate does not establish corrosion resistance for these separate items.

Control Fabrication and Inspection

Protective performance depends heavily on execution. The inspection and test plan should include defined hold points for:

• Material identification and traceability where required
• Surface condition before preparation
• Soluble-salt testing when specified
• Surface preparation grade and profile
• Ambient temperature, steel temperature, humidity, and dew-point margin during application
• Stripe coating and coverage of edges, welds, and fasteners

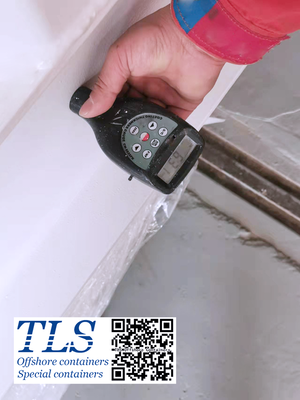

• Wet- and dry-film thickness
• Cure and recoat intervals
• Holiday or discontinuity testing where appropriate to the system
• Adhesion or other qualification testing when specified
• Final visual inspection, color, labeling, and cleanliness
• Repair of transport, lifting, installation, or commissioning damage

Records should identify the coating product batch, location, applicator, date, environmental conditions, readings, nonconformities, and repairs. Photographs help but do not replace measured results.

Plan Maintenance Before Delivery

Even a well-designed package needs inspection and cleaning. The operations plan should define safe access, inspection intervals, fresh-water washing where appropriate, acceptable cleaning methods, touch-up materials, repair preparation, color matching, spare gaskets and hardware, and criteria for escalation to a larger repair.

Areas that deserve routine attention include roof drainage, base rails, door sills, hinges, fasteners, lifting points, penetrations, HVAC intake and discharge areas, condensate drains, anchors, and any coating damaged by tools or moving parts.

The supplier should provide a repair procedure compatible with the original system. Field repairs made with an unidentified paint can create adhesion or compatibility problems and make later inspection difficult.

Key Inputs the Buyer Should Provide

For a project-specific corrosion design, the buyer should provide:

• Installation location and whether the package is offshore, coastal, port-side, rooftop, sheltered, or exposed
• Atmospheric data, chloride or salinity information, humidity, temperature, rainfall, ultraviolet exposure, and pollutants
• Immersion, splash, washdown, chemical, dust, or condensation exposure
• Applicable ISO, IEC, DNV, owner, class, or regulatory requirements with editions stated
• Required design life and maintenance philosophy, without assuming they are identical to coating durability
• Substrate and material restrictions, preferred coating products, color, and finish requirements
• Inspection authority, documentation format, witness points, and acceptance criteria
• Transport route, sea fastening, lifting method, storage conditions, and expected installation damage risks
• Cleaning agents, operational fluids, fire-system media, and potential leak exposures
• Access constraints for washing, inspection, and field repair

The final corrosion-protection schedule should be reviewed against the package drawings and bill of materials, not issued as a generic note.

Frequently Asked Questions

Is a high corrosivity category enough to specify the package?

No. It helps characterize exposure, but the specification still needs substrate preparation, the full coating system, detail design, component materials, inspection, repair, and maintenance requirements.

Does a salt-spray test prove a 20-year service life?

No. Accelerated tests can support comparison or qualification under defined conditions. They do not create a universal conversion from test hours to field years.

Should every fastener be stainless steel?

Not automatically. The grade, strength, galling risk, galvanic compatibility, crevice exposure, coating, and maintenance method all need review.

Is offshore corrosion protection the same as coastal protection?

No. Offshore packages can face more severe salt deposition, splash, continuous wetting, restricted maintenance, vibration, and classification or owner requirements. The actual exposure zones must be defined.

Can cathodic protection replace paint?

For appropriate immersed or buried structures, cathodic protection can work with coatings as part of an engineered system. It does not protect all atmospheric surfaces and should not compensate for poor drainage or incompatible materials.

Define the Exposure Before Requesting a Corrosion Schedule

TLS can develop a project-specific containerized-package corrosion schedule after the location, micro-environments, materials, standards, inspection requirements, and maintenance assumptions are confirmed. Any stated category, coating system, test requirement, or durability objective remains subject to engineering review and the agreed project specification.

Further Reading

· ISO — ISO 9223 Corrosivity of Atmospheres

· ISO — ISO 12944-2 Classification of Environments

· ISO — Protective Paint Systems for Steel Structures Standards Catalogue

· IEC — IEC 60068-2-52 Cyclic Salt Mist Testing

· DNV — DNV-RP-B401 Cathodic Protection Design
