Summary

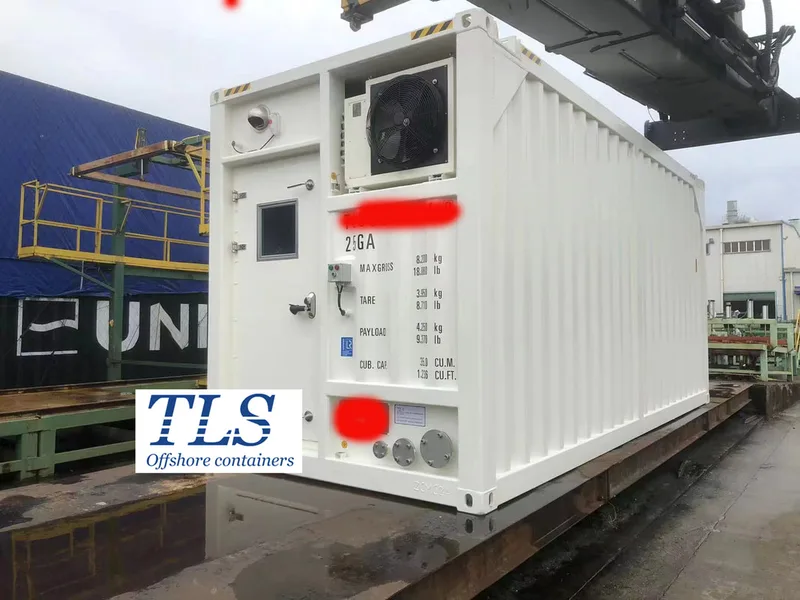

TLS A60 accommodation modules are portable, fire-rated, and weatherproof living containers designed to protect personnel and maintain operational continuity on offshore oil and gas platforms, wind farm substations, and marine vessels. Certified to withstand 60 minutes of direct structural fire exposure under international maritime standards (such as ABS and DNV), these modular units combine passive fire protection, acoustic insulation, HVAC climate control, and ergonomic interior layouts to support offshore workforces during extended deployments.
What Is an A60 Fire Rating in Offshore Accommodations?
The A60 standard defines a passive fire protection rating established by the International Maritime Organization (IMO) FTP Code and certified by classification societies like the American Bureau of Shipping (ABS) and DNV.
- Fire Barrier Protection: An A60-rated bulkhead or deck prevents the passage of flame and smoke for 60 minutes.
- Thermal Insulation Limits: The unexposed side of the structure must not rise in temperature by more than 139°C (250°F) above ambient within the 60-minute window, preventing auto-ignition of interior materials during a major thermal event.
TLS builds its accommodation modules to comply strictly with these requirements, providing critical shelter during emergency evacuations or hydrocarbon fire scenarios.
Key Technical Specifications & Features
1. Fire, Gas, and Blast Protection
- Structural Rating: Built with heavy-duty marine-grade steel framing and A60 structural fire insulation.
- Overpressure & Gas Detection: Integrated positive-pressure HVAC systems prevent external hazardous gases or hydrocarbon vapors from entering living quarters.
- Integrated Safety Systems: Equipped with pre-wired fire and gas (F&G) detection systems, emergency shutdown (ESD) interfaces, and fire dampers.
2. Modular Scalability and Layout Flexibility
- Capacity Options: Available in single, double, quad, or 8-person sleeper configurations to accommodate varied crew sizes.
- Interconnection: Designed for stackable (up to multi-tier complexes) and linkable installation using standardized ISO corner castings and twist-locks.
- Multi-Purpose Configurations: Modules can be fitted as bedrooms, offices, recreation rooms, mess halls, or sanitary facilities (en-suite wet units).
3. Environmental Controls and Crew Comfort

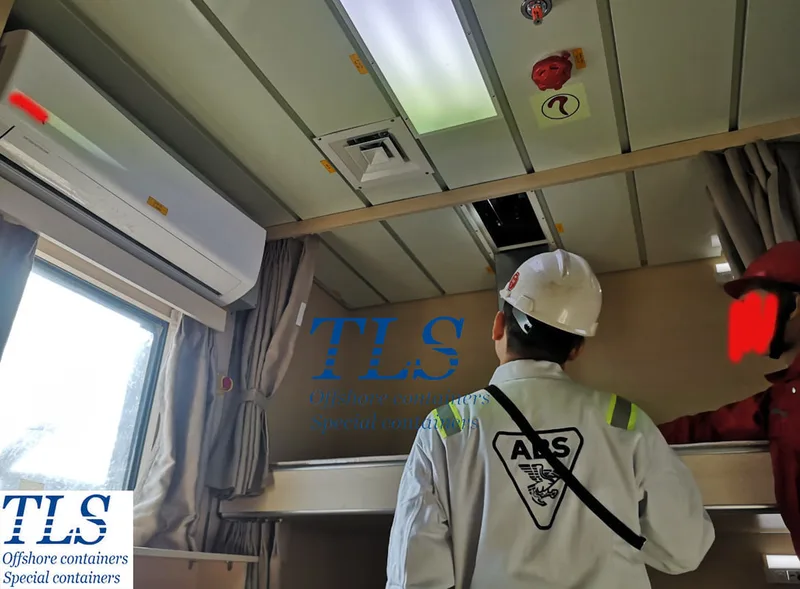

- HVAC & Climate Control: Heavy-duty dual HVAC systems engineered for extreme ambient temperatures ranging from arctic cold to tropical heat.
- Acoustic Insulation: Noise-attenuating interior panelling reduces ambient marine and machinery noise to under 45–50 dB(A), improving sleep quality and reducing crew fatigue.

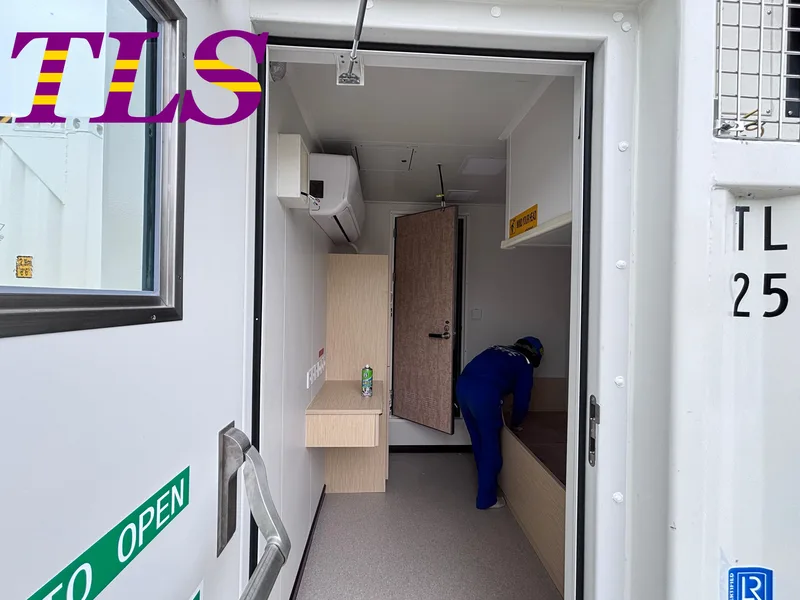

- Ergonomics & Durability: Furnished with high-density flame-retardant mattresses, integrated storage, marine-grade sanitary fixtures, and customizable workspaces.
4. Regulatory Compliance and Certification
TLS A60 modules comply with critical global offshore standards:
- IMO SOLAS (Safety of Life at Sea)
- ABS / DNV Classification Rules for offshore portable modules
Primary Applications Across Offshore Sectors
- Oil & Gas Platforms: Temporary living quarters (TLQ) during hook-up, commissioning, shutdown, or maintenance campaigns.
- Offshore Wind Farms: Living and office space for technicians on offshore converter stations, substations, and cable-laying vessels.
- Support & Service Vessels: Expansion quarters for accommodation work barges, ROV support ships, and pipelay vessels.
Frequently Asked Questions
Why choose A60 modular accommodations over permanent structures?
A60 modular units offer rapid mobilization, flexible capacity adjustment, and lower capital expenditure compared to permanent structural modifications. They can be certified ashore, lifted via standard marine cranes, and integrated into existing vessel power and utility systems with minimal downtime.
How do A60 modules maintain air quality in hazardous environments?
TLS modules utilize positive-pressure HVAC units equipped with automatic gas detection shut-off dampers. If external airborne gas or smoke is detected, the HVAC automatically isolates fresh air intake and activates recirculating air filtration to maintain a safe atmosphere inside.
