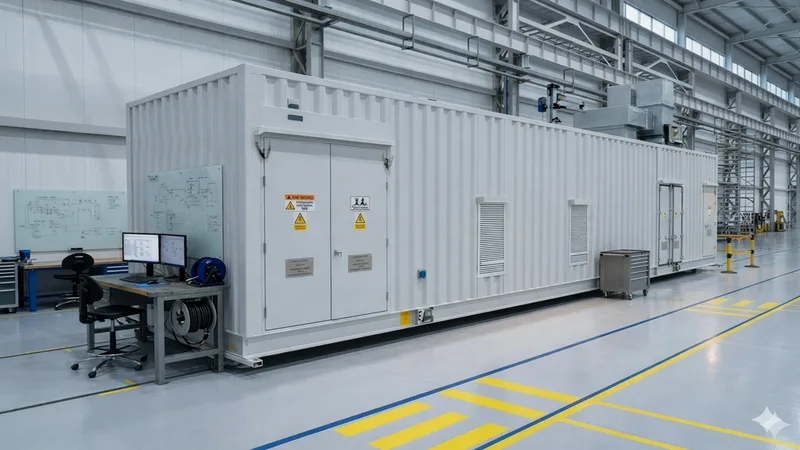

An E-House is a prefabricated electrical room that houses power distribution and related equipment in a transportable enclosure. Its role is to receive, control and distribute electricity to connected loads. Depending on the configuration, it can also accommodate voltage transformation, backup power and environmental control.

TLS includes E-Houses and electrical rooms in its containerized power infrastructure range for data centers and other industrial applications. The product is configured around the electrical equipment it contains, with the enclosure and installed systems forming an agreed package. [TLS Data Center and Power Infrastructure]

What Electrical Equipment Can a TLS E-House Contain?

TLS identifies medium-voltage switchgear, dry-type transformers, low-voltage switchboards and generator incoming panels as equipment that can be integrated. UPS systems, battery cabinets, static transfer switches and maintenance bypass panels are further configuration options. These are available capabilities, rather than a standard equipment list for every unit. [TLS Modular E-House Solutions]

The equipment performs different jobs. Switchgear provides switching and protection functions. A transformer changes the voltage where required. Distribution boards divide the supply into outgoing circuits for the connected installation.

For example, an electrical room receiving power at medium voltage may need a transformer before supplying low-voltage equipment. A module receiving a suitable low-voltage supply may have no need for an internal transformer. Both can be E-Houses; the difference is the electrical duty.

How Is the Interior Arranged?

The interior is organized around equipment lineups and the access needed to operate them. Cabinet dimensions, connection positions and service requirements influence the room layout more directly than the external appearance of the container.

Power cables and control wiring need coordinated routes to their connection points. TLS describes cable trays, busbar systems and separated routing for power and control circuits among its integration provisions. [TLS E-House Equipment and Fit-Out]

A practical arrangement preserves space for opening cabinet doors, inspecting connections and reaching serviceable components. An empty strip of floor beside a cabinet does not necessarily provide all the access that the equipment needs. The equipment manufacturer's installation requirements remain part of the layout basis.

What Keeps the Electrical Room's Environment Controlled?

Electrical equipment needs an internal environment compatible with its operating limits. TLS lists precision air conditioning, industrial HVAC and dehumidification as possible E-House provisions, together with fire detection and alarm features selected for the project. [TLS E-House Environmental Systems]

The cooling requirement comes from the installed equipment's heat losses and the surrounding conditions. The electrical power passing through a switchboard is not the same as the heat released inside the room. Using the room's total distribution rating as its cooling load would therefore misdescribe the product.

Environmental equipment also occupies space and needs power, connections and access. It should be considered part of the complete room arrangement rather than an accessory added after the cabinets are positioned.

Does an E-House Provide Backup Power?

It can contain equipment that supports a backup arrangement, but the enclosure itself does not store or generate electricity.

A UPS and its associated batteries may support selected loads during an interruption. A generator incoming panel provides an electrical interface to a generator; it does not mean the generator is installed in the same room. The backup capability follows the equipment and power architecture specified for the package.

This distinction also explains why an E-House and a battery backup container can appear together on one site. The electrical room handles its assigned distribution functions, while a separate battery module provides stored energy.

What Can Be Completed Before Delivery?

TLS offers both prepared enclosures and more fully integrated systems within its data center infrastructure range. Agreed equipment installation, internal connections and factory testing can be completed before shipment. [TLS Factory Integration]

The final product description should make that boundary visible. It should identify installed equipment, internal wiring and the external connection points. Foundations, incoming supplies, outgoing site cables and site commissioning still need a defined scope, even when the room arrives with its internal equipment installed.

FAQ

1. Is an E-House the same as a server container?

No. An E-House primarily houses electrical infrastructure. A server container primarily accommodates computing and network equipment, with supporting power and cooling systems.

2. Does every E-House include a transformer and UPS?

No. Both are configuration options. Their inclusion depends on the required electrical function and agreed supply scope.

3. Can TLS customize the room around selected switchgear?

TLS offers configurable layouts and equipment integration. The selected equipment's dimensions, connection details and operating requirements provide the basis for that configuration.

For a TLS E-House proposal, send the single-line diagram, equipment schedule, site conditions and required supply scope to sales@tls-containers.com.

Summary

A battery container is the DC energy-storage part of a project. A complete battery energy storage system, or BESS, includes that container plus the power conversion, medium-voltage connection, plant controls, safety interfaces, auxiliary services, civil works, and system-level engineering needed to deliver usable AC power at the agreed point of connection. The distinction matters because two offers with the same MWh rating can have very different scope, risk, and price.

The Short Answer

A battery container stores DC energy. A complete BESS converts, controls, protects, and connects that energy so the plant can perform its required duty.

The container may include cells, modules or packs, racks, battery management systems, thermal management, internal cabling, detection, and enclosure-level fire protection. It does not automatically include the power conversion system (PCS), transformer, medium-voltage switchgear, energy management system (EMS), site controller, auxiliary power supply, civil works, installation, or grid-compliance studies.

This is not just a naming issue. It is a scope boundary. Buyers should define it before comparing prices or approving a technical offer.

What a Battery Container Usually Includes

The exact configuration varies by manufacturer and project. A containerized battery package commonly includes:

• Battery cells assembled into modules or packs and then into racks
• A battery management system (BMS) that monitors cell and rack conditions and applies protective limits
• Internal DC collection, protection, disconnecting devices, and cabling
• Liquid-cooling or air-cooling equipment, depending on the design
• Internal temperature, smoke, gas, or other safety detection appropriate to the design
• An enclosure-level fire protection arrangement, where specified
• Lighting, service receptacles, and selected internal auxiliary loads
• Local human-machine interface and communications gateways
• Structural enclosure, doors, access provisions, and environmental sealing

These items make the container a functional DC battery subsystem. They do not, by themselves, make it a grid-connected power plant.

For context, a standard TLS liquid-cooled battery container baseline such as model ESS-ES5016C-LP71173207 may be discussed at approximately 5.016 MWh and 2.5 MW. Those ratings are useful for early configuration work, but they do not define the full project scope. Final ratings, interfaces, certification basis, auxiliary loads, fire configuration, and site conditions require project-specific engineering confirmation.

What Turns a Battery Container into a Complete BESS

A complete BESS joins several engineered subsystems at a defined point of delivery.

Power Conversion

The PCS converts DC power from the batteries to AC power for the grid or facility and converts AC back to DC during charging. Its voltage window, overload capability, reactive-power function, harmonic performance, and grid-forming or grid-following controls must match the application.

Medium Voltage Equipment

Many utility-scale projects require a step-up transformer, medium-voltage switchgear, protection relays, metering, and cabling. These items may be supplied as a separate skid, an electrical house, or distributed site equipment. Their absence from a battery-container offer can leave a major gap between the quoted package and the actual connection point.

Plant Controls

The EMS or plant power controller translates dispatch commands into operating setpoints. It coordinates the battery, PCS, meter, transformer limits, and grid requirements. The control scope should identify who supplies scheduling, state-of-charge management, active and reactive power control, alarm handling, remote access, cybersecurity controls, and interface testing.

Auxiliary Power

Cooling, controls, fire systems, lighting, heaters, pumps, and communication equipment all consume power. A complete design defines the auxiliary voltage, normal and backup sources, startup sequence, black-start assumptions, transformer sizing, and whether auxiliary consumption is included in performance guarantees.

Safety and Compliance

Product certification, fire testing, installation codes, emergency response planning, and local authority approval apply at different boundaries. UL Solutions explains that UL 9540 addresses energy storage systems and equipment, while UL 9540A is a test method for evaluating thermal-runaway fire propagation. A component test or battery certificate does not automatically establish compliance for every possible system configuration or site layout.

Balance of Plant

The balance of plant may include foundations, drainage, roads, fencing, lighting, grounding, lightning protection, trenches, cable routing, fire-water interfaces, communications, security, and site signage. These items determine whether equipment can be installed, accessed, operated, and maintained safely.

Why Equal MWh Ratings Do Not Mean Equal Offers

An MWh figure describes stored energy at a stated condition and boundary. It does not show what the supplier will deliver at the grid connection point.

When comparing offers, check at least five boundaries:

1. Energy boundary. Is capacity stated at cell terminals, the container DC bus, the PCS AC terminals, or the project point of interconnection?
2. Power boundary. Does the MW rating apply continuously, for a limited duration, or only within a stated state-of-charge and temperature range?
3. Efficiency boundary. Does round-trip efficiency include the PCS, transformer, HVAC, pumps, standby consumption, and site auxiliaries?
4. Scope boundary. Are PCS, transformer, switchgear, EMS, cabling, installation, commissioning, and civil works included?
5. Compliance boundary. Which exact product configuration was certified or tested, and which site approvals remain the owner’s or EPC contractor’s responsibility?

The US Department of Energy’s battery supply-chain assessment distinguishes cells, modules, packs, and integrated systems, and notes that a system can include the BMS, EMS, PCS, transformers, and inverters. That hierarchy is a useful starting point, but the contract must still define the actual project boundary.

A Practical Scope Definition for Procurement

The technical specification should identify a physical and functional battery limit. A clear scope statement answers the following questions:

• Where are the DC, AC, auxiliary-power, communication, grounding, fire-water, and drainage interfaces?
• Who supplies each cable, connector, termination, gland plate, and protocol gateway?
• Who performs system studies, settings coordination, grid-code verification, and authority submissions?
• Who owns the master alarm list, cause-and-effect matrix, and emergency shutdown philosophy?
• Which party integrates the BMS, PCS, EMS, SCADA, revenue meter, and network operator signals?
• Which performance values are guaranteed, at what measurement point, and under what test conditions?
• Who supplies spare parts, special tools, training, commissioning support, and long-term service?

A responsibility matrix can support the contract, but it cannot replace precise interface drawings and written acceptance criteria.

Key Inputs the Buyer Should Provide

The supplier needs more than a target MWh value. At minimum, the buyer should provide:

• Required usable energy and continuous power at the contractual measurement point
• Duty cycle, expected cycles per day, state-of-charge window, and design life objective
• Grid voltage, frequency, fault level, grounding method, and applicable grid code
• Site ambient temperature, humidity, altitude, solar load, wind, snow, seismic, flood, dust, and corrosivity conditions
• Applicable codes, adopted editions, certification requirements, and authority having jurisdiction
• Site single-line diagram and preferred DC- or AC-coupled architecture
• Fire-safety philosophy, emergency response expectations, and available fire-service interfaces
• Communications protocols, SCADA points, remote-access rules, and cybersecurity requirements
• Available auxiliary supply and backup-power requirements
• Delivery constraints, lifting limits, foundation concept, access routes, and commissioning schedule

If these inputs are incomplete, the offer should list assumptions and exclusions rather than hide them inside a model number.

Frequently Asked Questions

Is a battery container a complete BESS?

Usually not. It is normally the battery and its immediate enclosure-level systems. A complete BESS also needs power conversion, grid connection, plant controls, site integration, and balance-of-plant scope.

Does a container’s MW rating mean it includes a PCS?

No. The figure may describe the battery’s permitted charge or discharge rate. Confirm whether the PCS is physically included, separately supplied, or only used as the basis for sizing.

Is UL 9540A a product certification?

UL describes UL 9540A as a test method for evaluating thermal-runaway fire propagation. UL 9540 is the system-and-equipment safety standard. The test report, tested configuration, listing status, and adopted installation code should be reviewed separately.

Can the EMS come from a different supplier?

Yes, but the control hierarchy, protocols, ownership of operating limits, cybersecurity requirements, and factory and site acceptance tests must be defined early.

Where should performance be measured?

At the contractually defined point. Common boundaries include the container DC bus, PCS AC terminals, transformer output, or project point of interconnection. Guarantees are not comparable until the measurement boundary and included auxiliaries are the same.

Define the Boundary Before Requesting a Firm Offer

TLS can review a proposed single-line diagram and scope split to identify battery-container interfaces, integration responsibilities, and information still needed for engineering. A firm technical offer should follow confirmation of the project duty, site conditions, compliance basis, and delivery boundary.

Further Reading

· US Department of Energy — Battery Energy Storage supply-chain assessment

· UL Solutions — Energy Storage System Testing and Certification

· UL Solutions — Installation Codes and Requirements for Energy Storage Systems FAQs

· NFPA — NFPA 855 Standard for the Installation of Stationary Energy Storage Systems

Summary

Plan the foundation, equipment spacing, and access routes as one coordinated site system. The layout must support structural loads, drainage, cable and pipe interfaces, fire separation, emergency response, maintenance, component replacement, and future decommissioning.

There is no universal foundation detail or separation distance for every BESS. Final requirements depend on the equipment configuration, geotechnical data, adopted codes, fire-test evidence, hazards, and approval by the relevant authorities.

The Short Answer

Start with the operating and emergency envelopes, then design the civil works around them.

The equipment footprint alone is not enough. A workable BESS plot also needs door-swing zones, technician access, ventilation and exhaust clearances, fire-service approach, cable and pipe corridors, drainage, lifting space, and safe routes for replacement equipment. The foundation must carry the actual equipment and environmental loads while keeping the container level and its interfaces aligned.

Site planning should therefore begin before the supplier freezes the general arrangement. Waiting until after equipment selection often produces avoidable clashes between foundations, doors, trenches, PCS skids, transformers, fences, and emergency access.

Foundation Design Starts with Verified Loads

A BESS container may look like a standard freight container, but its support conditions can be different. Internal batteries and auxiliaries create concentrated loads. Doors, service bays, pipework, cable entries, and cooling equipment can also impose location-specific requirements.

The structural and geotechnical engineers should receive a supplier-issued load package that identifies:

• Maximum operating and transport mass, with the applicable configuration stated
• Center of gravity and support reactions at each bearing point
• Permitted support locations and allowable differential level or settlement
• Anchor locations, design actions, and base-frame details
• Seismic restraint requirements and equipment anchorage loads
• Wind actions, including attached equipment and open-door conditions where relevant
• Lifting arrangement and temporary loads during installation or replacement
• Cable, drainage, fire-water, coolant, and auxiliary penetrations

Do not use a preliminary brochure weight to finalize concrete or piling. Equipment configuration can change the reactions even when the external dimensions remain the same.

Choose the Foundation Concept for the Site

Common concepts include a reinforced-concrete slab, strip foundations, discrete pedestals, grade beams, or piled supports. Selection depends on bearing capacity, settlement, frost depth, groundwater, flood level, seismic conditions, local construction practice, and the routing of buried services.

The foundation design should address:

• Strength and stability under dead, wind, seismic, flood, snow, ice, and other applicable loads
• Total and differential settlement limits compatible with the enclosure and internal equipment
• Sliding, overturning, uplift, anchorage, and accidental actions required by the project
• Drainage slopes without twisting the equipment support plane
• Corrosion protection at anchors, embedded steel, and dissimilar-metal interfaces
• Access for installation, grouting, inspection, tightening, and later removal
• Separation between structural reinforcement and the grounding design where coordination is required

In the United States, ASCE/SEI 7-22 addresses loads and load combinations for hazards that include wind, seismic, flood, snow, rain, ice, and fire. Other jurisdictions use different structural standards. The project engineer must apply the locally adopted code and site-specific hazard data.

Drainage and Elevation Are Part of Equipment Protection

Standing water around a BESS restricts access and can expose foundations, cable trenches, and low-level penetrations to avoidable risk. Finished grades should direct water away from the equipment and should not trap runoff between adjacent foundations.

The layout should coordinate:

• Finished floor or base elevation relative to design flood levels
• Surface drainage and erosion control
• Trench drains, sumps, and discharge routes where used
• Cable-entry elevation and sealing
• Fire-water runoff strategy where required by the authority or environmental plan
• Snow storage, wind-driven rain, splash, and roof drainage
• Vehicle wheel loads near trenches and foundation edges

Drainage assumptions should appear on the civil drawings rather than remain as a site-installation decision.

Spacing Must Follow the Approved System Configuration

There is no single spacing number that is valid for every battery chemistry, enclosure, fire-protection arrangement, and jurisdiction.

Applicable fire and building codes may set default separation distances or allow alternatives supported by fire and explosion testing. The installed equipment, orientation, state of charge, internal layout, optional fire systems, adjacent exposures, and separation used in the test evidence must be compared with the proposed site arrangement.

UL Solutions notes that fire and explosion test data can inform enclosure design and separation decisions. The 2024 International Fire Code also distinguishes walk-in ESS units from cabinets, which matters because personnel access and hazard controls differ.

The authority having jurisdiction, fire service, owner, insurer, and design team should review the layout against the adopted editions of the applicable codes. A separation shown in a supplier drawing should not be treated as approval for a different site or configuration.

Access Has Four Different Purposes

One access aisle rarely satisfies every operational need. Review access by function.

Routine Operation

Operators need safe routes to local panels, emergency stops, disconnects, indicators, and inspection points. Door swings and removable panels must not block the only walkway.

Maintenance

Technicians need working space for filters, pumps, fans, valves, electrical compartments, battery racks, and diagnostic equipment. The layout should account for tools, temporary barriers, arc-flash boundaries where applicable, and safe handling of heavy parts.

Emergency Response

Emergency responders may need appliance access, hose deployment, observation positions, isolation controls, and a route that does not pass through the most credible hazard area. Access assumptions should be agreed with the authority and fire service, then reflected in the emergency response plan.

Replacement and Decommissioning

A site that can be commissioned may still be impossible to repair economically. Check whether a crane, forklift, or replacement vehicle can reach the equipment after fences, transformers, overhead lines, landscaping, and neighboring containers are installed. Preserve the swept path, outrigger area, lifting radius, and overhead clearance required by the agreed replacement method.

Where workplace exit routes apply, they must remain usable and unobstructed. OSHA’s exit-route requirements provide a useful US reference, but they do not replace the project’s fire, electrical, and local building-code review.

Coordinate Every Interface on One General Arrangement

The general arrangement should show more than equipment rectangles. It should include:

• Foundation edges, bearing points, anchors, and equipment orientation
• All doors, escape doors, panels, ladders, louvers, vents, and exhaust outlets
• PCS, transformer, switchgear, auxiliary transformer, and control equipment
• AC, DC, communication, grounding, drainage, coolant, and fire-water routes
• Cable trenches, pull pits, bend radii, and entry directions
• Fences, gates, roads, turning areas, bollards, and impact protection
• Fire-service access, hydrants or water interfaces where applicable, and emergency isolation points
• Working clearances, lifting zones, temporary laydown areas, and replacement paths
• Surface levels, slopes, drainage flow, flood elevations, and retaining structures
• Future expansion space and construction access for later phases

Run a multidisciplinary clash review before issuing civil drawings for construction. Small positional changes can affect door access, cable lengths, fire spacing, transformer clearances, and crane reach at the same time.

Key Inputs the Buyer Should Provide

Before the supplier confirms site requirements, the buyer or EPC contractor should provide:

• Topographic survey, plot limits, and proposed equipment coordinates
• Geotechnical report, groundwater level, frost conditions, and soil aggressiveness
• Applicable structural, fire, electrical, environmental, and occupational-safety codes with adopted editions
• Wind, seismic, snow, ice, flood, ambient temperature, altitude, and other site design data
• Site drainage philosophy and required finished elevations
• Fire strategy, emergency response concept, water availability, and authority comments
• Road geometry, transport envelope, crane limits, and construction sequencing
• Electrical single-line diagram and preliminary cable schedule
• Preferred cable entry, trench, grounding, communication, drainage, and utility interfaces
• Maintenance philosophy, replacement method, spare-equipment route, and expansion plan

The supplier should respond with equipment reactions, interface drawings, clearance requirements, and explicit assumptions. Final civil and layout approval remains a project engineering activity.

Frequently Asked Questions

Can every BESS container sit on four corner foundations?

No. Some designs permit corner supports; others require continuous or intermediate support. Use the supplier’s approved support reactions and deflection limits for the exact configuration.

What is the required distance between BESS containers?

The answer depends on the adopted code, system configuration, test evidence, adjacent exposures, and authority approval. Do not copy a distance from another project without confirming that the conditions match.

Should cable trenches be placed directly under the container?

Only if the equipment entries, structural design, drainage, sealing, installation sequence, and maintenance access support that arrangement. A trench can conflict with bearing zones or create a water path if coordination is poor.

How much maintenance space is enough?

Enough for the largest planned task, including door and panel movement, tools, barriers, component handling, and electrical safety boundaries. The supplier should identify task-specific access envelopes.

When should the fire service review the layout?

During concept design, before foundations and access roads are fixed. Early review reduces the risk of later changes to spacing, gates, water interfaces, signage, or emergency controls.

Confirm the Site Interfaces Before Civil Design Freeze

TLS can provide project-specific equipment interface data after the configuration and site conditions are defined. Send the proposed plot plan, geotechnical basis, design hazards, applicable codes, fire strategy, and access constraints for an engineering review. Foundation loads, final spacing, lifting arrangements, and access requirements remain subject to project confirmation.

Further Reading

· NFPA — NFPA 855 Standard for the Installation of Stationary Energy Storage Systems

· International Code Council — 2024 International Fire Code ESS definitions

· UL Solutions — Understanding UL 9540A NFPA 855 and Large-Scale Fire Testing

· ASCE — ASCE SEI 7-22 Minimum Design Loads and Associated Criteria

· OSHA — Design and Construction Requirements for Exit Routes
