Why is FAT essential for pressure containers?
In industrial projects, pressurized containers are critical components of explosion-proof control systems. Before these containers are deployed on-site, it is crucial to verify their functionality, safety, and reliability under real operational conditions. Factory Acceptance Testing (FAT) addresses this need by ensuring the vessel performs safely and efficiently from day one.
1. What is FAT and why does it matter?
FAT is not just a checklist—it is a proactive safety validation. It ensures:
2. Visual Inspection: The first defense
The FAT process starts with a thorough visual check of all components:
3. Electrical Integrity Checks: Safety first
4. System Interface & Operation Testing: Usability matters
5. Functional Testing: Confirm real-world performance
6. Conclusion: FAT ensures peace of mind
Successful FAT means the pressure vessel is ready for deployment:
Bottom line: FAT is the final checkpoint before your pressure vessel goes live, guaranteeing reliable, safe operation in the field.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressure Vessel FAT,#Factory Acceptance Testing Guide,#PDU Pressure Vessel,#Shop-type Pressure Vessel,#Explosion-proof Pressure Vessel,#Electrical System Verification,#Emergency Shutdown Test,#Gas Detector Testing,#Positive Pressure Control,#Industrial Safety Testing
In industrial projects, pressurized containers are critical components of explosion-proof control systems. Before these containers are deployed on-site, it is crucial to verify their functionality, safety, and reliability under real operational conditions. Factory Acceptance Testing (FAT) addresses this need by ensuring the vessel performs safely and efficiently from day one.
1. What is FAT and why does it matter?
FAT is not just a checklist—it is a proactive safety validation. It ensures:
- Critical electrical systems operate reliably
- Positive pressure and airflow are maintained
- Safety alarms and emergency systems function correctly
- Equipment withstands extreme environmental conditions
2. Visual Inspection: The first defense
The FAT process starts with a thorough visual check of all components:
- Control & emergency systems: Explosion-proof CPFG control box, emergency stops, gas detectors (H₂S, combustible gas), smoke/temperature sensors, and fire alarms
- Pressure components: Differential pressure transmitters and gauges correctly connected
- Emergency equipment: Alarms, extinguishers, lighting, and stop mechanisms
- Electrical wiring & grounding: Proper insulation and sealed cable entries
- Sealing & labeling: Pressurized compartments clearly marked to ensure safe operation
3. Electrical Integrity Checks: Safety first
- Insulation resistance tests confirm all electrical components are protected against short circuits or leaks
- Power checks ensure CPFG control boxes, PLCs, and touchscreens receive proper voltage and respond correctly
- Core benefit: Reliable electrical systems are the foundation for safe vessel operation.
4. System Interface & Operation Testing: Usability matters
- Verify screen navigation, debugging mode, and alarm display
- Ensure commands are executed accurately and promptly
5. Functional Testing: Confirm real-world performance
- Normal & bypass operation: Test switching between operational modes
- Alarm simulation: Trigger gas, H₂S, and fire alarms to ensure proper system response
- Fan & airflow checks: Verify fans maintain positive pressure and adjust automatically
- Emergency shutdown: Simulate critical failures to confirm safe power cutoff
- Sensor integrity: Test responses to disconnected or faulty sensors
6. Conclusion: FAT ensures peace of mind
Successful FAT means the pressure vessel is ready for deployment:
- Provides a stable and safe operating environment
- Reduces the risk of system failure on-site
- Ensures emergency and alarm systems work as intended
- Complies with all relevant safety standards
Bottom line: FAT is the final checkpoint before your pressure vessel goes live, guaranteeing reliable, safe operation in the field.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressure Vessel FAT,#Factory Acceptance Testing Guide,#PDU Pressure Vessel,#Shop-type Pressure Vessel,#Explosion-proof Pressure Vessel,#Electrical System Verification,#Emergency Shutdown Test,#Gas Detector Testing,#Positive Pressure Control,#Industrial Safety Testing
Written by Snowy

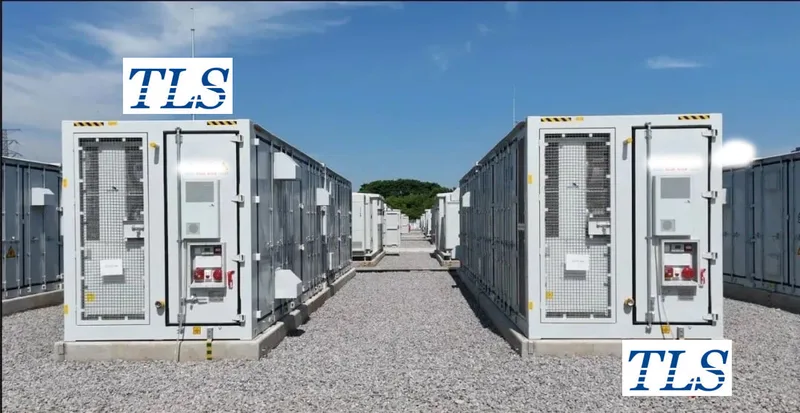

As global energy markets shift toward large-scale utility storage, the 5MWh liquid-cooled energy storage container has emerged as the definitive industry standard. Housed within a standard 20-foot enclosure, these units pack immense power density, typically forming the backbone of massive "1+4" configurations (one 5MW inverter coupled with four 5MWh battery units).
But what exactly is inside this 6-meter steel box that allows it to operate safely for over 15 years? Let’s break down the core components of the 5MWh BESS (Battery Energy Storage System).
1. High-Density Battery Architecture: The 314Ah Revolution
The heart of the 5MWh system lies in the transition to 314Ah Lithium Iron Phosphate (LFP) cells. To reach the 5MWh threshold, a common configuration is the "12 clusters × 4 packs × 1P104S" layout.
2. Advanced Liquid Cooling: Precision Temperature Control
At such high energy densities, traditional air cooling is insufficient. The liquid cooling system is now the industry's lifeline.
3. Three-Tier Fire Suppression: Safety at the Pack Level
Safety is the most engineered aspect of the 5MWh container. The industry has moved toward a "Pack-level detection + Pack-level suppression + Cabin-level water spray" strategy.
4. Rugged Exterior and Smart Integration
To survive harsh environments—from deserts to coastal regions—these containers boast IP55 protection for the enclosure and IP67 for internal battery packs. The entire unit is governed by a three-level Battery Management System (BMS) that monitors every cell, pack, and cluster in real-time, feeding data to the site-wide Energy Management System (EMS).
Summary
The 5MWh liquid-cooled container is a masterpiece of integration. By combining high-capacity 314Ah cells, "one-to-one" cluster management, and precision liquid cooling, it provides a scalable, safe, and highly efficient solution for the next generation of the power grid.
But what exactly is inside this 6-meter steel box that allows it to operate safely for over 15 years? Let’s break down the core components of the 5MWh BESS (Battery Energy Storage System).
1. High-Density Battery Architecture: The 314Ah Revolution
The heart of the 5MWh system lies in the transition to 314Ah Lithium Iron Phosphate (LFP) cells. To reach the 5MWh threshold, a common configuration is the "12 clusters × 4 packs × 1P104S" layout.
- Capacity: Each container houses 12 battery clusters.
- Scale: With nearly 5,000 cells (specifically 4,992) per unit, the total rated energy reaches approximately 5.016MWh.
- Management: Modern systems utilize a "one cluster, one management" architecture. By managing each cluster independently, operators can eliminate "circulating currents" and the "barrel effect," where one weak cluster limits the performance of the entire system.
2. Advanced Liquid Cooling: Precision Temperature Control
At such high energy densities, traditional air cooling is insufficient. The liquid cooling system is now the industry's lifeline.
- How it works: Coolant circulates through cold plates located at the bottom of each battery pack, whisking away heat generated during rapid charging and discharging.
- The 2°C Rule: Premium systems maintain a temperature difference between cells of less than 2°C. This precision isn't just for safety—it’s for ROI. Minimizing temperature variance significantly slows down cell degradation, extending the system's economic lifespan.
3. Three-Tier Fire Suppression: Safety at the Pack Level
Safety is the most engineered aspect of the 5MWh container. The industry has moved toward a "Pack-level detection + Pack-level suppression + Cabin-level water spray" strategy.
- Multi-sensor Detection: Each pack contains sensors monitoring CO, hydrogen, smoke, and VOCs to catch thermal runaway at the earliest stage.
- Perfluorohexanone (FK-5-1-12): If a threat is detected, this fire suppressant is released directly into the specific pack involved, rather than flooding the entire container.
- Final Defense: A secondary water-sprinkler system is pre-installed for emergency response.
4. Rugged Exterior and Smart Integration
To survive harsh environments—from deserts to coastal regions—these containers boast IP55 protection for the enclosure and IP67 for internal battery packs. The entire unit is governed by a three-level Battery Management System (BMS) that monitors every cell, pack, and cluster in real-time, feeding data to the site-wide Energy Management System (EMS).
Summary
The 5MWh liquid-cooled container is a masterpiece of integration. By combining high-capacity 314Ah cells, "one-to-one" cluster management, and precision liquid cooling, it provides a scalable, safe, and highly efficient solution for the next generation of the power grid.
In oil & gas drilling operations, Mud Logging units are typically located close to the wellhead, where hazardous gases such as H₂S and flammable hydrocarbons may be present.
In this type of environment, the primary requirement is not complex equipment configuration, but a more fundamental goal: maintaining a safe air environment inside the cabin at all times.
For this reason, positive pressure systems are considered a standard safety requirement for Mud Logging units, not an optional feature.
1. How a Positive Pressure System Works
A positive pressure system continuously supplies clean air into the cabin, maintaining internal pressure higher than the surrounding environment.
As a result:
2. Why Positive Pressure Is Essential for Mud Logging Units
Mud Logging environments often involve:
3. A Reliable Positive Pressure System Is More Than Just Ventilation
The key to a positive pressure system is not maximum airflow, but stable pressure control.
A qualified system typically includes:
4. TLS Design Focus: Stability Over Complexity
At TLS, positive pressure Mud Logging units are designed with long-term operational stability in mind.
Key design considerations include:
5. The Real Value of Positive Pressure Systems
In practical field applications, positive pressure systems help:
Conclusion
In Mud Logging applications, positive pressure is not an added feature—it is a fundamental safety requirement.
Through integrated system design, TLS ensures that positive pressure protection remains stable and effective under real drilling conditions. For Mud Logging units, safety starts with stable positive pressure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords: #positive pressure mud logging unit, #mud logging cabin, #H2S protection system, #offshore mud logging container, #positive pressure enclosure, #hazardous area cabin, #oilfield logging unit, #explosion proof mud logging cabin, #drilling site safety container, #industrial positive pressure system
In this type of environment, the primary requirement is not complex equipment configuration, but a more fundamental goal: maintaining a safe air environment inside the cabin at all times.
For this reason, positive pressure systems are considered a standard safety requirement for Mud Logging units, not an optional feature.
1. How a Positive Pressure System Works
A positive pressure system continuously supplies clean air into the cabin, maintaining internal pressure higher than the surrounding environment.
As a result:
- External hazardous air cannot enter the cabin
- Internal air naturally flows outward through gaps or openings
2. Why Positive Pressure Is Essential for Mud Logging Units
Mud Logging environments often involve:
- Potential exposure to H₂S and toxic gases
- Unstable concentrations of flammable gas
- Long-duration operations with continuous personnel occupancy
- Uncontrolled outdoor conditions
- Doors must still be opened during operation
- Minor leakage cannot be completely avoided
- Hazardous gas may enter suddenly from outside
3. A Reliable Positive Pressure System Is More Than Just Ventilation
The key to a positive pressure system is not maximum airflow, but stable pressure control.
A qualified system typically includes:
- Stable positive pressure maintenance
- Real-time pressure monitoring and alarm systems
- Integration with gas detection systems
4. TLS Design Focus: Stability Over Complexity
At TLS, positive pressure Mud Logging units are designed with long-term operational stability in mind.
Key design considerations include:
- Optimized airflow paths to avoid uneven pressure distribution
- Stable pressure control with reduced fluctuation
- Integrated ventilation and electrical system coordination
- Support for continuous operation in harsh field conditions
5. The Real Value of Positive Pressure Systems
In practical field applications, positive pressure systems help:
- Protect personnel safety
- Reduce the risk of hazardous gas intrusion
- Improve operational reliability
- Minimize downtime caused by environmental risks
Conclusion
In Mud Logging applications, positive pressure is not an added feature—it is a fundamental safety requirement.
Through integrated system design, TLS ensures that positive pressure protection remains stable and effective under real drilling conditions. For Mud Logging units, safety starts with stable positive pressure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords: #positive pressure mud logging unit, #mud logging cabin, #H2S protection system, #offshore mud logging container, #positive pressure enclosure, #hazardous area cabin, #oilfield logging unit, #explosion proof mud logging cabin, #drilling site safety container, #industrial positive pressure system
