In oil & gas drilling operations, Mud Logging units are typically located close to the wellhead, where hazardous gases such as H₂S and flammable hydrocarbons may be present.
In this type of environment, the primary requirement is not complex equipment configuration, but a more fundamental goal: maintaining a safe air environment inside the cabin at all times.
For this reason, positive pressure systems are considered a standard safety requirement for Mud Logging units, not an optional feature.
1. How a Positive Pressure System Works
A positive pressure system continuously supplies clean air into the cabin, maintaining internal pressure higher than the surrounding environment.
As a result:
2. Why Positive Pressure Is Essential for Mud Logging Units
Mud Logging environments often involve:
3. A Reliable Positive Pressure System Is More Than Just Ventilation
The key to a positive pressure system is not maximum airflow, but stable pressure control.
A qualified system typically includes:
4. TLS Design Focus: Stability Over Complexity
At TLS, positive pressure Mud Logging units are designed with long-term operational stability in mind.
Key design considerations include:
5. The Real Value of Positive Pressure Systems
In practical field applications, positive pressure systems help:
Conclusion
In Mud Logging applications, positive pressure is not an added feature—it is a fundamental safety requirement.
Through integrated system design, TLS ensures that positive pressure protection remains stable and effective under real drilling conditions. For Mud Logging units, safety starts with stable positive pressure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords: #positive pressure mud logging unit, #mud logging cabin, #H2S protection system, #offshore mud logging container, #positive pressure enclosure, #hazardous area cabin, #oilfield logging unit, #explosion proof mud logging cabin, #drilling site safety container, #industrial positive pressure system
In this type of environment, the primary requirement is not complex equipment configuration, but a more fundamental goal: maintaining a safe air environment inside the cabin at all times.
For this reason, positive pressure systems are considered a standard safety requirement for Mud Logging units, not an optional feature.
1. How a Positive Pressure System Works
A positive pressure system continuously supplies clean air into the cabin, maintaining internal pressure higher than the surrounding environment.
As a result:
- External hazardous air cannot enter the cabin
- Internal air naturally flows outward through gaps or openings
2. Why Positive Pressure Is Essential for Mud Logging Units
Mud Logging environments often involve:
- Potential exposure to H₂S and toxic gases
- Unstable concentrations of flammable gas
- Long-duration operations with continuous personnel occupancy
- Uncontrolled outdoor conditions
- Doors must still be opened during operation
- Minor leakage cannot be completely avoided
- Hazardous gas may enter suddenly from outside
3. A Reliable Positive Pressure System Is More Than Just Ventilation
The key to a positive pressure system is not maximum airflow, but stable pressure control.
A qualified system typically includes:
- Stable positive pressure maintenance
- Real-time pressure monitoring and alarm systems
- Integration with gas detection systems
4. TLS Design Focus: Stability Over Complexity
At TLS, positive pressure Mud Logging units are designed with long-term operational stability in mind.
Key design considerations include:
- Optimized airflow paths to avoid uneven pressure distribution
- Stable pressure control with reduced fluctuation
- Integrated ventilation and electrical system coordination
- Support for continuous operation in harsh field conditions
5. The Real Value of Positive Pressure Systems
In practical field applications, positive pressure systems help:
- Protect personnel safety
- Reduce the risk of hazardous gas intrusion
- Improve operational reliability
- Minimize downtime caused by environmental risks
Conclusion
In Mud Logging applications, positive pressure is not an added feature—it is a fundamental safety requirement.
Through integrated system design, TLS ensures that positive pressure protection remains stable and effective under real drilling conditions. For Mud Logging units, safety starts with stable positive pressure.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochure：Offshore pressurised mud logging cabin brochure
Keywords: #positive pressure mud logging unit, #mud logging cabin, #H2S protection system, #offshore mud logging container, #positive pressure enclosure, #hazardous area cabin, #oilfield logging unit, #explosion proof mud logging cabin, #drilling site safety container, #industrial positive pressure system
Written by Snowy
In the engineering and logistics of large-scale energy storage systems (ESS), the method of hoisting is a critical factor in maintaining structural integrity. While standard shipping containers are often lifted by their top corner castings, high-density energy storage units—which can weigh upwards of 40 tons—require a more specialized approach. This analysis compares top-corner lifting versus bottom-beam lifting and examines the stress distribution at reinforced nodes.
Comparative Analysis: Top vs. Bottom
LiftingThe primary concern during a heavy lift is deflection—the degree to which the structural beams bend under load. When an ESS container is fully loaded with battery racks (often stacked 8 layers high), the internal forces are immense.
The Reason: Lifting from the bottom transforms the main structural members from tension-heavy components into more stable, supported structures. It minimizes the "sagging" effect caused by the heavy internal battery load concentrated on the floor.

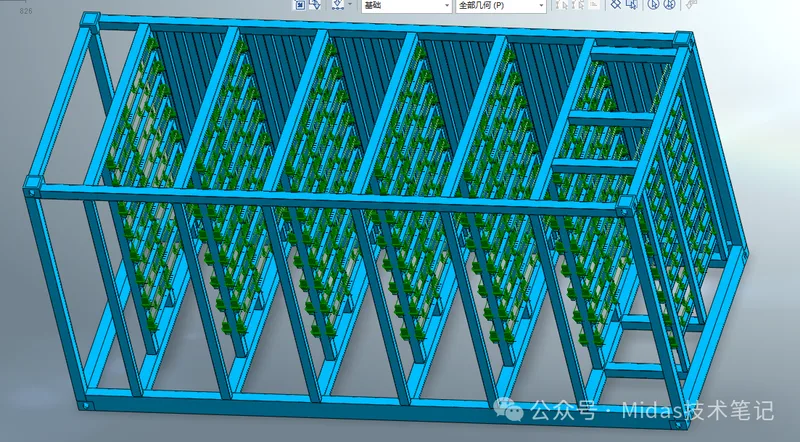

Node Reinforcement and Stress Distribution
To facilitate bottom-lifting, the container must be equipped with reinforced "pulling points." The design analyzed uses a round steel pipe ($83 \times 8\text{mm}$) that passes through the outer main beams and internal secondary beams.
Finite Element Analysis (FEA) highlights critical stress points during this operation:
The Reason: The concentration of stress at the outer beam is due to the "cantilever effect" of the lifting pin. The reinforcement plates (8mm steel) are essential here to prevent the rectangular tube from buckling or tearing under the localized pressure of the pulling steel.
Conclusion
Based on the structural data and FEA simulations, lifting energy storage containers from the bottom main beams is the safer and more stable engineering choice.
Key Takeaways:
Comparative Analysis: Top vs. Bottom
LiftingThe primary concern during a heavy lift is deflection—the degree to which the structural beams bend under load. When an ESS container is fully loaded with battery racks (often stacked 8 layers high), the internal forces are immense.
- Method A (Top Corner Lifting): Lifting from the four top corners causes the container to act like a suspended bridge. The simulation shows a maximum deflection of 12.4mm at the mid-span of the main beams. This significant bending can lead to permanent deformation of the frame or damage to the sensitive battery cells inside.
- Method B (Bottom Beam Lifting): By supporting the container at the bottom main beams (specifically at the 1/5 positions), the load path is shortened and more evenly distributed. The maximum deflection drops to just 3.11mm. This represents a 75% reduction in structural strain compared to top-lifting.
The Reason: Lifting from the bottom transforms the main structural members from tension-heavy components into more stable, supported structures. It minimizes the "sagging" effect caused by the heavy internal battery load concentrated on the floor.
Node Reinforcement and Stress Distribution
To facilitate bottom-lifting, the container must be equipped with reinforced "pulling points." The design analyzed uses a round steel pipe ($83 \times 8\text{mm}$) that passes through the outer main beams and internal secondary beams.
Finite Element Analysis (FEA) highlights critical stress points during this operation:
- Peak Squeezing Stress: The highest stress occurs at the contact point between the pin shaft and the first reinforced square tube, reaching 352 MPa.
- Material Fatigue: The external upper section of the reinforced beam experiences 262 MPa, while internal secondary beams see much lower stress levels (approx. 26–35 MPa).
The Reason: The concentration of stress at the outer beam is due to the "cantilever effect" of the lifting pin. The reinforcement plates (8mm steel) are essential here to prevent the rectangular tube from buckling or tearing under the localized pressure of the pulling steel.
Conclusion
Based on the structural data and FEA simulations, lifting energy storage containers from the bottom main beams is the safer and more stable engineering choice.
Key Takeaways:
- Stability: Bottom-lifting significantly reduces deflection (from 12.4mm to 3.11mm), protecting internal electronics and battery racks.
- Reinforcement is Mandatory: Because contact stress can reach 352 MPa, the outer main beams must be reinforced with steel plating to distribute the load effectively.
- Design Standard: For high-density ESS units weighing near 40 tons, the "top corner" standard is insufficient; bottom-beam integration should be the primary design requirement.
In the selection of functional container systems and field engineering equipment, a common pattern can be observed:
technical teams focus on specifications during procurement, while field engineers evaluate usability during operation.
Procurement teams prioritize compliance to ensure the equipment “meets requirements.”
Field engineers, however, focus on usability—ensuring the system “works reliably in real conditions.”
This difference reflects a key reality: equipment performance is ultimately tested not in ideal conditions, but in demanding field environments.
1. From Technical Compliance to Real-World Performance
Specifications define whether a system is “eligible for use,” while usability determines whether it performs effectively in practice.
Specifications ensure capability; usability ensures performance.
2. Harsh Environments Amplify Design Weaknesses
In offshore sites, mining areas, and remote operations, even small design flaws become highly visible:
3. TLS Design Philosophy: Aligning Systems with Field Logic
At TLS, functional container design is driven by engineering logic focused on real operational behavior, not just technical specifications.
Key principles include:
4. Usability Comes from System-Level Integration
True usability is not defined by a single component, but by how well all systems work together.
5. Usability as a Hidden Cost Factor
From a lifecycle cost perspective, usability directly impacts operational efficiency:
Conclusion
For TLS, specifications define the baseline, but usability defines the true value of a system.
We do not only manufacture container systems—we design integrated engineering environments that are stable, efficient, and easy to operate in real-world conditions.
In field operations, the best-performing system is not the most complex one, but the one that works reliably every day.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #industrial container usability,#field engineering equipment design,#offshore container systems,#functional module container,#operational efficiency engineering,#field operation container solution,#industrial system integration design,#maintenance friendly container design,#offshore engineering equipment,#lifecycle cost industrial equipment
technical teams focus on specifications during procurement, while field engineers evaluate usability during operation.
Procurement teams prioritize compliance to ensure the equipment “meets requirements.”
Field engineers, however, focus on usability—ensuring the system “works reliably in real conditions.”
This difference reflects a key reality: equipment performance is ultimately tested not in ideal conditions, but in demanding field environments.
1. From Technical Compliance to Real-World Performance
Specifications define whether a system is “eligible for use,” while usability determines whether it performs effectively in practice.
- Procurement perspective: Focus on power rating, materials, certifications, and configuration lists. These define baseline compliance.
- Field perspective: Focus on startup behavior, operational response, and troubleshooting efficiency. These define real productivity.
Specifications ensure capability; usability ensures performance.
2. Harsh Environments Amplify Design Weaknesses
In offshore sites, mining areas, and remote operations, even small design flaws become highly visible:
- Unstable power supply or extreme temperatures can expose weaknesses in complex control systems.
- Overly complicated operation procedures increase the risk of human error, especially under fatigue or emergency conditions.
3. TLS Design Philosophy: Aligning Systems with Field Logic
At TLS, functional container design is driven by engineering logic focused on real operational behavior, not just technical specifications.
Key principles include:
- Functional layout based on workflow: Equipment is arranged according to real operation sequences, improving efficiency in daily use.
- Unified system logic: Integrated interfaces reduce complexity and eliminate cross-system confusion.
- Maintenance-friendly design: Service access is planned early in the design stage to minimize downtime during maintenance.
4. Usability Comes from System-Level Integration
True usability is not defined by a single component, but by how well all systems work together.
- Electrical, ventilation, and control systems are designed to operate as one coordinated system.
- Operational feedback is made clear and intuitive, reducing diagnostic time and simplifying fault identification.
5. Usability as a Hidden Cost Factor
From a lifecycle cost perspective, usability directly impacts operational efficiency:
- Lower training effort: Simple system logic reduces onboarding time.
- Reduced downtime: Easier maintenance leads to higher system availability.
- Less dependency on specialists: Standardized operation improves reliability in remote locations.
Conclusion
For TLS, specifications define the baseline, but usability defines the true value of a system.
We do not only manufacture container systems—we design integrated engineering environments that are stable, efficient, and easy to operate in real-world conditions.
In field operations, the best-performing system is not the most complex one, but the one that works reliably every day.
