Direct Answer

Modular power and cooling infrastructure is most suitable for an AI data center when the project needs phased capacity, repeatable designs, or reduced onsite installation work. It can also be useful where the site has limited construction space or where electrical and mechanical equipment must be assembled and tested before delivery.

It is not automatically faster, cheaper or more efficient than a conventional facility. The result depends on transport limits, site utilities, equipment interfaces, local approvals and how much work is actually completed in the factory. A modular solution should be selected only after comparing the same technical scope with a site-built alternative.

What Is Included in a Modular Approach?

For this article, modular infrastructure means factory-built enclosures for defined data center functions. TLS supplies high-spec enclosures and fully integrated systems for applications including:

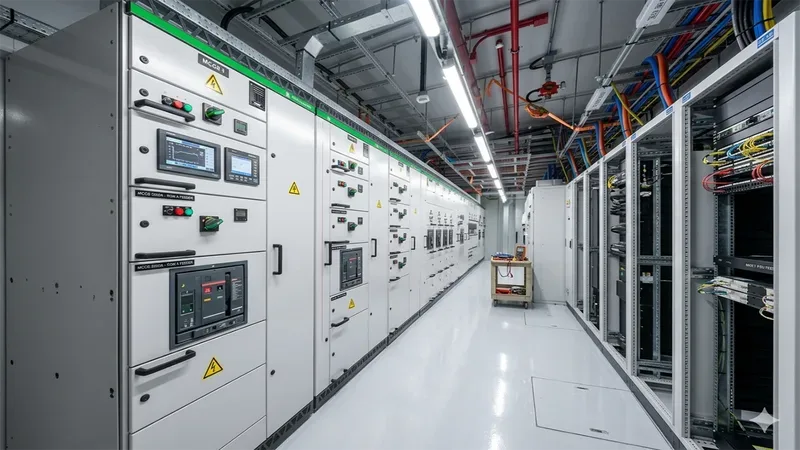

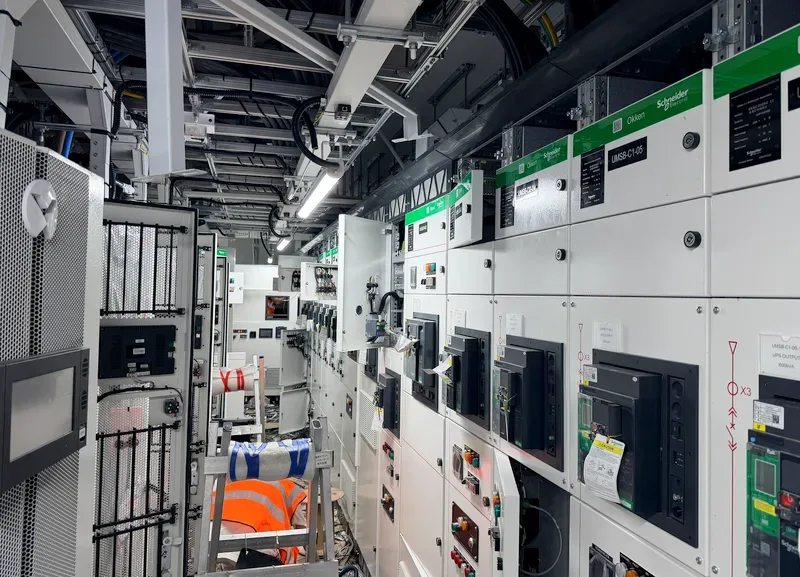

• electrical rooms or E-Houses containing switchgear, transformers or distribution equipment;
• UPS and battery rooms;
• generator enclosures;
• cooling or mechanical-equipment modules;
• IT modules containing racks and related support systems.

The exact supply boundary varies by contract. “Modular” does not necessarily mean that every item is installed, tested and ready to operate when the unit arrives onsite.

When Is a Modular Solution a Reasonable Choice?

1. Capacity Will Be Added in Defined Phases

A modular design can support phased development if each block has a clear IT load, electrical capacity and cooling capacity. The site must also reserve the required utility connections, foundations, cable routes and heat-rejection capacity for later phases.

Adding another enclosure is not enough if the incoming power, cooling plant or network cannot support it.

2. The Same Design Will Be Repeated

Factory-built modules are more useful when a project can reuse an approved layout across several units or sites. Repetition can reduce redesign and make test procedures more consistent.

If every module has a different voltage, equipment list, cooling arrangement or control interface, much of this benefit is lost.

3. Onsite Work Must Be Limited

Projects in remote locations or congested sites may benefit from moving equipment installation, wiring and part of the testing into a factory. This can reduce the number of activities performed onsite, but it does not eliminate foundations, external cabling, utility connections or final commissioning.

4. Equipment Interfaces Can Be Frozen Early

Modular fabrication works best when major equipment dimensions, weights, heat loads and connection points are known before manufacturing begins. Late changes to racks, switchgear, transformers or cooling equipment can affect structure, cable routing, access and transport weight.

When May Conventional Construction Be More Suitable?

A site-built electrical or mechanical building may be more suitable when:

• the project has one stable, long-term capacity rather than phased growth;
• equipment is too large or heavy for practical module transport;
• local fabrication and construction resources are readily available;
• the site requires extensive building integration or unusual layouts;
• central cooling or electrical plants provide a simpler whole-site design;
• local approval rules make modular permitting no easier than conventional construction.

The decision should be based on the complete installed system, not on enclosure price alone.

 What Must Be Defined Before Selecting the Module?

These inputs should be agreed before the module layout is frozen. A generic request for an “AI-ready container” is not sufficient for design or quotation.

How Should Power and Cooling Capacity Be Matched?

The project should define the usable capacity of each block under the same operating and redundancy assumptions.

For example, a module may contain enough electrical equipment for a stated IT load, but that load is not deployable if the cooling system cannot remove the corresponding heat at the site design temperature. Similarly, cooling capacity does not solve a shortage in utility power or distribution capacity.

The design review should therefore confirm:

1. usable IT load;

2. electrical capacity after required redundancy and derating;

3. cooling capacity at the stated outdoor and coolant conditions;

4. the largest permitted equipment failure;

5. capacity available during maintenance;

6. limits imposed by external site systems.

The lowest available capacity determines how much IT load the module can support.

What Can Be Tested Before Delivery?

Factory acceptance testing can verify equipment and functions that are complete within the module boundary. Depending on the supply scope, this may include:

• equipment identity and installation checks;
• electrical continuity, insulation and grounding;
• switchgear and control-panel functions;
• HVAC, pumps or cooling-control logic;
• alarm and emergency-stop signals;
• communications point checks;
• simulated transfer or failure sequences.

Factory testing cannot confirm the performance of incomplete external systems. Incoming utility power, external cooling equipment, field cables, network connections and integrated load performance must be tested after installation.

What Should Be Compared in the Commercial Evaluation?

Compare modular and conventional proposals using the same scope:

• engineering and approval work;
• enclosure or building construction;
• installed electrical and cooling equipment;
• factory testing;

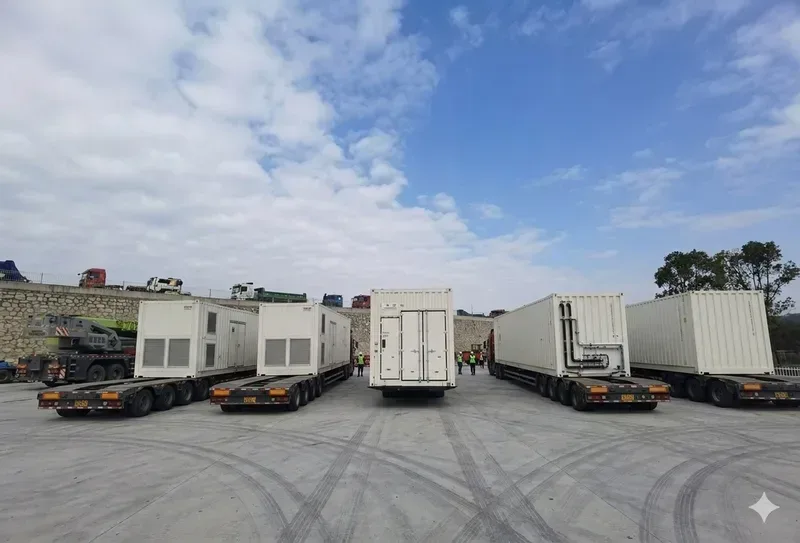

• transport and lifting;
• foundations and external services;
• site installation and commissioning;
• spare capacity for later phases;
• maintenance access and equipment replacement;
• responsibility for interface failures.

A modular quotation may appear lower if foundations, external cables, cooling plant or commissioning are excluded. The exclusions and responsibility matrix should be reviewed with the price.

Frequently Asked Questions

1. Is a modular AI data center always quicker to deploy?

No. Factory fabrication can run in parallel with some site work, but the overall schedule still depends on design approval, equipment lead times, utilities, foundations, transport and commissioning.

2. Does factory integration make the system plug-and-play?

Not in the literal sense. External power, cooling, communications, fire systems and controls still require connection and testing onsite.

3. Does every AI data center require liquid cooling?

No. The cooling method should follow the selected server equipment, heat density and operating conditions. Air, liquid or hybrid cooling may be appropriate.

4. Can a standard module be used for different server generations?

Only within its structural, electrical, cooling and dimensional limits. A major change in rack power, weight, coolant conditions or connections may require redesign.

5. What is the most important procurement document?

The supply-boundary and interface-responsibility matrix is critical. It should state who designs, supplies, installs, connects, tests and approves each system.

Conclusion

Modular power and cooling infrastructure is a practical option when capacity is phased, designs are repeatable and equipment interfaces can be defined early. It is less suitable when transport restrictions, one-off layouts or central site systems dominate the design. Selection should follow a like-for-like comparison of installed scope, schedule, interfaces and lifecycle operation.
