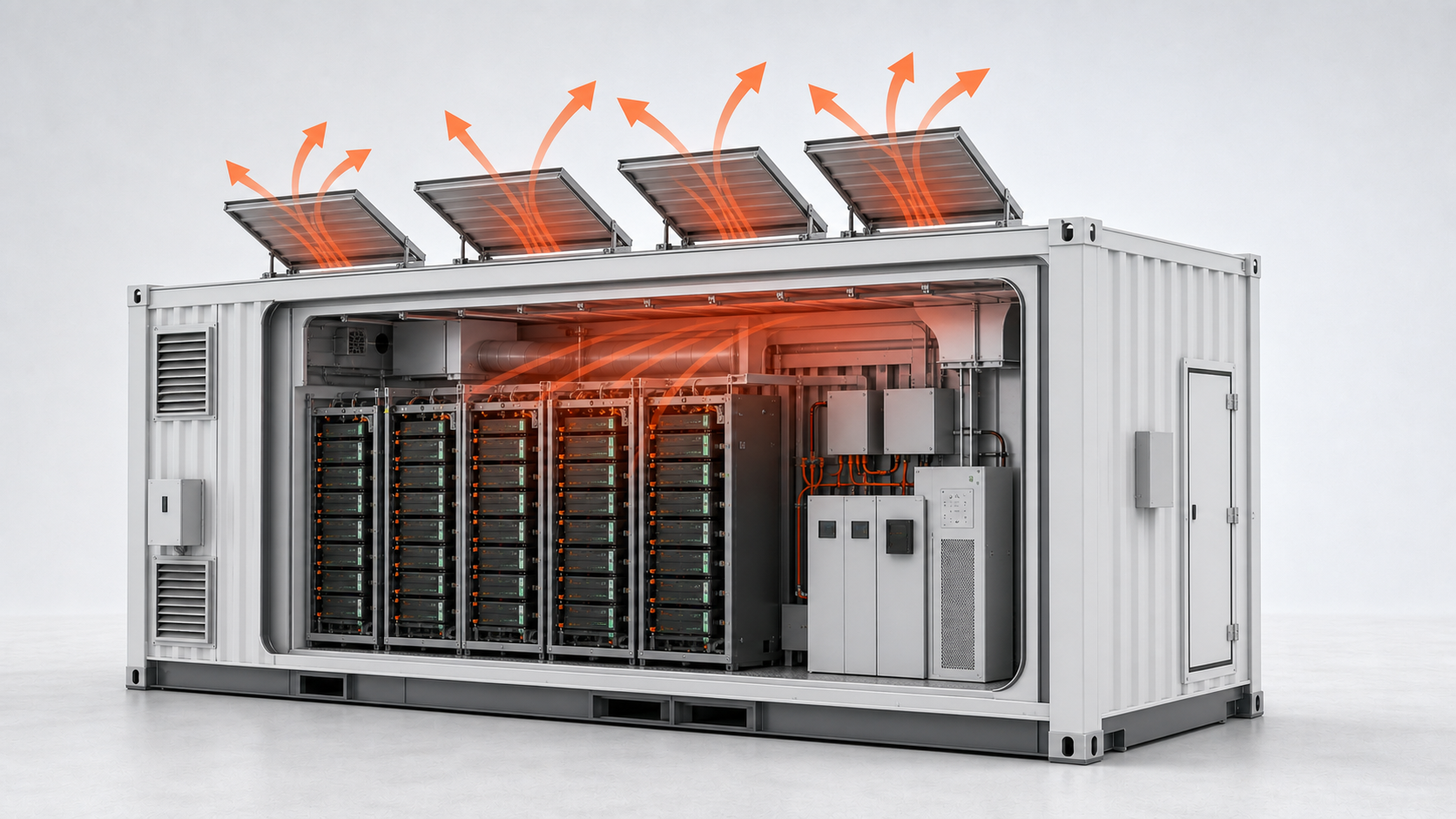

A deflagration vent panel is a passive explosion-protection device installed on a battery energy storage system (BESS) enclosure. Its function is to release internal pressure in a controlled direction if flammable gases accumulate and ignite. By opening at a predetermined pressure, the panel helps reduce the risk of uncontrolled enclosure rupture.
Why Can Explosion Pressure Develop Inside a BESS?
Lithium-ion cells can enter thermal runaway after electrical, mechanical, or thermal abuse. During thermal runaway, cells may release hot, toxic, and flammable gases. If these gases collect inside an enclosure and encounter an ignition source, rapid combustion—known as deflagration—can produce a sudden pressure rise.
Without an engineered relief path, this overpressure may damage the enclosure and create debris. A deflagration vent panel acts as a planned weak point. It opens, allowing pressure, flame, and combustion products to discharge through a defined area instead of forcing the enclosure to fail unpredictably.
What Does the Panel Protect Against?
The panel is intended to limit structural damage caused by deflagration overpressure. It may help protect people and nearby assets from the consequences of an uncontrolled enclosure rupture. However, it does not prevent battery failure, stop thermal runaway, remove flammable gases, or extinguish a fire.
For this reason, deflagration venting is only one part of a complete BESS safety strategy. Gas detection, ventilation or combustible-concentration reduction, battery management, emergency shutdown, fire detection, separation distances, and emergency response planning may also be required. The vent discharge area must remain clear because opening the panel can project flame, hot gases, pressure waves, and potentially debris outside the enclosure.
How Is a BESS Deflagration Vent Panel Designed?
Panel size, opening pressure, location, and discharge direction should be determined through project-specific engineering. Important inputs include enclosure strength and volume, battery chemistry, gas composition and generation rate, internal obstructions, ignition conditions, and the allowable reduced pressure of the enclosure.
UL 9540A test data can help characterize thermal-runaway gas and fire behavior. NFPA 68 addresses deflagration venting, while NFPA 69 covers explosion-prevention methods. NFPA 855 addresses the installation of stationary energy storage systems. Applicable codes and requirements vary by project location, system configuration, and the authority having jurisdiction.
How Does TLS Energy Support Global BESS Projects?
TLS Energy provides configurable BESS solutions for clients in global markets, including battery enclosures with racks, semi-integrated BESS containers, and fully integrated systems. Project support can cover enclosure engineering, equipment integration, thermal management, fire and gas safety interfaces, electrical interfaces, testing coordination, documentation, and delivery planning.
Where deflagration venting is required, the vent arrangement should be coordinated with the enclosure structure, equipment layout, ventilation concept, site clearances, and applicable safety analysis. TLS Energy works with customers to align the container configuration with project specifications, operating conditions, transport constraints, and relevant code or certification requirements. This integrated approach helps turn explosion-risk assessment into a practical, project-specific BESS enclosure design rather than treating the vent panel as an isolated component.
Technical references: UL Solutions—BESS deflagration testing and UL Solutions—NFPA 68, NFPA 69 and BESS compliance.
