As Artificial Intelligence Data Centers (AIDCs) scale into megawatt (MW) and gigawatt (GW) clusters, traditional low-voltage AC power distribution is reaching its physical limits. Delivering massive electrical power at lower voltages requires thick copper cabling, results in severe thermal losses , and complicates data hall layouts. To overcome these constraints, industry leaders have advanced the 800 VDC Architecture Specification. However, a critical question arises: Why do AI factories fundamentally depend on energy storage after adopting 800V DC? Is this a genuine technical necessity or a false premise?
1. Chapter 3 Summary: In-Rack Power Systems and Infrastructure
Chapter 3 of the 800 VDC Architecture specification focuses on Rack-Level Power Supply Units (PSUs), Power Conversion Stages, and Safety Mechanisms:

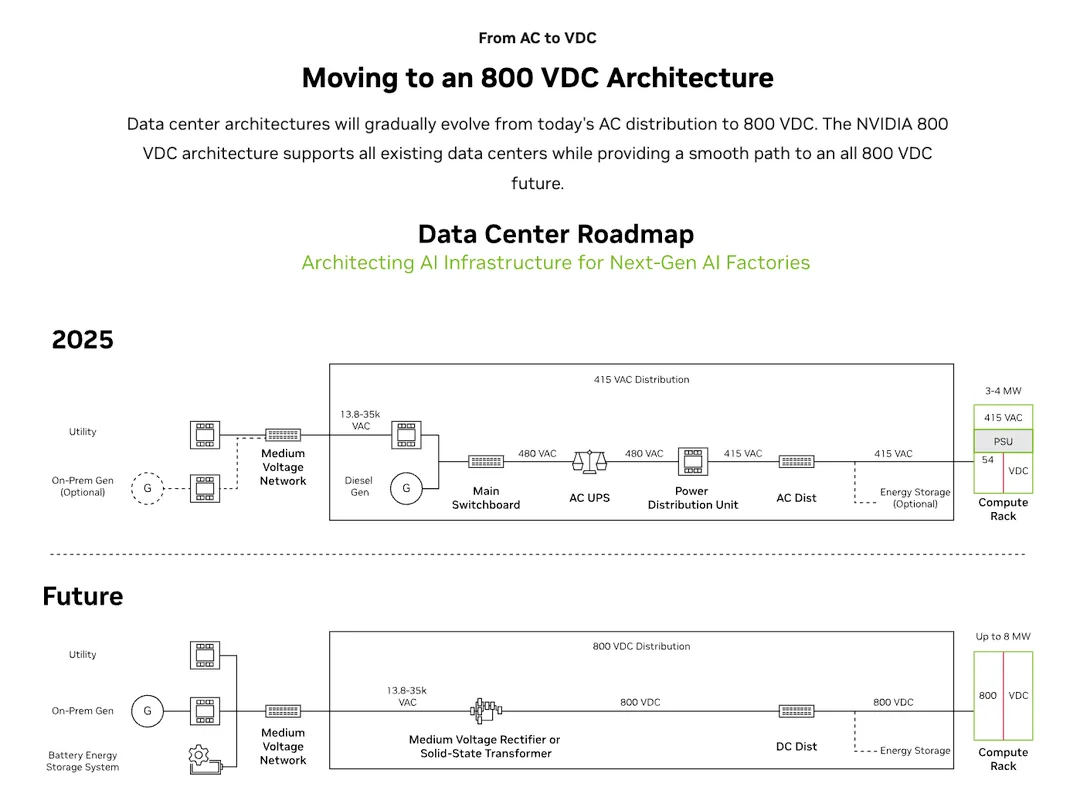

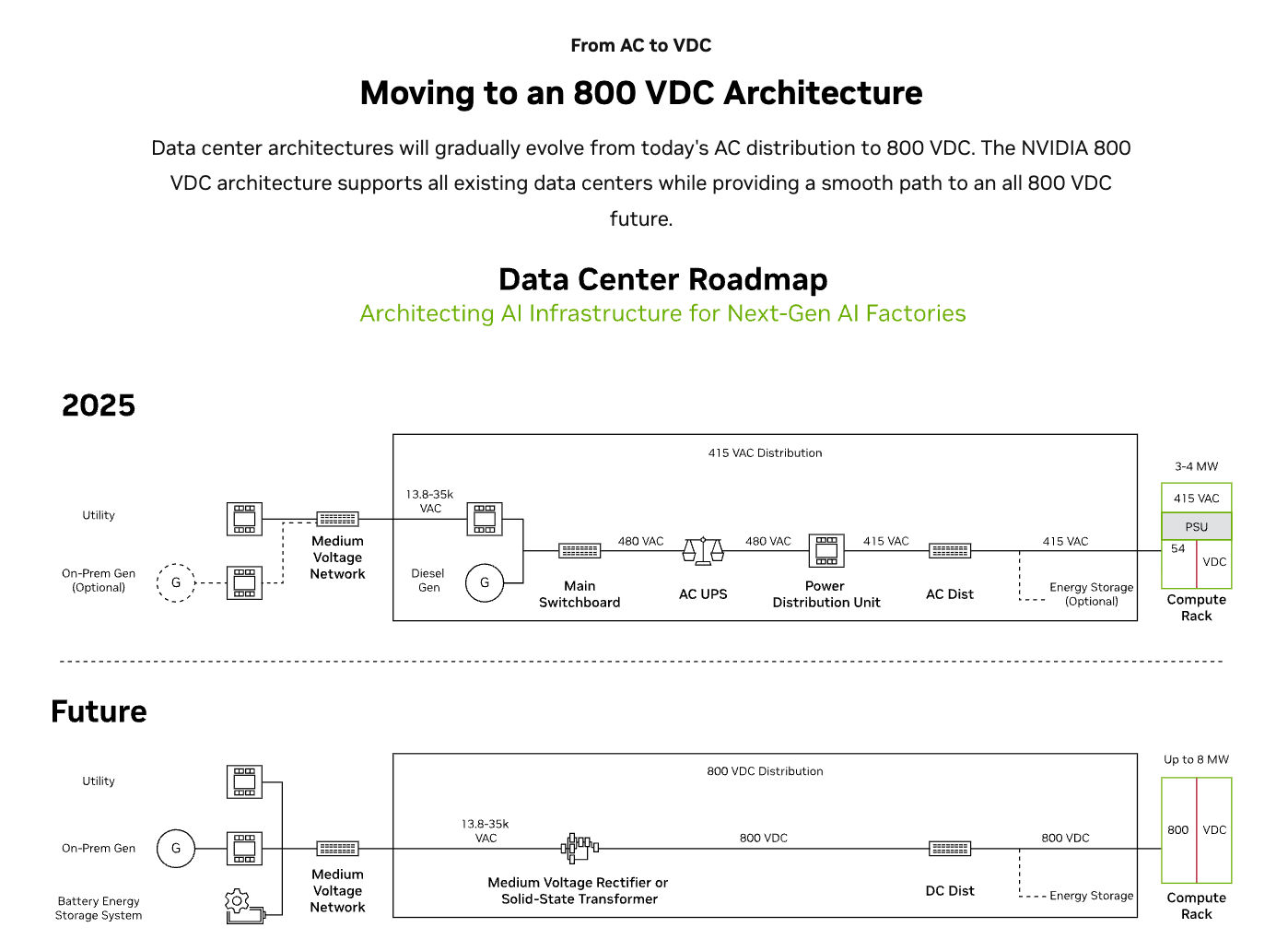

- Direct Intermediate Bus Conversion: It outlines the shift from traditional AC conversion stages to a direct 800V DC main busbar that steps down directly to 54V/12V/6V at the GPU board level, eliminating redundant AC/DC transformer steps and boosting overall energy efficiency (>98%).
- Wide Bandgap Semiconductors: It highlights the integration of Gallium Nitride (GaN) and Silicon Carbide (SiC) power devices, which enable extreme power density within ultra-compact PSU form factors.
- Advanced DC Protection: Addressing high-voltage DC arcing, Chapter 3 establishes standards for Solid-State Circuit Breakers (SSCBs) and High-Resistance Midpoint Grounding (HRMG), allowing microsecond fault isolation and safe hot-swapping during live rack maintenance.
- Copper Reduction & Airflow Optimization: Raising the bus voltage to 800V reduces current by approximately 16x for the same power load. This slashes copper busbar volume, relieves cable congestion, and creates vital space for advanced liquid cooling systems.
2. Why 800V AI Factories Need Energy Storage: True Premise or False Premise?
This is an absolute TRUE PREMISE.
While 800V DC solves internal power delivery and spatial density, it exposes a macro-level conflict: the dynamic nature of AI workloads versus the physical inertia of the electrical grid.
- Extreme Transient Load Spikes ($\Delta P/\Delta t$): Unlike conventional cloud workloads with smooth power profiles, large language model (LLM) training and dynamic reasoning cause massive instantaneous load fluctuations. When tens of thousands of GPUs initiate All-Reduce synchronization or complete a training step, cluster power demand can spike or plunge by tens of megawatts within milliseconds. Left unbuffered, these violent dynamic loads cause severe voltage sags and frequency instability, risking regional grid collapse.
- Native Direct-Current Buffering: In an 800V DC topology, the 800V DC bus serves as a natural backbone. Battery storage systems can plug directly into the DC bus via bidirectional DC/DC converters without conversion losses. The energy storage system acts as a high-speed "power low-pass filter"—discharging instantly during compute bursts and absorbing surplus power when the GPUs step down.
- Capex Optimization & Grid Compliance: Utility companies impose strict ramp-rate and peak-demand limits on industrial users. Without energy storage, data centers must over-provision upstream grid connections and transformers for worst-case peak loads. Integrating DC-bus storage allows utilities to see a smoothed average load, satisfying grid interconnect codes while saving substantial capital expenditure.
3. TLS Energy Solutions for Next-Gen AIDCs
To solve these high-density power challenges, TLS Energy International offers specialized containerized energy storage solutions designed specifically for AIDC environments and 800V DC architectures:

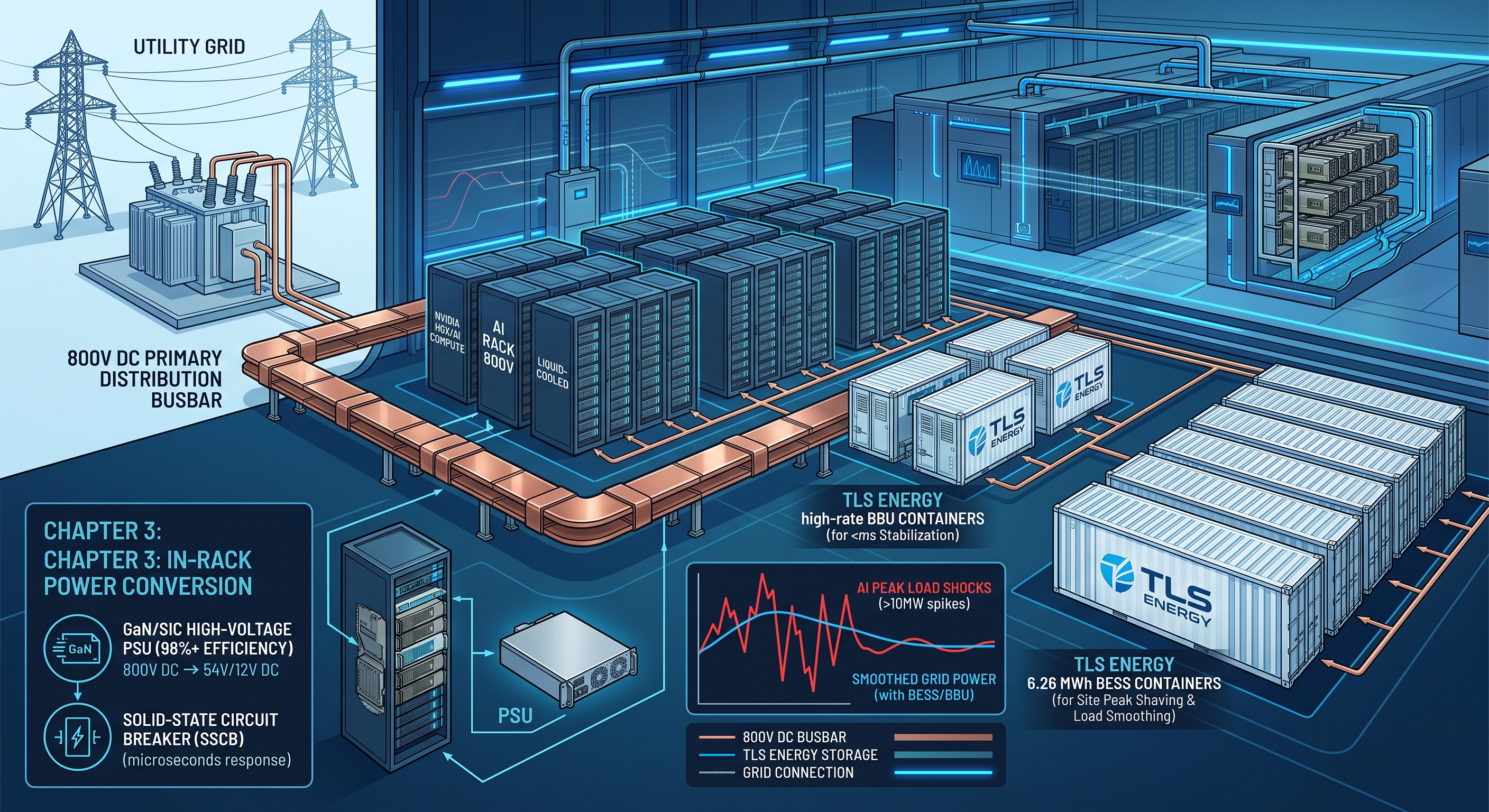

- Two-Layer Energy Storage Architecture: TLS Energy integrates a coordinated two-tier buffering strategy:
- Containerized Battery Backup Units (BBUs): Located close to compute halls or power centers, high-rate BBU containers provide millisecond-level dynamic power support, hold-up capability, and DC bus stabilization during rapid step loads.
- Campus-Level Containerized BESS: High-capacity Battery Energy Storage System (BESS) containers (ranging up to 6.26 MWh per unit) provide MW-scale peak shaving, load smoothing, renewable integration, and site-wide power resilience.
- Modular & Factory-Tested Integration: Pre-engineered in ruggedized enclosures equipped with liquid cooling, IP55/C5 protection, and integrated safety controls (SSCBs, fire suppression, advanced BMS), TLS Energy’s solutions allow rapid deployment to keep pace with fast-scaling AI infrastructure.
Download the article for reference.
Contact us for more information.
Refer to Nvidia 800 VDC Architecture for Next-Generation AI Infrastructure
