Summary
IEC 60079-13 is the international standard within the IEC 60079 series that defines the design, construction, testing, and certification requirements for protecting equipment using pressurized rooms ("p") and artificially ventilated rooms ("v") in hazardous areas.
Instead of replacing standard industrial electrical equipment with expensive individually explosion-proofed (Ex d/Ex e) components, IEC 60079-13 allows operators to safely place standard equipment inside a modular building, control room, or E-House. By maintaining a continuous internal positive overpressure relative to the external hazardous atmosphere, flammable gases, vapors, or combustible dusts are physically prevented from entering the room and encountering potential ignition sources.
Operating Mechanics of Positive Pressure Containment
IEC 60079-13 protection relies on a controlled atmospheric pressure differential and automated safety controls:
- Overpressure Barrier (Internal Pressure> External Pressure): Continuous supply of clean, non-hazardous air or inert gas maintains a positive static pressure differential (typically ≥50Pa) inside the enclosure. If a door seal or cable transit is momentarily breached, clean air forces its way outward, preventing flammable gas ingress.
- Pre-Energization Purging Cycle: Before electrical power can be applied to non-certified internal equipment, a forced ventilation cycle flushes out any hazardous gases that may have accumulated inside during downtime. The room must pass a certified volume-purge calculation (e.g., flushing 5 to 10 times the internal volume) before power interlocks permit energization.
- Clean Air Source Integrity: Air intake ducts must draw pressurization air strictly from a designated non-hazardous zone (unclassified area) located safely outside the hazardous boundary.
- Automatic Safety Interlocks: Continuous differential pressure sensors monitor room pressure. If pressure drops below the certified minimum threshold, the control system initiates visual/audible alarms and automatically executes an emergency trip/de-energization sequence for internal non-Ex equipment.
Key Benefits of IEC 60079-13 Pressurized Enclosures
Deploying an IEC 60079-13 certified room provides four distinct technical and operational advantages:
- CAPEX Reduction: Houses standard commercial-off-the-shelf industrial switchgear, variable speed drives (VSD), control panels, and IT servers without requiring custom explosion-proof enclosures for every individual electrical device.
- Simplified Field Maintenance: Maintenance personnel can work safely inside a climate-controlled, unclassified environment without opening heavy flameproof Ex d enclosures or requiring hot-work permits for routine diagnostic checks.
- Global Regulatory Compliance: Aligns directly with international certification frameworks including IECEx and European ATEX Directive 2014/34/EU for Zone 1, Zone 2, Zone 21, and Zone 22 hazardous locations.
- Thermal Management Integration: Allows high-capacity marine or industrial HVAC units to be integrated directly into the pressurized enclosure, resolving heat dissipation limits typical of sealed Ex d boxes.
Technical Stages to Achieve IEC 60079-13 Certification
Achieving compliance involves a four-stage engineering and verification lifecycle:
- Airtight Structural Engineering: Designing structural walls, doors, cable transits, and HVAC fire dampers to maintain certified leak-tightness under dynamic wind and vibration loads.
- Safety Control System Integration: Installing redundant differential pressure transmitters, automated purge controllers, gas detection loops, and Safety Integrity Level power tripping interlocks.

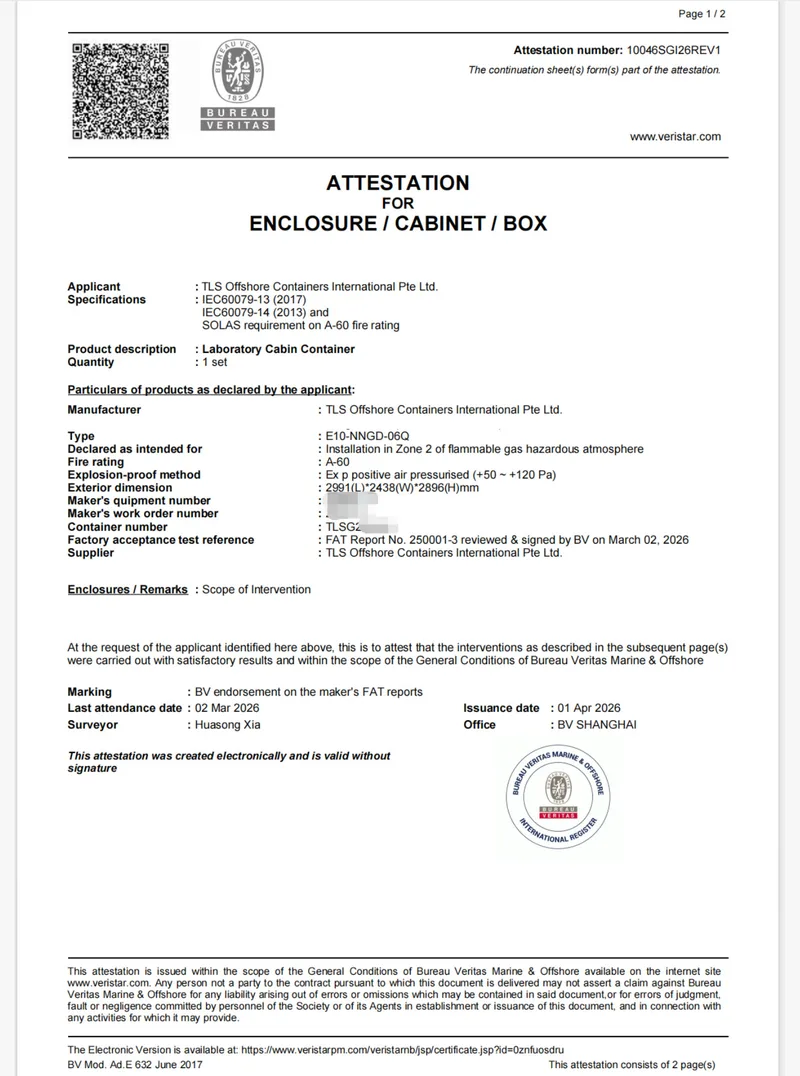

- Third-Party Factory Acceptance Testing (FAT): Undergoing physical overpressure testing, leakage rate measurement, purge volume timing verification, and simulated pressure-loss trip audits conducted by a Recognized Ex Certification Body / Notified Body.
- Lifecycle Maintenance and Recalibration: Performing periodic checks on door gasket elasticity, pressure sensor calibration, automatic damper closures, and emergency shutdown interlocks.
Frequently Asked Questions (FAQ)
1.What is the difference between Ex d, Ex e, and IEC 60079-13 Ex p/Ex v protection?
- l Ex d (Flameproof): Containment technique designed to withstand an internal explosion without igniting the surrounding atmosphere.
- Ex e (Increased Safety): Prevention technique eliminating sparks, arcs, or hot surfaces in electrical hardware.
- IEC 60079-13 (Ex p / Ex v): Structural containment technique that maintains an overpressurized or ventilated clean-air room, preventing hazardous gases from contacting standard non-Ex equipment inside.
2.What happens if pressurization is lost in an IEC 60079-13 pressurized room?
The differential pressure sensor detects the drop below the minimum threshold (> 50 Pa). Depending on the zone classification and risk assessment:
- Zone 1: Immediate automatic de-energization (power trip) of all non-explosion-proof electrical circuits.
- Zone 2: Immediate visual/audible alarm giving operators a defined time window to restore pressure before automatic power shutdown initiates.
3.Can an IEC 60079-13 pressurized container be installed in Zone 1 hazardous areas?
Yes. IEC 60079-13 covers pressurized rooms suitable for both Zone 1 and Zone 2 locations, provided the structural airtightness, safety interlock integrity, purge cycle controls, and Ex-certified gas detection systems satisfy the specific zonal risk criteria.
4.What is the minimum pressure differential required under IEC 60079-13?
The standard typically specifies a minimum continuous positive overpressure of 50 Pa relative to the external hazardous environment at all internal doors and openings during normal operation.
