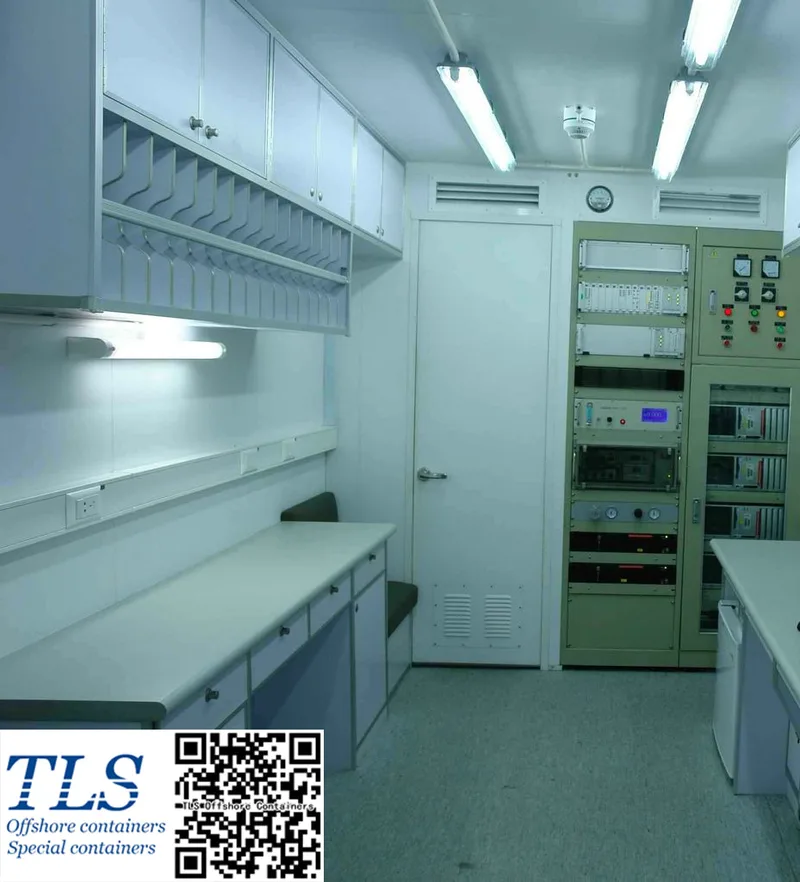

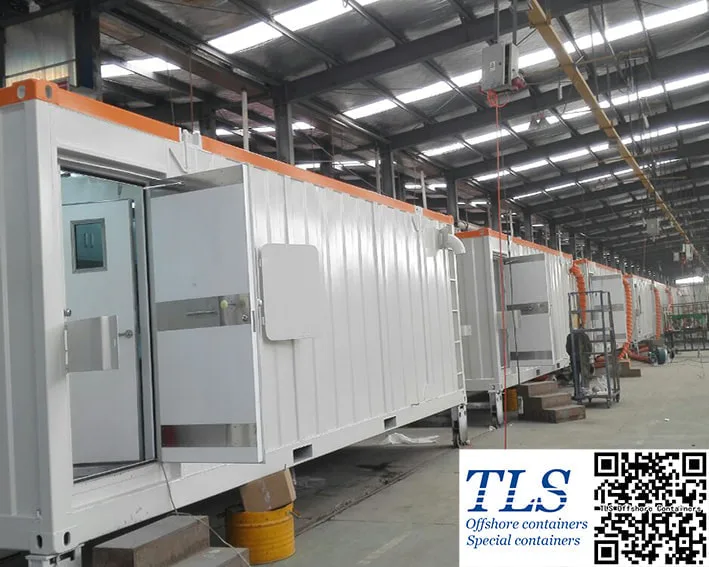

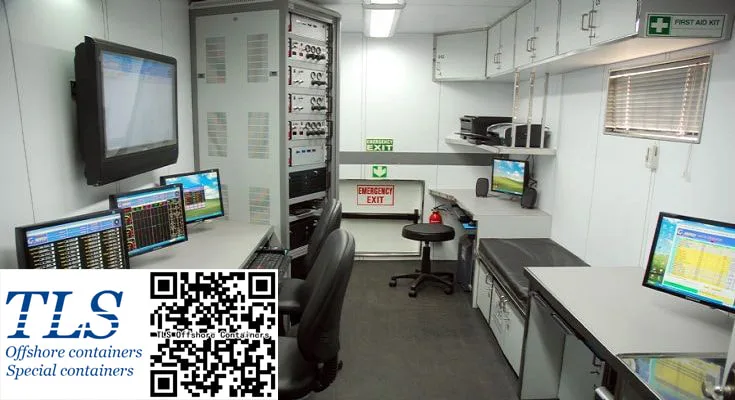

PRESSURISED LABORATORY CABIN, PRESSURISED WORKSHOP CONTAINER, MUD LOGGING UNIT, MUD LOGGING CABIN, PRESSURISED MODULES, OFFSHORE PRESSURISED MODULES

DNV 2.7-1, A60 Fire Rated and Zone I / zone II
Flexible and customised dimension and layout, 10ft/12ft/15ft/16ft/20ft/26ft/40ft etc
Lead time: 3-4 months.

which includes:
Engineering : Structural drawings, Architectural drawings and Documentation package c/w as built drawings and Certifications (CSC certificate, DNV2.7-1/EN12079 certificate, A60/Zone 1/Zone 2 certificate of conformity).

Fabrication : Structural materials to DNV 2.7-1 and A60 fire rated specification, Welding procedures, Welding inspections and Secondary steel provisions.

Assembly : 1 x A60 Main door, 1 x A60 Escape hatch, A60 Thermal Insulation, 1 x B15 Airlock Door w/ viewing glass, self- fabricated internal panel for wall, ceiling and airlock compartment.

Testing and Inspection: MPI and load testing in accordance with  DNV 2.7-1,  A60 insulation certification by DNV and Factory Acceptance Test (FAT) , Pressurised, Fire and Gas System,

Electrical Work : Lighting and small power Distribution Board(DB) c/w circuit breakers, Cabling within Laboratory unit for lighting and power points, Conduit wiring for lightings, Trunking wiring for 220V, 8 x Double gang 230V 13A switch socket (Non-Ex), 3 x IP rated 2x36W fluorescent lighting, 1 x Non Ex rated light switch, MCT frames c/w MCT inserts, Earth bosses, 1 x Exe PJB at recessed area.

Safety Equipment : Purge, Pressurized, Fire and Gas Control Panel, 2 x CH4 Detector, 1 x H2S Detector, 1 x Smoke Detector, 1 x Heat Detector, Pressure Switches and gauge, 1 x Ex Loss of Pressure Alarm, A60 Shutdown dampers, 1 x Emergency Lightings, 1 x Emergency Shut-down Button, 1 x Ex-proof Pressurisation Blower set & 1 x DNV 2.7-1 compliance lifting sling set.

Air Conditioning System: 1 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(20ft cabin)

Air Conditioning System: 2 set 14,000BTU Split System c/w indoor evaporator set, indoor compressor set, indoor aircon circuitry box, outdoor copper condenser coil in stainless steel housing & Ex condenser motor.
(40ft cabin)

Furnishing : N.A.

Painting Work : Preparation : Blasting to S.A. 2.5, Painting System : Three (3) coat System of 1st coat (65micron) with zinc rich epoxy primer, 2nd coat (75micron) with red lead epoxy primer, final coat (50micron) with Polyurethane coat.

Please download Pressurised cabin product brochure for reference.
Please don't hesitate to contact us at sales@tls-containers.com for any inquiries.

PRESSURISED LABORATORY CABIN, PRESSURISED WORKSHOP CONTAINER, MUD LOGGING UNIT, MUD LOGGING CABIN

PRESSURISED LABORATORY CABIN, PRESSURISED WORKSHOP CONTAINER, MUD LOGGING UNIT, MUD LOGGING CABIN

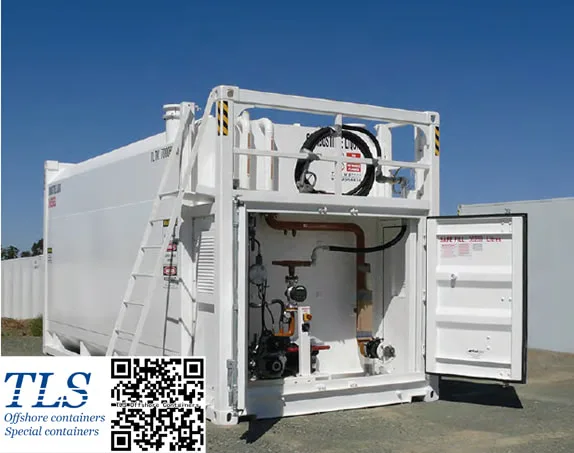

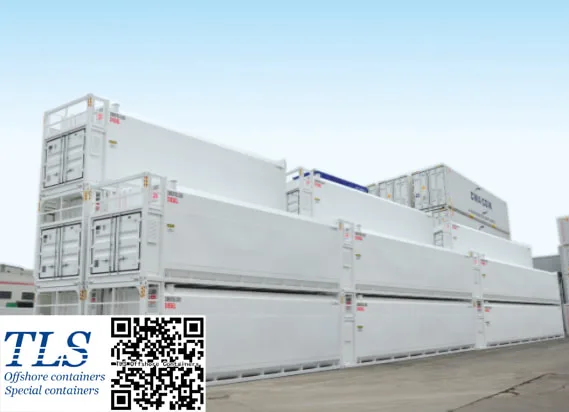

40 foot Containerized Filling/fueling station with safe fill level of approx. 67,000 litres.

STANDARD FITTINGS: 80 nb Camlock male tanker hose filler with dust cap connect, Tanker full point supplied with 80nb full bore, fire safe flanged ball valve and wafer style non return valve, container corner castings, statutory access manway, permanent ladder and platform, water evacuation pipe, interstitial space fluid dipstick, containment compartment with pressure vent, marine grade polyurethane paint
  • Safe fill level of approx. 67,000 ltrs.
  • Weight Bare Tank (lbs/kg): 24692 lbs (11200kg)
  • Approx. size of the unit: Length 1218 millimeters / width 2438 millimeters / Height 2896 millimeters. With Bunded Double wall construction with a pump bay area.
  • Built to ISO container standard.
  • Pump Bay Area to include:
  1. A single high flow dispenser.
  2. 2hp red jacket submersible turbine pump.
  3. Mechanical overfill device.
  4. OPW mechanical level gauge
  5. Fuel piping
  6. Offloading point, camlock coupling with ball & check value.
  7. Explosion proof control panel & lighting.
  • Smart fill fuel automation system with online & remote access.
  • Tank Gauging System. (Tank Gauging console, Mag prove, Leak detection sensors)
TLS provides standard or customized helicopter fuel tanks (helifuel tank) to safely transport and store aviation fuel. Our design is well integrated into the design of helicopter fuel distribution systems. The helifuel tank is equipped with a vapor recovery system, which is in compliance with DNV 2.7-1 / EN 12079, IMDG/ADR/RID, ASME VIII-1, PED 97/23/EC (CE marking) and CAP 437 (UK ) And CAAP 92-4 (Australia).

Features:
  • Storage of jet propulsion fuels such as kerosene
  • DNV 2.7-1 / EN 12079 manufacturing standards
  • T7 UN portable tank approved IMDG / ADR / RID
  • Placarded for road transport in accordance with the IMDG code where required
  • 2.67 bar working pressure
  • Discharge 2.5' Dry-break
  • Valve 1½" BSP
  • Remote vent valve and level indicator (optional)
  • Vessel material – 316L stainless steel

Please don't hesitate to contact us at sales@tls-containers.com for more information.

TLS customizes ranges of offshore accommodation cabins / living quarter / living cabins according to client's specific requirement.
Please don't hesitate to contact us at sales@tls-containers.com if you have any inquires.
