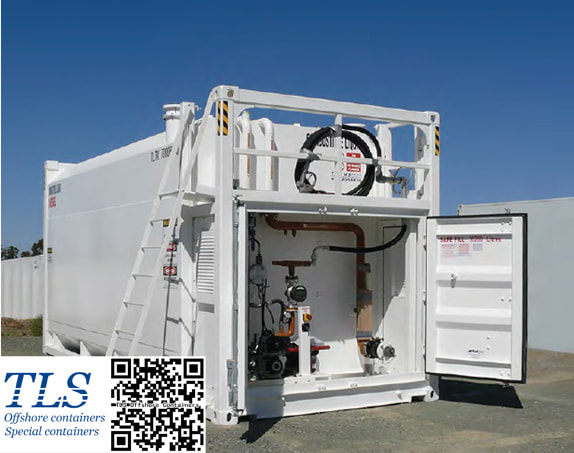

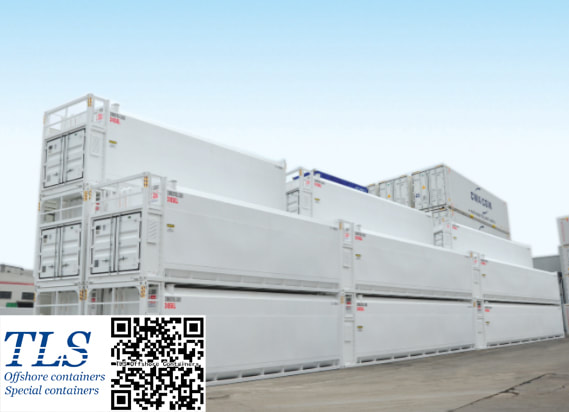

40 foot Containerized Filling/fueling station with safe fill level of approx. 67,000 litres.
STANDARD FITTINGS: 80 nb Camlock male tanker hose filler with dust cap connect, Tanker full point supplied with 80nb full bore, fire safe flanged ball valve and wafer style non return valve, container corner castings, statutory access manway, permanent ladder and platform, water evacuation pipe, interstitial space fluid dipstick, containment compartment with pressure vent, marine grade polyurethane paint
STANDARD FITTINGS: 80 nb Camlock male tanker hose filler with dust cap connect, Tanker full point supplied with 80nb full bore, fire safe flanged ball valve and wafer style non return valve, container corner castings, statutory access manway, permanent ladder and platform, water evacuation pipe, interstitial space fluid dipstick, containment compartment with pressure vent, marine grade polyurethane paint
- Safe fill level of approx. 67,000 ltrs.
- Weight Bare Tank (lbs/kg): 24692 lbs (11200kg)
- Approx. size of the unit: Length 1218 millimeters / width 2438 millimeters / Height 2896 millimeters. With Bunded Double wall construction with a pump bay area.
- Built to ISO container standard.
- Pump Bay Area to include:
- A single high flow dispenser.
- 2hp red jacket submersible turbine pump.
- Mechanical overfill device.
- OPW mechanical level gauge
- Fuel piping
- Offloading point, camlock coupling with ball & check value.
- Explosion proof control panel & lighting.
- Smart fill fuel automation system with online & remote access.
- Tank Gauging System. (Tank Gauging console, Mag prove, Leak detection sensors)
