Offshore Tank Container, containerised fuel station, helifuel tank, automatic fuel station container

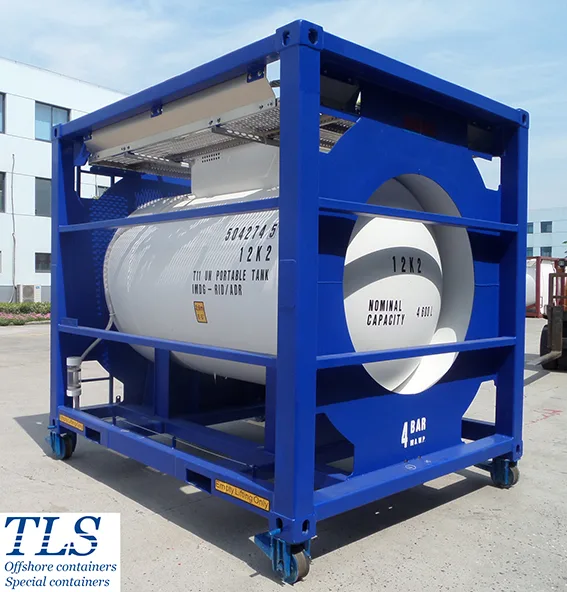

Offshore Tank, helifuel tank
Our transportable offshore tanks are meticulously crafted in compliance with the most stringent international standards, including the International Maritime Dangerous Goods Code (IMDG), the European Agreement concerning the International Carriage of Dangerous Goods by Road (ADR), DNV 2.7-1, EN12079, and BS7072. This adherence guarantees the highest levels of safety and reliability for the transportation and storage of hazardous materials, engineered to meet the rigorous demands of the industry while ensuring environmental protection and operational efficiency.
The versatility of our tank lineup is unparalleled, catering to a wide range of products and capacities. From stainless steel tanks available in 1400 to a whopping 520,000-liter capacities, to specialized designs like vertical, horizontal, and compact tanks, as well as lined tanks for corrosive or acidic substances, we have a solution for every need.
The versatility of our tank lineup is unparalleled, catering to a wide range of products and capacities. From stainless steel tanks available in 1400 to a whopping 520,000-liter capacities, to specialized designs like vertical, horizontal, and compact tanks, as well as lined tanks for corrosive or acidic substances, we have a solution for every need.
Technical specifications
2700L Horizontal Chemical Tank
External dimension: 7'1"x6'1"x7'0" (2150x1850x2134mm)
Tare weight: 2000 kg
Payload: 6000kg
Gross: 8000 kg
4600L Horizontal Chemical Tank
External dimension: 9'7"x6'1"x7'0"(2950x1850x2134mm)
Tare weight: 2550 kg
Payload:7950 kg
Gross:10500 kg
1800L Vertical Chemical Tank
External dimension: 5'65"x5'65"x7'16"(1722x1722x2184mm)
Tare weight: 1450 kg
Payload:3550 kg
Gross:5000 kg
5000L Vertical Chemical Tank
External dimension: 7'55"x7'55"x8'4"(2300x2300x2560mm)
Tare weight: 2450 kg
Payload: 7550 kg
Gross: 10000 kg
External dimension: 7'1"x6'1"x7'0" (2150x1850x2134mm)
Tare weight: 2000 kg
Payload: 6000kg
Gross: 8000 kg
4600L Horizontal Chemical Tank
External dimension: 9'7"x6'1"x7'0"(2950x1850x2134mm)
Tare weight: 2550 kg
Payload:7950 kg
Gross:10500 kg
1800L Vertical Chemical Tank
External dimension: 5'65"x5'65"x7'16"(1722x1722x2184mm)
Tare weight: 1450 kg
Payload:3550 kg
Gross:5000 kg
5000L Vertical Chemical Tank
External dimension: 7'55"x7'55"x8'4"(2300x2300x2560mm)
Tare weight: 2450 kg
Payload: 7550 kg
Gross: 10000 kg

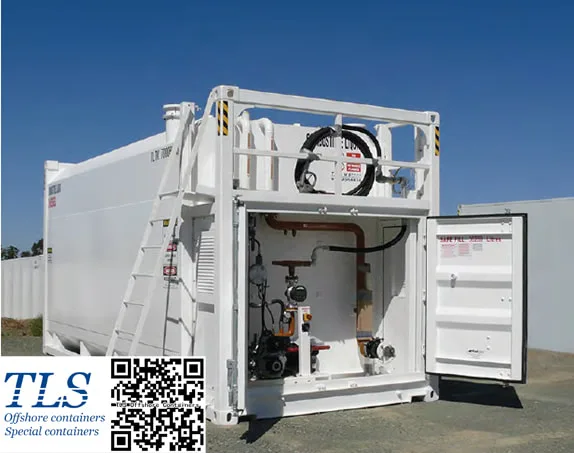

Containerised filling / fueling station, Fuel station container
STANDARD FITTINGS: 80 nb Camlock male tanker hose filler with dust cap connect, Tanker full point supplied with 80nb full bore, fire safe flanged ball valve and wafer style non return valve, container corner castings, statutory access manway, permanent ladder and platform, water evacuation pipe, interstitial space fluid dipstick, containment compartment with pressure vent, marine grade polyurethane paint
- Safe fill level of approx. 67,000 ltrs.
- Weight Bare Tank (lbs/kg): 24692 lbs (11200kg)
- Approx. size of the unit: Length 1218 millimeters / width 2438 millimeters / Height 2896 millimeters. With Bunded Double wall construction with a pump bay area.
- Built to ISO container standard.
- Pump Bay Area to include:
- A single high flow dispenser.
- 2hp red jacket submersible turbine pump.
- Mechanical overfill device.
- OPW mechanical level gauge
- Fuel piping
- Offloading point, camlock coupling with ball & check value.
- Explosion proof control panel & lighting.
- Smart fill fuel automation system with online & remote access.
- Tank Gauging System. (Tank Gauging console, Mag prove, Leak detection sensors)
Containerised filling / fueling station, fuel station container
