In experimental and testing environments involving hazardous chemicals, toxic gases, biological samples, or special industrial media, risk control remains a critical design priority for any laboratory system.
During the planning stage of such projects, several essential questions are often raised:
1. Why Are Negative Pressure Laboratory Containers Increasingly Important?
In many industrial and research scenarios, laboratory processes may involve:
Therefore, the core objective of laboratory design is not to prevent external intrusion, but to ensure that internal risks do not spread outward.
This is the fundamental value of negative pressure laboratory containers.
Simply put:
2. How Does a Negative Pressure Laboratory Container Work?
A negative pressure laboratory container maintains an internal pressure lower than the surrounding environment through continuous exhaust ventilation.
Under this condition:
Its key benefits include:
3. Why External Environmental Conditions Also Matter
Many assume that maintaining negative pressure alone is sufficient for safety. However, this is not the case.
Even the most advanced negative pressure system is influenced by external environmental conditions.
Therefore, before deployment, the following assessments are typically required:
1. Site Risk Evaluation: Avoid locations near pollution sources or high-risk industrial processes.
2. Environmental Monitoring: Ensure ambient air quality meets safety requirements and contains no abnormal hazardous gases.
3. Safety Isolation Measures: Establish buffer zones or isolation areas when necessary to reduce external interference.
4. Continuous Monitoring: Implement long-term environmental monitoring systems to detect potential risks in time.
From an engineering perspective, a safe laboratory must manage both internal and external environments.
4. Why Personnel Training and Management Are Equally Critical
Even the most advanced system requires correct operation.
Operators of negative pressure laboratory containers should be trained in:
5. How TLS Negative Pressure Laboratory Containers Enhance Safety
In the design of TLS negative pressure laboratory containers, safety is achieved not only through pressure control, but also through multi-layered emergency protection mechanisms.
Normal Operating Mode
During standard operation:
Emergency Operating Mode
When the system detects:
Automatic Protection Mechanism
If hazardous gas concentration continues to rise:
Conclusion: Negative Pressure Laboratories Are a System-Level Safety Solution
The value of a negative pressure laboratory container lies not only in creating a pressure differential, but in establishing a complete risk control system.
When selecting or designing such systems, key focus areas should include:
For projects involving hazardous gases, chemicals, or specialized experimental environments, negative pressure laboratory containers are not just ventilation systems—they are critical infrastructure for ensuring personnel safety, experimental integrity, and environmental protection.
Through integrated pressure control, gas detection, automatic interlocking, and modular engineering design, TLS provides safer and more reliable negative pressure laboratory container solutions, enabling stable operation even in complex and high-risk environments.
Please download the Laboratory container brochure for reference.
Keywords：#Negative pressure laboratory container, #Laboratory safety system, #Hazardous gas containment solution, #Modular laboratory container, #Industrial mobile laboratory, #Emergency ventilation system, #H2S gas detection system, #Explosion-proof laboratory container, #Controlled airflow laboratory design, #TLS container laboratory solution
During the planning stage of such projects, several essential questions are often raised:
- Why can negative pressure laboratory containers prevent hazardous substances from leaking outward?
- Is negative pressure alone sufficient to guarantee laboratory safety?
- What external environmental factors must be considered during deployment?
- What safety protection mechanisms should a reliable negative pressure laboratory container include?
1. Why Are Negative Pressure Laboratory Containers Increasingly Important?
In many industrial and research scenarios, laboratory processes may involve:
- Toxic and hazardous gases
- Volatile chemical substances
- Corrosive media
- Industrial dust
- Biological contaminants
Therefore, the core objective of laboratory design is not to prevent external intrusion, but to ensure that internal risks do not spread outward.
This is the fundamental value of negative pressure laboratory containers.
Simply put:
- Positive pressure systems prevent external hazards from entering.
- Negative pressure systems prevent internal hazards from escaping.
2. How Does a Negative Pressure Laboratory Container Work?
A negative pressure laboratory container maintains an internal pressure lower than the surrounding environment through continuous exhaust ventilation.
Under this condition:
- External air enters the laboratory through designated intake paths
- Internal air is continuously exhausted through controlled outlets
- The airflow direction remains stable and predictable
Its key benefits include:
- Prevention of hazardous substance leakage
- Reduced cross-contamination risk
- Improved experimental stability
- Enhanced emergency handling capability
3. Why External Environmental Conditions Also Matter
Many assume that maintaining negative pressure alone is sufficient for safety. However, this is not the case.
Even the most advanced negative pressure system is influenced by external environmental conditions.
Therefore, before deployment, the following assessments are typically required:
1. Site Risk Evaluation: Avoid locations near pollution sources or high-risk industrial processes.
2. Environmental Monitoring: Ensure ambient air quality meets safety requirements and contains no abnormal hazardous gases.
3. Safety Isolation Measures: Establish buffer zones or isolation areas when necessary to reduce external interference.
4. Continuous Monitoring: Implement long-term environmental monitoring systems to detect potential risks in time.
From an engineering perspective, a safe laboratory must manage both internal and external environments.
4. Why Personnel Training and Management Are Equally Critical
Even the most advanced system requires correct operation.
Operators of negative pressure laboratory containers should be trained in:
- Working principles of negative pressure systems
- Standard operating procedures
- Alarm response protocols
- Emergency handling procedures
- Basic maintenance and inspection methods
5. How TLS Negative Pressure Laboratory Containers Enhance Safety
In the design of TLS negative pressure laboratory containers, safety is achieved not only through pressure control, but also through multi-layered emergency protection mechanisms.
Normal Operating Mode
During standard operation:
- Small fans operate continuously
- Internal pressure is maintained at approximately -30 Pa to -40 Pa
- Meets routine laboratory ventilation and safety requirements
Emergency Operating Mode
When the system detects:
- Combustible gas alarms
- Hydrogen sulfide (H₂S) threshold alarms
- Emergency high-capacity fans activate
- Internal pressure can drop to approximately -130 Pa
- Rapidly increases exhaust capacity to remove hazardous gases
Automatic Protection Mechanism
If hazardous gas concentration continues to rise:
- High-level alarm is triggered
- Sound and light warnings are activated
- If conditions persist beyond the set threshold, the system automatically cuts off power
Conclusion: Negative Pressure Laboratories Are a System-Level Safety Solution
The value of a negative pressure laboratory container lies not only in creating a pressure differential, but in establishing a complete risk control system.
When selecting or designing such systems, key focus areas should include:
- Pressure stability: Long-term and consistent negative pressure maintenance
- Environmental adaptability: Consideration of site-specific external risks
- Emergency response capability: Automated alarms, ventilation, and interlock systems
- Operational management system: Standardized procedures for long-term safe operation
For projects involving hazardous gases, chemicals, or specialized experimental environments, negative pressure laboratory containers are not just ventilation systems—they are critical infrastructure for ensuring personnel safety, experimental integrity, and environmental protection.
Through integrated pressure control, gas detection, automatic interlocking, and modular engineering design, TLS provides safer and more reliable negative pressure laboratory container solutions, enabling stable operation even in complex and high-risk environments.
Please download the Laboratory container brochure for reference.
Keywords：#Negative pressure laboratory container, #Laboratory safety system, #Hazardous gas containment solution, #Modular laboratory container, #Industrial mobile laboratory, #Emergency ventilation system, #H2S gas detection system, #Explosion-proof laboratory container, #Controlled airflow laboratory design, #TLS container laboratory solution
Written by Snowy
In modern offshore engineering and energy projects, special containers are no longer simple transportation units. They have become mobile fortresses carrying highly sensitive and high-value equipment worth millions of dollars.
Extreme offshore lifting conditions, violent wave-induced motion, and low-temperature brittleness in arctic environments all impose extreme demands on structural integrity.
At TLS Offshore Containers, advanced Finite Element Analysis (FEA) and virtual drop test simulations are integrated early in the design phase. By transforming physical structures into digital models, we can accurately predict stress concentration zones, optimize material usage, and eliminate structural fatigue risks before production begins.
This article explains how TLS applies FEA simulation technology to ensure absolute structural safety and full compliance with DNV 2.7-1 standards in harsh offshore environments.
Key Questions This Article Addresses:
1. What Is Finite Element Analysis (FEA) and Its Role in Container Design?
Finite Element Analysis (FEA) is a numerical simulation method used to approximate the behavior of real-world physical systems under various loads and conditions.
At TLS R&D centers, engineers convert complex 3D CAD models of customized containers into thousands of small elements. These elements are then analyzed under real-world offshore conditions, including:
Before a single steel plate is cut, we already understand how the structure will perform in offshore environments.
2. Offshore Lifting: Structural Response Under Dynamic Impact
One of the most critical risks in offshore operations is offshore lifting (Offshore Lifting), where wave motion causes vessel instability and introduces dynamic amplification effects.
Key Engineering Focus Areas:
2.1 Padeyes and Corner Lifting Points
Padeyes and lifting lugs are the most critical load-bearing components.
Through FEA simulation, TLS evaluates multi-angle lifting conditions to ensure:
2.2 Frame Torsional Resistance Design
During offshore motion, containers experience twisting and shear forces.
FEA helps optimize:
3. Virtual Drop Test: Final Safety Barrier for Explosion-Proof and Energy Containers
For TLS Energy Storage Systems (ESS) and Zone 1 / Zone 2 hazardous area containers, internal equipment such as battery systems and control units are highly sensitive to impact.
3.1 Nonlinear Dynamic Drop Simulation
FEA is used to simulate extreme drop scenarios based on DNV requirements, including:
3.2 Transient Dynamic Analysis
The simulation captures energy transfer within milliseconds after impact.
The goal is to ensure:
4. Business Value: How FEA Improves ROI for Customers
For procurement and project stakeholders, FEA is not just engineering validation—it is a direct driver of cost efficiency and risk reduction.
4.1 Reduced Project Delivery Time
Traditional approach:
4.2 Optimized Structural Weight and Logistics Cost
Traditional approach:
4.3 First-Time Certification Success
Traditional approach:
Conclusion
By integrating Finite Element Analysis (FEA) throughout the entire product development lifecycle, TLS effectively eliminates uncertainty before manufacturing begins.
Key Takeaways:
Keywords :#Finite Element Analysis container design, #Offshore lifting structural analysis, #DNV 2.7-1 compliance containers, #Special offshore containers engineering, #Explosion-proof container design simulation, #Energy storage container FEA analysis, #Virtual drop test simulation container, #Structural optimization offshore containers, #TLS offshore container engineering solutions, #Hazardous area container structural safety
Extreme offshore lifting conditions, violent wave-induced motion, and low-temperature brittleness in arctic environments all impose extreme demands on structural integrity.
At TLS Offshore Containers, advanced Finite Element Analysis (FEA) and virtual drop test simulations are integrated early in the design phase. By transforming physical structures into digital models, we can accurately predict stress concentration zones, optimize material usage, and eliminate structural fatigue risks before production begins.
This article explains how TLS applies FEA simulation technology to ensure absolute structural safety and full compliance with DNV 2.7-1 standards in harsh offshore environments.
Key Questions This Article Addresses:
- What is Finite Element Analysis (FEA) and how is it applied in special container design?
- How does FEA predict and mitigate structural risks during offshore lifting operations?
- How does TLS ensure safety for hazardous area containers through virtual drop test simulation?
- What cost and compliance advantages does FEA bring to customers?
1. What Is Finite Element Analysis (FEA) and Its Role in Container Design?
Finite Element Analysis (FEA) is a numerical simulation method used to approximate the behavior of real-world physical systems under various loads and conditions.
At TLS R&D centers, engineers convert complex 3D CAD models of customized containers into thousands of small elements. These elements are then analyzed under real-world offshore conditions, including:
- Gravity loads
- Wind loads
- Lifting forces
- Temperature effects
- Stress distribution (Stress)
- Deformation behavior (Displacement)
Before a single steel plate is cut, we already understand how the structure will perform in offshore environments.
2. Offshore Lifting: Structural Response Under Dynamic Impact
One of the most critical risks in offshore operations is offshore lifting (Offshore Lifting), where wave motion causes vessel instability and introduces dynamic amplification effects.
Key Engineering Focus Areas:

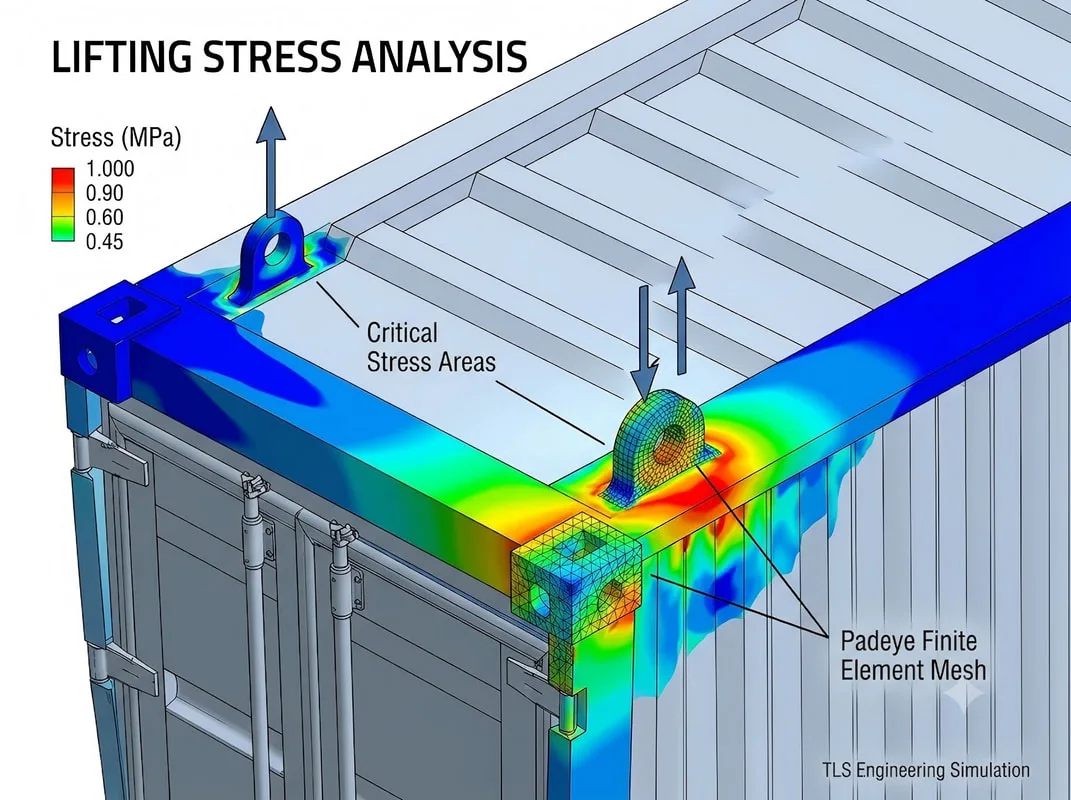

2.1 Padeyes and Corner Lifting Points
Padeyes and lifting lugs are the most critical load-bearing components.
Through FEA simulation, TLS evaluates multi-angle lifting conditions to ensure:
- Von Mises stress remains well below material yield strength
- Welded joints maintain structural integrity under extreme loads
2.2 Frame Torsional Resistance Design
During offshore motion, containers experience twisting and shear forces.
FEA helps optimize:
- Corner post geometry
- Upper frame reinforcement structure
3. Virtual Drop Test: Final Safety Barrier for Explosion-Proof and Energy Containers
For TLS Energy Storage Systems (ESS) and Zone 1 / Zone 2 hazardous area containers, internal equipment such as battery systems and control units are highly sensitive to impact.
3.1 Nonlinear Dynamic Drop Simulation
FEA is used to simulate extreme drop scenarios based on DNV requirements, including:
- Corner drop impact
- Edge drop impact
- Flat surface impact
3.2 Transient Dynamic Analysis
The simulation captures energy transfer within milliseconds after impact.
The goal is to ensure:
- External steel structure absorbs most impact energy through controlled plastic deformation
- Internal equipment compartments remain nearly deformation-free
- Explosion-proof sealing integrity is maintained
- Battery thermal runaway risk is eliminated
4. Business Value: How FEA Improves ROI for Customers
For procurement and project stakeholders, FEA is not just engineering validation—it is a direct driver of cost efficiency and risk reduction.
4.1 Reduced Project Delivery Time
Traditional approach:
- Multiple physical prototypes
- Repeated testing and redesign cycles
- Long engineering lead time
- Parallel digital engineering workflow
- No need for repeated physical iteration
- Over 30% reduction in design and delivery time
4.2 Optimized Structural Weight and Logistics Cost
Traditional approach:
- Over-designed structures for safety margin
- Excess steel usage increases weight
- Higher transportation and lifting costs
- Topology optimization
- Precise material distribution based on stress analysis
- Significant reduction in structural weight and logistics expenses
4.3 First-Time Certification Success
Traditional approach:
- Trial-and-error certification submissions
- Risk of non-compliance and project delays
- Fully digital pre-validation based on DNV 2.7-1 and EN 12079 standards
- Accurate boundary condition modeling
- High probability of first-time approval by classification societies
Conclusion
By integrating Finite Element Analysis (FEA) throughout the entire product development lifecycle, TLS effectively eliminates uncertainty before manufacturing begins.
Key Takeaways:
- Technical Core: FEA enables precise prediction of structural stress, stiffness, and fatigue performance through digital modeling.
- Critical Applications: Offshore lifting load analysis and impact resistance validation for explosion-proof and energy storage containers.
- Customer Value: Shorter delivery cycles, optimized structural weight for reduced logistics cost, and improved compliance success rates with international standards such as DNV 2.7-1.
Keywords :#Finite Element Analysis container design, #Offshore lifting structural analysis, #DNV 2.7-1 compliance containers, #Special offshore containers engineering, #Explosion-proof container design simulation, #Energy storage container FEA analysis, #Virtual drop test simulation container, #Structural optimization offshore containers, #TLS offshore container engineering solutions, #Hazardous area container structural safety
Written by Snowy
Overview
This article evaluates the advanced "MCC Switchgear Pressurised Shelter Solution" designed for heavy-duty industrial, onshore, and offshore environments. By integrating custom-engineered shipping containers with active HVAC pressurization, specialized fire and gas detection, and robust structural compliance, TLS provides an all-in-one plug-and-play solution. This design protects sensitive, non-explosion-proof electrical equipment against harsh climates and hazardous gas atmospheres.
Key Questions Answered in This Guide
The Critical Role of Pressurized Electrical Shelters
In modern industrial landscapes—particularly in offshore oil platforms, maritime operations, and chemical processing facilities—protecting high-value electrical assets is a foundational safety mandate. Systems like Motor Control Centers (MCC), Switchgears, Motor Circuit Protection (MCP), Variable Frequency Drivers (VFD), and Variable Speed Drivers (VSD) form the backbone of field operations.
However, this sophisticated equipment is often non-explosion-proof. When deployed into environments with corrosive sea spray, extreme temperatures, or volatile ambient gases, unshielded electronics are prone to rapid degradation and catastrophic arc-flash triggers.
The "MCC Switchgear Pressurised Shelter Solution.pdf" addresses this vulnerability by housing components within a weather-resistant, walk-in containerized module. By maintaining a positive internal pressure gradient, the shelter mechanically prevents external hazardous gases and dust from infiltrating the clean electrical staging environment.
Technical Specifications and Dimensional Versatility
Engineering flexibility is crucial for adapting to variable deck spaces or onshore footprints. TLS builds its shelters around highly scalable, modular designs that can be altered based on equipment volume and site installation requirements.
The regular module dimensions feature standard configurations with uniform width profiles alongside variable heights (2591 mm or 2896 mm) to accommodate tall switchgear lineups:
Beyond these standard baselines, customized special sizes are frequently engineered to construct dedicated shelter rooms tailored for non-standard or oversized equipment configurations.
Standards, Applications, and Architectural Features
Target System Applications
The shelter operates as a centralized control hub capable of housing a diverse range of critical sub-systems:
Safety and Structural Standards
To withstand aggressive physical handling and high-consequence operational zones, the architectural design complies with strict international benchmarks:
Integrated Life Safety Features
Every module functions as an active safety device featuring an interconnected web of protection mechanisms:
Key Performance Observations and Historical Lessons
Quantifiable Operational Metrics
Field assessments under harsh testing criteria demonstrate the efficiency of this integrated design approach. Comprehensive sea-worthy packing combined with standardized ISO dimensions minimizes transport friction across maritime and road freight channels. On-site deployment timelines indicate that the inclusion of plug-and-play plugin connections, backed by detailed installation manuals, reduces local installation overhead and configuration errors by significant margins when compared to traditional stick-built field rooms.
Aggregated Lessons from Industrial Failures
Historically, the decentralized procurement of individual system components (sourcing enclosures, HVAC, and fire panels from separate vendors) has led to systemic field integration failures. Industry data reveals several common failure modes that this all-in-one solution corrects:
By providing a single-source solution covering everything from initial structural fabrication to final system integration, TLS eliminates these multi-vendor incompatibilities.
Key Takeaways of the TLS Shelter Solution
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressurized electrical shelter, #DNV 2.7-1 switchgear container, #IEC 60079-13 compliance room, #Offshore MCC shelter solution, #Zone 1 hazardous area enclosure, #Containerized VFD shelter, #A60 fire rated module, #Motor Control Center blast shelter, #Plug and play electrical substation container, #Custom offshore switchgear housing
This article evaluates the advanced "MCC Switchgear Pressurised Shelter Solution" designed for heavy-duty industrial, onshore, and offshore environments. By integrating custom-engineered shipping containers with active HVAC pressurization, specialized fire and gas detection, and robust structural compliance, TLS provides an all-in-one plug-and-play solution. This design protects sensitive, non-explosion-proof electrical equipment against harsh climates and hazardous gas atmospheres.
Key Questions Answered in This Guide
- What unique challenges do standard electrical switchgears face in offshore or hazardous environments?
- How do the standard and custom sizing metrics of TLS shelters accommodate complex site constraints?
- What specific structural codes and safety standards govern these localized equipment rooms?
- Why do past operational failures highlight the necessity of integrated turnkey engineering?
The Critical Role of Pressurized Electrical Shelters
In modern industrial landscapes—particularly in offshore oil platforms, maritime operations, and chemical processing facilities—protecting high-value electrical assets is a foundational safety mandate. Systems like Motor Control Centers (MCC), Switchgears, Motor Circuit Protection (MCP), Variable Frequency Drivers (VFD), and Variable Speed Drivers (VSD) form the backbone of field operations.
However, this sophisticated equipment is often non-explosion-proof. When deployed into environments with corrosive sea spray, extreme temperatures, or volatile ambient gases, unshielded electronics are prone to rapid degradation and catastrophic arc-flash triggers.
The "MCC Switchgear Pressurised Shelter Solution.pdf" addresses this vulnerability by housing components within a weather-resistant, walk-in containerized module. By maintaining a positive internal pressure gradient, the shelter mechanically prevents external hazardous gases and dust from infiltrating the clean electrical staging environment.
Technical Specifications and Dimensional Versatility
Engineering flexibility is crucial for adapting to variable deck spaces or onshore footprints. TLS builds its shelters around highly scalable, modular designs that can be altered based on equipment volume and site installation requirements.
The regular module dimensions feature standard configurations with uniform width profiles alongside variable heights (2591 mm or 2896 mm) to accommodate tall switchgear lineups:
- 15ft Module Dimensions: Length of 4572 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.
- 20ft Module Dimensions: Length of 6058 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.
- 40ft Module Dimensions: Length of 12096 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.
Beyond these standard baselines, customized special sizes are frequently engineered to construct dedicated shelter rooms tailored for non-standard or oversized equipment configurations.
Standards, Applications, and Architectural Features
Target System Applications
The shelter operates as a centralized control hub capable of housing a diverse range of critical sub-systems:
- Medium Voltage (MV) and Low Voltage (LV) switchgears are arranged in fixed, compartmentalized, or withdrawable units.
- Centralized control panels incorporating Programmable Logic Controllers (PLC), MCC, and remote monitoring/operation infrastructure.
- Auxiliary field equipment essential to localized power distribution.
Safety and Structural Standards
To withstand aggressive physical handling and high-consequence operational zones, the architectural design complies with strict international benchmarks:
- Structural Integrity: Built in accordance with DNV2.7-1 and EN12079 structural design codes. The inclusion of dedicated ISO corner castings and integrated pad-eyes guarantees secure crane and vessel handling during onshore or offshore loading operations.
- Hazardous Zone: Certified for installation across Safe Areas, Zone 2, and Zone 1 hazardous environments.
- Electrical & Thermal Compliance: Complies strictly with the IEC60079-13 standard for pressurized room protection. Thermal and passive fire safety is reinforced with an A60-rated passive fire protection barrier.
Integrated Life Safety Features
Every module functions as an active safety device featuring an interconnected web of protection mechanisms:
- Environmental Controls: Heavy-duty HVAC systems paired with automatic, fail-safe fire dampers manage temperature and airflow.
- Monitoring Systems: A unified, combined pressurization fire and gas panel works continuously alongside dedicated fire and gas detection hardware.
- Personnel Security: Entryways are secured with specialized air-lock door systems to prevent pressure loss during entry/exit, while emergency egress is supported via a built-in escape hatch and onboard fire extinguishers.
- Infrastructure Utilities: Outfitted with baseline internal electrical cabling, high-visibility lighting systems, and utility sockets.
Key Performance Observations and Historical Lessons
Quantifiable Operational Metrics
Field assessments under harsh testing criteria demonstrate the efficiency of this integrated design approach. Comprehensive sea-worthy packing combined with standardized ISO dimensions minimizes transport friction across maritime and road freight channels. On-site deployment timelines indicate that the inclusion of plug-and-play plugin connections, backed by detailed installation manuals, reduces local installation overhead and configuration errors by significant margins when compared to traditional stick-built field rooms.
Aggregated Lessons from Industrial Failures
Historically, the decentralized procurement of individual system components (sourcing enclosures, HVAC, and fire panels from separate vendors) has led to systemic field integration failures. Industry data reveals several common failure modes that this all-in-one solution corrects:
- Loss of positive pressure containment due to misaligned door seals or uncoordinated HVAC pressure balancing.
- Delayed fire damper actuation caused by communication lag between third-party gas detectors and main control relays.
- Premature structural buckling or corrosion failure around lift points on non-certified containers during high-seas transfers.
By providing a single-source solution covering everything from initial structural fabrication to final system integration, TLS eliminates these multi-vendor incompatibilities.
Key Takeaways of the TLS Shelter Solution
- Comprehensive Protection: Protects standard, non-explosion-proof electronics from destructive external climates and hazardous vapors.
- Rigorous Certification: Built to satisfy DNV2.7-1, EN12079, A60 fire ratings, and IEC60079-13 international standards.
- Flexible Engineering: Available in standard 15ft, 20ft, and 40ft frames, as well as customized footprints tailored to specific project needs.
- Turnkey Delivery: Streamlines field deployment via integrated plugin interfaces and single-source design-to-fabrication quality control.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Pressurized electrical shelter, #DNV 2.7-1 switchgear container, #IEC 60079-13 compliance room, #Offshore MCC shelter solution, #Zone 1 hazardous area enclosure, #Containerized VFD shelter, #A60 fire rated module, #Motor Control Center blast shelter, #Plug and play electrical substation container, #Custom offshore switchgear housing
