​Overview
This comprehensive guide explores the specialized design, safety standards, and technical specifications of portable laboratory containers used in offshore environments. It highlights how advanced engineering, such as positive pressure systems, explosion-proof electricals, and rigorous marine certifications, addresses critical challenges in maritime and petroleum laboratory operations.

Key Questions Answered in This Article

1. What are the core safety mechanisms required for an offshore laboratory container?
2. How do positive pressure systems protect personnel from hazardous gases?
3. What international certification standards apply to maritime modular labs?
4. What structural and internal specifications ensure operational efficiency in extreme climates?

Enhancing Offshore Operational Safety: A Strategic Overview
Operating a laboratory on an offshore rig or maritime vessel presents unique structural and environmental hurdles. Standard modular units lack the necessary reinforcement to withstand marine transit and explosive ambient atmospheres. Field testing and historical deployment insights indicate that standard commercial HVAC units consistently fail in offshore environments due to salt spray corrosion and lack of active pressure management. High-risk operations require ruggedized, self-contained units capable of maintaining architectural integrity while keeping internal workforces completely isolated from volatile external environments.

Advanced Structural Resilience and Certifications
Offshore container laboratories must serve as certified survival cells as well as workspaces. Data from maritime logistics confirms that typical transport containers suffer rapid structural degradation when subjected to multi-axis marine motion and extreme thermal cycles. To mitigate these risks, specialized units utilize heavy-duty manufacturing tailored to demanding transport requirements across road, rail, and sea (both above and below deck).

• Certified Marine Frameworks: Premium systems are fully built to meet DNV 2.7-1 and EN12079 structural standards, alongside CSC plating for global shipping compliance.
• Extreme Thermal Tolerance: All construction materials undergo testing to withstand extreme temperature ranges from -20℃ to +60℃ without suffering loss of basic structural strength or watertight integrity.
• Passive Fire Protection: Structural fire boundaries feature verified A0 or A60 fire ratings, complemented by integrated A60 fire dampers to isolate ventilation paths during an emergency.

Active Safety Systems: Positive Pressure and Explosion Proofing
The primary hazard in offshore petroleum and chemical analysis is the accumulation of flammable or toxic vapors. Past engineering failures demonstrate that simple exhaust fans are inadequate for offshore labs; without active positive displacement, hazardous external gases can easily infiltrate the space during door operations.

• Positive Pressure Control: The internal environment maintains an active positive pressure system. This continuous airflow gradient prevents external hazardous gases from entering while effectively discharging internal flammable or explosive vapors generated during laboratory testing.
• Explosion-Proof (Ex) Infrastructure: To prevent electrical arcing from igniting ambient fumes, the entire container is equipped with explosion-proof electrical facilities, including Ex-rated lighting, switches, sockets, and heavy-duty cabling. Systems can also be configured to meet ATEX and IECEx standards upon request.
• Atmospheric Monitoring & Isolation: Safety is maintained through an autonomous fire, gas, and smoke detection system paired with a physical airlock entryway to preserve internal pressure stability.

Turnkey Internal Infrastructure and Ergonomics
Beyond life-safety features, an offshore laboratory must function as an efficient, self-contained workstation. Optimization data shows that quick-connect utility modules reduce hookup downtime by up to 70% compared to field-wired alternatives.

• Independent Climate Control: Spaces feature a self-contained Heating, Ventilation, and Air Conditioning (HVAC) system engineered with fast-plug connections for immediate coupling to the rig’s primary power supply.
• Chemical-Resistant Workstations: Internal fitouts include acid- and alkali-resistant anti-static workbenches, explosion-proof fume hoods, and integrated stainless steel sink units with raised edges, large basin areas, and emergency eye washers.
• Digital & Logistics Integration: Work desks are pre-wired with local area network (LAN) access and phone connections. The flooring utilizes high-durability anti-slip materials to secure operations during rough seas.
• Scalability and Footprint: Modules are designed for space-constrained environments with built-in features for easy vertical stacking, and are available in standard 10ft, 20ft, or fully customized dimensions.

Conclusion

Core Takeaways

• Primary Function: TLS containerized solutions deliver movable, self-contained laboratories optimized for blast resistance, petroleum analysis, and general offshore applications.
• Critical Protection: Safety is maintained via structural A60 fire ratings, dedicated airlocks, autonomous gas detection, and an active internal positive pressure system to displace volatile vapors.
• Compliance Standards: Built to satisfy global maritime and offshore benchmarks, including DNV 2.7-1, EN12079, CSC plating, and ATEX/IECEx explosion-proof criteria.
• Operational Readiness: Engineered for rapid integration, featuring fast-plug utility hookups for rig power and water, extreme climate shielding (-20℃ to +60℃), and stackable spatial footprints.

TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.

Please download the Laboratory container brochure for reference.

​
Keywords: #Offshore laboratory container, #Positive pressure container, #DNV 2.7-1 container, #Explosion proof modular lab, #A60 fire rated portable laboratory, #Mobile petroleum laboratory solutions, #Marine certified laboratory cabins, #ATEX certified containerized labs, #Prefabricated petroleum lab unit

Overview
This article evaluates the advanced "MCC Switchgear Pressurised Shelter Solution" designed for heavy-duty industrial, onshore, and offshore environments. By integrating custom-engineered shipping containers with active HVAC pressurization, specialized fire and gas detection, and robust structural compliance, TLS provides an all-in-one plug-and-play solution. This design protects sensitive, non-explosion-proof electrical equipment against harsh climates and hazardous gas atmospheres.

Key Questions Answered in This Guide

1. What unique challenges do standard electrical switchgears face in offshore or hazardous environments?
2. How do the standard and custom sizing metrics of TLS shelters accommodate complex site constraints?
3. What specific structural codes and safety standards govern these localized equipment rooms?
4. Why do past operational failures highlight the necessity of integrated turnkey engineering?

The Critical Role of Pressurized Electrical Shelters
In modern industrial landscapes—particularly in offshore oil platforms, maritime operations, and chemical processing facilities—protecting high-value electrical assets is a foundational safety mandate. Systems like Motor Control Centers (MCC), Switchgears, Motor Circuit Protection (MCP), Variable Frequency Drivers (VFD), and Variable Speed Drivers (VSD) form the backbone of field operations.

However, this sophisticated equipment is often non-explosion-proof. When deployed into environments with corrosive sea spray, extreme temperatures, or volatile ambient gases, unshielded electronics are prone to rapid degradation and catastrophic arc-flash triggers.

The "MCC Switchgear Pressurised Shelter Solution.pdf" addresses this vulnerability by housing components within a weather-resistant, walk-in containerized module. By maintaining a positive internal pressure gradient, the shelter mechanically prevents external hazardous gases and dust from infiltrating the clean electrical staging environment.

Technical Specifications and Dimensional Versatility
Engineering flexibility is crucial for adapting to variable deck spaces or onshore footprints. TLS builds its shelters around highly scalable, modular designs that can be altered based on equipment volume and site installation requirements.

The regular module dimensions feature standard configurations with uniform width profiles alongside variable heights (2591 mm or 2896 mm) to accommodate tall switchgear lineups:

• 15ft Module Dimensions: Length of 4572 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.
• 20ft Module Dimensions: Length of 6058 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.
• 40ft Module Dimensions: Length of 12096 mm, width of 2438 mm, and heights of either 2591 mm or 2896 mm.

Beyond these standard baselines, customized special sizes are frequently engineered to construct dedicated shelter rooms tailored for non-standard or oversized equipment configurations.

Standards, Applications, and Architectural Features

Target System Applications
The shelter operates as a centralized control hub capable of housing a diverse range of critical sub-systems:

• Medium Voltage (MV) and Low Voltage (LV) switchgears are arranged in fixed, compartmentalized, or withdrawable units.
• Centralized control panels incorporating Programmable Logic Controllers (PLC), MCC, and remote monitoring/operation infrastructure.
• Auxiliary field equipment essential to localized power distribution.

Safety and Structural Standards
To withstand aggressive physical handling and high-consequence operational zones, the architectural design complies with strict international benchmarks:

• Structural Integrity: Built in accordance with DNV2.7-1 and EN12079 structural design codes. The inclusion of dedicated ISO corner castings and integrated pad-eyes guarantees secure crane and vessel handling during onshore or offshore loading operations.
• Hazardous Zone: Certified for installation across Safe Areas, Zone 2, and Zone 1 hazardous environments.
• Electrical & Thermal Compliance: Complies strictly with the IEC60079-13 standard for pressurized room protection. Thermal and passive fire safety is reinforced with an A60-rated passive fire protection barrier.

Integrated Life Safety Features
Every module functions as an active safety device featuring an interconnected web of protection mechanisms:

• Environmental Controls: Heavy-duty HVAC systems paired with automatic, fail-safe fire dampers manage temperature and airflow.
• Monitoring Systems: A unified, combined pressurization fire and gas panel works continuously alongside dedicated fire and gas detection hardware.
• Personnel Security: Entryways are secured with specialized air-lock door systems to prevent pressure loss during entry/exit, while emergency egress is supported via a built-in escape hatch and onboard fire extinguishers.
• Infrastructure Utilities: Outfitted with baseline internal electrical cabling, high-visibility lighting systems, and utility sockets.

Key Performance Observations and Historical Lessons

Quantifiable Operational Metrics
Field assessments under harsh testing criteria demonstrate the efficiency of this integrated design approach. Comprehensive sea-worthy packing combined with standardized ISO dimensions minimizes transport friction across maritime and road freight channels. On-site deployment timelines indicate that the inclusion of plug-and-play plugin connections, backed by detailed installation manuals, reduces local installation overhead and configuration errors by significant margins when compared to traditional stick-built field rooms.

Aggregated Lessons from Industrial Failures
Historically, the decentralized procurement of individual system components (sourcing enclosures, HVAC, and fire panels from separate vendors) has led to systemic field integration failures. Industry data reveals several common failure modes that this all-in-one solution corrects:

• Loss of positive pressure containment due to misaligned door seals or uncoordinated HVAC pressure balancing.
• Delayed fire damper actuation caused by communication lag between third-party gas detectors and main control relays.
• Premature structural buckling or corrosion failure around lift points on non-certified containers during high-seas transfers.

By providing a single-source solution covering everything from initial structural fabrication to final system integration, TLS eliminates these multi-vendor incompatibilities.

Key Takeaways of the TLS Shelter Solution

• Comprehensive Protection: Protects standard, non-explosion-proof electronics from destructive external climates and hazardous vapors.
• Rigorous Certification: Built to satisfy DNV2.7-1, EN12079, A60 fire ratings, and IEC60079-13 international standards.
• Flexible Engineering: Available in standard 15ft, 20ft, and 40ft frames, as well as customized footprints tailored to specific project needs.
• Turnkey Delivery: Streamlines field deployment via integrated plugin interfaces and single-source design-to-fabrication quality control.


TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.

Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter


Keywords: #Pressurized electrical shelter, #DNV 2.7-1 switchgear container, #IEC 60079-13 compliance room, #Offshore MCC shelter solution, #Zone 1 hazardous area enclosure, #Containerized VFD shelter, #A60 fire rated module, #Motor Control Center blast shelter, #Plug and play electrical substation container, #Custom offshore switchgear housing

There's a number the industry rarely says out loud: roughly 90% of liquid cooling failures trace back to the piping system. Not the CDU. Not the cold plates. The pipes, fittings, and the connections between them. Understanding why — and how the same failure modes migrate into Battery Energy Storage System (BESS) thermal management — is essential for anyone designing infrastructure where heat removal is mission-critical.

The Hidden Failure Chain in Liquid Cooling
Most cooling incidents don't announce themselves dramatically. They begin quietly: a fitting that wasn't torqued to spec, a weld with a hairline defect, a pocket of trapped air causing a water hammer event at 2 AM. By the time the leak is visible, a cascade is already in motion — downtime, equipment damage, and replacement costs that dwarf what proper design would have cost.
The root cause is almost always a gap between disciplines. HVAC engineers understand fluid dynamics but not the uptime requirements of critical infrastructure. Data center operators know their SLAs but not pipe schedules. BESS integrators, under pressure to hit energy density targets, often treat thermal management as a secondary system — until it isn't.

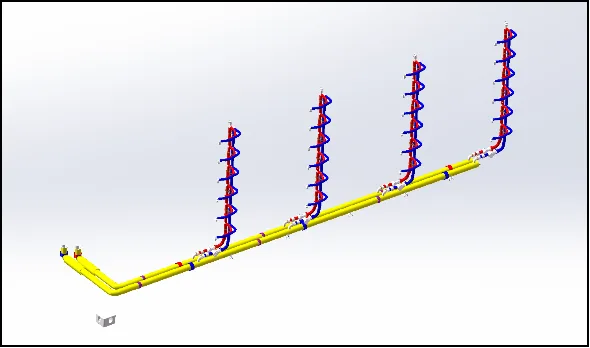

Material Selection: Getting the Foundation Right
Three material families dominate liquid cooling piping, each with a specific role:
Stainless steel (304/316L) is the backbone of primary circuits. With a service life exceeding 20 years and excellent corrosion resistance, 316L is the preferred choice where chloride exposure is a risk — common in coastal BESS installations. The trade-off is weight and cost.
Specialty thermoplastic pipe (PP-R) handles secondary, low-pressure circuits effectively. It's roughly one-third to one-half the cost of stainless, installs quickly via heat fusion, and presents low flow resistance. But it's pressure-limited (generally PN ≤ 2.0 MPa) and degrades above 70°C — a constraint that matters in high-density BESS configurations where ambient temperatures inside enclosures can spike.
Flexible braided hose absorbs vibration and compensates for thermal expansion at equipment connection points. Quality matters enormously here; substandard liners develop microcracks within months.
A reliable combination: 316L stainless for main runs, PP-R for branch circuits, and stainless braided flex at CDU and battery module interfaces.

Fittings Are Where Leaks Live
Over 60% of piping leaks originate at joints. Compression fittings require torque wrenches and manufacturer-specified values — under-tightened fittings seep, over-tightened ones deform. Flanged connections above DN50 need EPDM gaskets (rated –40°C to +150°C) tightened in a cross-pattern across three passes. Field welds demand 100% radiographic or dye-penetrant inspection on critical joints; weld quality is highly dependent on the welder, ambient wind, and humidity at the time of execution.

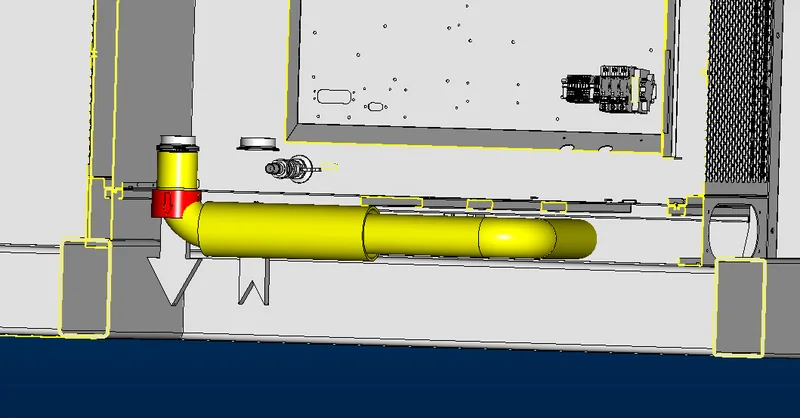

Sizing, Slope, and the Air Problem
Flow velocity dictates both efficiency and longevity. In primary circuits (CDU to dry cooler), target 1.5–3.0 m/s. Secondary circuits (CDU to rack or battery module) run better at 0.5–1.5 m/s. A useful first estimate: pipe diameter (mm) ≈ √(flow rate in L/min ÷ 0.3).
Trapped air is the silent degrader. Bubbles reduce heat transfer, cause flow imbalance, and damage pump impellers through cavitation. Every high point in the circuit needs an automatic air vent. Pipe runs should slope upward at least 0.3% in the direction of flow. At system commissioning, fill at 30% of design flow rate and hold for two to four hours before ramping up — rushing this step embeds micro-bubbles that are nearly impossible to purge later.

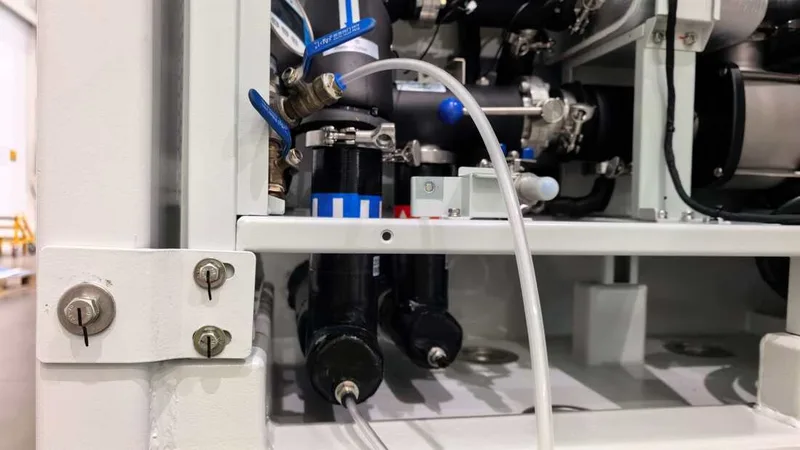

Applying This to BESS Thermal Management
Battery cells are far less forgiving than servers. A lithium-ion cell operating outside its thermal window — typically 15°C to 35°C — degrades faster, loses capacity, and in extreme cases enters thermal runaway. The TMS for a BESS is therefore not comfort infrastructure; it is a safety system.

Liquid cooling architectures for BESS fall into two main configurations: direct cold-plate cooling (coolant channels integrated into module housings) and indirect liquid cooling with a secondary glycol-water loop. The latter is more common at utility scale, using a circuit architecture nearly identical to data center liquid cooling — CDU-equivalent, distribution manifolds, and per-rack (per-module) supply and return.
Key BESS-specific TMS design considerations:

• Cell-level temperature uniformity matters more than average temperature. A ΔT above 5°C across a module accelerates imbalanced aging and capacity fade. Piping design must ensure balanced flow to every module — this requires careful manifold geometry and, in larger systems, pressure-independent control valves per branch.
• Freeze protection is non-negotiable for outdoor BESS enclosures. Glycol concentration must be sized for the site's design minimum ambient temperature, with a safety margin. Pipe routing within enclosures should minimize exposure to cold zones, and heat tracing may be required in extreme climates.
• Vibration isolation is more demanding than in static data center environments. BESS containers on skids or floating foundations experience movement; all module connections need flexible elements and adequate support spacing to prevent fatigue failure.
• Leak detection integration should be specified at the system level, not added as an afterthought. BESS enclosures typically have limited drainage paths; even a small leak can accumulate and create electrical hazards. Sensor strips beneath manifolds and at low points, tied to automatic shutoff valves, are standard practice in well-designed systems.
• CDU sizing follows the same logic as data center applications: total battery pack heat rejection capacity × 1.1–1.2 safety factor, with redundant pump sets (N+1 minimum) and dual CDU configurations for systems above 1 MWh.

Periodically Inspection Protocol
Regardless of application — data center or BESS — the maintenance discipline is the same. Visually inspect all visible fittings for crystalline deposits or moisture. Check flexible hose for bulging or surface cracking, especially at attachment points. Confirm automatic air vents are cycling correctly. Log CDU inlet/outlet temperatures, flow rates, and pressures against baseline. Verify expansion tank levels. Listen to pumps for cavitation noise or bearing roughness. Test coolant conductivity and pH monthly.
Thermal management is not a set-and-forget system. The infrastructure that moves heat away from billions of dollars of batteries and compute deserves the same engineering rigor as the assets it protects.
