How to Specify a Transformer Container for a Remote Industrial Power Project

Short Summary

A transformer container should be specified as an electrical and thermal system, not as a box around a transformer. The RFQ must define the transformer type and rating, voltage interfaces, losses, cooling, protection, earthing, fire strategy, noise limits, transport envelope, maintenance access, site installation and test scope. TLS can configure the enclosure and integrate agreed equipment, but the final arrangement depends on supplier data and project studies.

The Short Answer

To specify a transformer container, give the supplier enough information to size the transformer, remove its heat, connect it safely, protect it, transport it and maintain it at the destination.

At minimum, define:

transformer type, rated power, voltages, frequency and vector group;
continuous and cyclic load profile;
no-load and load losses or guaranteed efficiency requirements;
site ambient, altitude, dust, humidity and corrosion exposure;
ventilation or mechanical-cooling philosophy;
MV and LV cable or busduct interfaces;
protection, controls, interlocks and communications;
earthing and bonding;
fire and oil-containment requirements;
noise limits and measurement basis;
transport, lifting and site-access constraints;
maintenance and equipment-replacement routes; and
FAT, site acceptance and commissioning responsibilities.

TLS can supply a high-spec enclosure or a more integrated, factory-tested power module. The quotation should state exactly which transformer, switchgear, auxiliary, control and site functions are included.

Define the Electrical Duty First

The transformer rating cannot be selected from peak kilowatts alone. The designer needs apparent power in kVA or MVA, power factor, load profile, expected overloads, harmonic content, phase balance, motor starting, generator behavior and future expansion.

For a remote mine, oilfield, microgrid, renewable plant or data facility, the operating modes can differ substantially. The transformer may connect a utility, diesel generation, BESS, variable-speed drives or large rectifier loads. Each source and load changes thermal duty, fault contribution, harmonics and protection coordination.

The RFQ should state whether the required rating is continuous, cyclic, standby or emergency. It should also identify the governing worst case: maximum ambient, low-voltage operation, harmonic loading, loss of one cooling unit, future load growth or another defined contingency.

Choose the Transformer Type

Dry type transformer

Dry-type transformers avoid insulating-liquid inventory and are commonly considered for enclosed electrical rooms. Their enclosure performance depends strongly on cooling air, altitude, contamination and recirculation. IEC 60076-11 applies to dry-type power transformers within its stated voltage and rating scope and addresses enclosure, dielectric, thermal, climatic, environmental, fire-behavior and seismic considerations.

A dry-type unit still produces substantial heat and requires fire, noise, clearance and maintenance assessment. “Dry type” does not mean no ventilation, no fire risk or no environmental controls.

Liquid immersed transformer

Liquid-immersed transformers may offer different efficiency, thermal capacity and footprint characteristics. Their use inside or adjacent to a container requires attention to insulating-fluid type, tank ventilation, leak detection, bunding or drainage, pressure relief, fire separation and replacement access.

If the transformer is installed in an open-sided or externally accessible compartment, the supplier should still assess weather, dust, solar load, corrosion, animal ingress and safe working clearances.

The buyer should nominate the transformer supplier where required, or specify the performance criteria, standards, acceptable liquids, efficiency, impedance, tapping and accessories that TLS must coordinate.

Specify Capacity Voltage and Impedance

Provide the rated power, primary and secondary voltage, highest voltage for equipment, frequency, phases, vector group, neutral arrangement, tap range and tap method. State whether an off-circuit tap changer or on-load tap changer is required.

Transformer impedance influences fault current, voltage regulation and parallel operation. It should be coordinated with upstream and downstream switchgear ratings and the protection study. If transformers will operate in parallel, give the existing or proposed transformer data and sharing requirements.

Do not leave the LV current as an afterthought. At multi-megawatt ratings, low-voltage current can drive busduct selection, cable quantity, termination space, enclosure width, heat load and installation sequence.

Use Guaranteed Losses for Thermal Design

The enclosure thermal calculation should use guaranteed no-load loss and load loss at the specified reference condition, plus heat from switchgear, busbars, control panels, UPS, lighting and other equipment. If guaranteed losses are not yet available, the design must identify the provisional values and margin.

The heat-rejection design should cover:

normal continuous duty;
maximum specified ambient and solar gain;
altitude correction;
dirty-filter or degraded-ventilation conditions;
permitted internal temperature rise;
transformer and equipment temperature limits; and
the required response to fan or cooling failure.

A transformer nameplate rating achieved in an open test bay may not be available inside an enclosure without appropriate ventilation or derating. IEC 62271-202 specifically addresses enclosed prefabricated substations within its scope and recognizes the effect of the enclosure and installation conditions on equipment performance.

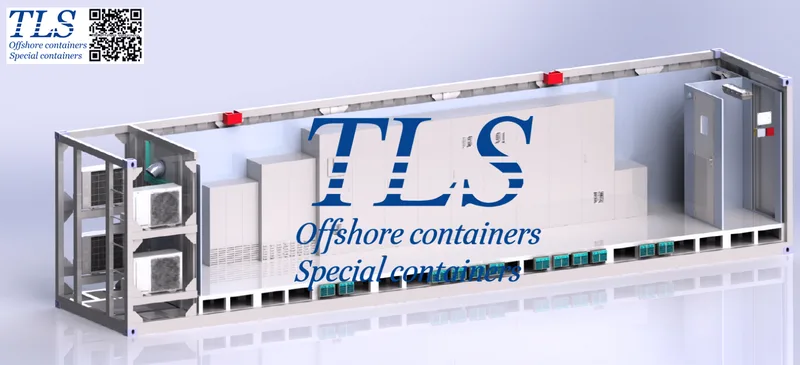

Design the Ventilation or Cooling System Around Losses

Natural ventilation can be simple, but it needs sufficient inlet and outlet area, a dependable stack effect and a site environment that will not rapidly block filters or contaminate equipment.

Mechanical ventilation provides more control but adds auxiliary demand, fans, filters, dampers, controls, alarms and maintenance.

Air-conditioning is not automatically the correct solution for a transformer compartment. The sensible heat load can be high, and recirculated air can create local hot spots if airflow is poorly distributed. Some projects use a separated transformer zone with high-volume filtered ventilation and an air-conditioned switchgear or control zone.

The RFQ should define whether cooling equipment requires redundancy, variable-speed control, emergency power, low-temperature heating, sand or snow protection, washable filters, remote alarms and safe maintenance while energized.

Computational fluid dynamics may be appropriate when the layout is tight, losses are high or airflow paths are complex. The need and acceptance criteria should be agreed during engineering.

Define MV and LV Interfaces

For each interface, state voltage, current, fault rating, connection type, cable construction, conductor material, number and size of cables, minimum bend radius, gland or transit system and entry direction.

MV interfaces may use cable terminations into switchgear, a ring main unit or the transformer. LV interfaces may use cables, busduct or busbars. The choice affects structural supports, fire sealing, electromagnetic forces, segregation, installation access and shipment splits.

The supplier also needs the cable-pulling direction and site sequence. A technically adequate termination can still be impractical if there is no room for pulling equipment, stress-cone installation, phase transposition or future cable replacement.

External flanges, busduct sections and site joints require tolerance and survey data. Clearly define which party supplies mating parts, flexible links, glands, terminations, supports and final connections.

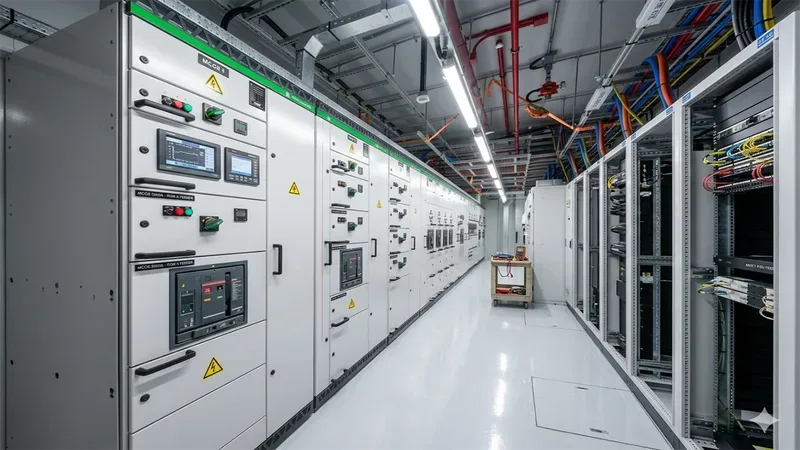

Coordinate Protection Controls and Interlocks

The protection philosophy should come from the project single-line diagram, grounding method and coordination study. Possible functions include transformer differential, restricted earth fault, overcurrent, earth fault, temperature, pressure or gas protection for liquid-filled units, winding or core temperature alarms and cooling supervision.

The scope may also include MV switchgear, LV switchboards, arc-fault mitigation, local control panels, metering, UPS or DC supply, annunciation, remote I/O and communications gateways. These are project options, not a universal standard package.

Define every trip path and permissive. Examples include transformer trip from high temperature, upstream breaker opening from differential protection, fan start from temperature, door or access interlocks, emergency stop and remote reset restrictions. State the required fail-safe position and loss-of-control-power behavior.

The owner should provide protocol requirements, point lists, time synchronization, cybersecurity rules and the division between local PLC, protection relays and site SCADA.

Engineer Earthing and Bonding

State the system earthing arrangement for each voltage level and identify whether the transformer neutral is solidly grounded, resistance grounded, reactance grounded or isolated. Provide the site earth-grid design values or the inputs needed for the grounding study.

The container should include an internal protective bonding network for the enclosure, doors, equipment frames, cable trays, HVAC and other conductive parts. External earth bosses or bars must be accessible after installation. Neutral grounding equipment, surge arresters and cable-screen bonding should be included only where the agreed electrical design requires them.

Touch and step voltage, transferred potential and lightning protection are site-level issues. The container bonding design must connect to, but cannot replace, the site's grounding assessment.

Define the Fire Strategy

The fire strategy depends on transformer type, insulating liquid, occupancy, surrounding assets, site emergency response and authority requirements. It may address detection, alarm, ventilation shutdown, fire-rated separation, extinguishing, oil containment, drainage and external firefighting access.

For a liquid-filled transformer, specify the fluid volume and classification, containment capacity, leak-monitoring philosophy and route for pressure or liquid release. For dry-type equipment, specify the applicable fire-behavior requirement and the treatment of nearby combustible materials.

Fire suppression should not be selected by container size alone. The extinguishing agent, protected volume, ventilation interlock, pressure relief, personnel exposure and post-discharge recovery all require project review.

Control Noise at the Source and at the Boundary

Transformer sound can include tonal components that remain noticeable even when the overall level appears acceptable. Fans, louvers and structural vibration can add to the result.

Define the required sound pressure or sound power limit, measurement distance, operating condition, background correction and whether the criterion applies at the container surface, site boundary or nearest receiver. Acoustic treatment can affect ventilation pressure drop and heat rejection, so noise and cooling must be engineered together.

If a strict site-boundary limit applies, provide the site layout and other noise sources. The container supplier cannot verify a complete site noise model from equipment data alone.

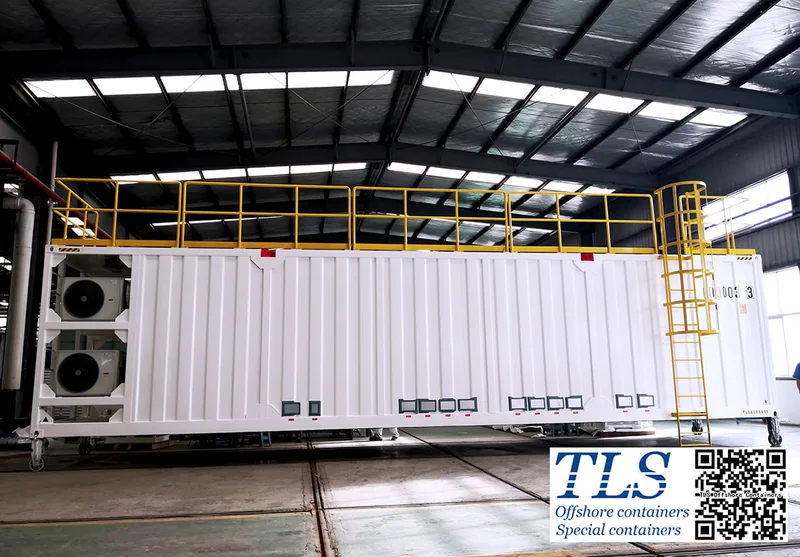

Design for Transport and Replacement

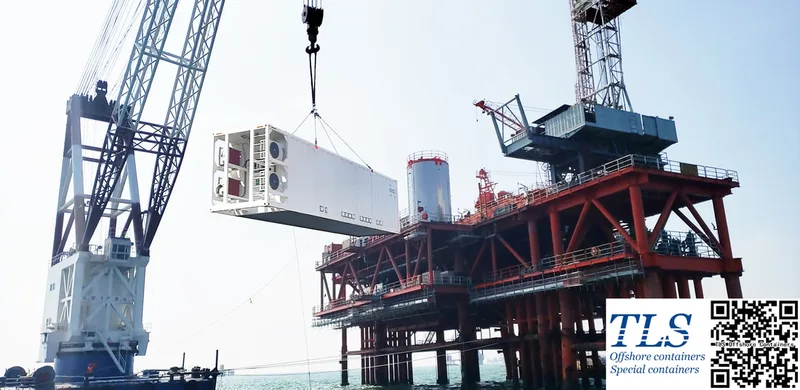

Remote projects often face road axle limits, bridge restrictions, port handling constraints, seasonal access or small site cranes. Give the maximum shipping dimensions and mass, permitted center of gravity, lifting method, acceleration criteria and whether the transformer ships installed or separately.

An installed transformer subjects its supports, restraints, bus connections and enclosure to transport loads. A separately shipped transformer requires a field installation route, temporary weather protection, alignment method and site test plan.

Provide the route survey and lifting study requirements early. Final shipping mass, center of gravity, lifting points and foundation reactions must be confirmed from the approved equipment and structural design.

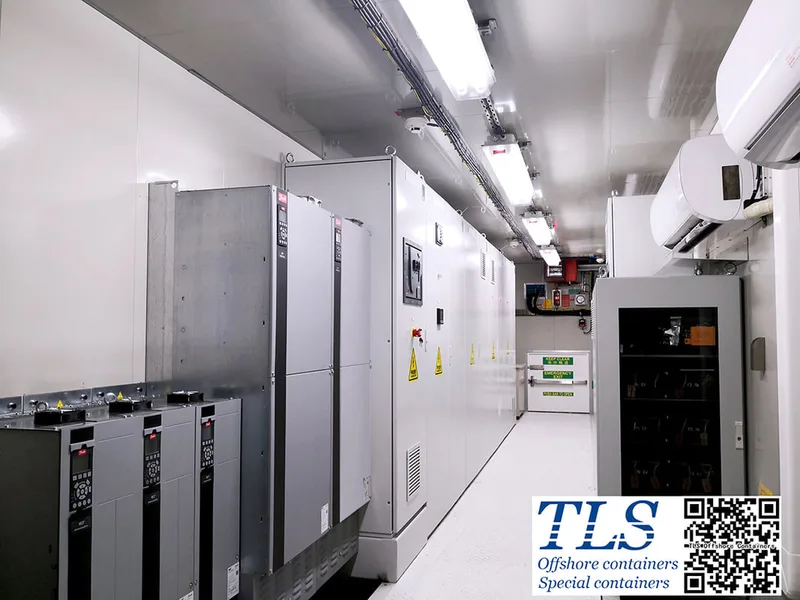

Protect Maintenance Access

The layout should show safe operating aisles, door swings, cable-work zones, fan and filter access, relay testing positions and routes for removing the largest maintainable item.

Clearances must account for energized parts, internal arc strategy where applicable, equipment doors and withdrawal paths.

The design should also consider:

transformer coil or tank inspection;
tap changer and accessory access;
temperature-sensor replacement;
fan and filter removal;
sampling or fluid handling for liquid-filled units;
breaker or fuse withdrawal;
cable termination work; and
eventual transformer replacement.

A remote site benefits from condition monitoring only when sensors, communications, spares and local maintenance capability form a practical support plan.

Define Site Installation Before Factory Design Is Frozen

The container foundation must support operating, transport, wind, seismic and equipment loads as applicable. The site design should state support points, allowable deflection, anchoring, drainage, flood level, cable trench or above-ground cable routes and required fire separation.

The installation plan should define offloading, lifting, temporary storage, weather protection, alignment, grounding, external cable and bus connections, ventilation clearances, oil filling if applicable and pre-energization inspections.

TLS can provide project-specific foundation reactions and interface drawings after the equipment and structural arrangement are approved. These should not be assumed from a previous container of similar size.

Agree the FAT and SAT Scope

The FAT should distinguish tests already completed by the transformer and switchgear manufacturers from tests performed after integration. Depending on scope and available facilities, integrated checks can include visual and dimensional inspection, wiring continuity, insulation resistance, protection-relay secondary injection, control logic, alarms, interlocks, fan operation, communications and functional simulation.

Primary injection, full-load heat-run, high-voltage testing or complete system energization may require special facilities and should not be assumed. The inspection and test plan should identify test method, acceptance criteria, witness points, simulators, temporary supplies and records.

The site acceptance and commissioning plan can include receipt inspection, assembly checks, grounding verification, cable tests, protection checks, transformer tests after transport, phase rotation, auxiliary-power checks, SCADA point-to-point testing, energization and monitored loading. Assign each activity to TLS, the equipment supplier, EPC, commissioning contractor or owner.

Buyer Inputs for a Useful RFQ

Include these documents and data:

project single-line diagram and load list;
operating modes, load profile, power factor, harmonics and motor-starting data;
transformer type, rating, voltages, frequency, vector group, impedance and tapping;
guaranteed or provisional losses and efficiency requirements;
fault levels and protection-coordination basis;
MV and LV switchgear scope and interface details;
cable or busduct schedules and entry directions;
control philosophy, interlock list, point list and communications protocol;
site earthing and lightning-protection basis;
fire, oil-containment and emergency-response requirements;
noise criteria and measurement location;
site ambient, altitude, solar, humidity, dust, salt, seismic and corrosion data;
enclosure ingress-protection and coating requirements;
auxiliary voltage, frequency, backup and redundancy requirements;
transport route, lifting limits and installation method;
maintenance clearances and replacement strategy;
applicable codes, certificates and authority requirements;
FAT, SAT, documentation, spares and training requirements; and
destination, schedule and Incoterms.

TLS engineering should confirm the transformer and component selection, thermal calculation, ventilation duty, electrical ratings, protection logic, fire arrangement, acoustic treatment, shipping condition, total mass, center of gravity, lifting, foundation loads and final certification scope.

Frequently Asked Questions

Can TLS supply only the transformer enclosure

Yes. TLS can provide a configurable high-spec enclosure for buyer or EPC integration. The scope can also expand to agreed transformer, switchgear, HVAC, auxiliaries, controls and factory testing.

Is a dry type transformer always better inside a container

No. Dry-type and liquid-immersed transformers have different thermal, fire, maintenance, efficiency, footprint and environmental considerations. The project duty and authority requirements should drive the selection.

Can transformer losses be estimated from the MVA rating

Only for early planning. Final thermal design should use guaranteed supplier losses at the specified operating condition, plus losses from all other installed equipment and environmental heat gains.

Does a containerized transformer arrive ready to energize

Only within the agreed delivery boundary. Site grounding, external connections, transport checks, protection settings, inspections, testing and utility or owner acceptance normally remain before energization.

Should the transformer ship inside the container

It depends on transport mass, route limits, structural design, equipment restraint, vibration, lifting capacity and site installation capability. Both arrangements should be evaluated before the enclosure layout is frozen.

Which standards apply

The applicable set depends on voltage, transformer type, switchgear, location and jurisdiction. Common IEC references can include IEC 60076 for power transformers, IEC 60076-11 for dry-type transformers, IEC 62271-200 for MV metal-enclosed switchgear and IEC 62271-202 for enclosed prefabricated substations. The project specification and authority determine the final list.

Request a Defined Transformer Container Scope

Send TLS the single-line diagram, transformer data, losses, site conditions, interface schedules, transport constraints and test requirements. TLS can then define an enclosure-only or integrated package with its equipment, interfaces and engineering confirmations clearly stated.
