As the global energy landscape shifts toward renewable power and energy storage, Battery Energy Storage Systems (BESS) play a key role in stabilizing the grid, storing surplus energy, and improving power quality. One of the most critical components in any BESS is the Power Conversion System (PCS) — the heart of energy transformation between AC (grid) and DC (battery).
At TLS Energy, we understand that high conversion efficiency is not just a technical benchmark — it directly impacts the client’s operational cost, system reliability, and return on investment. That’s why we use advanced Silicon Carbide (SiC) IGBT technology in our PCS to ensure industry-leading efficiency and performance.
Real Performance: 99% Efficiency in Live Operation

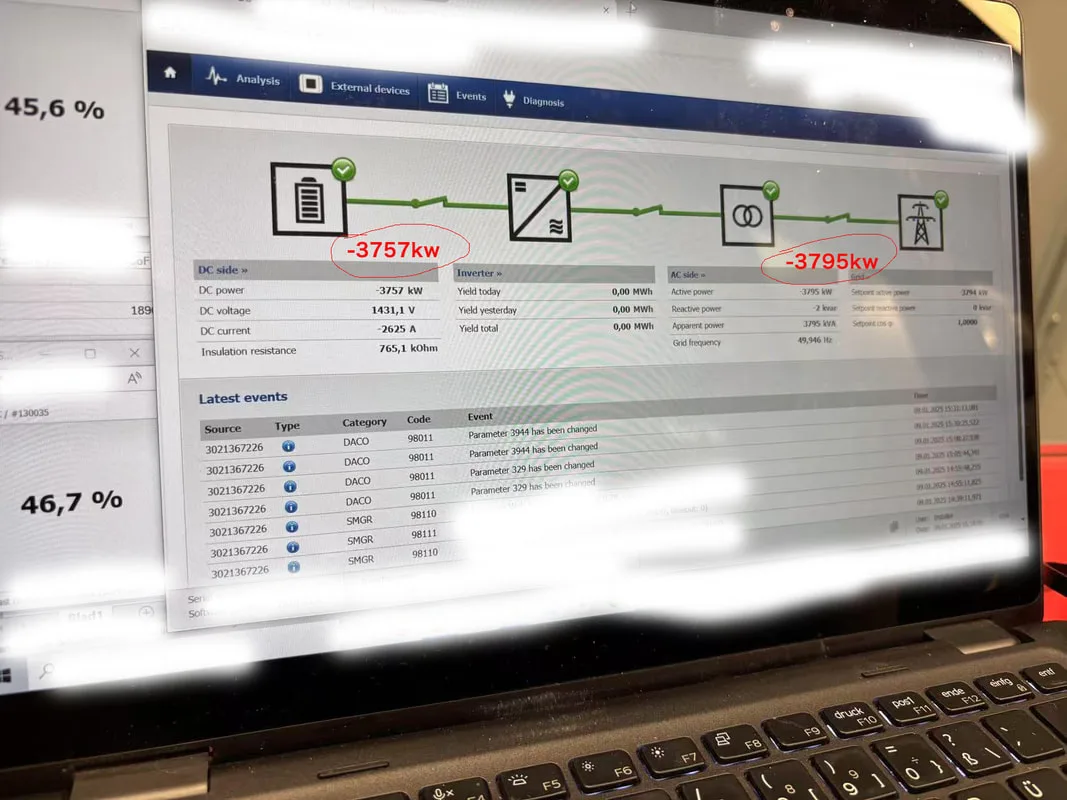

In one of TLS Energy’s active projects, a screenshot of the PCS interface shows the following real-time values:
• DC Power: 3757 kW
• AC Power: 3795 kW
This indicates that only 38 kW is lost during the power conversion process — a conversion efficiency of approximately 99%. This level of performance is exceptional and far exceeds traditional power electronics.
This impressive result is made possible by the use of SiC-based IGBT modules in our PCS.
What is SiC IGBT Technology?
SiC IGBT stands for Silicon Carbide Insulated-Gate Bipolar Transistor. It is a type of power semiconductor device used to switch and convert electricity at high efficiency and high voltage. SiC IGBT is considered the next generation of power devices, offering significant performance improvements over traditional silicon-based IGBT.
Key advantages of SiC IGBT include:
• High Switching Frequency
SiC devices can switch at much higher frequencies with lower losses, enabling more precise and responsive control of power.
• Low Switching and Conduction Losses
SiC IGBTs reduce energy losses during switching operations, helping achieve high overall system efficiency.
• High Thermal Conductivity
SiC handles higher operating temperatures, which reduces the size of the cooling system and improves system reliability.
• Smaller and Lighter PCS Design
With less heat and more efficient performance, the PCS design becomes more compact, reducing container space and installation cost.
Why SiC IGBT Is More Efficient Than Traditional Si IGBT
To understand why SiC IGBT enables such high energy efficiency, it’s important to compare it with traditional silicon (Si) IGBT technology. Here’s a breakdown:
How High Efficiency Saves Cost for Clients
For every megawatt-hour (MWh) stored and discharged by a BESS system, energy losses during conversion directly affect operational cost. A low-efficiency PCS can lead to significant energy losses, which adds up over the system’s lifetime.
With TLS Energy’s high-efficiency PCS:
• More energy is delivered to the grid or load
• Lower operational and cooling costs
• Improved system performance and lifespan
• Reduced carbon footprint
• Higher ROI for clients
For example, in a 100MWh BESS project, even a 1% efficiency improvement can save ~ half million of dollars annually in energy costs alone.
Applications That Benefit from High-Efficiency PCS
SiC IGBT-based PCS systems from TLS Energy are suitable for a wide range of applications:
• Utility-Scale Renewable Integration
Efficient conversion maximizes the value of stored solar or wind energy.
• Commercial & Industrial (C&I) Facilities
Businesses can reduce electricity bills and demand charges with reliable, high-efficiency energy storage.
• Microgrids and Off-Grid Systems
In isolated or remote areas, every watt counts. High-efficiency PCS ensures maximum battery usage.
• Frequency Regulation and Grid Services
Fast response and accurate control are supported by high switching speed of SiC IGBTs.
TLS Energy: Innovation Meets Reliability
At TLS Energy, we go beyond traditional EPC or container manufacturing — we are a full-solution BESS provider. From system design to delivery, we integrate the latest technology to help our clients achieve long-term value.
Key strengths of TLS Energy’s BESS solutions:
• Advanced PCS with SiC IGBT modules
• Modular and scalable design
• Integrated EMS, BMS, and SCADA
• Robust thermal and fire safety design
• Global compliance (CE, UL, IEC, DNV 2.7-1, etc.)
Our systems are tested under real-world conditions to deliver the performance, reliability, and efficiency demanded by the modern grid.
SiC IGBT technology is a game changer in energy storage power conversion. It allows PCS to operate with higher efficiency, better thermal performance, and compact design. TLS Energy’s adoption of this technology has proven results — our live project shows over 99% AC-DC efficiency, minimizing losses and maximizing value.
Whether your goal is to reduce energy costs, improve energy reliability, or support renewable energy adoption, TLS Energy offers a solution built for performance, safety, and long-term success.
Contact us today to learn more about how TLS Energy’s high-efficiency BESS systems can support your energy goals.
At TLS Energy, we understand that high conversion efficiency is not just a technical benchmark — it directly impacts the client’s operational cost, system reliability, and return on investment. That’s why we use advanced Silicon Carbide (SiC) IGBT technology in our PCS to ensure industry-leading efficiency and performance.
Real Performance: 99% Efficiency in Live Operation
In one of TLS Energy’s active projects, a screenshot of the PCS interface shows the following real-time values:
• DC Power: 3757 kW
• AC Power: 3795 kW
This indicates that only 38 kW is lost during the power conversion process — a conversion efficiency of approximately 99%. This level of performance is exceptional and far exceeds traditional power electronics.
This impressive result is made possible by the use of SiC-based IGBT modules in our PCS.
What is SiC IGBT Technology?
SiC IGBT stands for Silicon Carbide Insulated-Gate Bipolar Transistor. It is a type of power semiconductor device used to switch and convert electricity at high efficiency and high voltage. SiC IGBT is considered the next generation of power devices, offering significant performance improvements over traditional silicon-based IGBT.
Key advantages of SiC IGBT include:
• High Switching Frequency
SiC devices can switch at much higher frequencies with lower losses, enabling more precise and responsive control of power.
• Low Switching and Conduction Losses
SiC IGBTs reduce energy losses during switching operations, helping achieve high overall system efficiency.
• High Thermal Conductivity
SiC handles higher operating temperatures, which reduces the size of the cooling system and improves system reliability.
• Smaller and Lighter PCS Design
With less heat and more efficient performance, the PCS design becomes more compact, reducing container space and installation cost.
Why SiC IGBT Is More Efficient Than Traditional Si IGBT
To understand why SiC IGBT enables such high energy efficiency, it’s important to compare it with traditional silicon (Si) IGBT technology. Here’s a breakdown:
- Lower Switching Losses
- Lower Conduction Losses
- Higher Switching Frequency
- Higher Operating Temperatures
- Higher Voltage Blocking Capability
How High Efficiency Saves Cost for Clients
For every megawatt-hour (MWh) stored and discharged by a BESS system, energy losses during conversion directly affect operational cost. A low-efficiency PCS can lead to significant energy losses, which adds up over the system’s lifetime.
With TLS Energy’s high-efficiency PCS:
• More energy is delivered to the grid or load
• Lower operational and cooling costs
• Improved system performance and lifespan
• Reduced carbon footprint
• Higher ROI for clients
For example, in a 100MWh BESS project, even a 1% efficiency improvement can save ~ half million of dollars annually in energy costs alone.
Applications That Benefit from High-Efficiency PCS
SiC IGBT-based PCS systems from TLS Energy are suitable for a wide range of applications:
• Utility-Scale Renewable Integration
Efficient conversion maximizes the value of stored solar or wind energy.
• Commercial & Industrial (C&I) Facilities
Businesses can reduce electricity bills and demand charges with reliable, high-efficiency energy storage.
• Microgrids and Off-Grid Systems
In isolated or remote areas, every watt counts. High-efficiency PCS ensures maximum battery usage.
• Frequency Regulation and Grid Services
Fast response and accurate control are supported by high switching speed of SiC IGBTs.
TLS Energy: Innovation Meets Reliability
At TLS Energy, we go beyond traditional EPC or container manufacturing — we are a full-solution BESS provider. From system design to delivery, we integrate the latest technology to help our clients achieve long-term value.
Key strengths of TLS Energy’s BESS solutions:
• Advanced PCS with SiC IGBT modules
• Modular and scalable design
• Integrated EMS, BMS, and SCADA
• Robust thermal and fire safety design
• Global compliance (CE, UL, IEC, DNV 2.7-1, etc.)
Our systems are tested under real-world conditions to deliver the performance, reliability, and efficiency demanded by the modern grid.
SiC IGBT technology is a game changer in energy storage power conversion. It allows PCS to operate with higher efficiency, better thermal performance, and compact design. TLS Energy’s adoption of this technology has proven results — our live project shows over 99% AC-DC efficiency, minimizing losses and maximizing value.
Whether your goal is to reduce energy costs, improve energy reliability, or support renewable energy adoption, TLS Energy offers a solution built for performance, safety, and long-term success.
Contact us today to learn more about how TLS Energy’s high-efficiency BESS systems can support your energy goals.

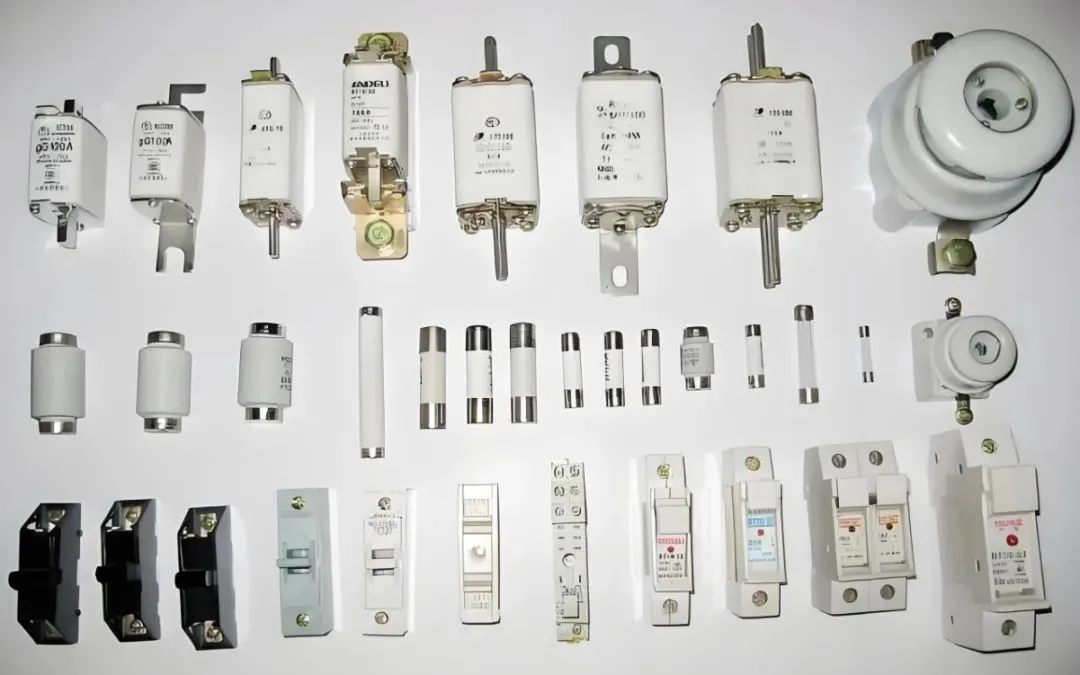

DC fuses play a crucial role in protecting Battery Energy Storage Systems (BESS) from short-circuit and overcurrent faults. Unlike traditional AC systems, BESS presents unique challenges due to high DC voltages, rapid current rise times, and energy-intensive fault conditions. Therefore, selecting the right fuse based on core parameters is essential for system safety, longevity, and performance.
DC Fuse Types and Classification
A DC fuse typically consists of a fusible element, quartz sand, and metal end caps. According to the GB13539.1-2015 standard, fuses are classified using a two-letter code. The first letter denotes the breaking range:
• “g” indicates full-range protection for overload and short-circuit conditions.
• “a” indicates partial-range protection (backup protection), which must be used with other devices.
The second letter indicates the application:
• “G” for general conductors,
• “M” for motor circuits,
• “R” for semiconductors.
For instance, a gG fuse provides full-range protection for general applications, while an aR fuse is ideal for fast protection of sensitive semiconductor components.
Key Parameters: Ft Value and Breaking Capacity
Three critical parameters define a DC fuse’s performance:
1. Rated current – the maximum continuous current the fuse can carry.
2. Breaking capacity – the highest fault current the fuse can safely interrupt.
3. Pre-arcing I²t (Ft value) – the energy the fuse can absorb before opening the circuit.
The Ft value is vital for ensuring selective coordination. In multi-stage protection systems, the downstream fuse must have a lower Ft value than the upstream fuse’s minimum pre-arcing Ft. This ensures only the nearest fuse to the fault operates, avoiding unnecessary power outages in other parts of the system.
For faults lasting less than 0.1 seconds, coordination must be verified by comparing Ft values. For faults over 0.1 seconds, the time-current characteristic curve is used to confirm selectivity.
Arc Quenching Process and Material Considerations
A fuse operates in four stages: heating, melting, arcing, and arc extinguishing. Once a fault occurs, the fusible link heats rapidly and melts, creating an arc. Quartz sand, filled around the fuse element, acts as an arc suppressor. It absorbs energy and forms a high-resistance “lava” layer that quenches the arc within milliseconds.
Factors like sand grain size and filling density directly affect quenching efficiency. Additionally, the fuse element material—commonly silver or copper—must balance conductivity, melting point, and cost for reliable performance at different voltage levels.
Fuse Application in BESS Systems
In large-scale BESS installations, short-circuit currents can exceed tens of kiloamperes. This requires fuses with very high breaking capacity, such as gR-type fuses.
Multiple fuse levels are often used in series—main circuit fuses with higher current ratings, and branch circuit fuses with faster response times. To maintain proper selectivity, Ft values between stages must differ by a factor of at least 1.5. In some designs, limiting reactors are added to reduce mutual inductance effects in parallel branches and assist in fault current limitation.
DC Fuse Types and Classification
A DC fuse typically consists of a fusible element, quartz sand, and metal end caps. According to the GB13539.1-2015 standard, fuses are classified using a two-letter code. The first letter denotes the breaking range:
• “g” indicates full-range protection for overload and short-circuit conditions.
• “a” indicates partial-range protection (backup protection), which must be used with other devices.
The second letter indicates the application:
• “G” for general conductors,
• “M” for motor circuits,
• “R” for semiconductors.
For instance, a gG fuse provides full-range protection for general applications, while an aR fuse is ideal for fast protection of sensitive semiconductor components.
Key Parameters: Ft Value and Breaking Capacity
Three critical parameters define a DC fuse’s performance:
1. Rated current – the maximum continuous current the fuse can carry.
2. Breaking capacity – the highest fault current the fuse can safely interrupt.
3. Pre-arcing I²t (Ft value) – the energy the fuse can absorb before opening the circuit.
The Ft value is vital for ensuring selective coordination. In multi-stage protection systems, the downstream fuse must have a lower Ft value than the upstream fuse’s minimum pre-arcing Ft. This ensures only the nearest fuse to the fault operates, avoiding unnecessary power outages in other parts of the system.
For faults lasting less than 0.1 seconds, coordination must be verified by comparing Ft values. For faults over 0.1 seconds, the time-current characteristic curve is used to confirm selectivity.
Arc Quenching Process and Material Considerations
A fuse operates in four stages: heating, melting, arcing, and arc extinguishing. Once a fault occurs, the fusible link heats rapidly and melts, creating an arc. Quartz sand, filled around the fuse element, acts as an arc suppressor. It absorbs energy and forms a high-resistance “lava” layer that quenches the arc within milliseconds.
Factors like sand grain size and filling density directly affect quenching efficiency. Additionally, the fuse element material—commonly silver or copper—must balance conductivity, melting point, and cost for reliable performance at different voltage levels.
Fuse Application in BESS Systems
In large-scale BESS installations, short-circuit currents can exceed tens of kiloamperes. This requires fuses with very high breaking capacity, such as gR-type fuses.
Multiple fuse levels are often used in series—main circuit fuses with higher current ratings, and branch circuit fuses with faster response times. To maintain proper selectivity, Ft values between stages must differ by a factor of at least 1.5. In some designs, limiting reactors are added to reduce mutual inductance effects in parallel branches and assist in fault current limitation.
As global power grids shift toward renewable energy, maintaining frequency stability becomes increasingly complex. Traditional generation sources, such as coal and gas plants, provide natural system inertia, which helps dampen frequency deviations. However, with more solar and wind power integrated into the grid, the system’s ability to stabilize frequency declines. To address this challenge, Battery Energy Storage Systems (BESS) are now playing a critical role in delivering fast, precise frequency response services. Key among these are FFR (Fast Frequency Response), FCR-D (Frequency Containment Reserve – Disturbance), FCR-N (Frequency Containment Reserve – Normal), and M-FFR (Moderate Fast Frequency Response).
1. FFR (Fast Frequency Response)
FFR is the fastest frequency control service, typically activated within 1 second or less when system frequency experiences a sharp dip or rise. This service is crucial in the early moments of a disturbance—before traditional generators can ramp up. For example, if frequency drops below a threshold (e.g., 49.7Hz in a 50Hz system), BESS automatically discharges energy to help stabilize the grid.
Thanks to their millisecond-level response times and inverter-based architecture, BESS are ideal for delivering FFR. This makes them especially valuable in power systems with low inertia and high renewable penetration, where traditional mechanical generators are too slow to react.
2. FCR-D (Frequency Containment Reserve – Disturbance)
FCR-D is designed to respond to larger frequency deviations outside the normal operating range—typically below 49.9Hz or above 50.1Hz. It kicks in within 30 seconds and works to contain the disturbance until slower reserves or rebalancing measures take over.
BESS are well-suited for FCR-D services due to their ability to provide both symmetrical and asymmetrical support—either injecting or absorbing power depending on whether the frequency drops or spikes. This service is widely used in Nordic and Baltic markets and requires a stable, controllable, and fast-acting source of power regulation, making BESS a natural fit.
3. FCR-N (Frequency Containment Reserve – Normal)
Unlike FFR and FCR-D, which are triggered by significant events, FCR-N provides continuous frequency balancing during normal grid operation (within 49.9–50.1Hz). It is used to smooth out small, ongoing imbalances between generation and load.
BESS systems excel at this task because they can make precise power adjustments in real time. Whether charging or discharging, BESS ensure the system frequency stays as close as possible to its nominal value. FCR-N is essential for grid operators to maintain high-quality, stable power in systems with variable demand and fluctuating renewable generation.
4. M-FFR (Moderate Fast Frequency Response)
M-FFR is a medium-speed frequency response, designed to fill the gap between ultra-fast FFR and slower reserves like FCR-D. It typically activates within 2 to 10 seconds after a frequency event. This staged approach to frequency control helps ensure stability throughout the entire response timeline.
BESS provide an excellent platform for M-FFR due to their flexible control systems, allowing them to layer response times and power levels as needed. This adds resilience to the grid by supporting both initial shock absorption and continued stabilization.
Why BESS is Ideal for Frequency Regulation
Battery energy storage offers multiple advantages in frequency regulation:
• Ultra-fast response times
• High precision control
• Emission-free operation
• Reduced wear and maintenance compared to traditional generators
As frequency control becomes more dynamic and layered, BESS are becoming essential assets for transmission operators and energy providers worldwide.
FFR, FCR-D, FCR-N, and M-FFR form the backbone of modern frequency regulation strategies. Each service plays a unique role in stabilizing power systems, from milliseconds to minutes after a disturbance. Battery Energy Storage Systems, with their speed, accuracy, and flexibility, are uniquely positioned to deliver all these services effectively. As the energy transition accelerates, integrating BESS for grid support will be critical to ensuring a reliable, sustainable future.
1. FFR (Fast Frequency Response)
FFR is the fastest frequency control service, typically activated within 1 second or less when system frequency experiences a sharp dip or rise. This service is crucial in the early moments of a disturbance—before traditional generators can ramp up. For example, if frequency drops below a threshold (e.g., 49.7Hz in a 50Hz system), BESS automatically discharges energy to help stabilize the grid.
Thanks to their millisecond-level response times and inverter-based architecture, BESS are ideal for delivering FFR. This makes them especially valuable in power systems with low inertia and high renewable penetration, where traditional mechanical generators are too slow to react.
2. FCR-D (Frequency Containment Reserve – Disturbance)
FCR-D is designed to respond to larger frequency deviations outside the normal operating range—typically below 49.9Hz or above 50.1Hz. It kicks in within 30 seconds and works to contain the disturbance until slower reserves or rebalancing measures take over.
BESS are well-suited for FCR-D services due to their ability to provide both symmetrical and asymmetrical support—either injecting or absorbing power depending on whether the frequency drops or spikes. This service is widely used in Nordic and Baltic markets and requires a stable, controllable, and fast-acting source of power regulation, making BESS a natural fit.
3. FCR-N (Frequency Containment Reserve – Normal)
Unlike FFR and FCR-D, which are triggered by significant events, FCR-N provides continuous frequency balancing during normal grid operation (within 49.9–50.1Hz). It is used to smooth out small, ongoing imbalances between generation and load.
BESS systems excel at this task because they can make precise power adjustments in real time. Whether charging or discharging, BESS ensure the system frequency stays as close as possible to its nominal value. FCR-N is essential for grid operators to maintain high-quality, stable power in systems with variable demand and fluctuating renewable generation.
4. M-FFR (Moderate Fast Frequency Response)
M-FFR is a medium-speed frequency response, designed to fill the gap between ultra-fast FFR and slower reserves like FCR-D. It typically activates within 2 to 10 seconds after a frequency event. This staged approach to frequency control helps ensure stability throughout the entire response timeline.
BESS provide an excellent platform for M-FFR due to their flexible control systems, allowing them to layer response times and power levels as needed. This adds resilience to the grid by supporting both initial shock absorption and continued stabilization.
Why BESS is Ideal for Frequency Regulation
Battery energy storage offers multiple advantages in frequency regulation:
• Ultra-fast response times
• High precision control
• Emission-free operation
• Reduced wear and maintenance compared to traditional generators
As frequency control becomes more dynamic and layered, BESS are becoming essential assets for transmission operators and energy providers worldwide.
FFR, FCR-D, FCR-N, and M-FFR form the backbone of modern frequency regulation strategies. Each service plays a unique role in stabilizing power systems, from milliseconds to minutes after a disturbance. Battery Energy Storage Systems, with their speed, accuracy, and flexibility, are uniquely positioned to deliver all these services effectively. As the energy transition accelerates, integrating BESS for grid support will be critical to ensuring a reliable, sustainable future.
BESS system diagram for grid frequency control services.
