As the global energy landscape shifts toward renewable power and energy storage, Battery Energy Storage Systems (BESS) play a key role in stabilizing the grid, storing surplus energy, and improving power quality. One of the most critical components in any BESS is the Power Conversion System (PCS) — the heart of energy transformation between AC (grid) and DC (battery).
At TLS Energy, we understand that high conversion efficiency is not just a technical benchmark — it directly impacts the client’s operational cost, system reliability, and return on investment. That’s why we use advanced Silicon Carbide (SiC) IGBT technology in our PCS to ensure industry-leading efficiency and performance.
Real Performance: 99% Efficiency in Live Operation
In one of TLS Energy’s active projects, a screenshot of the PCS interface shows the following real-time values:
• DC Power: 3757 kW
• AC Power: 3795 kW
This indicates that only 38 kW is lost during the power conversion process — a conversion efficiency of approximately 99%. This level of performance is exceptional and far exceeds traditional power electronics.
This impressive result is made possible by the use of SiC-based IGBT modules in our PCS.
What is SiC IGBT Technology?
SiC IGBT stands for Silicon Carbide Insulated-Gate Bipolar Transistor. It is a type of power semiconductor device used to switch and convert electricity at high efficiency and high voltage. SiC IGBT is considered the next generation of power devices, offering significant performance improvements over traditional silicon-based IGBT.
Key advantages of SiC IGBT include:
• High Switching Frequency
SiC devices can switch at much higher frequencies with lower losses, enabling more precise and responsive control of power.
• Low Switching and Conduction Losses
SiC IGBTs reduce energy losses during switching operations, helping achieve high overall system efficiency.
• High Thermal Conductivity
SiC handles higher operating temperatures, which reduces the size of the cooling system and improves system reliability.
• Smaller and Lighter PCS Design
With less heat and more efficient performance, the PCS design becomes more compact, reducing container space and installation cost.
Why SiC IGBT Is More Efficient Than Traditional Si IGBT
To understand why SiC IGBT enables such high energy efficiency, it’s important to compare it with traditional silicon (Si) IGBT technology. Here’s a breakdown:
How High Efficiency Saves Cost for Clients
For every megawatt-hour (MWh) stored and discharged by a BESS system, energy losses during conversion directly affect operational cost. A low-efficiency PCS can lead to significant energy losses, which adds up over the system’s lifetime.
With TLS Energy’s high-efficiency PCS:
• More energy is delivered to the grid or load
• Lower operational and cooling costs
• Improved system performance and lifespan
• Reduced carbon footprint
• Higher ROI for clients
For example, in a 100MWh BESS project, even a 1% efficiency improvement can save ~ half million of dollars annually in energy costs alone.
Applications That Benefit from High-Efficiency PCS
SiC IGBT-based PCS systems from TLS Energy are suitable for a wide range of applications:
• Utility-Scale Renewable Integration
Efficient conversion maximizes the value of stored solar or wind energy.
• Commercial & Industrial (C&I) Facilities
Businesses can reduce electricity bills and demand charges with reliable, high-efficiency energy storage.
• Microgrids and Off-Grid Systems
In isolated or remote areas, every watt counts. High-efficiency PCS ensures maximum battery usage.
• Frequency Regulation and Grid Services
Fast response and accurate control are supported by high switching speed of SiC IGBTs.
TLS Energy: Innovation Meets Reliability
At TLS Energy, we go beyond traditional EPC or container manufacturing — we are a full-solution BESS provider. From system design to delivery, we integrate the latest technology to help our clients achieve long-term value.
Key strengths of TLS Energy’s BESS solutions:
• Advanced PCS with SiC IGBT modules
• Modular and scalable design
• Integrated EMS, BMS, and SCADA
• Robust thermal and fire safety design
• Global compliance (CE, UL, IEC, DNV 2.7-1, etc.)
Our systems are tested under real-world conditions to deliver the performance, reliability, and efficiency demanded by the modern grid.
SiC IGBT technology is a game changer in energy storage power conversion. It allows PCS to operate with higher efficiency, better thermal performance, and compact design. TLS Energy’s adoption of this technology has proven results — our live project shows over 99% AC-DC efficiency, minimizing losses and maximizing value.
Whether your goal is to reduce energy costs, improve energy reliability, or support renewable energy adoption, TLS Energy offers a solution built for performance, safety, and long-term success.
Contact us today to learn more about how TLS Energy’s high-efficiency BESS systems can support your energy goals.
At TLS Energy, we understand that high conversion efficiency is not just a technical benchmark — it directly impacts the client’s operational cost, system reliability, and return on investment. That’s why we use advanced Silicon Carbide (SiC) IGBT technology in our PCS to ensure industry-leading efficiency and performance.
Real Performance: 99% Efficiency in Live Operation
In one of TLS Energy’s active projects, a screenshot of the PCS interface shows the following real-time values:
• DC Power: 3757 kW
• AC Power: 3795 kW
This indicates that only 38 kW is lost during the power conversion process — a conversion efficiency of approximately 99%. This level of performance is exceptional and far exceeds traditional power electronics.
This impressive result is made possible by the use of SiC-based IGBT modules in our PCS.
What is SiC IGBT Technology?
SiC IGBT stands for Silicon Carbide Insulated-Gate Bipolar Transistor. It is a type of power semiconductor device used to switch and convert electricity at high efficiency and high voltage. SiC IGBT is considered the next generation of power devices, offering significant performance improvements over traditional silicon-based IGBT.
Key advantages of SiC IGBT include:
• High Switching Frequency
SiC devices can switch at much higher frequencies with lower losses, enabling more precise and responsive control of power.
• Low Switching and Conduction Losses
SiC IGBTs reduce energy losses during switching operations, helping achieve high overall system efficiency.
• High Thermal Conductivity
SiC handles higher operating temperatures, which reduces the size of the cooling system and improves system reliability.
• Smaller and Lighter PCS Design
With less heat and more efficient performance, the PCS design becomes more compact, reducing container space and installation cost.
Why SiC IGBT Is More Efficient Than Traditional Si IGBT
To understand why SiC IGBT enables such high energy efficiency, it’s important to compare it with traditional silicon (Si) IGBT technology. Here’s a breakdown:
- Lower Switching Losses
- Lower Conduction Losses
- Higher Switching Frequency
- Higher Operating Temperatures
- Higher Voltage Blocking Capability
How High Efficiency Saves Cost for Clients
For every megawatt-hour (MWh) stored and discharged by a BESS system, energy losses during conversion directly affect operational cost. A low-efficiency PCS can lead to significant energy losses, which adds up over the system’s lifetime.
With TLS Energy’s high-efficiency PCS:
• More energy is delivered to the grid or load
• Lower operational and cooling costs
• Improved system performance and lifespan
• Reduced carbon footprint
• Higher ROI for clients
For example, in a 100MWh BESS project, even a 1% efficiency improvement can save ~ half million of dollars annually in energy costs alone.
Applications That Benefit from High-Efficiency PCS
SiC IGBT-based PCS systems from TLS Energy are suitable for a wide range of applications:
• Utility-Scale Renewable Integration
Efficient conversion maximizes the value of stored solar or wind energy.
• Commercial & Industrial (C&I) Facilities
Businesses can reduce electricity bills and demand charges with reliable, high-efficiency energy storage.
• Microgrids and Off-Grid Systems
In isolated or remote areas, every watt counts. High-efficiency PCS ensures maximum battery usage.
• Frequency Regulation and Grid Services
Fast response and accurate control are supported by high switching speed of SiC IGBTs.
TLS Energy: Innovation Meets Reliability
At TLS Energy, we go beyond traditional EPC or container manufacturing — we are a full-solution BESS provider. From system design to delivery, we integrate the latest technology to help our clients achieve long-term value.
Key strengths of TLS Energy’s BESS solutions:
• Advanced PCS with SiC IGBT modules
• Modular and scalable design
• Integrated EMS, BMS, and SCADA
• Robust thermal and fire safety design
• Global compliance (CE, UL, IEC, DNV 2.7-1, etc.)
Our systems are tested under real-world conditions to deliver the performance, reliability, and efficiency demanded by the modern grid.
SiC IGBT technology is a game changer in energy storage power conversion. It allows PCS to operate with higher efficiency, better thermal performance, and compact design. TLS Energy’s adoption of this technology has proven results — our live project shows over 99% AC-DC efficiency, minimizing losses and maximizing value.
Whether your goal is to reduce energy costs, improve energy reliability, or support renewable energy adoption, TLS Energy offers a solution built for performance, safety, and long-term success.
Contact us today to learn more about how TLS Energy’s high-efficiency BESS systems can support your energy goals.
In photovoltaic (PV) power systems, the inverter plays a critical role in converting DC electricity from solar panels into AC power for grid use. At the heart of this conversion lies the IGBT (Insulated Gate Bipolar Transistor) module — a power device essential for high-efficiency switching. However, IGBT module failure, especially explosion due to stress or overheating, is a common and serious issue that can lead to equipment shutdowns or even fire hazards.
How IGBT Modules Work
IGBT modules are semiconductor devices that combine the benefits of MOSFETs and BJTs, offering fast switching speeds and low conduction loss. By controlling gate voltage, they switch on or off to regulate current flow and frequency. Their performance directly affects inverter efficiency and system reliability.
Common Causes of IGBT Failure
IGBT failure usually results from excessive internal heat or external electrical stress. Key reasons include:
1. Electrical Stress
•. Overvoltage: Transients like grid voltage spikes, lightning strikes, or reverse recovery voltage can exceed IGBT limits and cause dielectric breakdown.
•. Overcurrent: Sudden load changes, short circuits, or motor stalling may create current surges. If the protection circuit response is delayed (over 10µs), the module can overheat and rupture.
•. Drive Circuit Issues: Low gate voltage or signal noise can cause partial conduction, increasing power loss and local heat buildup.
2. Thermal Management Failures
•. Poor heat dissipation due to faulty fans, high ambient temperatures, or insufficient cooling can raise junction temperatures above safe limits (>150°C), causing material stress and eventual failure.
3. Design and Assembly Defects
•. Lack of buffer circuits, aged capacitors, or improper soldering and torque during installation can lead to increased contact resistance and heat.
4. External Factors and Human Error
•. Grid anomalies, unbalanced three-phase loads, or wiring mistakes can cause short circuits. Maintenance without proper ESD precautions can also damage sensitive components.
Emergency Handling After IGBT Failure
If an IGBT explosion occurs:
•. Shut down power immediately.
•. Inspect the system for smoke, fire, or visible damage.
•. Check driver voltages, DC bus capacitors, and absorption circuits.
•. Use a multimeter to verify if the IGBT is shorted.
•. Replace with a matching module, applying thermal paste and correct torque to ensure good contact.
Key Prevention Measures
•. Circuit Optimization: Use RC snubbers or TVS diodes to limit voltage spikes. Install fast fuses and current sensors for quick protection.
•. Proper Component Selection: Choose IGBTs with at least 2x voltage and sufficient current margin.
•. Enhanced Cooling: Use forced air or liquid cooling systems. Regularly clean heatsinks and verify fan operation.
•. Routine Monitoring: Use IR thermography and oscilloscopes to spot early faults. Design PCBs to minimize interference.
•. Staff Training: Educate operators on IGBT operation and failure modes. Install real-time monitoring to track temperature, voltage, and current.
IGBT failures in solar inverters are complex but preventable. By understanding the root causes and applying targeted design, monitoring, and maintenance strategies, system operators can reduce failure risk, extend equipment life, and ensure safer, more reliable PV operations.
How IGBT Modules Work
IGBT modules are semiconductor devices that combine the benefits of MOSFETs and BJTs, offering fast switching speeds and low conduction loss. By controlling gate voltage, they switch on or off to regulate current flow and frequency. Their performance directly affects inverter efficiency and system reliability.
Common Causes of IGBT Failure
IGBT failure usually results from excessive internal heat or external electrical stress. Key reasons include:
1. Electrical Stress
•. Overvoltage: Transients like grid voltage spikes, lightning strikes, or reverse recovery voltage can exceed IGBT limits and cause dielectric breakdown.
•. Overcurrent: Sudden load changes, short circuits, or motor stalling may create current surges. If the protection circuit response is delayed (over 10µs), the module can overheat and rupture.
•. Drive Circuit Issues: Low gate voltage or signal noise can cause partial conduction, increasing power loss and local heat buildup.
2. Thermal Management Failures
•. Poor heat dissipation due to faulty fans, high ambient temperatures, or insufficient cooling can raise junction temperatures above safe limits (>150°C), causing material stress and eventual failure.
3. Design and Assembly Defects
•. Lack of buffer circuits, aged capacitors, or improper soldering and torque during installation can lead to increased contact resistance and heat.
4. External Factors and Human Error
•. Grid anomalies, unbalanced three-phase loads, or wiring mistakes can cause short circuits. Maintenance without proper ESD precautions can also damage sensitive components.
Emergency Handling After IGBT Failure
If an IGBT explosion occurs:
•. Shut down power immediately.
•. Inspect the system for smoke, fire, or visible damage.
•. Check driver voltages, DC bus capacitors, and absorption circuits.
•. Use a multimeter to verify if the IGBT is shorted.
•. Replace with a matching module, applying thermal paste and correct torque to ensure good contact.
Key Prevention Measures
•. Circuit Optimization: Use RC snubbers or TVS diodes to limit voltage spikes. Install fast fuses and current sensors for quick protection.
•. Proper Component Selection: Choose IGBTs with at least 2x voltage and sufficient current margin.
•. Enhanced Cooling: Use forced air or liquid cooling systems. Regularly clean heatsinks and verify fan operation.
•. Routine Monitoring: Use IR thermography and oscilloscopes to spot early faults. Design PCBs to minimize interference.
•. Staff Training: Educate operators on IGBT operation and failure modes. Install real-time monitoring to track temperature, voltage, and current.
IGBT failures in solar inverters are complex but preventable. By understanding the root causes and applying targeted design, monitoring, and maintenance strategies, system operators can reduce failure risk, extend equipment life, and ensure safer, more reliable PV operations.

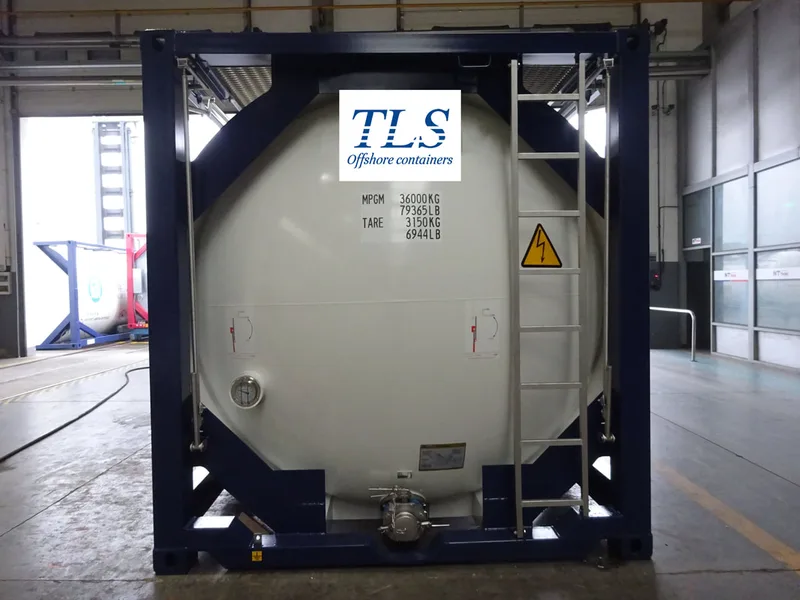

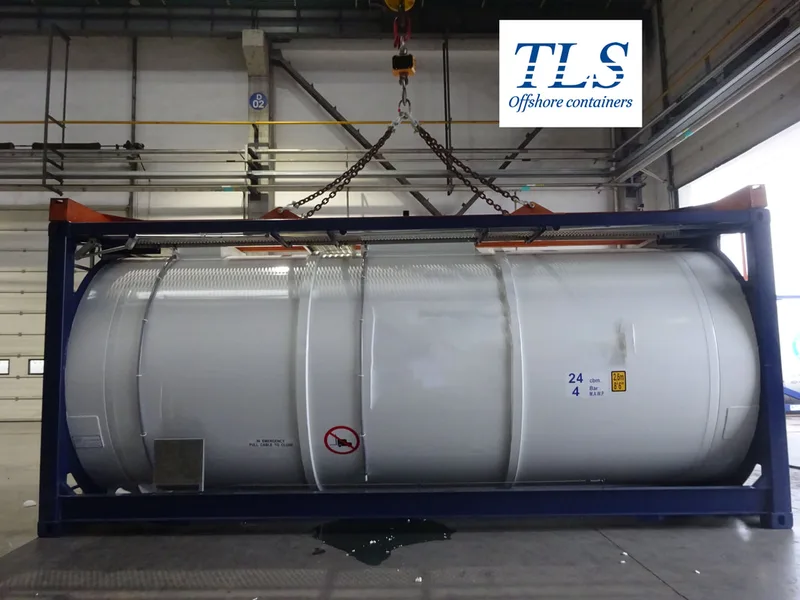

Tank containers are standardized equipment widely used for the transportation and storage of liquids, playing a crucial role in industries such as petroleum, chemicals, food, and pharmaceuticals. With increasing global demands for safer hazardous material transportation and storage, tank containers must comply with strict regulatory standards while ensuring high safety performance. This article will focus on the regulatory framework and safety design of tank containers, along with a brief overview of market trends, applications, and technological innovations.
1. Regulatory Compliance
The manufacturing, inspection, and usage of tank containers are governed by multiple international standards and regulations to ensure global safety compliance. The key regulatory frameworks include:
1.1 International Maritime Organization (IMO)
The International Maritime Organization (IMO) sets stringent requirements for the maritime transport of tank containers, focusing on structural integrity, leak prevention, and corrosion resistance. These regulations ensure that tank containers can withstand harsh maritime conditions, including extreme movements, high humidity, and saltwater corrosion.
1.2 DNV Certification
Det Norske Veritas (DNV), a globally recognized classification society, provides certification covering the structural integrity, welding quality, and pressure resistance of tank containers. DNV-certified tank containers are used in demanding environments such as offshore drilling platforms and hazardous chemical transportation.
1.3 ASME Standards
The American Society of Mechanical Engineers (ASME) has established the Boiler and Pressure Vessel Code (BPVC), which imposes stringent requirements on the pressure vessel components of tank containers to ensure their safety and reliability in high-pressure environments.
Additionally, regulations such as the European ADR (Agreement concerning the International Carriage of Dangerous Goods by Road) and ISO 1496 (Container Specifications) provide detailed guidelines for the manufacturing and usage of tank containers.
2. Safety Analysis of Tank Containers
Safety is a fundamental aspect of tank container design, particularly for hazardous material transportation and storage. These containers must meet strict explosion-proof, leak-proof, and impact-resistant requirements.
2.1 Structural Safety
Tank containers are typically constructed using high-strength stainless steel (such as 304L or 316L) to ensure excellent corrosion resistance and mechanical strength. The external frame is designed according to ISO standards, providing robust impact resistance during transportation.
2.2 Explosion and Leak Prevention
To mitigate explosion risks, tank containers are equipped with various safety features:
- Pressure Relief Valves (PRV): Automatically release excess gas when internal pressure exceeds safe limits, preventing tank rupture.
- Inert Gas Filling: For flammable liquids, nitrogen gas is often used to reduce oxygen concentration and minimize explosion risks.
- Double-Wall Tank Design: Some high-safety applications utilize double-layer tanks for additional leak protection.
3. Overview of Other Key Aspects
3.1 Applications
Tank containers are widely used in the petroleum and chemical industries, and their demand is increasing in the energy sector, including liquid hydrogen and LNG. Compared to fixed storage tanks, tank containers offer greater flexibility and mobility, making them ideal for emergency supply chain management.
3.2 Market Trends
With the rising demand for hazardous material transportation, the market for high-safety tank containers is expanding. Additionally, stricter environmental regulations are driving the adoption of recyclable and low-emission materials.
3.3 Technological Innovations
New materials, such as high-strength composites, and advanced monitoring technologies, such as remote pressure and temperature monitoring, are enhancing the safety and operational efficiency of tank containers.
4. Conclusion
Tank containers play an indispensable role in liquid transportation and storage. Their regulatory compliance ensures global transport safety, while continuous safety design improvements help mitigate risks. As market demand and technological advancements progress, tank containers will find increasing applications in emerging industries, moving towards greater efficiency and environmental sustainability.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us. For more detailed information on offshore tanks, please review the link:https://www.tls-containers.com/tankcontainer.html.
