As the demand for battery energy storage systems (BESS) continues to grow, especially for commercial, industrial, and utility-scale applications, the use of 20ft ISO containers has become a popular and widely accepted standard. Their size, structure, and flexibility make them an ideal solution for containerized energy storage systems. Below are the key reasons why 20ft containers are so commonly used in this field.
1. Standardized Size for Global Compatibility
The 20ft ISO container, with dimensions of 6058mm (length) × 2438mm (width) × 2591mm (height), is a globally recognized shipping standard. This means it is fully compatible with international logistics, including sea freight, land transport, and railways.
Using standardized containers reduces logistical complexity and costs. It also ensures that storage systems can be deployed globally without needing custom packaging or transport solutions, making project planning and execution more efficient.
2. Modular Design for Fast Deployment and Scalability
The 20ft container offers a compact and efficient space for housing key components of the battery system, including battery racks, battery management systems (BMS), HVAC, fire suppression systems, and communication units. By using a modular design, each container functions as a standalone storage unit.
This modularity allows for:
• Easy expansion of storage capacity by simply adding more containers.
• Faster onsite deployment, as most of the assembly and integration is done at the factory.
• Simplified maintenance, as each container can be serviced independently.
3. Lightweight for Easier Land and Sea Transport
Compared to 40ft containers, 20ft containers are significantly lighter, which offers great advantages in both land and sea transport. In areas with restricted access or limited infrastructure—such as islands, mountain regions, or remote industrial sites—the lighter weight and smaller footprint make 20ft containers easier to maneuver, offload, and install.
This is especially beneficial for projects that require flexibility in logistics and fast turnaround times.
4. Optimized for Safety and Thermal Management
Each 20ft container typically houses 2 to 6MWh of battery capacity, a manageable volume that allows for safer operation and easier thermal control. This moderate energy density enables:
• Efficient integration of air or liquid cooling systems.
• Better zoning and separation for fire safety.
• Easier compliance with international standards like NFPA 855, UL9540A, or IEC 62933.
In the case of any malfunction or fire event, having energy distributed across multiple 20ft containers helps isolate risks and prevent chain reactions.
5. Cost-Effective and Reusable
ISO containers are built to be robust and durable. They can be reused for multiple deployments, making them more sustainable and cost-effective in the long run. Since they already conform to international container standards, less customization is required for transport and installation, further reducing overall project costs.
The 20ft ISO container has become the preferred choice for containerized energy storage solutions due to its standardization, modularity, lighter weight, safety benefits, and cost efficiency. As the BESS market continues to expand, using 20ft containers ensures flexible, scalable, and globally deployable solutions that meet both operational and regulatory demands.
1. Standardized Size for Global Compatibility
The 20ft ISO container, with dimensions of 6058mm (length) × 2438mm (width) × 2591mm (height), is a globally recognized shipping standard. This means it is fully compatible with international logistics, including sea freight, land transport, and railways.
Using standardized containers reduces logistical complexity and costs. It also ensures that storage systems can be deployed globally without needing custom packaging or transport solutions, making project planning and execution more efficient.
2. Modular Design for Fast Deployment and Scalability
The 20ft container offers a compact and efficient space for housing key components of the battery system, including battery racks, battery management systems (BMS), HVAC, fire suppression systems, and communication units. By using a modular design, each container functions as a standalone storage unit.
This modularity allows for:
• Easy expansion of storage capacity by simply adding more containers.
• Faster onsite deployment, as most of the assembly and integration is done at the factory.
• Simplified maintenance, as each container can be serviced independently.
3. Lightweight for Easier Land and Sea Transport
Compared to 40ft containers, 20ft containers are significantly lighter, which offers great advantages in both land and sea transport. In areas with restricted access or limited infrastructure—such as islands, mountain regions, or remote industrial sites—the lighter weight and smaller footprint make 20ft containers easier to maneuver, offload, and install.
This is especially beneficial for projects that require flexibility in logistics and fast turnaround times.
4. Optimized for Safety and Thermal Management
Each 20ft container typically houses 2 to 6MWh of battery capacity, a manageable volume that allows for safer operation and easier thermal control. This moderate energy density enables:
• Efficient integration of air or liquid cooling systems.
• Better zoning and separation for fire safety.
• Easier compliance with international standards like NFPA 855, UL9540A, or IEC 62933.
In the case of any malfunction or fire event, having energy distributed across multiple 20ft containers helps isolate risks and prevent chain reactions.
5. Cost-Effective and Reusable
ISO containers are built to be robust and durable. They can be reused for multiple deployments, making them more sustainable and cost-effective in the long run. Since they already conform to international container standards, less customization is required for transport and installation, further reducing overall project costs.
The 20ft ISO container has become the preferred choice for containerized energy storage solutions due to its standardization, modularity, lighter weight, safety benefits, and cost efficiency. As the BESS market continues to expand, using 20ft containers ensures flexible, scalable, and globally deployable solutions that meet both operational and regulatory demands.
As global power grids shift toward renewable energy, maintaining frequency stability becomes increasingly complex. Traditional generation sources, such as coal and gas plants, provide natural system inertia, which helps dampen frequency deviations. However, with more solar and wind power integrated into the grid, the system’s ability to stabilize frequency declines. To address this challenge, Battery Energy Storage Systems (BESS) are now playing a critical role in delivering fast, precise frequency response services. Key among these are FFR (Fast Frequency Response), FCR-D (Frequency Containment Reserve – Disturbance), FCR-N (Frequency Containment Reserve – Normal), and M-FFR (Moderate Fast Frequency Response).
1. FFR (Fast Frequency Response)
FFR is the fastest frequency control service, typically activated within 1 second or less when system frequency experiences a sharp dip or rise. This service is crucial in the early moments of a disturbance—before traditional generators can ramp up. For example, if frequency drops below a threshold (e.g., 49.7Hz in a 50Hz system), BESS automatically discharges energy to help stabilize the grid.
Thanks to their millisecond-level response times and inverter-based architecture, BESS are ideal for delivering FFR. This makes them especially valuable in power systems with low inertia and high renewable penetration, where traditional mechanical generators are too slow to react.
2. FCR-D (Frequency Containment Reserve – Disturbance)
FCR-D is designed to respond to larger frequency deviations outside the normal operating range—typically below 49.9Hz or above 50.1Hz. It kicks in within 30 seconds and works to contain the disturbance until slower reserves or rebalancing measures take over.
BESS are well-suited for FCR-D services due to their ability to provide both symmetrical and asymmetrical support—either injecting or absorbing power depending on whether the frequency drops or spikes. This service is widely used in Nordic and Baltic markets and requires a stable, controllable, and fast-acting source of power regulation, making BESS a natural fit.
3. FCR-N (Frequency Containment Reserve – Normal)
Unlike FFR and FCR-D, which are triggered by significant events, FCR-N provides continuous frequency balancing during normal grid operation (within 49.9–50.1Hz). It is used to smooth out small, ongoing imbalances between generation and load.
BESS systems excel at this task because they can make precise power adjustments in real time. Whether charging or discharging, BESS ensure the system frequency stays as close as possible to its nominal value. FCR-N is essential for grid operators to maintain high-quality, stable power in systems with variable demand and fluctuating renewable generation.
4. M-FFR (Moderate Fast Frequency Response)
M-FFR is a medium-speed frequency response, designed to fill the gap between ultra-fast FFR and slower reserves like FCR-D. It typically activates within 2 to 10 seconds after a frequency event. This staged approach to frequency control helps ensure stability throughout the entire response timeline.
BESS provide an excellent platform for M-FFR due to their flexible control systems, allowing them to layer response times and power levels as needed. This adds resilience to the grid by supporting both initial shock absorption and continued stabilization.
Why BESS is Ideal for Frequency Regulation
Battery energy storage offers multiple advantages in frequency regulation:
• Ultra-fast response times
• High precision control
• Emission-free operation
• Reduced wear and maintenance compared to traditional generators
As frequency control becomes more dynamic and layered, BESS are becoming essential assets for transmission operators and energy providers worldwide.

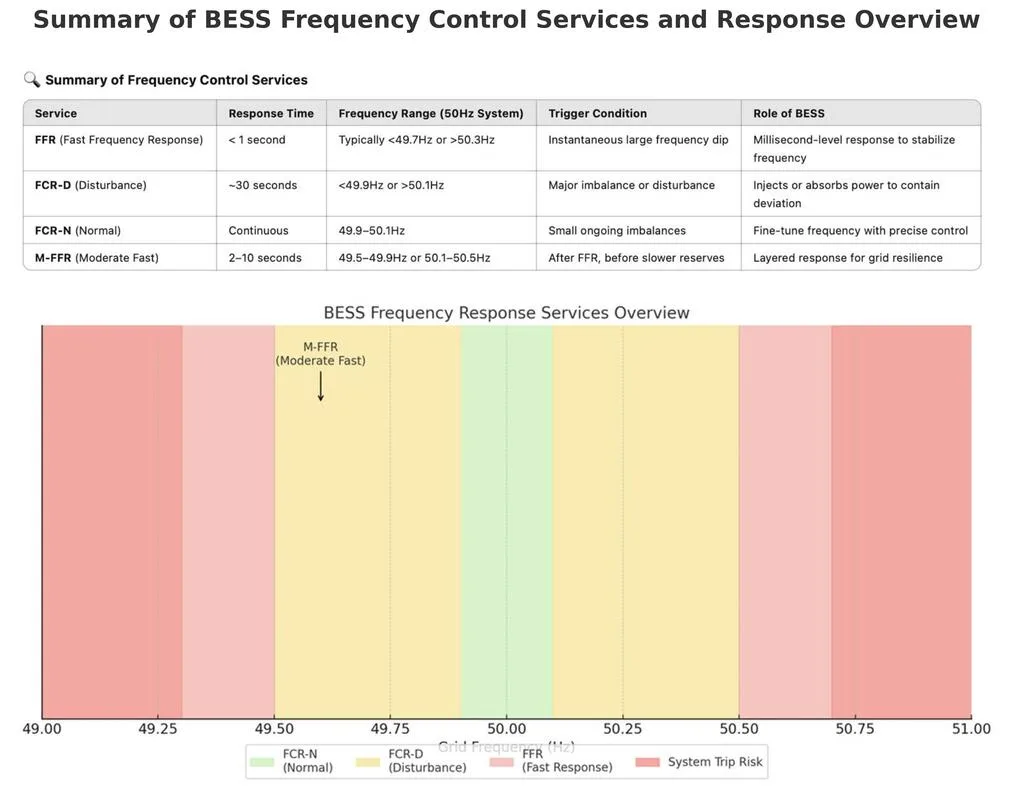

FFR, FCR-D, FCR-N, and M-FFR form the backbone of modern frequency regulation strategies. Each service plays a unique role in stabilizing power systems, from milliseconds to minutes after a disturbance. Battery Energy Storage Systems, with their speed, accuracy, and flexibility, are uniquely positioned to deliver all these services effectively. As the energy transition accelerates, integrating BESS for grid support will be critical to ensuring a reliable, sustainable future.
1. FFR (Fast Frequency Response)
FFR is the fastest frequency control service, typically activated within 1 second or less when system frequency experiences a sharp dip or rise. This service is crucial in the early moments of a disturbance—before traditional generators can ramp up. For example, if frequency drops below a threshold (e.g., 49.7Hz in a 50Hz system), BESS automatically discharges energy to help stabilize the grid.
Thanks to their millisecond-level response times and inverter-based architecture, BESS are ideal for delivering FFR. This makes them especially valuable in power systems with low inertia and high renewable penetration, where traditional mechanical generators are too slow to react.
2. FCR-D (Frequency Containment Reserve – Disturbance)
FCR-D is designed to respond to larger frequency deviations outside the normal operating range—typically below 49.9Hz or above 50.1Hz. It kicks in within 30 seconds and works to contain the disturbance until slower reserves or rebalancing measures take over.
BESS are well-suited for FCR-D services due to their ability to provide both symmetrical and asymmetrical support—either injecting or absorbing power depending on whether the frequency drops or spikes. This service is widely used in Nordic and Baltic markets and requires a stable, controllable, and fast-acting source of power regulation, making BESS a natural fit.
3. FCR-N (Frequency Containment Reserve – Normal)
Unlike FFR and FCR-D, which are triggered by significant events, FCR-N provides continuous frequency balancing during normal grid operation (within 49.9–50.1Hz). It is used to smooth out small, ongoing imbalances between generation and load.
BESS systems excel at this task because they can make precise power adjustments in real time. Whether charging or discharging, BESS ensure the system frequency stays as close as possible to its nominal value. FCR-N is essential for grid operators to maintain high-quality, stable power in systems with variable demand and fluctuating renewable generation.
4. M-FFR (Moderate Fast Frequency Response)
M-FFR is a medium-speed frequency response, designed to fill the gap between ultra-fast FFR and slower reserves like FCR-D. It typically activates within 2 to 10 seconds after a frequency event. This staged approach to frequency control helps ensure stability throughout the entire response timeline.
BESS provide an excellent platform for M-FFR due to their flexible control systems, allowing them to layer response times and power levels as needed. This adds resilience to the grid by supporting both initial shock absorption and continued stabilization.
Why BESS is Ideal for Frequency Regulation
Battery energy storage offers multiple advantages in frequency regulation:
• Ultra-fast response times
• High precision control
• Emission-free operation
• Reduced wear and maintenance compared to traditional generators
As frequency control becomes more dynamic and layered, BESS are becoming essential assets for transmission operators and energy providers worldwide.
FFR, FCR-D, FCR-N, and M-FFR form the backbone of modern frequency regulation strategies. Each service plays a unique role in stabilizing power systems, from milliseconds to minutes after a disturbance. Battery Energy Storage Systems, with their speed, accuracy, and flexibility, are uniquely positioned to deliver all these services effectively. As the energy transition accelerates, integrating BESS for grid support will be critical to ensuring a reliable, sustainable future.

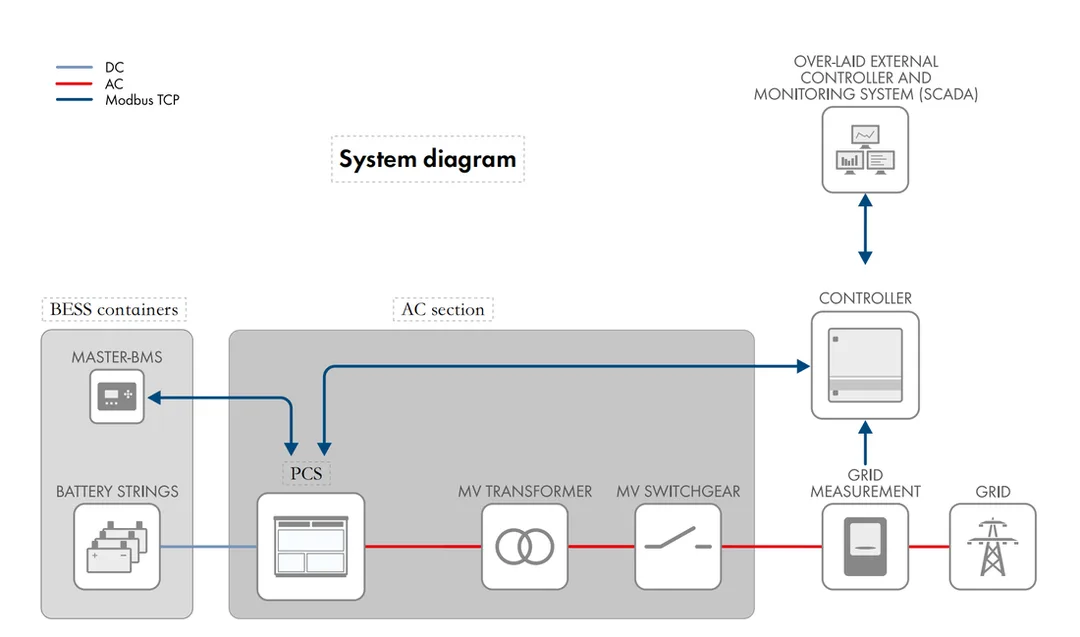

BESS system diagram for grid frequency control services.
Frequency regulation is a critical part of maintaining stability in power systems. It ensures that the balance between power generation and consumption keeps the system frequency within acceptable limits. Two key components of frequency control are primary frequency regulation and secondary frequency regulation. Each serves a unique purpose and works at different timescales, but both are vital to grid stability—especially with the increasing penetration of renewable energy. Battery Energy Storage Systems (BESS) are emerging as an essential solution in this context.
What is Primary Frequency Regulation?
Primary frequency regulation is an automatic response from generator units when grid frequency deviates from the nominal value (e.g., 50 Hz). It works through the turbine governor system, which rapidly adjusts output power—usually within seconds. However, this adjustment is proportional and incomplete, meaning it reduces but does not eliminate the frequency deviation. The fast-acting nature of primary regulation is designed to stabilize short-term disturbances caused by sudden load or generation changes.
What is Secondary Frequency Regulation?
Secondary frequency regulation, also known as Automatic Generation Control (AGC), is a slower, more precise correction. It aims to restore frequency to its nominal value and ensure that inter-area power exchanges remain within scheduled limits. AGC operates over a timescale of several minutes and involves centralized dispatch signals sent by grid operators to specific generators or energy storage systems. This type of regulation is essential for long-term frequency stability and often responds to the residual imbalance after primary regulation.
Advantages of Battery Energy Storage Systems in Frequency Regulation
Battery Energy Storage Systems provide a new, highly flexible resource for frequency regulation, offering several advantages over traditional generation:
• Fast Response: BESS can switch between charge and discharge in milliseconds—far faster than thermal generators. This enables immediate correction of frequency fluctuations, especially during primary frequency control.
• Precision: Energy storage systems offer high accuracy in power output control, which is critical for secondary regulation. This precision enhances the overall reliability and performance of the grid.
• Eco-Friendly: Unlike fossil-fuel generators, BESS produce no emissions, making them ideal for integrating with clean energy sources such as wind and solar.
• Cost-Effective: With rising penalties and performance assessments for AGC services, BESS can help traditional plants meet strict regulation requirements and earn additional revenue through grid ancillary service markets.
Primary and secondary frequency regulation work together to ensure the stable and secure operation of power systems. As grid complexity increases, especially with more renewable energy sources, battery energy storage stands out as a reliable, fast, and green solution for frequency control. By participating in both types of frequency regulation, BESS not only supports grid stability but also drives the transition toward a smarter, cleaner energy future.
What is Primary Frequency Regulation?
Primary frequency regulation is an automatic response from generator units when grid frequency deviates from the nominal value (e.g., 50 Hz). It works through the turbine governor system, which rapidly adjusts output power—usually within seconds. However, this adjustment is proportional and incomplete, meaning it reduces but does not eliminate the frequency deviation. The fast-acting nature of primary regulation is designed to stabilize short-term disturbances caused by sudden load or generation changes.
What is Secondary Frequency Regulation?
Secondary frequency regulation, also known as Automatic Generation Control (AGC), is a slower, more precise correction. It aims to restore frequency to its nominal value and ensure that inter-area power exchanges remain within scheduled limits. AGC operates over a timescale of several minutes and involves centralized dispatch signals sent by grid operators to specific generators or energy storage systems. This type of regulation is essential for long-term frequency stability and often responds to the residual imbalance after primary regulation.
Advantages of Battery Energy Storage Systems in Frequency Regulation
Battery Energy Storage Systems provide a new, highly flexible resource for frequency regulation, offering several advantages over traditional generation:
• Fast Response: BESS can switch between charge and discharge in milliseconds—far faster than thermal generators. This enables immediate correction of frequency fluctuations, especially during primary frequency control.
• Precision: Energy storage systems offer high accuracy in power output control, which is critical for secondary regulation. This precision enhances the overall reliability and performance of the grid.
• Eco-Friendly: Unlike fossil-fuel generators, BESS produce no emissions, making them ideal for integrating with clean energy sources such as wind and solar.
• Cost-Effective: With rising penalties and performance assessments for AGC services, BESS can help traditional plants meet strict regulation requirements and earn additional revenue through grid ancillary service markets.
Primary and secondary frequency regulation work together to ensure the stable and secure operation of power systems. As grid complexity increases, especially with more renewable energy sources, battery energy storage stands out as a reliable, fast, and green solution for frequency control. By participating in both types of frequency regulation, BESS not only supports grid stability but also drives the transition toward a smarter, cleaner energy future.
