The Critical Role of Paint Systems in Offshore Containers

In offshore environments, where conditions are harsh and unrelenting, paint is far more than just an aesthetic finish—it is a critical component that ensures structural protection, long service life, and regulatory compliance. A high-performance coating system is essential to safeguard the safety, reliability, and certification standards of offshore containers.

1. Harsh Marine Environment: The Real ChallengeOffshore containers operate under extreme conditions that test the limits of any surface treatment:

• High salinity and humidity: Salt-laden air accelerates metal corrosion.
• Intense UV radiation: Leads to surface degradation and material aging.
• Drastic temperature changes and wave impact: May cause coating cracks or peeling.
• Continuous exposure to rain, oil, and contaminants: Challenges coating adhesion and chemical resistance.

Standard industrial coatings are insufficient—marine-grade protective systems are essential.

2. Key Functions of Offshore Paint Systems(1). Corrosion ProtectionA quality paint system is the first line of defense against steel corrosion. Common marine systems include zinc-rich epoxy primer, epoxy intermediate coat, and polyurethane or acrylic topcoat, meeting the requirements of ISO 12944 C5-M, the highest corrosion category. Such systems can offer protection for 15+ years.

(2). Fire ResistanceSpecialized offshore containers—such as accommodation units and control cabins—often require A60 fire protection. In these cases, fire-retardant coatings certified for high-temperature resistance are used to slow down fire spread, offering critical time for personnel evacuation.

(3). UV Resistance and Aging DurabilityTopcoats formulated with UV-resistant and anti-chalking properties help maintain surface integrity and visual appearance under constant sun exposure, especially on decks and external walls.

(4). Functional Identification and VisibilityColor-coded coatings help distinguish functional zones (e.g., living quarters, power rooms, labs). Reflective and safety markings further improve visibility, especially in low-light offshore environments.

3. Typical Paint System Configuration

• Primer: Zinc-rich epoxy – corrosion and rust prevention
• Intermediate Coat: Epoxy – enhanced adhesion and barrier properties
• Topcoat: Polyurethane or acrylic – weather resistance and aesthetics

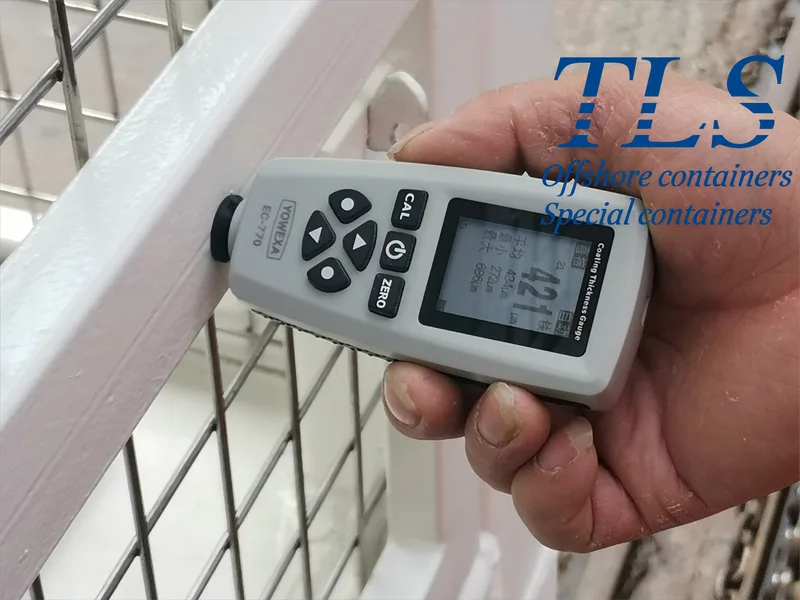

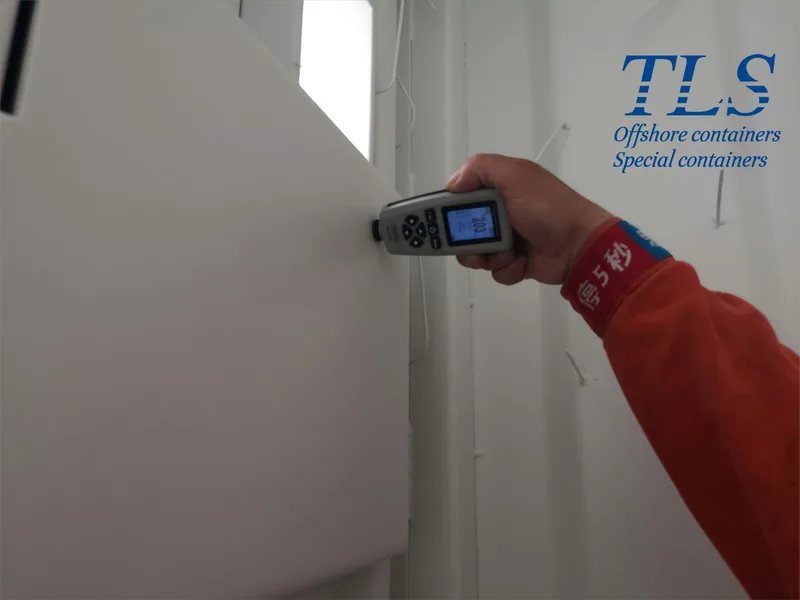

These systems typically achieve a dry film thickness (DFT) of 220–300μm, suitable for long-term protection in aggressive marine conditions.

4. Key Certifications and StandardsTo ensure durability, safety, and compliance, offshore container coatings must meet several international standards:

• ISO 12944: Defines corrosion categories and service life expectations of protective systems.
• IMO MSC.215(82) / PSPC: Regulates performance of protective coatings for marine and offshore equipment.
• NORSOK M-501: Norwegian standard for surface preparation and coating in oil & gas sectors.
• Class Society Approvals (DNV, ABS, LR, etc.): Essential for most offshore modules; coatings are reviewed as part of structural integrity.
• IMO A754 (Fire Protection): Ensures fireproof coatings meet A60 insulation and integrity standards.
• Surface Preparation: Steel must be blasted to Sa2.5 to ensure proper coating adhesion and longevity.

5. Final Thoughts

In offshore functional containers, paint is not optional—it’s essential. A professionally designed and certified coating system not only protects against corrosion and fire but also extends the container's service life, reduces long-term maintenance costs, and elevates your brand’s reputation in the marine and offshore industry.
