Zone 1 / zone 2 rated, A60 Office containers, hazardous zones rated, standard ISO dimension or customized dimension

Our office containers are manufactured in house to meet the highest industry standards. All units are designed to optimize workspace efficiency, meet environment and acoustic requirements, and house your specialist equipment and resources in a safe and comfortable environment. Our Office containers can be outfitted and modified to perform any number of functions to suit your specific project requirements. These functional containers provide a high quality for clients.

Features and benefits

• Detection and alarm system with Combined Pressurization, Fire and Gas detection (CPFG) system with all ancillary items for Zone 1 / zone 2 usage
• Includes H2S and CH4 gas detection, smoke detection, manual call point, pressurization fan, loss of pressure and flow devices.
• 2 split type HVAC systems
• A60 Fire Dampers.
• A60 window and A60 escape hatch (800mm x 800mm)
• Optional sprinkler head and piping can easily be connected to rig sprinkler system.
• Fitted with non-combustible B15 wall panels to ensure high thermal resistance and maximum noise reduction.
• CSC frame for minimized mobilization costs
• Easy access to all serviceable equipment for maintenance.
• CO2 dry powder fire extinguisher provided.
• Non-porous epoxy desktop, easy to clean, stain resistant and impermeable to most chemicals.


Technical specifications

• Fire Rating: A60 SOLAS
• HVAC: 2 x 18,000 BTU Split Units – duty and standby
• Detection and Alarm System: Connection to main Rig / Vessel Alarm System included
• Framework Design Temperature: -20°C to +50°C


Electrical Connection
Connection is 380-690Vac, 3Ph+E, 50/60Hz. Module is supplied with a 30m power cable as standard.

Global compliance
ATEX, IECEx, CSC, EN 12079, DNV 2.7-1, A60 SOLAS

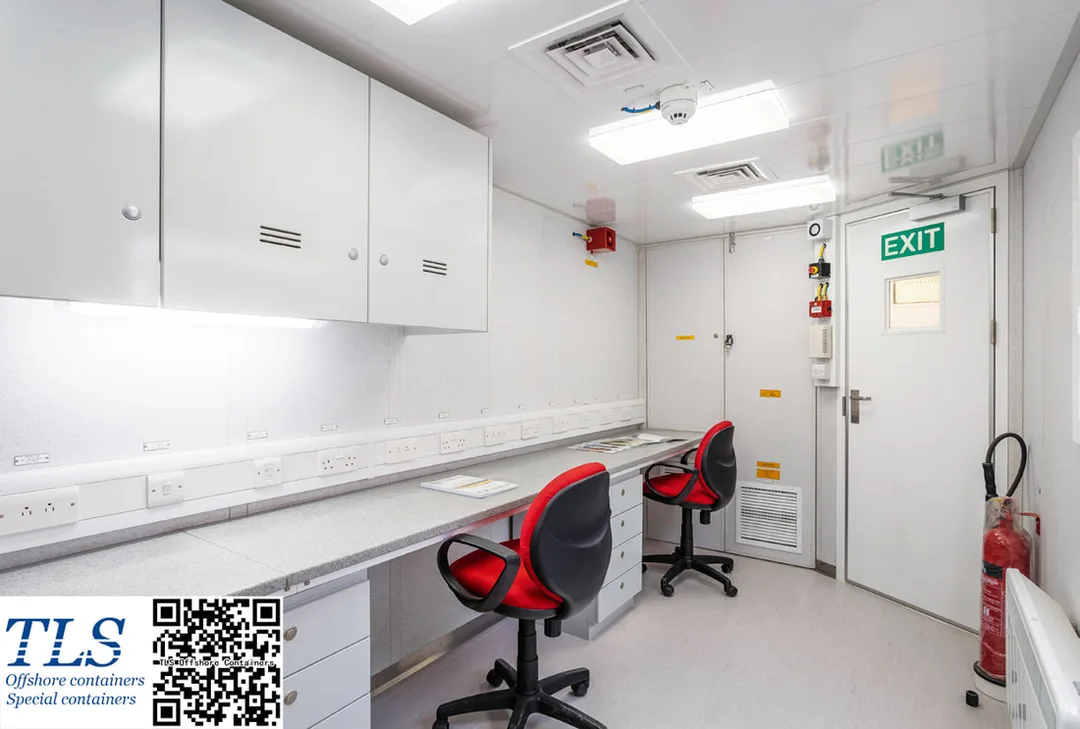

zone 1 / zone 2 rated office container, DNV2.7-1 certified, IEC60079-13 classified, 20ft office module, equipped with CPFG

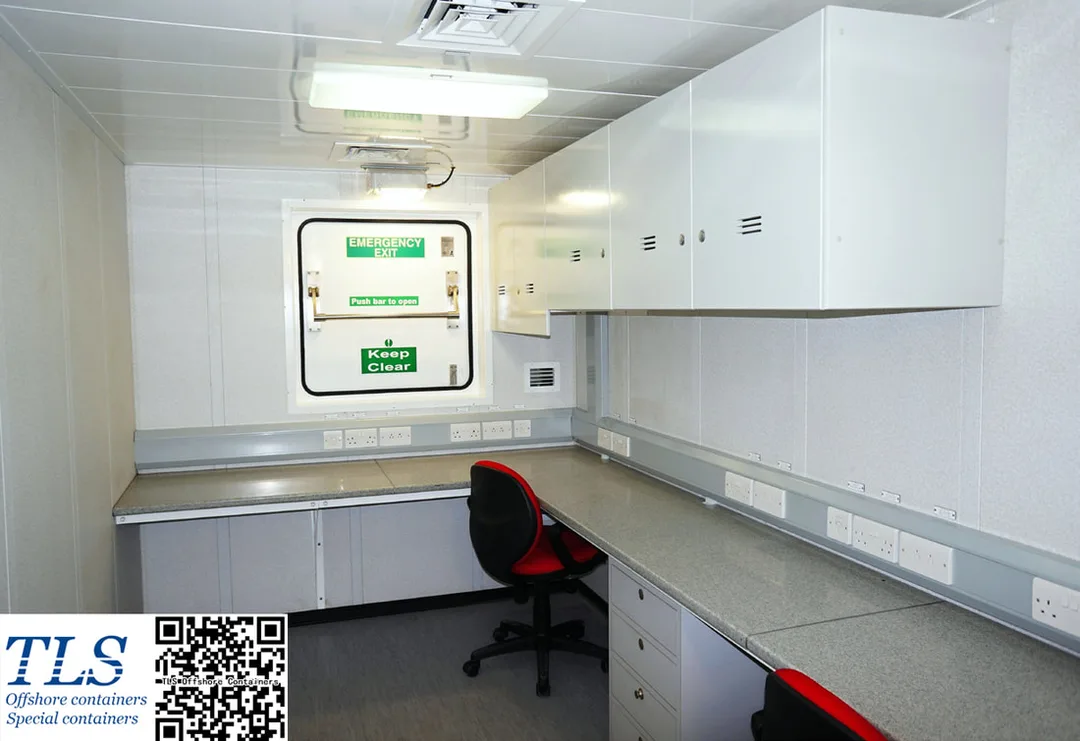

zone 1 / zone 2 rated office container, DNV2.7-1 certified, IEC60079-13 classified, 20ft office module, equipped with CPFG

---
