In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
- Why does a pressurization system only address half of the explosion risk equation?
- What are the primary internal operational hazards that pressurization cannot mitigate?
- How do leading operators combine Ex protection and positive pressure to achieve compliance?
- What are the critical engineering takeaways from historic containment failures?
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.

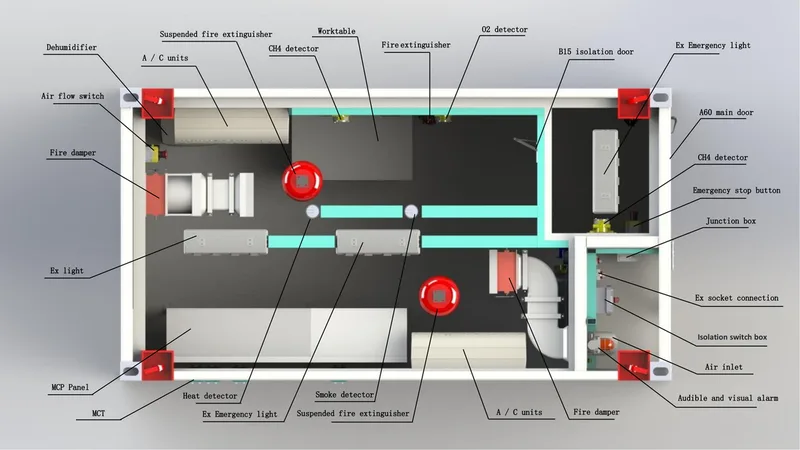

Layer 1: Pressurization Protection (External Defenses)
- Maintains a continuous positive pressure barrier against the surrounding Zone 1 or Zone 2 environment.
- Utilizes automatic purging sequences to clear the atmosphere before electrical systems are energized.
- Integrates differential pressure monitoring and automatic gas detection interlocks to shut down power if pressure drops.

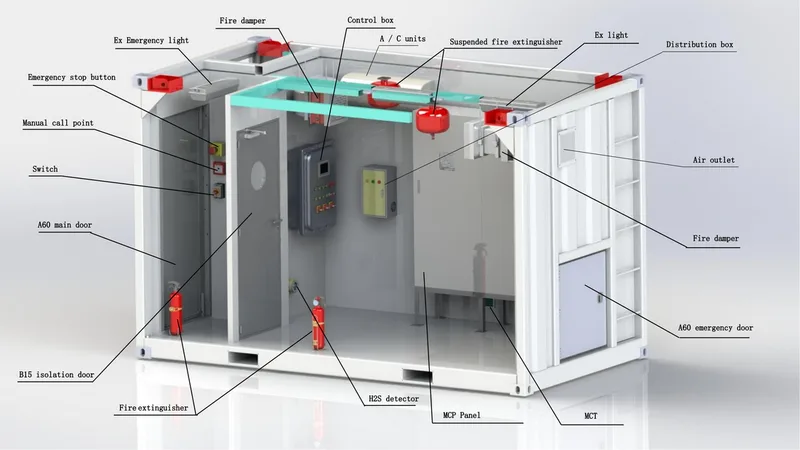

Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
- Treats the interior space as a potentially hazardous zone due to active sample testing.
- Mandates the installation of certified explosion-proof (Ex d, Ex e, or Ex i) lighting, switches, and junction boxes.
- Utilizes specialized explosion-proof HVAC systems and ventilation fans to safely exhaust internal vapors while preventing ignition.
Conclusion
- Directional Defense: Pressurization protects a laboratory container from external hazardous atmospheres, while explosion-proof electrical equipment protects the container from internal sample-generated hazards.
- Risk Multiplication: Relying on positive pressure alone creates a dangerous containment trap for internal chemical spills or gas leaks, turning a localized sample leak into an immediate explosion risk.
- Industry Best Practice: High-risk applications—including Offshore Laboratories, Mud Logging Units, Well Testing Labs, and Chemical Analysis Containers—must employ a dual-protection design to guarantee both personnel safety and regulatory compliance.
