Direct Answer
A suitable offshore container for long-term marine operations must combine structural strength, corrosion resistance, environmental protection, and maintainability. Unlike standard containers designed mainly for transportation, offshore containers are engineered to withstand repeated lifting, harsh marine conditions, and continuous outdoor exposure throughout their service life.
The long-term reliability of an offshore container depends not on a single feature, but on the complete engineering approach, including structural design, fatigue resistance, coating system, material selection, inspection accessibility, and compliance with applicable offshore requirements.
Why Are Offshore Containers More Challenging to Design Than Standard Containers?
Offshore containers face three major challenges that standard containers typically do not: continuous corrosion exposure, dynamic lifting loads, and long-term marine weather conditions.
In offshore applications, containers may operate in environments with:
- Salt spray and seawater exposure
- High humidity
- Strong winds and heavy rain
- UV radiation
- Temperature fluctuations
- Repeated transportation and lifting cycles
These conditions can gradually affect structural integrity, protective coatings, sealing performance, and the reliability of equipment installed inside.
Therefore, offshore container design must consider the entire operating lifecycle, not only initial transportation.
1. Structural Design Determines Long-Term Reliability
The structural design of an offshore container must withstand both static loads and dynamic loads generated during offshore lifting operations.
Unlike standard shipping containers, offshore containers may be lifted repeatedly between:
- Offshore platforms
- Supply vessels
- Ports
- Marine construction sites
During lifting, the container may experience additional forces caused by:
- Vessel movement
- Wave conditions
- Wind loads
- Uneven loading conditions
A reliable offshore container design should consider:
- Structural frame strength
- Lifting point design
- Load distribution
- Equipment weight and center of gravity
- Structural fatigue resistance
Poor structural design can result in:
- Weld fatigue
- Frame deformation
- Reduced service life
- Increased maintenance requirements
For long-term offshore operation, structural reliability is the foundation of safe performance.
2. Corrosion Protection Is Critical for Marine Service Life
Corrosion protection is one of the most important factors affecting offshore container durability because marine environments continuously accelerate steel corrosion.
Saltwater and airborne chlorides can attack steel surfaces and gradually reduce structural strength if protection systems are inadequate.
A suitable offshore container should consider:
- Proper steel surface preparation
- Anti-corrosion primer
- Intermediate coating layers
- Protective topcoat
- Coating system selection based on environmental conditions
The objective of corrosion protection is not only to prevent visible rust, but also to reduce lifecycle maintenance and extend operational reliability.
3. Why Does the Coating System Matter?
The coating system acts as a protective barrier that prevents marine exposure from directly damaging the steel structure.
A durable coating system depends on more than the paint type. It also requires:
- Correct surface preparation
- Proper application process
- Sufficient coating thickness
- Quality control during manufacturing
- Compatibility with the operating environment
For offshore applications, coating performance should be evaluated based on expected exposure conditions, including:
- Offshore salt spray
- Coastal environments
- Long-term outdoor operation
A high-quality coating system helps maintain structural protection throughout the container’s service life.
4. Environmental Protection Affects Equipment Reliability
An offshore container must protect not only the structure itself but also the equipment installed inside.

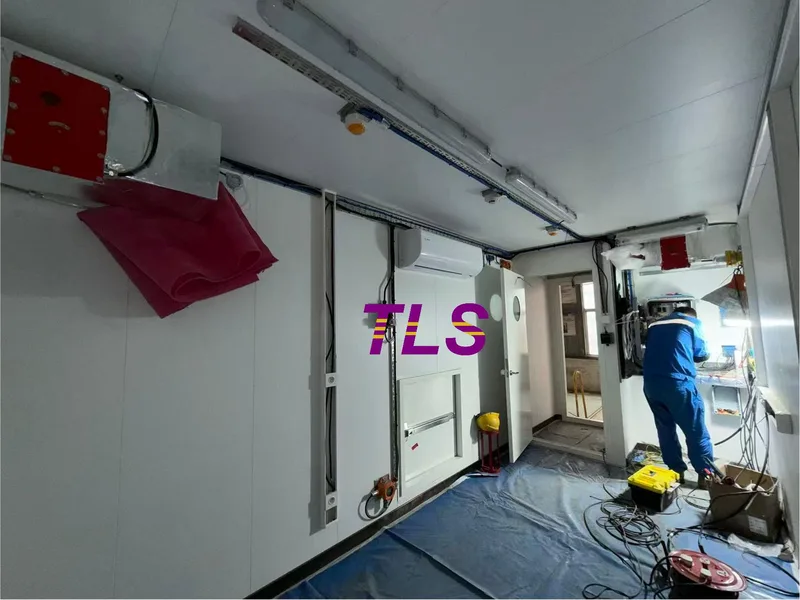

Many offshore containers are used for:
- Electrical rooms
- Control rooms
- Workshops
- Laboratories
- Communication equipment shelters
- Equipment modules
For these applications, environmental protection is essential.
Important considerations include:
- Water ingress prevention
- Door and window sealing
- Moisture control
- Condensation prevention
- Thermal management
If sensitive electrical or electronic equipment is installed inside, additional systems such as HVAC and humidity control may be required to maintain a stable internal environment.
5. Maintenance Design Extends Offshore Container Service Life
A reliable offshore container should be designed for inspection and maintenance, not only for initial operation.
Long-term offshore use requires regular checks of:
- Structural condition
- Coating condition
- Sealing performance
- Installed equipment
A maintenance-friendly design should provide:
- Adequate service space
- Easy access to critical components
- Practical inspection points
- Replaceable system components
Poor maintenance accessibility can increase downtime and operating costs, even when the initial container design is robust.
6. What Role Do Offshore Standards Such as DNV 2.7-1 Play?
Offshore standards such as DNV 2.7-1 provide requirements for structural integrity, lifting safety, and manufacturing quality in offshore container applications.
These standards typically address:
- Design loads
- Structural strength
- Lifting arrangements
- Manufacturing requirements
- Inspection procedures
However, certification alone does not determine the complete service life of an offshore container.
Long-term performance also depends on:
- Engineering design quality
- Material selection
- Corrosion protection system
- Manufacturing workmanship
- Maintenance strategy
A certified container still requires proper engineering and maintenance to achieve reliable long-term operation.
How Can You Select an Offshore Container for Long-Term Marine Use?
The correct offshore container should be selected based on operating conditions and lifecycle requirements, not only purchase price or certification.
Before selecting a container, consider:
Operating Environment
- Offshore or coastal installation location
- Corrosion exposure level
- Weather conditions
- Expected operating duration
Structural Requirements
- Frequency of lifting operations
- Internal equipment weight
- Load distribution
- Transportation conditions
Protection Requirements
- Required coating system
- Environmental sealing
- HVAC requirements
- Internal equipment protection
Maintenance Requirements
- Inspection frequency
- Access requirements
- Replacement and repair needs
A container designed for the actual application will generally provide better long-term reliability and lower lifecycle costs.
Frequently Asked Questions
How long can an offshore container last?
The service life of an offshore container depends on design quality, corrosion protection, operating environment, and maintenance practices. There is no fixed service life because marine conditions and usage patterns vary significantly between projects.
Does DNV 2.7-1 guarantee a long service life?
No. DNV 2.7-1 focuses on offshore container safety requirements, especially structural integrity and lifting performance. Long service life also depends on corrosion protection, manufacturing quality, environmental conditions, and maintenance.
What is the biggest factor affecting offshore container durability?
For long-term marine operation, corrosion protection and structural reliability are two of the most critical factors. A strong structure without effective corrosion protection, or a good coating system without proper structural design, cannot ensure long-term performance.
Can a standard container be used for offshore applications?
Generally, a standard shipping container should not replace an offshore container when repeated offshore lifting, marine exposure, or offshore standards are required. The correct choice depends on project requirements and operating conditions.
Conclusion
A reliable offshore container for long-term marine operations is not simply a stronger version of a standard container. It is an engineered solution designed to withstand corrosion, dynamic loading, harsh weather, and long-term operational demands.
The most important factors are structural reliability, corrosion protection, environmental resistance, maintenance accessibility, and compliance with applicable offshore requirements.
For offshore oil and gas, offshore wind, and marine engineering projects, selecting the right offshore container should focus on total lifecycle performance rather than only initial cost.
