Power Conversion Systems (PCS), often referred to as energy storage inverters, are critical components in Energy Storage Systems (ESS). They enable the seamless conversion of electrical energy between alternating current (AC) and direct current (DC), ensuring efficient, safe, and reliable operation. PCS facilitates charging and discharging cycles, integrates with the grid, and enhances the overall performance of energy storage solutions. Below, we explore the key operational modes of PCS and their role in the ESS ecosystem.
一. Operational Modes of Energy Storage Inverters
1.Charging and Discharging Mode
1）Charging Mode:
The PCS converts AC power from the grid or renewable energy sources (e.g., solar, wind) into DC power to charge energy storage units such as batteries.
2）Discharging Mode:
The PCS reverses the process, converting DC power from the storage unit into AC power, which is then supplied to the grid or local loads.
3）Key Feature:
PCS enables bidirectional energy flow, allowing the ESS to charge or discharge based on demand, providing flexibility and optimal energy management.
2.Grid-Tied Mode
1) Grid Synchronization: In this mode, the PCS with the grid and adjusts power output to meet grid requirements such as frequency regulation, peak shaving, and load leveling.
2) Voltage/Frequency Support: The PCS helps stabilize the grid by maintaining consistent voltage and frequency levels, offering crucial support during grid fluctuations.
3.Off-Grid Mode (Island Mode)
1) Independent Power Supply: In off-grid scenarios or during grid outages, the inverter operates independently to supply power to local loads, ensuring stable voltage and frequency.
2) Black Start Capability: The inverter provides the ability to restart the grid after a complete failure, quickly restoring power to support grid recovery.
二. The Role of Power Conversion Systems (PCS) in Energy Storage Systems
1.Power Conversion and Regulation
PCS is responsible for converting DC power from storage units into AC power and vice versa. They also regulate power to ensure compatibility between the battery system and the grid or load, providing stable, efficient power. Inverters manage the charging and discharging processes to ensure smooth and safe operation of the battery.
2.System Coordination and Control
Working in tandem with other system components (such as Battery Management Systems or BMS, and monitoring systems), PCS play a pivotal role in monitoring and optimizing the entire ESS. They track battery status, grid conditions, and load requirements in real-time, adjusting the power flow to ensure the system operates safely, efficiently, and reliably.
3.Supporting Grid Dispatch
In grid-tied mode, the PCS’s bidirectional energy flow capability makes it an essential tool for grid management. The energy storage system can function as part of a Virtual Power Plant (VPP), balancing grid supply and demand, mitigating frequency and load fluctuations, and enhancing grid stability.
4.Battery Safety Assurance
PCS collaborates closely with BMS to monitor the battery’s charge and discharge cycles, ensuring that these processes stay within safe limits. By adjusting charging voltage, current, and power in real time, inverters help avoid overcharging, deep discharging, or overheating, extending the battery's lifespan and maintaining safety.
5.Responding to Market Demands
PCS also respond to price signals and demand in the electricity market. For example,it can charge during off-peak hours when electricity prices are low and discharge during peak periods when prices are high, helping users save on energy costs. Additionally, in some markets, PCS participates in frequency regulation and load balancing, improving the economic value of the ESS.
Conclusion：
By integrating advanced PCS into energy storage systems, users can achieve higher efficiency, reliability, and economic benefits while supporting grid stability and renewable energy integration.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#PCS,#Energy Storage Inverters (ESI),#Charging Mode,#Discharging Mode,#Grid-Tied Mode,#Off-Grid Mode (Island Mode),#Black Start Capability,#Power Regulation,#Active/Reactive Power Control,#Dynamic Response,#Hybrid Mode,#Renewable Integration,#Virtual Power Plant (VPP),#Battery Management System (BMS),#Energy Conversion,#Power Optimization,#Grid Support,#Voltage/Frequency Regulation,#Battery
一. Operational Modes of Energy Storage Inverters
1.Charging and Discharging Mode
1）Charging Mode:
The PCS converts AC power from the grid or renewable energy sources (e.g., solar, wind) into DC power to charge energy storage units such as batteries.
2）Discharging Mode:
The PCS reverses the process, converting DC power from the storage unit into AC power, which is then supplied to the grid or local loads.
3）Key Feature:
PCS enables bidirectional energy flow, allowing the ESS to charge or discharge based on demand, providing flexibility and optimal energy management.
2.Grid-Tied Mode
1) Grid Synchronization: In this mode, the PCS with the grid and adjusts power output to meet grid requirements such as frequency regulation, peak shaving, and load leveling.
2) Voltage/Frequency Support: The PCS helps stabilize the grid by maintaining consistent voltage and frequency levels, offering crucial support during grid fluctuations.
3.Off-Grid Mode (Island Mode)
1) Independent Power Supply: In off-grid scenarios or during grid outages, the inverter operates independently to supply power to local loads, ensuring stable voltage and frequency.
2) Black Start Capability: The inverter provides the ability to restart the grid after a complete failure, quickly restoring power to support grid recovery.
二. The Role of Power Conversion Systems (PCS) in Energy Storage Systems
1.Power Conversion and Regulation
PCS is responsible for converting DC power from storage units into AC power and vice versa. They also regulate power to ensure compatibility between the battery system and the grid or load, providing stable, efficient power. Inverters manage the charging and discharging processes to ensure smooth and safe operation of the battery.
2.System Coordination and Control
Working in tandem with other system components (such as Battery Management Systems or BMS, and monitoring systems), PCS play a pivotal role in monitoring and optimizing the entire ESS. They track battery status, grid conditions, and load requirements in real-time, adjusting the power flow to ensure the system operates safely, efficiently, and reliably.
3.Supporting Grid Dispatch
In grid-tied mode, the PCS’s bidirectional energy flow capability makes it an essential tool for grid management. The energy storage system can function as part of a Virtual Power Plant (VPP), balancing grid supply and demand, mitigating frequency and load fluctuations, and enhancing grid stability.
4.Battery Safety Assurance
PCS collaborates closely with BMS to monitor the battery’s charge and discharge cycles, ensuring that these processes stay within safe limits. By adjusting charging voltage, current, and power in real time, inverters help avoid overcharging, deep discharging, or overheating, extending the battery's lifespan and maintaining safety.
5.Responding to Market Demands
PCS also respond to price signals and demand in the electricity market. For example,it can charge during off-peak hours when electricity prices are low and discharge during peak periods when prices are high, helping users save on energy costs. Additionally, in some markets, PCS participates in frequency regulation and load balancing, improving the economic value of the ESS.
Conclusion：
By integrating advanced PCS into energy storage systems, users can achieve higher efficiency, reliability, and economic benefits while supporting grid stability and renewable energy integration.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#PCS,#Energy Storage Inverters (ESI),#Charging Mode,#Discharging Mode,#Grid-Tied Mode,#Off-Grid Mode (Island Mode),#Black Start Capability,#Power Regulation,#Active/Reactive Power Control,#Dynamic Response,#Hybrid Mode,#Renewable Integration,#Virtual Power Plant (VPP),#Battery Management System (BMS),#Energy Conversion,#Power Optimization,#Grid Support,#Voltage/Frequency Regulation,#Battery
Written by Snowy
As energy storage systems evolve toward higher capacity, greater power, and increased energy density, thermal management has become a critical factor affecting battery lifespan, safety, and efficiency. While air cooling and liquid cooling are the two primary cooling solutions, liquid cooling is rapidly emerging as the industry standard.
Air Cooling vs. Liquid Cooling: Key Differences
Air cooling relies on fans to dissipate heat through airflow,whereas liquid cooling uses a coolant that directly absorbs and transfers heat away from battery modules.Since liquids have a heat transfer capacity more over than air,liquid cooling significantly enhances cooling efficiency and ensures uniform temperature distribution,reducing the risk of localized overheating.
In contrast,air cooling struggles in high-temperature environments,where inconsistent heat dissipation can shorten battery lifespan.Additionally,air-cooled systems require large fans,leading to high energy consumption,excessive noise,and increased maintenance cost due to dust accumulation.Liquid cooling,on the other hand,operates quietly,occupies less space,extends maintenance cycles,and improves overall system energy efficiency great improved-making it ideal for high -density energy storage applications.
Why Choose a Liquid-Cooled Energy Storage System?
1. Superior Cooling Efficiency:Liquid cooling removes heat 25x more efficiently than air cooling.
2. Better Temperature Control:liquid cooling ensures better thermal stability, preventing overheating or overcooling, and minimizing performance degradation due to temperature fluctuations.
3. Lower Energy Consumption:High-efficiency coolant circulation reduces power usage,great improving energy efficiency.
4. Adaptability to Extreme Environments：Reliable operation in temperatures from -30°C to 55°C, ensuring stable performance in both hot and cold climates.
5. Compact and Scalable Design:No need for large ventilation ducts, allowing for higher energy density in a smaller footprint.
6. Reduced Maintenance Costs:Sealed coolant systems prevent dust accumulation, lowering maintenance frequency and costs.
Conclusion: Liquid Cooling is the Future of Energy Storage
With its superior thermal performance, enhanced energy efficiency, and improved battery longevity, liquid cooling is rapidly becoming the preferred solution for commercial & industrial energy storage, grid-scale storage, data center backup, and solar-plus-storage applications. As the demand for energy storage continues to grow, liquid-cooled systems will play a pivotal role in enabling safer, more efficient, and higher-density storage solutions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Liquid Cooling, please download Industrial microgrid energy storage system for reference.
Keywords:#Liquid Cooling,#Air Cooling,#Energy Storage System (ESS),#Battery Thermal Management,#Heat Dissipation,#Cooling Efficiency,#Temperature Control,#Thermal Runaway Prevention,#Energy Density,#High-Power Batteries,#Cooling System Comparison,#Industrial Energy Storage,#Grid-Scale Storage,#Battery Longevity,#Maintenance Costs,#Compact Design,#Renewable Energy Storage,#Solar-Plus-Storage,#Data Center Backup#Extreme Environment Adaptability
Air Cooling vs. Liquid Cooling: Key Differences
Air cooling relies on fans to dissipate heat through airflow,whereas liquid cooling uses a coolant that directly absorbs and transfers heat away from battery modules.Since liquids have a heat transfer capacity more over than air,liquid cooling significantly enhances cooling efficiency and ensures uniform temperature distribution,reducing the risk of localized overheating.
In contrast,air cooling struggles in high-temperature environments,where inconsistent heat dissipation can shorten battery lifespan.Additionally,air-cooled systems require large fans,leading to high energy consumption,excessive noise,and increased maintenance cost due to dust accumulation.Liquid cooling,on the other hand,operates quietly,occupies less space,extends maintenance cycles,and improves overall system energy efficiency great improved-making it ideal for high -density energy storage applications.
Why Choose a Liquid-Cooled Energy Storage System?
1. Superior Cooling Efficiency:Liquid cooling removes heat 25x more efficiently than air cooling.
2. Better Temperature Control:liquid cooling ensures better thermal stability, preventing overheating or overcooling, and minimizing performance degradation due to temperature fluctuations.
3. Lower Energy Consumption:High-efficiency coolant circulation reduces power usage,great improving energy efficiency.
4. Adaptability to Extreme Environments：Reliable operation in temperatures from -30°C to 55°C, ensuring stable performance in both hot and cold climates.
5. Compact and Scalable Design:No need for large ventilation ducts, allowing for higher energy density in a smaller footprint.
6. Reduced Maintenance Costs:Sealed coolant systems prevent dust accumulation, lowering maintenance frequency and costs.
Conclusion: Liquid Cooling is the Future of Energy Storage
With its superior thermal performance, enhanced energy efficiency, and improved battery longevity, liquid cooling is rapidly becoming the preferred solution for commercial & industrial energy storage, grid-scale storage, data center backup, and solar-plus-storage applications. As the demand for energy storage continues to grow, liquid-cooled systems will play a pivotal role in enabling safer, more efficient, and higher-density storage solutions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Liquid Cooling, please download Industrial microgrid energy storage system for reference.
Keywords:#Liquid Cooling,#Air Cooling,#Energy Storage System (ESS),#Battery Thermal Management,#Heat Dissipation,#Cooling Efficiency,#Temperature Control,#Thermal Runaway Prevention,#Energy Density,#High-Power Batteries,#Cooling System Comparison,#Industrial Energy Storage,#Grid-Scale Storage,#Battery Longevity,#Maintenance Costs,#Compact Design,#Renewable Energy Storage,#Solar-Plus-Storage,#Data Center Backup#Extreme Environment Adaptability
Written by Snowy

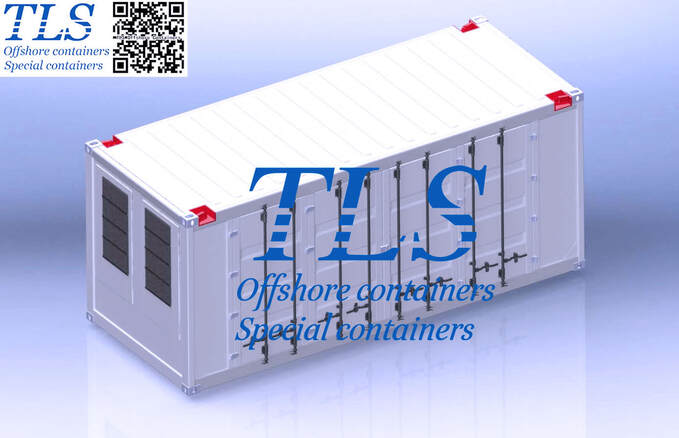

Key Considerations in Energy Storage Container Design The demand for energy storage solutions has surged as renewable energy technologies, such as solar and wind power, become increasingly integrated into global energy systems. Battery Energy Storage Systems (BESS) are crucial in managing the variability of renewable energy sources, and energy storage containers provide an efficient, scalable way to house these systems. Designing a robust, high-performance energy storage container is critical to ensuring safety, efficiency, and cost-effectiveness. In this blog, we explore the key factors that must be considered when designing an energy storage container.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.
7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.
8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#Energy Storage Container Design，#Battery Energy Storage Systems (BESS)，#Battery Management System (BMS)，#Thermal Management，#Fire Suppression Systems，#Cooling Systems，#Ingress Protection (IP) Ratings，#Modular Design，#Grid Integration，#Power Electronics，#Remote Monitoring，#Energy Management Systems (EMS)，#Energy Storage System Safety，#Energy Storage System Scalability，#Logistical Considerations for Energy Storage，#Cost Optimization in Energy Storage Design，#Renewable Energy Storage Solutions，#Lithium-ion Battery Design，#Energy Storage System Maintenance.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
- Fire and Explosion Prevention: Energy storage systems, particularly lithium-ion batteries, can be prone to thermal runaway, posing fire risks. Therefore, integrating fire suppression systems, fire-resistant barriers, and temperature regulation mechanisms is crucial.
- Thermal Management: Battery performance can be severely impacted by excessive heat, so an effective cooling system (liquid cooling or air cooling) is required to maintain optimal temperatures for battery health and safety.
- Ingress Protection: The container must be designed to prevent the entry of water, dust, or any foreign particles that could damage internal components. IP (Ingress Protection) ratings ensure that the system can function under various environmental conditions.
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
- Temperature Extremes: Insulation or heating elements might be required in colder climates to protect the system.
- Corrosion Resistance: For installations in coastal or industrial areas, anti-corrosion materials like galvanized steel or aluminum alloys must be used.
- Structural Integrity: The container should withstand harsh weather conditions, including high winds or seismic activity. Reinforced structures and shockproof designs ensure stability in adverse conditions.
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.
7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.
8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
