The Role and Operational Modes of power conversion system in Energy Storage Systems

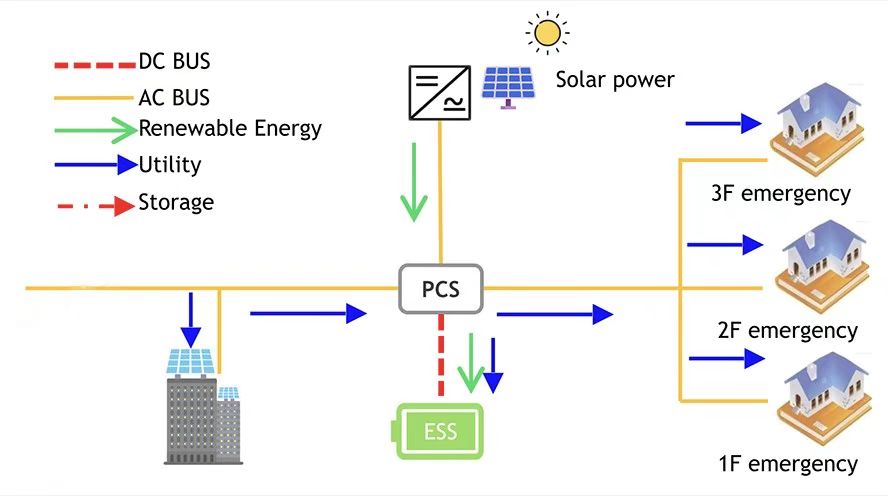

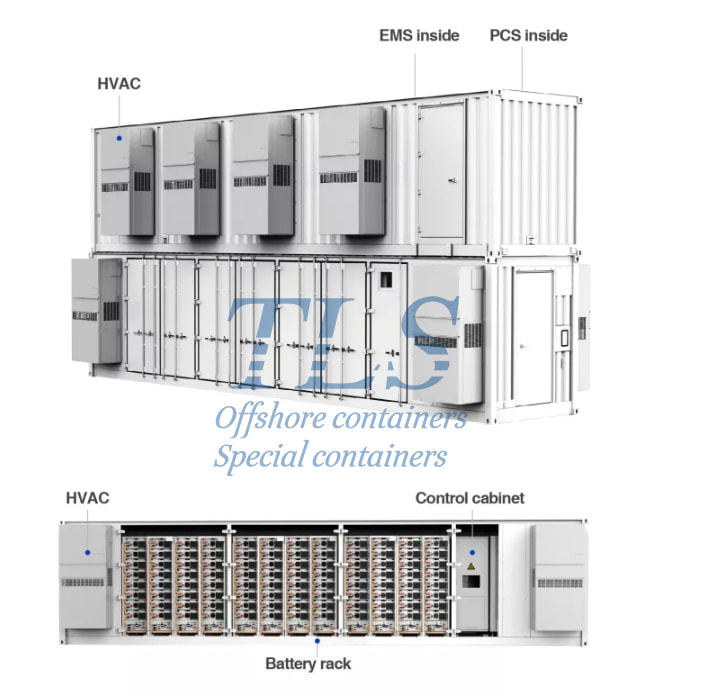

Power Conversion Systems (PCS), often referred to as energy storage inverters, are critical components in Energy Storage Systems (ESS). They enable the seamless conversion of electrical energy between alternating current (AC) and direct current (DC), ensuring efficient, safe, and reliable operation. PCS facilitates charging and discharging cycles, integrates with the grid, and enhances the overall performance of energy storage solutions. Below, we explore the key operational modes of PCS and their role in the ESS ecosystem.

一. Operational Modes of Energy Storage Inverters

1.Charging and Discharging Mode
1）Charging Mode:
The PCS converts AC power from the grid or renewable energy sources (e.g., solar, wind) into DC power to charge energy storage units such as batteries.
2）Discharging Mode:
The PCS reverses the process, converting DC power from the storage unit into AC power, which is then supplied to the grid or local loads.
3）Key Feature:
PCS enables bidirectional energy flow, allowing the ESS to charge or discharge based on demand, providing flexibility and optimal energy management.

2.Grid-Tied Mode
1) Grid Synchronization: In this mode, the PCS with the grid and adjusts power output to meet grid requirements such as frequency regulation, peak shaving, and load leveling.
2) Voltage/Frequency Support: The PCS helps stabilize the grid by maintaining consistent voltage and frequency levels, offering crucial support during grid fluctuations.

3.Off-Grid Mode (Island Mode)
1) Independent Power Supply: In off-grid scenarios or during grid outages, the inverter operates independently to supply power to local loads, ensuring stable voltage and frequency.
2) Black Start Capability: The inverter provides the ability to restart the grid after a complete failure, quickly restoring power to support grid recovery.

二. The Role of Power Conversion Systems (PCS) in Energy Storage Systems

1.Power Conversion and Regulation
PCS is responsible for converting DC power from storage units into AC power and vice versa. They also regulate power to ensure compatibility between the battery system and the grid or load, providing stable, efficient power. Inverters manage the charging and discharging processes to ensure smooth and safe operation of the battery.

2.System Coordination and Control
Working in tandem with other system components (such as Battery Management Systems or BMS, and monitoring systems), PCS play a pivotal role in monitoring and optimizing the entire ESS. They track battery status, grid conditions, and load requirements in real-time, adjusting the power flow to ensure the system operates safely, efficiently, and reliably.

3.Supporting Grid Dispatch
In grid-tied mode, the PCS’s bidirectional energy flow capability makes it an essential tool for grid management. The energy storage system can function as part of a Virtual Power Plant (VPP), balancing grid supply and demand, mitigating frequency and load fluctuations, and enhancing grid stability.

​4.Battery Safety Assurance
PCS collaborates closely with BMS to monitor the battery’s charge and discharge cycles, ensuring that these processes stay within safe limits. By adjusting charging voltage, current, and power in real time, inverters help avoid overcharging, deep discharging, or overheating, extending the battery's lifespan and maintaining safety.

5.Responding to Market Demands
PCS also respond to price signals and demand in the electricity market. For example,it can charge during off-peak hours when electricity prices are low and discharge during peak periods when prices are high, helping users save on energy costs. Additionally, in some markets, PCS participates in frequency regulation and load balancing, improving the economic value of the ESS.

Conclusion：
By integrating advanced PCS into energy storage systems, users can achieve higher efficiency, reliability, and economic benefits while supporting grid stability and renewable energy integration.
