As energy storage systems evolve toward higher capacity, greater power, and increased energy density, thermal management has become a critical factor affecting battery lifespan, safety, and efficiency. While air cooling and liquid cooling are the two primary cooling solutions, liquid cooling is rapidly emerging as the industry standard.
Air Cooling vs. Liquid Cooling: Key Differences
Air cooling relies on fans to dissipate heat through airflow,whereas liquid cooling uses a coolant that directly absorbs and transfers heat away from battery modules.Since liquids have a heat transfer capacity more over than air,liquid cooling significantly enhances cooling efficiency and ensures uniform temperature distribution,reducing the risk of localized overheating.
In contrast,air cooling struggles in high-temperature environments,where inconsistent heat dissipation can shorten battery lifespan.Additionally,air-cooled systems require large fans,leading to high energy consumption,excessive noise,and increased maintenance cost due to dust accumulation.Liquid cooling,on the other hand,operates quietly,occupies less space,extends maintenance cycles,and improves overall system energy efficiency great improved-making it ideal for high -density energy storage applications.
Why Choose a Liquid-Cooled Energy Storage System?
1. Superior Cooling Efficiency:Liquid cooling removes heat 25x more efficiently than air cooling.
2. Better Temperature Control:liquid cooling ensures better thermal stability, preventing overheating or overcooling, and minimizing performance degradation due to temperature fluctuations.
3. Lower Energy Consumption:High-efficiency coolant circulation reduces power usage,great improving energy efficiency.
4. Adaptability to Extreme Environments：Reliable operation in temperatures from -30°C to 55°C, ensuring stable performance in both hot and cold climates.
5. Compact and Scalable Design:No need for large ventilation ducts, allowing for higher energy density in a smaller footprint.
6. Reduced Maintenance Costs:Sealed coolant systems prevent dust accumulation, lowering maintenance frequency and costs.
Conclusion: Liquid Cooling is the Future of Energy Storage
With its superior thermal performance, enhanced energy efficiency, and improved battery longevity, liquid cooling is rapidly becoming the preferred solution for commercial & industrial energy storage, grid-scale storage, data center backup, and solar-plus-storage applications. As the demand for energy storage continues to grow, liquid-cooled systems will play a pivotal role in enabling safer, more efficient, and higher-density storage solutions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Liquid Cooling, please download Industrial microgrid energy storage system for reference.
Keywords:#Liquid Cooling,#Air Cooling,#Energy Storage System (ESS),#Battery Thermal Management,#Heat Dissipation,#Cooling Efficiency,#Temperature Control,#Thermal Runaway Prevention,#Energy Density,#High-Power Batteries,#Cooling System Comparison,#Industrial Energy Storage,#Grid-Scale Storage,#Battery Longevity,#Maintenance Costs,#Compact Design,#Renewable Energy Storage,#Solar-Plus-Storage,#Data Center Backup#Extreme Environment Adaptability
Air Cooling vs. Liquid Cooling: Key Differences
Air cooling relies on fans to dissipate heat through airflow,whereas liquid cooling uses a coolant that directly absorbs and transfers heat away from battery modules.Since liquids have a heat transfer capacity more over than air,liquid cooling significantly enhances cooling efficiency and ensures uniform temperature distribution,reducing the risk of localized overheating.
In contrast,air cooling struggles in high-temperature environments,where inconsistent heat dissipation can shorten battery lifespan.Additionally,air-cooled systems require large fans,leading to high energy consumption,excessive noise,and increased maintenance cost due to dust accumulation.Liquid cooling,on the other hand,operates quietly,occupies less space,extends maintenance cycles,and improves overall system energy efficiency great improved-making it ideal for high -density energy storage applications.
Why Choose a Liquid-Cooled Energy Storage System?
1. Superior Cooling Efficiency:Liquid cooling removes heat 25x more efficiently than air cooling.
2. Better Temperature Control:liquid cooling ensures better thermal stability, preventing overheating or overcooling, and minimizing performance degradation due to temperature fluctuations.
3. Lower Energy Consumption:High-efficiency coolant circulation reduces power usage,great improving energy efficiency.
4. Adaptability to Extreme Environments：Reliable operation in temperatures from -30°C to 55°C, ensuring stable performance in both hot and cold climates.
5. Compact and Scalable Design:No need for large ventilation ducts, allowing for higher energy density in a smaller footprint.
6. Reduced Maintenance Costs:Sealed coolant systems prevent dust accumulation, lowering maintenance frequency and costs.
Conclusion: Liquid Cooling is the Future of Energy Storage
With its superior thermal performance, enhanced energy efficiency, and improved battery longevity, liquid cooling is rapidly becoming the preferred solution for commercial & industrial energy storage, grid-scale storage, data center backup, and solar-plus-storage applications. As the demand for energy storage continues to grow, liquid-cooled systems will play a pivotal role in enabling safer, more efficient, and higher-density storage solutions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding Liquid Cooling, please download Industrial microgrid energy storage system for reference.
Keywords:#Liquid Cooling,#Air Cooling,#Energy Storage System (ESS),#Battery Thermal Management,#Heat Dissipation,#Cooling Efficiency,#Temperature Control,#Thermal Runaway Prevention,#Energy Density,#High-Power Batteries,#Cooling System Comparison,#Industrial Energy Storage,#Grid-Scale Storage,#Battery Longevity,#Maintenance Costs,#Compact Design,#Renewable Energy Storage,#Solar-Plus-Storage,#Data Center Backup#Extreme Environment Adaptability
Written by Snowy
Key Considerations in Energy Storage Container Design The demand for energy storage solutions has surged as renewable energy technologies, such as solar and wind power, become increasingly integrated into global energy systems. Battery Energy Storage Systems (BESS) are crucial in managing the variability of renewable energy sources, and energy storage containers provide an efficient, scalable way to house these systems. Designing a robust, high-performance energy storage container is critical to ensuring safety, efficiency, and cost-effectiveness. In this blog, we explore the key factors that must be considered when designing an energy storage container.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.
7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.
8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#Energy Storage Container Design，#Battery Energy Storage Systems (BESS)，#Battery Management System (BMS)，#Thermal Management，#Fire Suppression Systems，#Cooling Systems，#Ingress Protection (IP) Ratings，#Modular Design，#Grid Integration，#Power Electronics，#Remote Monitoring，#Energy Management Systems (EMS)，#Energy Storage System Safety，#Energy Storage System Scalability，#Logistical Considerations for Energy Storage，#Cost Optimization in Energy Storage Design，#Renewable Energy Storage Solutions，#Lithium-ion Battery Design，#Energy Storage System Maintenance.
1. Battery Type and Configuration
The foundation of any energy storage system lies in the choice of battery technology. Lithium-ion batteries are the most popular due to their high energy density, long lifespan, and efficiency, but alternatives like lead-acid and flow batteries may also be considered depending on the application. The battery configuration must be carefully designed to optimize the system’s capacity while ensuring ease of maintenance, safe operation, and efficient thermal management.
2. Safety Design
Given the high energy densities involved, safety is paramount in the design of energy storage containers. Several features are essential to prevent accidents:
- Fire and Explosion Prevention: Energy storage systems, particularly lithium-ion batteries, can be prone to thermal runaway, posing fire risks. Therefore, integrating fire suppression systems, fire-resistant barriers, and temperature regulation mechanisms is crucial.
- Thermal Management: Battery performance can be severely impacted by excessive heat, so an effective cooling system (liquid cooling or air cooling) is required to maintain optimal temperatures for battery health and safety.
- Ingress Protection: The container must be designed to prevent the entry of water, dust, or any foreign particles that could damage internal components. IP (Ingress Protection) ratings ensure that the system can function under various environmental conditions.
3. Electrical Systems Integration
The Battery Management System (BMS) plays a critical role in managing battery health by monitoring important metrics like voltage, temperature, and charge levels. The inverter and power electronics must also be selected carefully to facilitate efficient DC to AC conversion, ensuring smooth energy delivery to the grid or other power systems.
In addition, high-quality cabling and connectors are vital for safe and efficient power distribution within the container.
4. Environmental Adaptability
Energy storage systems often operate in a range of environments, from extreme heat to cold. The design must account for environmental factors like:
- Temperature Extremes: Insulation or heating elements might be required in colder climates to protect the system.
- Corrosion Resistance: For installations in coastal or industrial areas, anti-corrosion materials like galvanized steel or aluminum alloys must be used.
- Structural Integrity: The container should withstand harsh weather conditions, including high winds or seismic activity. Reinforced structures and shockproof designs ensure stability in adverse conditions.
5. Capacity, Space, and Scalability
Maximizing space efficiency is essential to increase the energy density of the container. Thoughtful layout planning should ensure that the system can house the necessary components, such as batteries, inverters, and cooling systems, without overcrowding. Modular designs allow the system to scale as future energy demands increase or technologies evolve.
6. Grid Integration and Power Management
The design must also account for the system’s ability to connect seamlessly to the power grid or off-grid applications. It should support grid stabilization, demand-response programs, and energy management systems (EMS) to ensure efficient energy transfer and storage.
For off-grid installations, backup power capabilities and islanding protection should also be integrated to safeguard against grid outages.
7. Remote Monitoring and Smart Management
As with any modern system, remote monitoring capabilities are critical. The integration of an intelligent management system enables operators to track real-time data, perform diagnostics, and receive maintenance alerts. Predictive analytics can optimize performance by anticipating issues before they arise, reducing downtime and improving system efficiency.
8. Transportability and Logistics
Energy storage containers should be designed with logistical considerations in mind. Adhering to standard shipping dimensions ensures the system can be transported by road, rail, or sea without complications. The container must also be durable enough to withstand the rigors of transportation while keeping the internal equipment safe.
9. Maintainability
A well-designed container should allow for easy maintenance and component replacement. Modular components and accessible layouts reduce downtime during maintenance cycles and make repairs more cost-effective.
10. Cost Efficiency
While it’s important to deliver high-quality performance, the design must also remain cost-effective. Striking a balance between performance and cost is key to ensuring the energy storage system remains competitive in the market. This includes selecting cost-efficient materials, avoiding over-engineering, and focusing on modular designs to allow for flexibility and future upgrades.
Conclusion
Designing an energy storage container is a complex process that requires careful attention to numerous technical, environmental, and logistical factors. Safety, efficiency, and scalability must be balanced to ensure that the energy storage system can provide reliable, long-term performance. As demand for renewable energy solutions continues to rise, well-designed energy storage systems will play a pivotal role in stabilizing power grids, reducing carbon footprints, and advancing the global transition to clean energy.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#Energy Storage Container Design，#Battery Energy Storage Systems (BESS)，#Battery Management System (BMS)，#Thermal Management，#Fire Suppression Systems，#Cooling Systems，#Ingress Protection (IP) Ratings，#Modular Design，#Grid Integration，#Power Electronics，#Remote Monitoring，#Energy Management Systems (EMS)，#Energy Storage System Safety，#Energy Storage System Scalability，#Logistical Considerations for Energy Storage，#Cost Optimization in Energy Storage Design，#Renewable Energy Storage Solutions，#Lithium-ion Battery Design，#Energy Storage System Maintenance.
Written by Snowy
In today’s fast-evolving energy landscape, TLS Battery Energy Storage Systems (BESS) are transforming how we harness and manage renewable energy. Whether you’re looking to store energy from solar, wind, or other renewable sources, TLS offers customized containerized solutions designed to meet your specific needs. We go beyond providing simple energy storage—our solutions are built to maximize efficiency, reliability, and sustainability.
Benefits of BESS for today and tomorrow
TLS BESS offers more than just a storage solution. Our systems are modular, scalable, and cost-effective, enabling you to store renewable energy and manage it efficiently.
Two main models of the temperature control of battery energy storage systems
Air Cooling:
Liquid Cooling:
Selection Criteria: Decisions should be based on heat generation requirements, budget constraints, environmental conditions, and system design.
Three Tailored BESS Container Solutions
We offer three distinct BESS container types, each designed with precision to meet the needs of different projects, whether large or small:
Why Choose TLS BESS?
Transform Your Energy Future with TLS BESS
At TLS, we are dedicated to providing innovative and sustainable energy solutions that empower your business and help create a greener future. With our modular, scalable, and fully integrated BESS containers, we help you take control of your energy management while reducing costs and environmental impact.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Regarding the Battery Energy Storage System (BESS) container, please download Energy Storage System (ESS) Containers brochure for reference.
Keywords:#TLS BESS,#Battery Energy Storage Systems,#Renewable energy,#Energy storage,#Modular solutions,#Scalable systems,#Cost-effective,#Reliable power,#Sustainable energy,#Customized solutions,#Energy management,#Battery Management System (BMS)
Benefits of BESS for today and tomorrow
TLS BESS offers more than just a storage solution. Our systems are modular, scalable, and cost-effective, enabling you to store renewable energy and manage it efficiently.
- Reliable Power: BESS containers not only store energy from solar and wind but also support advanced energy management systems, ensuring you have reliable power whenever you need it.
- Cost Savings: With the ability to store energy and use it during peak times, you can reduce reliance on expensive grid power and lower overall energy costs.
- Sustainable Energy: By supporting renewable energy solutions, TLS BESS helps reduce your carbon footprint and contribute to a greener, more sustainable future.
Two main models of the temperature control of battery energy storage systems
Air Cooling:
- Advantages: Simple structure, high reliability, and low cost. Suitable for low heat generation and moderate environmental conditions.
- Disadvantages: Limited cooling efficiency, unsuitable for high temperatures or dusty environments.
Liquid Cooling:
- Advantages: High cooling efficiency and compact system design. Ideal for high heat generation and large-scale projects.
- Disadvantages: High cost, complex maintenance, and not suitable for extremely low temperatures or water-scarce regions.
Selection Criteria: Decisions should be based on heat generation requirements, budget constraints, environmental conditions, and system design.
Three Tailored BESS Container Solutions
We offer three distinct BESS container types, each designed with precision to meet the needs of different projects, whether large or small:

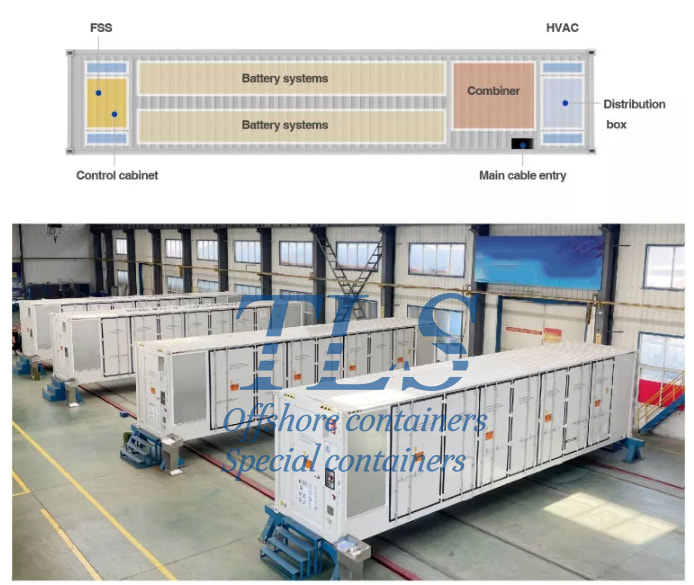

- Container Enclosure Body with Battery Rack
- Semi-Integrated BESS Container Solution
- Fully Integrated BESS Container
Why Choose TLS BESS?
- Scalable Solutions: From small businesses to large industrial projects, TLS BESS adapts to your energy needs as they grow.
- Seamless Integration: TLS BESS is designed to integrate easily with your existing infrastructure, making installation and operation smooth.
- We could offer tailored services to meet the unique needs of different customers, such as Smart Battery Management and EPC Services.
Transform Your Energy Future with TLS BESS
At TLS, we are dedicated to providing innovative and sustainable energy solutions that empower your business and help create a greener future. With our modular, scalable, and fully integrated BESS containers, we help you take control of your energy management while reducing costs and environmental impact.
