Drilling Fluid Lab Cabin vs. Mud Logging Unit: Functional Differences, Configurations, and Zoning Applications

In oil and gas drilling operations, modular functional containers play a vital role in ensuring both safety and operational efficiency. Among the most commonly deployed modules are the Drilling Fluid Lab Cabin and the Mud Logging Unit (MLU). While these two systems often appear together on drilling sites, they serve fundamentally different purposes in terms of function, configuration, zoning requirements, and explosion-proof standards.

Distinct Functional Roles
The Drilling Fluid Lab Cabin is primarily used to test and adjust drilling fluid (mud) properties to ensure optimal performance across different drilling intervals. It is operated by mud engineers and is designed to monitor key parameters such as density, viscosity, pH, sand content, and fluid loss. Based on these results, the mud formulation can be promptly optimized to meet well-specific demands.
The Mud Logging Unit, on the other hand, functions as a real-time geological monitoring center. Through integrated sensor systems, it continuously collects and analyzes critical data such as cuttings, gas content, mud flow, and pump pressure. This data is used by geological engineers to evaluate subsurface formations, detect abnormalities, and support decision-making during the drilling process.

Different System Configurations

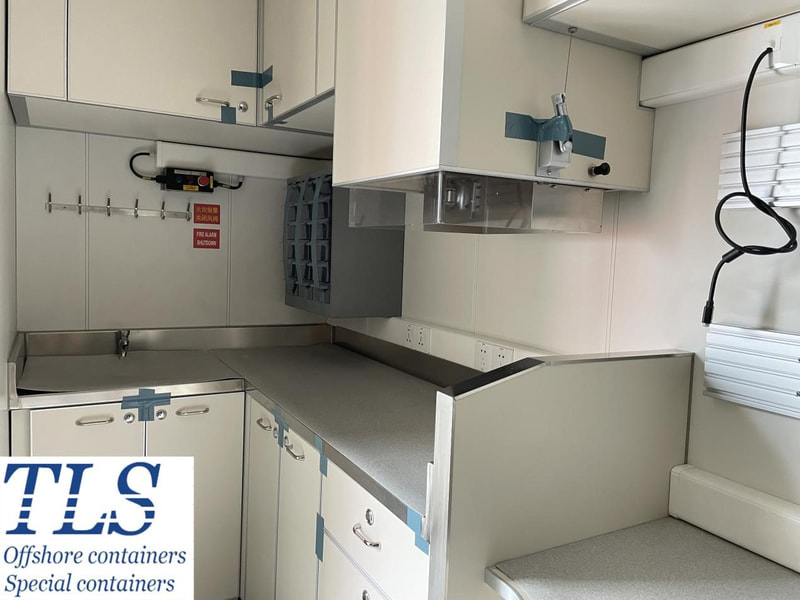

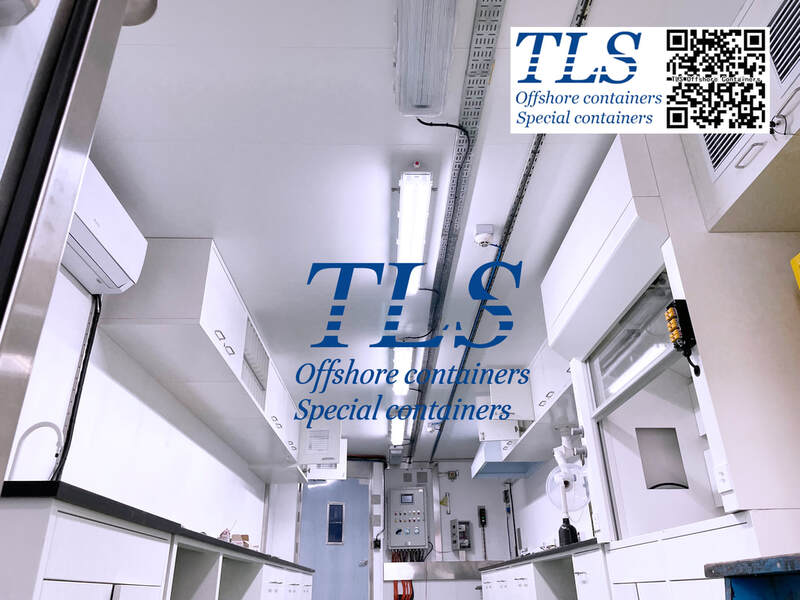

The Drilling Fluid Lab Cabin is outfitted with laboratory-grade equipment including test benches, density meters, filter press units, viscometers, and mixing tools. It also requires reliable ventilation, drainage, and lighting systems to support laboratory operations in field conditions.

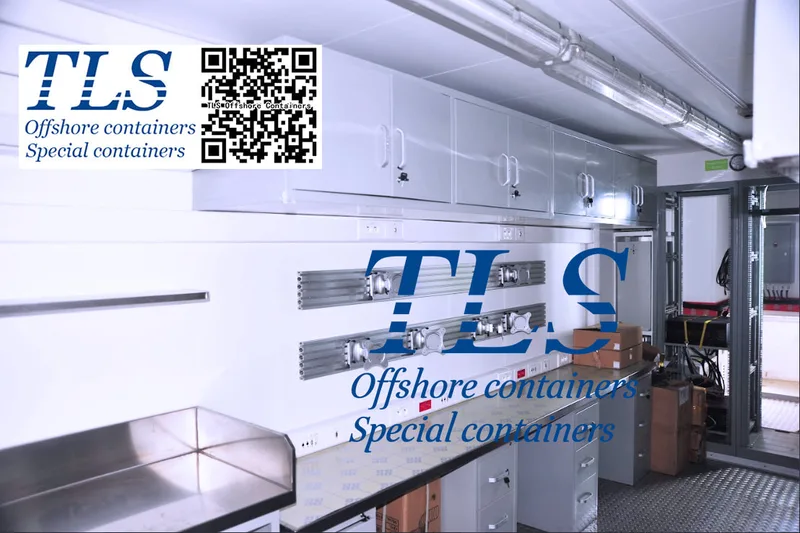

The Mud Logging Unit integrates advanced sampling and monitoring instruments such as gas detectors, cuttings analyzers, data acquisition terminals, and industrial-grade computers. Data is typically visualized in real time and transmitted to the central control system, forming part of the broader drilling information network.

Zoning and Explosion-Proof Standards
These two modules are deployed in different safety zones based on site-specific hazardous area classifications. The Drilling Fluid Lab Cabin is generally positioned at the periphery of the platform or in designated safe areas—either Safe Area or Zone 2 depending on the site layout. While not always mandatory, Zone 2 explosion-proof designs are often recommended to ensure safety compliance.
In contrast, the Mud Logging Unit is typically located closer to the wellhead or return mud flow line, often within Zone 1 or Zone 2 hazardous areas. As such, it must be built to meet strict international explosion-proof certifications such as ATEX, IECEx, or UL, including explosion-proof electrical components, lighting systems, and positive pressure ventilation to ensure safe operation in hazardous environments.

Differences in Operational Mode
The Drilling Fluid Lab Cabin is operated on a shift-based schedule. Tests are conducted periodically based on operational needs, with the lab ready to respond around the clock if required.
The Mud Logging Unit, however, operates 24/7 without interruption. Staffed by engineers on rotating shifts, it ensures continuous monitoring of downhole data throughout the entire drilling process.

Conclusion
While the Drilling Fluid Lab Cabin and Mud Logging Unit are both essential components of drilling infrastructure, they fulfill complementary roles: one ensures the performance and safety of drilling fluids, while the other provides real-time geological insights. Together, they contribute to safer and more efficient drilling operations.
As a leading provider of modular functional containers, TLS offers custom-engineered Drilling Fluid Labs and Mud Logging Units that comply with Zone 1/Zone 2 explosion-proof requirements, adaptable for both onshore and offshore deployment across a wide range of operating environments.

  TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
