No. An IP55 rating means a BESS enclosure provides defined protection against dust and water jets under specified test conditions. It does not mean the container is watertight, floodproof, submersible or protected against every form of moisture.
For a battery energy storage system, IP55 is an important enclosure requirement because batteries, control equipment and electrical connections are commonly installed outdoors. However, the rating must be interpreted correctly and supported by drainage, condensation control, corrosion protection and maintenance.
What Does IP55 Mean?
The IP Code is defined by IEC 60529. In “IP55,” the two digits describe different types of ingress protection:
- The first 5 addresses solid-particle protection. The enclosure is dust-protected, meaning dust entry is limited to a level that does not interfere with satisfactory operation. It is not classified as completely dust-tight.
- The second 5 addresses water protection. The enclosure is protected against water jets directed from different directions under the standard test conditions.
The rating describes the tested enclosure configuration. It does not create a general guarantee for every outdoor condition.

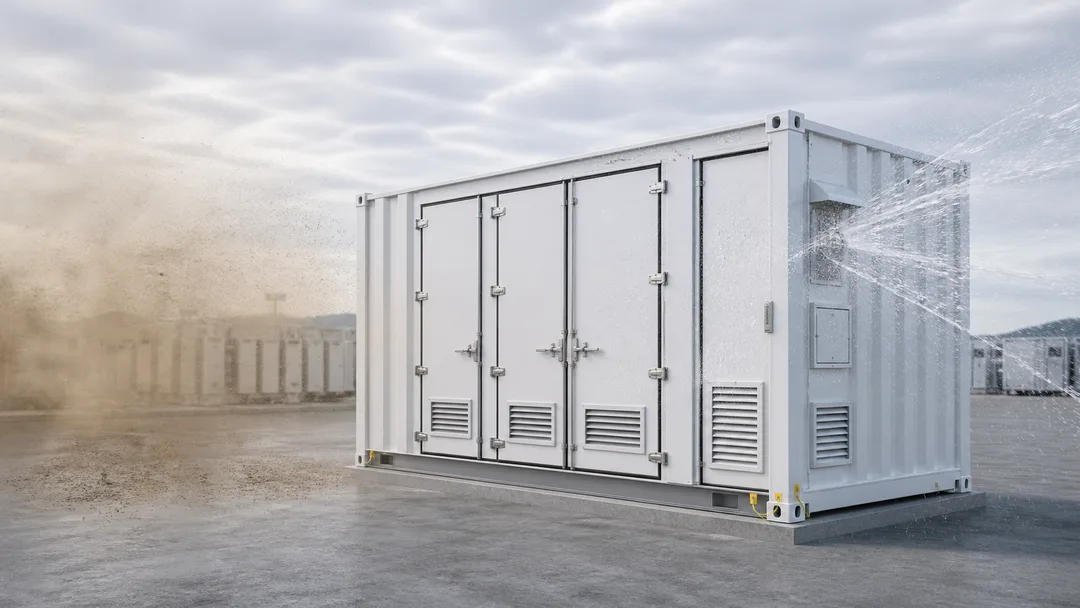

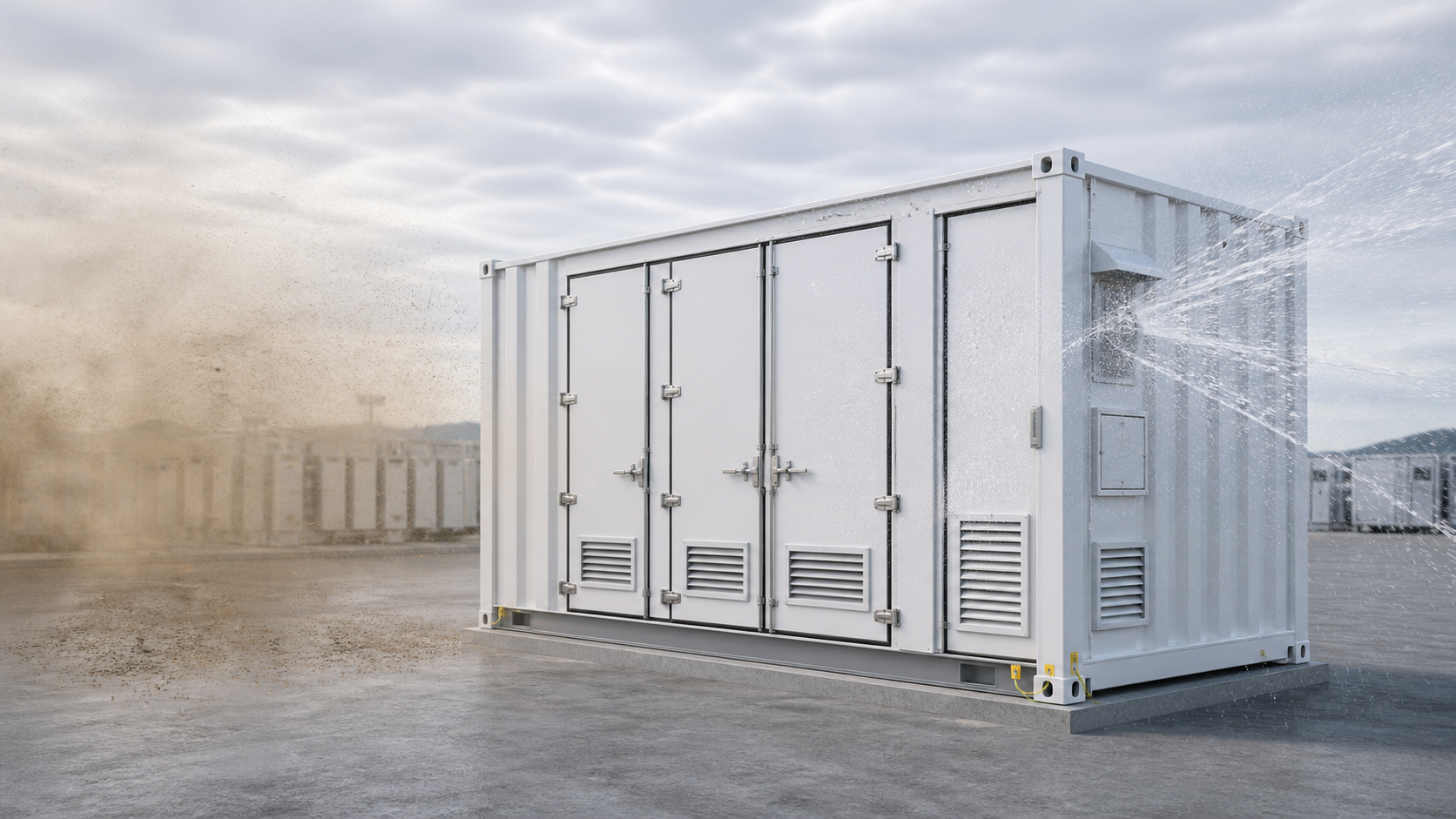

What Does IP55 Protect a BESS Container Against?
An IP55 enclosure is intended to reduce harmful ingress from common outdoor exposure such as:
- airborne dust;
- wind-driven particles;
- rain reaching the enclosure from different directions;
- water jets within the applicable test conditions; and
- routine outdoor operation when doors, panels and penetrations are properly closed.
This protection helps separate sensitive internal equipment from the external environment. It is especially relevant at doors, service panels, cable entries, ventilation openings and joints between structural sections.
IP55 applies only when the complete enclosure remains in its rated operating condition. An open door, removed service panel, damaged gasket or unsealed cable entry changes that condition.
What Does IP55 Not Prove?
IP55 does not prove that a BESS container can withstand:
- flooding or standing water above the enclosure base;
- partial or complete immersion;
- continuous high-pressure cleaning;
- water entering through doors left open during maintenance;
- condensation forming inside the enclosure;
- long-term coating resistance in a corrosive atmosphere;
- drainage failure or blocked outlets;
- ice, snow accumulation or freeze-thaw damage; or
- water exposure beyond the tested configuration and conditions.
This distinction matters because water can reach electrical equipment without penetrating directly through an exterior wall. Moist air may enter during door opening, condense on cold surfaces and create internal droplets even when the external enclosure meets IP55.
Why Is “Waterproof” the Wrong Description?
“Waterproof” has no single engineering meaning. It may be interpreted as rain-resistant, jet-resistant, flood-resistant or submersible. These are different conditions and require different evidence.
Calling an IP55 BESS container waterproof can therefore create a false expectation. A more accurate statement is:
Which Parts Determine the Enclosure Rating?
The rating depends on the complete enclosure boundary, not only the steel shell. Common weak points include:
- Doors and Gaskets
- Cable and Pipe Penetrations
- Ventilation Openings
- Roof and Panel Joints
- Base and Drainage
Is IP55 the Same as Corrosion Protection?
No. IP rating and corrosion protection address different risks.
- IP55 addresses ingress of solid particles and water under defined test conditions.
- A corrosion-protection system addresses degradation of materials caused by humidity, salt, chemicals and atmospheric exposure.
A container can pass an IP55 water test and still corrode prematurely if its coating system, surface preparation or material selection is unsuitable for the site. It can also have a strong corrosion-protection system but fail to control water entry at a damaged seal. For coastal or industrial projects, IP rating and corrosion category should be specified separately.
Is IP55 Enough for Every BESS Site?
Not automatically. The required enclosure protection should come from the actual site risk assessment.
The project should consider:
- rainfall intensity and wind exposure;
- dust and sand conditions;
- risk of flooding or poor site drainage;
- coastal salt and industrial pollutants;
- snow, ice and freeze-thaw cycles;
- cleaning methods used by maintenance teams;
- door-opening frequency;
- external cable and coolant connections; and
- applicable electrical and installation requirements.
How Can IP55 Performance Be Maintained?
Ingress protection is not permanent without inspection. Maintenance should include:
- checking door seals for cracking, compression loss and contamination;
- confirming that hinges and latches maintain even gasket pressure;
- inspecting cable glands and pipe seals;
- cleaning louvers and filters without damaging weather barriers;
- keeping roof and base drainage paths clear;
- repairing coating damage before corrosion reaches sealing surfaces;
- checking for internal condensation or water staining; and
- reviewing any new field penetration before modification.
After structural repair, door replacement or major cable work, the affected boundary should be inspected and retested when required by the project quality plan.
How TLS Applies IP55 to BESS Containers
TLS Energy lists IP55 as a core protection level for its configurable BESS platform. TLS has also published its use of water-spray testing to verify enclosure sealing before delivery.
The final design still depends on the project configuration. Cooling equipment, doors, cable entries, fire-safety interfaces and site connections must be coordinated so that the intended enclosure protection is maintained after installation.
FAQ
1. Can an IP55 container be pressure-washed?
Not simply because it is IP55. Cleaning pressure, nozzle distance, direction and duration may exceed the rated or tested water exposure. The manufacturer’s cleaning instructions should be followed.
2. Is IP55 dust-tight?
No. The first digit 5 means dust ingress is limited so it does not interfere with satisfactory operation. A completely dust-tight enclosure uses a higher solid-particle protection classification.
3. Does IP55 prevent condensation?
No. Condensation is controlled through thermal design, humidity management, insulation, heating or dehumidification, airflow and operating procedures.
4. Does every component inside an IP55 container have to be IP55?
Not necessarily. The enclosure may provide the environmental boundary for internal components. Equipment outside that boundary or exposed when doors are open must be assessed separately.
Conclusion
IP55 does not make a BESS container waterproof. It establishes defined protection against dust and water jets for a tested enclosure configuration. Reliable outdoor performance also requires properly designed penetrations, drainage, condensation control, corrosion protection, suitable foundations and ongoing seal maintenance.
