Overview
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
Conclusion
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
In offshore oil and gas platforms, drilling sites, and petrochemical plants, designing safe remote laboratory containers is a critical compliance challenge. A frequent engineering misconception is that a positive-pressure system provides complete explosion protection. This blog analyzes why relying solely on pressurization exposes facilities to severe internal risks and details why international safety standards demand a dual-layer approach combining both pressurization and explosion-proof (Ex) electrical equipment.
Key Questions Answered in This Post
- Why does a pressurization system only address half of the explosion risk equation?
- What are the primary internal operational hazards that pressurization cannot mitigate?
- How do leading operators combine Ex protection and positive pressure to achieve compliance?
- What are the critical engineering takeaways from historic containment failures?
The External Barrier: Mechanics of Pressurization
Pressurization systems (commonly certified under standards like IEC 60079-13 or NFPA 496) operate on a strict directional principle: Outside-to-In protection.
By continuously pumping clean air into the container, the system maintains an internal pressure higher than the surrounding atmosphere. This creates a continuous outward airflow. When a technician opens a door, or if there is a minor structural gap, the higher internal pressure forces air out, physically blocking external hazardous gases (Zone 1 or Zone 2 atmospheres) from entering the workspace.
Essentially, pressurization treats the inside of the container as a safe haven from outside threats.
The Internal Blindspot: Why Pressurization Alone Fails
While pressurization isolates a laboratory from its surrounding environment, it is fundamentally incapable of managing hazards generated within the container.
Unlike standard electrical or control rooms, which house passive components, a laboratory container is an active process environment. Technicians frequently handle crude oil samples, natural gas, drilling fluids, and volatile organic compounds.
The Dilution Dilemma
If a sample line leaks, a valve fails, or a volatile chemical spills inside a pressurized container, the positive pressure system actually works against safety. Because the air pressure pushes outward, internal hazardous vapors cannot easily escape through doors or structural joints. Instead, they become trapped inside the workspace.
Lessons from Industrial Failures
Historical incident data from offshore mud logging and process sampling operations highlights a recurring failure pattern: operators incorrectly classify the interior of a pressurized lab as a permanently "safe non-hazardous area." When internal testing equipment leaks, standard domestic-grade electrical switches, lighting, or air conditioning units act as immediate ignition sources, resulting in catastrophic internal deflagrations.
The Dual-Layer Solution: How Leading Operators Achieve Safety
To eliminate the internal blind spot, industry leaders like TLS implement a comprehensive, dual-layer safety architecture that bridges the gap between external and internal containment.
Layer 1: Pressurization Protection (External Defenses)
- Maintains a continuous positive pressure barrier against the surrounding Zone 1 or Zone 2 environment.
- Utilizes automatic purging sequences to clear the atmosphere before electrical systems are energized.
- Integrates differential pressure monitoring and automatic gas detection interlocks to shut down power if pressure drops.
Layer 2: Explosion-Proof Electrical Equipment (Internal Defenses)
- Treats the interior space as a potentially hazardous zone due to active sample testing.
- Mandates the installation of certified explosion-proof (Ex d, Ex e, or Ex i) lighting, switches, and junction boxes.
- Utilizes specialized explosion-proof HVAC systems and ventilation fans to safely exhaust internal vapors while preventing ignition.
Conclusion
- Directional Defense: Pressurization protects a laboratory container from external hazardous atmospheres, while explosion-proof electrical equipment protects the container from internal sample-generated hazards.
- Risk Multiplication: Relying on positive pressure alone creates a dangerous containment trap for internal chemical spills or gas leaks, turning a localized sample leak into an immediate explosion risk.
- Industry Best Practice: High-risk applications—including Offshore Laboratories, Mud Logging Units, Well Testing Labs, and Chemical Analysis Containers—must employ a dual-protection design to guarantee both personnel safety and regulatory compliance.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Product brochures:
Offshore total pressurised container solutions
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Hazardous area laboratory container, #Pressurized laboratory cabin offshore, #Explosion proof laboratory design, #IEC 60079-13 pressurized room, #Mud logging unit dual layer safety, #Exd certified laboratory HVAC, #Zone1 positive pressure container, #NFPA496 purged enclosure lab, #Offshore lab container explosion protection
Written by Oliver
Overview
In the high-stakes offshore energy and maritime sectors, equipment failure isn’t just an inconvenience—it’s a critical financial and safety risk. Offshore containers act as the backbone of global subsea and topside operations, protecting high-value assets in the world’s most unforgiving environments. This comprehensive guide outlines how TLS Offshore Containers leverages precision engineering, rigorous third-party compliance, and specialized manufacturing to produce industry-leading units.
Key Questions Answered in This Guide:
The Reality of Offshore Stress vs. Standard Shipping
Standard ISO shipping containers are engineered for predictable, uniform stacking on cargo ships. In contrast, offshore containers must survive extreme dynamic loading. These units are frequently hoisted from moving vessels to heaving platforms in open seas, facing severe wind, unpredictable waves, and sudden structural snags.
To withstand these harsh realities, true offshore units must be built to the industry's ultimate triple-crown standards: DNV 2.7-1, EN 12079, and ISO 10855.
1. Advanced Engineering for Extreme Environments
The lifecycle of a high-performance container begins with data-driven design focused on mitigating environmental extremes:
2. Certified Fabrication and Specialized Coatings
A container's structural integrity is entirely dependent on its weakest weld. Top-tier manufacturing enforces absolute precision across the factory floor:
3. Rigorous Third-Party Testing and Certification
Before any unit enters service, it must pass a battery of standardized physical stress tests witnessed by independent classification societies such as DNV, ABS, or Lloyd’s Register:
4. Integrated Lifting and Lifespan Management
Safety does not stop at the container frame; it extends to the rigging and ongoing operational compliance:
Summary and Key Takeaways
Core Differences: Offshore vs. Standard Containers
Essential Pillars of Quality Production
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #DNV 2.7-1 offshore containers, #Offshore container manufacturer, #DNV certified lifting slings, #CCU container production, #Marine cargo basket manufacturing, #ISO 10855 compliant containers, #Workshop cabin design, #Custom offshore engineering solutions, #4-point lift test offshore containers
In the high-stakes offshore energy and maritime sectors, equipment failure isn’t just an inconvenience—it’s a critical financial and safety risk. Offshore containers act as the backbone of global subsea and topside operations, protecting high-value assets in the world’s most unforgiving environments. This comprehensive guide outlines how TLS Offshore Containers leverages precision engineering, rigorous third-party compliance, and specialized manufacturing to produce industry-leading units.
Key Questions Answered in This Guide:
- Why do offshore containers require significantly higher manufacturing standards than standard shipping containers?
- What specific engineering, material, and fabrication protocols prevent catastrophic failure in arctic and marine environments?
- How does rigorous third-party testing (including 2-point and 4-point lift tests) validate structural safety before deployment?
- What integrated rigging and lifecycle maintenance solutions are required to ensure long-term fleet compliance?
The Reality of Offshore Stress vs. Standard Shipping
Standard ISO shipping containers are engineered for predictable, uniform stacking on cargo ships. In contrast, offshore containers must survive extreme dynamic loading. These units are frequently hoisted from moving vessels to heaving platforms in open seas, facing severe wind, unpredictable waves, and sudden structural snags.
To withstand these harsh realities, true offshore units must be built to the industry's ultimate triple-crown standards: DNV 2.7-1, EN 12079, and ISO 10855.
1. Advanced Engineering for Extreme Environments
The lifecycle of a high-performance container begins with data-driven design focused on mitigating environmental extremes:
- Material Resilience: Standard steel fails under extreme cold. Offshore production relies on specialized carbon steel (such as S355J2) that retains critical ductility at temperatures dropping to -20°C, and down to -40°C for arctic-specific applications.
- Structural Safety Margins: Traditional engineering often relies on guesswork. Advanced Finite Element Analysis (FEA) simulates worst-case dynamic impacts and uneven lifting scenarios, ensuring the entire frame structure never approaches its yield point.
- Corrosion Prevention: Salt-heavy marine environments cause rapid localized oxidation. Modern designs eliminate "water traps" and integrate automated drainage pathways to extend the physical lifespan of the asset.
2. Certified Fabrication and Specialized Coatings
A container's structural integrity is entirely dependent on its weakest weld. Top-tier manufacturing enforces absolute precision across the factory floor:
- Weld Traceability: Every critical joint must be executed by certified professionals adhering to strict Welding Procedure Specifications, with full traceability records maintained for every piece of workmanship.

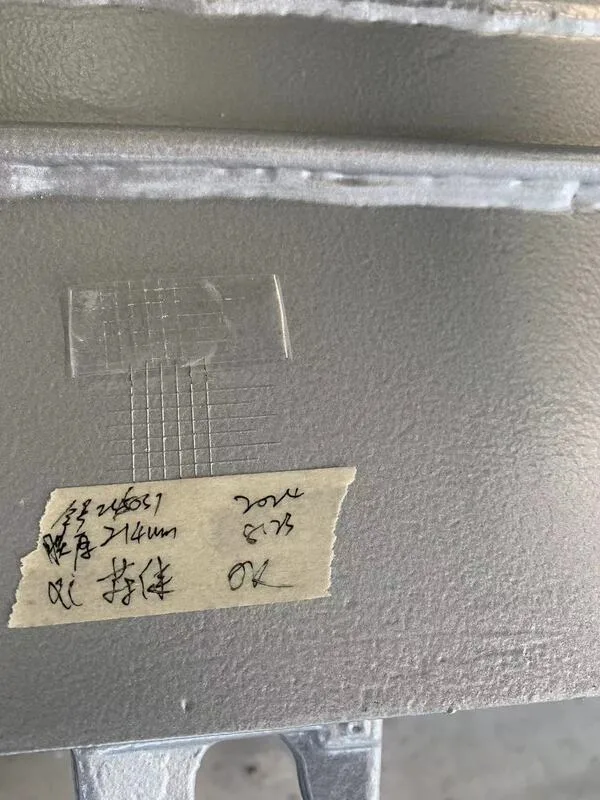

- Industrial Marine Coatings: Standard paint peels under heavy UV and salt exposure. Applying specialized C5-M standard marine paint systems ensures the steel survives decades of continuous exposure.
- Application-Specific Design: Fabrication must adapt to the cargo. Whether producing heavy-duty cargo baskets, pressurized cabins, or complex offshore workshops, the structural frame must be custom-tailored to the specific equipment it protects.
3. Rigorous Third-Party Testing and Certification
Before any unit enters service, it must pass a battery of standardized physical stress tests witnessed by independent classification societies such as DNV, ABS, or Lloyd’s Register:
- The 4-Point Lift Test: The container is loaded to 2.5 times its Maximum Gross Weight to verify overall structural safety under extreme crane operations.
- The 2-Point Lift Test: This simulates dangerous offshore "snagging" incidents. The unit is lifted from just two points to guarantee the main frame will not buckle under asymmetric load stress.
- Nondestructive Examination: Following heavy load testing, technicians utilize Magnetic Particle Inspection (MPI) to scan for microscopic surface cracks in the welds that are invisible to the naked eye.
4. Integrated Lifting and Lifespan Management
Safety does not stop at the container frame; it extends to the rigging and ongoing operational compliance:
- Certified Lifting Sets: Every unit must be equipped with dedicated wire rope slings and shackles matched perfectly to the unit's Maximum Gross Weight. These sets are permanently attached to prevent field operators from using incorrect or unrated rigging.
- Unique Identification: Rigging sets must be individually tagged with independent certifications and serial numbers for rapid safety audits.
- Life-Cycle Support: To prevent operational degradation, operators must follow structured maintenance schedules. Annual visual inspections and periodic NDE tests are mandatory to keep the fleet in "fit-for-purpose" condition.
Summary and Key Takeaways
Core Differences: Offshore vs. Standard Containers
- Environment: Standard containers handle predictable stacking; offshore containers endure violent, dynamic marine and arctic conditions.
- Material Strength: Offshore units require low-temperature carbon steel (S355J2) to prevent cracking in temperatures as low as -40°C.
- Certification: Offshore units require mandatory independent third-party validation (DNV, ABS, Lloyd's) through destructive and non-destructive testing.
Essential Pillars of Quality Production
- Data-Driven Engineering: Utilizing Finite Element Analysis (FEA) to eliminate water traps and simulate worst-case impact scenarios.
- Precision Craftsmanship: Implementing 100% traceable welding and applying C5-M standard high-performance marine coatings.
- Extreme Load Verification: Passing mandatory 2.5x gross weight lift tests and post-test Magnetic Particle Inspections (MPI).
- Operational Security: Utilizing permanently attached, uniquely tagged, and certified lifting slings to eliminate human error in the field.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #DNV 2.7-1 offshore containers, #Offshore container manufacturer, #DNV certified lifting slings, #CCU container production, #Marine cargo basket manufacturing, #ISO 10855 compliant containers, #Workshop cabin design, #Custom offshore engineering solutions, #4-point lift test offshore containers
Written by Oliver
In offshore wind, oil & gas, and hazardous-area laboratory projects, pressurized modules are widely used for analyzer shelters, electrical rooms, control rooms, and laboratory containers. However, many projects encounter a frustrating situation: the module successfully passes Factory Acceptance Testing (FAT), but still faces corrective actions or even rejection during overseas site acceptance.
In most cases, the problem is not manufacturing quality. The real causes are usually differences in hazardous area classification, certification requirements, and project-specific compliance standards.
Before ordering a pressurized module for an offshore project, engineering teams should verify four key factors: hazardous area classification, certification requirements, component compliance, and safety interlock logic.
Passing FAT Does Not Always Mean Full Project Compliance
Many project teams treat FAT as a major milestone before shipment. For offshore pressurized modules, however, FAT mainly verifies that the equipment functions according to the approved design.
Overseas acceptance often goes further and checks whether the module complies with local regulations, project specifications, and certification requirements. As a result, a module with a fully functional pressurization system may still require modification if its certification scope or installation conditions do not match the project requirements.
The Difference Between Zone 1 and Zone 2 Is Often Underestimated
One common issue is a mismatch between the module's design basis and its final installation location.
For example, a module may be designed for Zone 2, but the actual offshore installation area is classified as Zone 1. Although both are hazardous areas, the applicable safety requirements, interlock philosophy, and certification expectations may differ.
For this reason, confirming the hazardous area classification at the beginning of the project is usually far more efficient than redesigning the module later.
Certification Is More Than a Certificate for the Module
Another frequently overlooked issue is the completeness of the certification chain.
During overseas inspections, third-party organizations often review not only the module certification itself, but also the certification status of key components such as:
Early Compliance Planning Is Usually More Cost-Effective
For pressurized analyzer shelters, laboratory containers, and electrical modules, compliance is ultimately a system engineering issue.
Hazardous area classification, certification requirements, pressurization logic, and component selection must all be aligned. The earlier these requirements are confirmed, the lower the risk of late design changes and site rework.
In TLS offshore projects, we typically support customers during the early engineering stage by reviewing hazardous area classification, certification requirements, and key interlock logic before manufacturing begins.
Conclusion
For offshore wind, oil & gas, and hazardous-area industrial projects, the challenge of a pressurized module is often not manufacturing itself, but international compliance.
Before launching a project, engineering teams should confirm:
Addressing these issues early can significantly reduce overseas acceptance risks and help ensure a smoother project delivery.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords：#Pressurized Module， #Offshore Pressurized Module， #Zone 1 Pressurized Room，#Zone 2 Pressurized Room， #IECEx Pressurized Module，#Hazardous Area Module， #Offshore Analyzer Shelter， #Pressurized Laboratory Container， #Explosion Proof Container
In most cases, the problem is not manufacturing quality. The real causes are usually differences in hazardous area classification, certification requirements, and project-specific compliance standards.
Before ordering a pressurized module for an offshore project, engineering teams should verify four key factors: hazardous area classification, certification requirements, component compliance, and safety interlock logic.
Passing FAT Does Not Always Mean Full Project Compliance
Many project teams treat FAT as a major milestone before shipment. For offshore pressurized modules, however, FAT mainly verifies that the equipment functions according to the approved design.
Overseas acceptance often goes further and checks whether the module complies with local regulations, project specifications, and certification requirements. As a result, a module with a fully functional pressurization system may still require modification if its certification scope or installation conditions do not match the project requirements.
The Difference Between Zone 1 and Zone 2 Is Often Underestimated
One common issue is a mismatch between the module's design basis and its final installation location.
For example, a module may be designed for Zone 2, but the actual offshore installation area is classified as Zone 1. Although both are hazardous areas, the applicable safety requirements, interlock philosophy, and certification expectations may differ.
For this reason, confirming the hazardous area classification at the beginning of the project is usually far more efficient than redesigning the module later.
Certification Is More Than a Certificate for the Module
Another frequently overlooked issue is the completeness of the certification chain.
During overseas inspections, third-party organizations often review not only the module certification itself, but also the certification status of key components such as:
- HVAC systems
- Gas detectors
- Pressure switches
- Explosion-proof lighting
- Cable glands and junction boxes
Early Compliance Planning Is Usually More Cost-Effective
For pressurized analyzer shelters, laboratory containers, and electrical modules, compliance is ultimately a system engineering issue.
Hazardous area classification, certification requirements, pressurization logic, and component selection must all be aligned. The earlier these requirements are confirmed, the lower the risk of late design changes and site rework.
In TLS offshore projects, we typically support customers during the early engineering stage by reviewing hazardous area classification, certification requirements, and key interlock logic before manufacturing begins.
Conclusion
For offshore wind, oil & gas, and hazardous-area industrial projects, the challenge of a pressurized module is often not manufacturing itself, but international compliance.
Before launching a project, engineering teams should confirm:
- The final hazardous area classification (Zone 1 or Zone 2)
- The required certification system (IECEx, ATEX, or both)
- The completeness of the component certification chain
- The required safety interlock philosophy
Addressing these issues early can significantly reduce overseas acceptance risks and help ensure a smoother project delivery.
