In the procurement of functional containers or modular equipment enclosures, it is common for project teams to encounter a practical question: two units with similar dimensions, layout, and appearance can still show significant price differences.
This often makes it difficult to evaluate whether a quotation is reasonable. In reality, from TLS’s engineering experience in designing and manufacturing industrial modular containers, the price difference is rarely driven by the steel structure itself. Instead, it comes from differences in project requirements, system integration complexity, and safety and certification levels.
This article addresses three key questions:
Why do similar-looking containers have different prices?
From the outside, industrial modular container solutions often look almost identical. Most are built on standard ISO steel frames, typically in 20ft or 40ft dimensions. However, in TLS project practice, the real cost driver is not the external structure, but the operational environment and system requirements behind it.
A container installed in a normal industrial area may only require basic ventilation, standard electrical installation, and corrosion protection. However, when the same type of container is deployed in offshore platforms, oil & gas sites, or hazardous industrial zones, the design logic changes completely.
For example, in TLS projects such as pressurized laboratory containers or analytical modules, the system may require continuous positive pressure control, gas detection interlocking, emergency shutdown logic, and explosion-proof electrical integration. These requirements significantly increase both engineering complexity and testing workload, even if the external structure remains unchanged.
What really determines the price of a functional container?
The cost of a functional container is driven by the accumulation of system complexity rather than a single factor.
The first key factor is safety level and certification requirements. In standard industrial environments, conventional electrical systems may be sufficient. However, in hazardous areas such as Zone 1 or Zone 2, systems must comply with IECEx or ATEX standards. This introduces explosion-proof electrical components, gas detection systems, and safety interlock logic, which are often the largest contributors to cost differences.
The second factor is system integration depth. Taking TLS laboratory containers as an example, a basic configuration may only include a ventilation hood and standard lighting. In contrast, containers designed for hazardous gas environments require positive pressure systems, explosion-proof fans, explosion-proof control panels, and integrated pressure safety control systems. Although the external appearance may remain the same, the internal system architecture can be completely different in complexity and cost.
The third factor is environmental adaptability. For offshore wind or marine applications, modular functional containers must be designed for salt spray corrosion resistance, structural fatigue, long-term vibration, and extreme temperature variations. This leads to upgrades in steel structure design, coating systems, and insulation performance, all of which significantly affect manufacturing cost, even though they are not visible externally.
In TLS engineering practice, it is common to see two containers of identical size, where one is a basic equipment shelter while the other is a fully integrated safety-controlled analytical module. The price difference between them is not due to a single component, but to the entire safety and system architecture level.
A more advanced solution may have higher upfront cost, but it can significantly reduce installation workload, commissioning time, and long-term maintenance risks. In multiple offshore and energy projects delivered by TLS, the real project cost driver is often not procurement price, but delays, site modifications, and operational downtime.
Therefore, when evaluating different suppliers, it is more meaningful to assess whether the system is complete, whether it meets required safety standards, whether it matches real site conditions, and whether it supports long-term stable operation.
Conclusion
The price difference between functional containers is mainly driven by engineering depth, system configuration, and certification requirements rather than simple material or dimensional differences.
At TLS, each functional container is not treated as a standard product, but as an engineered system designed according to specific project environments, safety levels, and operational requirements. This is why containers that look similar externally may serve completely different functions and risk levels in real applications.
In procurement decisions, instead of focusing only on price, it is more important to first understand the actual problem the container is designed to solve. Once the requirement is clearly defined, the price difference becomes much easier to interpret and justify.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #industrial modular container solutions, #containerized system pricing factors, #customized container solutions, #pressurized container system, #explosion-proof container Zone 1 Zone 2, #offshore modular container, #engineered container system, #system integration container design.
This often makes it difficult to evaluate whether a quotation is reasonable. In reality, from TLS’s engineering experience in designing and manufacturing industrial modular containers, the price difference is rarely driven by the steel structure itself. Instead, it comes from differences in project requirements, system integration complexity, and safety and certification levels.
This article addresses three key questions:
- Why do similar-looking industrial modular containers have very different prices?
- What are the main factors that determine the cost of a industrial modular container?
- Where do these price differences actually come from in real engineering applications?
Why do similar-looking containers have different prices?
From the outside, industrial modular container solutions often look almost identical. Most are built on standard ISO steel frames, typically in 20ft or 40ft dimensions. However, in TLS project practice, the real cost driver is not the external structure, but the operational environment and system requirements behind it.
A container installed in a normal industrial area may only require basic ventilation, standard electrical installation, and corrosion protection. However, when the same type of container is deployed in offshore platforms, oil & gas sites, or hazardous industrial zones, the design logic changes completely.
For example, in TLS projects such as pressurized laboratory containers or analytical modules, the system may require continuous positive pressure control, gas detection interlocking, emergency shutdown logic, and explosion-proof electrical integration. These requirements significantly increase both engineering complexity and testing workload, even if the external structure remains unchanged.
What really determines the price of a functional container?
The cost of a functional container is driven by the accumulation of system complexity rather than a single factor.
The first key factor is safety level and certification requirements. In standard industrial environments, conventional electrical systems may be sufficient. However, in hazardous areas such as Zone 1 or Zone 2, systems must comply with IECEx or ATEX standards. This introduces explosion-proof electrical components, gas detection systems, and safety interlock logic, which are often the largest contributors to cost differences.
The second factor is system integration depth. Taking TLS laboratory containers as an example, a basic configuration may only include a ventilation hood and standard lighting. In contrast, containers designed for hazardous gas environments require positive pressure systems, explosion-proof fans, explosion-proof control panels, and integrated pressure safety control systems. Although the external appearance may remain the same, the internal system architecture can be completely different in complexity and cost.
The third factor is environmental adaptability. For offshore wind or marine applications, modular functional containers must be designed for salt spray corrosion resistance, structural fatigue, long-term vibration, and extreme temperature variations. This leads to upgrades in steel structure design, coating systems, and insulation performance, all of which significantly affect manufacturing cost, even though they are not visible externally.
In TLS engineering practice, it is common to see two containers of identical size, where one is a basic equipment shelter while the other is a fully integrated safety-controlled analytical module. The price difference between them is not due to a single component, but to the entire safety and system architecture level.
A more advanced solution may have higher upfront cost, but it can significantly reduce installation workload, commissioning time, and long-term maintenance risks. In multiple offshore and energy projects delivered by TLS, the real project cost driver is often not procurement price, but delays, site modifications, and operational downtime.
Therefore, when evaluating different suppliers, it is more meaningful to assess whether the system is complete, whether it meets required safety standards, whether it matches real site conditions, and whether it supports long-term stable operation.
Conclusion
The price difference between functional containers is mainly driven by engineering depth, system configuration, and certification requirements rather than simple material or dimensional differences.
At TLS, each functional container is not treated as a standard product, but as an engineered system designed according to specific project environments, safety levels, and operational requirements. This is why containers that look similar externally may serve completely different functions and risk levels in real applications.
In procurement decisions, instead of focusing only on price, it is more important to first understand the actual problem the container is designed to solve. Once the requirement is clearly defined, the price difference becomes much easier to interpret and justify.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Keywords: #industrial modular container solutions, #containerized system pricing factors, #customized container solutions, #pressurized container system, #explosion-proof container Zone 1 Zone 2, #offshore modular container, #engineered container system, #system integration container design.
Written by Snowy

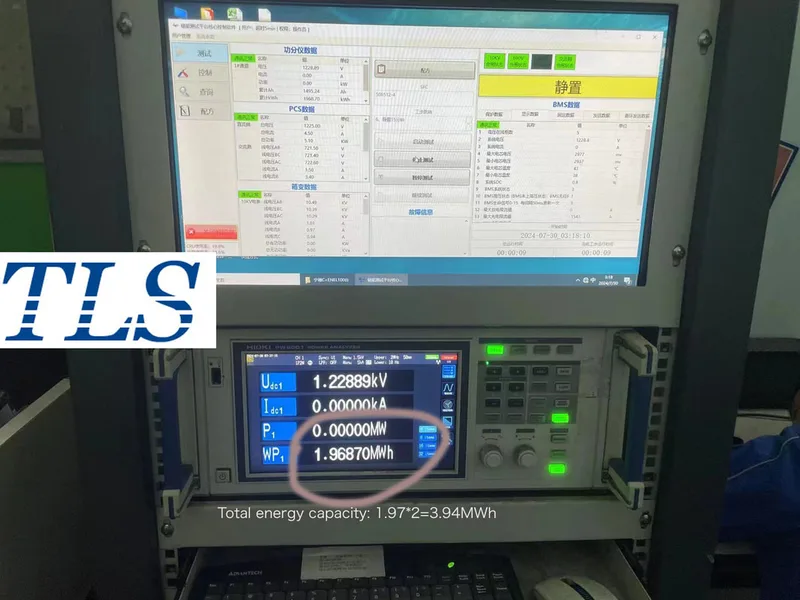

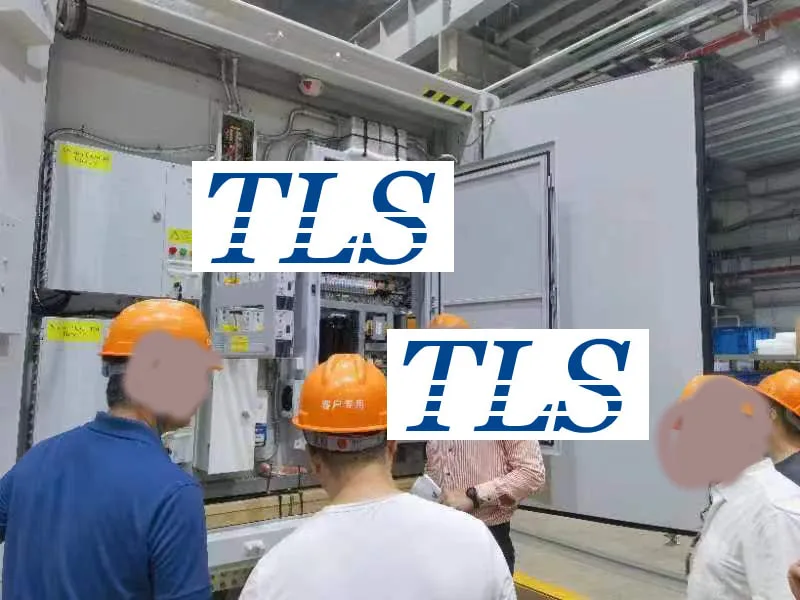

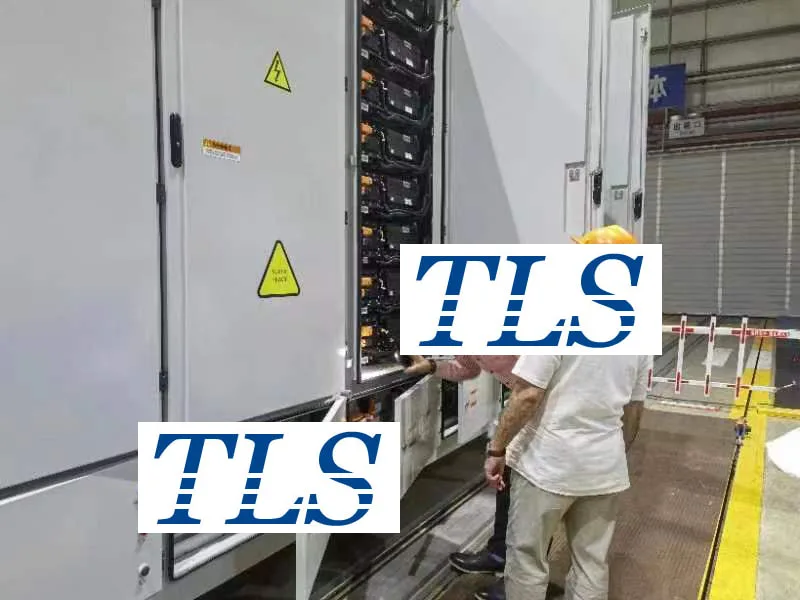

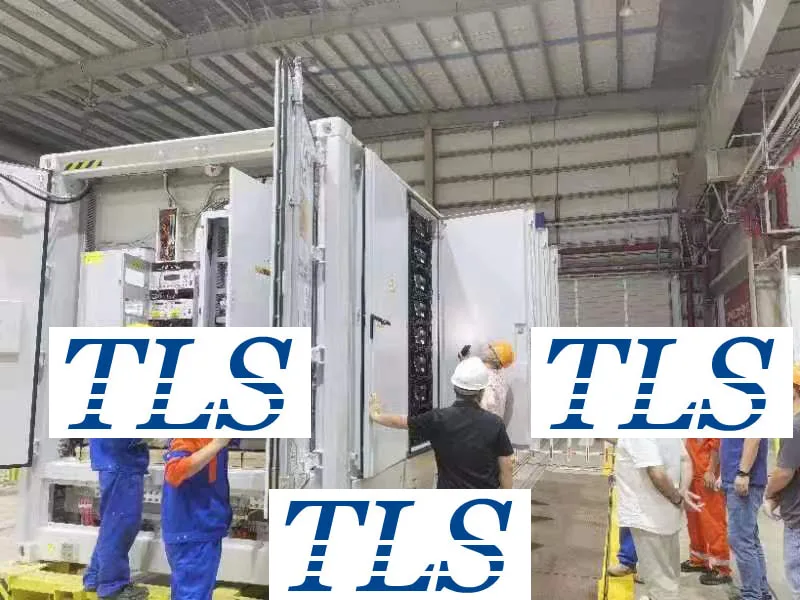

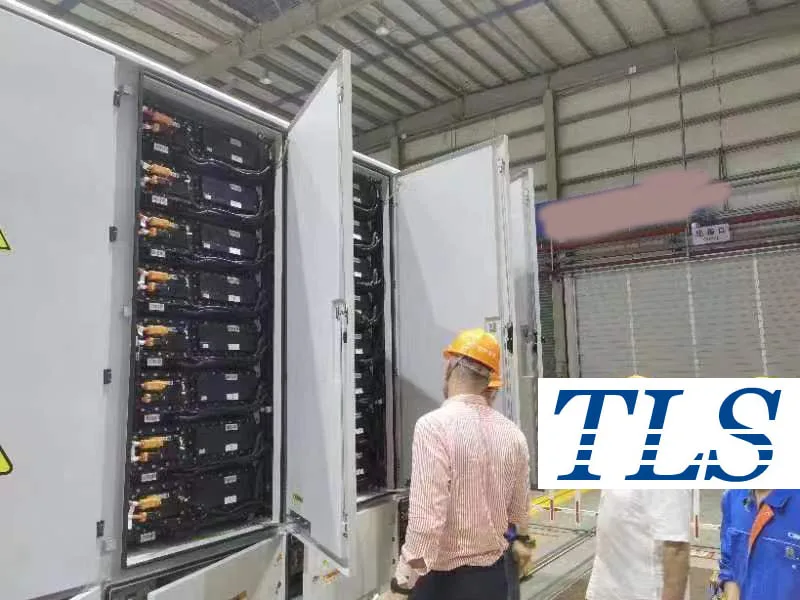

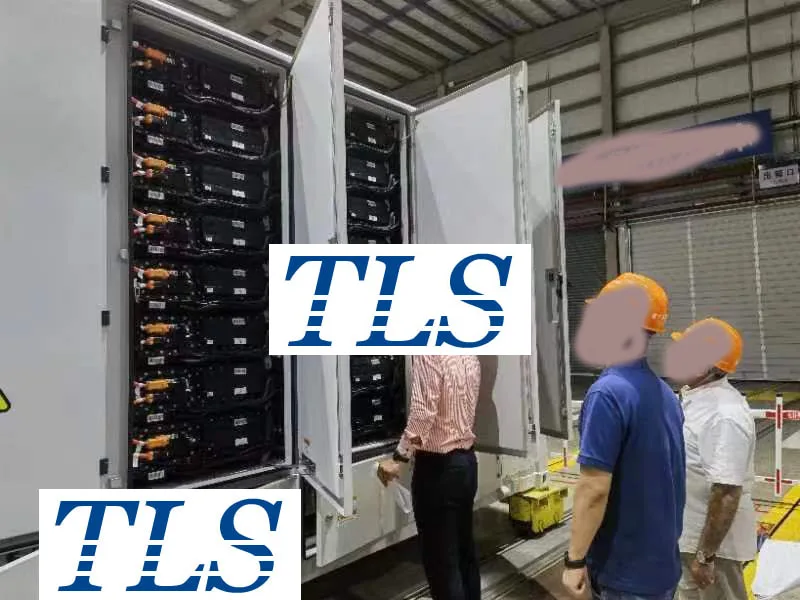

As the world transitions rapidly toward renewable energy, Battery Energy Storage Systems (BESS) have emerged as infrastructure linchpins for grid stability. However, the high energy density of lithium-ion batteries brings a pressing challenge: fire safety. To mitigate thermal runaway risks, global regulatory bodies have established stringent compliance frameworks.
Navigating this regulatory landscape requires understanding three primary pillars of energy storage safety: NFPA 855, UL 9540A, and IEC 62933-5-2. While they all aim to ensure safety, they target entirely different stages of a project, from individual component testing to holistic lifecycle management and site installation. This comprehensive guide breaks down each standard and explains how they interact to protect international BESS deployments.
1. NFPA 855: The Blueprint for Safe Site Installation
Published by the National Fire Protection Association, NFPA 855 is the Standard for the Installation of Stationary Energy Storage Systems. Unlike product-specific manufacturing standards, NFPA 855 is an installation code. It dictates how an energy storage project must be safely integrated into its physical environment to protect lives, property, and first responders.Core Focus Areas of NFPA 855:
2. UL 9540A: The Ultimate Thermal Runaway Destructive Test
While NFPA 855 looks at the facility level, UL 9540A dives straight into the heart of the battery itself. Developed by UL Solutions, UL 9540A is titled the Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems.
It is vital to note that UL 9540A is not a pass/fail certification. It does not grant a standard safety sticker. Instead, it is a destructive testing methodology that forces batteries into thermal runaway in a controlled environment to gather raw data on fire behavior, gas generation, and heat release rates.The Four-Tier Testing Hierarchy:
The data generated by UL 9540A is precisely what AHJs demand. If a developer wants to install BESS units closer together than the default distances mandated in NFPA 855, they must present a UL 9540A test report proving that their system will not cause cross-unit fire propagation.
3. IEC 62933-5-2: System-Level Grid Integration and Lifespan Safety
Moving outside the North American sphere, the International Electrotechnical Commission provides the dominant global framework via IEC 62933-5-2: Electrical energy storage (EES) systems - Part 5-2: Safety requirements for grid-integrated EES systems - Electrochemical-based systems.
While UL focuses heavily on fire mechanics, IEC 62933-5-2 approaches BESS from an electrical engineering and holistic risk management perspective. It outlines how the massive sub-components of an enterprise-grade system—the Battery Management System (BMS), Power Conversion System (PCS/Inverter), and Energy Management System (EMS)—interact safely when tied to a utility grid.Key Aspects of IEC 62933-5-2:
IEC 62933-5-2 is the definitive gatekeeper for BESS market access in Europe, Australia, and parts of Asia, serving as the system-level baseline that utilities require before allowing an asset to connect to the grid.
The Intersection of Compliance: A Unified Global BESS Strategy
For system integrators and developers eyeing international expansion, these three standards do not compete; they form a symbiotic ecosystem.
[ IEC 62933-5-2 / UL 9540 ] --> System-Level Design & Electrical Safety
[ UL 9540A ] --> Destructive Fire & Off-Gassing Characterization
[ NFPA 855 ] --> On-Site Positioning, Clearance & Local Fire Clearance
To deploy a successful commercial project globally, an asset must typically navigate all three layers:
Navigating this regulatory landscape requires understanding three primary pillars of energy storage safety: NFPA 855, UL 9540A, and IEC 62933-5-2. While they all aim to ensure safety, they target entirely different stages of a project, from individual component testing to holistic lifecycle management and site installation. This comprehensive guide breaks down each standard and explains how they interact to protect international BESS deployments.
1. NFPA 855: The Blueprint for Safe Site Installation
Published by the National Fire Protection Association, NFPA 855 is the Standard for the Installation of Stationary Energy Storage Systems. Unlike product-specific manufacturing standards, NFPA 855 is an installation code. It dictates how an energy storage project must be safely integrated into its physical environment to protect lives, property, and first responders.Core Focus Areas of NFPA 855:
- Spatial Separation and Clearance: The code mandates strict minimum distances—typically 3 feet (0.9 meters) or more—between individual BESS units, and between the system and surrounding structures or lot lines. This prevents "fire cascading" from one enclosure to another.
- Capacity Limitations: It sets maximum threshold quantities for battery chemistry accumulation within specific zones, limiting the overall fuel load of a single installation unless special exceptions are validated.
- Suppression and Environmental Controls: NFPA 855 requires mandatory fire detection, gas detection (specifically targeting carbon monoxide to identify off-gassing before visible smoke appears), deflagration mitigation (explosion venting), and automated fire suppression systems.
- The Role of the AHJ: In jurisdictions recognizing NFPA codes (predominantly North America), the local Authority Having Jurisdiction (AHJ), such as the local fire marshal, uses NFPA 855 as a checklist. A project cannot achieve commercial operation without fulfilling these exact installation rules.
2. UL 9540A: The Ultimate Thermal Runaway Destructive Test
While NFPA 855 looks at the facility level, UL 9540A dives straight into the heart of the battery itself. Developed by UL Solutions, UL 9540A is titled the Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems.
It is vital to note that UL 9540A is not a pass/fail certification. It does not grant a standard safety sticker. Instead, it is a destructive testing methodology that forces batteries into thermal runaway in a controlled environment to gather raw data on fire behavior, gas generation, and heat release rates.The Four-Tier Testing Hierarchy:
- Cell Level Testing: A single battery cell is forced into thermal runaway via heating or nail penetration. Technicians measure the exact temperature at which the cell fails, gas generation volume, lower flammability limits (LFL) of the emitted gases, and the exact gas composition.
- Module Level Testing: The test moves to a battery module (a cluster of cells). Fire engineers force one cell into thermal runaway to observe if the internal safeguards prevent the fire from spreading to neighboring cells within the same module.
- Unit (Rack) Level Testing: An entire battery rack is tested without active fire suppression active. The goal is to see if a fire will breach the enclosure, flash externally, or cause massive radiant heat loops that could threaten adjacent racks.
- Installation Level Testing: This final optional tier tests a full multi-rack setup with the site's active fire suppression system running. It proves whether the chosen sprinkler or gas suppression method can successfully extinguish or control a worst-case thermal runaway event.
The data generated by UL 9540A is precisely what AHJs demand. If a developer wants to install BESS units closer together than the default distances mandated in NFPA 855, they must present a UL 9540A test report proving that their system will not cause cross-unit fire propagation.
3. IEC 62933-5-2: System-Level Grid Integration and Lifespan Safety
Moving outside the North American sphere, the International Electrotechnical Commission provides the dominant global framework via IEC 62933-5-2: Electrical energy storage (EES) systems - Part 5-2: Safety requirements for grid-integrated EES systems - Electrochemical-based systems.
While UL focuses heavily on fire mechanics, IEC 62933-5-2 approaches BESS from an electrical engineering and holistic risk management perspective. It outlines how the massive sub-components of an enterprise-grade system—the Battery Management System (BMS), Power Conversion System (PCS/Inverter), and Energy Management System (EMS)—interact safely when tied to a utility grid.Key Aspects of IEC 62933-5-2:
- System Lifecycle Approach: The standard covers safety across the system's entire lifecycle, detailing requirements for initial system design, manufacturing, transportation, on-site commissioning, daily operations, maintenance, and eventual decommissioning/recycling.
- Structured Risk Assessment: Integrators must perform rigorous hazard analysis methodologies like Failure Modes and Effects Analysis (FMEA) or Hazard and Operability Studies (HAZOP). Every potential software or hardware failure mode must have a calculated mitigation strategy.
- Comprehensive Multi-Hazard Protection: Beyond fire, this standard mandates strict protections against electrical shock, over-current, reverse polarity, electromagnetic interference (EMC), seismic or mechanical impacts, and environmental stressors like moisture and dust ingress.
IEC 62933-5-2 is the definitive gatekeeper for BESS market access in Europe, Australia, and parts of Asia, serving as the system-level baseline that utilities require before allowing an asset to connect to the grid.
The Intersection of Compliance: A Unified Global BESS Strategy
For system integrators and developers eyeing international expansion, these three standards do not compete; they form a symbiotic ecosystem.
[ IEC 62933-5-2 / UL 9540 ] --> System-Level Design & Electrical Safety
[ UL 9540A ] --> Destructive Fire & Off-Gassing Characterization
[ NFPA 855 ] --> On-Site Positioning, Clearance & Local Fire Clearance
To deploy a successful commercial project globally, an asset must typically navigate all three layers:
- The Engineering Phase: Design the system to satisfy IEC 62933-5-2 (or its North American equivalent, UL 9540) to guarantee reliable grid integration, fault containment, and functional safety controls.
- The Validation Phase: Push the system through UL 9540A testing to document its worst-case failure behavior and fire propagation boundaries.
- The Deployment Phase: Present the UL 9540A data to local authorities to comply with NFPA 855 layout, ventilation, and emergency-response criteria.
Summary
In offshore oil and gas platforms, drilling sites, and hazardous industrial environments, laboratory containers are often used for oil sample analysis, drilling fluid testing, gas monitoring, and chemical analysis. A common question raised during project planning is:
The answer is simple: in many hazardous area laboratory applications, pressurization protects against external hazards, while explosion-proof electrical equipment addresses potential risks generated inside the laboratory itself. For this reason, both systems are often required to achieve a higher level of operational safety.
What Does a Pressurization System Actually Do?
The primary purpose of a pressurization system is to prevent hazardous gases from entering the laboratory from the outside environment.
The system continuously supplies clean air into the container, maintaining an internal pressure that is higher than the surrounding atmosphere. This creates a controlled airflow pattern:
For offshore platforms, drilling operations, and chemical facilities, this positive pressure barrier significantly reduces the risk of external flammable gases entering the laboratory.
In simple terms: Pressurization protects the laboratory from external hazards.
Why Is Pressurization Alone Not Always Enough?
Unlike electrical rooms or control rooms, laboratories can generate their own hazards during daily operations.
Applications such as:
Although many procedures are performed inside fume hoods, small amounts of vapor or gas may still be released during:
TLS's Dual-Layer Safety Approach
For hazardous area laboratory projects, TLS typically recommends a dual-protection design that combines pressurization and explosion-proof electrical systems.
Layer 1: Pressurization ProtectionThe pressurization system provides protection against external hazardous environments by maintaining a stable positive pressure inside the laboratory.
Key functions typically include:
Layer 2: Explosion-Proof Electrical EquipmentTo address potential hazards generated inside the laboratory, explosion-proof electrical equipment may be required throughout the container.
Typical configurations include:
Which Laboratory Applications Commonly Require Both Systems?
Based on TLS project experience, the combination of pressurization and explosion-proof electrical equipment is commonly specified for:
Beyond Compliance: Building a Safer Laboratory Environment
Laboratory safety is not achieved through a single device or system. It requires a comprehensive design strategy that considers every potential risk source.
When hazardous substances are handled inside a laboratory container, relying solely on pressurization may not provide sufficient protection. Combining positive pressure technology with certified explosion-proof electrical equipment creates multiple layers of safety and helps reduce operational risk.
For operators, engineers, and project owners, this means greater confidence in personnel safety, equipment protection, and long-term operational reliability.
Conclusion
Pressurization and explosion-proof equipment serve different safety purposes.
Drawing on extensive experience in offshore oil and gas, drilling support, and industrial laboratory projects, TLS provides customized laboratory container solutions that integrate pressurization systems, explosion-proof electrical equipment, gas detection, ventilation, and safety interlock systems to meet the specific requirements of each project.
By combining multiple layers of protection, TLS helps create safer, more reliable laboratory environments for challenging industrial applications.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Please download the Laboratory container brochure for reference.
KeywordsHazardous Area Laboratory Container, Pressurized Laboratory Container, Explosion Proof Laboratory, Offshore Laboratory Container, ATEX Laboratory Container, IECEx Laboratory Container, Positive Pressure Laboratory, Mud Logging Laboratory Container, Well Testing Laboratory, Explosion Proof Electrical Equipment.
In offshore oil and gas platforms, drilling sites, and hazardous industrial environments, laboratory containers are often used for oil sample analysis, drilling fluid testing, gas monitoring, and chemical analysis. A common question raised during project planning is:
- If a laboratory container is equipped with a pressurization system, why are explosion-proof electrical devices still required?
- Is pressurization alone enough to eliminate explosion risks?
- Which laboratory applications require a dual-protection design?
- How can laboratory safety be maintained throughout long-term operation?
The answer is simple: in many hazardous area laboratory applications, pressurization protects against external hazards, while explosion-proof electrical equipment addresses potential risks generated inside the laboratory itself. For this reason, both systems are often required to achieve a higher level of operational safety.
What Does a Pressurization System Actually Do?
The primary purpose of a pressurization system is to prevent hazardous gases from entering the laboratory from the outside environment.
The system continuously supplies clean air into the container, maintaining an internal pressure that is higher than the surrounding atmosphere. This creates a controlled airflow pattern:
- Clean air continuously enters the laboratory
- Air flows outward from the container
- External hazardous gases are prevented from entering the workspace
For offshore platforms, drilling operations, and chemical facilities, this positive pressure barrier significantly reduces the risk of external flammable gases entering the laboratory.
In simple terms: Pressurization protects the laboratory from external hazards.
Why Is Pressurization Alone Not Always Enough?
Unlike electrical rooms or control rooms, laboratories can generate their own hazards during daily operations.
Applications such as:
- Crude oil sample analysis
- Natural gas testing
- Drilling fluid analysis
- Chemical testing
- VOC monitoring
Although many procedures are performed inside fume hoods, small amounts of vapor or gas may still be released during:
- Sample transfer
- Equipment connection and disconnection
- Maintenance activities
- Abnormal operating conditions
TLS's Dual-Layer Safety Approach
For hazardous area laboratory projects, TLS typically recommends a dual-protection design that combines pressurization and explosion-proof electrical systems.
Layer 1: Pressurization ProtectionThe pressurization system provides protection against external hazardous environments by maintaining a stable positive pressure inside the laboratory.
Key functions typically include:
- Continuous positive pressure control
- Automatic purging before energization
- Differential pressure monitoring
- Gas detection integration
- Alarm and safety interlock functions
Layer 2: Explosion-Proof Electrical EquipmentTo address potential hazards generated inside the laboratory, explosion-proof electrical equipment may be required throughout the container.
Typical configurations include:
- Explosion-proof lighting
- Explosion-proof switches
- Explosion-proof sockets
- Explosion-proof ventilation fans
- Explosion-proof air conditioning units
- Explosion-proof junction boxes
Which Laboratory Applications Commonly Require Both Systems?
Based on TLS project experience, the combination of pressurization and explosion-proof electrical equipment is commonly specified for:
- Offshore Laboratory Containers
- Mud Logging Laboratory Containers
- Well Testing Laboratories
- Chemical Analysis Laboratories
- Process Sampling Laboratories
- Hazardous Area Laboratory Containers
Beyond Compliance: Building a Safer Laboratory Environment
Laboratory safety is not achieved through a single device or system. It requires a comprehensive design strategy that considers every potential risk source.
When hazardous substances are handled inside a laboratory container, relying solely on pressurization may not provide sufficient protection. Combining positive pressure technology with certified explosion-proof electrical equipment creates multiple layers of safety and helps reduce operational risk.
For operators, engineers, and project owners, this means greater confidence in personnel safety, equipment protection, and long-term operational reliability.
Conclusion
Pressurization and explosion-proof equipment serve different safety purposes.
- Pressurization systems help prevent hazardous gases from entering the laboratory from the outside.
- Explosion-proof electrical equipment helps minimize ignition risks if flammable gases are generated within the laboratory during operation.
Drawing on extensive experience in offshore oil and gas, drilling support, and industrial laboratory projects, TLS provides customized laboratory container solutions that integrate pressurization systems, explosion-proof electrical equipment, gas detection, ventilation, and safety interlock systems to meet the specific requirements of each project.
By combining multiple layers of protection, TLS helps create safer, more reliable laboratory environments for challenging industrial applications.
TLS Offshore Containers / TLS Energy is a global supplier of standard and customised containerised solutions.
Wherever you are in the world, TLS can help you. Please contact us.
Please download the Laboratory container brochure for reference.
KeywordsHazardous Area Laboratory Container, Pressurized Laboratory Container, Explosion Proof Laboratory, Offshore Laboratory Container, ATEX Laboratory Container, IECEx Laboratory Container, Positive Pressure Laboratory, Mud Logging Laboratory Container, Well Testing Laboratory, Explosion Proof Electrical Equipment.
