Battery Energy Storage Systems (BESS) play a crucial role in stabilizing power grids, integrating renewable energy, and ensuring energy efficiency. One of the most critical subsystems within a BESS is the **Thermal Management System (TMS)**, which is responsible for maintaining optimal battery operating temperatures. Proper TMS design ensures battery longevity, safety, and overall system performance.
Importance of Thermal Management in BESS
Temperature fluctuations can significantly impact the performance and lifespan of lithium-ion batteries used in BESS. Without proper thermal management, batteries are prone to thermal runaway, capacity degradation, and reduced efficiency. The TMS is designed to regulate temperature, prevent overheating, and enhance system reliability.
TMS Design Considerations in BESS
An effective TMS design must address several critical aspects:
1. **Uniform Temperature Distribution**: Prevents localized hotspots that can lead to battery degradation.
2. **Energy Efficiency**: Minimizes power consumption of the cooling or heating system.
3. **Scalability and Modularity**: Ensures flexibility for different BESS sizes and applications.
4. **Redundancy and Reliability**: Incorporates backup mechanisms to enhance system safety.
5. **Integration with BMS (Battery Management System)**: Works in conjunction with BMS for real-time monitoring and control.
Key Components of TMS in BESS
A well-designed TMS consists of multiple components, each playing a vital role in maintaining optimal battery conditions:
#### 1. **Cooling Systems**
- **Air Cooling**: Uses fans to circulate air and dissipate heat. Suitable for small-to-medium BESS applications.
- **Liquid Cooling**: Employs coolant to transfer heat away from the battery pack, ideal for high-power applications requiring efficient heat dissipation.
- **Phase Change Material (PCM) Cooling**: Absorbs and releases heat during phase transitions, providing passive cooling for enhanced thermal stability.
#### 2. **Heating Systems**
- **Electric Heaters**: Used in low-temperature environments to prevent performance degradation.
- **Heat Pumps**: Improve energy efficiency by recycling heat within the system.
#### 3. **Thermal Insulation**
- Insulation materials help in maintaining stable temperatures and reducing external environmental impacts.
#### 4. **Temperature Sensors**
- **Thermocouples and RTDs (Resistance Temperature Detectors)**: Provide real-time temperature monitoring and feedback to the BMS.
#### 5. **Control Systems**
- Advanced algorithms optimize temperature regulation based on real-time data from sensors.
- Smart controllers adjust cooling/heating mechanisms dynamically to maintain efficiency.
Future Trends in TMS for BESS
- **AI and Machine Learning Integration**: Predictive analytics for better thermal management and failure prevention.
- **Advanced Materials**: Development of high-performance coolants and thermal interface materials.
- **Hybrid Cooling Solutions**: Combining different cooling methods to enhance efficiency and reliability.
The Thermal Management System (TMS) is a fundamental component of any Battery Energy Storage System (BESS), ensuring safety, performance, and longevity. An optimized TMS design, incorporating efficient cooling, heating, insulation, and control systems, is essential for meeting the demands of modern energy storage applications. As technology advances, innovations in TMS will continue to enhance the reliability and efficiency of BESS solutions.
For more information on **advanced BESS solutions and thermal management technologies**, contact **TLS Energy**, a global leader in energy storage innovation.
Importance of Thermal Management in BESS
Temperature fluctuations can significantly impact the performance and lifespan of lithium-ion batteries used in BESS. Without proper thermal management, batteries are prone to thermal runaway, capacity degradation, and reduced efficiency. The TMS is designed to regulate temperature, prevent overheating, and enhance system reliability.
TMS Design Considerations in BESS
An effective TMS design must address several critical aspects:
1. **Uniform Temperature Distribution**: Prevents localized hotspots that can lead to battery degradation.
2. **Energy Efficiency**: Minimizes power consumption of the cooling or heating system.
3. **Scalability and Modularity**: Ensures flexibility for different BESS sizes and applications.
4. **Redundancy and Reliability**: Incorporates backup mechanisms to enhance system safety.
5. **Integration with BMS (Battery Management System)**: Works in conjunction with BMS for real-time monitoring and control.
Key Components of TMS in BESS
A well-designed TMS consists of multiple components, each playing a vital role in maintaining optimal battery conditions:
#### 1. **Cooling Systems**
- **Air Cooling**: Uses fans to circulate air and dissipate heat. Suitable for small-to-medium BESS applications.
- **Liquid Cooling**: Employs coolant to transfer heat away from the battery pack, ideal for high-power applications requiring efficient heat dissipation.
- **Phase Change Material (PCM) Cooling**: Absorbs and releases heat during phase transitions, providing passive cooling for enhanced thermal stability.
#### 2. **Heating Systems**
- **Electric Heaters**: Used in low-temperature environments to prevent performance degradation.
- **Heat Pumps**: Improve energy efficiency by recycling heat within the system.
#### 3. **Thermal Insulation**
- Insulation materials help in maintaining stable temperatures and reducing external environmental impacts.
#### 4. **Temperature Sensors**
- **Thermocouples and RTDs (Resistance Temperature Detectors)**: Provide real-time temperature monitoring and feedback to the BMS.
#### 5. **Control Systems**
- Advanced algorithms optimize temperature regulation based on real-time data from sensors.
- Smart controllers adjust cooling/heating mechanisms dynamically to maintain efficiency.
Future Trends in TMS for BESS
- **AI and Machine Learning Integration**: Predictive analytics for better thermal management and failure prevention.
- **Advanced Materials**: Development of high-performance coolants and thermal interface materials.
- **Hybrid Cooling Solutions**: Combining different cooling methods to enhance efficiency and reliability.
The Thermal Management System (TMS) is a fundamental component of any Battery Energy Storage System (BESS), ensuring safety, performance, and longevity. An optimized TMS design, incorporating efficient cooling, heating, insulation, and control systems, is essential for meeting the demands of modern energy storage applications. As technology advances, innovations in TMS will continue to enhance the reliability and efficiency of BESS solutions.
For more information on **advanced BESS solutions and thermal management technologies**, contact **TLS Energy**, a global leader in energy storage innovation.
- Published on
As the global demand for energy efficiency and sustainability rises, Energy Management Systems (EMS) have become essential for industries, power grids, and businesses. EMS plays a crucial role in optimizing energy usage, integrating Battery Energy Storage Systems (BESS), and enhancing grid stability. In this article, we’ll explore the main functions and benefits of EMS in modern energy systems.
What is an Energy Management System (EMS)?
An Energy Management System (EMS) is a smart control system that monitors, optimizes, and manages the production, storage, and consumption of energy. It is widely used in BESS, microgrids, renewable energy projects, and industrial applications to enhance efficiency and reduce operational costs.
Main Functions of EMS
1. Energy Optimization & Control
EMS dynamically balances energy supply and demand to ensure efficient operation. It enables businesses and utilities to:
✔ Optimize energy distribution and storage in real-time.
✔ Reduce energy waste and improve system performance.
✔ Integrate multiple energy sources, including solar and wind.
2. Battery Energy Storage System (BESS) Management
For systems using Lithium-Ion Batteries (LFP, NMC, etc.), EMS is vital for:
✔ Managing battery charge and discharge cycles.
✔ Preventing battery degradation to extend lifespan.
✔ Maximizing energy storage utilization for cost savings.
3. Grid Stability & Frequency Regulation
EMS ensures grid stability by:
✔ Regulating frequency through fast-response energy dispatch.
✔ Maintaining voltage control and power factor correction.
✔ Enhancing grid resilience in cases of fluctuating loads.
4. Demand Response & Load Management
EMS reduces electricity costs by:
✔ Shifting energy consumption to off-peak hours.
✔ Avoiding peak demand charges and reducing grid dependency.
✔ Managing energy loads to prevent overloads and inefficiencies.
5. Renewable Energy Integration
EMS optimizes the integration of solar and wind energy by:
✔ Predicting energy generation and managing fluctuations.
✔ Storing excess renewable power in BESS for later use.
✔ Reducing reliance on fossil fuels for a greener energy mix.
6. Remote Monitoring & Control
With IoT and cloud-based EMS, users can:
✔ Monitor energy consumption in real-time.
✔ Remotely control energy storage and distribution.
✔ Detect inefficiencies and schedule predictive maintenance.
7. Cost & Efficiency Optimization
EMS helps businesses and industries to:
✔ Cut energy costs by optimizing procurement and storage.
✔ Reduce reliance on expensive grid power.
✔ Increase operational efficiency and sustainability.
8. Blackout Prevention & Islanding Mode
EMS prevents power disruptions by:
✔ Switching to islanding mode during grid failures.
✔ Ensuring uninterrupted power supply in off-grid scenarios.
✔ Seamlessly reconnecting to the grid once stability is restored.
9. Cybersecurity & Data Protection
Modern EMS solutions feature:
✔ Advanced cybersecurity protection against cyber threats.
✔ Data encryption to prevent unauthorized access.
✔ Compliance with industry energy security standards.
10. Reporting & Compliance
EMS simplifies regulatory compliance by:
✔ Generating detailed energy reports and audits.
✔ Helping businesses meet carbon footprint reduction goals.
✔ Providing historical data for informed decision-making.
Why is EMS Important for Businesses and Energy Storage?
Implementing an Energy Management System brings multiple advantages:
✔ Lower energy costs – Optimize usage and reduce waste.
✔ Increased energy reliability – Prevent outages and disruptions.
✔ Sustainability – Reduce carbon footprint and integrate renewables.
✔ Better ROI on BESS – Enhance battery lifespan and efficiency.
An Energy Management System (EMS) is an essential tool for optimizing energy efficiency, enhancing grid stability, and integrating renewable energy sources. Whether used in BESS, microgrids, or industrial facilities, EMS ensures smarter energy utilization and long-term cost savings.
What is an Energy Management System (EMS)?
An Energy Management System (EMS) is a smart control system that monitors, optimizes, and manages the production, storage, and consumption of energy. It is widely used in BESS, microgrids, renewable energy projects, and industrial applications to enhance efficiency and reduce operational costs.
Main Functions of EMS
1. Energy Optimization & Control
EMS dynamically balances energy supply and demand to ensure efficient operation. It enables businesses and utilities to:
✔ Optimize energy distribution and storage in real-time.
✔ Reduce energy waste and improve system performance.
✔ Integrate multiple energy sources, including solar and wind.
2. Battery Energy Storage System (BESS) Management
For systems using Lithium-Ion Batteries (LFP, NMC, etc.), EMS is vital for:
✔ Managing battery charge and discharge cycles.
✔ Preventing battery degradation to extend lifespan.
✔ Maximizing energy storage utilization for cost savings.
3. Grid Stability & Frequency Regulation
EMS ensures grid stability by:
✔ Regulating frequency through fast-response energy dispatch.
✔ Maintaining voltage control and power factor correction.
✔ Enhancing grid resilience in cases of fluctuating loads.
4. Demand Response & Load Management
EMS reduces electricity costs by:
✔ Shifting energy consumption to off-peak hours.
✔ Avoiding peak demand charges and reducing grid dependency.
✔ Managing energy loads to prevent overloads and inefficiencies.
5. Renewable Energy Integration
EMS optimizes the integration of solar and wind energy by:
✔ Predicting energy generation and managing fluctuations.
✔ Storing excess renewable power in BESS for later use.
✔ Reducing reliance on fossil fuels for a greener energy mix.
6. Remote Monitoring & Control
With IoT and cloud-based EMS, users can:
✔ Monitor energy consumption in real-time.
✔ Remotely control energy storage and distribution.
✔ Detect inefficiencies and schedule predictive maintenance.
7. Cost & Efficiency Optimization
EMS helps businesses and industries to:
✔ Cut energy costs by optimizing procurement and storage.
✔ Reduce reliance on expensive grid power.
✔ Increase operational efficiency and sustainability.
8. Blackout Prevention & Islanding Mode
EMS prevents power disruptions by:
✔ Switching to islanding mode during grid failures.
✔ Ensuring uninterrupted power supply in off-grid scenarios.
✔ Seamlessly reconnecting to the grid once stability is restored.
9. Cybersecurity & Data Protection
Modern EMS solutions feature:
✔ Advanced cybersecurity protection against cyber threats.
✔ Data encryption to prevent unauthorized access.
✔ Compliance with industry energy security standards.
10. Reporting & Compliance
EMS simplifies regulatory compliance by:
✔ Generating detailed energy reports and audits.
✔ Helping businesses meet carbon footprint reduction goals.
✔ Providing historical data for informed decision-making.
Why is EMS Important for Businesses and Energy Storage?
Implementing an Energy Management System brings multiple advantages:
✔ Lower energy costs – Optimize usage and reduce waste.
✔ Increased energy reliability – Prevent outages and disruptions.
✔ Sustainability – Reduce carbon footprint and integrate renewables.
✔ Better ROI on BESS – Enhance battery lifespan and efficiency.
An Energy Management System (EMS) is an essential tool for optimizing energy efficiency, enhancing grid stability, and integrating renewable energy sources. Whether used in BESS, microgrids, or industrial facilities, EMS ensures smarter energy utilization and long-term cost savings.
- Published on
As the demand for reliable and efficient Battery Energy Storage Systems (BESS) continues to grow, TLS Energy stands at the forefront, delivering turnkey BESS total solutions tailored to diverse energy applications worldwide. Our expertise in design, engineering, and manufacturing ensures optimized energy storage solutions that enhance grid stability, increase renewable energy utilization, and provide long-term operational reliability.
Comprehensive BESS Total Solutions
At TLS Energy, we provide end-to-end BESS solutions, including essential components and system integration, ensuring maximum efficiency and safety. Our BESS design and manufacturing services cover:
1. Fire Suppression System (FSS)
Safety is our top priority. We implement advanced fire suppression technologies, including smoke, heat, and gas detection, along with eco-friendly suppression agents like Novec 1230 or inert gases. Our FSS integrates seamlessly with the Battery Management System (BMS) for real-time monitoring and automatic activation, minimizing fire risks.
2. Battery Pack Engineering
We design high-performance lithium iron phosphate (LFP) battery packs, optimizing cell selection, module configuration, and safety features such as anti-propagation barriers, voltage monitoring, and short-circuit prevention.
3. Advanced Battery Management System (BMS)
Our intelligent BMS ensures:
• Accurate State of Charge (SOC) and State of Health (SOH) monitoring
• Overvoltage, overcurrent, and temperature protection
• Seamless communication with power grid and remote monitoring systems
4. Thermal Management System (TMS)
Proper heat dissipation is crucial for BESS performance. Our solutions include air-cooled and liquid-cooled thermal management systems to maintain optimal battery temperature, preventing thermal runaway and extending battery lifespan.
5. MBMU (Module Battery Management Unit)
Our MBMU ensures:
• Cell balancing for uniform energy distribution
• Real-time temperature and voltage monitoring
• Fault detection and self-diagnostic functions
6. High-Durability Battery Racks
Designed for structural stability and fire resistance, our battery racks offer efficient cable routing, busbar optimization, and modular scalability, ensuring long-term BESS expansion and reliability.

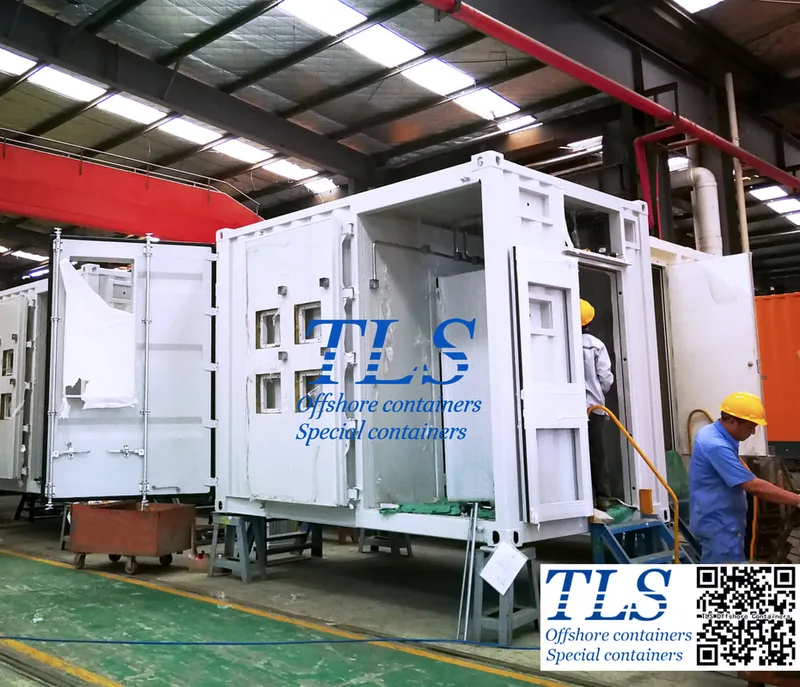

7. Robust BESS Container Enclosure
TLS Energy manufactures high-strength, weatherproof, and fireproof BESS enclosures that comply with A60 fire rating and IP55 protection standards, ensuring durability in extreme environments.
8. Main Distribution Box for Power Optimization
Our BESS solutions integrate short-circuit protection, optimized power distribution, and grounding systems, reducing power loss and enhancing energy efficiency.
9. Additional Smart Features for Optimal Performance
• Real-time communication gateways for remote monitoring
• Backup auxiliary power supply for critical operations
• Humidity and pressure sensors for optimal environmental control
Why Choose TLS Energy for BESS Solutions?
✅ Custom BESS Design
We tailor our BESS solutions to meet specific energy requirements, ensuring scalability, performance optimization, and compliance with international safety standards.
✅ Global Expertise
With a strong global footprint, TLS Energy delivers BESS projects across various industries, from renewable energy storage to commercial and industrial (C&I) applications.
✅ Turnkey Manufacturing & Integration
From concept to production, our team ensures seamless system integration, delivering fully operational BESS solutions that maximize energy efficiency.
✅ Commitment to Safety & Compliance
We prioritize safety and regulatory compliance, adhering to UL, IEC, and NFPA standards, making our BESS solutions a trusted choice for international markets.
Partner with TLS Energy for Reliable BESS Solutions
TLS Energy is committed to delivering high-quality, innovative BESS solutions that empower industries with safe, efficient, and sustainable energy storage systems. Whether you need a custom BESS system for grid applications, microgrids, or industrial energy storage, we have the expertise to bring your project to life.
Contact TLS Energy today to discuss your BESS requirements and experience cutting-edge energy storage solutions designed for the future!
Comprehensive BESS Total Solutions
At TLS Energy, we provide end-to-end BESS solutions, including essential components and system integration, ensuring maximum efficiency and safety. Our BESS design and manufacturing services cover:
1. Fire Suppression System (FSS)
Safety is our top priority. We implement advanced fire suppression technologies, including smoke, heat, and gas detection, along with eco-friendly suppression agents like Novec 1230 or inert gases. Our FSS integrates seamlessly with the Battery Management System (BMS) for real-time monitoring and automatic activation, minimizing fire risks.
2. Battery Pack Engineering
We design high-performance lithium iron phosphate (LFP) battery packs, optimizing cell selection, module configuration, and safety features such as anti-propagation barriers, voltage monitoring, and short-circuit prevention.
3. Advanced Battery Management System (BMS)
Our intelligent BMS ensures:
• Accurate State of Charge (SOC) and State of Health (SOH) monitoring
• Overvoltage, overcurrent, and temperature protection
• Seamless communication with power grid and remote monitoring systems
4. Thermal Management System (TMS)
Proper heat dissipation is crucial for BESS performance. Our solutions include air-cooled and liquid-cooled thermal management systems to maintain optimal battery temperature, preventing thermal runaway and extending battery lifespan.
5. MBMU (Module Battery Management Unit)
Our MBMU ensures:
• Cell balancing for uniform energy distribution
• Real-time temperature and voltage monitoring
• Fault detection and self-diagnostic functions
6. High-Durability Battery Racks
Designed for structural stability and fire resistance, our battery racks offer efficient cable routing, busbar optimization, and modular scalability, ensuring long-term BESS expansion and reliability.
7. Robust BESS Container Enclosure
TLS Energy manufactures high-strength, weatherproof, and fireproof BESS enclosures that comply with A60 fire rating and IP55 protection standards, ensuring durability in extreme environments.
8. Main Distribution Box for Power Optimization
Our BESS solutions integrate short-circuit protection, optimized power distribution, and grounding systems, reducing power loss and enhancing energy efficiency.
9. Additional Smart Features for Optimal Performance
• Real-time communication gateways for remote monitoring
• Backup auxiliary power supply for critical operations
• Humidity and pressure sensors for optimal environmental control
Why Choose TLS Energy for BESS Solutions?
✅ Custom BESS Design
We tailor our BESS solutions to meet specific energy requirements, ensuring scalability, performance optimization, and compliance with international safety standards.
✅ Global Expertise
With a strong global footprint, TLS Energy delivers BESS projects across various industries, from renewable energy storage to commercial and industrial (C&I) applications.
✅ Turnkey Manufacturing & Integration
From concept to production, our team ensures seamless system integration, delivering fully operational BESS solutions that maximize energy efficiency.
✅ Commitment to Safety & Compliance
We prioritize safety and regulatory compliance, adhering to UL, IEC, and NFPA standards, making our BESS solutions a trusted choice for international markets.
Partner with TLS Energy for Reliable BESS Solutions
TLS Energy is committed to delivering high-quality, innovative BESS solutions that empower industries with safe, efficient, and sustainable energy storage systems. Whether you need a custom BESS system for grid applications, microgrids, or industrial energy storage, we have the expertise to bring your project to life.
Contact TLS Energy today to discuss your BESS requirements and experience cutting-edge energy storage solutions designed for the future!
- Published on
Maintaining consistent voltage across all cells in a lithium battery pack is crucial to ensuring optimal performance, safety, and longevity. When the voltages of individual cells deviate significantly, it can lead to a range of complications, including suboptimal utilization of capacity, increased safety risks, and reduced overall battery life. Below, we explore why lithium battery voltage consistency matters, how voltage discrepancies affect battery systems, and practical measures to keep voltages aligned.
1. Importance of Voltage Consistency
Voltage consistency refers to the ability of cells within a battery pack to operate at roughly the same voltage level under the same conditions. This uniformity is key to tapping into the full capacity of the battery pack. If one cell reaches its voltage limit prematurely during charging, it will trigger a protective cut-off before other cells can fully charge. Similarly, in discharge mode, the weakest cell will drop to its lower voltage threshold first, limiting the total energy output. By ensuring that all cells remain in a similar voltage range, manufacturers and users can optimize energy efficiency, reduce waste, and enhance the pack’s overall performance.
2. Effects of Voltage Discrepancies
Uneven voltage levels can result in diminished power output and raise the potential for dangerous conditions such as thermal runaway. Cells that are frequently overcharged or over-discharged in relation to their counterparts are more prone to degradation, leading to shorter lifespans. Moreover, repeated misalignment can escalate heat generation within certain cells, elevating safety risks like fire or explosion. In short, voltage imbalance has a direct impact on both functionality and user safety.
3. Key Strategies for Improving Voltage Consistency
• Optimized Manufacturing: Streamlining production processes—such as coating electrodes evenly, applying uniform winding or stacking methods, and controlling sealing procedures—can substantially reduce variations in cell performance. Employing strict quality control measures helps narrow down differences that might otherwise arise in large-scale manufacturing.
• Use of High-Quality Materials: Selecting stable, high-performance cathode and anode materials, electrolytes, and separators ensures a more predictable voltage range and reduces the likelihood of early cell degradation. Collaborating with reputable suppliers further minimizes variations in material quality.
• Robust Battery Management System (BMS): A well-designed BMS monitors individual cell voltages in real time, preventing overcharging and over-discharging. Additionally, advanced BMS solutions can actively balance cells by redistributing charge, thereby maintaining voltage consistency and extending the battery pack’s service life.
• Regular Maintenance and Calibration: Periodic assessments, including full charge–discharge cycles, help reset voltage levels and keep cells operating uniformly. Scheduled checks also enable early detection of any inconsistencies, allowing for timely intervention.
• Balanced Charging Techniques: Actively balancing cells—either through passive methods like resistors or more sophisticated active balancing systems—helps correct minor discrepancies before they grow into serious problems.
• Optimal Usage Environment: Controlling temperature, reducing harsh vibrations, and avoiding extreme operating conditions can greatly improve voltage consistency. Consistency in environmental factors helps stabilize internal reactions and reduces uneven aging among cells.
Achieving and preserving voltage consistency is a vital factor in harnessing the full potential of lithium battery packs. By focusing on high-quality materials, precision manufacturing, effective battery management, and proper maintenance, users and manufacturers alike can enhance performance, minimize safety risks, and extend overall battery lifespan. Investing in these best practices pays off in reliable, efficient, and secure battery systems that meet both current and future demands.
1. Importance of Voltage Consistency
Voltage consistency refers to the ability of cells within a battery pack to operate at roughly the same voltage level under the same conditions. This uniformity is key to tapping into the full capacity of the battery pack. If one cell reaches its voltage limit prematurely during charging, it will trigger a protective cut-off before other cells can fully charge. Similarly, in discharge mode, the weakest cell will drop to its lower voltage threshold first, limiting the total energy output. By ensuring that all cells remain in a similar voltage range, manufacturers and users can optimize energy efficiency, reduce waste, and enhance the pack’s overall performance.
2. Effects of Voltage Discrepancies
Uneven voltage levels can result in diminished power output and raise the potential for dangerous conditions such as thermal runaway. Cells that are frequently overcharged or over-discharged in relation to their counterparts are more prone to degradation, leading to shorter lifespans. Moreover, repeated misalignment can escalate heat generation within certain cells, elevating safety risks like fire or explosion. In short, voltage imbalance has a direct impact on both functionality and user safety.
3. Key Strategies for Improving Voltage Consistency
• Optimized Manufacturing: Streamlining production processes—such as coating electrodes evenly, applying uniform winding or stacking methods, and controlling sealing procedures—can substantially reduce variations in cell performance. Employing strict quality control measures helps narrow down differences that might otherwise arise in large-scale manufacturing.
• Use of High-Quality Materials: Selecting stable, high-performance cathode and anode materials, electrolytes, and separators ensures a more predictable voltage range and reduces the likelihood of early cell degradation. Collaborating with reputable suppliers further minimizes variations in material quality.
• Robust Battery Management System (BMS): A well-designed BMS monitors individual cell voltages in real time, preventing overcharging and over-discharging. Additionally, advanced BMS solutions can actively balance cells by redistributing charge, thereby maintaining voltage consistency and extending the battery pack’s service life.
• Regular Maintenance and Calibration: Periodic assessments, including full charge–discharge cycles, help reset voltage levels and keep cells operating uniformly. Scheduled checks also enable early detection of any inconsistencies, allowing for timely intervention.
• Balanced Charging Techniques: Actively balancing cells—either through passive methods like resistors or more sophisticated active balancing systems—helps correct minor discrepancies before they grow into serious problems.
• Optimal Usage Environment: Controlling temperature, reducing harsh vibrations, and avoiding extreme operating conditions can greatly improve voltage consistency. Consistency in environmental factors helps stabilize internal reactions and reduces uneven aging among cells.
Achieving and preserving voltage consistency is a vital factor in harnessing the full potential of lithium battery packs. By focusing on high-quality materials, precision manufacturing, effective battery management, and proper maintenance, users and manufacturers alike can enhance performance, minimize safety risks, and extend overall battery lifespan. Investing in these best practices pays off in reliable, efficient, and secure battery systems that meet both current and future demands.
- Published on
Battery Energy Storage Systems (BESS) are integral to modern energy management, offering solutions for grid stability, renewable energy integration, and energy optimization. However, like all complex systems, BESS can face challenges such as overvoltage and undervoltage, both of which can significantly impact performance and safety. In this article, we will discuss the causes, effects, and preventive measures for overvoltage and undervoltage in BESS, with a special focus on the importance of protection relays and safety systems in ensuring the system operates within safe parameters.
What is Overvoltage in BESS?
Overvoltage occurs when the voltage in a battery pack exceeds the maximum safe operating voltage, typically during the charging process. This can happen due to excessive charging, malfunctioning components like the Power Conversion System (PCS), or a failure in the Battery Management System (BMS) that prevents proper voltage regulation. Overvoltage can result in battery degradation, overheating, and even dangerous situations like thermal runaway, where the battery could catch fire or explode.
What is Undervoltage in BESS?
On the opposite end, undervoltage happens when the battery voltage drops below a critical threshold, often due to excessive discharging or inadequate charging control. When a battery pack is discharged too far, it risks permanent damage or failure. Undervoltage can be caused by various factors, including faulty BMS settings, failure of the PCS to halt discharge, or environmental conditions that affect the battery’s performance.
The Role of Protection Relays in BESS
To prevent the adverse effects of overvoltage and undervoltage, protection relays are used within BESS to monitor voltage levels and ensure that they remain within safe operating ranges. These relays act as safety mechanisms by immediately detecting abnormal voltage conditions (either too high or too low) and triggering actions to prevent damage, such as:
1. Disconnection of the Battery Pack: When overvoltage or undervoltage conditions are detected, protection relays can disconnect the battery from the grid or load, preventing further degradation or risk of failure.
2. Voltage Regulation: The relays provide signals to the BMS or PCS to regulate the voltage and prevent the system from exceeding or falling below preset thresholds.
Importance of Safety Systems in BESS Design
Incorporating safety systems is crucial in preventing and mitigating the risks associated with overvoltage and undervoltage. These systems protect both the battery and the operators by ensuring that the system remains within its designed operating limits.
1. Battery Management System (BMS): The BMS plays a pivotal role in the safety of the BESS by managing the charging and discharging cycles. It ensures that voltage levels are continuously monitored, and if they approach critical levels, the BMS will initiate corrective measures such as halting charging or discharging or disconnecting the system.
2. Thermal Management Systems (TMS): In many cases, thermal runaway is a consequence of overvoltage, leading to overheating and fires. Thermal management systems, including cooling fans and liquid cooling, work in conjunction with protection relays to maintain safe operating temperatures.
3. Fire Suppression Systems (FSS): In case a thermal event does occur, fire suppression systems are integrated into the BESS design. These systems use gases like CO2 or inert agents to suppress fires caused by electrical failures or overvoltage/undervoltage-related incidents.
4. Emergency Shutdown Systems: These are essential for ensuring that, in the event of overvoltage or undervoltage, the system can quickly and safely be shut down to prevent further damage.
Preventive Measures for Overvoltage and Undervoltage
To avoid the issues caused by overvoltage and undervoltage, several design features and strategies can be implemented:
• Calibrated BMS and PCS: Ensuring that the BMS and PCS are correctly configured and calibrated to stop charging or discharging at the appropriate voltage thresholds.
• Regular Testing and Maintenance: Performing regular testing of all safety and monitoring systems, including protection relays, to ensure they are working as intended.
• Redundancy: Incorporating backup systems like redundant power supplies, communication systems, and cooling mechanisms can provide additional safety in case of system failure.
Overvoltage and undervoltage are critical issues that can impair the operation of Battery Energy Storage Systems and pose safety risks. By employing robust protection relays, safety systems, and incorporating the right design strategies, these issues can be effectively managed. The use of Battery Management Systems (BMS), thermal management systems, and fire suppression systems is essential for safeguarding the BESS and its components. Ensuring these protections are in place allows BESS operators to maximize performance, prevent costly damage, and maintain the safety and reliability of their energy storage systems.
What is Overvoltage in BESS?
Overvoltage occurs when the voltage in a battery pack exceeds the maximum safe operating voltage, typically during the charging process. This can happen due to excessive charging, malfunctioning components like the Power Conversion System (PCS), or a failure in the Battery Management System (BMS) that prevents proper voltage regulation. Overvoltage can result in battery degradation, overheating, and even dangerous situations like thermal runaway, where the battery could catch fire or explode.
What is Undervoltage in BESS?
On the opposite end, undervoltage happens when the battery voltage drops below a critical threshold, often due to excessive discharging or inadequate charging control. When a battery pack is discharged too far, it risks permanent damage or failure. Undervoltage can be caused by various factors, including faulty BMS settings, failure of the PCS to halt discharge, or environmental conditions that affect the battery’s performance.
The Role of Protection Relays in BESS
To prevent the adverse effects of overvoltage and undervoltage, protection relays are used within BESS to monitor voltage levels and ensure that they remain within safe operating ranges. These relays act as safety mechanisms by immediately detecting abnormal voltage conditions (either too high or too low) and triggering actions to prevent damage, such as:
1. Disconnection of the Battery Pack: When overvoltage or undervoltage conditions are detected, protection relays can disconnect the battery from the grid or load, preventing further degradation or risk of failure.
2. Voltage Regulation: The relays provide signals to the BMS or PCS to regulate the voltage and prevent the system from exceeding or falling below preset thresholds.
Importance of Safety Systems in BESS Design
Incorporating safety systems is crucial in preventing and mitigating the risks associated with overvoltage and undervoltage. These systems protect both the battery and the operators by ensuring that the system remains within its designed operating limits.
1. Battery Management System (BMS): The BMS plays a pivotal role in the safety of the BESS by managing the charging and discharging cycles. It ensures that voltage levels are continuously monitored, and if they approach critical levels, the BMS will initiate corrective measures such as halting charging or discharging or disconnecting the system.
2. Thermal Management Systems (TMS): In many cases, thermal runaway is a consequence of overvoltage, leading to overheating and fires. Thermal management systems, including cooling fans and liquid cooling, work in conjunction with protection relays to maintain safe operating temperatures.
3. Fire Suppression Systems (FSS): In case a thermal event does occur, fire suppression systems are integrated into the BESS design. These systems use gases like CO2 or inert agents to suppress fires caused by electrical failures or overvoltage/undervoltage-related incidents.
4. Emergency Shutdown Systems: These are essential for ensuring that, in the event of overvoltage or undervoltage, the system can quickly and safely be shut down to prevent further damage.
Preventive Measures for Overvoltage and Undervoltage
To avoid the issues caused by overvoltage and undervoltage, several design features and strategies can be implemented:
• Calibrated BMS and PCS: Ensuring that the BMS and PCS are correctly configured and calibrated to stop charging or discharging at the appropriate voltage thresholds.
• Regular Testing and Maintenance: Performing regular testing of all safety and monitoring systems, including protection relays, to ensure they are working as intended.
• Redundancy: Incorporating backup systems like redundant power supplies, communication systems, and cooling mechanisms can provide additional safety in case of system failure.
Overvoltage and undervoltage are critical issues that can impair the operation of Battery Energy Storage Systems and pose safety risks. By employing robust protection relays, safety systems, and incorporating the right design strategies, these issues can be effectively managed. The use of Battery Management Systems (BMS), thermal management systems, and fire suppression systems is essential for safeguarding the BESS and its components. Ensuring these protections are in place allows BESS operators to maximize performance, prevent costly damage, and maintain the safety and reliability of their energy storage systems.
- Published on
Battery Energy Storage Systems (BESS) are vital for balancing energy supply and demand, storing excess power from renewable sources, and enhancing grid stability. However, during operation, a common issue that may arise is undervoltage, which can lead to system inefficiency or even damage if not properly managed. In this article, we will explore what causes undervoltage in BESS, specifically when it occurs on the battery side, and how to prevent it.
What is Undervoltage in BESS?
Undervoltage occurs when the voltage of the battery pack in a Battery Energy Storage System drops below a predefined threshold, typically set by the system’s Battery Management System (BMS). When this happens, the system automatically triggers protective measures to prevent further damage to the battery and the overall system. If the undervoltage condition is not addressed, it could result in battery degradation, system failure, or even unsafe operating conditions.
Common Cause: Discharging to Zero
One of the primary reasons for battery undervoltage is when the battery discharges to its lower voltage limit. In a well-functioning BESS, the Power Conversion System (PCS) is responsible for converting and managing the energy flow between the battery and the grid. However, if the PCS continues discharging the battery even after it has reached its minimum voltage level, it can lead to a critical undervoltage situation.
How PCS Contributes to Undervoltage
The Power Conversion System (PCS) should monitor the battery voltage in real-time and halt discharging when the battery reaches its low voltage threshold. If the PCS fails to recognize the drop in voltage or does not stop the discharge in time, it can result in over-discharging, which significantly lowers the battery’s charge. This situation can trigger undervoltage protection and potentially lead to shutdowns, operational inefficiency, or even permanent damage to the battery.
How to Prevent Undervoltage in BESS
To ensure optimal performance and longevity of a Battery Energy Storage System, it’s essential to take the following preventive measures:
1. Proper BMS Settings:
The Battery Management System (BMS) is responsible for monitoring the battery voltage and managing charge and discharge cycles. Ensuring that the BMS is correctly calibrated to set appropriate low-voltage thresholds can prevent the battery from being over-discharged. The system should halt discharging when the voltage approaches the safe limit.
2. Enhanced Monitoring and Control by PCS:
The PCS should be designed to communicate effectively with the BMS, ensuring that it pauses or limits power output when the battery reaches its voltage threshold. This coordination between the PCS and BMS ensures that the system stops further discharging before the undervoltage protection kicks in.
3. Regular Maintenance and Testing:
Consistent maintenance and testing of both the BMS and PCS can help identify potential issues before they cause significant problems. Regular checks on the battery’s voltage levels, calibration of sensors, and the PCS’s response time to voltage changes can prevent undervoltage situations.
4. System Redundancy and Backup:
Installing redundant systems or backup power sources can help mitigate the risk of undervoltage during peak load periods. If one system fails to prevent undervoltage, a backup system can take over, maintaining the integrity of the entire BESS.
Undervoltage in Battery Energy Storage Systems is a preventable issue that can be managed with proper system design, real-time monitoring, and regular maintenance. By ensuring that the BMS and PCS work in sync to monitor voltage levels and manage the discharge process effectively, BESS operators can significantly reduce the risk of undervoltage, ensuring efficient and safe operation of the energy storage system. Properly addressing undervoltage will also help extend the life of the battery and maintain system performance, making BESS a reliable solution for modern energy management.
What is Undervoltage in BESS?
Undervoltage occurs when the voltage of the battery pack in a Battery Energy Storage System drops below a predefined threshold, typically set by the system’s Battery Management System (BMS). When this happens, the system automatically triggers protective measures to prevent further damage to the battery and the overall system. If the undervoltage condition is not addressed, it could result in battery degradation, system failure, or even unsafe operating conditions.
Common Cause: Discharging to Zero
One of the primary reasons for battery undervoltage is when the battery discharges to its lower voltage limit. In a well-functioning BESS, the Power Conversion System (PCS) is responsible for converting and managing the energy flow between the battery and the grid. However, if the PCS continues discharging the battery even after it has reached its minimum voltage level, it can lead to a critical undervoltage situation.
How PCS Contributes to Undervoltage
The Power Conversion System (PCS) should monitor the battery voltage in real-time and halt discharging when the battery reaches its low voltage threshold. If the PCS fails to recognize the drop in voltage or does not stop the discharge in time, it can result in over-discharging, which significantly lowers the battery’s charge. This situation can trigger undervoltage protection and potentially lead to shutdowns, operational inefficiency, or even permanent damage to the battery.
How to Prevent Undervoltage in BESS
To ensure optimal performance and longevity of a Battery Energy Storage System, it’s essential to take the following preventive measures:
1. Proper BMS Settings:
The Battery Management System (BMS) is responsible for monitoring the battery voltage and managing charge and discharge cycles. Ensuring that the BMS is correctly calibrated to set appropriate low-voltage thresholds can prevent the battery from being over-discharged. The system should halt discharging when the voltage approaches the safe limit.
2. Enhanced Monitoring and Control by PCS:
The PCS should be designed to communicate effectively with the BMS, ensuring that it pauses or limits power output when the battery reaches its voltage threshold. This coordination between the PCS and BMS ensures that the system stops further discharging before the undervoltage protection kicks in.
3. Regular Maintenance and Testing:
Consistent maintenance and testing of both the BMS and PCS can help identify potential issues before they cause significant problems. Regular checks on the battery’s voltage levels, calibration of sensors, and the PCS’s response time to voltage changes can prevent undervoltage situations.
4. System Redundancy and Backup:
Installing redundant systems or backup power sources can help mitigate the risk of undervoltage during peak load periods. If one system fails to prevent undervoltage, a backup system can take over, maintaining the integrity of the entire BESS.
Undervoltage in Battery Energy Storage Systems is a preventable issue that can be managed with proper system design, real-time monitoring, and regular maintenance. By ensuring that the BMS and PCS work in sync to monitor voltage levels and manage the discharge process effectively, BESS operators can significantly reduce the risk of undervoltage, ensuring efficient and safe operation of the energy storage system. Properly addressing undervoltage will also help extend the life of the battery and maintain system performance, making BESS a reliable solution for modern energy management.
- Published on
Battery Energy Storage Systems (BESS) have become indispensable for modern energy management, supporting renewable energy integration, peak shaving, and grid stability. However, as with any system that deals with significant power flows, BESS can encounter issues—one of the most critical being overcurrent. Overcurrent occurs when the current flowing through the battery, cables, or power electronics exceeds the safe thresholds specified by equipment manufacturers. This can lead to damaging consequences, from reduced battery life to more severe hazards such as electrical fires.
A primary cause of overcurrent is high-demand discharge. If a connected load draws more power than the BESS is rated for, the system may attempt to deliver a current beyond its designed capacity. Similarly, short circuits—arising from damaged wiring or failing components—can trigger sudden surges in current. In addition, incorrectly sized components or a malfunctioning Battery Management System (BMS) can fail to regulate power flow, leaving the system vulnerable to overcurrent conditions. Even environmental factors such as extreme temperatures can compromise a battery’s ability to deliver current safely, forcing it to operate beyond safe limits.
The consequences of overcurrent can be wide-ranging and costly. Firstly, excessive current leads to thermal damage, as the higher flow of electrons generates additional heat in battery cells and cables. This heat accumulation can degrade the battery’s internal structures, melt insulation, and potentially spark fires. Reduced battery lifespan is another significant outcome, as the stress of high currents accelerates internal wear and tear. In severe cases, equipment failures may occur; busbars and connectors subjected to persistent overcurrent are at risk of open circuits and insulation breakdown. Safety hazards are a pressing concern, especially if a severe short circuit or prolonged overcurrent ignites an electrical fire or induces thermal runaway in lithium-ion cells.
Fortunately, several strategies can effectively prevent overcurrent. First and foremost, proper system sizing is essential. Each BESS component—from the battery modules and busbars to the protective devices—must be matched to the peak current the system can deliver. This also extends to the BMS, which must continuously monitor voltage, current, and temperature to ensure that charging and discharging stay within safe parameters. Protective devices, such as circuit breakers and fuses rated for the BESS’s capacity, play a pivotal role in disconnecting or isolating the system when current exceeds acceptable limits. Regular maintenance and inspections can further mitigate risks by identifying worn cables, corroded connections, or malfunctioning breakers before they fail under load. In addition, controlling the environmental conditions—ensuring optimal temperature and humidity—helps maintain the battery’s stability and prevents unexpected current spikes.
Overcurrent is a serious threat that every BESS operator must address. By implementing robust design practices—including correct component sizing, reliable BMS integration, and well-tested protective devices—operators can minimize overcurrent risks. Alongside systematic maintenance and environmental controls, these measures preserve system integrity, prolong battery life, and safeguard personnel and assets. As BESS technology continues to transform how we store and use energy, understanding and preventing overcurrent remains fundamental to achieving stable, efficient, and secure energy storage solutions.
A primary cause of overcurrent is high-demand discharge. If a connected load draws more power than the BESS is rated for, the system may attempt to deliver a current beyond its designed capacity. Similarly, short circuits—arising from damaged wiring or failing components—can trigger sudden surges in current. In addition, incorrectly sized components or a malfunctioning Battery Management System (BMS) can fail to regulate power flow, leaving the system vulnerable to overcurrent conditions. Even environmental factors such as extreme temperatures can compromise a battery’s ability to deliver current safely, forcing it to operate beyond safe limits.
The consequences of overcurrent can be wide-ranging and costly. Firstly, excessive current leads to thermal damage, as the higher flow of electrons generates additional heat in battery cells and cables. This heat accumulation can degrade the battery’s internal structures, melt insulation, and potentially spark fires. Reduced battery lifespan is another significant outcome, as the stress of high currents accelerates internal wear and tear. In severe cases, equipment failures may occur; busbars and connectors subjected to persistent overcurrent are at risk of open circuits and insulation breakdown. Safety hazards are a pressing concern, especially if a severe short circuit or prolonged overcurrent ignites an electrical fire or induces thermal runaway in lithium-ion cells.
Fortunately, several strategies can effectively prevent overcurrent. First and foremost, proper system sizing is essential. Each BESS component—from the battery modules and busbars to the protective devices—must be matched to the peak current the system can deliver. This also extends to the BMS, which must continuously monitor voltage, current, and temperature to ensure that charging and discharging stay within safe parameters. Protective devices, such as circuit breakers and fuses rated for the BESS’s capacity, play a pivotal role in disconnecting or isolating the system when current exceeds acceptable limits. Regular maintenance and inspections can further mitigate risks by identifying worn cables, corroded connections, or malfunctioning breakers before they fail under load. In addition, controlling the environmental conditions—ensuring optimal temperature and humidity—helps maintain the battery’s stability and prevents unexpected current spikes.
Overcurrent is a serious threat that every BESS operator must address. By implementing robust design practices—including correct component sizing, reliable BMS integration, and well-tested protective devices—operators can minimize overcurrent risks. Alongside systematic maintenance and environmental controls, these measures preserve system integrity, prolong battery life, and safeguard personnel and assets. As BESS technology continues to transform how we store and use energy, understanding and preventing overcurrent remains fundamental to achieving stable, efficient, and secure energy storage solutions.
- Published on
In the fast-evolving landscape of modern energy management, Battery Energy Storage Systems (BESS) play a crucial role in facilitating renewable energy integration, peak load shaving, and grid stability. Although batteries can theoretically operate from 0% to 100% State of Charge (SOC), consistently cycling the battery at these extremes is not recommended in real-world applications. Instead, experts and manufacturers generally advise operating within narrower SOC windows—often 10%–90% or 20%–80%—to maximize the battery’s lifespan and ensure stable, efficient performance. Below, we examine the reasons behind this best practice and how it can benefit your energy storage system.
1. Prolonged Battery Lifespan
One of the key drivers for adopting an optimal SOC range is to prolong the lifespan of the battery. When a battery is repeatedly discharged close to 0% or charged all the way to 100%, it experiences higher levels of mechanical and chemical stress. This stress can damage the electrode materials, leading to capacity fade and a shortened service life. By staying within an SOC “buffer”—such as 10%–90%—you reduce the strain on the electrodes, decreasing the rate of degradation and extending the battery’s usable lifespan.
2. Mitigating Thermal and Voltage Stress
Operating lithium-ion batteries at their extreme ends of SOC often introduces thermal and voltage stress. At low SOC levels, internal resistance may rise, causing additional heat during discharge; at high SOC levels, the voltage is near the maximum threshold, making the cells more susceptible to thermal runaway if temperatures rise unexpectedly. With a narrower SOC range, the battery typically stays in a stable voltage region, reducing the risk of overheating and preventing sudden performance drops or potential safety hazards.
3. Consistent and Reliable Performance
By maintaining some reserve capacity at both the upper and lower end of the SOC, a BESS can better handle unexpected load surges or dips in generation. If the battery is constantly operated from 0% to 100%, there is less flexibility for rapid dispatch when unexpected changes occur. Operating in the mid-range provides a safety buffer that allows the system to accommodate fluctuations, ensuring smooth, continuous power delivery and quicker response times.
4. Manufacturer Recommendations
Many lithium-ion battery manufacturers offer guidance on safe operating windows for their specific chemistry and form factor. These recommendations are rooted in extensive testing to determine how battery materials behave under varying conditions. Following these manufacturer guidelines is critical not only for protecting warranty coverage but also for ensuring optimal performance over the life of the system.
5. Balancing Efficiency and Safety
Balancing efficiency and safety is central to BESS design. While restricting the SOC range means you may not always utilize the full capacity of the battery, the trade-off is a longer-lasting system with more consistent power output. This balance is especially important for commercial installations where the cost of battery replacement can impact the overall return on investment.
Although a battery can theoretically cycle from 0% to 100% SOC, best practices dictate operating within a narrower range—such as 10%–90% or 20%–80% to minimize stress and extend system life. This operational strategy pays dividends in enhanced reliability, improved safety, and long-term cost savings. By understanding and adhering to these guidelines, BESS operators can maximize the performance and longevity of their energy storage systems, ensuring stable power delivery and reduced maintenance costs over time.
1. Prolonged Battery Lifespan
One of the key drivers for adopting an optimal SOC range is to prolong the lifespan of the battery. When a battery is repeatedly discharged close to 0% or charged all the way to 100%, it experiences higher levels of mechanical and chemical stress. This stress can damage the electrode materials, leading to capacity fade and a shortened service life. By staying within an SOC “buffer”—such as 10%–90%—you reduce the strain on the electrodes, decreasing the rate of degradation and extending the battery’s usable lifespan.
2. Mitigating Thermal and Voltage Stress
Operating lithium-ion batteries at their extreme ends of SOC often introduces thermal and voltage stress. At low SOC levels, internal resistance may rise, causing additional heat during discharge; at high SOC levels, the voltage is near the maximum threshold, making the cells more susceptible to thermal runaway if temperatures rise unexpectedly. With a narrower SOC range, the battery typically stays in a stable voltage region, reducing the risk of overheating and preventing sudden performance drops or potential safety hazards.
3. Consistent and Reliable Performance
By maintaining some reserve capacity at both the upper and lower end of the SOC, a BESS can better handle unexpected load surges or dips in generation. If the battery is constantly operated from 0% to 100%, there is less flexibility for rapid dispatch when unexpected changes occur. Operating in the mid-range provides a safety buffer that allows the system to accommodate fluctuations, ensuring smooth, continuous power delivery and quicker response times.
4. Manufacturer Recommendations
Many lithium-ion battery manufacturers offer guidance on safe operating windows for their specific chemistry and form factor. These recommendations are rooted in extensive testing to determine how battery materials behave under varying conditions. Following these manufacturer guidelines is critical not only for protecting warranty coverage but also for ensuring optimal performance over the life of the system.
5. Balancing Efficiency and Safety
Balancing efficiency and safety is central to BESS design. While restricting the SOC range means you may not always utilize the full capacity of the battery, the trade-off is a longer-lasting system with more consistent power output. This balance is especially important for commercial installations where the cost of battery replacement can impact the overall return on investment.
Although a battery can theoretically cycle from 0% to 100% SOC, best practices dictate operating within a narrower range—such as 10%–90% or 20%–80% to minimize stress and extend system life. This operational strategy pays dividends in enhanced reliability, improved safety, and long-term cost savings. By understanding and adhering to these guidelines, BESS operators can maximize the performance and longevity of their energy storage systems, ensuring stable power delivery and reduced maintenance costs over time.
- Published on
Introduction:
Safety is the cornerstone of any successful oil and gas operation, especially in high-risk environments like drilling rigs. As the industry adopts cutting-edge technologies such as Measurement While Drilling (MWD) and Logging While Drilling (LWD), the need for advanced safety measures has never been greater. One key innovation that addresses safety concerns in these operations is the use of positive pressure Ex-Proof containers for MWD/LWD cabins. These specialized containers play a vital role in ensuring the protection of personnel, equipment, and data integrity in hazardous drilling environments.
What Are MWD/LWD Cabins?
MWD and LWD technologies are essential for modern drilling operations. MWD systems provide real-time data on drilling parameters such as depth, temperature, and pressure, while LWD tools deliver critical insights into subsurface formations. These technologies are housed in dedicated cabins on drilling rigs, acting as the operational heart of data acquisition and analysis. However, these cabins must be protected from the harsh and explosive environments commonly found in the oil and gas industry.
Challenges in Hazardous Environments:
Drilling operations often take place in environments with explosive atmospheres, making safety a top priority. Flammable gases or vapors can easily trigger catastrophic accidents, putting both personnel and equipment at risk. In such volatile conditions, Ex-Proof (explosion-proof) equipment is necessary to prevent ignition. These specialized systems are designed to withstand potential hazards, offering an essential layer of protection to ensure safe operations.
How Positive Pressure Ex-Proof Containers Enhance Safety:
Positive pressure Ex-Proof containers are purpose-built to maintain an internal pressure higher than the surrounding environment. This design prevents hazardous gases or vapors from infiltrating the cabin, significantly reducing the risk of explosions. By creating a controlled environment within the cabin, these containers protect both personnel and sensitive equipment from the dangers of explosive atmospheres.
Key Benefits of Positive Pressure Ex-Proof Containers for MWD/LWD Cabins:
TLS Offshore Containers: The Ideal Solution for MWD/LWD Cabins
TLS Offshore Containers provides state-of-the-art positive pressure Ex-Proof containers designed specifically for MWD/LWD cabins in offshore and onshore operations. These intelligent pressurized containers are engineered to create a safe and efficient environment, incorporating advanced HVAC and power control systems. TLS ensures that every container is tailored to meet the unique requirements of the customer, offering peace of mind and operational continuity.
Conclusion:
As the oil and gas industry continues to advance, implementing advanced safety technologies like positive pressure Ex-Proof containers for MWD/LWD cabins is essential to mitigate the risks associated with explosive atmospheres. By choosing trusted solutions like those offered by TLS Offshore Containers, operators can enhance the safety, efficiency, and compliance of their drilling operations. Ensure the protection of both personnel and equipment by investing in Ex-Proof containers designed to withstand the toughest environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Positive pressure Ex-Proof containers, #MWD/LWD cabins safety, #Explosion-proof containers for drilling, #Safety in oil and gas operations, #MWD LWD technology protection, #Offshore drilling cabin safety, #Explosion prevention in oil and gas, #Hazardous environment safety solutions, #Ex-Proof container for drilling rigs, #Offshore container solutions
Safety is the cornerstone of any successful oil and gas operation, especially in high-risk environments like drilling rigs. As the industry adopts cutting-edge technologies such as Measurement While Drilling (MWD) and Logging While Drilling (LWD), the need for advanced safety measures has never been greater. One key innovation that addresses safety concerns in these operations is the use of positive pressure Ex-Proof containers for MWD/LWD cabins. These specialized containers play a vital role in ensuring the protection of personnel, equipment, and data integrity in hazardous drilling environments.
What Are MWD/LWD Cabins?
MWD and LWD technologies are essential for modern drilling operations. MWD systems provide real-time data on drilling parameters such as depth, temperature, and pressure, while LWD tools deliver critical insights into subsurface formations. These technologies are housed in dedicated cabins on drilling rigs, acting as the operational heart of data acquisition and analysis. However, these cabins must be protected from the harsh and explosive environments commonly found in the oil and gas industry.
Challenges in Hazardous Environments:
Drilling operations often take place in environments with explosive atmospheres, making safety a top priority. Flammable gases or vapors can easily trigger catastrophic accidents, putting both personnel and equipment at risk. In such volatile conditions, Ex-Proof (explosion-proof) equipment is necessary to prevent ignition. These specialized systems are designed to withstand potential hazards, offering an essential layer of protection to ensure safe operations.
How Positive Pressure Ex-Proof Containers Enhance Safety:
Positive pressure Ex-Proof containers are purpose-built to maintain an internal pressure higher than the surrounding environment. This design prevents hazardous gases or vapors from infiltrating the cabin, significantly reducing the risk of explosions. By creating a controlled environment within the cabin, these containers protect both personnel and sensitive equipment from the dangers of explosive atmospheres.
Key Benefits of Positive Pressure Ex-Proof Containers for MWD/LWD Cabins:
- Explosion Prevention
- Personnel Safety
- Protection of Valuable Equipment
- Regulatory Compliance
TLS Offshore Containers: The Ideal Solution for MWD/LWD Cabins
TLS Offshore Containers provides state-of-the-art positive pressure Ex-Proof containers designed specifically for MWD/LWD cabins in offshore and onshore operations. These intelligent pressurized containers are engineered to create a safe and efficient environment, incorporating advanced HVAC and power control systems. TLS ensures that every container is tailored to meet the unique requirements of the customer, offering peace of mind and operational continuity.
Conclusion:
As the oil and gas industry continues to advance, implementing advanced safety technologies like positive pressure Ex-Proof containers for MWD/LWD cabins is essential to mitigate the risks associated with explosive atmospheres. By choosing trusted solutions like those offered by TLS Offshore Containers, operators can enhance the safety, efficiency, and compliance of their drilling operations. Ensure the protection of both personnel and equipment by investing in Ex-Proof containers designed to withstand the toughest environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Positive pressure Ex-Proof containers, #MWD/LWD cabins safety, #Explosion-proof containers for drilling, #Safety in oil and gas operations, #MWD LWD technology protection, #Offshore drilling cabin safety, #Explosion prevention in oil and gas, #Hazardous environment safety solutions, #Ex-Proof container for drilling rigs, #Offshore container solutions
Written by Oliver
- Published on
In industries where explosive or flammable materials are prevalent, ensuring the safety of equipment and personnel is of utmost importance. Positive pressurized containers are designed to meet the strict explosion-proof requirements of these hazardous environments. This blog explores the core principles behind these containers and why they are essential for ensuring operational safety.
What Are Positive Pressurized Containers?
Positive pressurized containers are specially designed enclosures that maintain a controlled internal pressure to prevent the ingress of hazardous gases or dust. These containers are crucial for housing electrical equipment and machinery that may not be explosion-proof but need to be safely operated in environments with a risk of explosion.
How Do Positive Pressurized Containers Work?
The principle behind positive pressurized containers lies in their ability to maintain a higher internal pressure than the surrounding environment, thereby preventing the entry of flammable or explosive materials. Here's a breakdown of the process that makes these containers effective in explosive environments:
Why Positive Pressurized Containers Matter
Positive pressurized containers are an essential safety feature in environments where explosive or flammable materials are present. Their design ensures that non-explosion-proof equipment can safely operate within hazardous zones by creating a safe and controlled environment inside the container. Here are some of the key benefits:
TLS Offshore Pressurized Containers
At TLS Offshore Containers, we prioritize safety and compliance. Our positive pressurized containers are designed and manufactured to meet the highest standards in the industry. With cutting-edge features and robust testing procedures, our containers provide a secure and explosion-proof environment for your operations, no matter how demanding the conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Explosion-proof containers, #Hazardous environment safety, #Positive pressure ventilation system, #Explosion-proof equipment housing, #Safety containers for explosive areas, #Hazardous area enclosures, #Explosion-proof technology, #Industrial safety containers, #Explosion protection systems, #Safe electrical equipment in hazardous zones, #Flammable material safety solutions
What Are Positive Pressurized Containers?
Positive pressurized containers are specially designed enclosures that maintain a controlled internal pressure to prevent the ingress of hazardous gases or dust. These containers are crucial for housing electrical equipment and machinery that may not be explosion-proof but need to be safely operated in environments with a risk of explosion.
How Do Positive Pressurized Containers Work?
The principle behind positive pressurized containers lies in their ability to maintain a higher internal pressure than the surrounding environment, thereby preventing the entry of flammable or explosive materials. Here's a breakdown of the process that makes these containers effective in explosive environments:
- Automatic System Activation
- Fresh Air Inflow
- Purging Process
- Controlled Power Activation
- Continuous Monitoring and Alarm System
Why Positive Pressurized Containers Matter
Positive pressurized containers are an essential safety feature in environments where explosive or flammable materials are present. Their design ensures that non-explosion-proof equipment can safely operate within hazardous zones by creating a safe and controlled environment inside the container. Here are some of the key benefits:
- Safety: By maintaining a constant positive pressure, these containers help prevent the ingress of hazardous gases and dust, significantly reducing the risk of an explosion.
- Cost-Effective: Companies can use regular non-explosion-proof equipment in positive pressurized containers, saving on the high costs of explosion-proof alternatives.
- Compliance: These containers adhere to the latest safety standards and regulations, ensuring that your operations remain in compliance with industry requirements.
TLS Offshore Pressurized Containers
At TLS Offshore Containers, we prioritize safety and compliance. Our positive pressurized containers are designed and manufactured to meet the highest standards in the industry. With cutting-edge features and robust testing procedures, our containers provide a secure and explosion-proof environment for your operations, no matter how demanding the conditions.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords: #Explosion-proof containers, #Hazardous environment safety, #Positive pressure ventilation system, #Explosion-proof equipment housing, #Safety containers for explosive areas, #Hazardous area enclosures, #Explosion-proof technology, #Industrial safety containers, #Explosion protection systems, #Safe electrical equipment in hazardous zones, #Flammable material safety solutions
