A Battery Management System (BMS) is a technology dedicated to supervising a battery pack, a configuration of battery cells organized in a matrix of rows and columns for electrical arrangement. This setup enables the provision of a target range of voltage and current over a period for anticipated load situations.
The supervision offered by a BMS typically includes:
- Monitoring the entire battery pack
- Providing battery protection
- Estimating the battery's operational state
- Continuously optimizing battery performance
- Reporting operational status to external devices
however, monitoring and control functions specifically apply to individual cells or groups within the battery pack, known as modules. Lithium-ion rechargeable batteries, known for their high energy density, are the standard choice for battery packs in a wide range of consumer goods from laptops to electric vehicles. While they perform excellently, lithium-ion batteries can be unforgiving if operated outside their typically stringent Safety Operating Area (SOA), with consequences ranging from degraded battery performance to outright dangerous outcomes. The job description of a BMS undoubtedly presents challenges, with its overall complexity and supervision scope potentially involving multiple disciplines such as electrical, digital, control, thermal, and hydraulic engineering.
How Does a Battery Management System Work?
There is no fixed or unique standard that a Battery Management System must adhere to. The technical design scope and features implemented are typically related to:
- The battery pack's cost, complexity, and size
- The application of the battery and any concerns regarding safety, lifespan, and warranty
- Certification requirements of various governmental regulations, where the costs and penalties are crucial if functional safety measures are not in place
BMS designs encompass many functionalities, with battery pack protection management and capacity management being two fundamental aspects. This article discusses how these two functionalities work. Battery pack protection management covers two key areas: electrical protection, which means preventing damage to the battery by not allowing it to be used outside of its SOA, and thermal protection, which involves passive and/or active temperature control to maintain or bring the battery pack into the SOA.
Types of Battery Management Systems
Battery Management Systems vary from simple to complex and can adopt different technologies to fulfill their primary directive of “caring for the battery.” However, these systems can be categorized based on their topology, which relates to how they are installed and operate across the battery or modules within the entire battery pack.
The Importance of Battery Management Systems
In BMS, functional safety is paramount. Preventing any battery or module under supervision control from exceeding specified SOA limits for voltage, current, and temperature during charging and discharging operations is crucial. Exceeding these limits for any length of time can not only affect the potentially expensive battery pack but may also result in dangerous thermal runaway conditions. Furthermore, for the protection of lithium-ion batteries and functional safety, lower voltage threshold limits are strictly monitored. If lithium-ion batteries remain in such a low voltage state, copper dendrites may eventually grow on the anode, which can increase the self-discharge rate and pose potential safety issues. The high energy density of lithium-ion power systems comes with the cost of having virtually no room for errors in battery management. Thanks to BMS and improvements in lithium-ion batteries, it is one of the most successful and safest battery chemistries available today.
Benefits of a Battery Management System
A complete battery energy storage system, often referred to as BESS, can be composed of dozens, hundreds, or even thousands of lithium-ion batteries strategically assembled together, depending on the application. The rated voltage of these systems may be less than 100V but can go up to 800V, with battery pack supply currents ranging up to 300A or more. Any mismanagement of high-voltage battery packs could lead to life-threatening catastrophic disasters. Therefore, a BMS is crucial for ensuring safe operation. The benefits of a BMS can be summarized as follows:
- Functional Safety:
Particularly prudent and necessary for large-sized lithium-ion battery packs. However, it's well-known that even smaller formats used in laptops can catch fire and cause immense destruction. There's virtually no room for battery management errors regarding the personal safety of users of products containing lithium-ion power systems.
- Lifespan and Reliability: Battery pack protection management, both electrical and thermal, ensures that all batteries are used within the declared SOA requirements. This delicate supervision ensures the safe use of batteries through rapid charging and discharging cycles, inevitably producing a stable system capable of providing years of reliable service.
- Performance and Range: BMS battery pack capacity management, where inter-battery balancing is employed to equalize the SOC across adjacent cells in the battery pack component, allows for optimal battery capacity. Without this BMS functionality to account for variations in self-discharge, charging/discharging cycles, temperature effects, and general aging, the battery pack could ultimately become useless.
- Diagnostics, Data Collection, and External Communication:
The supervisory task includes continuous monitoring of all battery units, where data logging itself can be used for diagnostics but is usually employed for computing tasks to predict the SOC across all batteries in the component. This information is used for balancing algorithms but can also be forwarded to external devices and displays to indicate the available residing energy, estimate expected range or lifespan based on current usage, and provide the health status of the battery pack.
- Reduced Costs and Warranty:
Introducing a BMS into a BESS adds cost, as battery packs are expensive and have potential hazards. The more complex the system, the higher the safety requirements, thus more BMS supervision needed. However, the protection and preventative maintenance offered by a BMS in terms of functional safety, lifespan and reliability, performance and range, diagnostics, etc., ensure that it will lower overall costs, including those associated with warranty.
Simulation is a valuable ally in BMS design, especially when applied to explore and resolve design challenges in hardware development, prototyping, and testing. With accurate lithium-ion battery models, the simulated model of the BMS architecture is recognized as an executable specification for virtual prototypes. Moreover, simulation allows for the painless investigation of variants of BMS supervisory functions against different battery and environmental operating scenarios. Implementation issues can be discovered and investigated early, allowing for verification of performance and functional safety improvements before actual hardware prototype implementation. This reduces development time and helps ensure that the first hardware prototype is robust. Moreover, many authentication tests can be conducted on the BMS and battery pack, including worst-case scenarios, when applied in embedded systems applications.
The supervision offered by a BMS typically includes:
- Monitoring the entire battery pack
- Providing battery protection
- Estimating the battery's operational state
- Continuously optimizing battery performance
- Reporting operational status to external devices
however, monitoring and control functions specifically apply to individual cells or groups within the battery pack, known as modules. Lithium-ion rechargeable batteries, known for their high energy density, are the standard choice for battery packs in a wide range of consumer goods from laptops to electric vehicles. While they perform excellently, lithium-ion batteries can be unforgiving if operated outside their typically stringent Safety Operating Area (SOA), with consequences ranging from degraded battery performance to outright dangerous outcomes. The job description of a BMS undoubtedly presents challenges, with its overall complexity and supervision scope potentially involving multiple disciplines such as electrical, digital, control, thermal, and hydraulic engineering.
How Does a Battery Management System Work?
There is no fixed or unique standard that a Battery Management System must adhere to. The technical design scope and features implemented are typically related to:
- The battery pack's cost, complexity, and size
- The application of the battery and any concerns regarding safety, lifespan, and warranty
- Certification requirements of various governmental regulations, where the costs and penalties are crucial if functional safety measures are not in place
BMS designs encompass many functionalities, with battery pack protection management and capacity management being two fundamental aspects. This article discusses how these two functionalities work. Battery pack protection management covers two key areas: electrical protection, which means preventing damage to the battery by not allowing it to be used outside of its SOA, and thermal protection, which involves passive and/or active temperature control to maintain or bring the battery pack into the SOA.
Types of Battery Management Systems
Battery Management Systems vary from simple to complex and can adopt different technologies to fulfill their primary directive of “caring for the battery.” However, these systems can be categorized based on their topology, which relates to how they are installed and operate across the battery or modules within the entire battery pack.
The Importance of Battery Management Systems
In BMS, functional safety is paramount. Preventing any battery or module under supervision control from exceeding specified SOA limits for voltage, current, and temperature during charging and discharging operations is crucial. Exceeding these limits for any length of time can not only affect the potentially expensive battery pack but may also result in dangerous thermal runaway conditions. Furthermore, for the protection of lithium-ion batteries and functional safety, lower voltage threshold limits are strictly monitored. If lithium-ion batteries remain in such a low voltage state, copper dendrites may eventually grow on the anode, which can increase the self-discharge rate and pose potential safety issues. The high energy density of lithium-ion power systems comes with the cost of having virtually no room for errors in battery management. Thanks to BMS and improvements in lithium-ion batteries, it is one of the most successful and safest battery chemistries available today.
Benefits of a Battery Management System
A complete battery energy storage system, often referred to as BESS, can be composed of dozens, hundreds, or even thousands of lithium-ion batteries strategically assembled together, depending on the application. The rated voltage of these systems may be less than 100V but can go up to 800V, with battery pack supply currents ranging up to 300A or more. Any mismanagement of high-voltage battery packs could lead to life-threatening catastrophic disasters. Therefore, a BMS is crucial for ensuring safe operation. The benefits of a BMS can be summarized as follows:
- Functional Safety:
Particularly prudent and necessary for large-sized lithium-ion battery packs. However, it's well-known that even smaller formats used in laptops can catch fire and cause immense destruction. There's virtually no room for battery management errors regarding the personal safety of users of products containing lithium-ion power systems.
- Lifespan and Reliability: Battery pack protection management, both electrical and thermal, ensures that all batteries are used within the declared SOA requirements. This delicate supervision ensures the safe use of batteries through rapid charging and discharging cycles, inevitably producing a stable system capable of providing years of reliable service.
- Performance and Range: BMS battery pack capacity management, where inter-battery balancing is employed to equalize the SOC across adjacent cells in the battery pack component, allows for optimal battery capacity. Without this BMS functionality to account for variations in self-discharge, charging/discharging cycles, temperature effects, and general aging, the battery pack could ultimately become useless.
- Diagnostics, Data Collection, and External Communication:
The supervisory task includes continuous monitoring of all battery units, where data logging itself can be used for diagnostics but is usually employed for computing tasks to predict the SOC across all batteries in the component. This information is used for balancing algorithms but can also be forwarded to external devices and displays to indicate the available residing energy, estimate expected range or lifespan based on current usage, and provide the health status of the battery pack.
- Reduced Costs and Warranty:
Introducing a BMS into a BESS adds cost, as battery packs are expensive and have potential hazards. The more complex the system, the higher the safety requirements, thus more BMS supervision needed. However, the protection and preventative maintenance offered by a BMS in terms of functional safety, lifespan and reliability, performance and range, diagnostics, etc., ensure that it will lower overall costs, including those associated with warranty.
Simulation is a valuable ally in BMS design, especially when applied to explore and resolve design challenges in hardware development, prototyping, and testing. With accurate lithium-ion battery models, the simulated model of the BMS architecture is recognized as an executable specification for virtual prototypes. Moreover, simulation allows for the painless investigation of variants of BMS supervisory functions against different battery and environmental operating scenarios. Implementation issues can be discovered and investigated early, allowing for verification of performance and functional safety improvements before actual hardware prototype implementation. This reduces development time and helps ensure that the first hardware prototype is robust. Moreover, many authentication tests can be conducted on the BMS and battery pack, including worst-case scenarios, when applied in embedded systems applications.
In the quest for sustainable development and meeting the escalating demands for energy, the innovation and research in energy storage technology have taken center stage in the new energy sector. Notably, Battery Energy Storage Systems (BESS) stand out for their high efficiency, renewable nature, and environmental benefits. Yet, the performance and longevity of energy storage solutions, including lithium-ion, lead-acid, and cutting-edge solid-state batteries, are significantly impacted by temperature. This highlights the indispensable need for proficient thermal management within energy storage systems.
Understanding the Need for Thermal Management in Energy Storage
Energy storage devices undergo thermal fluctuations during the charging and discharging cycles, generating heat that, if not effectively dissipated, can elevate battery temperatures to detrimental levels. Such scenarios not only degrade battery performance but also elevate the risk of thermal runaway, fires, or explosions. Implementing robust thermal management practices ensures batteries operate within their optimal temperature range, enhancing energy utilization, extending service life, and mitigating potential safety hazards.
Mechanisms of Thermal Management in Energy Storage
A comprehensive thermal management system encompasses thermal sensors, cooling systems (leveraging either liquid or gas mediums), heat exchangers, and control units, among other components:
- **Sensors** play a pivotal role in monitoring individual cell temperatures within the battery pack, feeding real-time data to the control unit for optimal thermal regulation.
- **Cooling Mediums** are selected based on their thermal conductivity, safety, and cost-effectiveness, with air cooling, liquid cooling (such as water/glycol mixtures), and phase change materials being prevalent choices.
- **Heat Exchangers** facilitate the transfer of heat from the batteries to the cooling medium, ensuring rapid and efficient heat dissipation.
- **Control Units** dynamically adjust cooling system operations based on sensor data, maintaining battery operations within the ideal temperature range for maximum efficiency and safety.
The Significance of Optimal Temperature Regulation
The optimal temperature range for the majority of batteries is approximately 20°C to 25°C, albeit with variations across different types and manufacturers. Within this thermal window, batteries can achieve peak performance, characterized by stable and uniform chemical reactions, low self-discharge rates, and thereby, high energy efficiency and extended lifespan.
Thermal Management Technologies: Passive vs. Active Cooling
- **Passive Cooling Technologies** rely on natural heat dissipation processes, such as conduction, radiation, and convection, without external energy input. Insulating materials and heat sinks are commonly utilized to achieve passive cooling.
- **Active Cooling Technologies** enhance heat removal through external energy sources, including fans and liquid pumps, offering a more controlled temperature management solution, especially under conditions of high operational loads or ambient temperatures.
Environmental and Cost Implications of Thermal Management Systems
Efficient thermal management systems not only curb energy loss attributable to excessive heat but also boost the overall energy efficiency of storage systems. This leads to reduced maintenance and replacement expenses, prolongs battery lifespan, and minimizes waste, contributing to environmental sustainability. Additionally, the integration of energy-efficient and sustainable materials in thermal management designs emphasizes a commitment to eco-friendly practices.
By advancing thermal management techniques, the energy storage sector can significantly improve the performance, safety, and environmental footprint of battery systems, marking a pivotal step toward achieving a sustainable energy future.
Understanding the Need for Thermal Management in Energy Storage
Energy storage devices undergo thermal fluctuations during the charging and discharging cycles, generating heat that, if not effectively dissipated, can elevate battery temperatures to detrimental levels. Such scenarios not only degrade battery performance but also elevate the risk of thermal runaway, fires, or explosions. Implementing robust thermal management practices ensures batteries operate within their optimal temperature range, enhancing energy utilization, extending service life, and mitigating potential safety hazards.
Mechanisms of Thermal Management in Energy Storage
A comprehensive thermal management system encompasses thermal sensors, cooling systems (leveraging either liquid or gas mediums), heat exchangers, and control units, among other components:
- **Sensors** play a pivotal role in monitoring individual cell temperatures within the battery pack, feeding real-time data to the control unit for optimal thermal regulation.
- **Cooling Mediums** are selected based on their thermal conductivity, safety, and cost-effectiveness, with air cooling, liquid cooling (such as water/glycol mixtures), and phase change materials being prevalent choices.
- **Heat Exchangers** facilitate the transfer of heat from the batteries to the cooling medium, ensuring rapid and efficient heat dissipation.
- **Control Units** dynamically adjust cooling system operations based on sensor data, maintaining battery operations within the ideal temperature range for maximum efficiency and safety.
The Significance of Optimal Temperature Regulation
The optimal temperature range for the majority of batteries is approximately 20°C to 25°C, albeit with variations across different types and manufacturers. Within this thermal window, batteries can achieve peak performance, characterized by stable and uniform chemical reactions, low self-discharge rates, and thereby, high energy efficiency and extended lifespan.
Thermal Management Technologies: Passive vs. Active Cooling
- **Passive Cooling Technologies** rely on natural heat dissipation processes, such as conduction, radiation, and convection, without external energy input. Insulating materials and heat sinks are commonly utilized to achieve passive cooling.
- **Active Cooling Technologies** enhance heat removal through external energy sources, including fans and liquid pumps, offering a more controlled temperature management solution, especially under conditions of high operational loads or ambient temperatures.
Environmental and Cost Implications of Thermal Management Systems
Efficient thermal management systems not only curb energy loss attributable to excessive heat but also boost the overall energy efficiency of storage systems. This leads to reduced maintenance and replacement expenses, prolongs battery lifespan, and minimizes waste, contributing to environmental sustainability. Additionally, the integration of energy-efficient and sustainable materials in thermal management designs emphasizes a commitment to eco-friendly practices.
By advancing thermal management techniques, the energy storage sector can significantly improve the performance, safety, and environmental footprint of battery systems, marking a pivotal step toward achieving a sustainable energy future.
In the relentless pursuit of offshore safety and efficiency, TLS Offshore Containers emerges as a beacon of reliability and innovation. Central to their arsenal of offerings are Positive Pressurised Containers, meticulously crafted to mitigate risks and ensure a secure environment in the most challenging offshore conditions. Let's delve deeper into the features and applications of TLS Positive Pressurised Containers, and how they elevate offshore safety to unprecedented levels.

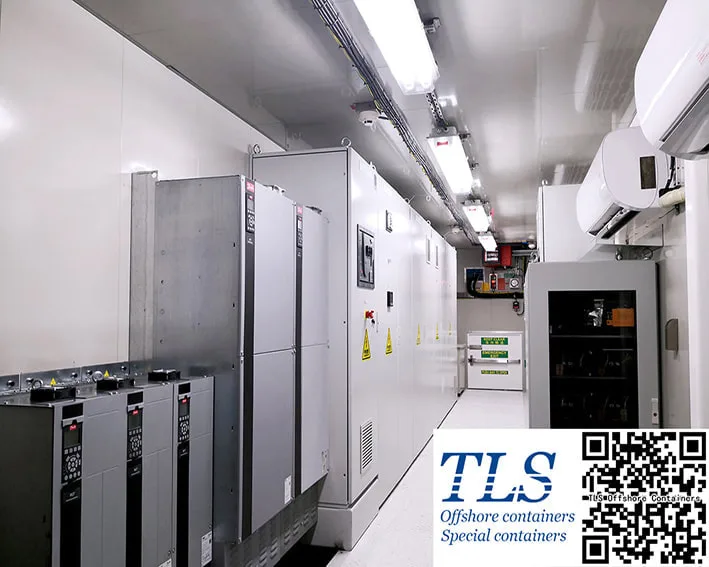

### Understanding Positive Pressurised Containers
Positive Pressurised Containers are the backbone of offshore safety, engineered to maintain internal pressure higher than the surrounding environment. This critical differential acts as a barrier against the ingress of explosive gases, safeguarding both personnel and sensitive equipment. TLS Positive Pressurised Containers stand out for their robust construction, advanced safety features, and compliance with rigorous industry standards.
### Advanced Safety Features
1. **Fire and Gas Detection Systems:** TLS Positive Pressurised Containers are equipped with cutting-edge fire and gas detection systems, providing early warning alerts to swiftly mitigate potential hazards.
2. **Compliance with Industry Standards:** These containers adhere to stringent safety standards such as ATEX, IECEx, and NFPA, ensuring optimal performance and reliability.
3. **Durable Construction:** Built to withstand the harsh offshore environment, TLS containers are constructed with high-quality materials to ensure long-term durability and resilience.
4. **Continuous Pressure Monitoring:** TLS containers feature continuous pressure monitoring systems, ensuring optimal pressure levels are maintained at all times.
### Applications Across Offshore Ventures
TLS Positive Pressurised Containers find versatile applications across a spectrum of offshore operations:
1. **MUD Logging Units:** Vital for monitoring and analyzing drilling fluids, TLS containers provide a safe environment for critical well integrity assessments.
2. **Living Quarters:** TLS containers offer secure and comfortable living spaces for offshore personnel, fostering morale and well-being during extended offshore stays.
3. **Laboratories:** Ideal for safe sample handling and analysis in hazardous environments, TLS containers support essential research and data collection efforts.
### Elevating Offshore Safety and Efficiency
With TLS Positive Pressurised Containers, offshore operators experience a seamless blend of safety, reliability, and efficiency. These containers not only protect personnel and equipment but also empower operators to maximize productivity and achieve operational excellence in challenging offshore environments.
### A Testament to Reliability and Excellence
Backed by years of industry expertise and a proven track record, TLS Offshore Containers has earned the trust of offshore operators worldwide. Their Positive Pressurised Containers are a testament to reliability, delivering on the promise of safety and performance in the most demanding offshore conditions.
### Partnering for a Secure Future
In the ever-evolving landscape of offshore operations, TLS Offshore Containers stands as a trusted partner, dedicated to enhancing safety, reliability, and efficiency. By leveraging the advanced features and unmatched performance of TLS Positive Pressurised Containers, offshore ventures can navigate hazardous environments with confidence, knowing that TLS has their safety and success at heart.
For more information on TLS Positive Pressurised Containers and how they can elevate your offshore operations, visit [TLS Offshore Containers](https://www.tls-containers.com/pressurised-container.html).
### Understanding Positive Pressurised Containers
Positive Pressurised Containers are the backbone of offshore safety, engineered to maintain internal pressure higher than the surrounding environment. This critical differential acts as a barrier against the ingress of explosive gases, safeguarding both personnel and sensitive equipment. TLS Positive Pressurised Containers stand out for their robust construction, advanced safety features, and compliance with rigorous industry standards.
### Advanced Safety Features
1. **Fire and Gas Detection Systems:** TLS Positive Pressurised Containers are equipped with cutting-edge fire and gas detection systems, providing early warning alerts to swiftly mitigate potential hazards.
2. **Compliance with Industry Standards:** These containers adhere to stringent safety standards such as ATEX, IECEx, and NFPA, ensuring optimal performance and reliability.
3. **Durable Construction:** Built to withstand the harsh offshore environment, TLS containers are constructed with high-quality materials to ensure long-term durability and resilience.
4. **Continuous Pressure Monitoring:** TLS containers feature continuous pressure monitoring systems, ensuring optimal pressure levels are maintained at all times.
### Applications Across Offshore Ventures
TLS Positive Pressurised Containers find versatile applications across a spectrum of offshore operations:
1. **MUD Logging Units:** Vital for monitoring and analyzing drilling fluids, TLS containers provide a safe environment for critical well integrity assessments.
2. **Living Quarters:** TLS containers offer secure and comfortable living spaces for offshore personnel, fostering morale and well-being during extended offshore stays.
3. **Laboratories:** Ideal for safe sample handling and analysis in hazardous environments, TLS containers support essential research and data collection efforts.
### Elevating Offshore Safety and Efficiency
With TLS Positive Pressurised Containers, offshore operators experience a seamless blend of safety, reliability, and efficiency. These containers not only protect personnel and equipment but also empower operators to maximize productivity and achieve operational excellence in challenging offshore environments.
### A Testament to Reliability and Excellence
Backed by years of industry expertise and a proven track record, TLS Offshore Containers has earned the trust of offshore operators worldwide. Their Positive Pressurised Containers are a testament to reliability, delivering on the promise of safety and performance in the most demanding offshore conditions.
### Partnering for a Secure Future
In the ever-evolving landscape of offshore operations, TLS Offshore Containers stands as a trusted partner, dedicated to enhancing safety, reliability, and efficiency. By leveraging the advanced features and unmatched performance of TLS Positive Pressurised Containers, offshore ventures can navigate hazardous environments with confidence, knowing that TLS has their safety and success at heart.
For more information on TLS Positive Pressurised Containers and how they can elevate your offshore operations, visit [TLS Offshore Containers](https://www.tls-containers.com/pressurised-container.html).
