In oil and gas drilling operations, modular functional containers play a vital role in ensuring both safety and operational efficiency. Among the most commonly deployed modules are the Drilling Fluid Lab Cabin and the Mud Logging Unit (MLU). While these two systems often appear together on drilling sites, they serve fundamentally different purposes in terms of function, configuration, zoning requirements, and explosion-proof standards.
Distinct Functional Roles
The Drilling Fluid Lab Cabin is primarily used to test and adjust drilling fluid (mud) properties to ensure optimal performance across different drilling intervals. It is operated by mud engineers and is designed to monitor key parameters such as density, viscosity, pH, sand content, and fluid loss. Based on these results, the mud formulation can be promptly optimized to meet well-specific demands.
The Mud Logging Unit, on the other hand, functions as a real-time geological monitoring center. Through integrated sensor systems, it continuously collects and analyzes critical data such as cuttings, gas content, mud flow, and pump pressure. This data is used by geological engineers to evaluate subsurface formations, detect abnormalities, and support decision-making during the drilling process.
Different System Configurations

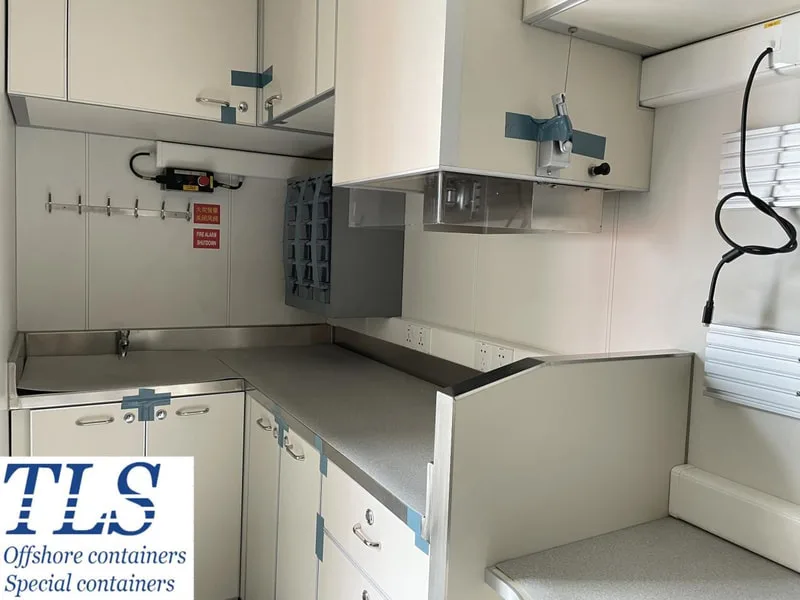

The Drilling Fluid Lab Cabin is outfitted with laboratory-grade equipment including test benches, density meters, filter press units, viscometers, and mixing tools. It also requires reliable ventilation, drainage, and lighting systems to support laboratory operations in field conditions.
The Mud Logging Unit integrates advanced sampling and monitoring instruments such as gas detectors, cuttings analyzers, data acquisition terminals, and industrial-grade computers. Data is typically visualized in real time and transmitted to the central control system, forming part of the broader drilling information network.
Zoning and Explosion-Proof Standards
These two modules are deployed in different safety zones based on site-specific hazardous area classifications. The Drilling Fluid Lab Cabin is generally positioned at the periphery of the platform or in designated safe areas—either Safe Area or Zone 2 depending on the site layout. While not always mandatory, Zone 2 explosion-proof designs are often recommended to ensure safety compliance.
In contrast, the Mud Logging Unit is typically located closer to the wellhead or return mud flow line, often within Zone 1 or Zone 2 hazardous areas. As such, it must be built to meet strict international explosion-proof certifications such as ATEX, IECEx, or UL, including explosion-proof electrical components, lighting systems, and positive pressure ventilation to ensure safe operation in hazardous environments.
Differences in Operational Mode
The Drilling Fluid Lab Cabin is operated on a shift-based schedule. Tests are conducted periodically based on operational needs, with the lab ready to respond around the clock if required.
The Mud Logging Unit, however, operates 24/7 without interruption. Staffed by engineers on rotating shifts, it ensures continuous monitoring of downhole data throughout the entire drilling process.
Conclusion
While the Drilling Fluid Lab Cabin and Mud Logging Unit are both essential components of drilling infrastructure, they fulfill complementary roles: one ensures the performance and safety of drilling fluids, while the other provides real-time geological insights. Together, they contribute to safer and more efficient drilling operations.
As a leading provider of modular functional containers, TLS offers custom-engineered Drilling Fluid Labs and Mud Logging Units that comply with Zone 1/Zone 2 explosion-proof requirements, adaptable for both onshore and offshore deployment across a wide range of operating environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:# Drilling Fluid Lab Cabin,# Mud Logging Unit,# Drilling support modules,# Modular drilling cabin,# ATEX Zone 1 container,# IECEx certified cabin,# Offshore mud lab,# Explosion-proof container,# Mud logging system,# Zone 2 lab container,# Custom drilling lab container,# Hazardous area modular lab,# Onshore mud logging unit,# Real-time drilling data cabin,# Modular oilfield container solution,# Drilling monitoring cabin system,# Offshore zone 1 certified cabin,# Drilling site fluid analysis lab,#Explosion-proof mud logging house,# Mobile containerized drilling lab
Distinct Functional Roles
The Drilling Fluid Lab Cabin is primarily used to test and adjust drilling fluid (mud) properties to ensure optimal performance across different drilling intervals. It is operated by mud engineers and is designed to monitor key parameters such as density, viscosity, pH, sand content, and fluid loss. Based on these results, the mud formulation can be promptly optimized to meet well-specific demands.
The Mud Logging Unit, on the other hand, functions as a real-time geological monitoring center. Through integrated sensor systems, it continuously collects and analyzes critical data such as cuttings, gas content, mud flow, and pump pressure. This data is used by geological engineers to evaluate subsurface formations, detect abnormalities, and support decision-making during the drilling process.
Different System Configurations
The Drilling Fluid Lab Cabin is outfitted with laboratory-grade equipment including test benches, density meters, filter press units, viscometers, and mixing tools. It also requires reliable ventilation, drainage, and lighting systems to support laboratory operations in field conditions.
The Mud Logging Unit integrates advanced sampling and monitoring instruments such as gas detectors, cuttings analyzers, data acquisition terminals, and industrial-grade computers. Data is typically visualized in real time and transmitted to the central control system, forming part of the broader drilling information network.
Zoning and Explosion-Proof Standards
These two modules are deployed in different safety zones based on site-specific hazardous area classifications. The Drilling Fluid Lab Cabin is generally positioned at the periphery of the platform or in designated safe areas—either Safe Area or Zone 2 depending on the site layout. While not always mandatory, Zone 2 explosion-proof designs are often recommended to ensure safety compliance.
In contrast, the Mud Logging Unit is typically located closer to the wellhead or return mud flow line, often within Zone 1 or Zone 2 hazardous areas. As such, it must be built to meet strict international explosion-proof certifications such as ATEX, IECEx, or UL, including explosion-proof electrical components, lighting systems, and positive pressure ventilation to ensure safe operation in hazardous environments.
Differences in Operational Mode
The Drilling Fluid Lab Cabin is operated on a shift-based schedule. Tests are conducted periodically based on operational needs, with the lab ready to respond around the clock if required.
The Mud Logging Unit, however, operates 24/7 without interruption. Staffed by engineers on rotating shifts, it ensures continuous monitoring of downhole data throughout the entire drilling process.
Conclusion
While the Drilling Fluid Lab Cabin and Mud Logging Unit are both essential components of drilling infrastructure, they fulfill complementary roles: one ensures the performance and safety of drilling fluids, while the other provides real-time geological insights. Together, they contribute to safer and more efficient drilling operations.
As a leading provider of modular functional containers, TLS offers custom-engineered Drilling Fluid Labs and Mud Logging Units that comply with Zone 1/Zone 2 explosion-proof requirements, adaptable for both onshore and offshore deployment across a wide range of operating environments.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:# Drilling Fluid Lab Cabin,# Mud Logging Unit,# Drilling support modules,# Modular drilling cabin,# ATEX Zone 1 container,# IECEx certified cabin,# Offshore mud lab,# Explosion-proof container,# Mud logging system,# Zone 2 lab container,# Custom drilling lab container,# Hazardous area modular lab,# Onshore mud logging unit,# Real-time drilling data cabin,# Modular oilfield container solution,# Drilling monitoring cabin system,# Offshore zone 1 certified cabin,# Drilling site fluid analysis lab,#Explosion-proof mud logging house,# Mobile containerized drilling lab
Written by Snowy
As digital transformation accelerates in the oil and gas industry, Measurement While Drilling (MWD) and Logging While Drilling (LWD) technologies are evolving from traditional data collection tools into intelligent systems that support real-time drilling decisions.
However, in order for these systems to function reliably in extreme environments, a robust and intelligent physical platform is essential. That’s where high-performance LWD/MWD containers play a critical role—not only protecting equipment but also serving as the core hub for data processing, communication, and environmental control.
1. Designed for Harsh Field Conditions
Some LWD/MWD units are installed near the wellhead, where they are exposed to high temperatures, humidity, vibration, dust, and explosive gases. These challenging conditions place stringent demands on the container design:
Environmental Control
EMC Shielding and Data Security
Explosion-Proof Safety (If Required by Site Conditions)
Versatile Data Interfaces
2. Optimized Layout and Structural Performance
To meet the demands of modern drilling operations, our LWD/MWD containers are engineered with both functionality and resilience in mind.
Modular Internal Layout
Reinforced Structural Design
Reliable Power Supply
3. Flexible Specifications and Customization
Our LWD/MWD containers are available in standard 20ft ISO formats as well as custom dimensions, with multiple configuration options tailored to different drilling applications.
Optional Features
Conclusion
LWD/MWD containers are more than structural shells—they are intelligent platforms that ensure the integrity, safety, and efficiency of your drilling operations. From explosion-proof systems to smart environmental control and high-speed data communication, every feature is engineered to meet the highest industry standards.
At TLS, we specialize in designing and manufacturing customized, certified LWD/MWD container systems that empower intelligent energy exploration—onshore and offshore alike.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:#LWD container,#MWD container,#intelligent drilling solutions,#ATEX certified container,#IECEx zone 1 container,#explosion-proof container,#data logging container,#oilfield control cabin,#real-time drilling data,#smart drilling operations,#offshore container solution,#wellsite data center,#gas detection system,#EMC shielded container,#remote drilling communication,#WITSML compatible,#oil and gas measurement module,#customized oilfield container,#TLS oilfield modules, #DNV 2.7-1 certified unit
However, in order for these systems to function reliably in extreme environments, a robust and intelligent physical platform is essential. That’s where high-performance LWD/MWD containers play a critical role—not only protecting equipment but also serving as the core hub for data processing, communication, and environmental control.
1. Designed for Harsh Field Conditions
Some LWD/MWD units are installed near the wellhead, where they are exposed to high temperatures, humidity, vibration, dust, and explosive gases. These challenging conditions place stringent demands on the container design:
Environmental Control
- Equipped with ATEX/IECEx-certified industrial HVAC systems
- Maintains stable internal temperatures between -20°C and +50°C, and humidity ≤80% RH
- Ensures consistent equipment performance and prevents data deviation
EMC Shielding and Data Security
- Integrated electromagnetic shielding prevents signal interference from high-power field equipment
- Supports accurate and uninterrupted data transmission
Explosion-Proof Safety (If Required by Site Conditions)
- Designed to meet Zone 1 or Zone 2 explosion-proof standards (e.g. ATEX, IECEx) when applicable
- Compatible with gas detection systems for methane, H₂S, and other hazardous gases
- Optional auto-shutdown and alarm trigger when hazardous gas concentrations are detected
- Explosion-proof lighting, ventilation, and pressurization systems can be integrated upon request
Versatile Data Interfaces
- Supports WITS and WITSML protocols
- Compatible with major LWD/MWD equipment brands such as Schlumberger and Halliburton
- Features high-speed fiber or satellite communication modules (≥10 Mbps) for real-time remote data transfer
2. Optimized Layout and Structural Performance
To meet the demands of modern drilling operations, our LWD/MWD containers are engineered with both functionality and resilience in mind.
Modular Internal Layout
- Data Processing Zone: Includes industrial-grade servers, UPS systems, monitors, and recorders
- Operator Workspace: Ergonomic setup with desks, control panels, and monitors
- Electrical Zone: Houses explosion-proof distribution boards, cable trays, and backup power ports
Reinforced Structural Design
- Complies with DNV 2.7-1 / EN 12079 offshore container standards
- Withstands wind pressure of ≥0.6 kPa
- Exterior finished with ISO 12944 C5-M anti-corrosion coating for resistance to salt spray, UV radiation, and sandstorms
- Flooring made from anti-static and anti-slip materials to ensure operational safety
Reliable Power Supply
- Dual power inputs with UPS backup ensure uninterrupted operation
- Optional diesel generator interface supports off-grid or remote drilling sites
3. Flexible Specifications and Customization
Our LWD/MWD containers are available in standard 20ft ISO formats as well as custom dimensions, with multiple configuration options tailored to different drilling applications.
Optional Features
- Remote diagnostics and monitoring modules
- Data backup arrays
- Fire-rated partitions
- Scalable Deployment
- Stackable and cluster-ready
- Supports integration with centralized control systems
Conclusion
LWD/MWD containers are more than structural shells—they are intelligent platforms that ensure the integrity, safety, and efficiency of your drilling operations. From explosion-proof systems to smart environmental control and high-speed data communication, every feature is engineered to meet the highest industry standards.
At TLS, we specialize in designing and manufacturing customized, certified LWD/MWD container systems that empower intelligent energy exploration—onshore and offshore alike.
TLS Offshore Containers / TLS Special Containers is a global supplier of standard and customised containerised solutions.
Wherever you are in the world TLS can help you, please contact us.
Product brochures:
Offshore pressurised mud logging cabin brochure
MCC | Switchgear | VFD | VSD pressurised shelter
Keywords:#LWD container,#MWD container,#intelligent drilling solutions,#ATEX certified container,#IECEx zone 1 container,#explosion-proof container,#data logging container,#oilfield control cabin,#real-time drilling data,#smart drilling operations,#offshore container solution,#wellsite data center,#gas detection system,#EMC shielded container,#remote drilling communication,#WITSML compatible,#oil and gas measurement module,#customized oilfield container,#TLS oilfield modules, #DNV 2.7-1 certified unit
Written by Snowy
Battery Energy Storage Systems (BESS) are critical assets in today’s energy infrastructure, used for frequency regulation, renewable integration, and grid support. As these systems are typically housed in heavy-duty containers, ensuring structural integrity during transportation, installation, and operation is essential. One of the most crucial steps in quality assurance is the lifting test—a mandatory procedure to validate the container’s ability to withstand dynamic forces during hoisting.
At TLS Energy, we specialize in the design and manufacturing of containerized BESS solutions. Serving top-tier energy clients globally, our containers are built to the highest standards. We conduct rigorous lifting tests to simulate real-world handling and certify structural safety.
What is a Lifting Test?
A lifting test is a structural assessment where a fully assembled BESS container—often loaded with steel blocks (dummy weights)—is lifted using certified lifting equipment. This test ensures the container frame, corner castings, and welds can bear the full load without deformation or damage.
In the test, simulated loads—often 20,000 kg or more, as shown in the image—are strategically placed to mimic real battery system weights. The container is then lifted from designated lifting points to evaluate:
These tests confirm the container complies with international safety standards, and they are essential for offshore or large-scale utility applications where safe handling is non-negotiable.
TLS Energy’s Lifting Test Standards
TLS Energy performs lifting tests in strict accordance with international container safety codes and engineering best practices. Each BESS container undergoes:
Our in-house testing procedures also simulate extreme handling scenarios to ensure that the container maintains its integrity even under harsh conditions.
Why It Matters
Inadequate lifting strength can lead to catastrophic failures during transport or crane operations. By conducting thorough lifting tests, TLS Energy provides peace of mind to clients, ensuring:
Global Trust in TLS Energy
With more than 10 years of experience in manufacturing and designing BESS containers, TLS Energy delivers OEM and ODM container solutions for global energy storage companies. Our clients rely on us not only for technical performance but also for exceptional safety standards.
By prioritizing safety through lifting tests and structural evaluations, TLS Energy continues to lead the way in delivering reliable, durable, and tested BESS container enclosures to markets worldwide.
At TLS Energy, we specialize in the design and manufacturing of containerized BESS solutions. Serving top-tier energy clients globally, our containers are built to the highest standards. We conduct rigorous lifting tests to simulate real-world handling and certify structural safety.
What is a Lifting Test?
A lifting test is a structural assessment where a fully assembled BESS container—often loaded with steel blocks (dummy weights)—is lifted using certified lifting equipment. This test ensures the container frame, corner castings, and welds can bear the full load without deformation or damage.
In the test, simulated loads—often 20,000 kg or more, as shown in the image—are strategically placed to mimic real battery system weights. The container is then lifted from designated lifting points to evaluate:
- Structural stability
- Frame integrity
- Weld joint quality
- Lifting lug alignment and strength
These tests confirm the container complies with international safety standards, and they are essential for offshore or large-scale utility applications where safe handling is non-negotiable.
TLS Energy’s Lifting Test Standards
TLS Energy performs lifting tests in strict accordance with international container safety codes and engineering best practices. Each BESS container undergoes:
- Visual inspection before and after lifting
- Deflection and stress analysis during the test
- Load distribution assessment
- Documented quality control checks
Our in-house testing procedures also simulate extreme handling scenarios to ensure that the container maintains its integrity even under harsh conditions.
Why It Matters
Inadequate lifting strength can lead to catastrophic failures during transport or crane operations. By conducting thorough lifting tests, TLS Energy provides peace of mind to clients, ensuring:
- Safe transportation from factory to installation site
- Long service life of the container structure
- Compliance with insurance and regulatory requirements
- Confidence for offshore and high-value grid-connected projects
Global Trust in TLS Energy
With more than 10 years of experience in manufacturing and designing BESS containers, TLS Energy delivers OEM and ODM container solutions for global energy storage companies. Our clients rely on us not only for technical performance but also for exceptional safety standards.
By prioritizing safety through lifting tests and structural evaluations, TLS Energy continues to lead the way in delivering reliable, durable, and tested BESS container enclosures to markets worldwide.
